Description: More...

#include <GaudiRoot/RootAddress.h>

Inheritance diagram for Gaudi::RootAddress:

[legend]

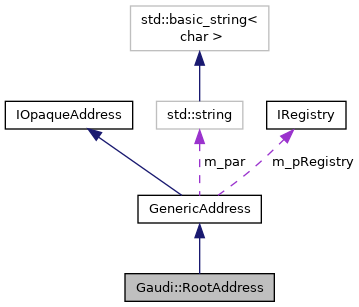

Collaboration diagram for Gaudi::RootAddress:

[legend]

Public Member Functions
	RootAddress (long svc, const CLID &clid, const std::string &p1="", const std::string &p2="", unsigned long ip1=0, unsigned long ip2=0)
	Full constructor.

virtual	~RootAddress ()
	Standard Destructor.

	RootAddress (const RootAddress &)=delete

RootAddress &	operator= (const RootAddress &)=delete

Public Member Functions inherited from GenericAddress
	GenericAddress ()=default
	Dummy constructor.

	GenericAddress (const GenericAddress &copy)
	Standard Copy Constructor (note: m_refCount is NOT copied)

	GenericAddress (long svc, const CLID &clid, std::string p1="", std::string p2="", unsigned long ip1=0, unsigned long ip2=0)
	Standard Constructor.

GenericAddress &	operator= (const GenericAddress &copy)=default

unsigned long	addRef () override
	Add reference to object.

unsigned long	release () override
	release reference to object

IRegistry *	registry () const override
	Pointer to directory.

void	setRegistry (IRegistry *pRegistry) override
	Set pointer to directory.

const CLID &	clID () const override
	Access : Retrieve class ID of the link.

void	setClID (const CLID &clid)
	Access : Set class ID of the link.

long	svcType () const override
	Access : retrieve the storage type of the class id.

void	setSvcType (long typ)
	Access : set the storage type of the class id.

const std::string *	par () const override
	Retrieve string parameters.

const unsigned long *	ipar () const override
	Retrieve integer parameters.

Public Member Functions inherited from IOpaqueAddress
virtual	~IOpaqueAddress ()=default

Public Attributes
TTreeFormula *	select = nullptr
	Pointer to ROOT select statement (filled for N-tuples only)

TTree *	section = nullptr
	Pointer to ROOT TTree (filled for N-tuples only)

Additional Inherited Members
Protected Attributes inherited from GenericAddress
unsigned long	m_refCount = 0
	Reference count.

long	m_svcType = 0
	Storage type.

CLID	m_clID = 0
	Class id.

std::string	m_par [3]
	String parameters to be accessed.

unsigned long	m_ipar [2] = { 0xFFFFFFFF, 0xFFFFFFFF }
	Integer parameters to be accessed.

IRegistry *	m_pRegistry = nullptr
	Pointer to corresponding directory.

Detailed Description

Description:

Definition of a transient link which is capable of locating an object in the persistent storage.

Author: M.Frank

Version: 1.0

Definition at line 45 of file RootAddress.h.

Constructor & Destructor Documentation

◆ RootAddress() [1/2]

Gaudi::RootAddress::RootAddress	(	long	svc,
		const CLID &	clid,
		const std::string &	p1 = "",
		const std::string &	p2 = "",
		unsigned long	ip1 = 0,
		unsigned long	ip2 = 0 )

inline

Full constructor.

Definition at line 54 of file RootAddress.h.

56 : GenericAddress( svc, clid, p1, p2, ip1, ip2 ) {}

GenericAddress::GenericAddress

GenericAddress()=default

Dummy constructor.

◆ ~RootAddress()

virtual Gaudi::RootAddress::~RootAddress ( )

inlinevirtual

Standard Destructor.

Definition at line 58 of file RootAddress.h.

58{ delete select; }

Gaudi::RootAddress::select

TTreeFormula * select

Pointer to ROOT select statement (filled for N-tuples only)

Definition RootAddress.h:48

◆ RootAddress() [2/2]

Gaudi::RootAddress::RootAddress ( const RootAddress & )

delete

Member Function Documentation

◆ operator=()

RootAddress & Gaudi::RootAddress::operator= ( const RootAddress & )

delete

Member Data Documentation

◆ section

TTree* Gaudi::RootAddress::section = nullptr

Pointer to ROOT TTree (filled for N-tuples only)

Definition at line 50 of file RootAddress.h.

◆ select

TTreeFormula* Gaudi::RootAddress::select = nullptr

Pointer to ROOT select statement (filled for N-tuples only)

Definition at line 48 of file RootAddress.h.

The documentation for this class was generated from the following file:

RootCnv/include/RootCnv/RootAddress.h
