HistoTableFormat.h File Reference

#include <GaudiKernel/Kernel.h>
#include <string>

Include dependency graph for HistoTableFormat.h:

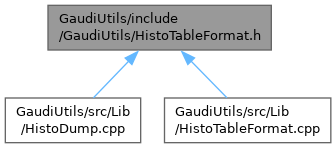

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Gaudi::Utils::Histos::Table
	Simple class for the customizeble printout of the histogram tables. More...

Namespaces
namespace	AIDA
namespace	Gaudi
	This file provides a Grammar for the type Gaudi::Accumulators::Axis It allows to use that type from python with a format liks : ( nbins, min, max, title ) where title can be ommited.
namespace	Gaudi::Utils
namespace	Gaudi::Utils::Histos
	Collection of useful utilities for manipulations with AIDA hisgograms.
namespace	Gaudi::Utils::Histos::Formats
	The 15 format fields are predefined now:

Enumerations
enum	Gaudi::Utils::Histos::Formats::Format {   Gaudi::Utils::Histos::Formats::Default = 0 , Gaudi::Utils::Histos::Formats::Old , Gaudi::Utils::Histos::Formats::Full , Gaudi::Utils::Histos::Formats::FullStat ,   Gaudi::Utils::Histos::Formats::Stat , Gaudi::Utils::Histos::Formats::StatOnly , Gaudi::Utils::Histos::Formats::Stat1 , Gaudi::Utils::Histos::Formats::ShapeOnly ,   Gaudi::Utils::Histos::Formats::Shape , Gaudi::Utils::Histos::Formats::LineTitle , Gaudi::Utils::Histos::Formats::LineOnly , Gaudi::Utils::Histos::Formats::PathTitle }
	the ID for predefined formats More...

Functions
GAUDI_API std::string	Gaudi::Utils::Histos::Formats::format (const int ID=Default)
	get the format by enum
GAUDI_API std::string	Gaudi::Utils::Histos::Formats::header (const int ID=Default)
	get the recommended header by enum
GAUDI_API std::string	Gaudi::Utils::Histos::path (const AIDA::IBaseHistogram *aida)
	get the path in THS for AIDA histogram
GAUDI_API std::string	Gaudi::Utils::Histos::format (const AIDA::IHistogram1D *histo, const std::string &fmt)
	Make the string representation of the histogram according to the specified format.
GAUDI_API std::string	Gaudi::Utils::Histos::format (const AIDA::IProfile1D *histo, const std::string &fmt)
	Make the string representation of the profile histogram according to the specified format.
GAUDI_API std::string	Gaudi::Utils::Histos::format (const AIDA::IHistogram1D *histo, const std::string &ID, const std::string &fmt1, const std::string &fmt2)
	format a full row in table, including ID, label, path or any other "extra" identifier in string form
GAUDI_API std::string	Gaudi::Utils::Histos::format (const AIDA::IProfile1D *histo, const std::string &ID, const std::string &fmt1, const std::string &fmt2)
	format a full row in table, including ID, label, path or any other "extra" identifier in string form
template<class HISTO, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printList (HISTO first, HISTO last, const std::string &fmt, STREAM &stream, TERMINATOR term)
	print the simple sequence (list-like) of histograms as table
template<class LIST, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printList (const LIST &histos, const std::string &fmt, STREAM &stream, TERMINATOR term)
	print the simple container of histograms as table
template<class HISTO, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printMap (HISTO begin, HISTO end, const std::string &fmt1, const std::string &fmt2, STREAM &stream, TERMINATOR term)
	Print the "associative sequence" (e.g.
template<class MAP, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printMap (const MAP &histos, const std::string &fmt1, const std::string &fmt2, STREAM &stream, TERMINATOR term)
	Print the "associative sequence" (e.g.
GAUDI_API std::string	Gaudi::Utils::Histos::format (const std::string &val1, const std::string &val2, const std::string &fmt)
	helper method to merge the headers for short format table
