IInterface.h File Reference

#include <Gaudi/Concepts.h>
#include <GaudiKernel/Kernel.h>
#include <GaudiKernel/StatusCode.h>
#include <GaudiKernel/System.h>
#include <ostream>
#include <type_traits>
#include <typeinfo>
#include <GaudiKernel/extend_interfaces.h>
#include <GaudiKernel/extends.h>
#include <GaudiKernel/implements.h>

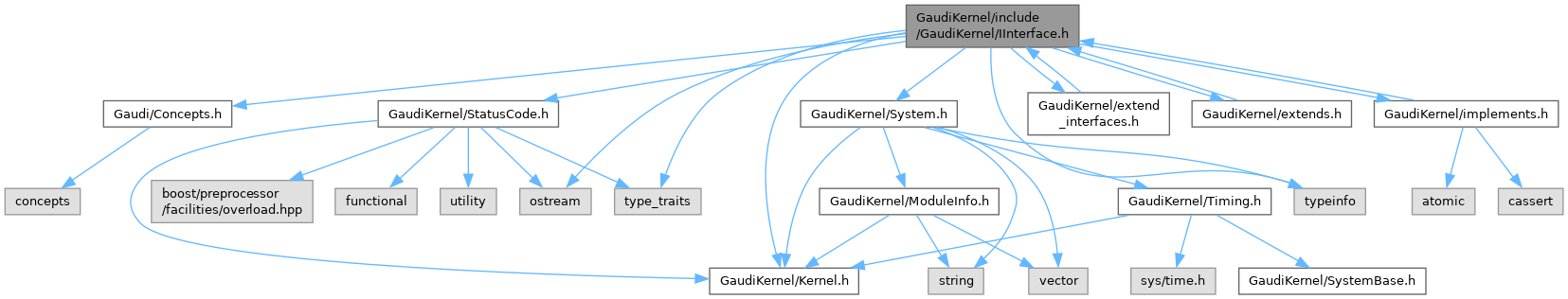

Include dependency graph for IInterface.h:

Go to the source code of this file.

Classes
class	InterfaceID
	Interface ID class. More...
struct	Gaudi::interface_list< I >
struct	Gaudi::meta::id_< T >
struct	Gaudi::meta::detail::inherit_from< Is >
struct	Gaudi::meta::detail::append1< List, I >
struct	Gaudi::meta::detail::append1< interface_list< Is... >, I >
struct	Gaudi::meta::detail::appendN< typename, typename >
struct	Gaudi::meta::detail::appendN< interface_list<>, State >
struct	Gaudi::meta::detail::appendN< interface_list< I, Is... >, List >
struct	Gaudi::interface_list_cat< interface_list< I... > >
struct	Gaudi::interface_list_cat< interface_list< I1... >, interface_list< I2... > >
struct	Gaudi::interface_list_cat< interface_list< I1... >, interface_list< I2... >, Others... >
struct	Gaudi::interface_list_append< interface_list< Is... >, I >
struct	Gaudi::InterfaceId< INTERFACE, majVers, minVers >
	Class to handle automatically the versioning of the interfaces when they are inheriting from other interfaces. More...
struct	Gaudi::fullMatch_t
struct	Gaudi::majorMatch_t
class	IInterface
	Definition of the basic interface. More...

Namespaces
namespace	Gaudi
	This file provides a Grammar for the type Gaudi::Accumulators::Axis It allows to use that type from python with a format liks : ( nbins, min, max, title ) where title can be ommited.
namespace	Gaudi::meta
namespace	Gaudi::meta::detail

Macros
#define	DeclareInterfaceID(iface, major, minor)
	Macro to declare the interface ID when using the new mechanism of extending and implementing interfaces.

Typedefs
template<typename... Is>
using	Gaudi::meta::unique_interface_list = detail::appendN<interface_list<Is...>, interface_list<>>

Functions
template<typename... Is>
std::vector< std::string >	Gaudi::getInterfaceNames (Gaudi::interface_list< Is... >)
template<typename... Is, typename P>
void *	Gaudi::iid_cast (const InterfaceID &tid, Gaudi::interface_list< Is... >, P *ptr)
template<typename TARGET>
TARGET *	Gaudi::Cast (IInterface *i)
template<typename TARGET>
const TARGET *	Gaudi::Cast (const IInterface *i)
template<class IFace>
bool	isValidInterface (IFace *i)
	Templated function that throws an exception if the version if the interface implemented by the object behind the interface is incompatible.
template<class DEST, class SRC>
DEST **	pp_cast (SRC **ptr)
	Small function to be used instead of the construct (void**)&pointer, which produces, on gcc 4.1 optimized, the warning warning: dereferencing type-punned pointer will break strict-aliasing rules The assempler code produced is equivalent to the one with the direct cast.

Macro Definition Documentation

DeclareInterfaceID

#define DeclareInterfaceID	(		iface,
			major,
			minor )

Value:

  static const InterfaceID& interfaceID() { return iid::interfaceID(); }                                               \
  using iid      = Gaudi::InterfaceId<iface, major, minor>;                                                            \
  using ext_iids = typename iid::iids

Macro to declare the interface ID when using the new mechanism of extending and implementing interfaces.

Definition at line 22 of file IInterface.h.

#define DeclareInterfaceID( iface, major, minor )                                                                      \
  static const InterfaceID& interfaceID() { return iid::interfaceID(); }                                               \
  using iid      = Gaudi::InterfaceId<iface, major, minor>;                                                            \
  using ext_iids = typename iid::iids

Function Documentation

isValidInterface()

template<class IFace>

bool isValidInterface

(

IFace *

i

)

Templated function that throws an exception if the version if the interface implemented by the object behind the interface is incompatible.

This is the case if the major version differs or that the minor version of the client is bigger than of the implementer.

Note

A call to this function implies an increment of the reference count in case of success.

Author

Pere Mato

Definition at line 354 of file IInterface.h.

                                  {
  void* ii = nullptr;
  return i->queryInterface( IFace::interfaceID(), &ii ).isSuccess();
}

pp_cast()

template<class DEST, class SRC>

DEST ** pp_cast ( SRC ** ptr )

inline

Small function to be used instead of the construct (void**)&pointer, which produces, on gcc 4.1 optimized, the warning warning: dereferencing type-punned pointer will break strict-aliasing rules The assempler code produced is equivalent to the one with the direct cast.

The function can be used als to replace the construct (IInterface *&)m_MySvc. Replacement rules:

(void**)&pointer	pp_cast<void>(&pointer)
(IInterface *&)m_mySvc	*pp_cast<IInterface>(&m_mySvc)

Definition at line 370 of file IInterface.h.

                                   {
  return reinterpret_cast<DEST**>( ptr );
}
