precedence::EndTime Struct Reference

#include </builds/gaudi/Gaudi/GaudiHive/src/PRGraph/PrecedenceRulesGraph.h>

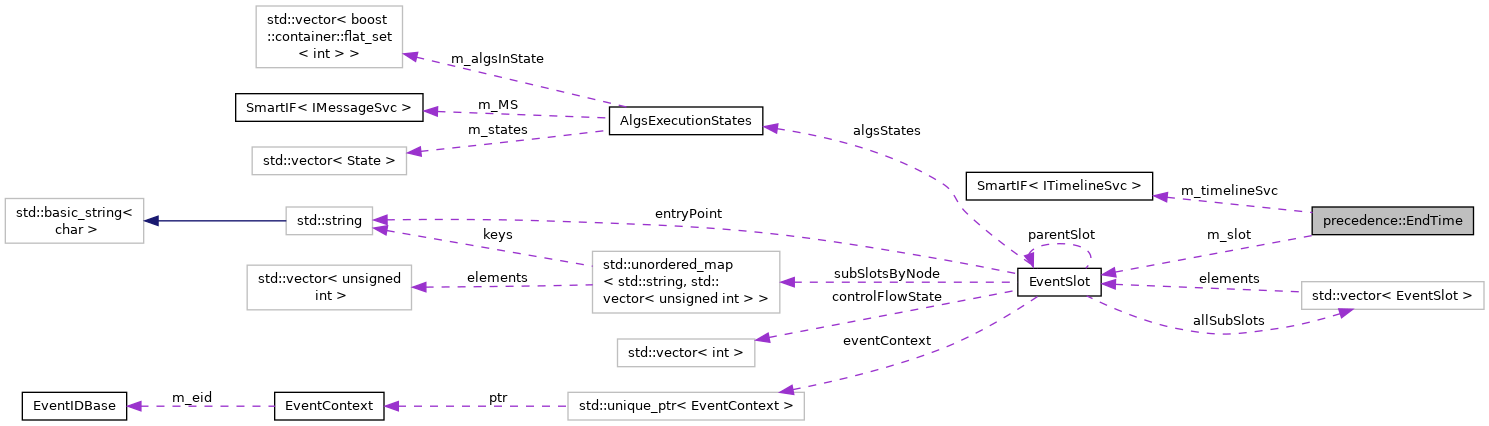

Collaboration diagram for precedence::EndTime:

Public Member Functions
	EndTime (const EventSlot &slot, SmartIF< ISvcLocator > &svcLocator)
std::string	operator() (const AlgoProps &props) const
std::string	operator() (const DecisionHubProps &) const
std::string	operator() (const DataProps &) const

Public Attributes
const EventSlot &	m_slot
SmartIF< ITimelineSvc >	m_timelineSvc

Detailed Description

Definition at line 297 of file PrecedenceRulesGraph.h.

Constructor & Destructor Documentation

EndTime()

precedence::EndTime::EndTime ( const EventSlot &  slot, SmartIF< ISvcLocator > &  svcLocator  )

inline

Definition at line 298 of file PrecedenceRulesGraph.h.

        : m_slot( slot ), m_timelineSvc( svcLocator->service<ITimelineSvc>( "TimelineSvc", false ) ) {
      SmartIF<IMessageSvc> msgSvc{ svcLocator };
      MsgStream            log{ msgSvc, "EndTime.Getter" };

      // Figure if we can discover the algorithm timings
      if ( !m_timelineSvc.isValid() )
        log << MSG::WARNING << "Failed to locate the TimelineSvc: no way to add "
            << "algorithm completion time to the TTT dumps" << endmsg;
    }

Member Function Documentation

operator()() [1/3]

std::string precedence::EndTime::operator() ( const AlgoProps &  props ) const

inline

Definition at line 309 of file PrecedenceRulesGraph.h.

                                                         {

      std::string endTime;

      if ( m_timelineSvc.isValid() ) {

        TimelineEvent te{};
        te.algorithm = props.m_name;
        te.slot      = m_slot.eventContext->slot();
        te.event     = m_slot.eventContext->evt();

        m_timelineSvc->getTimelineEvent( te );
        endTime =
            std::to_string( std::chrono::duration_cast<std::chrono::nanoseconds>( te.end.time_since_epoch() ).count() );
      }

      return endTime;
    }

operator()() [2/3]

std::string precedence::EndTime::operator() ( const DataProps &  ) const

inline

Definition at line 330 of file PrecedenceRulesGraph.h.

{ return ""; }

operator()() [3/3]

std::string precedence::EndTime::operator() ( const DecisionHubProps &  ) const

inline

Definition at line 328 of file PrecedenceRulesGraph.h.

{ return ""; }

Member Data Documentation

m_slot

const EventSlot& precedence::EndTime::m_slot

Definition at line 332 of file PrecedenceRulesGraph.h.

m_timelineSvc

SmartIF<ITimelineSvc> precedence::EndTime::m_timelineSvc

Definition at line 333 of file PrecedenceRulesGraph.h.

---

The documentation for this struct was generated from the following file:

• GaudiHive/src/PRGraph/PrecedenceRulesGraph.h
