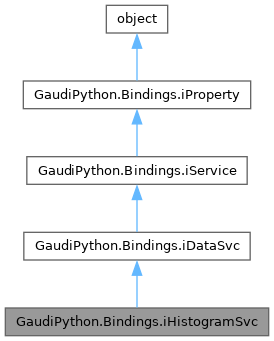

Inheritance diagram for GaudiPython.Bindings.iHistogramSvc:

[legend]

Collaboration diagram for GaudiPython.Bindings.iHistogramSvc:

[legend]

Public Member Functions
	__init__ (self, name, ihs)

	retrieve1D (self, path)

	retrieve2D (self, path)

	retrieve3D (self, path)

	retrieveProfile1D (self, path)

	retrieveProfile2D (self, path)

	retrieve (self, path)

	book (self, *args)

	bookProf (self, *args)

	__getitem__ (self, path)

	getAsAIDA (self, path)

	getAsROOT (self, path)

Public Member Functions inherited from GaudiPython.Bindings.iDataSvc
	__init__ (self, name, idp)

	registerObject (self, path, obj)

	unregisterObject (self, path)

	retrieveObject (self, path)

	findObject (self, path)

	getObject (self, path, *args)

	__getitem__ (self, path)

	__setitem__ (self, path, obj)

	__delitem__ (self, path)

	leaves (self, node=cppyy.nullptr)

	dump (self, node=cppyy.nullptr)

	getList (self, node=cppyy.nullptr, lst=[], rootFID=None)

	getHistoNames (self, node=cppyy.nullptr, lst=[])

	setRoot (self, name, obj)

	selectOnlyStore (self)

	selectStore (self, n)

	clearStore (self)

Public Member Functions inherited from GaudiPython.Bindings.iService
	__init__ (self, name, isvc=cppyy.nullptr)

	retrieveInterface (self)

	initialize (self)

	start (self)

	stop (self)

	finalize (self)

	reinitialize (self)

	restart (self)

	isValid (self)

Public Member Functions inherited from GaudiPython.Bindings.iProperty
	__init__ (self, name, ip=cppyy.nullptr)

	getInterface (self)

	__call_interface_method__ (self, ifname, method, *args)

	__setattr__ (self, name, value)

	__getattr__ (self, name)

	properties (self)

	name (self)

Protected Attributes
	_ihs

Protected Attributes inherited from GaudiPython.Bindings.iDataSvc
	_idp

	_idm

	_ihwb

Protected Attributes inherited from GaudiPython.Bindings.iService
	_isvc

Protected Attributes inherited from GaudiPython.Bindings.iProperty
	_ip

	_svcloc

	_name

Detailed Description

Definition at line 698 of file Bindings.py.

Constructor & Destructor Documentation

◆ init()

GaudiPython.Bindings.iHistogramSvc.__init__	(	self,
		name,
		ihs )

Definition at line 699 of file Bindings.py.

    def __init__(self, name, ihs):
        self.__dict__["_ihs"] = InterfaceCast(gbl.IHistogramSvc)(ihs)
        iDataSvc.__init__(self, name, ihs)


Member Function Documentation

◆ getitem()

GaudiPython.Bindings.iHistogramSvc.__getitem__	(		self,
			path )

Retrieve the object from  Histogram Transient Store (by path)
The reference to AIDA histogram is returned (if possible)
>>> svc = ...
>>> histo = svc['path/to/my/histogram']

Definition at line 751 of file Bindings.py.

    def __getitem__(self, path):
        """
        Retrieve the object from  Histogram Transient Store (by path)
        The reference to AIDA histogram is returned (if possible)
        >>> svc = ...
        >>> histo = svc['path/to/my/histogram']
        """
        h = self.retrieve(path)
        if h:
            return h
        return iDataSvc.__getitem__(self, path)


◆ book()

GaudiPython.Bindings.iHistogramSvc.book	(		self,
		*	args )

Book the histograms(1D,2D&3D) , see IHistogramSvc::book
>>> svc = ...
>>> histo = svc.book( .... )

Definition at line 735 of file Bindings.py.

    def book(self, *args):
        """
        Book the histograms(1D,2D&3D) , see IHistogramSvc::book
        >>> svc = ...
        >>> histo = svc.book( .... )
        """
        return self._ihs.book(*args)


◆ bookProf()

GaudiPython.Bindings.iHistogramSvc.bookProf	(		self,
		*	args )

Book the profile(1D&2D) histograms, see IHistogramSvc::bookProf
>>> svc = ...
>>> histo = svc.bookProf( .... )

Definition at line 743 of file Bindings.py.

    def bookProf(self, *args):
        """
        Book the profile(1D&2D) histograms, see IHistogramSvc::bookProf
        >>> svc = ...
        >>> histo = svc.bookProf( .... )
        """
        return self._ihs.bookProf(*args)


◆ getAsAIDA()

GaudiPython.Bindings.iHistogramSvc.getAsAIDA	(		self,
			path )

Retrieve the histogram from  Histogram Transient Store (by path)
The reference to AIDA histogram is returned (if possible)
>>> svc = ...
>>> histo = svc.getAsAIDA ( 'path/to/my/histogram' )

Definition at line 763 of file Bindings.py.

    def getAsAIDA(self, path):
        """
        Retrieve the histogram from  Histogram Transient Store (by path)
        The reference to AIDA histogram is returned (if possible)
        >>> svc = ...
        >>> histo = svc.getAsAIDA ( 'path/to/my/histogram' )
        """
        return self.__getitem__(path)


◆ getAsROOT()

GaudiPython.Bindings.iHistogramSvc.getAsROOT	(		self,
			path )

Retrieve the histogram from  Histogram Transient Store (by path)
The Underlying native ROOT object is returned (if possible)
>>> svc = ...
>>> histo = svc.getAsROOT ( 'path/to/my/histogram' )

Definition at line 772 of file Bindings.py.

    def getAsROOT(self, path):
        """
        Retrieve the histogram from  Histogram Transient Store (by path)
        The Underlying native ROOT object is returned (if possible)
        >>> svc = ...
        >>> histo = svc.getAsROOT ( 'path/to/my/histogram' )
        """
        fun = gbl.Gaudi.Utils.Aida2ROOT.aida2root
        return fun(self.getAsAIDA(path))


# ----iNTupleSvc class---------------------------------------------------------



◆ retrieve()

GaudiPython.Bindings.iHistogramSvc.retrieve	(		self,
			path )

Retrieve AIDA histogram or AIDA profile histogram by path in Histogram Transient Store
>>> svc = ...
>>> histo = svc.retrieve ( 'path/to/my/histogram' )

Definition at line 718 of file Bindings.py.

    def retrieve(self, path):
        """
        Retrieve AIDA histogram or AIDA profile histogram by path in Histogram Transient Store
        >>> svc = ...
        >>> histo = svc.retrieve ( 'path/to/my/histogram' )
        """
        h = self.retrieve1D(path)
        if not h:
            h = self.retrieve2D(path)
        if not h:
            h = self.retrieve3D(path)
        if not h:
            h = self.retrieveProfile1D(path)
        if not h:
            h = self.retrieveProfile2D(path)
        return h


◆ retrieve1D()

GaudiPython.Bindings.iHistogramSvc.retrieve1D	(		self,
			path )

Definition at line 703 of file Bindings.py.

    def retrieve1D(self, path):
        return Helper.histo1D(self._ihs, path)


◆ retrieve2D()

GaudiPython.Bindings.iHistogramSvc.retrieve2D	(		self,
			path )

Definition at line 706 of file Bindings.py.

    def retrieve2D(self, path):
        return Helper.histo2D(self._ihs, path)


◆ retrieve3D()

GaudiPython.Bindings.iHistogramSvc.retrieve3D	(		self,
			path )

Definition at line 709 of file Bindings.py.

    def retrieve3D(self, path):
        return Helper.histo3D(self._ihs, path)


◆ retrieveProfile1D()

GaudiPython.Bindings.iHistogramSvc.retrieveProfile1D	(		self,
			path )

Definition at line 712 of file Bindings.py.

    def retrieveProfile1D(self, path):
        return Helper.profile1D(self._ihs, path)


◆ retrieveProfile2D()

GaudiPython.Bindings.iHistogramSvc.retrieveProfile2D	(		self,
			path )

Definition at line 715 of file Bindings.py.

    def retrieveProfile2D(self, path):
        return Helper.profile2D(self._ihs, path)


Member Data Documentation

◆ _ihs

GaudiPython.Bindings.iHistogramSvc._ihs

protected

Definition at line 704 of file Bindings.py.

The documentation for this class was generated from the following file:

GaudiPython/python/GaudiPython/Bindings.py
