DataListenerSvc Class Reference

#include <bking/DataListenerSvc.h>

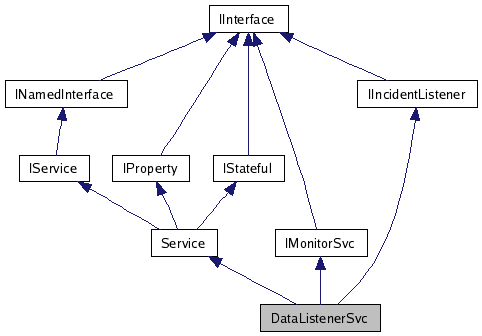

Inheritance diagram for DataListenerSvc:

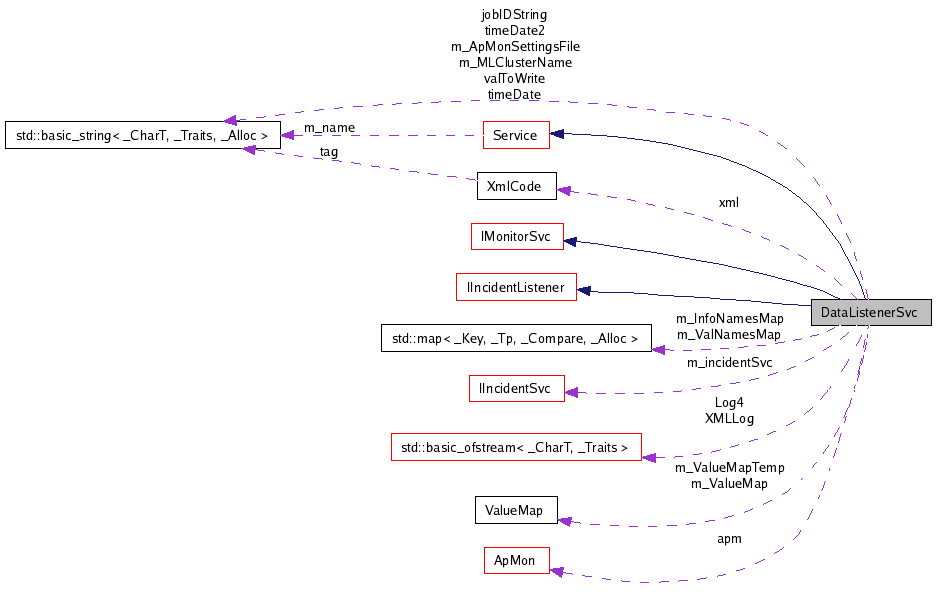

[legend]Collaboration diagram for DataListenerSvc:

[legend]List of all members.

Detailed Description

DataListenerSvc inherits from IMonitorSvc and allows the GAUDI user to monitor variables declared in an algorithm.

DataListenerSvc generates XML files on the individual machines where the algorithm is run, which can then be parsed by e.g. GANGA and sent to a monitoring server such as MonALISA. XML files are written at a frequency specified by the user and are consumed as they are created when used within GANGA.

Usage

In Algorithm header file

Include DataListenerSvc include DataListenerSvc/DataListenerSvc.h
define IMonitorSvc object: e.g. IMonitorSvc *m_DataListenerSvcSvc;

In Algorithm cpp file

instantiate IMonitorSvc object: e.g. sc = service("DataListenerSvc", m_DataListenerSvcSvc, true);
declare monitored variables: e.g. m_DataListenerSvcSvc->declareInfo("Psi ID", m_jPsiID, "The Psi ID", this); (for variable m_jPsiID)

Supports declaration of variables of type: int, long, bool, double, string

In GAUDI options file

Include DLL in ApplicationMgr.DLLs DataListenerSvc
Include Service in ApplicationMgr.ExtSvc DataListenerSvc/DataListenerSvc
Set job options e.g. DataListenerSvc.EventFrequency = 50

Job options available

Parameters:

EventFrequency

How data is sent to - default is every 100 events

XML file format

XML tag format is the following:

Opening parent tags of the form:

<?xml version="1.0" encoding="ASCII" standalone="yes"?>
<Results Time="Tue Aug 22 10:17:22 2006">

<Run>

With then an entry for each monitored variable of the form:

<Incident>

<IncType>EndEvent </IncType>
<IncSource>EventLoopMgr </IncSource>
<VarName>Psi ID </VarName>
<Value Result="8">443</Value>

</Incident>

Parameters:

	IncType	What type of incident triggered the handle method
	IncSource	What triggered the IIncident handle method
	VarName	Name of the variable monitored
	Value	Value of the variable
	Result	Number of times the variable already read

Author:: Ben KING

Date:: 2006-08-24

Definition at line 112 of file DataListenerSvc.h.

Public Member Functions

DataListenerSvc (const std::string &name, ISvcLocator *sl)

need the next declaration ? compiler seems to find the static var

virtual ~DataListenerSvc ()

StatusCode queryInterface (const InterfaceID &riid, void **ppvIF)

Query interfaces of Interface.

StatusCode initialize ()

Initialization (from CONFIGURED to INITIALIZED).

StatusCode finalize ()

Finalize (from INITIALIZED to CONFIGURED).

void declareInfo (const std::string &name, const bool &var, const std::string &desc, const IInterface *owner)

Declare monitoring information.

void declareInfo (const std::string &name, const int &var, const std::string &desc, const IInterface *owner)

void declareInfo (const std::string &name, const long &var, const std::string &desc, const IInterface *owner)

void declareInfo (const std::string &name, const double &var, const std::string &desc, const IInterface *owner)

void declareInfo (const std::string &name, const std::string &var, const std::string &desc, const IInterface *owner)

void declareInfo (const std::string &name, const std::pair< double, double > &var, const std::string &desc, const IInterface *owner)

void declareInfo (const std::string &name, const AIDA::IBaseHistogram *var, const std::string &desc, const IInterface *owner)

void declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc, const IInterface *owner)

void undeclareInfo (const std::string &name, const IInterface *owner)

Undeclare monitoring information.

void undeclareAll (const IInterface *owner)

Undeclare monitoring information.

virtual void handle (const Incident &)

Implementation of the IIncidentListener.h virtual method.

std::set< std::string > * getInfos (const IInterface *owner=0)

Get the names for all declared monitoring informations for a given owner.

void apmSend (char *clusterName, char *moduleName, char *key, double val)

Send a (char*,double) pair to MonALISA.

void apmSend (char *clusterName, char *moduleName, char *key, int val)

Send a (char*,int) pair to MonALISA.

void apmSend (char *clusterName, char *moduleName, char *key, long val)

Send a (char*,long) pair to MonALISA.

void apmSend (char *clusterName, char *moduleName, char *key, bool val)

Send a (char*,bool) pair to MonALISA.

void apmSend (char *clusterName, char *moduleName, char *key, char *val)

Send a (char*,char*) pair to MonALISA.

Private Types

typedef std::pair< std::string,
ValueMap > Entry

typedef std::map< const IInterface *,
std::set< std::string > > InfoNamesMap

typedef std::map< std::string,
ValueMap > ValNamesMap

Private Member Functions

void writeMap (ValNamesMap *, const Incident &, std::ofstream *)

void writeXML (ValNamesMap *, const Incident &, std::ofstream *)

std::string resizeString (const std::string, const unsigned int)

std::string stringConverter (const int convertee)

std::string stringConverter (const double convertee)

std::string stringConverter (const bool convertee)

std::string stringConverter (const long convertee)

void sendData (ValNamesMap *)

MonALISA sender method to send Data to MonALISA server.

std::string infoOwnerName (const IInterface *owner)

Private Attributes

ApMon * apm

ValueMap m_ValueMap

ValueMap m_ValueMapTemp

time_t rawTime

time_t rawTime2

char buffer [50]

char buffer2 [50]

std::string timeDate

std::string timeDate2

std::string valToWrite

InfoNamesMap m_InfoNamesMap

InfoNamesMap::iterator m_InfoNamesMapIt

ValNamesMap m_ValNamesMap

ValNamesMap::iterator m_ValNamesMapIt

XmlCode xml

IIncidentSvc * m_incidentSvc

FILE * MonitorLog

std::ofstream Log4

std::ofstream XMLLog

int FreqCriterion

int m_EventFrequency

std::map< std::string, std::string > m_infoDescriptions

int m_MLjobID

int m_MLEventFrequency

std::string m_MLClusterName

std::string m_ApMonSettingsFile

std::string jobIDString

int m_MonALISAMonitoring

int m_XMLMonitoring

int m_FileMonitoring

char * keyToSend

Member Typedef Documentation

typedef std::pair< std::string, ValueMap > DataListenerSvc::Entry [private]

Definition at line 216 of file DataListenerSvc.h.

typedef std::map<const IInterface*, std::set<std::string> > DataListenerSvc::InfoNamesMap [private]

Definition at line 217 of file DataListenerSvc.h.

typedef std::map< std::string, ValueMap > DataListenerSvc::ValNamesMap [private]

Definition at line 219 of file DataListenerSvc.h.

Constructor & Destructor Documentation

DataListenerSvc::DataListenerSvc	(	const std::string &	name,
		ISvcLocator *	sl
	)

need the next declaration ? compiler seems to find the static var

Definition at line 66 of file DataListenerSvc.cpp.

References Service::declareProperty(), defaultApMonSettingsFile, defaultClusterName, defaultFileMonitoring, defaultFrequency, defaultjobID, defaultMLFrequency, defaultMonALISAMonitoring, defaultXMLMonitoring, m_ApMonSettingsFile, m_EventFrequency, m_FileMonitoring, m_MLClusterName, m_MLEventFrequency, m_MLjobID, m_MonALISAMonitoring, and m_XMLMonitoring.

00067   : Service(name, sl) {
00068
00069   declareProperty ("EventFrequency", m_EventFrequency=defaultFrequency);
00070   declareProperty ("MLEventFrequency", m_MLEventFrequency=defaultMLFrequency);
00071   declareProperty ("MLjobID", m_MLjobID=defaultjobID);
00072   declareProperty ("MLClusterName", m_MLClusterName=defaultClusterName);
00073   declareProperty ("MonALISAMonitoring", m_MonALISAMonitoring=defaultMonALISAMonitoring);
00074   declareProperty ("ApMonSource", m_ApMonSettingsFile=defaultApMonSettingsFile);
00075
00076   declareProperty ("XMLMonitoring", m_XMLMonitoring=defaultXMLMonitoring);
00077   declareProperty ("FileMonitoring", m_FileMonitoring=defaultFileMonitoring);
00078
00079 }

virtual DataListenerSvc::~DataListenerSvc ( ) [inline, virtual]

Definition at line 119 of file DataListenerSvc.h.

00119 {}

Member Function Documentation

StatusCode DataListenerSvc::queryInterface	(	const InterfaceID &	riid,
		void **	ppvIF
	)			`[virtual]`

Query interfaces of Interface.

Parameters:

	riid	ID of Interface to be retrieved
	ppvUnknown	Pointer to Location for interface pointer

Reimplemented from Service.

Definition at line 85 of file DataListenerSvc.cpp.

References Service::addRef(), IID_IMonitorSvc, Service::queryInterface(), and StatusCode::SUCCESS.

00087 {
00088   if(IID_IMonitorSvc == riid) {
00089     *ppvIF = dynamic_cast<IMonitorSvc*> (this);
00090   }
00091   else {
00092     return Service::queryInterface(riid, ppvIF);
00093   }
00094   addRef();
00095   return StatusCode::SUCCESS;
00096 }

StatusCode DataListenerSvc::initialize ( ) [virtual]

Initialization (from CONFIGURED to INITIALIZED).

Reimplemented from Service.

Definition at line 99 of file DataListenerSvc.cpp.

References IIncidentSvc::addListener(), apm, std::basic_string< _CharT, _Traits, _Alloc >::c_str(), MSG::DEBUG, defaultApMonSettingsFile, defaultClusterName, defaultFrequency, defaultjobID, defaultMLFrequency, IncidentType::EndEvent, endmsg(), endreq(), MSG::ERROR, StatusCode::FAILURE, MSG::INFO, Service::initialize(), StatusCode::isSuccess(), jobIDString, m_ApMonSettingsFile, m_EventFrequency, m_FileMonitoring, m_incidentSvc, m_MLClusterName, m_MLEventFrequency, m_MLjobID, m_MonALISAMonitoring, m_XMLMonitoring, Service::msgSvc(), Service::name(), Service::service(), stringConverter(), and StatusCode::SUCCESS.

00100 {
00101
00102   m_ApMonSettingsFile = defaultApMonSettingsFile;
00103   StatusCode sc = Service::initialize();
00104   MsgStream msg(msgSvc(),name());
00105
00106   jobIDString = "jobID: " + stringConverter(m_MLjobID);
00107
00108   if ( !sc.isSuccess() )   {
00109     msg << MSG::ERROR << "Failed to initialize Service base class." << endmsg;
00110     return StatusCode::FAILURE;
00111   }
00112
00113   sc = service("IncidentSvc", m_incidentSvc, true);
00114   if (!sc.isSuccess()) {
00115     msg << MSG::ERROR << "Failed to access incident service." << endmsg;
00116     return StatusCode::FAILURE;
00117   }
00118   m_incidentSvc->addListener(this, IncidentType::EndEvent);
00119
00120
00121   if (m_MonALISAMonitoring){
00122     // Initialise MonALISA
00123     apm = new ApMon(const_cast<char*>(m_ApMonSettingsFile.c_str()));
00124   }
00125
00126
00127   // DEBUG info on job options specified in GAUDI
00128   if (m_MLEventFrequency == defaultMLFrequency) {
00129     msg << MSG::DEBUG
00130         << "Frequency to send data to MonALISA not specified, taken as the default value: "
00131         << defaultMLFrequency << endreq;
00132   } else {
00133     msg << MSG::INFO
00134         << "Data sent to MonALISA every "
00135         << m_MLEventFrequency << " events" << endreq;
00136   }
00137
00138   if (m_MLjobID == defaultjobID){
00139     msg << MSG::DEBUG
00140         << "DataListenerSvc MonALISA Job ID not specified, taken as the default value: "
00141         << defaultjobID << endreq;
00142   }
00143
00144   if (m_MLClusterName == defaultClusterName){
00145     msg << MSG::DEBUG
00146         << "DataListenerSvc MonALISA cluster name not specified, taken as the default value: "
00147         << defaultClusterName << endreq;
00148   }
00149
00150   if (m_ApMonSettingsFile == defaultApMonSettingsFile){
00151     msg << MSG::DEBUG
00152         << "MonALISA ApMon configuration file destination not specified,  will be read from: "
00153         << defaultClusterName << endreq;
00154   }
00155
00156   if (m_EventFrequency == defaultFrequency){
00157     msg << MSG::INFO
00158         << "XML Log file frequency not specified, taken as the default value: "
00159         << defaultFrequency << endreq;
00160   } else {
00161     msg << MSG::INFO
00162         << "Frequency XML logs are written at: "
00163         << m_EventFrequency << endreq;
00164   }
00165
00166
00167   if (m_MonALISAMonitoring) {
00168     msg << MSG::INFO
00169         << "Data will be published to a MonALISA server"
00170         << endreq;
00171   }
00172
00173   if (m_XMLMonitoring) {
00174     msg << MSG::INFO
00175         << "Data will be written to XML log files"
00176         << endreq;
00177   }
00178   if (m_FileMonitoring) {
00179     msg << MSG::INFO
00180         << "Data will be updated in a Text log file"
00181         << endreq;
00182   }
00183
00184   return StatusCode::SUCCESS;
00185
00186 }

StatusCode DataListenerSvc::finalize ( ) [virtual]

Finalize (from INITIALIZED to CONFIGURED).

Reimplemented from Service.

Definition at line 189 of file DataListenerSvc.cpp.

References apm, MSG::DEBUG, endreq(), Service::finalize(), MSG::INFO, m_incidentSvc, m_infoDescriptions, m_MonALISAMonitoring, m_ValNamesMap, Service::msgSvc(), and IInterface::release().

00190 {
00191   MsgStream msg(msgSvc(),"DataListenerSvc");
00192
00193   m_infoDescriptions.clear();
00194   m_ValNamesMap.clear();
00195
00196   if (m_MonALISAMonitoring){
00197         if ( 0!= apm ) {
00198                 delete apm;
00199                 apm = 0 ;
00200         }
00201   }
00202
00203   msg << MSG::DEBUG << "ApMon deleted" << endreq;
00204   msg << MSG::INFO << "finalized successfully" << endreq;
00205
00206  if( m_incidentSvc ) m_incidentSvc->release();
00207
00208   return Service::finalize();
00209 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const bool &	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Declare monitoring information.

Parameters:

	name	Monitoring information name known to the external system
	var	Monitoring Listener address
	desc	Textual description
	owner	Owner identifier of the monitoring information (needed to peform clean up

Implements IMonitorSvc.

Definition at line 275 of file DataListenerSvc.cpp.

References ValueMap::m_bool, m_ValNamesMap, m_ValueMap, Service::msgSvc(), Service::name(), ValueMap::set_ptr(), and ValueMap::set_ptrType().

00278 {
00279
00280   ValueMap::m_type vartype;
00281   vartype = ValueMap::m_bool;
00282
00283   MsgStream msg(msgSvc(),"DataListenerSvc");
00284
00285   m_ValueMap.set_ptr(  static_cast <void*> (const_cast <bool*> (&var) )  );
00286   m_ValueMap.set_ptrType(vartype);
00287
00288   Entry p1(name, m_ValueMap);
00289
00290   m_ValNamesMap.insert(p1);
00291
00292 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const int &	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 257 of file DataListenerSvc.cpp.

References ValueMap::m_int, m_ValNamesMap, m_ValueMap, Service::msgSvc(), Service::name(), ValueMap::set_ptr(), and ValueMap::set_ptrType().

00260 {
00261   ValueMap::m_type vartype;
00262   vartype = ValueMap::m_int;
00263
00264   MsgStream msg(msgSvc(),"DataListenerSvc");
00265
00266   m_ValueMap.set_ptr(  static_cast <void*> (const_cast <int*> (&var) )  );
00267   m_ValueMap.set_ptrType(vartype);
00268
00269   Entry p1(name, m_ValueMap);
00270
00271   m_ValNamesMap.insert(p1);
00272
00273 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const long &	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 238 of file DataListenerSvc.cpp.

References ValueMap::m_long, m_ValNamesMap, m_ValueMap, Service::msgSvc(), Service::name(), ValueMap::set_ptr(), and ValueMap::set_ptrType().

00241 {
00242
00243   ValueMap::m_type vartype;
00244   vartype = ValueMap::m_long;
00245
00246   MsgStream msg(msgSvc(),"DataListenerSvc");
00247
00248   m_ValueMap.set_ptr(  static_cast <void*> (const_cast <long*> (&var) )  );
00249   m_ValueMap.set_ptrType(vartype);
00250
00251   Entry p1(name, m_ValueMap);
00252
00253   m_ValNamesMap.insert(p1);
00254
00255 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const double &	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 215 of file DataListenerSvc.cpp.

References ValueMap::m_double, m_ValNamesMap, m_ValueMap, Service::msgSvc(), Service::name(), ValueMap::set_ptr(), and ValueMap::set_ptrType().

00218 {
00219   ValueMap::m_type vartype;
00220   vartype = ValueMap::m_double;
00221
00222   MsgStream msg(msgSvc(),"DataListenerSvc");
00223
00224   // In the ValueMap, store the pointer to the data (converted to void*)
00225   // and also store the pointer type (with an enum) so it can be converted back
00226   m_ValueMap.set_ptr(  static_cast <void*> (const_cast <double*> (&var) )  );
00227   m_ValueMap.set_ptrType(vartype);
00228
00229   Entry p1(name, m_ValueMap);
00230
00231   // m_ValNamesMap is then composed of n (variable Name: ValueMap) pairs
00232   m_ValNamesMap.insert(p1);
00233
00234 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const std::string &	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 294 of file DataListenerSvc.cpp.

References ValueMap::m_string, m_ValNamesMap, m_ValueMap, Service::msgSvc(), Service::name(), ValueMap::set_ptr(), and ValueMap::set_ptrType().

00298 {
00299   ValueMap::m_type vartype;
00300   vartype = ValueMap::m_string;
00301
00302   MsgStream msg(msgSvc(),"DataListenerSvc");
00303
00304   m_ValueMap.set_ptr(  static_cast <void*> (const_cast <std::string*> (&var) )  );  m_ValueMap.set_ptrType(vartype);
00305
00306   Entry p1(name, m_ValueMap);
00307
00308   m_ValNamesMap.insert(p1);
00309
00310 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const std::pair< double, double > &	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 313 of file DataListenerSvc.cpp.

00317 {
00318 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const AIDA::IBaseHistogram *	var,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 319 of file DataListenerSvc.cpp.

00323 {
00324 }

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const std::string &	format,
		const void *	var,
		int	size,
		const std::string &	desc,
		const IInterface *	owner
	)			`[virtual]`

Implements IMonitorSvc.

Definition at line 326 of file DataListenerSvc.cpp.

00332 {
00333 }

void DataListenerSvc::undeclareInfo	(	const std::string &	name,
		const IInterface *	owner
	)			`[virtual]`

Undeclare monitoring information.

Parameters:

	name	Monitoring information name known to the external system
	owner	Owner identifier of the monitoring information

Implements IMonitorSvc.

Definition at line 337 of file DataListenerSvc.cpp.

00339 {
00340 }

void DataListenerSvc::undeclareAll ( const IInterface * owner ) [virtual]

Undeclare monitoring information.

Parameters:

owner

Owner identifier of the monitoring information

Implements IMonitorSvc.

Definition at line 342 of file DataListenerSvc.cpp.

00343 {
00344 }

void DataListenerSvc::handle ( const Incident & ) [virtual]

Implementation of the IIncidentListener.h virtual method.

Implements IIncidentListener.

Definition at line 359 of file DataListenerSvc.cpp.

References std::basic_ofstream< _CharT, _Traits >::close(), endreq(), fileCounter, MSG::INFO, Log4, m_EventFrequency, m_FileMonitoring, m_MonALISAMonitoring, m_ValNamesMap, m_XMLMonitoring, Service::msgSvc(), numIncidents, std::basic_ofstream< _CharT, _Traits >::open(), sendData(), stringConverter(), std::basic_ios< _CharT, _Traits >::trunc, writeMap(), writeXML(), and XMLLog.

00360 {
00361
00362   MsgStream msg(msgSvc(),"DataListenerSvc");
00363   numIncidents++;
00364
00365
00366   if (numIncidents % m_EventFrequency == 0){
00367
00368     try {
00369       Log4.open("MonitorLog.txt", std::ios::trunc);
00370       XMLLog.open(("./log" + stringConverter(fileCounter)  + ".xml").c_str() , std::ios::trunc);
00371     } catch(std::exception /*&e*/) {
00372       msg << MSG::INFO
00373           << "Log File could not be opened, no monitoring available"
00374           << endreq;
00375     }
00376
00377     if (m_MonALISAMonitoring){
00378       // Send Data to MonALISA
00379       sendData(&m_ValNamesMap);
00380     }
00381
00382     if (m_FileMonitoring){
00383       // Write simple text log
00384       writeMap(&m_ValNamesMap, Inc, &Log4 );
00385       Log4.close();
00386     }
00387
00388     if (m_XMLMonitoring){
00389       // Write XML files
00390       writeXML(&m_ValNamesMap, Inc, &XMLLog );
00391       XMLLog.close();
00392     }
00393
00394     fileCounter++;
00395   }
00396
00397 }

std::set< std::string > * DataListenerSvc::getInfos ( const IInterface * owner = 0 ) [virtual]

Get the names for all declared monitoring informations for a given owner.

If the owner is NULL, then it returns for all owners

Implements IMonitorSvc.

Definition at line 346 of file DataListenerSvc.cpp.

00347 {
00348   std::set<std::string> * returnData = NULL;
00349   return returnData;
00350 }

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		double	val
	)

Send a (char*,double) pair to MonALISA.

Parameters:

	clusterName	Name of cluster where information will be stored
	moduleName	Name of module where information will be stored
	key	Key of the (key,value) pair sent to MonALISA
	value	Value of the (key,value) pair sent to MonALISA

Definition at line 642 of file DataListenerSvc.cpp.

References apm, std::basic_string< _CharT, _Traits, _Alloc >::c_str(), MSG::DEBUG, endreq(), MSG::INFO, jobIDString, m_MLClusterName, Service::msgSvc(), ApMon::sendParameter(), MSG::WARNING, and std::runtime_error::what().

Referenced by sendData().

00644 {
00645   MsgStream msg(msgSvc(),"DataListenerSvc");
00646   msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00647
00648   try {
00649     DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
00650     msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00651     msg << MSG::INFO << "Sent parameters to MonALISA sever:"
00652         << m_MLClusterName << "->"
00653         << jobIDString.c_str() << "->"
00654         << key << ":" << val << endreq;
00655   } catch(std::runtime_error &e) {
00656     msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endreq;
00657   }
00658 }

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		int	val
	)

Send a (char*,int) pair to MonALISA.

Definition at line 660 of file DataListenerSvc.cpp.

00662 {
00663   MsgStream msg(msgSvc(),"DataListenerSvc");
00664   msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00665   try {
00666     DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
00667     msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00668     msg << MSG::INFO << "Sent parameters to MonALISA sever:"
00669         << m_MLClusterName << "->"
00670         << jobIDString.c_str() << "->"
00671         << key << ":" << val << endreq;
00672   } catch(std::runtime_error &e) {
00673     msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endreq;
00674   }
00675 }

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		long	val
	)

Send a (char*,long) pair to MonALISA.

Definition at line 677 of file DataListenerSvc.cpp.

00679 {
00680   MsgStream msg(msgSvc(),"DataListenerSvc");
00681   msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00682   double temp;
00683   temp = *(double*)val;
00684
00685   try {
00686     DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, temp);
00687     msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00688     msg << MSG::INFO << "Sent parameters to MonALISA sever:"
00689         << m_MLClusterName << "->"
00690         << jobIDString.c_str() << "->"
00691         << key << ":" << val << endreq;
00692   } catch (std::runtime_error &e){
00693     msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endreq;
00694   }
00695 }

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		bool	val
	)

Send a (char*,bool) pair to MonALISA.

Definition at line 697 of file DataListenerSvc.cpp.

00699 {
00700   MsgStream msg(msgSvc(),"DataListenerSvc");
00701   msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00702   try {
00703     DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
00704     msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00705     msg << MSG::INFO << "Sent parameters to MonALISA sever:"
00706         << m_MLClusterName << "->"
00707         << jobIDString.c_str() << "->"
00708         << key << ":" << val << endreq;
00709   } catch (std::runtime_error &e){
00710     msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endreq;
00711   }
00712 }

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		char *	val
	)

Send a (char*,char*) pair to MonALISA.

Definition at line 714 of file DataListenerSvc.cpp.

00716 {
00717   MsgStream msg(msgSvc(),"DataListenerSvc");
00718   msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00719   try {
00720     DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
00721     msg << MSG::DEBUG << "ApMon instantiated" << endreq;
00722     msg << MSG::INFO << "Sent parameters to MonALISA sever:"
00723         << m_MLClusterName << "->"
00724         << jobIDString.c_str() << "->"
00725         << key << ":" << val << endreq;
00726   } catch (std::runtime_error &e){
00727     msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endreq;
00728   }
00729 }

void DataListenerSvc::writeMap	(	ValNamesMap *	,
		const Incident &	,
		std::ofstream *
	)			`[private]`

Definition at line 547 of file DataListenerSvc.cpp.

References buffer2, std::endl(), std::basic_string< _CharT, _Traits, _Alloc >::erase(), ValueMap::get_ptr(), ValueMap::get_ptrType(), ValueMap::m_bool, ValueMap::m_double, ValueMap::m_int, ValueMap::m_long, ValueMap::m_string, m_ValNamesMap, m_ValNamesMapIt, m_ValueMapTemp, numIncidents, rawTime2, resizeString(), std::basic_string< _CharT, _Traits, _Alloc >::size(), Incident::source(), stringConverter(), timeDate2, and Incident::type().

Referenced by handle().

00549 {
00550   // prepare time ctime.h and remove trailing carriage return
00551   time ( &rawTime2 );
00552   sprintf (buffer2, "%s", ctime(&rawTime2));
00553   timeDate2 = buffer2;
00554   timeDate2.erase(timeDate2.size()-1, 1);
00555
00556   // headings for the text file with spacing numbers
00557   std::string space = "   ";
00558   std::string heading0 = "Time                       "; // 27
00559   std::string heading1 = "No      "; // 8 chars long
00560   std::string heading2 = "Incident Type     "; // 18
00561   std::string heading3 = "Incident Source   "; // 18
00562   std::string heading4 = "Name            ";  // 16
00563   std::string heading5 = "Value               "; // 20
00564
00565   *MyFile << heading0 + heading1 + heading2 + heading3 + heading4 + heading5
00566           << std::endl;
00567
00568   for (m_ValNamesMapIt = m_ValNamesMap->begin();
00569        m_ValNamesMapIt != m_ValNamesMap->end();
00570        ++m_ValNamesMapIt){
00571
00572     m_ValueMapTemp = m_ValNamesMapIt->second;
00573
00574     *MyFile << timeDate2 << space
00575
00576             << resizeString(stringConverter(numIncidents),8) // Counts # incidents
00577             << resizeString(Inc.type(),18)                 // Incident Type
00578             << resizeString(Inc.source(),18)               // Source of the Incident
00579             << resizeString(m_ValNamesMapIt->first,20);    // Variable Name
00580
00581     // Check the variable type and in each case, cast accordingly
00582     if (m_ValueMapTemp.get_ptrType() == ValueMap::m_double){
00583       *MyFile << resizeString(stringConverter(*(double*)m_ValueMapTemp.get_ptr()), 12)
00584               << std::endl;
00585     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_int){
00586       *MyFile << resizeString(stringConverter(*(int*)m_ValueMapTemp.get_ptr()), 12)
00587               << std::endl;
00588     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_long){
00589       *MyFile << resizeString(stringConverter(*(long*)m_ValueMapTemp.get_ptr()), 12)
00590               << std::endl;
00591     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_bool){
00592       *MyFile << resizeString(stringConverter(*(bool*)m_ValueMapTemp.get_ptr()), 12)
00593               << std::endl;
00594     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_string){
00595       *MyFile << resizeString((*(std::string*)m_ValueMapTemp.get_ptr()), 12)
00596               << std::endl;
00597       }
00598
00599       }
00600
00601 }

void DataListenerSvc::writeXML	(	ValNamesMap *	,
		const Incident &	,
		std::ofstream *
	)			`[private]`

Definition at line 468 of file DataListenerSvc.cpp.

References buffer, XmlCode::data(), MSG::DEBUG, XmlCode::declaration(), std::endl(), endreq(), std::basic_string< _CharT, _Traits, _Alloc >::erase(), ValueMap::get_ptr(), ValueMap::get_ptrType(), MSG::INFO, ValueMap::m_bool, ValueMap::m_double, ValueMap::m_int, ValueMap::m_long, ValueMap::m_string, m_ValNamesMap, m_ValNamesMapIt, m_ValueMapTemp, Service::msgSvc(), numIncidents, rawTime, resizeString(), std::basic_string< _CharT, _Traits, _Alloc >::size(), Incident::source(), stringConverter(), XmlCode::tagBegin(), XmlCode::tagEnd(), timeDate, Incident::type(), valToWrite, and xml.

Referenced by handle().

00471 {
00472
00473   MsgStream msg(msgSvc(),"DataListenerSvc");
00474
00475   // prepare time ctime.h and remove trailing carriage return
00476   time ( &rawTime );
00477   sprintf (buffer, "%s", ctime(&rawTime));
00478   timeDate = buffer;
00479   timeDate.erase(timeDate.size()-1, 1);
00480
00481
00482   msg << MSG::INFO << "XML written to file: " << MyFile << endreq;
00483
00484
00485   *MyFile << xml.declaration("1.0", "ASCII", "yes") << std::endl;
00486
00487   *MyFile << xml.tagBegin("Results", 0, "Time", timeDate)
00488           << xml.tagBegin("Run",1);
00489
00490
00491   for (m_ValNamesMapIt = m_ValNamesMap->begin();
00492        m_ValNamesMapIt != m_ValNamesMap->end();
00493        ++m_ValNamesMapIt) {
00494
00495     m_ValueMapTemp = m_ValNamesMapIt->second;
00496
00497     *MyFile << xml.tagBegin("Incident",2);
00498
00499     *MyFile << xml.tagBegin("IncType", 3)
00500             << xml.data(resizeString(Inc.type(),18))
00501             << xml.tagEnd("IncType", 0);
00502
00503     *MyFile << xml.tagBegin("IncSource", 3)
00504             << xml.data(resizeString(Inc.source(),18))
00505             << xml.tagEnd("IncSource", 0);
00506
00507     *MyFile << xml.tagBegin("VarName", 3)
00508             << xml.data(resizeString(m_ValNamesMapIt->first,20))
00509             << xml.tagEnd("VarName", 0);
00510
00511     *MyFile << xml.tagBegin("Value", 3, "Result", stringConverter(numIncidents));
00512     // Check the variable type and in each case, cast accordingly
00513
00514
00515
00516     // re-convert pointers to their original form and then to strings
00517     // so that they can be written with XMLCode.h
00518     if (m_ValueMapTemp.get_ptrType() == ValueMap::m_double){
00519       valToWrite = stringConverter(*(double*)m_ValueMapTemp.get_ptr());
00520     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_int){
00521       valToWrite = stringConverter(*(int*)m_ValueMapTemp.get_ptr());
00522     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_long){
00523       valToWrite = stringConverter(*(long*)m_ValueMapTemp.get_ptr());
00524     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_bool){
00525       valToWrite = stringConverter(*(bool*)m_ValueMapTemp.get_ptr());
00526     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_string){
00527       valToWrite = *(std::string*)m_ValueMapTemp.get_ptr();
00528     }
00529
00530
00531     *MyFile << xml.data(valToWrite);
00532     msg << MSG::DEBUG << "XML written: " << m_ValNamesMapIt->first << " , "
00533         << valToWrite << endreq;
00534
00535     *MyFile << xml.tagEnd("Value", 0);
00536     *MyFile << xml.tagEnd("Incident",2);
00537   }
00538
00539
00540   *MyFile << xml.tagEnd("Run",1)
00541           << xml.tagEnd("Results", 0);
00542
00543 }

std::string DataListenerSvc::resizeString	(	const std::string	,
		const unsigned	int
	)			`[private]`

Definition at line 402 of file DataListenerSvc.cpp.

References std::basic_string< _CharT, _Traits, _Alloc >::append(), counter(), std::basic_string< _CharT, _Traits, _Alloc >::length(), and std::basic_string< _CharT, _Traits, _Alloc >::substr().

Referenced by writeMap(), and writeXML().

00404 {
00405   std::string temp;
00406   unsigned int counter=0;
00407
00408   do {
00409
00410     if (text.length() > length) {
00411       temp = text.substr(0,(length-1));
00412     } else {
00413       if (counter==0) {
00414         temp = text;
00415         counter++;
00416       }
00417       temp.append(" ");
00418     }
00419
00420   } while (temp.length() != length);
00421
00422   return temp;
00423 }

std::string DataListenerSvc::stringConverter ( const int convertee ) [private]

Definition at line 427 of file DataListenerSvc.cpp.

References Gaudi::Units::s.

Referenced by handle(), initialize(), writeMap(), and writeXML().

00428 {
00429   std::stringstream s;
00430   std::string temp;
00431   s << convertee;
00432   s >> temp;
00433   s.flush();
00434   return temp;
00435 }

std::string DataListenerSvc::stringConverter ( const double convertee ) [private]

Definition at line 437 of file DataListenerSvc.cpp.

References Gaudi::Units::s.

00438 {
00439   std::stringstream s;
00440   std::string temp;
00441   s << convertee;
00442   s >> temp;
00443   s.flush();
00444   return temp;
00445 }

std::string DataListenerSvc::stringConverter ( const bool convertee ) [private]

Definition at line 456 of file DataListenerSvc.cpp.

References Gaudi::Units::s.

00457 {
00458   std::stringstream s;
00459   std::string temp;
00460   s << convertee;
00461   s >> temp;
00462   s.flush();
00463   return temp;
00464 }

std::string DataListenerSvc::stringConverter ( const long convertee ) [private]

Definition at line 446 of file DataListenerSvc.cpp.

References Gaudi::Units::s.

00447 {
00448   std::stringstream s;
00449   std::string temp;
00450   s << convertee;
00451   s >> temp;
00452   s.flush();
00453   return temp;
00454 }

void DataListenerSvc::sendData ( ValNamesMap * ) [private]

MonALISA sender method to send Data to MonALISA server.

Definition at line 604 of file DataListenerSvc.cpp.

References apmSend(), std::basic_string< _CharT, _Traits, _Alloc >::c_str(), ValueMap::get_ptr(), ValueMap::get_ptrType(), jobIDString, keyToSend, ValueMap::m_bool, ValueMap::m_double, ValueMap::m_int, ValueMap::m_long, m_MLClusterName, ValueMap::m_string, m_ValNamesMap, m_ValNamesMapIt, and m_ValueMapTemp.

Referenced by handle().

00605 {
00606
00607   for (m_ValNamesMapIt = m_ValNamesMap->begin();
00608        m_ValNamesMapIt != m_ValNamesMap->end();
00609        ++m_ValNamesMapIt){
00610
00611     m_ValueMapTemp = m_ValNamesMapIt->second;
00612     keyToSend = const_cast<char*>((m_ValNamesMapIt->first).c_str());
00613
00614
00615     if (m_ValueMapTemp.get_ptrType() == ValueMap::m_double){
00616       apmSend(const_cast <char*>(m_MLClusterName.c_str()),
00617               const_cast <char*> (jobIDString.c_str()),
00618               keyToSend, *(double*)m_ValueMapTemp.get_ptr());
00619     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_int){
00620       apmSend(const_cast <char*>(m_MLClusterName.c_str()),
00621               const_cast <char*> (jobIDString.c_str()),
00622               keyToSend, *(int*)m_ValueMapTemp.get_ptr());
00623     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_long){
00624       apmSend(const_cast <char*>(m_MLClusterName.c_str()),
00625               const_cast <char*> (jobIDString.c_str()),
00626               keyToSend, *(long*)m_ValueMapTemp.get_ptr());
00627     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_bool){
00628       apmSend(const_cast <char*>(m_MLClusterName.c_str()),
00629               const_cast <char*> (jobIDString.c_str()),
00630               keyToSend, *(bool*)m_ValueMapTemp.get_ptr());
00631     } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_string){
00632       apmSend(const_cast <char*>(m_MLClusterName.c_str()),
00633               const_cast <char*> (jobIDString.c_str()),
00634               keyToSend, const_cast <char*>((*(std::string*)m_ValueMapTemp.get_ptr()).c_str()));
00635     }
00636   }
00637
00638 }

std::string DataListenerSvc::infoOwnerName ( const IInterface * owner ) [private]

Definition at line 352 of file DataListenerSvc.cpp.

00353   {
00354     std::string returnData = "";
00355     return returnData;
00356   }

Member Data Documentation

ApMon* DataListenerSvc::apm [private]

Definition at line 198 of file DataListenerSvc.h.

Referenced by apmSend(), finalize(), and initialize().

ValueMap DataListenerSvc::m_ValueMap [private]

Definition at line 202 of file DataListenerSvc.h.

Referenced by declareInfo().

ValueMap DataListenerSvc::m_ValueMapTemp [private]

Definition at line 203 of file DataListenerSvc.h.

Referenced by sendData(), writeMap(), and writeXML().

time_t DataListenerSvc::rawTime [private]

Definition at line 205 of file DataListenerSvc.h.

Referenced by writeXML().

time_t DataListenerSvc::rawTime2 [private]

Definition at line 206 of file DataListenerSvc.h.

Referenced by writeMap().

char DataListenerSvc::buffer[50] [private]

Definition at line 208 of file DataListenerSvc.h.

Referenced by writeXML().

char DataListenerSvc::buffer2[50] [private]

Definition at line 209 of file DataListenerSvc.h.

Referenced by writeMap().

std::string DataListenerSvc::timeDate [private]

Definition at line 210 of file DataListenerSvc.h.

Referenced by writeXML().

std::string DataListenerSvc::timeDate2 [private]

Definition at line 211 of file DataListenerSvc.h.

Referenced by writeMap().

std::string DataListenerSvc::valToWrite [private]

Definition at line 212 of file DataListenerSvc.h.

Referenced by writeXML().

InfoNamesMap DataListenerSvc::m_InfoNamesMap [private]

Definition at line 233 of file DataListenerSvc.h.

InfoNamesMap::iterator DataListenerSvc::m_InfoNamesMapIt [private]

Definition at line 234 of file DataListenerSvc.h.

ValNamesMap DataListenerSvc::m_ValNamesMap [private]

Definition at line 236 of file DataListenerSvc.h.

Referenced by declareInfo(), finalize(), handle(), sendData(), writeMap(), and writeXML().

ValNamesMap::iterator DataListenerSvc::m_ValNamesMapIt [private]

Definition at line 237 of file DataListenerSvc.h.

Referenced by sendData(), writeMap(), and writeXML().

XmlCode DataListenerSvc::xml [private]

Definition at line 238 of file DataListenerSvc.h.

Referenced by writeXML().

IIncidentSvc* DataListenerSvc::m_incidentSvc [private]

Definition at line 243 of file DataListenerSvc.h.

Referenced by finalize(), and initialize().

FILE* DataListenerSvc::MonitorLog [private]

Definition at line 244 of file DataListenerSvc.h.

std::ofstream DataListenerSvc::Log4 [private]

Definition at line 245 of file DataListenerSvc.h.

Referenced by handle().

std::ofstream DataListenerSvc::XMLLog [private]

Definition at line 246 of file DataListenerSvc.h.

Referenced by handle().

int DataListenerSvc::FreqCriterion [private]

Definition at line 249 of file DataListenerSvc.h.

int DataListenerSvc::m_EventFrequency [private]

Definition at line 250 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), handle(), and initialize().

std::map<std::string,std::string> DataListenerSvc::m_infoDescriptions [private]

Definition at line 260 of file DataListenerSvc.h.

Referenced by finalize().

int DataListenerSvc::m_MLjobID [private]

Definition at line 264 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), and initialize().

int DataListenerSvc::m_MLEventFrequency [private]

Definition at line 265 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), and initialize().

std::string DataListenerSvc::m_MLClusterName [private]

Definition at line 266 of file DataListenerSvc.h.

Referenced by apmSend(), DataListenerSvc(), initialize(), and sendData().

std::string DataListenerSvc::m_ApMonSettingsFile [private]

Definition at line 267 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), and initialize().

std::string DataListenerSvc::jobIDString [private]

Definition at line 268 of file DataListenerSvc.h.

Referenced by apmSend(), initialize(), and sendData().

int DataListenerSvc::m_MonALISAMonitoring [private]

Definition at line 269 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), finalize(), handle(), and initialize().

int DataListenerSvc::m_XMLMonitoring [private]

Definition at line 270 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), handle(), and initialize().

int DataListenerSvc::m_FileMonitoring [private]

Definition at line 271 of file DataListenerSvc.h.

Referenced by DataListenerSvc(), handle(), and initialize().

char* DataListenerSvc::keyToSend [private]

Definition at line 274 of file DataListenerSvc.h.

Referenced by sendData().

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r2/GaudiMonitor/v1r4/src/DataListenerSvc/DataListenerSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r2/GaudiMonitor/v1r4/src/DataListenerSvc/DataListenerSvc.cpp

	`<Incident>`
		`<IncType>EndEvent </IncType>` `<IncSource>EventLoopMgr </IncSource>` `<VarName>Psi ID </VarName>` `<Value Result="8">443</Value>`
	`</Incident>`


Public Member Functions
	DataListenerSvc (const std::string &name, ISvcLocator *sl)
	need the next declaration ? compiler seems to find the static var
virtual	~DataListenerSvc ()
StatusCode	queryInterface (const InterfaceID &riid, void **ppvIF)
	Query interfaces of Interface.
StatusCode	initialize ()
	Initialization (from CONFIGURED to INITIALIZED).
StatusCode	finalize ()
	Finalize (from INITIALIZED to CONFIGURED).
void	declareInfo (const std::string &name, const bool &var, const std::string &desc, const IInterface *owner)
	Declare monitoring information.
void	declareInfo (const std::string &name, const int &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const long &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const double &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const std::string &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const std::pair< double, double > &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const AIDA::IBaseHistogram var, const std::string &desc, const IInterface owner)
void	declareInfo (const std::string &name, const std::string &format, const void var, int size, const std::string &desc, const IInterface owner)
void	undeclareInfo (const std::string &name, const IInterface *owner)
	Undeclare monitoring information.
void	undeclareAll (const IInterface *owner)
	Undeclare monitoring information.
virtual void	handle (const Incident &)
	Implementation of the IIncidentListener.h virtual method.
std::set< std::string > *	getInfos (const IInterface *owner=0)
	Get the names for all declared monitoring informations for a given owner.
void	apmSend (char clusterName, char moduleName, char *key, double val)
	Send a (char*,double) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char *key, int val)
	Send a (char*,int) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char *key, long val)
	Send a (char*,long) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char *key, bool val)
	Send a (char*,bool) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char key, char val)
	Send a (char,char) pair to MonALISA.
Private Types
typedef std::pair< std::string, ValueMap >	Entry
typedef std::map< const IInterface *, std::set< std::string > >	InfoNamesMap
typedef std::map< std::string, ValueMap >	ValNamesMap
Private Member Functions
void	writeMap (ValNamesMap , const Incident &, std::ofstream )
void	writeXML (ValNamesMap , const Incident &, std::ofstream )
std::string	resizeString (const std::string, const unsigned int)
std::string	stringConverter (const int convertee)
std::string	stringConverter (const double convertee)
std::string	stringConverter (const bool convertee)
std::string	stringConverter (const long convertee)
void	sendData (ValNamesMap *)
	MonALISA sender method to send Data to MonALISA server.
std::string	infoOwnerName (const IInterface *owner)
Private Attributes
ApMon *	apm
ValueMap	m_ValueMap
ValueMap	m_ValueMapTemp
time_t	rawTime
time_t	rawTime2
char	buffer [50]
char	buffer2 [50]
std::string	timeDate
std::string	timeDate2
std::string	valToWrite
InfoNamesMap	m_InfoNamesMap
InfoNamesMap::iterator	m_InfoNamesMapIt
ValNamesMap	m_ValNamesMap
ValNamesMap::iterator	m_ValNamesMapIt
XmlCode	xml
IIncidentSvc *	m_incidentSvc
FILE *	MonitorLog
std::ofstream	Log4
std::ofstream	XMLLog
int	FreqCriterion
int	m_EventFrequency
std::map< std::string, std::string >	m_infoDescriptions
int	m_MLjobID
int	m_MLEventFrequency
std::string	m_MLClusterName
std::string	m_ApMonSettingsFile
std::string	jobIDString
int	m_MonALISAMonitoring
int	m_XMLMonitoring
int	m_FileMonitoring
char *	keyToSend

Gaudi Framework, version v20r2

DataListenerSvc Class Reference

Detailed Description

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
