DataListenerSvc inherits from IMonitorSvc and allows the GAUDI user to monitor variables declared in an algorithm. More...

#include <bking/DataListenerSvc.h>

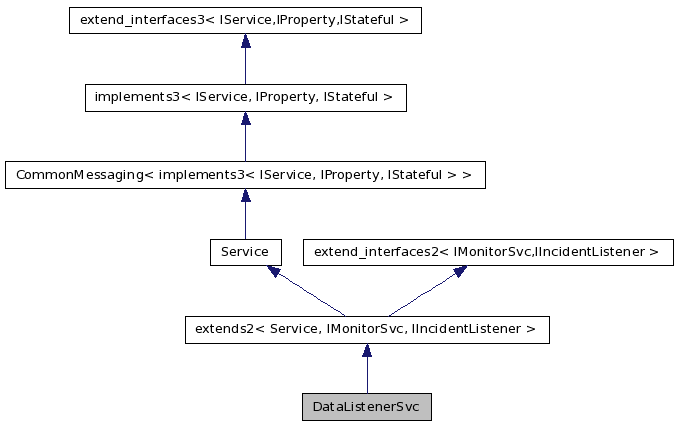

Inheritance diagram for DataListenerSvc:

[legend]

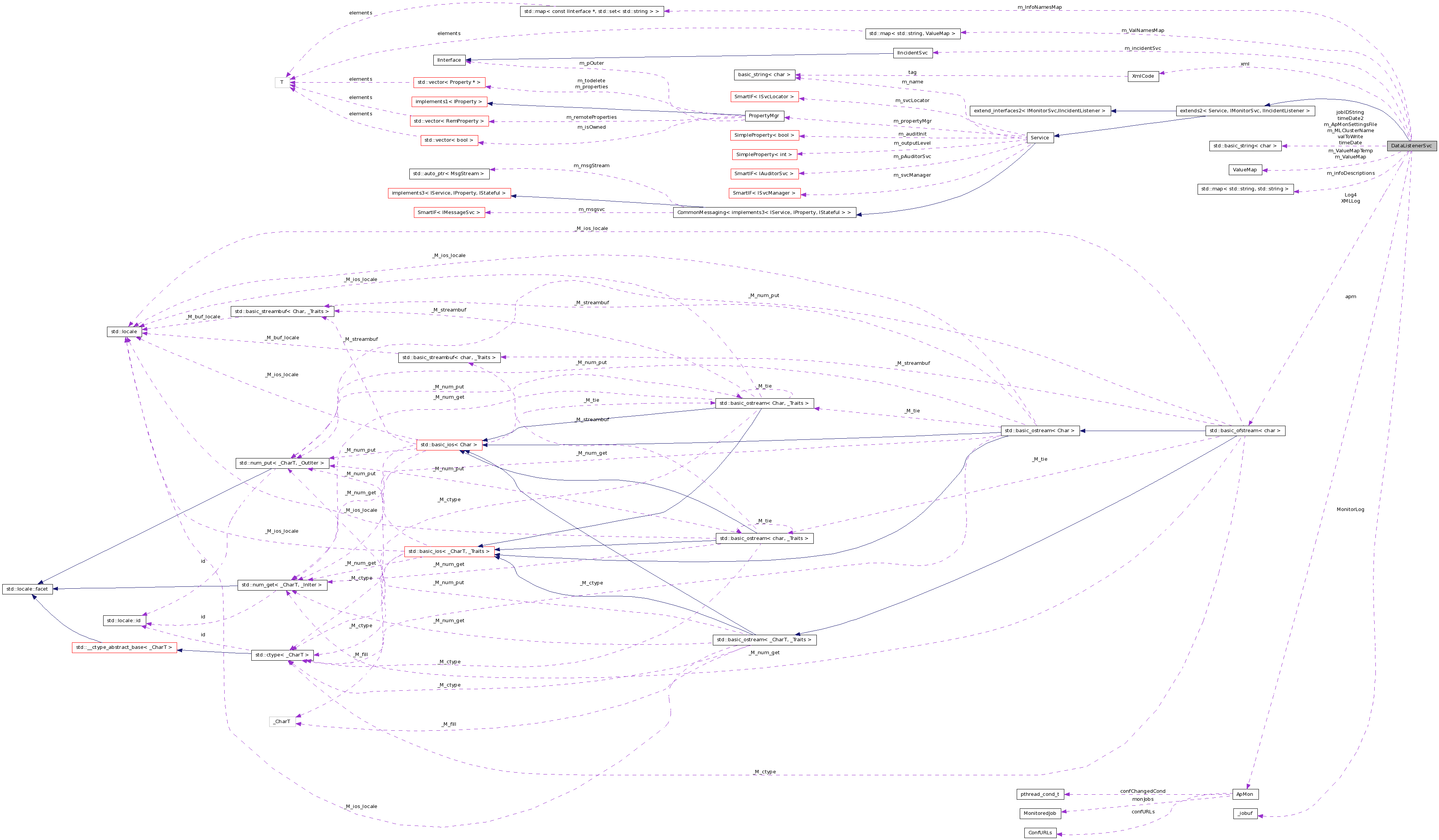

Collaboration diagram for DataListenerSvc:

[legend]

List of all members.

Public Member Functions
	DataListenerSvc (const std::string &name, ISvcLocator *sl)
virtual	~DataListenerSvc ()
StatusCode	initialize ()
StatusCode	finalize ()
void	declareInfo (const std::string &name, const bool &var, const std::string &desc, const IInterface *owner)
	Declare monitoring information.
void	declareInfo (const std::string &name, const int &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const long &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const double &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const std::string &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const std::pair< double, double > &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const AIDA::IBaseHistogram var, const std::string &desc, const IInterface owner)
void	declareInfo (const std::string &name, const StatEntity &var, const std::string &desc, const IInterface *owner)
void	declareInfo (const std::string &name, const std::string &format, const void var, int size, const std::string &desc, const IInterface owner)
void	undeclareInfo (const std::string &name, const IInterface *owner)
	Undeclare monitoring information.
void	undeclareAll (const IInterface *owner)
	Undeclare monitoring information.
virtual void	handle (const Incident &)
	Implementation of the IIncidentListener.h virtual method.
std::set< std::string > *	getInfos (const IInterface *owner=0)
	Get the names for all declared monitoring informations for a given owner.
void	apmSend (char clusterName, char moduleName, char *key, double val)
	Send (key,value) pairs to MonALISA server.
void	apmSend (char clusterName, char moduleName, char *key, int val)
	Send a (char*,int) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char *key, long val)
	Send a (char*,long) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char *key, bool val)
	Send a (char*,bool) pair to MonALISA.
void	apmSend (char clusterName, char moduleName, char key, char val)
	Send a (char,char) pair to MonALISA.
Private Types
typedef std::pair< std::string, ValueMap >	Entry
typedef std::map< const IInterface *, std::set < std::string > >	InfoNamesMap
typedef std::map< std::string, ValueMap >	ValNamesMap
Private Member Functions
void	writeMap (ValNamesMap , const Incident &, std::ofstream )
void	writeXML (ValNamesMap , const Incident &, std::ofstream )
std::string	resizeString (const std::string, const unsigned int)
std::string	stringConverter (const int convertee)
std::string	stringConverter (const double convertee)
std::string	stringConverter (const bool convertee)
std::string	stringConverter (const long convertee)
void	sendData (ValNamesMap *)
	MonALISA sender method to send Data to MonALISA server.
std::string	infoOwnerName (const IInterface *owner)
Private Attributes
ApMon *	apm
ValueMap	m_ValueMap
ValueMap	m_ValueMapTemp
time_t	rawTime
time_t	rawTime2
char	buffer [50]
char	buffer2 [50]
std::string	timeDate
std::string	timeDate2
std::string	valToWrite
InfoNamesMap	m_InfoNamesMap
InfoNamesMap::iterator	m_InfoNamesMapIt
ValNamesMap	m_ValNamesMap
ValNamesMap::iterator	m_ValNamesMapIt
XmlCode	xml
IIncidentSvc *	m_incidentSvc
FILE *	MonitorLog
std::ofstream	Log4
std::ofstream	XMLLog
int	FreqCriterion
int	m_EventFrequency
std::map< std::string, std::string >	m_infoDescriptions
int	m_MLjobID
int	m_MLEventFrequency
std::string	m_MLClusterName
std::string	m_ApMonSettingsFile
std::string	jobIDString
int	m_MonALISAMonitoring
int	m_XMLMonitoring
int	m_FileMonitoring
char *	keyToSend

Detailed Description

DataListenerSvc inherits from IMonitorSvc and allows the GAUDI user to monitor variables declared in an algorithm.

DataListenerSvc generates XML files on the individual machines where the algorithm is run, which can then be parsed by e.g. GANGA and sent to a monitoring server such as MonALISA. XML files are written at a frequency specified by the user and are consumed as they are created when used within GANGA.

Usage

In Algorithm header file

Include DataListenerSvc include DataListenerSvc/DataListenerSvc.h
define IMonitorSvc object: e.g. IMonitorSvc *m_DataListenerSvcSvc;

In Algorithm cpp file

instantiate IMonitorSvc object: e.g. sc = service("DataListenerSvc", m_DataListenerSvcSvc, true);
declare monitored variables: e.g. m_DataListenerSvcSvc->declareInfo("Psi ID", m_jPsiID, "The Psi ID", this); (for variable m_jPsiID)

Supports declaration of variables of type: int, long, bool, double, string

In GAUDI options file

Include DLL in ApplicationMgr.DLLs DataListenerSvc
Include Service in ApplicationMgr.ExtSvc DataListenerSvc/DataListenerSvc
Set job options e.g. DataListenerSvc.EventFrequency = 50

Job options available

Parameters:

EventFrequency How data is sent to - default is every 100 events

XML file format

XML tag format is the following:

Opening parent tags of the form:

<?xml version="1.0" encoding="ASCII" standalone="yes"?>
<Results Time="Tue Aug 22 10:17:22 2006">

<Run>

With then an entry for each monitored variable of the form:

	`<Incident>`
		`<IncType>EndEvent </IncType>` `<IncSource>EventLoopMgr </IncSource>` `<VarName>Psi ID </VarName>` `<Value Result="8">443</Value>`
	`</Incident>`

Parameters:

IncType	What type of incident triggered the handle method
IncSource	What triggered the IIncident handle method
VarName	Name of the variable monitored
Value	Value of the variable
Result	Number of times the variable already read

Author:: Ben KING

Date:: 2006-08-24

Definition at line 112 of file DataListenerSvc.h.

Member Typedef Documentation

typedef std::pair< std::string, ValueMap > DataListenerSvc::Entry [private]

Definition at line 213 of file DataListenerSvc.h.

typedef std::map<const IInterface*, std::set<std::string> > DataListenerSvc::InfoNamesMap [private]

Definition at line 214 of file DataListenerSvc.h.

typedef std::map< std::string, ValueMap > DataListenerSvc::ValNamesMap [private]

Definition at line 216 of file DataListenerSvc.h.

Constructor & Destructor Documentation

DataListenerSvc::DataListenerSvc	(	const std::string &	name,
		ISvcLocator *	sl
	)

Definition at line 59 of file DataListenerSvc.cpp.

  : base_class(name, sl) {

  declareProperty ("EventFrequency", m_EventFrequency=defaultFrequency);
  declareProperty ("MLEventFrequency", m_MLEventFrequency=defaultMLFrequency);
  declareProperty ("MLjobID", m_MLjobID=defaultjobID);
  declareProperty ("MLClusterName", m_MLClusterName=defaultClusterName);
  declareProperty ("MonALISAMonitoring", m_MonALISAMonitoring=defaultMonALISAMonitoring);
  declareProperty ("ApMonSource", m_ApMonSettingsFile=defaultApMonSettingsFile);

  declareProperty ("XMLMonitoring", m_XMLMonitoring=defaultXMLMonitoring);
  declareProperty ("FileMonitoring", m_FileMonitoring=defaultFileMonitoring);

}

virtual DataListenerSvc::~DataListenerSvc ( ) [inline, virtual]

Definition at line 116 of file DataListenerSvc.h.

{}

Member Function Documentation

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		double	val
	)

Send (key,value) pairs to MonALISA server.

Parameters:

clusterName	Name of cluster where information will be stored
moduleName	Name of module where information will be stored
key	Key of the (key,value) pair sent to MonALISA
value	Value of the (key,value) pair sent to MonALISA Send a (char*,double) pair to MonALISA

Definition at line 608 of file DataListenerSvc.cpp.

{
  MsgStream msg(msgSvc(),"DataListenerSvc");
  msg << MSG::DEBUG << "ApMon instantiated" << endmsg;

  try {
    DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
    msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
    msg << MSG::INFO << "Sent parameters to MonALISA sever:"
        << m_MLClusterName << "->"
        << jobIDString.c_str() << "->"
        << key << ":" << val << endmsg;
  } catch(std::runtime_error &e) {
    msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endmsg;
  }
}

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		int	val
	)

Send a (char*,int) pair to MonALISA.

Definition at line 626 of file DataListenerSvc.cpp.

{
  MsgStream msg(msgSvc(),"DataListenerSvc");
  msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
  try {
    DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
    msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
    msg << MSG::INFO << "Sent parameters to MonALISA sever:"
        << m_MLClusterName << "->"
        << jobIDString.c_str() << "->"
        << key << ":" << val << endmsg;
  } catch(std::runtime_error &e) {
    msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endmsg;
  }
}

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		long	val
	)

Send a (char*,long) pair to MonALISA.

Definition at line 643 of file DataListenerSvc.cpp.

{
  MsgStream msg(msgSvc(),"DataListenerSvc");
  msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
  double temp;
  temp = *(double*)val;

  try {
    DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, temp);
    msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
    msg << MSG::INFO << "Sent parameters to MonALISA sever:"
        << m_MLClusterName << "->"
        << jobIDString.c_str() << "->"
        << key << ":" << val << endmsg;
  } catch (std::runtime_error &e){
    msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endmsg;
  }
}

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		bool	val
	)

Send a (char*,bool) pair to MonALISA.

Definition at line 663 of file DataListenerSvc.cpp.

{
  MsgStream msg(msgSvc(),"DataListenerSvc");
  msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
  try {
    DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
    msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
    msg << MSG::INFO << "Sent parameters to MonALISA sever:"
        << m_MLClusterName << "->"
        << jobIDString.c_str() << "->"
        << key << ":" << val << endmsg;
  } catch (std::runtime_error &e){
    msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endmsg;
  }
}

void DataListenerSvc::apmSend	(	char *	clusterName,
		char *	moduleName,
		char *	key,
		char *	val
	)

Send a (char*,char*) pair to MonALISA.

Definition at line 680 of file DataListenerSvc.cpp.

{
  MsgStream msg(msgSvc(),"DataListenerSvc");
  msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
  try {
    DataListenerSvc::apm->sendParameter( clusterName, clusterNode, key, val);
    msg << MSG::DEBUG << "ApMon instantiated" << endmsg;
    msg << MSG::INFO << "Sent parameters to MonALISA sever:"
        << m_MLClusterName << "->"
        << jobIDString.c_str() << "->"
        << key << ":" << val << endmsg;
  } catch (std::runtime_error &e){
    msg << MSG::WARNING << "WARNING sending to ApMon:\t" << e.what() << endmsg;
  }
}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const int &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 223 of file DataListenerSvc.cpp.

{
  ValueMap::m_type vartype;
  vartype = ValueMap::m_int;

  MsgStream msg(msgSvc(),"DataListenerSvc");

  m_ValueMap.set_ptr(  static_cast <void*> (const_cast <int*> (&var) )  );
  m_ValueMap.set_ptrType(vartype);

  Entry p1(name, m_ValueMap);

  m_ValNamesMap.insert(p1);

}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const std::pair< double, double > &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 278 of file DataListenerSvc.cpp.

{
}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const AIDA::IBaseHistogram *	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 292 of file DataListenerSvc.cpp.

{
}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const bool &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Declare monitoring information.

Parameters:

name	Monitoring information name known to the external system
var	Monitoring Listener address
desc	Textual description
owner	Owner identifier of the monitoring information (needed to perform clean up

Definition at line 241 of file DataListenerSvc.cpp.

{

  ValueMap::m_type vartype;
  vartype = ValueMap::m_bool;

  MsgStream msg(msgSvc(),"DataListenerSvc");

  m_ValueMap.set_ptr(  static_cast <void*> (const_cast <bool*> (&var) )  );
  m_ValueMap.set_ptrType(vartype);

  Entry p1(name, m_ValueMap);

  m_ValNamesMap.insert(p1);

}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const long &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 204 of file DataListenerSvc.cpp.

{

  ValueMap::m_type vartype;
  vartype = ValueMap::m_long;

  MsgStream msg(msgSvc(),"DataListenerSvc");

  m_ValueMap.set_ptr(  static_cast <void*> (const_cast <long*> (&var) )  );
  m_ValueMap.set_ptrType(vartype);

  Entry p1(name, m_ValueMap);

  m_ValNamesMap.insert(p1);

}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const StatEntity &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 285 of file DataListenerSvc.cpp.

{
}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const std::string &	format,
		const void *	var,
		int	size,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 299 of file DataListenerSvc.cpp.

{
}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const double &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 183 of file DataListenerSvc.cpp.

{
  ValueMap::m_type vartype;
  vartype = ValueMap::m_double;

  MsgStream msg(msgSvc(),"DataListenerSvc");

  // In the ValueMap, store the pointer to the data (converted to void*)
  // and also store the pointer type (with an enum) so it can be converted back
  m_ValueMap.set_ptr(  static_cast <void*> (const_cast <double*> (&var) )  );
  m_ValueMap.set_ptrType(vartype);

  Entry p1(name, m_ValueMap);

  // m_ValNamesMap is then composed of n (variable Name: ValueMap) pairs
  m_ValNamesMap.insert(p1);

}

void DataListenerSvc::declareInfo	(	const std::string &	name,
		const std::string &	var,
		const std::string &	desc,
		const IInterface *	owner
	)

Definition at line 260 of file DataListenerSvc.cpp.

{
  ValueMap::m_type vartype;
  vartype = ValueMap::m_string;

  MsgStream msg(msgSvc(),"DataListenerSvc");

  m_ValueMap.set_ptr(  static_cast <void*> (const_cast <std::string*> (&var) )  );  m_ValueMap.set_ptrType(vartype);

  Entry p1(name, m_ValueMap);

  m_ValNamesMap.insert(p1);

}

StatusCode DataListenerSvc::finalize ( void ) [virtual]

Reimplemented from Service.

Definition at line 161 of file DataListenerSvc.cpp.

{
  MsgStream msg(msgSvc(),"DataListenerSvc");

  m_infoDescriptions.clear();
  m_ValNamesMap.clear();

  if (m_MonALISAMonitoring){
    if ( 0!= apm ) {
      delete apm;
      apm = 0 ;
    }
  }

  msg << MSG::DEBUG << "ApMon deleted" << endmsg;
  msg << MSG::INFO << "finalized successfully" << endmsg;

  if( m_incidentSvc ) m_incidentSvc->release();

  return Service::finalize();
}

std::set< std::string > * DataListenerSvc::getInfos ( const IInterface * owner = 0 )

Get the names for all declared monitoring informations for a given owner.

If the owner is NULL, then it returns for all owners

Definition at line 317 of file DataListenerSvc.cpp.

{
  std::set<std::string> * returnData = NULL;
  return returnData;
}

void DataListenerSvc::handle ( const Incident & Inc ) [virtual]

Implementation of the IIncidentListener.h virtual method.

Definition at line 329 of file DataListenerSvc.cpp.

{

  MsgStream msg(msgSvc(),"DataListenerSvc");
  numIncidents++;


  if (numIncidents % m_EventFrequency == 0){

    try {
      Log4.open("MonitorLog.txt", std::ios::trunc);
      XMLLog.open(("./log" + stringConverter(fileCounter)  + ".xml").c_str() , std::ios::trunc);
    } catch(std::exception &/*e*/) {
      msg << MSG::INFO
          << "Log File could not be opened, no monitoring available"
          << endmsg;
    }

    if (m_MonALISAMonitoring){
      // Send Data to MonALISA
      sendData(&m_ValNamesMap);
    }

    if (m_FileMonitoring){
      // Write simple text log
      writeMap(&m_ValNamesMap, Inc, &Log4 );
      Log4.close();
    }

    if (m_XMLMonitoring){
      // Write XML files
      writeXML(&m_ValNamesMap, Inc, &XMLLog );
      XMLLog.close();
    }

    fileCounter++;
  }

}

std::string DataListenerSvc::infoOwnerName ( const IInterface * owner ) [private]

Definition at line 323 of file DataListenerSvc.cpp.

{
  std::string returnData = "";
  return returnData;
}

StatusCode DataListenerSvc::initialize ( void ) [virtual]

Reimplemented from Service.

Definition at line 75 of file DataListenerSvc.cpp.

{

  m_ApMonSettingsFile = defaultApMonSettingsFile;
  StatusCode sc = Service::initialize();
  MsgStream msg(msgSvc(),name());

  jobIDString = "jobID: " + stringConverter(m_MLjobID);

  if ( !sc.isSuccess() )   {
    msg << MSG::ERROR << "Failed to initialize Service base class." << endmsg;
    return StatusCode::FAILURE;
  }

  sc = service("IncidentSvc", m_incidentSvc, true);
  if (!sc.isSuccess()) {
    msg << MSG::ERROR << "Failed to access incident service." << endmsg;
    return StatusCode::FAILURE;
  }
  m_incidentSvc->addListener(this, IncidentType::EndEvent);

  if (m_MonALISAMonitoring){
    // Initialise MonALISA
    apm = new ApMon(const_cast<char*>(m_ApMonSettingsFile.c_str()));
  }

  // DEBUG info on job options specified in GAUDI
  if (m_MLEventFrequency == defaultMLFrequency) {
    msg << MSG::DEBUG
        << "Frequency to send data to MonALISA not specified, taken as the default value: "
        << defaultMLFrequency << endmsg;
  } else {
    msg << MSG::INFO
        << "Data sent to MonALISA every "
        << m_MLEventFrequency << " events" << endmsg;
  }

  if (m_MLjobID == defaultjobID){
    msg << MSG::DEBUG
        << "DataListenerSvc MonALISA Job ID not specified, taken as the default value: "
        << defaultjobID << endmsg;
  }

  if (m_MLClusterName == defaultClusterName){
    msg << MSG::DEBUG
        << "DataListenerSvc MonALISA cluster name not specified, taken as the default value: "
        << defaultClusterName << endmsg;
  }

  if (m_ApMonSettingsFile == defaultApMonSettingsFile){
    msg << MSG::DEBUG
        << "MonALISA ApMon configuration file destination not specified,  will be read from: "
        << defaultClusterName << endmsg;
  }

  if (m_EventFrequency == defaultFrequency){
    msg << MSG::INFO
        << "XML Log file frequency not specified, taken as the default value: "
        << defaultFrequency << endmsg;
  } else {
    msg << MSG::INFO
        << "Frequency XML logs are written at: "
        << m_EventFrequency << endmsg;
  }

  if (m_MonALISAMonitoring) {
    msg << MSG::INFO
        << "Data will be published to a MonALISA server"
        << endmsg;
  }

  if (m_XMLMonitoring) {
    msg << MSG::INFO
        << "Data will be written to XML log files"
        << endmsg;
  }
  if (m_FileMonitoring) {
    msg << MSG::INFO
        << "Data will be updated in a Text log file"
        << endmsg;
  }

  return StatusCode::SUCCESS;
}

std::string DataListenerSvc::resizeString	(	const std::string	text,
		const unsigned int	length
	)		`[private]`

Definition at line 370 of file DataListenerSvc.cpp.

{
  std::string temp;
  unsigned int counter=0;

  do {

    if (text.length() > length) {
      temp = text.substr(0,(length-1));
    } else {
      if (counter==0) {
        temp = text;
        counter++;
      }
      temp.append(" ");
    }

  } while (temp.length() != length);

  return temp;
}

void DataListenerSvc::sendData ( ValNamesMap * m_ValNamesMap ) [private]

MonALISA sender method to send Data to MonALISA server.

Definition at line 571 of file DataListenerSvc.cpp.

{

  for (m_ValNamesMapIt = m_ValNamesMap->begin();
       m_ValNamesMapIt != m_ValNamesMap->end();
       ++m_ValNamesMapIt){

    m_ValueMapTemp = m_ValNamesMapIt->second;
    keyToSend = const_cast<char*>((m_ValNamesMapIt->first).c_str());


    if (m_ValueMapTemp.get_ptrType() == ValueMap::m_double){
      apmSend(const_cast <char*>(m_MLClusterName.c_str()),
              const_cast <char*> (jobIDString.c_str()),
              keyToSend, *(double*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_int){
      apmSend(const_cast <char*>(m_MLClusterName.c_str()),
              const_cast <char*> (jobIDString.c_str()),
              keyToSend, *(int*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_long){
      apmSend(const_cast <char*>(m_MLClusterName.c_str()),
              const_cast <char*> (jobIDString.c_str()),
              keyToSend, *(long*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_bool){
      apmSend(const_cast <char*>(m_MLClusterName.c_str()),
              const_cast <char*> (jobIDString.c_str()),
              keyToSend, *(bool*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_string){
      apmSend(const_cast <char*>(m_MLClusterName.c_str()),
              const_cast <char*> (jobIDString.c_str()),
              keyToSend, const_cast <char*>((*(std::string*)m_ValueMapTemp.get_ptr()).c_str()));
    }
  }

}

std::string DataListenerSvc::stringConverter ( const bool convertee ) [private]

Definition at line 424 of file DataListenerSvc.cpp.

{
  std::stringstream s;
  std::string temp;
  s << convertee;
  s >> temp;
  s.flush();
  return temp;
}

std::string DataListenerSvc::stringConverter ( const long convertee ) [private]

Definition at line 414 of file DataListenerSvc.cpp.

{
  std::stringstream s;
  std::string temp;
  s << convertee;
  s >> temp;
  s.flush();
  return temp;
}

std::string DataListenerSvc::stringConverter ( const double convertee ) [private]

Definition at line 404 of file DataListenerSvc.cpp.

{
  std::stringstream s;
  std::string temp;
  s << convertee;
  s >> temp;
  s.flush();
  return temp;
}

std::string DataListenerSvc::stringConverter ( const int convertee ) [private]

Definition at line 394 of file DataListenerSvc.cpp.

{
  std::stringstream s;
  std::string temp;
  s << convertee;
  s >> temp;
  s.flush();
  return temp;
}

void DataListenerSvc::undeclareAll ( const IInterface * owner )

Undeclare monitoring information.

Parameters:

owner Owner identifier of the monitoring information

Definition at line 313 of file DataListenerSvc.cpp.

{
}

void DataListenerSvc::undeclareInfo	(	const std::string &	name,
		const IInterface *	owner
	)

Undeclare monitoring information.

Parameters:

name	Monitoring information name known to the external system
owner	Owner identifier of the monitoring information

Definition at line 308 of file DataListenerSvc.cpp.

{
}

void DataListenerSvc::writeMap	(	ValNamesMap *	m_ValNamesMap,
		const Incident &	Inc,
		std::ofstream *	MyFile
	)		`[private]`

Definition at line 514 of file DataListenerSvc.cpp.

{
  // prepare time ctime.h and remove trailing carriage return
  time ( &rawTime2 );
  sprintf (buffer2, "%s", ctime(&rawTime2));
  timeDate2 = buffer2;
  timeDate2.erase(timeDate2.size()-1, 1);

  // headings for the text file with spacing numbers
  std::string space = "   ";
  std::string heading0 = "Time                       "; // 27
  std::string heading1 = "No      "; // 8 chars long
  std::string heading2 = "Incident Type     "; // 18
  std::string heading3 = "Incident Source   "; // 18
  std::string heading4 = "Name            ";  // 16
  std::string heading5 = "Value               "; // 20

  *MyFile << heading0 + heading1 + heading2 + heading3 + heading4 + heading5
          << std::endl;

  for (m_ValNamesMapIt = m_ValNamesMap->begin();
       m_ValNamesMapIt != m_ValNamesMap->end();
       ++m_ValNamesMapIt){

    m_ValueMapTemp = m_ValNamesMapIt->second;

    *MyFile << timeDate2 << space

            << resizeString(stringConverter(numIncidents),8) // Counts # incidents
            << resizeString(Inc.type(),18)                 // Incident Type
            << resizeString(Inc.source(),18)               // Source of the Incident
            << resizeString(m_ValNamesMapIt->first,20);    // Variable Name

    // Check the variable type and in each case, cast accordingly
    if (m_ValueMapTemp.get_ptrType() == ValueMap::m_double){
      *MyFile << resizeString(stringConverter(*(double*)m_ValueMapTemp.get_ptr()), 12)
              << std::endl;
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_int){
      *MyFile << resizeString(stringConverter(*(int*)m_ValueMapTemp.get_ptr()), 12)
              << std::endl;
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_long){
      *MyFile << resizeString(stringConverter(*(long*)m_ValueMapTemp.get_ptr()), 12)
              << std::endl;
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_bool){
      *MyFile << resizeString(stringConverter(*(bool*)m_ValueMapTemp.get_ptr()), 12)
              << std::endl;
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_string){
      *MyFile << resizeString((*(std::string*)m_ValueMapTemp.get_ptr()), 12)
              << std::endl;
      }

      }

}

void DataListenerSvc::writeXML	(	ValNamesMap *	m_ValNamesMap,
		const Incident &	Inc,
		std::ofstream *	MyFile
	)		`[private]`

Definition at line 435 of file DataListenerSvc.cpp.

{

  MsgStream msg(msgSvc(),"DataListenerSvc");

  // prepare time ctime.h and remove trailing carriage return
  time ( &rawTime );
  sprintf (buffer, "%s", ctime(&rawTime));
  timeDate = buffer;
  timeDate.erase(timeDate.size()-1, 1);


  msg << MSG::INFO << "XML written to file: " << MyFile << endmsg;


  *MyFile << xml.declaration("1.0", "ASCII", "yes") << std::endl;

  *MyFile << xml.tagBegin("Results", 0, "Time", timeDate)
          << xml.tagBegin("Run",1);


  for (m_ValNamesMapIt = m_ValNamesMap->begin();
       m_ValNamesMapIt != m_ValNamesMap->end();
       ++m_ValNamesMapIt) {

    m_ValueMapTemp = m_ValNamesMapIt->second;

    *MyFile << xml.tagBegin("Incident",2);

    *MyFile << xml.tagBegin("IncType", 3)
            << xml.data(resizeString(Inc.type(),18))
            << xml.tagEnd("IncType", 0);

    *MyFile << xml.tagBegin("IncSource", 3)
            << xml.data(resizeString(Inc.source(),18))
            << xml.tagEnd("IncSource", 0);

    *MyFile << xml.tagBegin("VarName", 3)
            << xml.data(resizeString(m_ValNamesMapIt->first,20))
            << xml.tagEnd("VarName", 0);

    *MyFile << xml.tagBegin("Value", 3, "Result", stringConverter(numIncidents));
    // Check the variable type and in each case, cast accordingly



    // re-convert pointers to their original form and then to strings
    // so that they can be written with XMLCode.h
    if (m_ValueMapTemp.get_ptrType() == ValueMap::m_double){
      valToWrite = stringConverter(*(double*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_int){
      valToWrite = stringConverter(*(int*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_long){
      valToWrite = stringConverter(*(long*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_bool){
      valToWrite = stringConverter(*(bool*)m_ValueMapTemp.get_ptr());
    } else if (m_ValueMapTemp.get_ptrType() == ValueMap::m_string){
      valToWrite = *(std::string*)m_ValueMapTemp.get_ptr();
    }


    *MyFile << xml.data(valToWrite);
    msg << MSG::DEBUG << "XML written: " << m_ValNamesMapIt->first << " , "
        << valToWrite << endmsg;

    *MyFile << xml.tagEnd("Value", 0);
    *MyFile << xml.tagEnd("Incident",2);
  }


  *MyFile << xml.tagEnd("Run",1)
          << xml.tagEnd("Results", 0);

}

Member Data Documentation

ApMon* DataListenerSvc::apm [private]

Definition at line 195 of file DataListenerSvc.h.

char DataListenerSvc::buffer[50] [private]

Definition at line 205 of file DataListenerSvc.h.

char DataListenerSvc::buffer2[50] [private]

Definition at line 206 of file DataListenerSvc.h.

int DataListenerSvc::FreqCriterion [private]

Definition at line 246 of file DataListenerSvc.h.

std::string DataListenerSvc::jobIDString [private]

Definition at line 265 of file DataListenerSvc.h.

char* DataListenerSvc::keyToSend [private]

Definition at line 271 of file DataListenerSvc.h.

std::ofstream DataListenerSvc::Log4 [private]

Definition at line 242 of file DataListenerSvc.h.

std::string DataListenerSvc::m_ApMonSettingsFile [private]

Definition at line 264 of file DataListenerSvc.h.

int DataListenerSvc::m_EventFrequency [private]

Definition at line 247 of file DataListenerSvc.h.

int DataListenerSvc::m_FileMonitoring [private]

Definition at line 268 of file DataListenerSvc.h.

IIncidentSvc* DataListenerSvc::m_incidentSvc [private]

Definition at line 240 of file DataListenerSvc.h.

std::map<std::string,std::string> DataListenerSvc::m_infoDescriptions [private]

Definition at line 257 of file DataListenerSvc.h.

InfoNamesMap DataListenerSvc::m_InfoNamesMap [private]

Definition at line 230 of file DataListenerSvc.h.

InfoNamesMap::iterator DataListenerSvc::m_InfoNamesMapIt [private]

Definition at line 231 of file DataListenerSvc.h.

std::string DataListenerSvc::m_MLClusterName [private]

Definition at line 263 of file DataListenerSvc.h.

int DataListenerSvc::m_MLEventFrequency [private]

Definition at line 262 of file DataListenerSvc.h.

int DataListenerSvc::m_MLjobID [private]

Definition at line 261 of file DataListenerSvc.h.

int DataListenerSvc::m_MonALISAMonitoring [private]

Definition at line 266 of file DataListenerSvc.h.

ValNamesMap DataListenerSvc::m_ValNamesMap [private]

Definition at line 233 of file DataListenerSvc.h.

ValNamesMap::iterator DataListenerSvc::m_ValNamesMapIt [private]

Definition at line 234 of file DataListenerSvc.h.

ValueMap DataListenerSvc::m_ValueMap [private]

Definition at line 199 of file DataListenerSvc.h.

ValueMap DataListenerSvc::m_ValueMapTemp [private]

Definition at line 200 of file DataListenerSvc.h.

int DataListenerSvc::m_XMLMonitoring [private]

Definition at line 267 of file DataListenerSvc.h.

FILE* DataListenerSvc::MonitorLog [private]

Definition at line 241 of file DataListenerSvc.h.

time_t DataListenerSvc::rawTime [private]

Definition at line 202 of file DataListenerSvc.h.

time_t DataListenerSvc::rawTime2 [private]

Definition at line 203 of file DataListenerSvc.h.

std::string DataListenerSvc::timeDate [private]

Definition at line 207 of file DataListenerSvc.h.

std::string DataListenerSvc::timeDate2 [private]

Definition at line 208 of file DataListenerSvc.h.

std::string DataListenerSvc::valToWrite [private]

Definition at line 209 of file DataListenerSvc.h.

XmlCode DataListenerSvc::xml [private]

Definition at line 235 of file DataListenerSvc.h.

std::ofstream DataListenerSvc::XMLLog [private]

Definition at line 243 of file DataListenerSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiMonitor/src/DataListenerSvc/DataListenerSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiMonitor/src/DataListenerSvc/DataListenerSvc.cpp

Gaudi Framework, version v22r4

DataListenerSvc Class Reference

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
