GaudiHandleBase Class Reference

Base class to handles to be used in lieu of naked pointers to various Gaudi components. More...

#include <GaudiKernel/GaudiHandle.h>

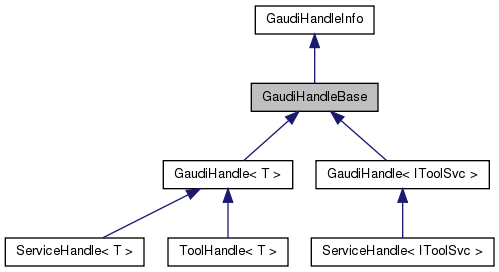

Inheritance diagram for GaudiHandleBase:

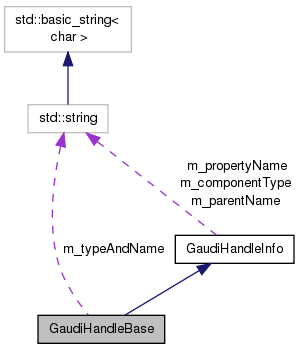

Collaboration diagram for GaudiHandleBase:

Public Member Functions
std::string	typeAndName () const
	The full type and name: "type/name". More...
std::string	type () const
	The concrete component class name: the part before the '/'. More...
std::string	name () const
	The instance name: the part after the '/'. More...
bool	empty () const
	Check if the handle has been set to empty string (i.e. More...
void	setTypeAndName (const std::string &myTypeAndName)
	The component "type/name" string. More...
void	setName (const std::string &myName)
	Set the instance name (part after the '/') without changing the class type. More...
const std::string	pythonPropertyClassName () const
	Name of the componentType with "Handle" appended. More...
const std::string	messageName () const
	name used for printing messages More...
virtual const std::string	pythonRepr () const
	Python representation of handle, i.e. More...
Public Member Functions inherited from GaudiHandleInfo
virtual	~GaudiHandleInfo ()
	virtual destructor so that derived class destructor is called. More...
const std::string &	componentType () const
const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle) More...
void	setPropertyName (const std::string &propName)
	set name as used in declareProperty(name,gaudiHandle). More...
const std::string &	parentName () const
	The name of the parent. More...

Protected Member Functions
	GaudiHandleBase (const std::string &myTypeAndName, const std::string &myComponentType, const std::string &myParentName)
	Create a handle ('smart pointer') to a gaudi component. More...
Protected Member Functions inherited from GaudiHandleInfo
	GaudiHandleInfo (const std::string &myComponentType, const std::string &myParentName)
	Some basic information and helper functions shared between various handles/arrays. More...

Private Attributes
std::string	m_typeAndName

Detailed Description

Base class to handles to be used in lieu of naked pointers to various Gaudi components.

This allows better control through the framework of component loading, configuration and usage. This base class implements common features.

Author

Marti.nosp@m.n.Wo.nosp@m.udstr.nosp@m.a@ce.nosp@m.rn.ch

Definition at line 80 of file GaudiHandle.h.

Constructor & Destructor Documentation

GaudiHandleBase::GaudiHandleBase ( const std::string &  myTypeAndName, const std::string &  myComponentType, const std::string &  myParentName  )

inlineprotected

Create a handle ('smart pointer') to a gaudi component.

Parameters

myTypeAndName	"MyType/MyName" ("MyType" is short for "MyType/MyType") 'MyType' is the name of the concrete class of the component 'MyName' is to distinguish several instances of the same concrete class
myComponentType	string indicating what type of component the handle is pointing to. For example: "PublicTool", "PrivateTool", "Service". This is used for printout and on the python side for type checking. On the python side there are classes with these names with "Handle" appended: PublicToolHandle,PrivateToolHandle,ServiceHandle
myParentName	Name of the parent that has this handle as a member. Used in printout.

Definition at line 96 of file GaudiHandle.h.

    : GaudiHandleInfo(myComponentType,myParentName)
  {
    setTypeAndName(myTypeAndName);
  }

Member Function Documentation

bool GaudiHandleBase::empty ( ) const

inline

Check if the handle has been set to empty string (i.e.

typeAndName string is empty).

Definition at line 118 of file GaudiHandle.h.

                     {
    return m_typeAndName.empty();
  }

const std::string GaudiHandleBase::messageName

(

)

const

name used for printing messages

Definition at line 48 of file GaudiHandle.cpp.

                                                   {
  std::string propName = propertyName();
  if ( propName.empty() ) {
    propName = pythonPropertyClassName() + "('" + m_typeAndName + "')";
  }
  return parentName() + "." + propName;
}

std::string GaudiHandleBase::name

(

)

const

The instance name: the part after the '/'.

Definition at line 24 of file GaudiHandle.cpp.

                                      {
  std::string::size_type slash = m_typeAndName.find('/');
  if ( slash == std::string::npos ) {
    // only type is given, or string is empty.
    // return default name (=type or empty, in this case full string)
    return m_typeAndName;
  } else if ( slash != m_typeAndName.length() -1 ) {
    // an explicit name is given, so return it
    return m_typeAndName.substr(slash+1);
  } else {
    // ends with /, i.e. explicit empty name.
    // Should probably never happen.
    return "";
  }
}

const std::string GaudiHandleBase::pythonPropertyClassName ( ) const

virtual

Name of the componentType with "Handle" appended.

Used as the python class name for the property in the genconf-generated configurables. The python class is defined in GaudiPython/python/GaudiHandles.py.

Implements GaudiHandleInfo.

Definition at line 44 of file GaudiHandle.cpp.

                                                               {
  return componentType() + "Handle";
}

const std::string GaudiHandleBase::pythonRepr ( ) const

virtual

Python representation of handle, i.e.

python class name and argument. Can be used in the genconf-generated configurables. The corresponding python classes are defined in GaudiPython/GaudiHandles.py

Implements GaudiHandleInfo.

Definition at line 56 of file GaudiHandle.cpp.

                                                  {
  return pythonPropertyClassName() + "('" + m_typeAndName + "')";
}

void GaudiHandleBase::setName

(

const std::string &

myName

)

Set the instance name (part after the '/') without changing the class type.

Definition at line 40 of file GaudiHandle.cpp.

                                                       {
  m_typeAndName = type() + '/' + myName;
}

void GaudiHandleBase::setTypeAndName

(

const std::string &

myTypeAndName

)

The component "type/name" string.

Definition at line 9 of file GaudiHandle.cpp.

                                                                     {
  m_typeAndName = myTypeAndName;
}

std::string GaudiHandleBase::type

(

)

const

The concrete component class name: the part before the '/'.

Definition at line 13 of file GaudiHandle.cpp.

                                      {
  std::string::size_type slash = m_typeAndName.find('/');
  if ( slash != std::string::npos ) {
    // return only part before /
    return m_typeAndName.substr(0,slash);
  } else {
    // return full string
    return m_typeAndName;
  }
}

std::string GaudiHandleBase::typeAndName ( ) const

inline

The full type and name: "type/name".

Definition at line 107 of file GaudiHandle.h.

                                {
     return m_typeAndName;
  }

Member Data Documentation

std::string GaudiHandleBase::m_typeAndName

private

Definition at line 145 of file GaudiHandle.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/GaudiHandle.h
• GaudiKernel/src/Lib/GaudiHandle.cpp
