#include <GaudiKernel/NTupleImplementation.h>

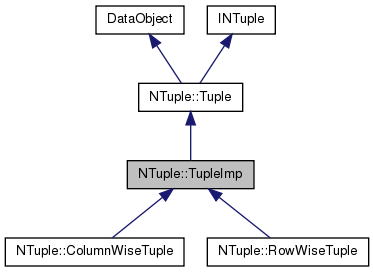

Inheritance diagram for NTuple::TupleImp:

Collaboration diagram for NTuple::TupleImp:

Public Member Functions
virtual INTupleItem *	i_find (const std::string &name) const
	Internally used by abstract classes. More...

	TupleImp (const std::string &title)
	Standard Constructor. More...

virtual	~TupleImp ()
	Standard Destructor. More...

ItemContainer &	items ()
	Access item container. More...

const ItemContainer &	items () const
	Access item container (CONST) More...

virtual const std::string &	title () const
	Object title. More...

virtual const INTupleItem *	find (const std::string &name) const
	Find an item row of the Ntuple (CONST) More...

virtual INTupleItem *	find (const std::string &name)
	Find an item row of the Ntuple. More...

char *	buffer ()
	Access N tuple data buffer. More...

const char *	buffer () const
	Access N tuple data buffer (CONST) More...

IConversionSvc *	conversionService () const
	Access conversion service. More...

void	setConversionService (IConversionSvc *svc)
	Access conversion service. More...

INTupleSvc *	tupleService () const
	Access conversion service. More...

void	setTupleService (INTupleSvc *svc)
	Access conversion service. More...

virtual StatusCode	attachSelector (ISelectStatement *sel)
	Attach selector. More...

virtual ISelectStatement *	selector ()
	Access selector. More...

virtual void	setBuffer (char *buff)
	Set N tuple data buffer. More...

virtual void	reset ()
	Reset all entries to their default values. More...

virtual StatusCode	add (INTupleItem *item)
	Add an item row to the N tuple. More...

virtual StatusCode	remove (INTupleItem *item)
	Remove an item row (identified by pointer) from the N tuple. More...

virtual StatusCode	remove (const std::string &name)
	Remove an item row (identified by name) from the N tuple. More...

virtual StatusCode	write ()
	Write record of the NTuple (Shortcut of writeRecord) More...

virtual StatusCode	writeRecord ()
	Write record of the NTuple. More...

virtual StatusCode	read ()
	Read record of the NTuple (Shortcut of readRecord) More...

virtual StatusCode	readRecord ()
	Read record of the NTuple. More...

virtual StatusCode	save ()
	Save the NTuple. More...

Public Member Functions inherited from NTuple::Tuple
virtual	~Tuple ()
	Standard destructor. More...

template<class TYPE >
StatusCode	item (const std::string &name, Item< TYPE > &result)
	Locate a scalar Item of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	item (const std::string &name, const Item< TYPE > &result) const
	Locate a scalar Item of data to the N tuple type safe (CONST) More...

template<class TYPE >
StatusCode	item (const std::string &name, Array< TYPE > &result)
	Locate a Array of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	item (const std::string &name, const Array< TYPE > &result) const
	Locate a Array of data to the N tuple type safe (CONST) More...

template<class TYPE >
StatusCode	item (const std::string &name, Matrix< TYPE > &result)
	Locate a Matrix of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	item (const std::string &name, const Matrix< TYPE > &result) const
	Locate a Matrix of data to the N tuple type safe (CONST) More...

template<class TYPE >
StatusCode	addItem (const std::string &name, Item< TYPE > &itm)
	Add a scalar data item a N tuple. More...

template<class TYPE >
StatusCode	addItem (const std::string &name, Item< TYPE * > &itm)
	Add an simple object item to an N tuple. More...

StatusCode	addItem (const std::string &name, Item< IOpaqueAddress * > &itm)
	Add an address object item to an N tuple: specialized call. More...

template<class TYPE , class RANGE >
StatusCode	addItem (const std::string &name, Item< TYPE > &itm, const RANGE low, const RANGE high)
	Add a scalar data item a N tuple with a range. More...

template<class TYPE >
StatusCode	addItem (const std::string &name, long dim, Array< TYPE > &array)
	Add an fixed-size Array of data to a column wise N tuple. More...

template<class TYPE , class RANGE >
StatusCode	addItem (const std::string &name, long dim, Array< TYPE > &array, const RANGE low, const RANGE high)
	Add an fixed-size Array of data to a column wise N tuple with a range. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array, const RANGE low, const RANGE high)
	Add an indexed Array of data to a column wise N tuple with a range. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array, const RANGE low, const RANGE high)
	Add an indexed Array of data to a column wise N tuple with a range. More...

template<class TYPE , class INDEX >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array)
	Add an indexed Array of data to a column wise N tuple. More...

template<class TYPE , class INDEX >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &index, Array< TYPE > &array)
	Add an indexed Array of data to a column wise N tuple. More...

template<class TYPE >
StatusCode	addItem (const std::string &name, long cols, long rows, Matrix< TYPE > &matrix)
	Add an fixed size Matrix of data to a column wise N tuple. More...

template<class TYPE , class RANGE >
StatusCode	addItem (const std::string &name, long cols, long rows, Matrix< TYPE > &result, const RANGE low, const RANGE high)
	Add an fixed size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Matrix< TYPE > &matrix, long rows)
	Add an variable size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &col_index, long rows, Matrix< TYPE > &matrix)
	Add an variable size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addItem (const std::string &name, Item< INDEX > &index, Matrix< TYPE > &matrix, long rows, const RANGE low, const RANGE high)
	Add an variable size Matrix of data to a column wise N tuple. More...

template<class TYPE , class INDEX , class RANGE >
StatusCode	addIndexedItem (const std::string &name, Item< INDEX > &index, long rows, Matrix< TYPE > &matrix, const RANGE low, const RANGE high)
	Add an variable size Matrix of data to a column wise N tuple. More...

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &)
	Copy Constructor. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

virtual const CLID &	clID () const
	Retrieve reference to class definition structure. More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr () const
	Retrieve Link manager. More...

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Public Member Functions inherited from INTuple
virtual	~INTuple ()

Protected Attributes
ItemContainer	m_items
	Container with N tuple _Columns. More...

bool	m_isBooked
	Flag wether N tuple is booked. More...

std::string	m_title
	N tuple title. More...

ISelectStatement *	m_pSelector
	Possibly hanging selector. More...

char *	m_buffer
	Buffer size. More...

INTupleSvc *	m_ntupleSvc
	Reference to N-tuple service used. More...

IConversionSvc *	m_cnvSvc
	Reference to the conversion service used. More...

Private Member Functions
	TupleImp (const TupleImp &)
	Standard Copy Constructor. More...

Additional Inherited Members
Public Types inherited from INTuple
typedef std::vector < INTupleItem * >	ItemContainer

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Protected Member Functions inherited from NTuple::Tuple
template<class TYPE >
StatusCode	i_item (const std::string &name, _Item< TYPE > *&result) const
	Locate a _Column of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_item (const std::string &name, _Item< TYPE * > *&result) const
	Locate a _Column of data to the N tuple type unsafe for objects. More...

StatusCode	i_item (const std::string &name, _Item< IOpaqueAddress * > *&result) const
	Locate a _Column of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_item (const std::string &name, _Array< TYPE > *&result) const
	Locate a _Array of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_item (const std::string &name, _Matrix< TYPE > *&result) const
	Locate a _Matrix of data to the N tuple type safe. More...

template<class TYPE >
StatusCode	i_addItem (const std::string &name, long, const std::string &, TYPE low, TYPE high, _Item< TYPE > *&result)
	Add a _Item of data to the N tuple. More...

template<class TYPE >
StatusCode	i_addItem (const std::string &name, long dim, const std::string &index, TYPE low, TYPE high, _Array< TYPE > *&result)
	Add a _Item of data to the N tuple. More...

template<class TYPE >
StatusCode	i_addItem (const std::string &name, long dim1, long dim2, const std::string &index, TYPE low, TYPE high, _Matrix< TYPE > *&result)
	Add a _Item of data to the N tuple. More...

template<class TYPE >
StatusCode	i_addObject (const std::string &name, _Item< TYPE * > *&result, const std::type_info &)

Detailed Description

Definition at line 15 of file NTupleImplementation.h.

Constructor & Destructor Documentation

NTuple::TupleImp::TupleImp ( const TupleImp & )

private

Standard Copy Constructor.

NTuple::TupleImp::TupleImp ( const std::string & title )

Standard Constructor.

Definition at line 27 of file NTupleImplementation.cpp.

   : m_isBooked(false),
     m_title(title),
     m_pSelector(0),
     m_buffer(0),
     m_ntupleSvc(0),
     m_cnvSvc(0)
   {
   }

NTuple::TupleImp::~TupleImp ( )

virtual

Standard Destructor.

Definition at line 38 of file NTupleImplementation.cpp.

                          {
     for (ItemContainer::iterator i = m_items.begin(); i != m_items.end(); i++) {
       (*i)->release();
     }
     m_items.erase(m_items.begin(), m_items.end());
     delete  [] m_buffer;
     m_buffer = 0;
   }

Member Function Documentation

StatusCode NTuple::TupleImp::add ( INTupleItem * item )

virtual

Add an item row to the N tuple.

Implements INTuple.

Definition at line 81 of file NTupleImplementation.cpp.

                                               {
     if ( 0 != item )    {
       INTupleItem* i = i_find(item->name());
       if ( 0 == i )   {
         m_items.push_back( item );
         return StatusCode::SUCCESS;
       }
     }
     return StatusCode::FAILURE;
   }

StatusCode NTuple::TupleImp::attachSelector ( ISelectStatement * sel )

virtual

Attach selector.

Implements INTuple.

Definition at line 48 of file NTupleImplementation.cpp.

                                                             {
     if ( 0 != sel         ) sel->addRef();
     if ( 0 != m_pSelector ) m_pSelector->release();
     m_pSelector = sel;
     return StatusCode::SUCCESS;
   }

char* NTuple::TupleImp::buffer ( )

inlinevirtual

Access N tuple data buffer.

Implements INTuple.

Definition at line 64 of file NTupleImplementation.h.

                       {
       return m_buffer;
     }

const char* NTuple::TupleImp::buffer ( ) const

inlinevirtual

Access N tuple data buffer (CONST)

Implements INTuple.

Definition at line 68 of file NTupleImplementation.h.

                                  {
       return m_buffer;
     }

IConversionSvc* NTuple::TupleImp::conversionService ( ) const

inline

Access conversion service.

Definition at line 72 of file NTupleImplementation.h.

                                                  {
       return m_cnvSvc;
     }

virtual const INTupleItem* NTuple::TupleImp::find ( const std::string & name ) const

inlinevirtual

Find an item row of the Ntuple (CONST)

Implements INTuple.

Definition at line 56 of file NTupleImplementation.h.

                                                                     {
       return i_find(name);
     }

virtual INTupleItem* NTuple::TupleImp::find ( const std::string & name )

inlinevirtual

Find an item row of the Ntuple.

Implements INTuple.

Definition at line 60 of file NTupleImplementation.h.

                                                         {
       return i_find(name);
     }

INTupleItem * NTuple::TupleImp::i_find ( const std::string & name ) const

virtual

Internally used by abstract classes.

Locate a column of data to the N tuple (not type safe)

Implements INTuple.

Definition at line 68 of file NTupleImplementation.cpp.

                                                                  {
     for (ItemContainer::const_iterator i = m_items.begin();
          i != m_items.end();
          i++) {
       if ( name == (*i)->name() )   {
         INTupleItem* it = const_cast<INTupleItem*>(*i);
         return it;
       }
     }
     return 0;
   }

ItemContainer& NTuple::TupleImp::items ( )

inlinevirtual

Access item container.

Implements INTuple.

Definition at line 44 of file NTupleImplementation.h.

                               {
       return m_items;
     }

const ItemContainer& NTuple::TupleImp::items ( ) const

inlinevirtual

Access item container (CONST)

Implements INTuple.

Definition at line 48 of file NTupleImplementation.h.

                                             {
       return m_items;
     }

StatusCode NTuple::TupleImp::read ( )

virtual

Read record of the NTuple (Shortcut of readRecord)

Read record of the NTuple.

Implements INTuple.

Definition at line 123 of file NTupleImplementation.cpp.

                                {
     return m_ntupleSvc->readRecord(this);
   }

StatusCode NTuple::TupleImp::readRecord ( )

virtual

Read record of the NTuple.

Implements INTuple.

Definition at line 127 of file NTupleImplementation.cpp.

                                      {
     return m_ntupleSvc->readRecord(this);
   }

StatusCode NTuple::TupleImp::remove ( INTupleItem * item )

virtual

Remove an item row (identified by pointer) from the N tuple.

Remove a column from the N-tuple.

Implements INTuple.

Definition at line 99 of file NTupleImplementation.cpp.

                                                      {
     for (ItemContainer::iterator i = m_items.begin(); i != m_items.end(); i++) {
       if ( (*i) == item )   {
         m_items.erase(i);
         item->release();
         return StatusCode::SUCCESS;
       }
     }
     return StatusCode::FAILURE;
   }

StatusCode NTuple::TupleImp::remove ( const std::string & name )

virtual

Remove an item row (identified by name) from the N tuple.

Remove a column from the N-tuple.

Implements INTuple.

Definition at line 93 of file NTupleImplementation.cpp.

                                                          {
     INTupleItem* i = i_find(name);
     return (i == 0) ?  StatusCode(StatusCode::FAILURE) : remove(i);
   }

void NTuple::TupleImp::reset ( )

virtual

Reset all entries to their default values.

Reset N tuple to default values.

Implements INTuple.

Definition at line 61 of file NTupleImplementation.cpp.

                            {
     for (ItemContainer::iterator i = m_items.begin(); i != m_items.end(); i++) {
       (*i)->reset();
     }
   }

StatusCode NTuple::TupleImp::save ( )

virtual

Save the NTuple.

Implements INTuple.

Definition at line 131 of file NTupleImplementation.cpp.

                                {
     return m_ntupleSvc->save(this);
   }

ISelectStatement * NTuple::TupleImp::selector ( )

virtual

Access selector.

Implements INTuple.

Definition at line 56 of file NTupleImplementation.cpp.

                                          {
     return m_pSelector;
   }

void NTuple::TupleImp::setBuffer ( char * buff )

virtual

Set N tuple data buffer.

Implements INTuple.

Definition at line 110 of file NTupleImplementation.cpp.

                                       {
     if ( 0 != m_buffer ) delete m_buffer;
     m_buffer = buff;
   }

void NTuple::TupleImp::setConversionService ( IConversionSvc * svc )

inline

Access conversion service.

Definition at line 76 of file NTupleImplementation.h.

                                                         {
       m_cnvSvc = svc;
     }

void NTuple::TupleImp::setTupleService ( INTupleSvc * svc )

inline

Access conversion service.

Definition at line 84 of file NTupleImplementation.h.

                                                {
       m_ntupleSvc = svc;
     }

virtual const std::string& NTuple::TupleImp::title ( ) const

inlinevirtual

Object title.

Implements INTuple.

Definition at line 52 of file NTupleImplementation.h.

                                                       {
       return m_title;
     }

INTupleSvc* NTuple::TupleImp::tupleService ( ) const

inline

Access conversion service.

Definition at line 80 of file NTupleImplementation.h.

                                         {
       return m_ntupleSvc;
     }

StatusCode NTuple::TupleImp::write ( )

virtual

Write record of the NTuple (Shortcut of writeRecord)

Write record of the NTuple.

Implements INTuple.

Definition at line 115 of file NTupleImplementation.cpp.

                                 {
     return m_ntupleSvc->writeRecord(this);
   }

StatusCode NTuple::TupleImp::writeRecord ( )

virtual

Write record of the NTuple.

Implements INTuple.

Definition at line 119 of file NTupleImplementation.cpp.

                                       {
     return m_ntupleSvc->writeRecord(this);
   }

Member Data Documentation

char* NTuple::TupleImp::m_buffer

protected

Buffer size.

Definition at line 26 of file NTupleImplementation.h.

IConversionSvc* NTuple::TupleImp::m_cnvSvc

protected

Reference to the conversion service used.

Definition at line 30 of file NTupleImplementation.h.

bool NTuple::TupleImp::m_isBooked

protected

Flag wether N tuple is booked.

Definition at line 20 of file NTupleImplementation.h.

ItemContainer NTuple::TupleImp::m_items

protected

Container with N tuple _Columns.

Definition at line 18 of file NTupleImplementation.h.

INTupleSvc* NTuple::TupleImp::m_ntupleSvc

protected

Reference to N-tuple service used.

Definition at line 28 of file NTupleImplementation.h.

ISelectStatement* NTuple::TupleImp::m_pSelector

protected

Possibly hanging selector.

Definition at line 24 of file NTupleImplementation.h.

std::string NTuple::TupleImp::m_title

protected

N tuple title.

Definition at line 22 of file NTupleImplementation.h.

The documentation for this class was generated from the following files:

GaudiKernel/GaudiKernel/NTupleImplementation.h
GaudiKernel/src/Lib/NTupleImplementation.cpp

Public Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
