Small algorith, which switches the partition of a configurable multi-service. More...

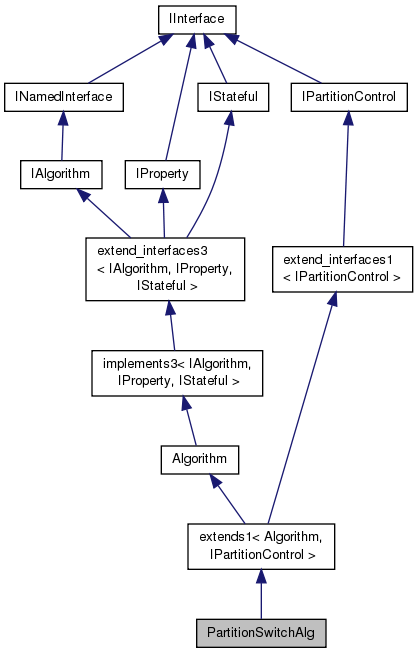

Inheritance diagram for PartitionSwitchAlg:

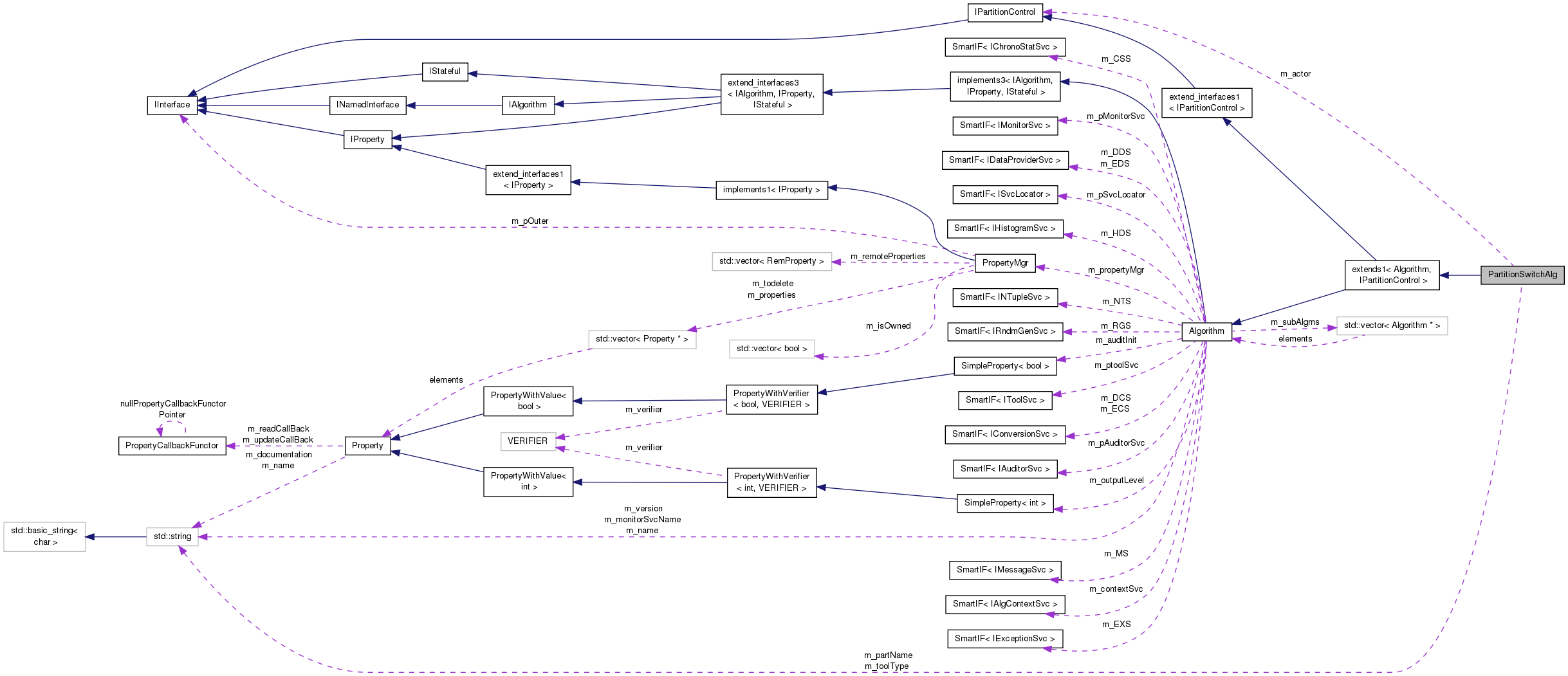

Collaboration diagram for PartitionSwitchAlg:

Public Member Functions
	PartitionSwitchAlg (CSTR name, ISvcLocator *pSvcLocator)
	Standard algorithm constructor. More...

virtual	~PartitionSwitchAlg ()
	Standard Destructor. More...

virtual STATUS	initialize ()
	Initialize. More...

virtual STATUS	finalize ()
	Finalize. More...

virtual STATUS	execute ()
	Execute procedure. More...

void	_check (STATUS sc, CSTR msg) const

virtual STATUS	create (CSTR nam, CSTR typ)
	Create a partition object. The name identifies the partition uniquely. More...

virtual STATUS	create (CSTR nam, CSTR typ, IInterface *&pPartition)
	Create a partition object. The name identifies the partition uniquely. More...

virtual STATUS	drop (CSTR nam)
	Drop a partition object. The name identifies the partition uniquely. More...

virtual STATUS	drop (IInterface *pPartition)
	Drop a partition object. The name identifies the partition uniquely. More...

virtual STATUS	activate (CSTR nam)
	Activate a partition object. The name identifies the partition uniquely. More...

virtual STATUS	activate (IInterface *pPartition)
	Activate a partition object. More...

virtual STATUS	get (CSTR nam, IInterface *&pPartition) const
	Access a partition object. The name identifies the partition uniquely. More...

virtual STATUS	activePartition (std::string &nam, IInterface *&pPartition) const
	Access the active partition object. More...

Public Member Functions inherited from extends1< Algorithm, IPartitionControl >
	extends1 (A1 a1, A2 a2, A3 a3)
	Templated constructor with 3 arguments. More...

	extends1 (A1 a1, A2 a2)
	Templated constructor with 2 arguments. More...

	extends1 (A1 a1)
	Templated constructor with 1 argument. More...

	extends1 ()
	Default constructor. More...

virtual void *	i_cast (const InterfaceID &tid) const
	Implementation of IInterface::i_cast. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)
	Implementation of IInterface::queryInterface. More...

virtual std::vector< std::string >	getInterfaceNames () const
	Implementation of IInterface::getInterfaceNames. More...

virtual	~extends1 ()
	Virtual destructor. More...

Public Member Functions inherited from Algorithm
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor. More...

virtual	~Algorithm ()
	Destructor. More...

virtual StatusCode	sysStart ()
	Reinitialization method invoked by the framework. More...

virtual StatusCode	sysInitialize ()
	Initialization method invoked by the framework. More...

virtual StatusCode	sysReinitialize ()
	Reinitialization method invoked by the framework. More...

virtual StatusCode	sysRestart ()
	Restart method invoked by the framework. More...

virtual StatusCode	sysExecute ()
	The actions to be performed by the algorithm on an event. More...

virtual StatusCode	sysStop ()
	System stop. More...

virtual StatusCode	sysFinalize ()
	System finalization. More...

virtual StatusCode	sysBeginRun ()
	beginRun method invoked by the framework. More...

virtual StatusCode	sysEndRun ()
	endRun method invoked by the framework. More...

virtual const std::string &	name () const
	The identifying name of the algorithm object. More...

virtual const std::string &	version () const
	The version of the algorithm. More...

virtual StatusCode	configure ()
	Dummy implementation of IStateful::configure() method. More...

virtual StatusCode	terminate ()
	Dummy implementation of IStateful::terminate() method. More...

virtual StatusCode	start ()
	the default (empty) implementation of IStateful::start() method More...

virtual StatusCode	stop ()
	the default (empty) implementation of IStateful::stop() method More...

virtual StatusCode	reinitialize ()
	the default (empty) implementation of IStateful::reinitialize() method More...

virtual StatusCode	restart ()
	the default (empty) implementation of IStateful::restart() method More...

virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset? More...

virtual void	setExecuted (bool state)
	Set the executed flag to the specified state. More...

virtual void	resetExecuted ()
	Reset the executed state of the Algorithm for the duration of the current event. More...

virtual StatusCode	beginRun ()
	Algorithm begin run. More...

virtual StatusCode	endRun ()
	Algorithm end run. This method is called at the end of the event loop. More...

virtual Gaudi::StateMachine::State	FSMState () const
	returns the current state of the algorithm More...

virtual Gaudi::StateMachine::State	targetFSMState () const
	returns the state the algorithm will be in after the ongoing transition More...

virtual bool	isEnabled () const
	Is this algorithm enabled or disabled? More...

virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event? More...

virtual void	setFilterPassed (bool state)
	Set the filter passed flag to the specified state. More...

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...

template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist. More...

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name") More...

void	setOutputLevel (int level)
	Set the output level for current algorithm. More...

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...

SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present. More...

SmartIF< IChronoStatSvc > &	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service. More...

SmartIF< IDataProviderSvc > &	detDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service. More...

SmartIF< IConversionSvc > &	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service. More...

SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc More...

SmartIF< IDataProviderSvc > &	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service. More...

SmartIF< IConversionSvc > &	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service. More...

SmartIF< IHistogramSvc > &	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...

SmartIF< IMessageSvc > &	messageService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service. More...

SmartIF< INTupleSvc > &	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility. More...

SmartIF< IRndmGenSvc > &	randSvc () const
	AIDA-based NTuple service Returns a pointer to the AIDATuple service if present. More...

SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present. More...

SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service. More...

SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service More...

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator. More...

SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator More...

bool	registerContext () const
	register for Algorithm Context Service? More...

StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm. More...

std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...

virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty. More...

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty. More...

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty. More...

virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty. More...

virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty. More...

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty. More...

virtual const std::vector < Property * > &	getProperties () const
	Implementation of IProperty::getProperties. More...

StatusCode	setProperties ()
	Set the algorithm's properties. More...

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property. More...

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties. More...

SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service. More...

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information. More...

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case) More...

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...

Public Member Functions inherited from extend_interfaces3< IAlgorithm, IProperty, IStateful >
virtual	~extend_interfaces3 ()
	Virtual destructor. More...

Public Member Functions inherited from IAlgorithm
	DeclareInterfaceID (IAlgorithm, 4, 0)
	InterfaceID. More...

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...

Public Member Functions inherited from IInterface
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual	~IInterface ()
	Virtual destructor. More...

Public Member Functions inherited from IProperty
	DeclareInterfaceID (IProperty, 2, 0)
	InterfaceID. More...

Public Member Functions inherited from IStateful
	DeclareInterfaceID (IStateful, 1, 0)
	InterfaceID. More...

virtual	~IStateful ()

Public Member Functions inherited from extend_interfaces1< IPartitionControl >
virtual	~extend_interfaces1 ()
	Virtual destructor. More...

Public Member Functions inherited from IPartitionControl
	DeclareInterfaceID (IPartitionControl, 1, 0)
	InterfaceID. More...

virtual StatusCode	create (const std::string &name, const std::string &type)=0
	Create a partition object. The name identifies the partition uniquely. More...

virtual StatusCode	create (const std::string &name, const std::string &type, IInterface *&pPartition)=0
	Create a partition object. The name identifies the partition uniquely. More...

virtual StatusCode	drop (const std::string &name)=0
	Drop a partition object. The name identifies the partition uniquely. More...

virtual StatusCode	activate (const std::string &name)=0
	Activate a partition object. The name identifies the partition uniquely. More...

virtual StatusCode	get (const std::string &name, IInterface *&pPartition) const =0
	Access a partition object. The name identifies the partition uniquely. More...

Private Types
typedef StatusCode	STATUS

typedef const std::string &	CSTR

Private Attributes
std::string	m_partName
	Job option to set the requested partition name. More...

std::string	m_toolType
	Job option to set the tool manipulating the multi-service name. More...

IPartitionControl *	m_actor
	reference to Partition Controller More...

Additional Inherited Members
Public Types inherited from extends1< Algorithm, IPartitionControl >
typedef extends1	base_class
	Typedef to this class. More...

typedef extend_interfaces1 < IPartitionControl >	extend_interfaces_base
	Typedef to the base of this class. More...

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...

Public Types inherited from Algorithm
typedef Gaudi::PluginService::Factory2 < IAlgorithm , const std::string &, ISvcLocator >	Factory

Public Types inherited from implements3< IAlgorithm, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class. More...

typedef extend_interfaces3 < IAlgorithm, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class. More...

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...

Public Types inherited from extend_interfaces3< IAlgorithm, IProperty, IStateful >
typedef mpl::fold< typename IAlgorithm::iid::iids::type, typename mpl::fold< typename IProperty::iid::iids::type, typename IStateful::iid::iids::type, mpl::insert< mpl::_1, mpl::_2 > >::type, mpl::insert< mpl::_1, mpl::_2 > >::type	ext_iids
	MPL set of interfaces extended by this one. More...

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Public Types inherited from extend_interfaces1< IPartitionControl >
typedef IPartitionControl::iid::iids::type	ext_iids
	MPL set of interfaces extended by this one. More...

Public Types inherited from IPartitionControl
enum	{ PARTITION_NOT_PRESENT = 2, PARTITION_EXISTS = 4, NO_ACTIVE_PARTITION = 6 }

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Protected Member Functions inherited from Algorithm
bool	isInitialized () const
	Has the Algorithm already been initialized? More...

bool	isFinalized () const
	Has the Algorithm already been finalized? More...

int	outputLevel () const
	retrieve the Algorithm output level More...

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property. More...

void	initOutputLevel (Property &prop)
	callback for output level property More...

Detailed Description

Small algorith, which switches the partition of a configurable multi-service.

The algorithm can be part of a sequence, which allows for e.g. buffer tampering.

Author: : M.Frank

Version: : 1.0

Definition at line 24 of file PartitionSwitchAlg.cpp.

Member Typedef Documentation

typedef const std::string& PartitionSwitchAlg::CSTR

private

Definition at line 27 of file PartitionSwitchAlg.cpp.

typedef StatusCode PartitionSwitchAlg::STATUS

private

Definition at line 26 of file PartitionSwitchAlg.cpp.

Constructor & Destructor Documentation

PartitionSwitchAlg::PartitionSwitchAlg	(	CSTR	name,
		ISvcLocator *	pSvcLocator
	)

inline

Standard algorithm constructor.

Definition at line 41 of file PartitionSwitchAlg.cpp.

   : base_class(name, pSvcLocator), m_actor(0)
   {
     declareProperty("Partition",  m_partName);
     declareProperty("Tool",       m_toolType="PartitionSwitchTool");
   }

virtual PartitionSwitchAlg::~PartitionSwitchAlg ( )

inlinevirtual

Standard Destructor.

Definition at line 48 of file PartitionSwitchAlg.cpp.

48 {

49 }

Member Function Documentation

void PartitionSwitchAlg::_check	(	STATUS	sc,
		CSTR	msg
	)		const

inline

Definition at line 98 of file PartitionSwitchAlg.cpp.

                                           {
     MsgStream log(msgSvc(), name());
     log << MSG::ERROR << msg << " Status=" << sc.getCode() << endmsg;
   }

virtual STATUS PartitionSwitchAlg::activate ( CSTR nam )

inlinevirtual

Activate a partition object. The name identifies the partition uniquely.

Definition at line 125 of file PartitionSwitchAlg.cpp.

                                      {
     STATUS sc = m_actor ? m_actor->activate(nam) : NO_INTERFACE;
     CHECK(sc, "Cannot activate partition: "+nam);
   }

virtual STATUS PartitionSwitchAlg::activate ( IInterface * pPartition )

inlinevirtual

Activate a partition object.

Implements IPartitionControl.

Definition at line 130 of file PartitionSwitchAlg.cpp.

                                                    {
     STATUS sc = m_actor ? m_actor->activate(pPartition) : NO_INTERFACE;
     CHECK(sc, "Cannot activate partition by Interface.");
   }

virtual STATUS PartitionSwitchAlg::activePartition	(	std::string &	nam,
		IInterface *&	pPartition
	)		const

inlinevirtual

Access the active partition object.

Implements IPartitionControl.

Definition at line 140 of file PartitionSwitchAlg.cpp.

                                                                                  {
     STATUS sc = m_actor ? m_actor->activePartition(nam, pPartition) : NO_INTERFACE;
     CHECK(sc, "Cannot determine active partition.");
   }

virtual STATUS PartitionSwitchAlg::create	(	CSTR	nam,
		CSTR	typ
	)

inlinevirtual

Create a partition object. The name identifies the partition uniquely.

Definition at line 105 of file PartitionSwitchAlg.cpp.

                                              {
     STATUS sc = m_actor ? m_actor->create(nam,typ) : NO_INTERFACE;
     CHECK(sc, "Cannot create partition: "+nam+" of type "+typ);
   }

virtual STATUS PartitionSwitchAlg::create	(	CSTR	nam,
		CSTR	typ,
		IInterface *&	pPartition
	)

inlinevirtual

Create a partition object. The name identifies the partition uniquely.

Definition at line 110 of file PartitionSwitchAlg.cpp.

                                                                       {
     STATUS sc = m_actor ? m_actor->create(nam,typ,pPartition) : NO_INTERFACE;
     CHECK(sc, "Cannot create partition: "+nam+" of type "+typ);
   }

virtual STATUS PartitionSwitchAlg::drop ( CSTR nam )

inlinevirtual

Drop a partition object. The name identifies the partition uniquely.

Definition at line 115 of file PartitionSwitchAlg.cpp.

                                  {
     STATUS sc = m_actor ? m_actor->drop(nam) : NO_INTERFACE;
     CHECK(sc, "Cannot drop partition: "+nam);
   }

virtual STATUS PartitionSwitchAlg::drop ( IInterface * pPartition )

inlinevirtual

Drop a partition object. The name identifies the partition uniquely.

Implements IPartitionControl.

Definition at line 120 of file PartitionSwitchAlg.cpp.

                                                {
     STATUS sc = m_actor ? m_actor->drop(pPartition) : NO_INTERFACE;
     CHECK(sc, "Cannot drop partition by Interface.");
   }

virtual STATUS PartitionSwitchAlg::execute ( )

inlinevirtual

Execute procedure.

Implements IAlgorithm.

Definition at line 82 of file PartitionSwitchAlg.cpp.

                               {
     if ( m_actor )  {
       STATUS sc = m_actor->activate(m_partName);
       if ( !sc.isSuccess() )  {
         MsgStream log(msgSvc(), name());
         log << MSG::ERROR << "Cannot activate partition \""
             << m_partName << "\"!" << endmsg;
       }
       return sc;
     }
     MsgStream log(msgSvc(), name());
     log << MSG::ERROR << "The partition control tool \"" << name()
         << "." << m_toolType << "\" cannot be accessed!" << endmsg;
     return STATUS::FAILURE;
   }

virtual STATUS PartitionSwitchAlg::finalize ( )

inlinevirtual

Finalize.

Reimplemented from Algorithm.

Definition at line 74 of file PartitionSwitchAlg.cpp.

                             {
     SmartIF<IAlgTool> tool(m_actor);
     if ( tool ) toolSvc()->releaseTool(tool);
     m_actor = 0;
     return STATUS::SUCCESS;
   }

virtual STATUS PartitionSwitchAlg::get	(	CSTR	nam,
		IInterface *&	pPartition
	)		const

inlinevirtual

Access a partition object. The name identifies the partition uniquely.

Definition at line 135 of file PartitionSwitchAlg.cpp.

                                                                {
     STATUS sc = m_actor ? m_actor->get(nam, pPartition) : NO_INTERFACE;
     CHECK(sc, "Cannot get partition "+nam);
   }

virtual STATUS PartitionSwitchAlg::initialize ( )

inlinevirtual

Initialize.

Release old tool

Now check if the partition is present. If not: try to create it

Reimplemented from Algorithm.

Definition at line 52 of file PartitionSwitchAlg.cpp.

                                 {
     MsgStream log(msgSvc(), name());
     SmartIF<IAlgTool> tool(m_actor);
     STATUS sc = toolSvc()->retrieveTool(m_toolType,m_actor,this);
     if ( sc.isFailure() ) {
       log << MSG::ERROR << "Unable to load PartitionSwitchTool "
           << m_toolType << endmsg;
       return sc;
     }
     if ( tool ) toolSvc()->releaseTool(tool);
     IInterface* partititon = 0;
     sc = m_actor->get(m_partName, partititon);
     if ( !sc.isSuccess() )  {
       log << MSG::ERROR << "Cannot access partition \""
           << m_partName << "\"" << endmsg;
     }
     return sc;
   }

Member Data Documentation

IPartitionControl* PartitionSwitchAlg::m_actor

private

reference to Partition Controller

Definition at line 36 of file PartitionSwitchAlg.cpp.

std::string PartitionSwitchAlg::m_partName

private

Job option to set the requested partition name.

Definition at line 32 of file PartitionSwitchAlg.cpp.

std::string PartitionSwitchAlg::m_toolType

private

Job option to set the tool manipulating the multi-service name.

Definition at line 34 of file PartitionSwitchAlg.cpp.

The documentation for this class was generated from the following file:

GaudiCommonSvc/src/DataSvc/PartitionSwitchAlg.cpp

Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
