Just a minor modification of MemoryAuditor to allow the output memory statistics table to be printed. More...

#include <GaudiAud/MemStatAudit.h>

Inheritance diagram for MemStatAuditor:

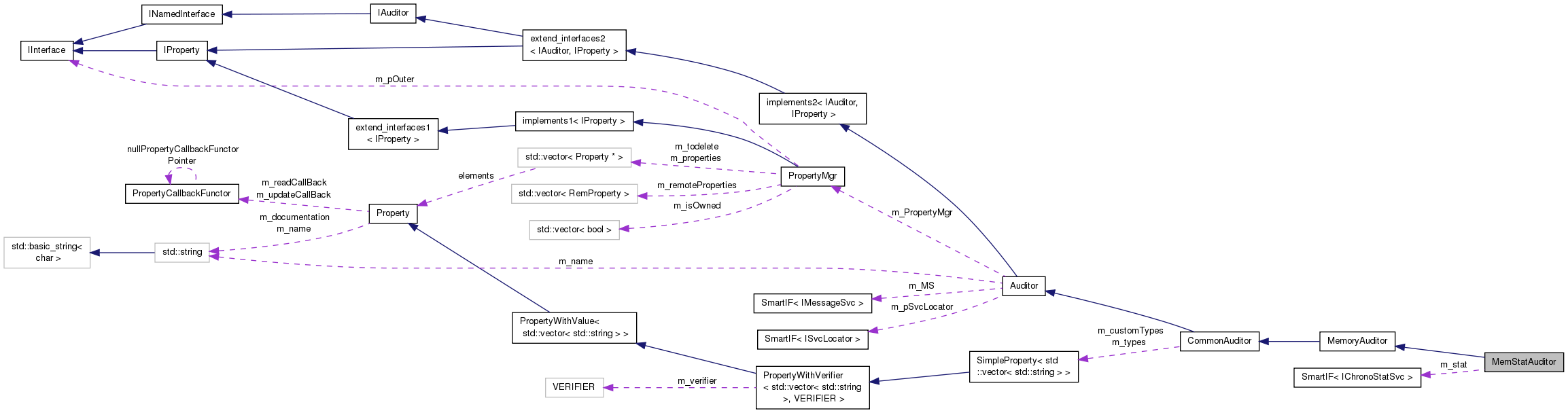

Collaboration diagram for MemStatAuditor:

Public Member Functions
	MemStatAuditor (const std::string &name, ISvcLocator *pSvcLocator)
	local More...

virtual	~MemStatAuditor ()

virtual StatusCode	initialize ()

Public Member Functions inherited from MemoryAuditor
	MemoryAuditor (const std::string &name, ISvcLocator *pSvcLocator)

Public Member Functions inherited from CommonAuditor
	CommonAuditor (const std::string &name, ISvcLocator *svcloc)
	Constructor. More...

virtual	~CommonAuditor ()
	Destructor. More...

virtual void	before (StandardEventType evt, const std::string &caller)
	Audit the start of a standard "event" for callers that do not implement INamedInterface. More...

virtual void	before (StandardEventType evt, INamedInterface *caller)
	The following methods are meant to be implemented by the child class... More...

virtual void	before (CustomEventTypeRef evt, const std::string &caller)
	Audit the start of a custom "event" for callers that do not implement INamedInterface. More...

virtual void	before (CustomEventTypeRef evt, INamedInterface *caller)
	Audit the start of a custom "event". More...

virtual void	after (StandardEventType evt, const std::string &caller, const StatusCode &sc)
	Audit the end of a standard "event" for callers that do not implement INamedInterface. More...

virtual void	after (StandardEventType evt, INamedInterface *caller, const StatusCode &sc)
	Audit the end of a standard "event". More...

virtual void	after (CustomEventTypeRef evt, const std::string &caller, const StatusCode &sc)
	Audit the end of a custom "event" for callers that do not implement INamedInterface. More...

virtual void	after (CustomEventTypeRef evt, INamedInterface *caller, const StatusCode &sc)
	Audit the end of a custom "event". More...

Public Member Functions inherited from Auditor
	Auditor (const std::string &name, ISvcLocator *svcloc)
	Constructor. More...

virtual	~Auditor ()
	Destructor. More...

StatusCode	sysInitialize ()
	Initialization method invoked by the framework. More...

StatusCode	sysFinalize ()
	Finalization method invoked by the framework. More...

virtual void	beforeInitialize (INamedInterface *)

virtual void	afterInitialize (INamedInterface *)

virtual void	beforeReinitialize (INamedInterface *)

virtual void	afterReinitialize (INamedInterface *)

virtual void	beforeExecute (INamedInterface *)

virtual void	afterExecute (INamedInterface *, const StatusCode &)

virtual void	beforeFinalize (INamedInterface *)

virtual void	afterFinalize (INamedInterface *)

virtual void	beforeBeginRun (INamedInterface *)

virtual void	afterBeginRun (INamedInterface *)

virtual void	beforeEndRun (INamedInterface *)

virtual void	afterEndRun (INamedInterface *)

virtual StatusCode	finalize ()

virtual const std::string &	name () const
	Retrieve the name of the instance. More...

virtual bool	isEnabled () const
	Tell if the auditor is enabled or not. More...

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...

int	outputLevel () const
	Retrieve the output level of current auditor. More...

void	setOutputLevel (int level)
	Set the output level for current auditor. More...

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator. More...

template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...

virtual StatusCode	setProperty (const Property &p)
	Set a value of a property of an auditor. More...

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty. More...

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty. More...

virtual StatusCode	getProperty (Property *p) const
	Get the value of a property. More...

virtual const Property &	getProperty (const std::string &name) const
	Get the property by name. More...

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty. More...

const std::vector< Property * > &	getProperties () const
	Get all properties. More...

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...

StatusCode	setProperties ()
	Set the auditor's properties. More...

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property. More...

Public Member Functions inherited from extend_interfaces2< IAuditor, IProperty >
virtual	~extend_interfaces2 ()
	Virtual destructor. More...

Public Member Functions inherited from IAuditor
	DeclareInterfaceID (IAuditor, 3, 0)
	InterfaceID. More...

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Public Member Functions inherited from IProperty
	DeclareInterfaceID (IProperty, 2, 0)
	InterfaceID. More...

Private Member Functions
virtual void	i_before (CustomEventTypeRef evt, const std::string &caller)
	Re-implement i_before to avoid monitoring the memory usage before a function. More...

virtual void	i_printinfo (const std::string &msg, CustomEventTypeRef evt, const std::string &caller)
	Report the memory usage. More...

SmartIF< IChronoStatSvc > &	statSvc ()

Private Attributes
SmartIF< IChronoStatSvc >	m_stat

double	m_vSize
	vsize of the previous call to printinfo More...

Additional Inherited Members
Public Types inherited from Auditor
typedef Gaudi::PluginService::Factory2 < IAuditor , const std::string &, ISvcLocator >	Factory

Public Types inherited from implements2< IAuditor, IProperty >
typedef implements2	base_class
	Typedef to this class. More...

typedef extend_interfaces2 < IAuditor, IProperty >	extend_interfaces_base
	Typedef to the base of this class. More...

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...

Public Types inherited from extend_interfaces2< IAuditor, IProperty >
typedef mpl::fold< typename IAuditor::iid::iids::type, typename IProperty::iid::iids::type, mpl::insert< mpl::_1, mpl::_2 > >::type	ext_iids
	MPL set of interfaces extended by this one. More...

Public Types inherited from IAuditor
enum	StandardEventType { Initialize, ReInitialize, Execute, BeginRun, EndRun, Finalize, Start, Stop, ReStart }
	Defines the standard (= used by the framework) auditable event types. More...

typedef std::string	CustomEventType
	Type used to allow users to specify a custom event to be audit. More...

typedef const CustomEventType &	CustomEventTypeRef
	Used in function calls for optimization purposes. More...

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Protected Member Functions inherited from MemoryAuditor
virtual void	i_after (CustomEventTypeRef evt, const std::string &caller, const StatusCode &sc)
	Default (catch-all) "after" Auditor hook. More...

Protected Member Functions inherited from CommonAuditor
bool	i_auditEventType (const std::string &evt)
	Check if we are requested to audit the passed event type. More...

void	i_updateCustomTypes (Property &)
	Update handler for the obsolete property CustomEventTypes. More...

Static Protected Member Functions inherited from MemoryAuditor
static bool	getProcInfo (procInfo &info)
	Get the process informations. More...

Protected Attributes inherited from CommonAuditor
StringArrayProperty	m_types

StringArrayProperty	m_customTypes

Detailed Description

Just a minor modification of MemoryAuditor to allow the output memory statistics table to be printed.

Author: Vanya Belyaev; Marco Clemencic

Date: 04/02/2001

Definition at line 15 of file MemStatAuditor.h.

Constructor & Destructor Documentation

MemStatAuditor::MemStatAuditor	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

local

Definition at line 18 of file MemStatAuditor.cpp.

                                                                               :
   MemoryAuditor(name, pSvcLocator), m_vSize(-1.)
 {
 }

MemStatAuditor::~MemStatAuditor ( )

virtual

Definition at line 23 of file MemStatAuditor.cpp.

23 {}

Member Function Documentation

void MemStatAuditor::i_before	(	CustomEventTypeRef	evt,
		const std::string &	caller
	)

privatevirtual

Re-implement i_before to avoid monitoring the memory usage before a function.

Reimplemented from MemoryAuditor.

Definition at line 38 of file MemStatAuditor.cpp.

                                                                       {
   // It's not interesting to monitor the memory usage before the methods.
 }

void MemStatAuditor::i_printinfo	(	const std::string &	msg,
		CustomEventTypeRef	evt,
		const std::string &	caller
	)

privatevirtual

Report the memory usage.

Reimplemented from MemoryAuditor.

Definition at line 42 of file MemStatAuditor.cpp.

                                                                                                       {
   // cannot be exactly 0
   double deltaVSize = 0.00001;

   procInfo info;
   if (getProcInfo(info)) {
     MsgStream log(msgSvc(), name());

     if (info.vsize > 0) {
       if (m_vSize > 0){
         deltaVSize = info.vsize - m_vSize;
       }
       // store the current VSize to be able to monitor the increment
       m_vSize = info.vsize;
     }

     log << MSG::INFO << msg << " " << caller << " " << evt <<
         " \tvirtual size = " << info.vsize << " MB"  <<
         " \tresident set size = " << info.rss << " MB" <<
         " deltaVsize = " << deltaVSize << "  MB" << endmsg;
   }
   // fill the stat for every call, not just when there is a change
   // only monitor the increment in VSize
   // Stat stv(statSvc(), caller + ":VMemUsage", info.vsize);
   // Stat str(statSvc(), caller + ":RMemUsage", info.rss);
   Stat sts(statSvc(), caller + ":VMem", deltaVSize);
 }

StatusCode MemStatAuditor::initialize ( )

virtual

Reimplemented from Auditor.

Definition at line 25 of file MemStatAuditor.cpp.

                                       {
   StatusCode sc = CommonAuditor::initialize();
   if (UNLIKELY(sc.isFailure())) return sc;

   m_stat = serviceLocator()->service("ChronoStatSvc");
   if (UNLIKELY(!m_stat.get())) {
     MsgStream log(msgSvc(), name());
     log << MSG::ERROR << "Cannot get ChronoStatSvc" << endmsg;
     return StatusCode::FAILURE;
   }
   return StatusCode::SUCCESS;
 }

SmartIF<IChronoStatSvc>& MemStatAuditor::statSvc ( )

inlineprivate

Definition at line 27 of file MemStatAuditor.h.

27 { return m_stat; }

MemStatAuditor::m_stat

SmartIF< IChronoStatSvc > m_stat

Definition: MemStatAuditor.h:28

Member Data Documentation

SmartIF<IChronoStatSvc> MemStatAuditor::m_stat

private

Definition at line 28 of file MemStatAuditor.h.

double MemStatAuditor::m_vSize

private

vsize of the previous call to printinfo

Definition at line 31 of file MemStatAuditor.h.

The documentation for this class was generated from the following files:

GaudiAud/src/MemStatAuditor.h
GaudiAud/src/MemStatAuditor.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
