MyTrack Class Reference

#include <src/Test/MyTrack.h>

Inheritance diagram for MyTrack:

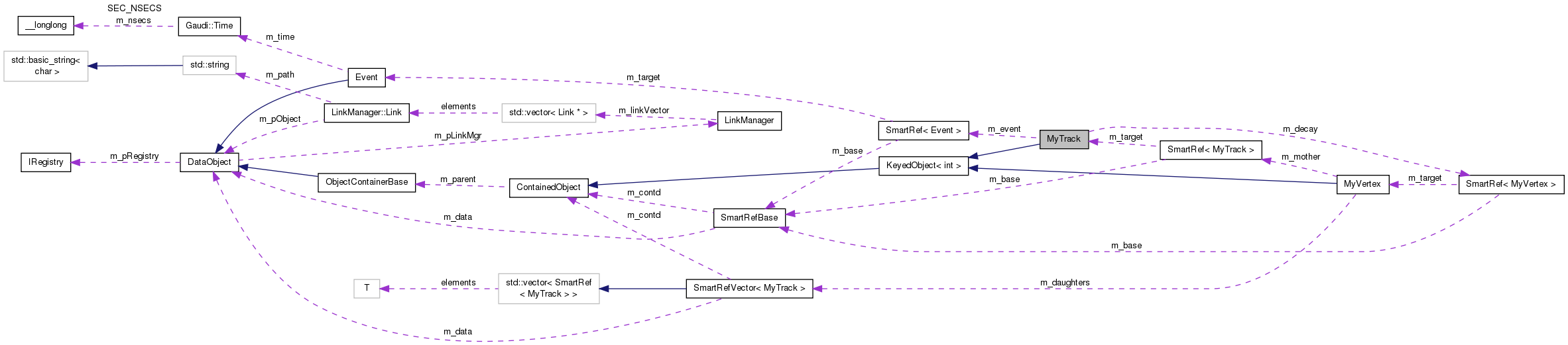

Collaboration diagram for MyTrack:

Public Member Functions
	MyTrack ()
	Standard constructor. More...
	MyTrack (float x, float y, float z)
	Standard constructor. More...
virtual	~MyTrack ()
	Standard Destructor. More...
virtual const CLID &	clID () const
	Retrieve pointer to class definition structure. More...
float	px () const
	Accessors: Retrieve x-component of the track momentum. More...
float	py () const
	Accessors: Retrieve y-component of the track momentum. More...
float	pz () const
	Accessors: Retrieve z-component of the track momentum. More...
void	setPx (float px)
	Accessors: Update x-component of the track momentum. More...
void	setPy (float py)
	Accessors: Update y-component of the track momentum. More...
void	setPz (float pz)
	Accessors: Update z-component of the track momentum. More...
const Event *	event () const
	Access to the source track object (constant case) More...
void	setEvent (Event *evt)
	Access to event object. More...
const MyVertex *	decayVertex () const
	Access to the source track object (constant case) More...
void	setDecayVertex (MyVertex *decay)
	Access to event object. More...
std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...
Public Member Functions inherited from KeyedObject< int >
	KeyedObject ()
	Standard Constructor. The object key is preset to the invalid value. More...
	KeyedObject (const key_type &kval)
	Standard Constructor accepting the object's key. More...
virtual	~KeyedObject ()
	Standard destructor. More...
const key_type &	key () const
	Retrieve Key of the object. More...
bool	hasKey () const
	Check if the object has a key assigned or not. More...
virtual long	index () const
	Distance in the parent container. More...
virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing. More...
virtual StreamBuffer &	serialize (StreamBuffer &s)
	Serialize the object for reading. More...
Public Member Functions inherited from ContainedObject
const ObjectContainerBase *	parent () const
	Access to parent object. More...
void	setParent (ObjectContainerBase *value)
	Update parent member. More...

Static Public Member Functions
static const CLID &	classID ()
Static Public Member Functions inherited from ContainedObject
static const CLID &	classID ()

Private Attributes
float	m_px
	The track momentum. More...
float	m_py
float	m_pz
SmartRef< Event >	m_event
	Link to Top level event. More...
SmartRef< MyVertex >	m_decay

Additional Inherited Members
Public Types inherited from KeyedObject< int >
typedef int	key_type
	Definition of the key-type to access object. More...
Protected Types inherited from KeyedObject< int >
typedef Containers::key_traits < key_type >	traits
	definition of the container key traits to be made friend More...
Protected Member Functions inherited from KeyedObject< int >
unsigned long	addRef ()
	Add reference to object (Increase reference counter). More...
unsigned long	release ()
	Release reference. If the reference count is ZERO, delete the object. More...
void	setKey (const key_type &key)
	Set object key. More...
Protected Member Functions inherited from ContainedObject
	ContainedObject ()
	Constructors. More...
	ContainedObject (const ContainedObject &)
	Copy constructor. More...
virtual	~ContainedObject ()
	Destructor. More...
Protected Attributes inherited from KeyedObject< int >
key_type	m_key
	Object Key; It's initial value is not determined. More...
long	m_refCount
	Reference counter. More...
bool	m_hasKey
	Boolean to indicate wether a key was already assigned. More...

Detailed Description

Definition at line 27 of file MyTrack.h.

Constructor & Destructor Documentation

MyTrack::MyTrack ( )

inline

Standard constructor.

Definition at line 36 of file MyTrack.h.

              : m_px(0.0), m_py(0.0), m_pz(0.0)  {
  }

MyTrack::MyTrack ( float  x, float  y, float  z  )

inline

Standard constructor.

Definition at line 39 of file MyTrack.h.

                                       : m_px(x), m_py(y), m_pz(z)  {
  }

virtual MyTrack::~MyTrack ( )

inlinevirtual

Standard Destructor.

Definition at line 42 of file MyTrack.h.

                      {
  }

Member Function Documentation

static const CLID& MyTrack::classID ( )

inlinestatic

Definition at line 46 of file MyTrack.h.

{ return CLID_MyTrack; }

virtual const CLID& MyTrack::clID ( ) const

inlinevirtual

Retrieve pointer to class definition structure.

Reimplemented from ContainedObject.

Definition at line 45 of file MyTrack.h.

{ return classID(); }

const MyVertex * MyTrack::decayVertex ( ) const

inline

Access to the source track object (constant case)

Definition at line 85 of file MyTrack.h.

                                                    {
  return m_decay;
}

const Event* MyTrack::event ( ) const

inline

Access to the source track object (constant case)

Definition at line 61 of file MyTrack.h.

                               {
    return m_event;
  }

std::ostream& MyTrack::fillStream ( std::ostream &  s ) const

inlinevirtual

Fill the output stream (ASCII)

Reimplemented from ContainedObject.

Definition at line 75 of file MyTrack.h.

                                                {
    s << "px: " << px() << "py: " << py() << "px: " << pz();
    return s;
  }

float MyTrack::px ( ) const

inline

Accessors: Retrieve x-component of the track momentum.

Definition at line 48 of file MyTrack.h.

{ return m_px;  }

float MyTrack::py ( ) const

inline

Accessors: Retrieve y-component of the track momentum.

Definition at line 50 of file MyTrack.h.

{ return m_py;  }

float MyTrack::pz ( ) const

inline

Accessors: Retrieve z-component of the track momentum.

Definition at line 52 of file MyTrack.h.

{ return m_pz;  }

void MyTrack::setDecayVertex ( MyVertex *  decay )

inline

Access to event object.

Definition at line 90 of file MyTrack.h.

                                                      {
  m_decay = decay;
}

void MyTrack::setEvent ( Event *  evt )

inline

Access to event object.

Definition at line 65 of file MyTrack.h.

                               {
    m_event = evt;
  }

void MyTrack::setPx ( float  px )

inline

Accessors: Update x-component of the track momentum.

Definition at line 54 of file MyTrack.h.

{ m_px = px;    }

void MyTrack::setPy ( float  py )

inline

Accessors: Update y-component of the track momentum.

Definition at line 56 of file MyTrack.h.

{ m_py = py;    }

void MyTrack::setPz ( float  pz )

inline

Accessors: Update z-component of the track momentum.

Definition at line 58 of file MyTrack.h.

{ m_pz = pz;    }

Member Data Documentation

SmartRef<MyVertex> MyTrack::m_decay

private

Definition at line 33 of file MyTrack.h.

SmartRef<Event> MyTrack::m_event

private

Link to Top level event.

Definition at line 32 of file MyTrack.h.

float MyTrack::m_px

private

The track momentum.

Definition at line 30 of file MyTrack.h.

float MyTrack::m_py

private

Definition at line 30 of file MyTrack.h.

float MyTrack::m_pz

private

Definition at line 30 of file MyTrack.h.

---

The documentation for this class was generated from the following file:

• GaudiPython/src/Test/MyTrack.h
