Gaudi::RootTool Class Reference

Description: More...

#include <src/RootTool.h>

Inheritance diagram for Gaudi::RootTool:

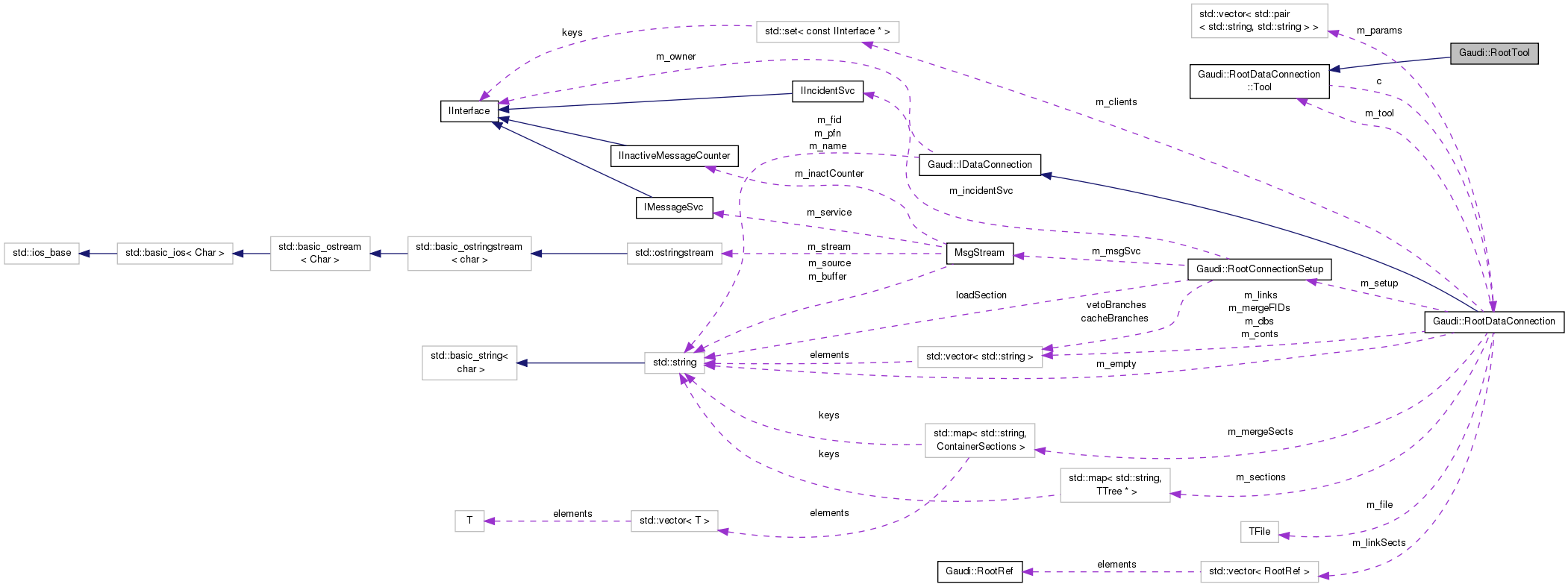

Collaboration diagram for Gaudi::RootTool:

Public Member Functions
	RootTool (RootDataConnection *con)
	Standard constructor. More...
virtual TBranch *	getBranch (CSTR section, CSTR branch_name)
	Access data branch by name: Get existing branch in read only mode. More...
virtual int	loadRefs (CSTR section, CSTR cnt, unsigned long entry, RootObjectRefs &refs)
	Load references object from file. More...
void	addParam (ParamMap &c, char *p)
	Helper function to read params table. More...
void	addEntry (StringVec &c, char *val)
	Helper function to read string tables. More...
template<class C , class F >
StatusCode	readBranch (TTree *t, const char *nam, C &v, F pmf)
	Helper function to read internal file tables. More...
bool	get (const string &dsc, pair< string, ContainerSection > &e)
	Analyze the Sections table entries. More...
void	analyzeMergeMap (StringVec &tmp)
	Build merge sections from the Sections table entries. More...
StatusCode	readRefs ()
	Read reference tables. More...
string	getEntry (const string &c)
	Helper function to convert string vectors to branch entries. More...
string	getParam (const pair< string, string > &p)
	Helper function to convert parameter vectors to branch entries. More...
template<class C , class F >
StatusCode	saveBranch (const char *nam, C &v, F pmf)
	Helper function to save internal tables. More...
StatusCode	saveRefs ()
	Save/update reference tables. More...
Public Member Functions inherited from Gaudi::RootDataConnection::Tool
TTree *	refs () const
StringVec &	dbs () const
StringVec &	conts () const
StringVec &	links () const
ParamMap &	params () const
MsgStream &	msgSvc () const
const std::string &	name () const
Sections &	sections () const
LinkSections &	linkSections () const
MergeSections &	mergeSections () const
virtual	~Tool ()
	Default destructor. More...
virtual void	release ()
	Use releasePtr() helper to delete object. More...
virtual TBranch *	getBranch (const std::string &section, const std::string &n)=0
	Access data branch by name: Get existing branch in read only mode. More...
virtual RootRef	poolRef (size_t) const
	Internal overload to facilitate the access to POOL files. More...
virtual int	loadRefs (const std::string &section, const std::string &cnt, unsigned long entry, RootObjectRefs &refs)=0
	Load references object. More...

Additional Inherited Members
Protected Types inherited from Gaudi::RootDataConnection::Tool
typedef RootDataConnection::StringVec	StringVec
typedef RootDataConnection::ParamMap	ParamMap
typedef RootDataConnection::Sections	Sections
typedef RootDataConnection::MergeSections	MergeSections
typedef RootDataConnection::LinkSections	LinkSections
typedef RootDataConnection::ContainerSection	ContainerSection
typedef RootDataConnection::ContainerSections	ContainerSections
Protected Attributes inherited from Gaudi::RootDataConnection::Tool
RootDataConnection *	c
	Pointer to containing data connection object. More...

Detailed Description

Description:

Concrete implementation to read objects from POOL files.

Author

M.Frank

Version

1.0

Concrete implementation to read objects from ROOT files.

Author

M.Frank

Version

1.0

Definition at line 15 of file RootTool.h.

Constructor & Destructor Documentation

Gaudi::RootTool::RootTool ( RootDataConnection *  con )

inline

Standard constructor.

Definition at line 18 of file RootTool.h.

{ c = con; }

Member Function Documentation

void Gaudi::RootTool::addEntry ( StringVec &  c, char *  val  )

inline

Helper function to read string tables.

Definition at line 107 of file RootTool.h.

{      c.push_back(val);    }

void Gaudi::RootTool::addParam ( ParamMap &  c, char *  p  )

inline

Helper function to read params table.

Definition at line 99 of file RootTool.h.

                                        {
      char* q = strchr(p,'=');
      if ( q ) {
        *q = 0;
        c.push_back(make_pair(p,++q));
      }
    }

void Gaudi::RootTool::analyzeMergeMap ( StringVec &  tmp )

inline

Build merge sections from the Sections table entries.

Definition at line 155 of file RootTool.h.

                                         {
      StringVec::const_iterator i;
      LinkSections&  ls = linkSections();
      MergeSections& ms = mergeSections();
      pair<string,ContainerSection> e;
      MsgStream& msg = msgSvc();
      RootRef r;
      int cnt = 0;
      ls.clear();
      ms.clear();
      msg << MSG::VERBOSE;
      r.dbase = r.container = r.link = r.clid = r.svc = r.entry = 0;
      for(i=tmp.begin(); i!=tmp.end();++i) {
        if ( get(*i,e) ) {
          msg << "Added Merge Section:" << e.first << endmsg;
          ms[e.first].push_back(e.second);
          if (      e.first == "Links" )
            r.link      = e.second.start;
          else if ( e.first == "Containers" )
            r.container = e.second.start;
          else if ( e.first == "Databases" )
            r.dbase     = e.second.start;
          else if ( e.first == "Params" )
            r.svc       = e.second.start;
        }
        else if ( (*i) == "[END-OF-SECTION]" ) {
          r.entry = cnt;
          if ( msg.isActive() ) {
            msg << "Link Section [" << r.entry << "," << ls.size()
              << "] -> D:" << r.dbase
              << " C:" << r.container
              << " L:" << r.link
              << " P:" << r.svc
              << endmsg;
          }
          ls.push_back(r);
          cnt++;
        }
      }
    }

bool Gaudi::RootTool::get ( const string &  dsc, pair< string, ContainerSection > &  e  )

inline

Analyze the Sections table entries.

Definition at line 135 of file RootTool.h.

                                                                  {
      if ( dsc != "[END-OF-SECTION]" ) {
        size_t id1 = dsc.find("[CNT=");
        size_t id2 = dsc.find("[START=");
        size_t id3 = dsc.find("[LEN=");
        if ( id1 != string::npos && id2 != string::npos && id3 != string::npos ) {
          string tmp;
          string cnt = dsc.substr(id1+5, id2-1-5);
          int section_start  = ::atoi((tmp=dsc.substr(id2+7,id3-id2-8)).c_str());
          int section_length = ::atoi((tmp=dsc.substr(id3+5,dsc.find("]",id3+5)-id3-5)).c_str());
          e.first = cnt;
          e.second = ContainerSection(section_start,section_length);
          return true;
        }
      }
      e.first = "";
      e.second = ContainerSection(-1,-1);
      return false;
    }

virtual TBranch* Gaudi::RootTool::getBranch ( CSTR  section, CSTR  branch_name  )

inlinevirtual

Access data branch by name: Get existing branch in read only mode.

Definition at line 20 of file RootTool.h.

                                                               {
      std::string n = branch_name+".";
      for(int i=0, m=n.length()-1; i<m; ++i) if ( !isalnum(n[i]) ) n[i]='_';
      TTree* t = c->getSection(section);
      TBranch* b = t ? t->GetBranch(n.c_str()) : 0;
      if ( !b ) b = t ? t->GetBranch(branch_name.c_str()) : 0;
      if (  b ) b->SetAutoDelete(kFALSE);
      return b;
    }

string Gaudi::RootTool::getEntry ( const string &  c )

inline

Helper function to convert string vectors to branch entries.

Definition at line 217 of file RootTool.h.

{  return c;                    }

string Gaudi::RootTool::getParam ( const pair< string, string > &  p )

inline

Helper function to convert parameter vectors to branch entries.

Definition at line 219 of file RootTool.h.

{  return p.first+"="+p.second; }

virtual int Gaudi::RootTool::loadRefs ( CSTR  section, CSTR  cnt, unsigned long  entry, RootObjectRefs &  refs  )

inlinevirtual

Load references object from file.

Link manager:

Definition at line 30 of file RootTool.h.

                                                                                              {
      TBranch* b = getBranch(section,cnt+"#R");
      RootObjectRefs* prefs = &refs;
      if ( b ) {
        b->SetAddress(&prefs);
        int nb = b->GetEntry(entry);
        if ( nb >= 1 )   {
          const MergeSections& ms = c->mergeSections();
          if ( !ms.empty() ) {
            MsgStream& msg = msgSvc();
            msgSvc() << MSG::VERBOSE;
            pair<const RootRef*,const ContainerSection*> ls = c->getMergeSection(cnt,entry);
            if ( ls.first )  {
              if ( ls.first->dbase >= 0 ) {
                // Now patch the references and links 'en block' to be efficient
                // First the leafs from the TES
                if ( msg.isActive() ) {
                  msg << "Refs: LS [" << entry << "] -> "
                    << ls.first->dbase << "," << ls.first->container
                    << "," << ls.first->link
                    << "," << ls.first->entry
                    << endmsg;
                }
                for(size_t j=0, n=refs.refs.size(); j<n; ++j)  {
                  RootRef& r = refs.refs[j];
                  if ( r.entry>= 0 && r.dbase >= 0 ) {
                    int db = r.dbase + ls.first->dbase;
                    if ( c->getDb(db) == c->fid() ) {
                      if ( r.dbase      ) r.dbase     += ls.first->dbase;
                      if ( r.container  ) r.container += ls.first->container;
                      if ( r.link       ) r.link      += ls.first->link;
                      const string& rc = c->getCont(r.container);
                      MergeSections::const_iterator k = ms.find(rc);
                      if ( k != ms.end() )   {
                        const ContainerSections& cs = (*k).second;
                        r.entry = ( ls.first->entry >= 0 && ls.first->entry < (int)cs.size() )
                          ? cs[ls.first->entry].start + r.entry : -1;
                        if ( msg.isActive() ) {
                          msg << "Add link [" << r.entry
                            << "," << ls.first->entry
                            << "," << ls.first->container
                            << "," << r.container
                            << "," << r.entry
                            << "] to -> " << rc << endmsg;
                        }
                      }
                      else {
                        msg << MSG::WARNING << c->fid() << "  [" << c->getDb(db)
                          << "] Evt:" << entry << " Invalid link to " << rc << endmsg;
                        msg << MSG::VERBOSE;
                      }
                    }
                  }
                }
                for(vector<int>::iterator i=refs.links.begin(); i!=refs.links.end();++i) {
                  (*i) += ls.first->link;
                }
              }
              return nb;
            }
            return -1;
          }
          return nb;
        }
      }
      return -1;
    }

template<class C , class F >

StatusCode Gaudi::RootTool::readBranch ( TTree *  t, const char *  nam, C &  v, F  pmf  )

inline

Helper function to read internal file tables.

Definition at line 109 of file RootTool.h.

                                                                                              {
      char text[2048];
      TBranch* b = t->GetBranch(nam);
      if ( b ) {
        TLeaf* l = b->GetLeaf(nam);
        if ( l ) {
      StatusCode sc = StatusCode::SUCCESS;
          b->SetAddress(text);
          msgSvc() << MSG::VERBOSE;
          for(Long64_t i=0, n=b->GetEntries(); i<n; ++i) {
            if ( b->GetEntry(i)>0 ) {
              char* p = (char*)l->GetValuePointer();
              msgSvc() << "Add Value[" << b->GetName() << "]:" << p << endmsg;
              (this->*pmf)(v,p);
            }
        else {
          sc = RootDataConnection::ROOT_READ_ERROR;
        }
          }
          return sc;
        }
      }
      msgSvc() << MSG::ERROR << "Failed to read '" << nam << "' table." << endmsg;
      return RootDataConnection::ROOT_READ_ERROR;
    }

StatusCode Gaudi::RootTool::readRefs ( )

inlinevirtual

Read reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 196 of file RootTool.h.

                           {
      TTree* t = (TTree*)c->file()->Get("Sections");
      StatusCode sc(StatusCode::SUCCESS,true);
      StringVec tmp;
      if ( t && !(sc=readBranch(t,  "Sections",  tmp,       &RootTool::addEntry)).isSuccess() )
        return sc;
      else if ( refs() ) {
        analyzeMergeMap(tmp);
        if ( !(sc=readBranch(refs(),"Databases", dbs(),     &RootTool::addEntry)).isSuccess() )
          return sc;
        if ( !(sc=readBranch(refs(),"Containers",conts(),   &RootTool::addEntry)).isSuccess() )
          return sc;
    if ( !(sc=readBranch(refs(),"Links",     links(),   &RootTool::addEntry)).isSuccess() )
          return sc;
    if ( !(sc=readBranch(refs(),"Params",    params(),  &RootTool::addParam)).isSuccess() )
          return sc;
        return sc;
      }
      return StatusCode::FAILURE;
    }

template<class C , class F >

StatusCode Gaudi::RootTool::saveBranch ( const char *  nam, C &  v, F  pmf  )

inline

Helper function to save internal tables.

Definition at line 221 of file RootTool.h.

                                                                                    {
      Long64_t i, n;
      string val, typ = nam;
      StatusCode sc = StatusCode::SUCCESS;
      TDirectory::TContext ctxt(c->file());
      TBranch* b = refs()->GetBranch(nam);
      if ( !b ) b = refs()->Branch(nam,0,(typ+"/C").c_str());
      if ( b ) {
        for(i=b->GetEntries(), n=Long64_t(v.size()); i<n; ++i) {
          val = (this->*pmf)(v[size_t(i)]);
          b->SetAddress((char*)val.c_str());
          msgSvc() << MSG::VERBOSE << "Save Value[" << b->GetName() << "]:" << val << endmsg;
          if ( b->Fill() < 0 ) sc = StatusCode::FAILURE;
        }
        return sc;
      }
      return StatusCode::FAILURE;
    }

StatusCode Gaudi::RootTool::saveRefs ( )

inlinevirtual

Save/update reference tables.

Implements Gaudi::RootDataConnection::Tool.

Definition at line 240 of file RootTool.h.

                          {
      if ( refs() ) {
        if ( !saveBranch("Databases", dbs(),   &RootTool::getEntry).isSuccess() )
          return StatusCode::FAILURE;
        if ( !saveBranch("Containers",conts(), &RootTool::getEntry).isSuccess() )
          return StatusCode::FAILURE;
        if ( !saveBranch("Links",     links(), &RootTool::getEntry).isSuccess() )
          return StatusCode::FAILURE;
        if ( !saveBranch("Params",    params(),&RootTool::getParam).isSuccess() )
          return StatusCode::FAILURE;
        return StatusCode::SUCCESS;
      }
      return StatusCode::FAILURE;
    }

---

The documentation for this class was generated from the following file:

• RootCnv/src/RootTool.h
