The interface implemented by the AlgTool base class. More...

#include <GaudiKernel/IAlgTool.h>

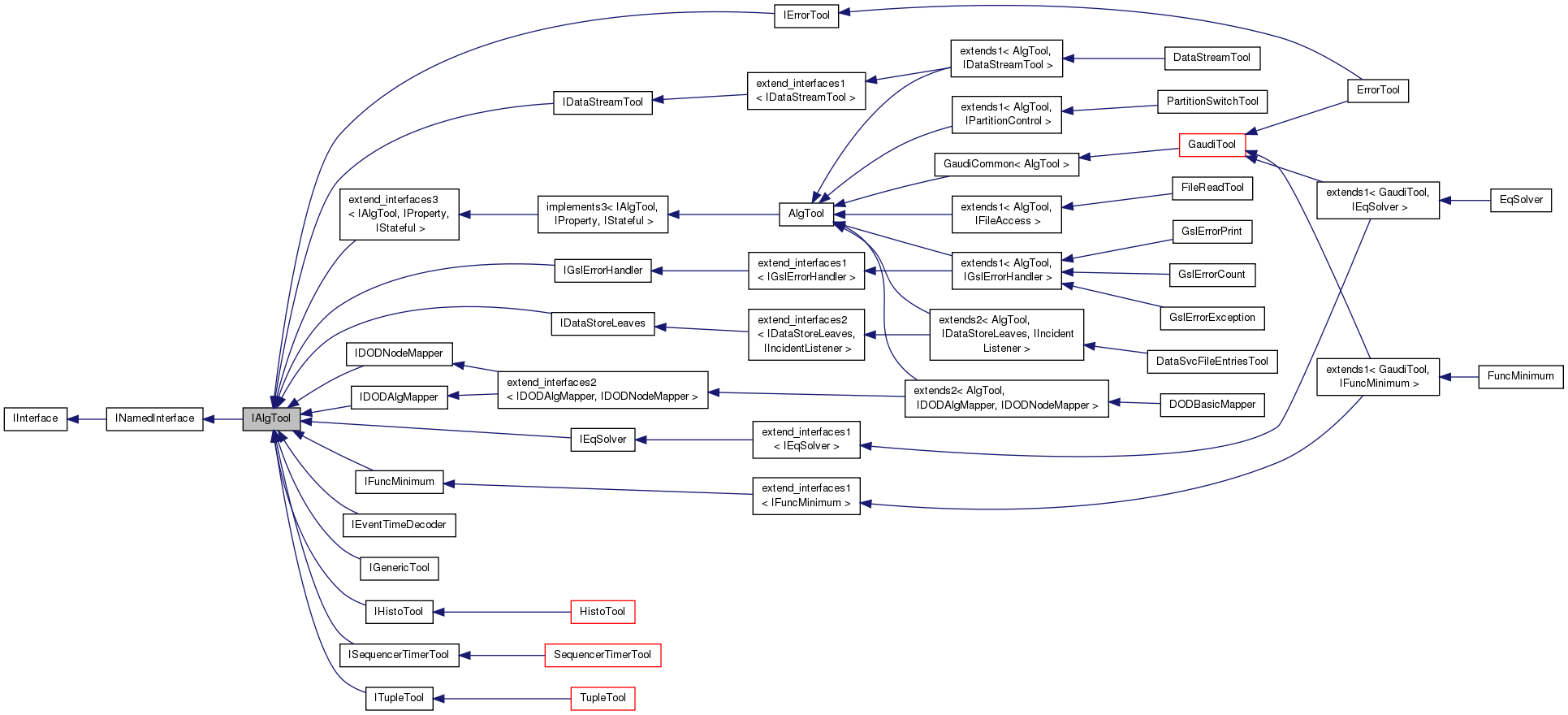

Inheritance diagram for IAlgTool:

Collaboration diagram for IAlgTool:

Public Member Functions
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID. More...

virtual	~IAlgTool ()
	Virtual destructor. More...

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class. More...

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool. More...

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED). More...

virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED). More...

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING). More...

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED). More...

virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED). More...

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE). More...

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED). More...

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED). More...

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state. More...

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysStart ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysStop ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool. More...

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool. More...

virtual unsigned long	refCount () const =0
	Current number of reference counts. More...

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...

virtual const std::string &	name () const =0
	Retrieve the name of the instance. More...

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

The interface implemented by the AlgTool base class.

Concrete tools, derived from the AlgTool based class are controlled via this interface.

Author: Gloria Corti; Pere Mato

Date: 15/11/01 version 2 introduced

Definition at line 23 of file IAlgTool.h.

Constructor & Destructor Documentation

virtual IAlgTool::~IAlgTool ( )

inlinevirtual

Virtual destructor.

Definition at line 29 of file IAlgTool.h.

29 { }

Member Function Documentation

virtual StatusCode IAlgTool::configure ( )

pure virtual

Configuration (from OFFLINE to CONFIGURED).

Implemented in AlgTool.

IAlgTool::DeclareInterfaceID	(	IAlgTool	,
		3	,
		0
	)

InterfaceID.

virtual StatusCode IAlgTool::finalize ( )

pure virtual

Finalize (from INITIALIZED to CONFIGURED).

Implemented in GaudiHistos< GaudiTool >, GaudiCommon< AlgTool >, GaudiTuples< GaudiHistoTool >, GaudiTool, GaudiHistoTool, GaudiTupleTool, PartitionSwitchTool, AlgTool, SequencerTimerTool, DataStreamTool, FuncMinimum, GslErrorCount, DataSvcFileEntriesTool, and EqSolver.

virtual Gaudi::StateMachine::State IAlgTool::FSMState ( ) const

pure virtual

Get the current state.

Implemented in AlgTool.

virtual StatusCode IAlgTool::initialize ( )

pure virtual

Initialization (from CONFIGURED to INITIALIZED).

Implemented in GaudiHistos< GaudiTool >, GaudiCommon< AlgTool >, GaudiTuples< GaudiHistoTool >, GaudiTool, GaudiHistoTool, GaudiTupleTool, AlgTool, SequencerTimerTool, FuncMinimum, PartitionSwitchTool, DataStreamTool, EqSolver, and DataSvcFileEntriesTool.

virtual const IInterface* IAlgTool::parent ( ) const

pure virtual

The parent of the concrete AlgTool.

It can be an Algorithm or a Service. A common AlgTool has the ToolSvc as parent.

Implemented in AlgTool.

virtual unsigned long IAlgTool::refCount ( ) const

pure virtual

Current number of reference counts.

Avoids having to call addRef() + release() to get current refCount.

Implements IInterface.

virtual StatusCode IAlgTool::reinitialize ( )

pure virtual

Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

Implemented in AlgTool.

virtual StatusCode IAlgTool::restart ( )

pure virtual

Initialization (from RUNNING to RUNNING, via INITIALIZED).

Implemented in AlgTool.

virtual StatusCode IAlgTool::start ( )

pure virtual

Start (from INITIALIZED to RUNNING).

Implemented in AlgTool.

virtual StatusCode IAlgTool::stop ( )

pure virtual

Stop (from RUNNING to INITIALIZED).

Implemented in AlgTool.

virtual StatusCode IAlgTool::sysFinalize ( )

pure virtual

Finalization of the Tool.

This method is called typically by the ToolSvc. For completeless this method is called before the tool is destructed.

Implemented in AlgTool.

virtual StatusCode IAlgTool::sysInitialize ( )

pure virtual

Initialization of the Tool.
