Create / access multi purpose counters. More...

#include <GaudiKernel/ICounterSvc.h>

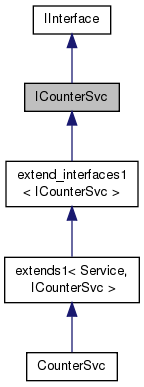

Inheritance diagram for ICounterSvc:

Collaboration diagram for ICounterSvc:

Classes
class	Printout
	Print counters for each element in the range [first, last) e.g. More...

Public Types
enum	{ COUNTER_NOT_PRESENT = 2, COUNTER_EXISTS = 4, COUNTER_REMOVED = 3 }

typedef StatEntity	Counter
	the actual type of counter More...

typedef Stat	CountObject
	Ease the manipulation of counters in a way, that they behave like objects: Avoid: Counter* cnt = ...; ++(*cnt);. More...

typedef std::vector< CountObject >	Counters
	the actual type of vectors of initialized counters More...

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Public Member Functions
	DeclareInterfaceID (ICounterSvc, 4, 0)
	InterfaceID. More...

virtual Counter *	get (const std::string &group, const std::string &name) const =0
	Access an existing counter object. More...

virtual Counters	get (const std::string &group) const =0
	get all counters form the given group: More...

virtual StatusCode	create (const std::string &group, const std::string &name, longlong initial_value, Counter *&refpCounter)=0
	Create a new counter object. More...

virtual CountObject	create (const std::string &group, const std::string &name, longlong initial_value=0)=0
	If the counter object exists already, a std::runtime_error exception is thrown. More...

virtual StatusCode	remove (const std::string &group, const std::string &name)=0
	Remove a counter object. More...

virtual StatusCode	remove (const std::string &group)=0
	Remove all counters of a given group. More...

virtual StatusCode	print (const std::string &group, const std::string &name, Printout &printer) const =0
	Print counter value. More...

virtual StatusCode	print (const std::string &group, Printout &printer) const =0
	If no such counter exists the return code is COUNTER_NOT_PRESENT Note: This call is not direct access. More...

virtual StatusCode	print (const Counter *pCounter, Printout &printer) const =0
	Print counter value. More...

virtual StatusCode	print (const CountObject &pCounter, Printout &printer) const =0
	Print counter value. More...

virtual StatusCode	print (Printout &printer) const =0

virtual StatusCode	defaultPrintout (MsgStream &log, const Counter *pCounter) const =0
	Default Printout for counters. More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Protected Member Functions
virtual	~ICounterSvc ()
	protected virtual destructor More...

Additional Inherited Members
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

Create / access multi purpose counters.

Counter Creation:

// counter creation:
ICounterSvc::CountObject obj = svc->create("AlgName","NumExecuted",0);
 obj++;
 obj += 10;
 ICounterSvc::Counter*  m_counter = obj.counter();
 // ICounterSvc::Counter*  m_counter = obj ; ///< the same
 ICounterSvc::Counter* m_counter = 0;
 if ( svc->create("AlgName","NumExecuted",0, m_counter).isSuccess() )
 {
    CountObject obj(m_counter);
    obj++;
 }

Counter access:

ICounterSvc::Counter* m_counter = svc->get("AlgName","NumExecuted");
if ( m_counter )  {....}
// or:
try {
  ICounterSvc::CountObject obj(svc->get("AlgName","NumExecuted"));
  obj++;
}
catch(std::invalid_argument e)  {
   ...handle exception ...
}

Author: Markus Frank; modified by Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Version: 3.0

Definition at line 78 of file ICounterSvc.h.

Member Typedef Documentation

typedef StatEntity ICounterSvc::Counter

the actual type of counter

See also: StatEntity

Definition at line 84 of file ICounterSvc.h.

typedef std::vector<CountObject> ICounterSvc::Counters

the actual type of vectors of initialized counters

Definition at line 102 of file ICounterSvc.h.

typedef Stat ICounterSvc::CountObject

Ease the manipulation of counters in a way, that they behave like objects: Avoid: Counter* cnt = ...; ++(*cnt);.

Instead: Counter* cnt = ...; CountObject obj(cnt); ++cnt;

Note: No inheritance! This class has no virtual destructor

Author: Markus Frank

Version: 1.0

Definition at line 100 of file ICounterSvc.h.

Member Enumeration Documentation

anonymous enum

Enumerator
COUNTER_NOT_PRESENT
COUNTER_EXISTS
COUNTER_REMOVED

Definition at line 256 of file ICounterSvc.h.

        {  COUNTER_NOT_PRESENT = 2,  // Error
           COUNTER_EXISTS      = 4,  // Error ?
           COUNTER_REMOVED     = 3   // Type of success. Low bit set
   } ;

Constructor & Destructor Documentation

ICounterSvc::~ICounterSvc ( )

protectedvirtual

protected virtual destructor

Definition at line 30 of file ICounterSvc.cpp.

30 {}

Member Function Documentation

virtual StatusCode ICounterSvc::create	(	const std::string &	group,
		const std::string &	name,
		longlong	initial_value,
		Counter *&	refpCounter
	)

pure virtual

Create a new counter object.

If the counter object exists already the existing object is returned. In this event the return code is COUNTER_EXISTS. The ownership of the actual counter stays with the service.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
initial_value	[IN] Initial counter value
refpCounter	[OUT] Reference to store pointer to counter.

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual CountObject ICounterSvc::create	(	const std::string &	group,
		const std::string &	name,
		longlong	initial_value = `0`
	)

pure virtual

If the counter object exists already, a std::runtime_error exception is thrown.

The ownership of the actual counter stays with the service.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
initial_value	[IN] Initial counter value
refpCounter	[OUT] Reference to store pointer to counter.

Returns: Fully initialized CountObject.

Implemented in CounterSvc.

ICounterSvc::DeclareInterfaceID	(	ICounterSvc	,
		4	,
		0
	)

InterfaceID.

virtual StatusCode ICounterSvc::defaultPrintout	(	MsgStream &	log,
		const Counter *	pCounter
	)		const

pure virtual

Default Printout for counters.

Implemented in CounterSvc.

virtual Counter* ICounterSvc::get	(	const std::string &	group,
		const std::string &	name
	)		const

pure virtual

Access an existing counter object.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
createIf	[IN] flag to indicate the creation if not counter found

Returns: Pointer to existing counter object (NULL if non existing).

Implemented in CounterSvc.

virtual Counters ICounterSvc::get ( const std::string & group ) const

pure virtual

get all counters form the given group:

ICounterSvc::Counters cnts = svc->get("Efficiency") ;
MsgStream& stream = ... ;
for ( ICounterSvc::Counters::const_iterator ic = cnts.begin()  ;
      cnts.end() != ic ; ++ic )
   {
      stream << (*ic) << endmsg ;
   }

See also: ICounterSvc::Counters

Parameters

gorup the gorup name

Returns: vector of the properly initialized counters

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::print	(	const std::string &	group,
		const std::string &	name,
		Printout &	printer
	)		const

pure virtual

Print counter value.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::print	(	const std::string &	group,
		Printout &	printer
	)		const

pure virtual

If no such counter exists the return code is COUNTER_NOT_PRESENT Note: This call is not direct access.

Parameters

group	[IN] Hint for smart printing
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::print	(	const Counter *	pCounter,
		Printout &	printer
	)		const

pure virtual

Print counter value.

Parameters

pCounter	[IN] Pointer to Counter object
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::print	(	const CountObject &	pCounter,
		Printout &	printer
	)		const

pure virtual

Print counter value.

Parameters

refCounter	[IN] Reference to CountObject object
printer	[IN] Print actor

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::print ( Printout & printer ) const

pure virtual

Parameters

printer [IN] Print actor

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::remove	(	const std::string &	group,
		const std::string &	name
	)

pure virtual

Remove a counter object.

If the counter object does not exists, the return code is COUNTER_NOT_PRESENT. The counter may not be used anymore after this call.

Parameters

group	[IN] Hint for smart printing
name	[IN] Counter name
initial_value	[IN] Initial counter value
refpCounter	[OUT] Reference to store pointer to counter.

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

virtual StatusCode ICounterSvc::remove ( const std::string & group )

pure virtual

Remove all counters of a given group.

If no such counter exists the return code is COUNTER_NOT_PRESENT

Parameters

group [IN] Hint for smart printing

Returns: StatusCode indicating failure or success.

Implemented in CounterSvc.

The documentation for this class was generated from the following files:

GaudiKernel/GaudiKernel/ICounterSvc.h
GaudiKernel/src/Lib/ICounterSvc.cpp
