The interface implemented by the IToolSvc base class. More...

#include <GaudiKernel/IToolSvc.h>

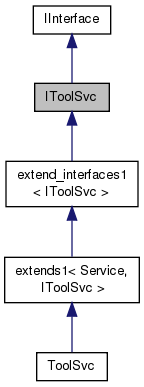

Inheritance diagram for IToolSvc:

Collaboration diagram for IToolSvc:

Classes
class	Observer
	allow call-backs when a tool is a created or retrieved More...

Public Member Functions
	DeclareInterfaceID (IToolSvc, 2, 0)
	InterfaceID. More...

virtual StatusCode	retrieve (const std::string &type, const InterfaceID &iid, IAlgTool &tool, const IInterface parent=0, bool createIf=true)=0
	Retrieve tool with tool dependent part of the name automatically assigned. More...

virtual StatusCode	retrieve (const std::string &type, const std::string &name, const InterfaceID &iid, IAlgTool &tool, const IInterface parent=0, bool createIf=true)=0
	Retrieve tool with tool dependent part of the name specified by the requester. More...

virtual std::vector< std::string >	getInstances (const std::string &toolType)=0
	Get all instance of tool by type. More...

virtual StatusCode	releaseTool (IAlgTool *tool)=0
	Release the tool. More...

template<class T >
StatusCode	retrieveTool (const std::string &type, T &tool, const IInterface parent=0, bool createIf=true)
	Retrieve specified tool sub-type with tool dependent part of the name automatically assigned. More...

template<class T >
StatusCode	retrieveTool (const std::string &type, const std::string &name, T &tool, const IInterface parent=0, bool createIf=true)
	Retrieve specified tool sub-type with tool dependent part of the name tool dependent part of the name specified by the requester. More...

virtual void	registerObserver (Observer *obs)=0

virtual void	unRegisterObserver (Observer *obs)=0

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

The interface implemented by the IToolSvc base class.

Author: G.Corti

Definition at line 17 of file IToolSvc.h.

Member Function Documentation

IToolSvc::DeclareInterfaceID	(	IToolSvc	,
		2	,
		0
	)

InterfaceID.

virtual std::vector<std::string> IToolSvc::getInstances ( const std::string & toolType )

pure virtual

Get all instance of tool by type.

Parameters

toolType type of tool

Implemented in ToolSvc.

virtual void IToolSvc::registerObserver ( Observer * obs )

pure virtual

Implemented in ToolSvc.

virtual StatusCode IToolSvc::releaseTool ( IAlgTool * tool )

pure virtual

Release the tool.

Parameters

tool	to be released

Implemented in ToolSvc.

virtual StatusCode IToolSvc::retrieve	(	const std::string &	type,
		const InterfaceID &	iid,
		IAlgTool *&	tool,
		const IInterface *	parent = `0`,
		bool	createIf = `true`
	)

pure virtual

Retrieve tool with tool dependent part of the name automatically assigned.

By default a tool will be created if it does not exist, unless otherwise specified. By default it will be a common tool unless a parent is specified. The parent of a common tool is automatically taken as the ToolSvc itself.

Parameters

type	AlgTool type name
iid	the unique interface identifier
tool	returned tool
parent	constant reference to the parent (def=none)
createIf	creation flag (def=create if not existing)

Implemented in ToolSvc.

virtual StatusCode IToolSvc::retrieve	(	const std::string &	type,
		const std::string &	name,
		const InterfaceID &	iid,
		IAlgTool *&	tool,
		const IInterface *	parent = `0`,
		bool	createIf = `true`
	)

pure virtual

Retrieve tool with tool dependent part of the name specified by the requester.

By default a tool will be created if it does not exist, unless otherwise specified. By default it will be a common tool unless a parent is specified. The parent of a common tool is automatically taken as the ToolSvc itself.

Parameters

type	AlgTool type name
name	name to be assigned to tool dependent part of the name
iid	the unique interface identifier
tool	returned tool
parent	constant reference to parent (def=none)
createIf	creation flag (def=create if not existing)

Implemented in ToolSvc.

template<class T >

StatusCode IToolSvc::retrieveTool	(	const std::string &	type,
		T *&	tool,
		const IInterface *	parent = `0`,
		bool	createIf = `true`
	)

inline

Retrieve specified tool sub-type with tool dependent part of the name automatically assigned.

Internally it uses the corresponding IToolSvc::retrieve and does the dynamic casting.

IToolSvc* svc  = ... ;
IMyTool*  tool = 0   ;
StatusCode sc = svc->retrieveTool ( "MyToolType" , tool ) ;

For this example public tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be ToolSvc.MyToolType

IToolSvc*   svc = ... ;
IAlgorithm* alg = ... ;
IMyTool*  tool  = 0   ;
StatusCode sc   = svc->retrieveTool ( "MyToolType" , tool , alg ) ;

For this example the private tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be <AlgName>.MyToolType , where <AlgName> is a name of the algorithm.

IToolSvc* svc  = ... ;
IMyTool*  tool = 0   ;
StatusCode sc = svc->retrieveTool ( "MyToolType/MyToolName" , tool ) ;

For this example public tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be ToolSvc.MyToolName

IToolSvc*   svc = ... ;
IAlgorithm* alg = ... ;
IMyTool*  tool  = 0   ;
StatusCode sc   = svc ->
              retrieveTool ( "MyToolType/MyToolName" , tool , alg ) ;

For this example the private tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be <AlgName>.MyToolName , where <AlgName> is a name of the algorithm.

Parameters

tool	returned tool
parent	constant reference to parent (def=none)
createIf	creation flag (def=create if not existing)

Definition at line 133 of file IToolSvc.h.

   {
     return retrieve( type,
                      T::interfaceID(),
                      (IAlgTool*&)tool,
                      parent,
                      createIf );
   }

template<class T >

StatusCode IToolSvc::retrieveTool	(	const std::string &	type,
		const std::string &	name,
		T *&	tool,
		const IInterface *	parent = `0`,
		bool	createIf = `true`
	)

inline

Retrieve specified tool sub-type with tool dependent part of the name tool dependent part of the name specified by the requester.

Internally it uses the corresponding IToolSvc::retrieve and does the dynamic casting.

IToolSvc* svc  = ... ;
IMyTool*  tool = 0   ;
StatusCode sc = svc->retrieveTool ( "MyToolType" ,
                                    "MyToolName" , tool ) ;

For this example public tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be ToolSvc.MyToolName

IToolSvc*   svc = ... ;
IAlgorithm* alg = ... ;
IMyTool*  tool  = 0   ;
StatusCode sc   = svc->retrieveTool ( "MyToolType" ,
                                      "MyToolName" , tool , alg ) ;

For this example the private tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be <AlgName>.MyToolName , where <AlgName> is a name of the algorithm.

If name is empty ("") it is assumed to be equal to the type

Parameters

type	AlgTool type name
name	name to be assigned to tool dependent part of the name
tool	returned tool
parent	constant reference to parent (def=none)
createIf	creation flag (def=create if not existing)

Definition at line 189 of file IToolSvc.h.

   {
     return retrieve ( type,
                       name,
                       T::interfaceID(),
                       (IAlgTool*&)tool,
                       parent,
                       createIf );
   }

virtual void IToolSvc::unRegisterObserver ( Observer * obs )

pure virtual

Implemented in ToolSvc.

The documentation for this class was generated from the following file:

GaudiKernel/GaudiKernel/IToolSvc.h
