Gaudi::RootDataConnection Class Reference

Concrete implementation of the IDataConnection interface to access ROOT files. More...

#include <GaudiRootCnv/RootDataConnection.h>

Inheritance diagram for Gaudi::RootDataConnection:

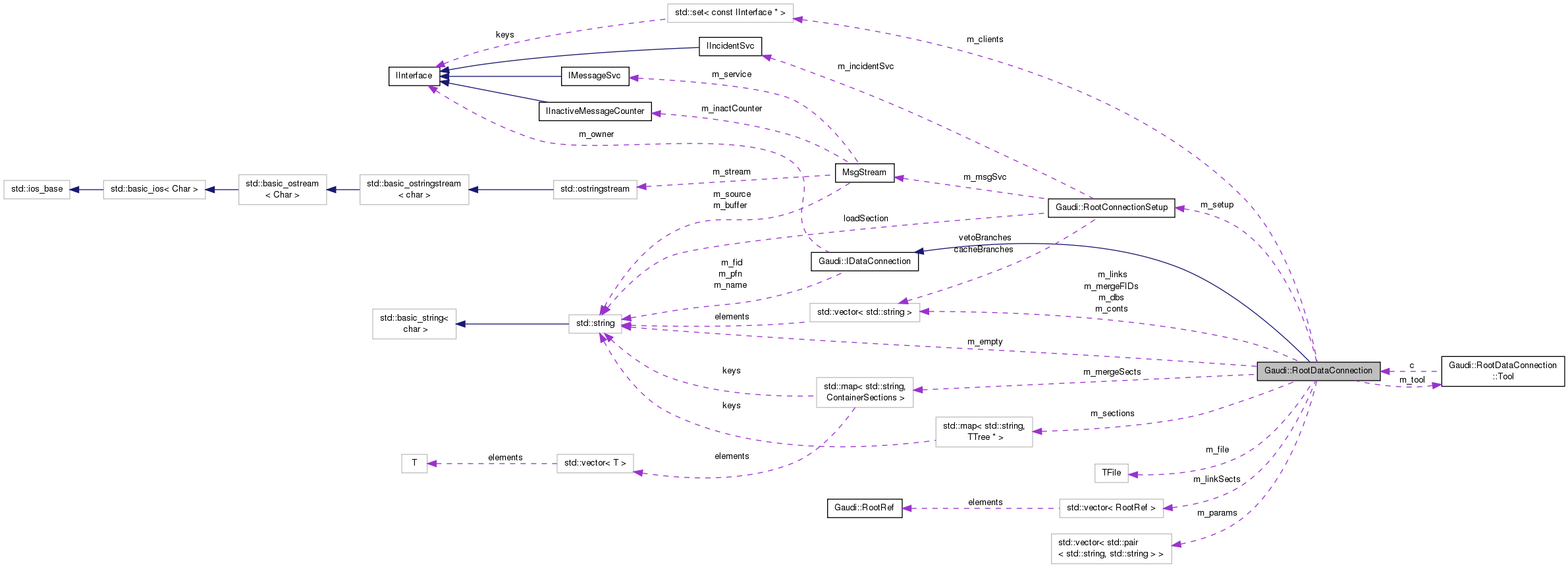

Collaboration diagram for Gaudi::RootDataConnection:

Classes
class	ContainerSection
	Internal helper class, which described a TBranch section in a ROOT file. More...
class	Tool
	Helper class to facilitate an abstraction layer for reading POOL style files with this package. More...

Public Types
enum	{ ROOT_READ_ERROR = 0x2, ROOT_OPEN_ERROR = 0x4 }
typedef std::vector< std::string >	StringVec
	Type definition for string maps. More...
typedef std::vector< std::pair < std::string, std::string > >	ParamMap
	Type definition for the parameter map. More...
typedef std::map< std::string, TTree * >	Sections
	Definition of tree sections. More...
typedef std::vector < ContainerSection >	ContainerSections
	Definition of container sections to handle merged files. More...
typedef std::map< std::string, ContainerSections >	MergeSections
	Definition of database section to handle merged files. More...
typedef std::vector< RootRef >	LinkSections
	Link sections definition. More...
typedef std::set< const IInterface * >	Clients
	Client set. More...
Public Types inherited from Gaudi::IDataConnection
enum	IoType { READ =1<<1, UPDATE =1<<2, CREATE =1<<3, RECREATE =(1<<4)+(1<<3) }
	I/O Connection types. More...
enum	IoStatus { BAD_DATA_CONNECTION =4 }
	Status Code on bad file connection. More...

Public Member Functions
MsgStream &	msgSvc () const
	Allow access to printer service. More...
Tool *	makeTool ()
	Create file access tool to encapsulate POOL compatibiliy. More...
	RootDataConnection (const IInterface *own, const std::string &nam, RootConnectionSetup *setup)
	Standard constructor. More...
virtual	~RootDataConnection ()
	Standard destructor. More...
TFile *	file () const
	Direct access to TFile structure. More...
virtual bool	isConnected () const
	Check if connected to data source. More...
bool	isWritable () const
	Is the file writable? More...
Tool *	tool () const
	Access tool. More...
const MergeSections &	mergeSections () const
	Access merged data section inventory. More...
const StringVec &	mergeFIDs () const
	Access merged FIDs. More...
void	addClient (const IInterface *client)
	Add new client to this data source. More...
size_t	removeClient (const IInterface *client)
	Remove client from this data source. More...
bool	lookupClient (const IInterface *client) const
	Lookup client for this data source. More...
void	badWriteError (const std::string &msg) const
	Error handler when bad write statements occur. More...
std::pair< const RootRef *, const ContainerSection * >	getMergeSection (const std::string &container, int entry) const
	Access link section for single container and entry. More...
void	enableStatistics (const std::string &section)
	Enable TTreePerStats. More...
void	saveStatistics (const std::string &statisticsFile)
	Save TTree access statistics if required. More...
int	loadObj (const std::string &section, const std::string &cnt, unsigned long entry, DataObject *&pObj)
	Load object. More...
int	loadRefs (const std::string &section, const std::string &cnt, unsigned long entry, RootObjectRefs &refs)
	Load references object. More...
std::pair< int, unsigned long >	saveObj (const std::string &section, const std::string &cnt, TClass *cl, DataObject *pObj, int buff_siz, int split_lvl, bool fill_missing=false)
	Save object of a given class to section and container. More...
std::pair< int, unsigned long >	save (const std::string &section, const std::string &cnt, TClass *cl, void *pObj, int buff_siz, int split_lvl, bool fill_missing=false)
	Save object of a given class to section and container. More...
virtual StatusCode	connectRead ()
	Open data stream in read mode. More...
virtual StatusCode	connectWrite (IoType typ)
	Open data stream in write mode. More...
virtual StatusCode	disconnect ()
	Release data stream and release implementation dependent resources. More...
virtual StatusCode	read (void *const, size_t)
	Read root byte buffer from input stream. More...
virtual StatusCode	write (const void *, int)
	Write root byte buffer to output stream. More...
virtual long long int	seek (long long int, int)
	Seek on the file described by ioDesc. Arguments as in ::seek() More...
TTree *	getSection (const std::string &sect, bool create=false)
	Access TTree section from section name. The section is created if required. More...
TBranch *	getBranch (const std::string &section, const std::string &branch_name)
	Access data branch by name: Get existing branch in read only mode. More...
TBranch *	getBranch (const std::string &section, const std::string &branch_name, TClass *cl, void *ptr, int buff_siz, int split_lvl)
	Access data branch by name: Get existing branch in write mode. More...
void	makeRef (IRegistry *pA, RootRef &ref)
	Create reference object from registry entry. More...
void	makeRef (const std::string &name, long clid, int tech, const std::string &db, const std::string &cnt, int entry, RootRef &ref)
	Create reference object from values. More...
int	makeLink (const std::string &p)
	Convert path string to path index. More...
const std::string &	getDb (int which) const
	Access database/file name from saved index. More...
const std::string &	getCont (int which) const
	Access container name from saved index. More...
const std::string &	getLink (int which) const
	Access link name from saved index. More...
Public Member Functions inherited from Gaudi::IDataConnection
	IDataConnection (const IInterface *own, const std::string &nam)
	Standard constructor. More...
virtual	~IDataConnection ()
	Standard destructor. More...
const std::string &	name () const
	Connection name. More...
void	setFID (const std::string &fid)
	Set file ID. More...
const std::string &	fid () const
	Access file id. More...
const std::string &	pfn () const
	Access physical file name. More...
void	setPFN (const std::string &fn)
	Set physical file name. More...
void	ageFile ()
	Increase age of I/O source. More...
void	resetAge ()
	Reset age. More...
int	age () const
	Access age counter. More...
const IInterface *	owner () const
	Owner instance. More...

Public Attributes
class Gaudi::RootDataConnection::Tool *	m_tool

Protected Member Functions
const std::string &	empty () const
	Empty string reference. More...
StatusCode	saveRefs ()
	Internal helper to save/update reference tables. More...

Protected Attributes
RootConnectionSetup *	m_setup
	Reference to the setup structure. More...
TTreePerfStats *	m_statistics
	I/O read statistics from TTree. More...
TFile *	m_file
	Reference to ROOT file. More...
TTree *	m_refs
	Pointer to the reference tree. More...
Sections	m_sections
	Tree sections in TFile. More...
StringVec	m_dbs
	Map containing external database file names (fids) More...
StringVec	m_conts
	Map containing external container names. More...
StringVec	m_links
	Map containing internal links names. More...
StringVec	m_mergeFIDs
	Map containing merge FIDs. More...
ParamMap	m_params
	Parameter map for file parameters. More...
MergeSections	m_mergeSects
	Database section map for merged files. More...
LinkSections	m_linkSects
	Database link sections. More...
Clients	m_clients
	Client list. More...
std::string	m_empty
	Buffer for empty string reference. More...
Protected Attributes inherited from Gaudi::IDataConnection
std::string	m_name
	Connection name/identifier. More...
std::string	m_fid
	File ID of the connection. More...
std::string	m_pfn
	Physical file name of the connection. More...
int	m_age
	Age counter. More...
const IInterface *	m_owner
	Owner pointer. More...

Friends
class	Tool

Detailed Description

Concrete implementation of the IDataConnection interface to access ROOT files.

Author

M.Frank

Version

1.0

Date

20/12/2009

Definition at line 99 of file RootDataConnection.h.

Member Typedef Documentation

typedef std::set<const IInterface*> Gaudi::RootDataConnection::Clients

Client set.

Definition at line 150 of file RootDataConnection.h.

typedef std::vector<ContainerSection> Gaudi::RootDataConnection::ContainerSections

Definition of container sections to handle merged files.

Definition at line 144 of file RootDataConnection.h.

typedef std::vector<RootRef> Gaudi::RootDataConnection::LinkSections

Link sections definition.

Definition at line 148 of file RootDataConnection.h.

typedef std::map<std::string,ContainerSections> Gaudi::RootDataConnection::MergeSections

Definition of database section to handle merged files.

Definition at line 146 of file RootDataConnection.h.

typedef std::vector<std::pair<std::string,std::string> > Gaudi::RootDataConnection::ParamMap

Type definition for the parameter map.

Definition at line 140 of file RootDataConnection.h.

typedef std::map<std::string,TTree*> Gaudi::RootDataConnection::Sections

Definition of tree sections.

Definition at line 142 of file RootDataConnection.h.

typedef std::vector<std::string> Gaudi::RootDataConnection::StringVec

Type definition for string maps.

Definition at line 138 of file RootDataConnection.h.

Member Enumeration Documentation

anonymous enum

Enumerator
ROOT_READ_ERROR
ROOT_OPEN_ERROR

Definition at line 102 of file RootDataConnection.h.

         { ROOT_READ_ERROR = 0x2,
       ROOT_OPEN_ERROR = 0x4
    };

Constructor & Destructor Documentation

RootDataConnection::RootDataConnection	(	const IInterface *	own,
		const std::string &	nam,
		RootConnectionSetup *	setup
	)

Standard constructor.

Definition at line 168 of file RootDataConnection.cpp.

  : IDataConnection(owner,fname), m_setup(setup), m_statistics(0), m_tool(0)
{ //               01234567890123456789012345678901234567890
  // Check if FID: A82A3BD8-7ECB-DC11-8DC0-000423D950B0
  if ( fname.length() == 36 && fname[8]=='-'&&fname[13]=='-'&&fname[18]=='-'&&fname[23]=='-' ) {
    m_name = "FID:"+fname;
  }
  m_setup->addRef();
  m_age  = 0;
  m_file = 0;
  m_refs = 0;
  addClient(owner);
}

RootDataConnection::~RootDataConnection ( )

virtual

Standard destructor.

Definition at line 183 of file RootDataConnection.cpp.

                                          {
  m_setup->release();
  releasePtr(m_tool);
}

Member Function Documentation

void RootDataConnection::addClient

(

const IInterface *

client

)

Add new client to this data source.

Definition at line 189 of file RootDataConnection.cpp.

                                                           {
  m_clients.insert(client);
}

void RootDataConnection::badWriteError

(

const std::string &

msg

)

const

Error handler when bad write statements occur.

Definition at line 207 of file RootDataConnection.cpp.

                                                                {
  msgSvc() << MSG::ERROR << "File:" << fid() << "Failed action:" << msg << endmsg;
}

StatusCode RootDataConnection::connectRead ( )

virtual

Open data stream in read mode.

Connect the file in READ mode.

Implements Gaudi::IDataConnection.

Definition at line 249 of file RootDataConnection.cpp.

                                            {
  m_file = TFile::Open(m_pfn.c_str());
  if ( m_file && !m_file->IsZombie() )   {
    StatusCode sc = StatusCode::FAILURE;
    msgSvc() << MSG::DEBUG << "Opened file " << m_pfn << " in mode READ. [" << m_fid << "]" << endmsg << MSG::DEBUG;
    if ( msgSvc().isActive() ) m_file->ls();
    msgSvc() << MSG::VERBOSE;
    if ( msgSvc().isActive() ) m_file->Print();
    if ( makeTool() )   {
      sc = m_tool->readRefs();
      sc.ignore();
#if ROOT_VERSION_CODE >= ROOT_VERSION(5,33,0)
      if ( sc.getCode() == ROOT_READ_ERROR ) {
    IIncidentSvc* inc = m_setup->incidentSvc();
    if ( inc ) {
      inc->fireIncident(Incident(pfn(),IncidentType::CorruptedInputFile));
    }
      }
#endif
    }
    if ( sc.isSuccess() ) {
      bool need_fid = m_fid == m_pfn;
      string fid = m_fid;
      m_mergeFIDs.clear();
      for(size_t i=0, n=m_params.size(); i<n; ++i) {
        if ( m_params[i].first == "FID" )  {
          m_mergeFIDs.push_back(m_params[i].second);
          if ( m_params[i].second != m_fid )    {
            msgSvc() << MSG::DEBUG << "Check FID param:" << m_params[i].second << endmsg;
            //if ( m_fid == m_pfn ) {
            m_fid = m_params[i].second;
            //}
          }
        }
      }
      if ( !need_fid && fid != m_fid ) {
        msgSvc() << MSG::ERROR << "FID mismatch:" << fid << "(Catalog) != " << m_fid << "(file)" << endmsg
          << "for PFN:" << m_pfn << endmsg;
        return StatusCode::FAILURE;
      }
      msgSvc() << MSG::DEBUG << "Using FID " << m_fid << " from params table...." << endmsg
        << "for PFN:" << m_pfn << endmsg;
      return sc;
    }
  }
  else if ( m_file ) {
    deletePtr(m_file);
  }
  return StatusCode::FAILURE;
}

StatusCode RootDataConnection::connectWrite ( IoType  typ )

virtual

Open data stream in write mode.

Implements Gaudi::IDataConnection.

Definition at line 301 of file RootDataConnection.cpp.

                                                       {
  int compress = RootConnectionSetup::compression();
  msgSvc() << MSG::DEBUG;
  switch(typ)  {
  case CREATE:
    resetAge();
    m_file = TFile::Open(m_pfn.c_str(),"CREATE","Root event data",compress);
    m_refs = new TTree("Refs","Root reference data");
    msgSvc() << "Opened file " << m_pfn << " in mode CREATE. [" << m_fid << "]" << endmsg;
    m_params.push_back(make_pair("PFN",m_pfn));
    if ( m_fid != m_pfn ) {
      m_params.push_back(make_pair("FID",m_fid));
    }
    makeTool();
    break;
  case RECREATE:
    resetAge();
    m_file = TFile::Open(m_pfn.c_str(),"RECREATE","Root event data",compress);
    msgSvc() << "Opened file " << m_pfn << " in mode RECREATE. [" << m_fid << "]" << endmsg;
    m_refs = new TTree("Refs","Root reference data");
    m_params.push_back(make_pair("PFN",m_pfn));
    if ( m_fid != m_pfn ) {
      m_params.push_back(make_pair("FID",m_fid));
    }
    makeTool();
    break;
  case UPDATE:
    resetAge();
    m_file = TFile::Open(m_pfn.c_str(),"UPDATE","Root event data",compress);
    msgSvc() << "Opened file " << m_pfn << " in mode UPDATE. [" << m_fid << "]" << endmsg;
    if ( m_file && !m_file->IsZombie() )  {
      if ( makeTool() )   {
    StatusCode sc = m_tool->readRefs();
    sc.ignore();
    if ( sc.getCode() == ROOT_READ_ERROR ) {
#if ROOT_VERSION_CODE >= ROOT_VERSION(5,33,0)
      IIncidentSvc* inc = m_setup->incidentSvc();
      if ( inc ) {
        inc->fireIncident(Incident(pfn(),IncidentType::CorruptedInputFile));
      }
#endif
    }
    return sc;
      }
      TDirectory::TContext ctxt(m_file);
      m_refs = new TTree("Refs","Root reference data");
      makeTool();
      return StatusCode::SUCCESS;
    }
    break;
  default:
    m_refs = 0;
    m_file = 0;
    return StatusCode::FAILURE;
  }
  return 0==m_file ? StatusCode::FAILURE : StatusCode::SUCCESS;
}

StatusCode RootDataConnection::disconnect ( )

virtual

Release data stream and release implementation dependent resources.

Implements Gaudi::IDataConnection.

Definition at line 360 of file RootDataConnection.cpp.

                                             {
  if ( m_file ) {
    if ( !m_file->IsZombie() )   {
      if ( m_file->IsWritable() ) {
        msgSvc() << MSG::DEBUG;
        TDirectory::TContext ctxt(m_file);
        if ( m_refs ) {
          if ( !m_tool->saveRefs().isSuccess() ) badWriteError("Saving References");
          if ( m_refs->Write() < 0 ) badWriteError("Write Reference branch");
        }
        for(Sections::iterator i=m_sections.begin(); i!= m_sections.end();++i) {
          if ( (*i).second ) {
            if ( (*i).second->Write() < 0 ) badWriteError("Write section:"+(*i).first);
            msgSvc() << "Disconnect section " << (*i).first << " " << (*i).second->GetName() << endmsg;
          }
        }
        m_sections.clear();
      }
      msgSvc() << MSG::DEBUG;
      if ( msgSvc().isActive() ) m_file->ls();
      msgSvc() << MSG::VERBOSE;
      if ( msgSvc().isActive() ) m_file->Print();
      m_file->Close();
    }
    msgSvc() << MSG::DEBUG << "Disconnected file " << m_pfn << " " << m_file->GetName() << endmsg;
    deletePtr(m_file);
    releasePtr(m_tool);
  }
  return StatusCode::SUCCESS;
}

CSTR RootDataConnection::empty ( ) const

protected

Empty string reference.

Definition at line 499 of file RootDataConnection.cpp.

                                     {
  return s_empty;
}

void RootDataConnection::enableStatistics

(

const std::string &

section

)

Enable TTreePerStats.

Definition at line 222 of file RootDataConnection.cpp.

                                                      {
  if ( 0 == m_statistics ) {
    TTree* t=getSection(section,false);
    if ( t ) {
      m_statistics = new TTreePerfStats((section+"_ioperf").c_str(),t);
      return;
    }
    msgSvc() << MSG::WARNING << "Failed to enable perfstats for tree:" << section << endmsg;
    return;
  }
  msgSvc() << MSG::INFO << "Perfstats are ALREADY ENABLED." << endmsg;
}

TFile* Gaudi::RootDataConnection::file ( ) const

inline

Direct access to TFile structure.

Definition at line 255 of file RootDataConnection.h.

{  return m_file;                              }

TBranch* Gaudi::RootDataConnection::getBranch ( const std::string &  section, const std::string &  branch_name  )

inline

Access data branch by name: Get existing branch in read only mode.

Definition at line 315 of file RootDataConnection.h.

    { return m_tool->getBranch(section,branch_name); }

TBranch* Gaudi::RootDataConnection::getBranch	(	const std::string &	section,
		const std::string &	branch_name,
		TClass *	cl,
		void *	ptr,
		int	buff_siz,
		int	split_lvl
	)

Access data branch by name: Get existing branch in write mode.

const std::string& Gaudi::RootDataConnection::getCont ( int  which ) const

inline

Access container name from saved index.

Definition at line 332 of file RootDataConnection.h.

      { return (which>=0)&&(size_t(which)<m_conts.size()) ? *(m_conts.begin()+which) : empty();    }

CSTR RootDataConnection::getDb

(

int

which

)

const

Access database/file name from saved index.

Definition at line 490 of file RootDataConnection.cpp.

                                              {
  if ( (which>=0) && (size_t(which)<m_dbs.size()) )  {
    if ( *(m_dbs.begin()+which) == s_local ) return m_fid;
    return *(m_dbs.begin()+which);
  }
  return s_empty;
}

const std::string& Gaudi::RootDataConnection::getLink ( int  which ) const

inline

Access link name from saved index.

Definition at line 336 of file RootDataConnection.h.

      { return (which>=0)&&(size_t(which)<m_links.size()) ? *(m_links.begin()+which) : empty();    }

pair< const RootRef *, const RootDataConnection::ContainerSection * > RootDataConnection::getMergeSection	(	const std::string &	container,
		int	entry
	)		const

Access link section for single container and entry.

Definition at line 618 of file RootDataConnection.cpp.

                                                                            {
  //size_t idx = cont.find('/',1);
  //string container = cont[0]=='/' ? cont.substr(1,idx==string::npos?idx:idx-1) : cont;
  MergeSections::const_iterator i=m_mergeSects.find(container);
  if ( i != m_mergeSects.end() ) {
    size_t cnt = 0;
    const ContainerSections& s = (*i).second;
    for(ContainerSections::const_iterator j=s.begin(); j != s.end(); ++j,++cnt) {
      const ContainerSection& c = *j;
      if ( entry >= c.start && entry < (c.start+c.length) ) {
        if ( m_linkSects.size() > cnt ) {
          if ( msgSvc().isActive() ) {
            msgSvc() << MSG::VERBOSE << "MergeSection for:" << container
              << "  [" << entry << "]" << endmsg
              << "FID:" << m_fid << " -> PFN:" << m_pfn << endmsg;
          }
          return make_pair(&(m_linkSects[cnt]), &c);
        }
      }
    }
  }
  msgSvc() << MSG::DEBUG << "Return INVALID MergeSection for:" << container
    << "  [" << entry << "]" << endmsg
    << "FID:" << m_fid << " -> PFN:" << m_pfn << endmsg;
  return make_pair((const RootRef*)0,(const ContainerSection*)0);
}

TTree * RootDataConnection::getSection	(	const std::string &	sect,
		bool	create = false
	)

Access TTree section from section name. The section is created if required.

Definition at line 392 of file RootDataConnection.cpp.

                                                               {
  TTree* t = m_sections[section];
  if ( !t ) {
    t = (TTree*)m_file->Get(section.c_str());
    if ( !t && create ) {
      TDirectory::TContext ctxt(m_file);
      t = new TTree(section.c_str(),"Root data for Gaudi");
    }
    if ( t ) {
      int cacheSize = m_setup->cacheSize;
      if ( create ) {
        //t->SetAutoFlush(100);
      }
      if ( section == m_setup->loadSection && cacheSize>-2 )  {
        MsgStream& msg = msgSvc();
        int learnEntries = m_setup->learnEntries;
        t->SetCacheSize(cacheSize);
        t->SetCacheLearnEntries(learnEntries);
        msg << MSG::DEBUG;
        if ( create ) {
          msg << "Tree:" << section << "Setting up tree cache:" << cacheSize << endmsg;
        }
        else {
      const StringVec& vB = m_setup->vetoBranches;
      const StringVec& cB = m_setup->cacheBranches;
          msg << "Tree:" << section << " Setting up tree cache:" << cacheSize << " Add all branches." << endmsg;
          msg << "Tree:" << section << " Learn for " << learnEntries << " entries." << endmsg;

      if ( cB.size()==0 && vB.size()== 0 ) {
        msg << "Adding (default) all branches to tree cache." << endmsg;
            t->AddBranchToCache("*",kTRUE);
          }
          if ( cB.size()==1 && cB[0]=="*" ) {
        msg << "Adding all branches to tree cache according to option \"CacheBranches\"." << endmsg;
            t->AddBranchToCache("*",kTRUE);
          }
          else {
            StringVec::const_iterator i;
            for(TIter it(t->GetListOfBranches()); it.Next(); )  {
              const char* n = ((TNamed*)(*it))->GetName();
          bool add = false, veto = false;
              for(i=cB.begin(); i != cB.end();++i) {
                if ( !match_wild(n,(*i).c_str()) ) continue;
                add = true;
                break;
              }
              for(i=vB.begin(); !add && i!=vB.end();++i) {
                if ( !match_wild(n,(*i).c_str()) ) continue;
                veto = true;
                break;
              }
              if ( add && !veto ) {
                msg << "Add " << n << " to branch cache." << endmsg;
                t->AddBranchToCache(n,kTRUE);
              }
          else {
                msg << "Do not cache branch " << n << endmsg;
          }
            }
          }
        }
      }
      m_sections[section] = t;
    }
  }
  return t;
}

virtual bool Gaudi::RootDataConnection::isConnected ( ) const

inlinevirtual

Check if connected to data source.

Implements Gaudi::IDataConnection.

Definition at line 257 of file RootDataConnection.h.

{  return m_file != 0;                         }

bool Gaudi::RootDataConnection::isWritable ( ) const

inline

Is the file writable?

Definition at line 259 of file RootDataConnection.h.

{  return m_file != 0 && m_file->IsWritable(); }

int RootDataConnection::loadObj	(	const std::string &	section,
		const std::string &	cnt,
		unsigned long	entry,
		DataObject *&	pObj
	)

Load object.

Definition at line 541 of file RootDataConnection.cpp.

                                                                                              {
  TBranch* b = getBranch(section,cnt);
  if ( b ) {
    TClass* cl = gROOT->GetClass(b->GetClassName(),kTRUE);
    if ( cl ) {
      int nb = -1;
      pObj = (DataObject*)cl->New();
      {
    DataObjectPush push(pObj);
    b->SetAddress(&pObj);
    if ( section == m_setup->loadSection ) {
      TTree* t = b->GetTree();
      if ( Long64_t(entry) != t->GetReadEntry() ) {
        t->LoadTree(Long64_t(entry));
      }
    }
    nb = b->GetEntry(entry);
    msgSvc() << MSG::VERBOSE;
    if ( msgSvc().isActive() ) {
      msgSvc() << "Load [" << entry << "] --> " << section
           << ":" << cnt << "  " << nb << " bytes."
           << endmsg;
    }
    if ( nb < 0 )   {   // This is definitely an error...ROOT says if reads fail, -1 is issued.
#if ROOT_VERSION_CODE >= ROOT_VERSION(5,33,0)
      IIncidentSvc* inc = m_setup->incidentSvc();
      if ( inc ) {
        inc->fireIncident(Incident(pfn(),IncidentType::CorruptedInputFile));
      }
#endif
    }
    else if ( nb == 0 && pObj->clID() == CLID_DataObject) {
      TFile* f = b->GetFile();
      int vsn = f->GetVersion();
      if ( vsn < 52400 ) {
        // For Gaudi v21r5 (ROOT 5.24.00b) DataObject::m_version was not written!
        // Still this call be well be successful.
        nb = 1;
      }
      else if ( vsn>1000000 && (vsn%1000000)<52400 ) {
        // dto. Some POOL files have for unknown reasons a version
        // not according to ROOT standards. Hack this explicitly.
        nb = 1;
      }
    }
    if ( nb < 0 ) {
      delete pObj;
      pObj = 0;
    }
      }
      return nb;
    }
  }
  return -1;
}

int RootDataConnection::loadRefs	(	const std::string &	section,
		const std::string &	cnt,
		unsigned long	entry,
		RootObjectRefs &	refs
	)

Load references object.

Definition at line 598 of file RootDataConnection.cpp.

{
  int nbytes = m_tool->loadRefs(section,cnt,entry,refs);
#if ROOT_VERSION_CODE >= ROOT_VERSION(5,33,0)
  if ( nbytes < 0 )   {
    // This is definitely an error:
    // -- Either branch not preesent at all or
    // -- ROOT I/O error, which issues -1
    IIncidentSvc* inc = m_setup->incidentSvc();
    if ( inc ) {
      inc->fireIncident(Incident(pfn(),IncidentType::CorruptedInputFile));
    }
  }
#endif
  return nbytes;
}

bool RootDataConnection::lookupClient

(

const IInterface *

client

)

const

Lookup client for this data source.

Definition at line 201 of file RootDataConnection.cpp.

                                                                      {
  Clients::const_iterator i=m_clients.find(client);
  return i != m_clients.end();
}

int RootDataConnection::makeLink

(

const std::string &

p

)

Convert path string to path index.

Definition at line 479 of file RootDataConnection.cpp.

                                       {
  int cnt = 0;
  StringVec::iterator ip;
  for(ip=m_links.begin();ip!=m_links.end();++ip,++cnt) {
    if( (*ip) == p ) return cnt;
  }
  m_links.push_back(p);
  return m_links.size()-1;
}

void RootDataConnection::makeRef	(	IRegistry *	pA,
		RootRef &	ref
	)

Create reference object from registry entry.

Definition at line 646 of file RootDataConnection.cpp.

                                                            {
  IOpaqueAddress* pA = pR->address();
  makeRef(pR->name(),pA->clID(),pA->svcType(),pA->par()[0],pA->par()[1],-1,ref);
}

void Gaudi::RootDataConnection::makeRef	(	const std::string &	name,
		long	clid,
		int	tech,
		const std::string &	db,
		const std::string &	cnt,
		int	entry,
		RootRef &	ref
	)

Create reference object from values.

RootDataConnection::Tool * RootDataConnection::makeTool

(

)

Create file access tool to encapsulate POOL compatibiliy.

Definition at line 236 of file RootDataConnection.cpp.

                                                       {
  releasePtr(m_tool);
  if ( !m_refs ) m_refs = (TTree*)m_file->Get("Refs");
  if ( m_refs )
    m_tool = new RootTool(this);
#ifdef __POOL_COMPATIBILITY
  else if ( m_file->Get("##Links") != 0 )
    m_tool = new PoolTool(this);
#endif
  return m_tool;
}

const StringVec& Gaudi::RootDataConnection::mergeFIDs ( ) const

inline

Access merged FIDs.

Definition at line 265 of file RootDataConnection.h.

{  return m_mergeFIDs;                         }

const MergeSections& Gaudi::RootDataConnection::mergeSections ( ) const

inline

Access merged data section inventory.

Definition at line 263 of file RootDataConnection.h.

{  return m_mergeSects;                        }

MsgStream& Gaudi::RootDataConnection::msgSvc ( ) const

inline

Allow access to printer service.

Definition at line 153 of file RootDataConnection.h.

{  return m_setup->msgSvc(); }

virtual StatusCode Gaudi::RootDataConnection::read ( void *  const, size_t    )

inlinevirtual

Read root byte buffer from input stream.

Implements Gaudi::IDataConnection.

Definition at line 305 of file RootDataConnection.h.

{ return StatusCode::FAILURE; }

size_t RootDataConnection::removeClient

(

const IInterface *

client

)

Remove client from this data source.

Definition at line 194 of file RootDataConnection.cpp.

                                                                {
  Clients::iterator i=m_clients.find(client);
  if ( i != m_clients.end() ) m_clients.erase(i);
  return m_clients.size();
}

pair< int, unsigned long > RootDataConnection::save	(	const std::string &	section,
		const std::string &	cnt,
		TClass *	cl,
		void *	pObj,
		int	buff_siz,
		int	split_lvl,
		bool	fill_missing = false
	)

Save object of a given class to section and container.

Definition at line 512 of file RootDataConnection.cpp.

                                                                                                                       {
  split_lvl = 0;
  TBranch* b = getBranch(section, cnt, cl, (void*)(pObj ? &pObj : 0),buff_siz,split_lvl);
  if ( b ) {
    Long64_t evt = b->GetEntries();
    //msgSvc() << MSG::DEBUG << cnt.c_str() << " Obj:" << (void*)pObj
    //         << " Split:" << split_lvl << " Buffer size:" << buff_siz << endl;
    if ( fill_missing ) {
      Long64_t num, nevt = b->GetTree()->GetEntries();
      if ( nevt > evt )   {
        b->SetAddress(0);
    num = nevt - evt;
    while( num > 0 ) { b->Fill(); --num; }
        msgSvc() << MSG::DEBUG << "Added " << long(nevt-evt)
         << " / Tree: " << nevt << " / Branch: " << b->GetEntries()+1
         << " NULL entries to:" << cnt << endmsg;
    evt = b->GetEntries();
      }
    }
    b->SetAddress(&pObj);
    return make_pair(b->Fill(),(unsigned long)evt);
  }
  else if ( 0 != pObj ) {
    msgSvc() << MSG::ERROR << "Failed to access branch " << m_name << "/" << cnt << endmsg;
  }
  return make_pair(-1,~0);
}

pair< int, unsigned long > RootDataConnection::saveObj	(	const std::string &	section,
		const std::string &	cnt,
		TClass *	cl,
		DataObject *	pObj,
		int	buff_siz,
		int	split_lvl,
		bool	fill_missing = false
	)

Save object of a given class to section and container.

Definition at line 505 of file RootDataConnection.cpp.

                                                                                                                       {
  DataObjectPush push(pObj);
  return save(section,cnt,cl,pObj,buff_siz,split_lvl,fill);
}

StatusCode Gaudi::RootDataConnection::saveRefs ( )

protected

Internal helper to save/update reference tables.

void RootDataConnection::saveStatistics

(

const std::string &

statisticsFile

)

Save TTree access statistics if required.

Definition at line 212 of file RootDataConnection.cpp.

                                                           {
  if ( m_statistics ) {
    m_statistics->Print();
    if ( !statisticsFile.empty() )
      m_statistics->SaveAs(statisticsFile.c_str());
    deletePtr(m_statistics);
  }
}

virtual long long int Gaudi::RootDataConnection::seek ( long long int  , int    )

inlinevirtual

Seek on the file described by ioDesc. Arguments as in ::seek()

Implements Gaudi::IDataConnection.

Definition at line 309 of file RootDataConnection.h.

{ return -1; }

Tool* Gaudi::RootDataConnection::tool ( ) const

inline

Access tool.

Definition at line 261 of file RootDataConnection.h.

{  return m_tool;                              }

virtual StatusCode Gaudi::RootDataConnection::write ( const void *  , int    )

inlinevirtual

Write root byte buffer to output stream.

Implements Gaudi::IDataConnection.

Definition at line 307 of file RootDataConnection.h.

{ return StatusCode::FAILURE; }

Friends And Related Function Documentation

friend class Tool

friend

Definition at line 242 of file RootDataConnection.h.

Member Data Documentation

Clients Gaudi::RootDataConnection::m_clients

protected

Client list.

Definition at line 182 of file RootDataConnection.h.

StringVec Gaudi::RootDataConnection::m_conts

protected

Map containing external container names.

Definition at line 170 of file RootDataConnection.h.

StringVec Gaudi::RootDataConnection::m_dbs

protected

Map containing external database file names (fids)

Definition at line 168 of file RootDataConnection.h.

std::string Gaudi::RootDataConnection::m_empty

protected

Buffer for empty string reference.

Definition at line 184 of file RootDataConnection.h.

TFile* Gaudi::RootDataConnection::m_file

protected

Reference to ROOT file.

Definition at line 162 of file RootDataConnection.h.

StringVec Gaudi::RootDataConnection::m_links

protected

Map containing internal links names.

Definition at line 172 of file RootDataConnection.h.

LinkSections Gaudi::RootDataConnection::m_linkSects

protected

Database link sections.

Definition at line 180 of file RootDataConnection.h.

StringVec Gaudi::RootDataConnection::m_mergeFIDs

protected

Map containing merge FIDs.

Definition at line 174 of file RootDataConnection.h.

MergeSections Gaudi::RootDataConnection::m_mergeSects

protected

Database section map for merged files.

Definition at line 178 of file RootDataConnection.h.

ParamMap Gaudi::RootDataConnection::m_params

protected

Parameter map for file parameters.

Definition at line 176 of file RootDataConnection.h.

TTree* Gaudi::RootDataConnection::m_refs

protected

Pointer to the reference tree.

Definition at line 164 of file RootDataConnection.h.

Sections Gaudi::RootDataConnection::m_sections

protected

Tree sections in TFile.

Definition at line 166 of file RootDataConnection.h.

RootConnectionSetup* Gaudi::RootDataConnection::m_setup

protected

Reference to the setup structure.

Definition at line 158 of file RootDataConnection.h.

TTreePerfStats* Gaudi::RootDataConnection::m_statistics

protected

I/O read statistics from TTree.

Definition at line 160 of file RootDataConnection.h.

class Gaudi::RootDataConnection::Tool * Gaudi::RootDataConnection::m_tool

---

The documentation for this class was generated from the following files:

• RootCnv/RootCnv/RootDataConnection.h
• RootCnv/src/RootDataConnection.cpp
