DataSvcHelpers::RegistryEntry Class Reference

Definition of an entry in the transient data store. More...

#include <GaudiKernel/RegistryEntry.h>

Inheritance diagram for DataSvcHelpers::RegistryEntry:

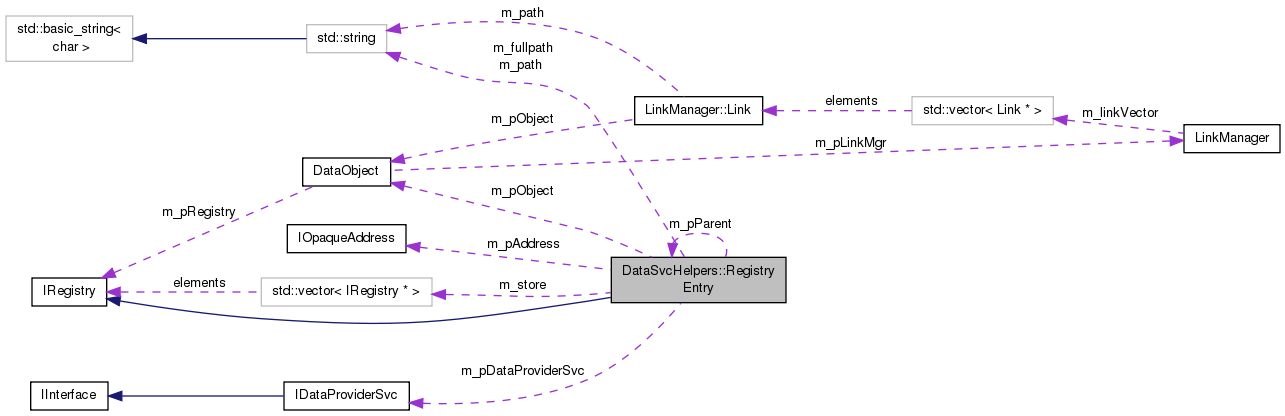

Collaboration diagram for DataSvcHelpers::RegistryEntry:

Public Types
typedef Store::const_iterator	Iterator
	Iterator definition. More...
Public Types inherited from IRegistry
typedef std::string	name_type
	Type definitions Name type. More...
typedef std::string	id_type
	Identifier Key type. More...

Public Member Functions
	RegistryEntry (const std::string &path, RegistryEntry *parent=0)
	Standard Constructor. More...
virtual	~RegistryEntry ()
	Standard Destructor. More...
virtual unsigned long	release ()
	IInterface implementation: Reference the object. More...
virtual unsigned long	addRef ()
	IInterface implementation: Dereference the object. More...
const std::string &	name () const
	Retrieve name of the entry. More...
virtual const std::string &	identifier () const
	Full identifier (or key) More...
virtual IDataProviderSvc *	dataSvc () const
	Retrieve pointer to Transient Store. More...
virtual DataObject *	object () const
	Retrive object behind the link. More...
virtual IOpaqueAddress *	address () const
	Retrieve opaque storage address. More...
virtual IRegistry *	parent () const
	Pointer to parent directory entry. More...
virtual bool	isSoft () const
	Is the link soft or hard. More...
const Store &	leaves () const
	Access the leaves of the object. More...
virtual int	size () const
	Return the size of the container(=number of objects) More...
virtual bool	isEmpty () const
	Simple check if the Container is empty. More...
virtual Iterator	begin () const
	Return starting point for container iteration. More...
virtual Iterator	end () const
	Return end elemtn if the container. More...
virtual IRegistry *	find (const IRegistry *obj) const
	Try to find an object identified by its pointer. More...
virtual IRegistry *	find (const std::string &path) const
	Try to find an object identified by its relative name to the directory. More...
void	setAddress (IOpaqueAddress *pAddress)
	Set/Update Opaque address. More...
void	setObject (DataObject *obj)
	Set/Update object address. More...
virtual long	add (const std::string &name, DataObject *pObject, bool is_soft=false)
	Add entry to data store. More...
virtual long	add (const std::string &name, IOpaqueAddress *pAddress, bool is_soft=false)
	Add entry to data store. More...
virtual long	remove (const std::string &name)
	Remove an entry from the store. More...
virtual long	add (IRegistry *obj)
	Add object to the container. More...
virtual long	remove (IRegistry *obj)
	Remove an object from the container. More...
virtual long	deleteElements ()
	Delete all contained elements. More...
virtual long	traverseTree (IDataStoreAgent *pAgent, int level=0)
	traverse data tree More...
Public Member Functions inherited from IRegistry
virtual	~IRegistry ()
	destructor More...

Private Types
typedef std::vector< IRegistry * >	Store
	Definition of datastore type. More...

Private Member Functions
void	assemblePath (std::string &buffer) const
	The following entries serve two aspects: 1) They are faster for recursive calls, because they are non-virtual 2) They can be re-used for the non-const entry points using a const_cast of the result. More...
IRegistry *	i_find (const IRegistry *pDirectory) const
	Internal method to retrieve data directory. More...
RegistryEntry *	i_find (const std::string &path) const
	Internal method to retrieve data directory. More...
RegistryEntry *	i_find (const DataObject *pObject) const
	Internal method to locate object entry. More...
RegistryEntry *	i_add (const std::string &name)
	Internal method to add entries. More...
void	setParent (RegistryEntry *pParent)
	Set new parent pointer. More...
void	setDataSvc (IDataProviderSvc *s)
	Set the transient data store. More...
virtual RegistryEntry *	parentEntry ()
	Pointer to parent registry entry. More...
RegistryEntry *	findLeaf (const std::string &path) const
	Find identified leaf in this registry node. More...
RegistryEntry *	findLeaf (const DataObject *key) const
	Find identified leaf in this registry node. More...
void	makeHard (DataObject *pObject)
	Initialize link as hard link. More...
void	makeHard (IOpaqueAddress *pAddress)
	Initialize link as hard link. More...
void	makeSoft (DataObject *pObject)
	Initialize link as soft link. More...
void	makeSoft (IOpaqueAddress *pAddress)
	Initialize link as soft link. More...

Private Attributes
unsigned long	m_refCount
	Reference counter. More...
bool	m_isSoft
	Is the link soft or hard? More...
std::string	m_fullpath
	String containing full path of the object (volatile) More...
std::string	m_path
	Path name. More...
RegistryEntry *	m_pParent
	Pointer to parent. More...
IOpaqueAddress *	m_pAddress
	Pointer to opaque address (load info) More...
DataObject *	m_pObject
	Pointer to object. More...
IDataProviderSvc *	m_pDataProviderSvc
	Pointer to hosting transient store. More...
Store	m_store
	Store of leaves. More...

Friends
class	::DataSvc

Detailed Description

Definition of an entry in the transient data store.

The RegistryEntry represents an entry of the transient data store. The object holds the recipe how to retrieve objects from the persistent world (member IOpaqueAddress) as well as the backward link to the parent entry and the leaves.

Author

Markus Frank

Sebastien Ponce

Definition at line 34 of file RegistryEntry.h.

Member Typedef Documentation

typedef Store::const_iterator DataSvcHelpers::RegistryEntry::Iterator

Iterator definition.

Definition at line 41 of file RegistryEntry.h.

typedef std::vector<IRegistry*> DataSvcHelpers::RegistryEntry::Store

private

Definition of datastore type.

Definition at line 37 of file RegistryEntry.h.

Constructor & Destructor Documentation

DataSvcHelpers::RegistryEntry::RegistryEntry	(	const std::string &	path,
		RegistryEntry *	parent = 0
	)

Standard Constructor.

Definition at line 45 of file RegistryEntry.cpp.

: m_refCount(0),
  m_isSoft(false),
  m_path(path),
  m_pParent(parent),
  m_pAddress(0),
  m_pObject(0),
  m_pDataProviderSvc(0)
{
  std::string::size_type sep = m_path.rfind(SEPARATOR);
  if ( path[0] != SEPARATOR )   {
    m_path.insert(m_path.begin(), SEPARATOR);
  }
  if ( sep != std::string::npos )    {
    m_path.erase(0,sep);
  }
  assemblePath(m_fullpath);
  addRef();
}

DataSvcHelpers::RegistryEntry::~RegistryEntry ( )

virtual

Standard Destructor.

Standard destructor.

Definition at line 66 of file RegistryEntry.cpp.

                                             {
  deleteElements();
  if ( 0 != m_pObject  )   {
    if ( !m_isSoft ) m_pObject->setRegistry(0);
    m_pObject->release();
  }
  if ( 0 != m_pAddress )   {
    if ( !m_isSoft ) m_pAddress->setRegistry(0);
    m_pAddress->release();
  }
}

Member Function Documentation

long DataSvcHelpers::RegistryEntry::add ( const std::string &  name, DataObject *  pObject, bool  is_soft = false  )

virtual

Add entry to data store.

Add entry to the current data store item.

Definition at line 211 of file RegistryEntry.cpp.

                                                                                                  {
  RegistryEntry* entry = i_add(name);
  if ( 0 != entry )   {
    ( is_soft ) ? entry->makeSoft(pObject) : entry->makeHard(pObject);
    add( entry );
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

long DataSvcHelpers::RegistryEntry::add ( const std::string &  name, IOpaqueAddress *  pAddress, bool  is_soft = false  )

virtual

Add entry to data store.

Add entry to the current data store item.

Definition at line 222 of file RegistryEntry.cpp.

                                                                                                       {
  RegistryEntry* entry = i_add(name);
  if ( 0 != entry )   {
    ( is_soft ) ? entry->makeSoft(pAddress) : entry->makeHard(pAddress);
    add( entry );
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

long DataSvcHelpers::RegistryEntry::add ( IRegistry *  obj )

virtual

Add object to the container.

Definition at line 195 of file RegistryEntry.cpp.

                                                         {
  try   {
    RegistryEntry* pEntry = CAST_REGENTRY(RegistryEntry*, obj);
    pEntry->setDataSvc(m_pDataProviderSvc);
    m_store.push_back(pEntry);
    pEntry->setParent(this);
    if ( !pEntry->isSoft() && pEntry->address() != 0 )   {
      pEntry->address()->setRegistry(pEntry);
    }
  }
  catch ( ... )   {
  }
  return m_store.size();
}

virtual unsigned long DataSvcHelpers::RegistryEntry::addRef ( )

inlinevirtual

IInterface implementation: Dereference the object.

Implements IRegistry.

Definition at line 112 of file RegistryEntry.h.

                                      {
      return ++m_refCount;
    }

virtual IOpaqueAddress* DataSvcHelpers::RegistryEntry::address ( ) const

inlinevirtual

Retrieve opaque storage address.

Implements IRegistry.

Definition at line 132 of file RegistryEntry.h.

                                               {
      return m_pAddress;
    }

void DataSvcHelpers::RegistryEntry::assemblePath ( std::string &  buffer ) const

private

The following entries serve two aspects: 1) They are faster for recursive calls, because they are non-virtual 2) They can be re-used for the non-const entry points using a const_cast of the result.

Recursive helper to assemble the full path name of the entry

Definition at line 339 of file RegistryEntry.cpp.

                                                                        {
  if ( m_pParent != 0 )    {
    m_pParent->assemblePath(buffer);
  }
  buffer += m_path;
}

virtual Iterator DataSvcHelpers::RegistryEntry::begin ( ) const

inlinevirtual

Return starting point for container iteration.

Definition at line 156 of file RegistryEntry.h.

                                           {
      return m_store.begin();
    }

virtual IDataProviderSvc* DataSvcHelpers::RegistryEntry::dataSvc ( ) const

inlinevirtual

Retrieve pointer to Transient Store.

Implements IRegistry.

Definition at line 124 of file RegistryEntry.h.

                                               {
      return m_pDataProviderSvc;
    }

long DataSvcHelpers::RegistryEntry::deleteElements ( )

virtual

Delete all contained elements.

Delete recursively all elements pending from the current store item.

Definition at line 233 of file RegistryEntry.cpp.

                                                   {
  for (Store::iterator i = m_store.begin(); i != m_store.end(); i++ )   {
    RegistryEntry* entry = CAST_REGENTRY(RegistryEntry*, *i);
    if ( 0 != entry )   {
      entry->deleteElements();
      entry->release();
    }
  }
  m_store.erase(m_store.begin(), m_store.end());
  return 0;
}

virtual Iterator DataSvcHelpers::RegistryEntry::end ( ) const

inlinevirtual

Return end elemtn if the container.

Definition at line 160 of file RegistryEntry.h.

                                           {
      return m_store.end();
    }

virtual IRegistry* DataSvcHelpers::RegistryEntry::find ( const IRegistry *  obj ) const

inlinevirtual

Try to find an object identified by its pointer.

Definition at line 164 of file RegistryEntry.h.

                                                             {
      return i_find(obj);
    }

virtual IRegistry* DataSvcHelpers::RegistryEntry::find ( const std::string &  path ) const

inlinevirtual

Try to find an object identified by its relative name to the directory.

Definition at line 168 of file RegistryEntry.h.

                                                              {
      return i_find(path);
    }

RegistryEntry* DataSvcHelpers::RegistryEntry::findLeaf ( const std::string &  path ) const

inlineprivate

Find identified leaf in this registry node.

Definition at line 89 of file RegistryEntry.h.

                                                             {
      return i_find(path);
    }

RegistryEntry* DataSvcHelpers::RegistryEntry::findLeaf ( const DataObject *  key ) const

inlineprivate

Find identified leaf in this registry node.

Definition at line 93 of file RegistryEntry.h.

                                                           {
      return i_find(key);
    }

DataSvcHelpers::RegistryEntry * DataSvcHelpers::RegistryEntry::i_add ( const std::string &  name )

private

Internal method to add entries.

Definition at line 179 of file RegistryEntry.cpp.

                                                                                       {
  if ( nam[0] != SEPARATOR )   {
    std::string path = nam;
    path.insert(path.begin(), SEPARATOR);
    return i_add(path);
  }
  // if this object is already present, this is an error....
  for (Store::iterator i = m_store.begin(); i != m_store.end(); i++ )   {
    if ( nam == (*i)->name() )  {
      return 0;
    }
  }
  return new RegistryEntry( nam, this );
}

IRegistry * DataSvcHelpers::RegistryEntry::i_find ( const IRegistry *  pDirectory ) const

private

Internal method to retrieve data directory.

Try to find an object identified by its pointer.

Definition at line 246 of file RegistryEntry.cpp.

                                                                             {
  Store::const_iterator i = std::find(m_store.begin(),m_store.end(),obj);
  return (i==m_store.end()) ? 0 : (*i);
}

DataSvcHelpers::RegistryEntry * DataSvcHelpers::RegistryEntry::i_find ( const std::string &  path ) const

private

Internal method to retrieve data directory.

Find identified leaf in this registry node.

Definition at line 252 of file RegistryEntry.cpp.

                                                                                                 {
  if ( path[0] != SEPARATOR )    {
    std::string thePath = path;
    thePath.insert(thePath.begin(), SEPARATOR);
    return i_find(thePath);
  }
  else  {
    std::string::size_type len  = path.length();
    std::string::size_type loc1 = path.find(SEPARATOR,1);
    std::string::size_type len2 = loc1 != std::string::npos ? loc1 : len;
    for (Store::const_iterator i = m_store.begin(); i != m_store.end(); i++ )   {
      RegistryEntry* regEnt = CAST_REGENTRY(RegistryEntry*, *i);
      const std::string& nam = regEnt->name();
      // check that the first len2 chars of path are the same as nam
      // (i.e. match {len2:3 nam:"/Ab" path:"/Ab/C"}
      // but not {len2:3 nam:"/Abc" path:"/Ab/C"})
      if ( path.compare(0, len2, nam) == 0 ) {
        try {
          if ( loc1 != std::string::npos ) {
            std::string search_path(path, loc1, len);
            IRegistry* pDir = regEnt->find(search_path);
            if ( 0 != pDir )    {
              return CAST_REGENTRY(RegistryEntry*, pDir);
            }
            return 0;
          }
          else  {
            return CAST_REGENTRY(RegistryEntry*, *i);
          }
        }
        catch (...)   {
        }
      }
    }
    // If this node is "/NodeA", this part allows to find "/NodeA/NodeB" as
    // our "/NodeB" child.
    if ( path.compare(0, len2, m_path) == 0 ) {
      if (len2 < len)   {
        std::string search_path(path, loc1, len);
        return i_find(search_path);
      }
    }
  }
  return 0;
}

DataSvcHelpers::RegistryEntry * DataSvcHelpers::RegistryEntry::i_find ( const DataObject *  pObject ) const

private

Internal method to locate object entry.

Find identified leaf in this registry node.

Definition at line 299 of file RegistryEntry.cpp.

                                                                                              {
  if ( 0 != key )  {
    if ( key == m_pObject )    {
      return const_cast<RegistryEntry*>(this);
    }
    // Look in the immediate level:
    RegistryEntry *result = CAST_REGENTRY(RegistryEntry*, i_find(key->registry()));
    if ( 0 != result ) return result;
    // Go levels down
    for (Store::const_iterator i = m_store.begin(); i != m_store.end(); i++ )   {
      try   {
        const RegistryEntry *entry = CAST_REGENTRY(RegistryEntry*, *i);
        if( 0 != (result = entry->i_find(key)) )
          return result;
      }
      catch ( ... )   {    }
    }
  }
  return 0;
}

virtual const std::string& DataSvcHelpers::RegistryEntry::identifier ( ) const

inlinevirtual

Full identifier (or key)

Implements IRegistry.

Definition at line 120 of file RegistryEntry.h.

                                                   {
      return m_fullpath;
    }

virtual bool DataSvcHelpers::RegistryEntry::isEmpty ( ) const

inlinevirtual

Simple check if the Container is empty.

Definition at line 152 of file RegistryEntry.h.

                                                {
      return m_store.size() == 0;
    }

virtual bool DataSvcHelpers::RegistryEntry::isSoft ( ) const

inlinevirtual

Is the link soft or hard.

Definition at line 140 of file RegistryEntry.h.

                                      {
      return m_isSoft;
    }

const Store& DataSvcHelpers::RegistryEntry::leaves ( ) const

inline

Access the leaves of the object.

Definition at line 144 of file RegistryEntry.h.

                                   {
      return m_store;
    }

void DataSvcHelpers::RegistryEntry::makeHard ( DataObject *  pObject )

private

Initialize link as hard link.

Create hard link.

Definition at line 110 of file RegistryEntry.cpp.

                                                                {
  makeSoft(pObject);
  m_isSoft = false;
  if ( 0 != m_pObject )   {
    m_pObject->setRegistry(this);
  }
  if ( 0 != m_pAddress )   {
    m_pAddress->setRegistry(this);
  }
}

void DataSvcHelpers::RegistryEntry::makeHard ( IOpaqueAddress *  pAddress )

private

Initialize link as hard link.

Create hard link.

Definition at line 122 of file RegistryEntry.cpp.

                                                                     {
  m_isSoft = false;
  setAddress(pAddress);
}

void DataSvcHelpers::RegistryEntry::makeSoft ( DataObject *  pObject )

private

Initialize link as soft link.

Create soft link.

Definition at line 95 of file RegistryEntry.cpp.

                                                                {
  m_isSoft = true;
  setObject(pObject);
//  if ( 0 != m_pObject )   { // Useless: This justs sets my own address again...
//    setAddress(m_pObject->address());
//  }
}

void DataSvcHelpers::RegistryEntry::makeSoft ( IOpaqueAddress *  pAddress )

private

Initialize link as soft link.

Create soft link.

Definition at line 104 of file RegistryEntry.cpp.

                                                                     {
  m_isSoft = true;
  setAddress(pAddress);
}

const std::string& DataSvcHelpers::RegistryEntry::name ( ) const

inlinevirtual

Retrieve name of the entry.

Implements IRegistry.

Definition at line 116 of file RegistryEntry.h.

                                    {
      return m_path;
    }

virtual DataObject* DataSvcHelpers::RegistryEntry::object ( ) const

inlinevirtual

Retrive object behind the link.

Implements IRegistry.

Definition at line 128 of file RegistryEntry.h.

                                            {
      return m_pObject;
    }

virtual IRegistry* DataSvcHelpers::RegistryEntry::parent ( ) const

inlinevirtual

Pointer to parent directory entry.

Definition at line 136 of file RegistryEntry.h.

                                         {
      return m_pParent;
    }

virtual RegistryEntry* DataSvcHelpers::RegistryEntry::parentEntry ( )

inlineprivatevirtual

Pointer to parent registry entry.

Definition at line 85 of file RegistryEntry.h.

                                           {
      return m_pParent;
    }

unsigned long DataSvcHelpers::RegistryEntry::release ( )

virtual

IInterface implementation: Reference the object.

Release entry.

Implements IRegistry.

Definition at line 79 of file RegistryEntry.cpp.

                                                    {
  unsigned long cnt = --m_refCount;
  if ( 0 == m_refCount )   {
    delete this;
  }
  return cnt;
}

long DataSvcHelpers::RegistryEntry::remove ( const std::string &  name )

virtual

Remove an entry from the store.

Remove entry from data store.

Definition at line 162 of file RegistryEntry.cpp.

                                                                 {
  if ( nam[0] != SEPARATOR )   {
    std::string path = nam;
    path.insert(path.begin(), SEPARATOR);
    return remove(path);
  }
  // if this object is already present, this is an error....
  for (Store::iterator i = m_store.begin(); i != m_store.end(); i++ )   {
    if ( nam == (*i)->name() )   {
      remove(*i);
      return StatusCode::SUCCESS;
    }
  }
  return StatusCode::FAILURE;
}

long DataSvcHelpers::RegistryEntry::remove ( IRegistry *  obj )

virtual

Remove an object from the container.

Definition at line 148 of file RegistryEntry.cpp.

                                                              {
  try   {
    RegistryEntry* pEntry = dynamic_cast<RegistryEntry*>(obj);
    Store::iterator i = std::remove(m_store.begin(), m_store.end(), pEntry);
    if (i != m_store.end())   {
      pEntry->release();
      m_store.erase( i, m_store.end() );
    }
  }
  catch ( ... )   {     }
  return m_store.size();
}

void DataSvcHelpers::RegistryEntry::setAddress ( IOpaqueAddress *  pAddress )

virtual

Set/Update Opaque address.

Update Opaque address of registry entry.

Implements IRegistry.

Definition at line 128 of file RegistryEntry.cpp.

                                                                          {
  if ( 0 != pAddress  )   {
    pAddress->addRef();
    pAddress->setRegistry(this);
  }
  if ( 0 != m_pAddress ) m_pAddress->release();
  m_pAddress = pAddress;
}

void DataSvcHelpers::RegistryEntry::setDataSvc ( IDataProviderSvc *  s )

inlineprivate

Set the transient data store.

Definition at line 81 of file RegistryEntry.h.

                                            {
      m_pDataProviderSvc = s;
    }

void DataSvcHelpers::RegistryEntry::setObject

(

DataObject *

obj

)

Set/Update object address.

Set object pointer of data store item.

Definition at line 138 of file RegistryEntry.cpp.

                                                                   {
  if ( 0 != pObject  )  {
    pObject->addRef();
    if ( !isSoft() ) pObject->setRegistry(this);
  }
  if ( 0 != m_pObject ) m_pObject->release();
  m_pObject = pObject;
}

void DataSvcHelpers::RegistryEntry::setParent ( RegistryEntry *  pParent )

private

Set new parent pointer.

Definition at line 88 of file RegistryEntry.cpp.

                                                                     {
  m_pParent = pParent;
  m_fullpath = "";
  assemblePath(m_fullpath);
}

virtual int DataSvcHelpers::RegistryEntry::size ( ) const

inlinevirtual

Return the size of the container(=number of objects)

Definition at line 148 of file RegistryEntry.h.

                                            {
      return m_store.size();
    }

long DataSvcHelpers::RegistryEntry::traverseTree ( IDataStoreAgent *  pAgent, int  level = 0  )

virtual

traverse data tree

Definition at line 321 of file RegistryEntry.cpp.

                                                                                    {
  bool go_down = pAgent->analyse(this, level);
  long status = StatusCode::SUCCESS;
  if ( go_down )    {
    for ( Store::iterator i = m_store.begin(); i != m_store.end(); i++ )   {
      try   {
        RegistryEntry* entry = CAST_REGENTRY(RegistryEntry*, *i);
        entry->traverseTree(pAgent, level+1);
      }
      catch (...)   {
        status = StatusCode::FAILURE;
      }
    }
  }
  return status;
}

Friends And Related Function Documentation

friend class ::DataSvc

friend

Definition at line 39 of file RegistryEntry.h.

Member Data Documentation

std::string DataSvcHelpers::RegistryEntry::m_fullpath

private

String containing full path of the object (volatile)

Definition at line 48 of file RegistryEntry.h.

bool DataSvcHelpers::RegistryEntry::m_isSoft

private

Is the link soft or hard?

Definition at line 46 of file RegistryEntry.h.

IOpaqueAddress* DataSvcHelpers::RegistryEntry::m_pAddress

private

Pointer to opaque address (load info)

Definition at line 54 of file RegistryEntry.h.

std::string DataSvcHelpers::RegistryEntry::m_path

private

Path name.

Definition at line 50 of file RegistryEntry.h.

IDataProviderSvc* DataSvcHelpers::RegistryEntry::m_pDataProviderSvc

private

Pointer to hosting transient store.

Definition at line 58 of file RegistryEntry.h.

DataObject* DataSvcHelpers::RegistryEntry::m_pObject

private

Pointer to object.

Definition at line 56 of file RegistryEntry.h.

RegistryEntry* DataSvcHelpers::RegistryEntry::m_pParent

private

Pointer to parent.

Definition at line 52 of file RegistryEntry.h.

unsigned long DataSvcHelpers::RegistryEntry::m_refCount

private

Reference counter.

Definition at line 44 of file RegistryEntry.h.

Store DataSvcHelpers::RegistryEntry::m_store

private

Store of leaves.

Definition at line 60 of file RegistryEntry.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/RegistryEntry.h
• GaudiKernel/src/Lib/RegistryEntry.cpp
