Description: Definition of the ROOT data converter. More...

#include <Root/RootConverter.h>

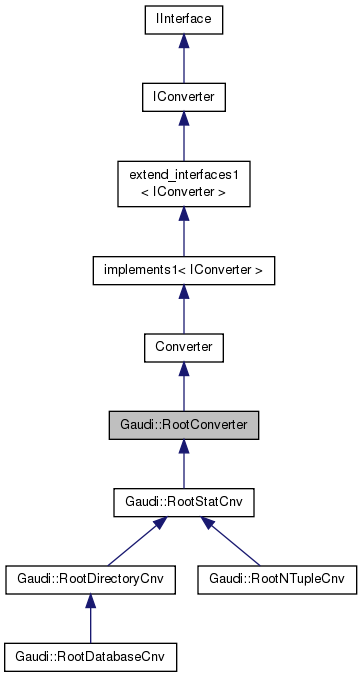

Inheritance diagram for Gaudi::RootConverter:

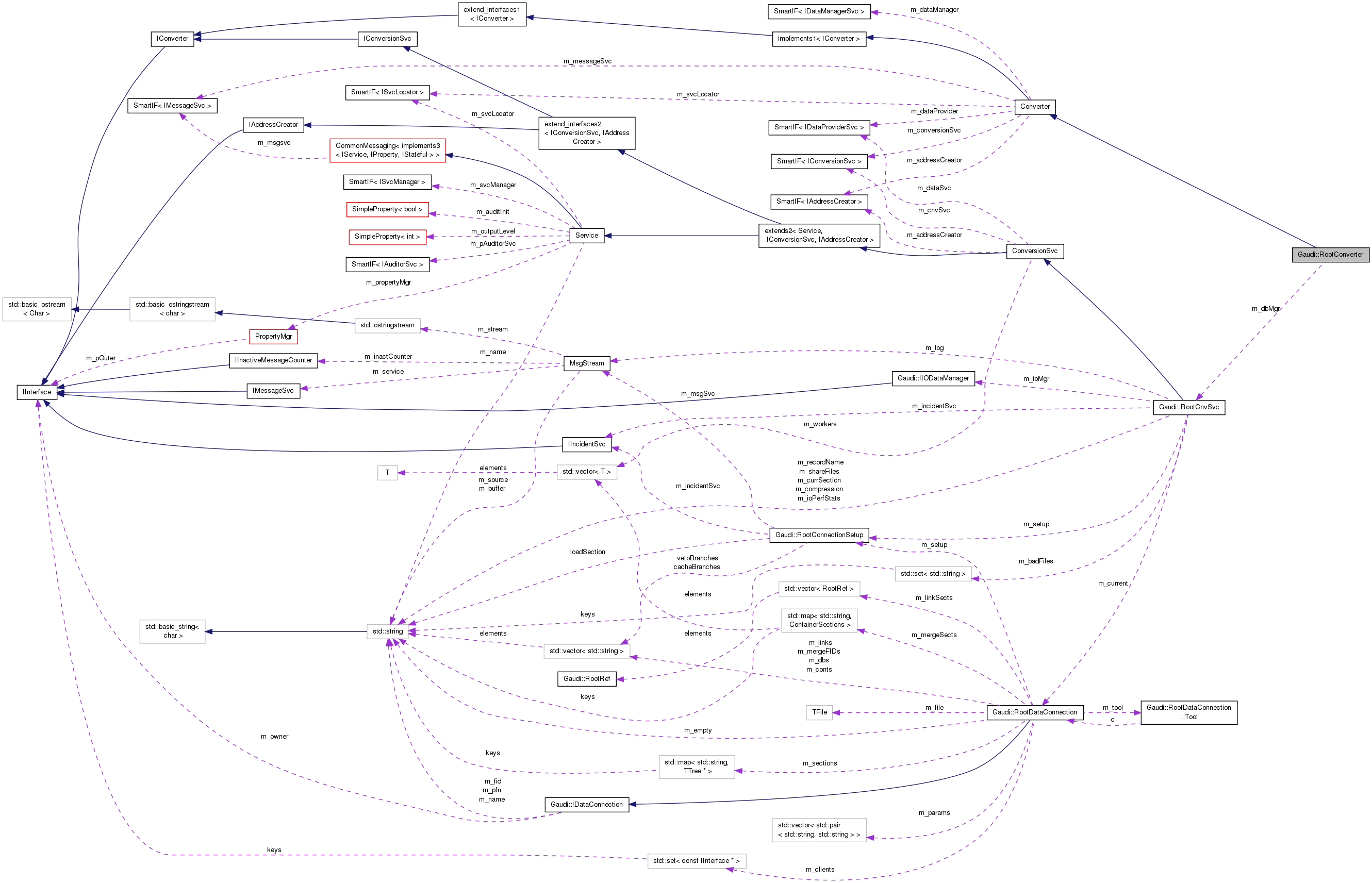

Collaboration diagram for Gaudi::RootConverter:

Public Member Functions
	RootConverter (long typ, const CLID &clid, ISvcLocator svc, RootCnvSvc mgr)
	Initializing Constructor. More...

virtual	~RootConverter ()
	Standard Destructor. More...

virtual long	repSvcType () const
	Retrieve the class type of the data store the converter uses. More...

virtual StatusCode	createObj (IOpaqueAddress pAddr, DataObject &refpObj)
	Converter overrides: Create transient object from persistent data. More...

virtual StatusCode	fillObjRefs (IOpaqueAddress pAddr, DataObject pObj)
	Resolve the references of the created transient object. More...

virtual StatusCode	createRep (DataObject pObj, IOpaqueAddress &refpAddr)
	Converter overrides: Convert the transient object to the requested representation. More...

virtual StatusCode	fillRepRefs (IOpaqueAddress pAddr, DataObject pObj)
	Resolve the references of the created transient object. More...

Public Member Functions inherited from Converter
virtual StatusCode	initialize ()
	Initialize the converter. More...

virtual StatusCode	finalize ()
	Initialize the converter. More...

virtual StatusCode	setDataProvider (IDataProviderSvc *svc)
	Set Data provider service. More...

virtual SmartIF < IDataProviderSvc > &	dataProvider () const
	Get Data provider service. More...

virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to. More...

virtual SmartIF< IConversionSvc > &	conversionSvc () const
	Get conversion service the converter is connected to. More...

virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility. More...

virtual SmartIF < IAddressCreator > &	addressCreator () const
	Retrieve address creator facility. More...

virtual const CLID &	objType () const
	Retrieve the class type of objects the converter produces. More...

virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses. More...

virtual StatusCode	updateObj (IOpaqueAddress pAddress, DataObject refpObject)
	Update the transient object from the other representation. More...

virtual StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Update the references of an updated transient object. More...

virtual StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject)
	Update the converted representation of a transient object. More...

virtual StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Update the references of an already converted object. More...

	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
	Standard Constructor. More...

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist. More...

SmartIF< IService >	service (const std::string &name, const bool createIf=true) const
	Return a pointer to the service identified by name (or "type/name") More...

Public Member Functions inherited from extend_interfaces1< IConverter >
virtual	~extend_interfaces1 ()
	Virtual destructor. More...

Public Member Functions inherited from IConverter
	DeclareInterfaceID (IConverter, 3, 0)
	InterfaceID. More...

virtual	~IConverter ()
	Virtual destructor. More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Protected Attributes
RootCnvSvc *	m_dbMgr
	Conversion service needed for proper operation to forward requests. More...

Additional Inherited Members
Public Types inherited from Converter
typedef Gaudi::PluginService::Factory < IConverter , ISvcLocator >	Factory

Public Types inherited from implements1< IConverter >
typedef implements1	base_class
	Typedef to this class. More...

typedef extend_interfaces1 < IConverter >	extend_interfaces_base
	Typedef to the base of this class. More...

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...

Public Types inherited from extend_interfaces1< IConverter >
typedef IConverter::iid::iids::type	ext_iids
	MPL set of interfaces extended by this one. More...

Public Types inherited from IConverter
enum	Status { INVALID_ADDRESS = IInterface::LAST_ERROR+1, INVALID_OBJECT, NO_MEMORY, BAD_STORAGE_TYPE, NO_SOURCE_OBJECT, ICONVERSIONSVC_LAST_ERROR }
	Status code. More...

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Protected Member Functions inherited from Converter
virtual	~Converter ()
	Standard Destructor. More...

SmartIF< ISvcLocator > &	serviceLocator () const
	Retrieve pointer to service locator. More...

SmartIF< IMessageSvc > &	msgSvc () const
	Retrieve pointer to message service. More...

SmartIF< IMessageSvc > &	messageService () const

SmartIF< IDataManagerSvc > &	dataManager () const
	Get Data Manager service. More...
