Concrete class discribing a column-array in a N tuple. More...

#include <GaudiKernel/NTupleItems.h>

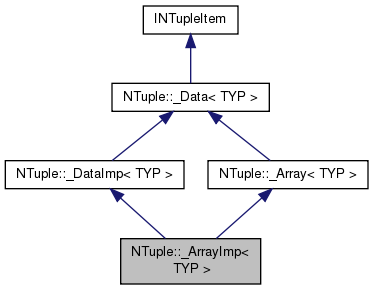

Inheritance diagram for NTuple::_ArrayImp< TYP >:

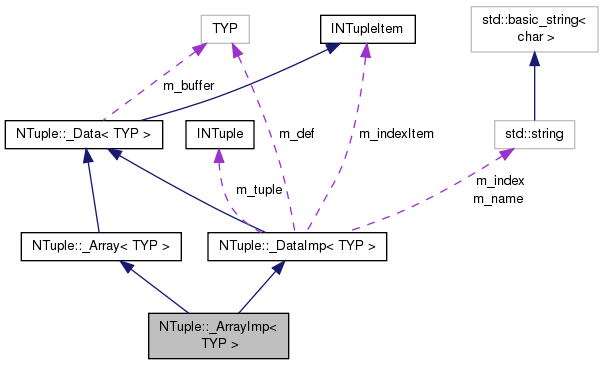

Collaboration diagram for NTuple::_ArrayImp< TYP >:

Public Types
typedef Range< TYP >	ItemRange
	Set type definition to make life more easy easy. More...

Public Types inherited from NTuple::_DataImp< TYP >
typedef Range< TYP >	ItemRange
	Set type definition to make life more easy easy. More...

Public Types inherited from NTuple::_Data< TYP >
typedef Range< TYP >	ItemRange
	Set type definition to make life more easy easy. More...

Public Member Functions
	_ArrayImp (INTuple *tup, const std::string &name, const std::type_info &typ, const std::string &index, long len, TYP min, TYP max, TYP def)
	Standard Constructor. More...

virtual	~_ArrayImp ()
	Standard Destructor. More...

virtual void	setDefault (const TYP val)
	Compiler type ID. More...

virtual const ItemRange &	range () const
	Access the range if specified. More...

virtual long	size () const
	Size of entire object. More...

virtual long	ndim () const
	Dimension. More...

virtual long	dim (long i) const
	Access individual dimensions. More...

Public Member Functions inherited from NTuple::_DataImp< TYP >
	_DataImp (INTuple *tup, const std::string &name, const std::type_info &info, const std::string &index, long len, TYP low, TYP high, TYP def)
	Standard Constructor. More...

virtual	~_DataImp ()
	Standard destructor. More...

virtual std::string	typeName () const
	Get proper type name. More...

virtual void	reset ()
	Reset to default. More...

virtual long	filled () const
	Number of items filled. More...

virtual INTupleItem *	indexItem ()
	Pointer to index column (if present, 0 else) More...

virtual const INTupleItem *	indexItem () const
	Pointer to index column (if present, 0 else) (CONST) More...

virtual const std::type_info &	typeID () const
	Compiler type ID. More...

virtual void	release ()
	Destruct object. More...

virtual bool	hasIndex () const
	Is the tuple have an index column? More...

virtual const std::string &	index () const
	Access the index _Column. More...

virtual const std::string &	name () const
	Access _Column name. More...

virtual long	type () const
	TYP information of the item. More...

virtual void	setType (long t)
	Set the properties of the _Column. More...

virtual long	length () const
	Access the buffer length. More...

virtual const void *	buffer () const
	Access data buffer (CONST) More...

virtual void *	buffer ()
	Access data buffer. More...

virtual INTuple *	tuple ()
	Access to hosting ntuple. More...

Public Member Functions inherited from INTupleItem
virtual	~INTupleItem ()
	destructor More...

Public Member Functions inherited from NTuple::_Array< TYP >
template<class T >
_Array< TYP > &	operator= (const _Array< T > &copy)
	Assignment operator. More...

const TYP &	data (long i) const
	Access to data by reference (CONST) More...

TYP &	data (long i)
	Access to data by reference (CONST) More...

Additional Inherited Members
Static Public Member Functions inherited from NTuple::_Array< TYP >
static _Array *	create (INTuple *tup, const std::string &name, const std::type_info &info, const std::string &index, long len, TYP min, TYP max, TYP def)
	Create instance. More...

Protected Types inherited from NTuple::_DataImp< TYP >
typedef const std::string &	CSTR

typedef const std::type_info &	CTYPE

Protected Attributes inherited from NTuple::_DataImp< TYP >
long	m_length
	Entire buffer length. More...

INTuple *	m_tuple
	Pointer to N tuple. More...

std::string	m_name
	_Column name More...

std::string	m_index
	Check that values are within a certain range while filling. More...

INTupleItem *	m_indexItem
	Pointer to index item. More...

DataTypeInfo::Type	m_type
	_Column type More...

TYP	m_def
	Buffer with default value. More...

Range< TYP >	m_range
	Check that values are within a certain range while filling. More...

const std::type_info &	m_info
	Item type information. More...

Protected Attributes inherited from NTuple::_Data< TYP >
TYP *	m_buffer
	Pointer to data buffer. More...

Detailed Description

template<class TYP>
class NTuple::_ArrayImp< TYP >

Concrete class discribing a column-array in a N tuple.

Definition at line 34 of file NTupleItems.h.

Member Typedef Documentation

template<class TYP>

typedef Range<TYP> NTuple::_ArrayImp< TYP >::ItemRange

Set type definition to make life more easy easy.

Definition at line 187 of file NTupleItems.h.

Constructor & Destructor Documentation

template<class TYP>

NTuple::_ArrayImp< TYP >::_ArrayImp	(	INTuple *	tup,
		const std::string &	name,
		const std::type_info &	typ,
		const std::string &	index,
		long	len,
		TYP	min,
		TYP	max,
		TYP	def
	)

inline

Standard Constructor.

Definition at line 189 of file NTupleItems.h.

190 : _DataImp<TYP>(tup, name, typ, index, len, min, max, def) { }

NTuple::_DataImp::name

virtual const std::string & name() const

Access _Column name.

Definition: NTupleItems.h:135

min

#define min(a, b)

Definition: CallbackStreamBuf.cpp:12

NTuple::_DataImp::index

virtual const std::string & index() const

Access the index _Column.

Definition: NTupleItems.h:133

template<class TYP>

virtual NTuple::_ArrayImp< TYP >::~_ArrayImp ( )

inlinevirtual

Standard Destructor.

Definition at line 192 of file NTupleItems.h.

192 { }

Member Function Documentation

template<class TYP>

virtual long NTuple::_ArrayImp< TYP >::dim ( long i ) const

inlinevirtual

Access individual dimensions.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 204 of file NTupleItems.h.

                                    {
       return (i!=0 || this->hasIndex()) ? 0 : this->m_length;
     }

template<class TYP>

virtual long NTuple::_ArrayImp< TYP >::ndim ( ) const

inlinevirtual

Dimension.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 202 of file NTupleItems.h.

202 { return 1; }

template<class TYP>

virtual const ItemRange& NTuple::_ArrayImp< TYP >::range ( ) const

inlinevirtual

Access the range if specified.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 198 of file NTupleItems.h.

198 { return this->m_range; }

NTuple::_DataImp::m_range

Range< TYP > m_range

Check that values are within a certain range while filling.

Definition: NTupleItems.h:61

template<class TYP>

virtual void NTuple::_ArrayImp< TYP >::setDefault ( const TYP val )

inlinevirtual

Compiler type ID.

Set default value

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 196 of file NTupleItems.h.

196 { this->m_def = val; }

NTuple::_DataImp::m_def

TYP m_def

Buffer with default value.

Definition: NTupleItems.h:59

template<class TYP>

virtual long NTuple::_ArrayImp< TYP >::size ( ) const

inlinevirtual

Size of entire object.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 200 of file NTupleItems.h.

200 { return this->m_length*sizeof(TYP); }

NTuple::_DataImp::m_length

long m_length

Entire buffer length.

Definition: NTupleItems.h:47

The documentation for this class was generated from the following file:

GaudiKernel/GaudiKernel/NTupleItems.h
