Gaudi::Generic1D< INTERFACE, IMPLEMENTATION > Class Template Reference

Common AIDA implementation stuff for histograms and profiles using ROOT implementations. More...

#include <GaudiPI/Generic1D.h>

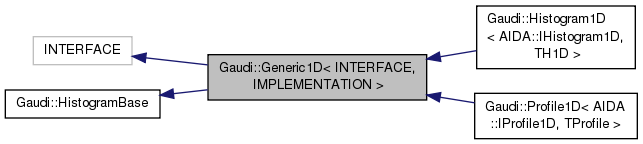

Inheritance diagram for Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >:

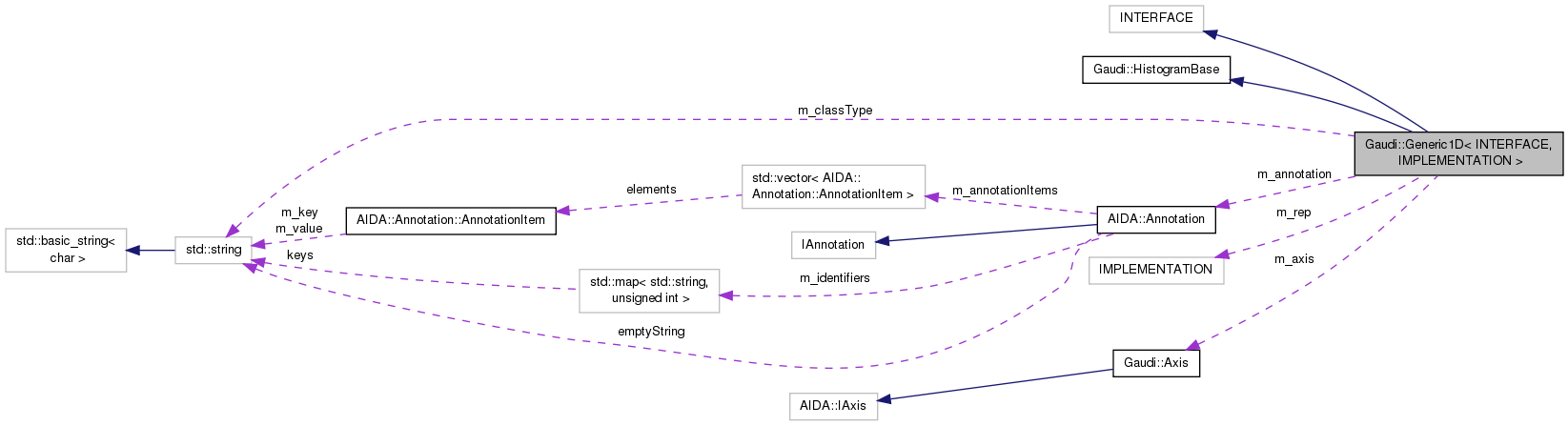

Collaboration diagram for Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >:

Public Types
typedef Generic1D< INTERFACE, IMPLEMENTATION >	Base

Public Member Functions
	Generic1D ()
	Default constructor. More...
virtual	~Generic1D ()
	Default destructor. More...
virtual const std::string &	userLevelClassType () const
	The AIDA user-level unterface leaf class type. More...
virtual void *	cast (const std::string &cl) const
	Manual cast by class name. More...
TObject *	representation () const
	ROOT object implementation. More...
virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...
virtual std::string	title () const
	Get the title of the object. More...
virtual bool	setTitle (const std::string &title)
	Set the title of the object. More...
std::string	name () const
	object name More...
bool	setName (const std::string &newName)
	Set the name of the object. More...
virtual AIDA::IAnnotation &	annotation ()
	Access annotation object. More...
virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons) More...
Axis &	axis ()
	Access to axis object. More...
const Axis &	axis () const
	Get the x axis of the IHistogram1D. More...
virtual int	entries () const
	Get the number or all the entries. More...
virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile. More...
virtual int	extraEntries () const
	Get the number of entries in the underflow and overflow bins. More...
virtual int	binEntries (int index) const
	Number of entries in the corresponding bin (ie the number of times fill was called for this bin). More...
virtual double	binRms (int index) const
virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile. More...
virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin). More...
virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height. More...
virtual double	minBinHeight () const
	Get the minimum height of the in-range bins. More...
virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins. More...
virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ] More...
virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor. More...
virtual bool	reset ()
	Reset the Histogram; as if just created. More...
virtual bool	add (const INTERFACE &profile)
	Modifies this IProfile1D by adding the contents of profile to it. More...
virtual int	rIndex (int index) const
	operator methods More...
virtual double	binMean (int index) const
	The weighted mean of a bin. More...
virtual double	binHeight (int index) const
	Total height of the corresponding bin (ie the sum of the weights in this bin). More...
virtual double	binError (int index) const
	The error of a given bin. More...
virtual double	mean () const
	The mean of the whole IHistogram1D. More...
virtual double	rms () const
	The RMS of the whole IHistogram1D. More...
virtual int	coordToIndex (double coord) const
	Get the bin number corresponding to a given coordinate along the x axis. More...
virtual int	dimension () const
	Get the Histogram's dimension. More...
virtual std::ostream &	print (std::ostream &s) const
	Print (ASCII) the histogram into the output stream. More...
virtual std::ostream &	write (std::ostream &s) const
	Write (ASCII) the histogram table into the output stream. More...
virtual int	write (const char *file_name) const
	Write (ASCII) the histogram table into a file. More...
template<>
void *	cast (const std::string &className) const
template<>
int	binEntries (int index) const
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...
template<>
int	binEntries (int index) const
template<>
void *	cast (const std::string &className) const
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...
Public Member Functions inherited from Gaudi::HistogramBase
virtual	~HistogramBase ()

Protected Attributes
Axis	m_axis
	Axis member. More...
AIDA::Annotation	m_annotation
	Object annotations. More...
IMPLEMENTATION *	m_rep
	Reference to underlying implementation. More...
std::string	m_classType
int	m_sumEntries

Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author

M.Frank

Definition at line 29 of file Generic1D.h.

Member Typedef Documentation

template<class INTERFACE, class IMPLEMENTATION>

typedef Generic1D<INTERFACE,IMPLEMENTATION> Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 31 of file Generic1D.h.

Constructor & Destructor Documentation

template<class INTERFACE, class IMPLEMENTATION>

Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::Generic1D ( )

inline

Default constructor.

Definition at line 33 of file Generic1D.h.

: m_rep(0) {}

template<class INTERFACE, class IMPLEMENTATION>

virtual Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::~Generic1D ( )

inlinevirtual

Default destructor.

Definition at line 35 of file Generic1D.h.

{ delete m_rep;                       }

Member Function Documentation

template<class INTERFACE, class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE &  profile )

virtual

Modifies this IProfile1D by adding the contents of profile to it.

Definition at line 190 of file Generic1D.h.

                                                                    {
    const Generic1D<INTERFACE,IMPLEMENTATION>* p =
      dynamic_cast<const Generic1D<INTERFACE,IMPLEMENTATION>*>(&h);
    if ( p )  {
      m_rep->Add(p->m_rep);
      return true;
    }
    throw std::runtime_error("Cannot add profile histograms of different implementations.");
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual void Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject *  rep )

virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Reimplemented in Gaudi::Histogram1D.

template<>

void Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::adoptRepresentation ( TObject *  rep )

virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 49 of file H1D.cpp.

                                                                          {
    TH1D* imp = dynamic_cast<TH1D*>(rep);
    if ( imp )  {
      if ( m_rep ) delete m_rep;
      m_rep = imp;
      return;
    }
    throw std::runtime_error("Cannot adopt native histogram representation.");
  }

template<>

void Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::adoptRepresentation ( TObject *  rep )

virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 59 of file P1D.cpp.

                                                                            {
    TProfile* imp = dynamic_cast<TProfile*>(rep);
    if ( imp )  {
    if ( m_rep ) delete m_rep;
      m_rep = imp;
      m_axis.initialize(m_rep->GetXaxis(),true);
      const TArrayD* a = m_rep->GetSumw2();
      if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
      setTitle(m_rep->GetTitle());
      return;
    }
    throw std::runtime_error("Cannot adopt native histogram representation.");
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::allEntries ( ) const

inlinevirtual

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 64 of file Generic1D.h.

{ return int(m_rep->GetEntries());           }

template<class INTERFACE, class IMPLEMENTATION>

virtual AIDA::IAnnotation& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::annotation ( )

inlinevirtual

Access annotation object.

Definition at line 53 of file Generic1D.h.

{ return m_annotation;                }

template<class INTERFACE, class IMPLEMENTATION>

virtual const AIDA::IAnnotation& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::annotation ( ) const

inlinevirtual

Access annotation object (cons)

Definition at line 55 of file Generic1D.h.

{ return m_annotation;                }

template<class INTERFACE, class IMPLEMENTATION>

Axis& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::axis ( )

inline

Access to axis object.

Definition at line 57 of file Generic1D.h.

{ return m_axis;                      }

template<class INTERFACE, class IMPLEMENTATION>

const Axis& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::axis ( ) const

inline

Get the x axis of the IHistogram1D.

Definition at line 59 of file Generic1D.h.

{ return m_axis;                      }

template<>

int Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::binEntries

(

int

index

)

const

Definition at line 42 of file H1D.cpp.

                                                                               {
    if (binHeight(index)<=0) return 0;
    double xx =  binHeight(index)/binError(index);
    return int(xx*xx+0.5);
  }

template<>

int Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::binEntries

(

int

index

)

const

Definition at line 44 of file P1D.cpp.

                                                                      {
    return int(m_rep->GetBinEntries( rIndex(index) )+0.5);
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binEntries ( int  index ) const

virtual

Number of entries in the corresponding bin (ie the number of times fill was called for this bin).

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binError ( int  index ) const

virtual

The error of a given bin.

Definition at line 159 of file Generic1D.h.

                                                                          {
    return m_rep->GetBinError ( rIndex(index) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binHeight ( int  index ) const

virtual

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 154 of file Generic1D.h.

                                                                           {
    return m_rep->GetBinContent ( rIndex(index) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binMean ( int  index ) const

virtual

The weighted mean of a bin.

Definition at line 149 of file Generic1D.h.

                                                                         {
    return m_rep->GetBinCenter ( rIndex(index) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binRms ( int  index ) const

virtual

Definition at line 144 of file Generic1D.h.

                                                                    {
    return m_rep->GetBinError ( rIndex(index) );
  }

template<>

void * Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::cast

(

const std::string &

className

)

const

Definition at line 34 of file H1D.cpp.

                                                                                            {
    if (className == "AIDA::IHistogram1D")
      return const_cast<AIDA::IHistogram1D*>((AIDA::IHistogram1D*)this);
    if (className == "AIDA::IHistogram")
      return const_cast<AIDA::IHistogram*>((AIDA::IHistogram*)this);
    return 0;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual void* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::cast ( const std::string &  cl ) const

virtual

Manual cast by class name.

template<>

void * Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::cast

(

const std::string &

className

)

const

Definition at line 48 of file P1D.cpp.

                                                                                             {
    if (className == "AIDA::IProfile1D")
      return const_cast<AIDA::IProfile1D*>((AIDA::IProfile1D*)this);
    else if (className == "AIDA::IProfile")
      return const_cast<AIDA::IProfile*>((AIDA::IProfile*)this);
    else if (className == "AIDA::IBaseHistogram")
      return const_cast<AIDA::IBaseHistogram*>((AIDA::IBaseHistogram*)this);
    return 0;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::coordToIndex ( double  coord ) const

inlinevirtual

Get the bin number corresponding to a given coordinate along the x axis.

Definition at line 103 of file Generic1D.h.

{ return axis().coordToIndex(coord);}

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::dimension ( ) const

inlinevirtual

Get the Histogram's dimension.

Definition at line 105 of file Generic1D.h.

{ return 1; }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::entries ( ) const

inlinevirtual

Get the number or all the entries.

Definition at line 62 of file Generic1D.h.

{ return (int)m_rep->GetEntries();           }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries ( ) const

virtual

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ]

Definition at line 176 of file Generic1D.h.

                                                                          {
    if (sumBinHeights() <= 0) return 0;
    Stat_t stats[11];   // cover up to 3D...
    m_rep->GetStats(stats);
    return stats[0]*stats[0]/stats[1];
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::extraEntries ( ) const

virtual

Get the number of entries in the underflow and overflow bins.

Definition at line 164 of file Generic1D.h.

                                                              {
    return binEntries(AIDA::IAxis::UNDERFLOW_BIN) +
          binEntries(AIDA::IAxis::OVERFLOW_BIN);
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::maxBinHeight ( ) const

inlinevirtual

Get the maximum height of the in-range bins.

Definition at line 80 of file Generic1D.h.

{ return m_rep->GetMaximum();                 }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::mean ( ) const

inlinevirtual

The mean of the whole IHistogram1D.

Definition at line 99 of file Generic1D.h.

{ return m_rep->GetMean();                    }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::minBinHeight ( ) const

inlinevirtual

Get the minimum height of the in-range bins.

Definition at line 78 of file Generic1D.h.

{ return m_rep->GetMinimum();                 }

template<class INTERFACE, class IMPLEMENTATION>

std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::name ( ) const

inline

object name

Definition at line 49 of file Generic1D.h.

{ return m_annotation.value("Name");  }

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::print ( std::ostream &  s ) const

virtual

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 201 of file Generic1D.h.

                                                                                 {
    m_rep->Print("all");
    return s;
  }

template<class INTERFACE, class IMPLEMENTATION>

TObject* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::representation ( ) const

inlinevirtual

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 41 of file Generic1D.h.

{ return m_rep;                       }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::reset ( )

virtual

Reset the Histogram; as if just created.

Reimplemented in Gaudi::Histogram1D.

Definition at line 169 of file Generic1D.h.

                                                    {
    m_sumEntries = 0;
    m_rep->Reset();
    return true;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::rIndex ( int  index ) const

inlinevirtual

operator methods

Definition at line 91 of file Generic1D.h.

{ return m_axis.rIndex(index);}

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::rms ( ) const

inlinevirtual

The RMS of the whole IHistogram1D.

Definition at line 101 of file Generic1D.h.

{  return m_rep->GetRMS();                    }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::scale ( double  scaleFactor )

virtual

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 184 of file Generic1D.h.

                                                                      {
    m_rep->Scale ( scaleFactor );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::setName

(

const std::string &

newName

)

Set the name of the object.

Definition at line 137 of file Generic1D.h.

                                                                              {
    m_rep->SetName(newName.c_str());
    m_annotation.setValue( "Name", newName );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string &  title )

virtual

Set the title of the object.

Definition at line 127 of file Generic1D.h.

                                                                             {
    m_rep->SetTitle(title.c_str());
    if ( !annotation().addItem( "Title", title ) )
      m_annotation.setValue( "Title" , title );
    if ( !annotation().addItem( "title", title ) )
      annotation().setValue( "title", title );
    return true;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights ( ) const

inlinevirtual

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 74 of file Generic1D.h.

{ return m_rep->GetSum();                     }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumBinHeights ( ) const

inlinevirtual

Get the sum of in range bin heights in the IProfile.

Definition at line 72 of file Generic1D.h.

{ return m_rep->GetSumOfWeights();            }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights ( ) const

inlinevirtual

Get the sum of the underflow and overflow bin height.

Definition at line 76 of file Generic1D.h.

{ return  sumAllBinHeights()-sumBinHeights(); }

template<class INTERFACE, class IMPLEMENTATION>

virtual std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::title ( ) const

inlinevirtual

Get the title of the object.

Definition at line 45 of file Generic1D.h.

{ return m_annotation.value("Title"); }

template<class INTERFACE, class IMPLEMENTATION>

virtual const std::string& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::userLevelClassType ( ) const

inlinevirtual

The AIDA user-level unterface leaf class type.

Definition at line 37 of file Generic1D.h.

{ return m_classType;                 }

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::write ( std::ostream &  s ) const

virtual

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 209 of file Generic1D.h.

                                                                               {
    s << "\n1D Histogram Table: " << std::endl;
    s << "Bin, Height, Error "  << std::endl;
    for( int i = 0; i < axis().bins(); ++i )
      s << binMean( i ) << ", "
        << binHeight( i ) << ", "
        << binError ( i ) << std::endl;
    s << std::endl;
    return s;
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::write ( const char *  file_name ) const

virtual

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 222 of file Generic1D.h.

  {
    TFile *f = TFile::Open(file_name,"RECREATE");
    Int_t nbytes = m_rep->Write();
    f->Close();
    return nbytes;
  }

Member Data Documentation

template<class INTERFACE, class IMPLEMENTATION>

AIDA::Annotation Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_annotation

mutableprotected

Object annotations.

Definition at line 117 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

Axis Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_axis

protected

Axis member.

Definition at line 115 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_classType

protected

Definition at line 121 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

IMPLEMENTATION* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_rep

protected

Reference to underlying implementation.

Definition at line 119 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_sumEntries

protected

Definition at line 123 of file Generic1D.h.

---

The documentation for this class was generated from the following file:

• GaudiCommonSvc/src/HistogramSvc/Generic1D.h
