Gaudi::RootNTupleCnv Class Reference

NTuple converter class definition for NTuples writted/read using ROOT. More...

#include <Root/RootNTupleCnv.h>

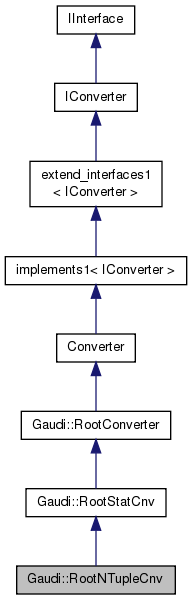

Inheritance diagram for Gaudi::RootNTupleCnv:

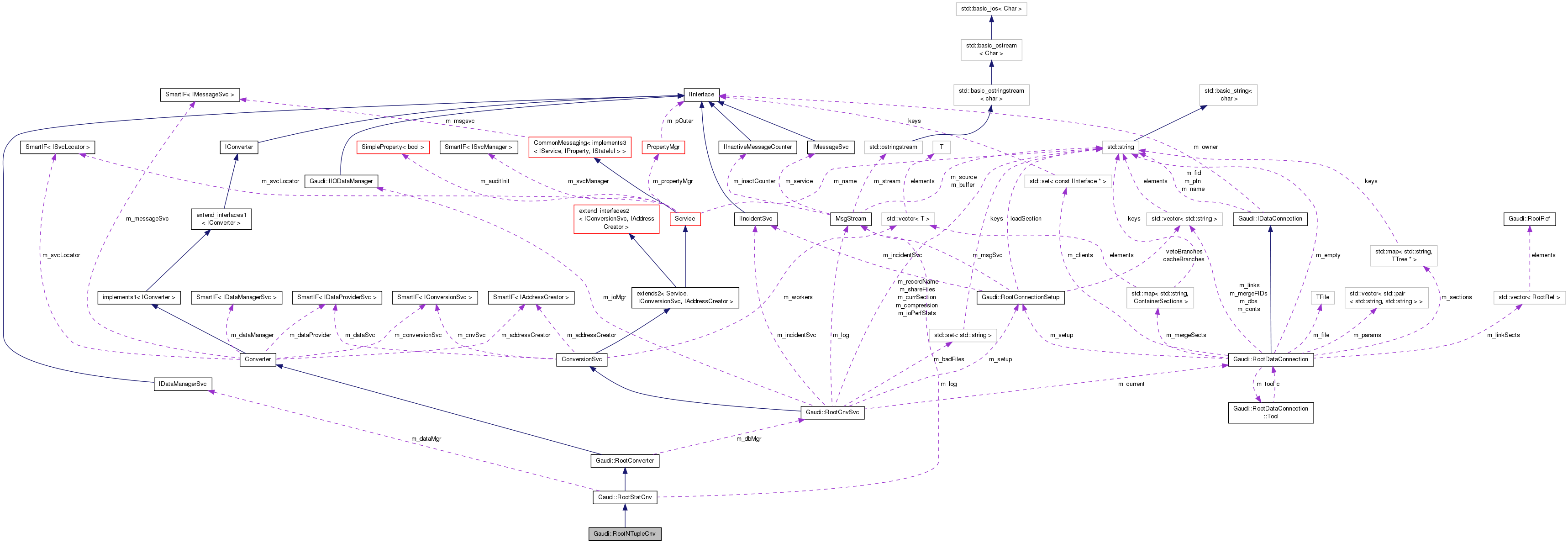

Collaboration diagram for Gaudi::RootNTupleCnv:

Public Member Functions
	RootNTupleCnv (long typ, const CLID &clid, ISvcLocator *svc, RootCnvSvc *mgr)
	Standard constructor. More...
virtual	~RootNTupleCnv ()
	Standard destructor. More...
virtual StatusCode	createRep (DataObject *pObj, IOpaqueAddress *&refpAdd)
	Converter overrides: Convert the transient object to the requested representation. More...
virtual StatusCode	fillRepRefs (IOpaqueAddress *pAdd, DataObject *pObj)
	Resolve the references of the converted object. More...
virtual StatusCode	createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)
	Converter overrides: Update the references of an updated transient object. More...
virtual StatusCode	fillObjRefs (IOpaqueAddress *, DataObject *)
	Converter overrides: Update the references of an updated transient object. More...
virtual StatusCode	updateObj (IOpaqueAddress *pAddress, DataObject *pObject)
	Update the transient object: NTuples end here when reading records. More...
virtual StatusCode	updateObjRefs (IOpaqueAddress *, DataObject *)
	Converter overrides: Update the references of an updated transient object. More...
virtual StatusCode	updateRep (IOpaqueAddress *, DataObject *)
	Converter overrides: Update the converted representation of a transient object. More...
virtual StatusCode	updateRepRefs (IOpaqueAddress *, DataObject *)
	Converter overrides: Update the converted representation of a transient object. More...
Public Member Functions inherited from Gaudi::RootStatCnv
	RootStatCnv (long typ, const CLID &clid, ISvcLocator *svc, RootCnvSvc *mgr)
	Initializing Constructor. More...
virtual	~RootStatCnv ()
	Standard Destructor. More...
Public Member Functions inherited from Gaudi::RootConverter
	RootConverter (long typ, const CLID &clid, ISvcLocator *svc, RootCnvSvc *mgr)
	Initializing Constructor. More...
virtual	~RootConverter ()
	Standard Destructor. More...
virtual long	repSvcType () const
	Retrieve the class type of the data store the converter uses. More...
Public Member Functions inherited from Converter
virtual StatusCode	setDataProvider (IDataProviderSvc *svc)
	Set Data provider service. More...
virtual SmartIF < IDataProviderSvc > &	dataProvider () const
	Get Data provider service. More...
virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to. More...
virtual SmartIF< IConversionSvc > &	conversionSvc () const
	Get conversion service the converter is connected to. More...
virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility. More...
virtual SmartIF < IAddressCreator > &	addressCreator () const
	Retrieve address creator facility. More...
virtual const CLID &	objType () const
	Retrieve the class type of objects the converter produces. More...
virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses. More...
	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
	Standard Constructor. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist. More...
SmartIF< IService >	service (const std::string &name, const bool createIf=true) const
	Return a pointer to the service identified by name (or "type/name") More...
Public Member Functions inherited from extend_interfaces1< IConverter >
virtual	~extend_interfaces1 ()
	Virtual destructor. More...
Public Member Functions inherited from IConverter
	DeclareInterfaceID (IConverter, 3, 0)
	InterfaceID. More...
virtual	~IConverter ()
	Virtual destructor. More...
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...
virtual unsigned long	release ()=0
	Release Interface instance. More...
virtual unsigned long	refCount () const =0
	Current reference count. More...
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...
virtual	~IInterface ()
	Virtual destructor. More...

Protected Member Functions
StatusCode	i__updateObjRoot (RootAddress *rpA, INTuple *tupl, TTree *tree, RootDataConnection *con)
	Update the transient object: NTuples end here when reading records. More...
Protected Member Functions inherited from Gaudi::RootStatCnv
MsgStream &	log () const
	Helper to use mesage logger. More...
virtual StatusCode	initialize ()
	Initialize converter object. More...
virtual StatusCode	finalize ()
	Finalize converter object. More...
virtual const std::string	containerName (IRegistry *pDir) const
	Retrieve the name of the container a given object is placed into. More...
virtual const std::string	fileName (IRegistry *pReg) const
	Retrieve the name of the file a given object is placed into. More...
virtual const std::string	topLevel (IRegistry *pReg) const
	Retrieve the full path of the file a given object is placed into. More...
StatusCode	makeError (const std::string &msg, bool throw_exception=false) const
	Helper method to issue error messages. More...
StatusCode	saveDescription (const std::string &path, const std::string &ident, const std::string &desc, const std::string &opt, const CLID &clid)
	Save statistics object description. More...
Protected Member Functions inherited from Converter
virtual	~Converter ()
	Standard Destructor. More...
SmartIF< ISvcLocator > &	serviceLocator () const
	Retrieve pointer to service locator. More...
SmartIF< IMessageSvc > &	msgSvc () const
	Retrieve pointer to message service. More...
SmartIF< IMessageSvc > &	messageService () const
SmartIF< IDataManagerSvc > &	dataManager () const
	Get Data Manager service. More...

Additional Inherited Members
Public Types inherited from Converter
typedef Gaudi::PluginService::Factory < IConverter *, ISvcLocator * >	Factory
Public Types inherited from implements1< IConverter >
typedef implements1	base_class
	Typedef to this class. More...
typedef extend_interfaces1 < IConverter >	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...
Public Types inherited from extend_interfaces1< IConverter >
typedef IConverter::iid::iids::type	ext_iids
	MPL set of interfaces extended by this one. More...
Public Types inherited from IConverter
enum	Status {   INVALID_ADDRESS = IInterface::LAST_ERROR+1, INVALID_OBJECT, NO_MEMORY, BAD_STORAGE_TYPE,   NO_SOURCE_OBJECT, ICONVERSIONSVC_LAST_ERROR }
	Status code. More...
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...
typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...
Protected Attributes inherited from Gaudi::RootStatCnv
IDataManagerSvc *	m_dataMgr
	Reference to data manager service to manipulate the TES. More...
MsgStream *	m_log
	Reference to logger object. More...
Protected Attributes inherited from Gaudi::RootConverter
RootCnvSvc *	m_dbMgr
	Conversion service needed for proper operation to forward requests. More...

Detailed Description

NTuple converter class definition for NTuples writted/read using ROOT.

Description: Definition of the generic converter for row wise and column wise Ntuples.

Author

M.Frank

Version

1.0

Definition at line 35 of file RootNTupleCnv.h.

Constructor & Destructor Documentation

Gaudi::RootNTupleCnv::RootNTupleCnv ( long  typ, const CLID &  clid, ISvcLocator *  svc, RootCnvSvc *  mgr  )

inline

Standard constructor.

Parameters

clid	[IN] Class ID of the object type to be converted.
db	[IN] Pointer to POOL database interface
svc	[IN] Pointer to Gaudi service locator

Returns

Reference to RootNTupleCnv object

Definition at line 55 of file RootNTupleCnv.h.

      : RootStatCnv(typ, clid, svc, mgr)      {}

virtual Gaudi::RootNTupleCnv::~RootNTupleCnv ( )

inlinevirtual

Standard destructor.

Definition at line 59 of file RootNTupleCnv.h.

{}

Member Function Documentation

StatusCode RootNTupleCnv::createObj ( IOpaqueAddress *  pAddress, DataObject *&  refpObject  )

virtual

Converter overrides: Update the references of an updated transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
refpObject	[OUT] Location to store pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 137 of file RootNTupleCnv.cpp.

                                                                         {
  StatusCode status = S_FAIL;
  RootDataConnection* con = 0;
  IRegistry* pRegistry = pAddr->registry();
  RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
  string  path    = fileName(pRegistry);
  string  cntName = containerName(pRegistry);
  string* par     = const_cast<string*>(pAddr->par());
  status = m_dbMgr->connectDatabase(path,IDataConnection::READ,&con);
  if ( status.isSuccess() ) {
    string par_val, par_guid;
    TBranch* b = con->getBranch("##Descriptors","GaudiStatisticsDescription");
    if ( b ) {
      RootNTupleDescriptor* ptr;
      auto_ptr<RootNTupleDescriptor> dsc(ptr=new RootNTupleDescriptor());
      b->SetAddress(&ptr);
      for(Long64_t i=0, nent = b->GetEntries(); i<nent; ++i) {
        int nb = b->GetEntry(i);
        if ( nb > 1 ) {
          if ( ptr->container == cntName )  {
            par_val  = ptr->description;
            break;
          }
        }
      }
    }
    par[2] = _tr(cntName);
    TTree* tree = con->getSection(par[2]);
    if ( 0 == tree ) {
      return makeError("Failed to access N-Tuple tree:"+cntName);
    }
    if ( !par_val.empty() )      {
      SmartIF<INTupleSvc> ntupleSvc(dataProvider());
      if ( ntupleSvc.isValid() )  {
        char c;
        CLID clid;
        int siz, typ;
        string title;
        NTuple::Tuple* nt = 0;
        istringstream is(par_val);
        getline(is, title, ';') >> clid >> c >> siz >> c;
        status = ntupleSvc->create(clid, title, nt);
        for ( int j = 0; j < siz && status.isSuccess(); j++ ) {
          is >> c;
          getline(is, title, ';') >> typ >> c;
          switch ( typ )
          {
          case DataTypeInfo::UCHAR:
            status = createItem(tree, nt, is, title, true, (unsigned char)0);
            break;
          case DataTypeInfo::USHORT:
            status = createItem(tree, nt, is, title, true, (unsigned short)0);
            break;
          case DataTypeInfo::UINT:
            status = createItem(tree, nt, is, title, true, (unsigned int)0);
            break;
          case DataTypeInfo::ULONG:
            status = createItem(tree, nt, is, title, true, (unsigned long)0);
            break;
          case DataTypeInfo::CHAR:
            status = createItem(tree, nt, is, title, true, char(0));
            break;
          case DataTypeInfo::SHORT:
            status = createItem(tree, nt, is, title, true, short(0));
            break;
          case DataTypeInfo::INT:
            status = createItem(tree, nt, is, title, true, int(0));
            break;
          case DataTypeInfo::LONG:
            status = createItem(tree, nt, is, title, true, long(0));
            break;
          case DataTypeInfo::BOOL:
            status = createItem(tree, nt, is, title, true, false);
            break;
          case DataTypeInfo::FLOAT:
            status = createItem(tree, nt, is, title, true, float(0.0));
            break;
          case DataTypeInfo::DOUBLE:
            status = createItem(tree, nt, is, title, true, double(0.0));
            break;
            /*
            case DataTypeInfo::NTCHAR:
            case DataTypeInfo::LONG_NTCHAR:
            status =
            createItem(tree, nt, is, title, true, (char*)0);
            break;
            case DataTypeInfo::STRING:
            case DataTypeInfo::LONG_STRING:
            status =
            createItem(tree, nt, is, title, true, string(""));
            break;
            */
          case DataTypeInfo::OBJECT_ADDR:
            status = createItem(tree, nt, is, title, false, (IOpaqueAddress*)0);
            break;
          case DataTypeInfo::POINTER:
            status = createItem(tree, nt, is, title, true, (void*)0);
            break;
          case DataTypeInfo::UNKNOWN:
          default:
            status = S_FAIL;
            break;
          }
          if ( !status.isSuccess() )  {
            log() << MSG::FATAL
              << "Error connecting (Unknown) column:" << j << endmsg
              << par_val << endmsg;
            return makeError("createObj[NTuple]> Cannot determine column!");
          }
        }
        if ( status.isSuccess() )  {
          unsigned long* ipar = const_cast<unsigned long*>(rpA->ipar());
          log() << MSG::DEBUG << "Created N-tuple with description:"
            << par_val << endl;
          ipar[0] = (unsigned long)con;
          ipar[1] = ~0x0UL;
          rpA->section = tree;
          refpObject  = nt;
        }
        else {
          refpObject = 0;
          if ( nt ) nt->release();
        }
      }
    }
  }
  return status;
}

StatusCode RootNTupleCnv::createRep ( DataObject *  pObj, IOpaqueAddress *&  refpAdd  )

virtual

Converter overrides: Convert the transient object to the requested representation.

Convert the transient object to the requested representation.

Parameters

pObj	[IN] Valid pointer to DataObject
refpAdd	[OUT] Location to store pointer to the object's opaque address

Returns

Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 400 of file RootNTupleCnv.cpp.

                                                                             {
  IRegistry* pRegistry = pObj->registry();
  if ( 0 != pRegistry )  {
    pAddr = pRegistry->address();
    if ( 0 != pAddr ) {
      return S_OK;
    }

    RootDataConnection* con = 0;
    string path    = fileName(pRegistry);
    string cntName = containerName(pRegistry);
    string secName = cntName.c_str();
    const INTuple* nt = dynamic_cast<const INTuple*>(pObj);
    StatusCode status = m_dbMgr->connectDatabase(path, IDataConnection::UPDATE, &con);
    if ( !status.isSuccess() ) {
      return makeError("Failed to access Tuple file:"+path);
    }
    TTree* tree = con->getSection(_tr(secName),true);
    if ( 0 != nt )  {
      const INTuple::ItemContainer& items = nt->items();
      ostringstream os;
      size_t item_no;
      string desc;
      os << nt->title()<<';'<<pObj->clID()<<';'<<items.size()<< ';';
      map<string,TBranch*> branches;
      TBranch* b = 0;
      for(item_no = 0; item_no < items.size(); ++item_no ) {
        INTupleItem* it = items[item_no];
        if ( it->hasIndex() )   {
          INTupleItem* itm = it->indexItem();
          const string& n = itm->name();
          switch( itm->type() )
          {
          case DataTypeInfo::UCHAR:
            desc = n+"/b";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::USHORT:
            desc = n+"/s";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::UINT:
            desc = n+"/i";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::ULONG:
            desc = n+"/l";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::CHAR:
            desc = n+"/B";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::SHORT:
            desc = n+"/S";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::INT:
            desc = n+"/I";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          case DataTypeInfo::LONG:
            desc = n+"/L";
            b = tree->Branch(n.c_str(),(void*)itm->buffer(),desc.c_str());
            break;
          default:
            return makeError("Column "+it->index()+" is not a valid index column!");
          }
          branches[n] = b;
        }
      }
      for(item_no = 0; item_no < items.size(); ++item_no ) {
        INTupleItem* it = items[item_no];
        const string& n = it->name();
        os << '{'
          << n               << ';'
          << it->type()      << ';'
          << it->length()    << ';'
          << it->ndim()      << ';'
          << it->hasIndex()  << ';';
        if ( it->hasIndex() )   {
          os << it->index() << ';';
          INTupleItem* itm = it->indexItem();
          switch( itm->type() )
          {
          case DataTypeInfo::UCHAR:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(itm));
            break;
          case DataTypeInfo::USHORT:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(itm));
            break;
          case DataTypeInfo::UINT:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(itm));
            break;
          case DataTypeInfo::ULONG:
            putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(itm));
            break;
          case DataTypeInfo::CHAR:
            putRange(os, dynamic_cast<NTuple::_Data<char>*>(itm));
            break;
          case DataTypeInfo::SHORT:
            putRange(os, dynamic_cast<NTuple::_Data<short>*>(itm));
            break;
          case DataTypeInfo::INT:
            putRange(os, dynamic_cast<NTuple::_Data<int>*>(itm));
            break;
          case DataTypeInfo::LONG:
            putRange(os, dynamic_cast<NTuple::_Data<long>*>(itm));
            break;
          default:
            return makeError("NTuple:"+pRegistry->name()+" Column "+it->index()+
              " is not a valid index column!");
          }
        }
        for ( long k = 0; k < it->ndim(); k++ )  {
          os << it->dim(k) << ';';
        }
        desc = n;
        TClass* cl = 0;
        switch(it->type())
        {
        case DataTypeInfo::STRING:
          desc = "/C";
          os << 0 << ';' << 0 << ';';
          break;
        case DataTypeInfo::NTCHAR:
          desc = "/C";
          os << 0 << ';' << 0 << ';';
          break;
        case DataTypeInfo::OBJECT_ADDR:
          if ( it->length() == 1 )  {
            desc = System::typeinfoName(typeid(RootRef));
            os << 0 << ';' << 0 << ';';
            cl = TClass::GetClass(desc.c_str(),kTRUE);
          }
          break;
        case DataTypeInfo::POINTER:
          if ( it->length() == 1 )  {
            os << 0 << ';' << 0 << ';';
            cl = TClass::GetClass(it->typeID(), kTRUE);
          }
          break;
        case DataTypeInfo::UCHAR:
          desc = "/b";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(it));
          break;
        case DataTypeInfo::USHORT:
          desc = "/s";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(it));
          break;
        case DataTypeInfo::UINT:
          desc = "/i";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(it));
          break;
        case DataTypeInfo::ULONG:
          desc = "/l";
          putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(it));
          break;
        case DataTypeInfo::CHAR:
          desc = "/B";
          putRange(os, dynamic_cast<NTuple::_Data<char>*>(it));
          break;
        case DataTypeInfo::SHORT:
          desc = "/S";
          putRange(os, dynamic_cast<NTuple::_Data<short>*>(it));
          break;
        case DataTypeInfo::INT:
          desc = "/I";
          putRange(os, dynamic_cast<NTuple::_Data<int>*>(it));
          break;
        case DataTypeInfo::LONG:
          desc = "/L";
          putRange(os, dynamic_cast<NTuple::_Data<long>*>(it));
          break;
        case DataTypeInfo::BOOL:
          desc = "/b";
          putRange(os, dynamic_cast<NTuple::_Data<bool>*>(it));
          break;
        case DataTypeInfo::FLOAT:
          desc = "/F";
          putRange(os, dynamic_cast<NTuple::_Data<float>*>(it));
          break;
        case DataTypeInfo::DOUBLE:
          desc = "/D";
          putRange(os, dynamic_cast<NTuple::_Data<double>*>(it));
          break;
        case DataTypeInfo::UNKNOWN:
        default:
          return makeError("Create item[FAIL]: "+it->name());
        }
        os << '}';
        if ( branches.find(n) == branches.end() ) {
          string tmp;
          char text[32];
          switch(it->ndim())
          {
          case 0:
            desc = n+desc;
            break;
          case 2:
            sprintf(text,"[%ld]",it->dim(0));
            tmp = text;
          case 1:
            if ( it->hasIndex() )   {
              INTupleItem* itm = it->indexItem();
              desc = n + tmp + "[" + itm->name() + "]" + desc;
            }
            else {
              sprintf(text,"[%ld]",it->dim(0));
              desc = n + tmp + text + desc;
            }
          }
          log() << MSG::DEBUG << "Create branch:" << n << " Desc:" << desc
            << " of type:" << it->type() << endmsg;
          switch(it->type())
          {
          case DataTypeInfo::OBJECT_ADDR:
            branches[n] = tree->Branch(n.c_str(),cl->GetName(),(void*)it->buffer());
            break;
          case DataTypeInfo::POINTER:
            branches[n] = tree->Branch(n.c_str(),cl->GetName(),(void*)it->buffer());
            break;
          default:
            branches[n] = tree->Branch(n.c_str(),(void*)it->buffer(),desc.c_str());
            break;
          }
        }
      }

      log() << MSG::DEBUG << "Save description:" << path << " -> " << cntName << endmsg
        << os.str() << endmsg;
      status = saveDescription(path,cntName,os.str(),"",pObj->clID());
      if ( status.isSuccess() )  {
        status = m_dbMgr->commitOutput(path, true);
        if ( status.isSuccess() ) {
          string spar[] = { path, cntName};
          unsigned long ipar[] = { (unsigned long)con, ~0x0u };
          status = m_dbMgr->createAddress(repSvcType(),pObj->clID(),spar,ipar,pAddr);
          if ( status.isSuccess() ) {
            RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
            ((unsigned long*)rpA->ipar())[0] = (unsigned long)con;
            rpA->section = tree;
          }
          else  {
            pAddr->release();
            pAddr = 0;
          }
        }
      }
      return status;
    }
  }
  return S_FAIL;
}

virtual StatusCode Gaudi::RootNTupleCnv::fillObjRefs ( IOpaqueAddress *  , DataObject *    )

inlinevirtual

Converter overrides: Update the references of an updated transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 100 of file RootNTupleCnv.h.

      {  return StatusCode::SUCCESS;                                      }

StatusCode RootNTupleCnv::fillRepRefs ( IOpaqueAddress *  pAdd, DataObject *  pObj  )

virtual

Resolve the references of the converted object.

Parameters

pAdd	[IN] Valid pointer to the object's opaque address
pObj	[IN] Valid pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Gaudi::RootConverter.

Definition at line 656 of file RootNTupleCnv.cpp.

                                                                               {
  typedef INTuple::ItemContainer Cont;
  INTuple* tupl = dynamic_cast<INTuple*>(pObj);
  IRegistry* pReg = pObj->registry();
  RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
  if ( tupl && pReg && rpA )  {
    string cntName = containerName(pReg);
    unsigned long* ipar = const_cast<unsigned long*>(pAddr->ipar());
    RootDataConnection* con = (RootDataConnection*)rpA->ipar()[0];
    if ( con ) {
      TTree* tree = rpA->section;
      if ( tree ) {
        Cont& it = tupl->items();
        size_t k, n = it.size();
        vector<RootRef*> paddr(n);
        vector<RootRef>  addr(n);
        for(k = 0; k < n; ++k)      {
          IOpaqueAddress* pA = 0;
          Cont::value_type j = it[k];
          switch( j->type() )
          {
          case DataTypeInfo::OBJECT_ADDR:
            pA = (*(IOpaqueAddress**)j->buffer());
            paddr[k] = &addr[k];
            addr[k].reset();
            if ( pA )  {
              con->makeRef(pA->registry(),addr[k]);
              addr[k].entry = pA->ipar()[1];
            }
            tree->SetBranchAddress(j->name().c_str(),&paddr[k]);
            break;
          default:
            break;
          }
        }
        int nb = tree->Fill();
        if ( nb>1 ) ++ipar[1];
        for(k = 0; k < n; ++k) it[k]->reset();
        return nb>1 ? StatusCode::SUCCESS : StatusCode::FAILURE;
      }
      return makeError("fillRepRefs> Failed to access data tree:"+cntName);
    }
    return makeError("fillRepRefs> Failed to access data source!");
  }
  return makeError("fillRepRefs> Invalid Tuple reference.");
}

StatusCode RootNTupleCnv::i__updateObjRoot ( RootAddress *  rpA, INTuple *  tupl, TTree *  tree, RootDataConnection *  con  )

protected

Update the transient object: NTuples end here when reading records.

Definition at line 293 of file RootNTupleCnv.cpp.

                                                                                                                 {
  typedef INTuple::ItemContainer Cont;
  const string*   par = rpA->par();
  unsigned long* ipar = const_cast<unsigned long*>(rpA->ipar());
  ++ipar[1];
  if ( Long64_t(ipar[1]) <= tree->GetEntries() ) {
    GenericAddress* pA = 0;
    Cont& it = tupl->items();
    size_t k, n = it.size();
    vector<RootRef*> paddr(n);
    vector<RootRef>  addr(n);
    for(k = 0; k < n; ++k)      {
      Cont::value_type j = it[k];
      switch( j->type() )
      {
      case DataTypeInfo::OBJECT_ADDR:
        paddr[k] = &addr[k];
        tree->SetBranchAddress(j->name().c_str(),&paddr[k]);
        break;
      default:
        break;
      }
    }

    ULong64_t last = (ULong64_t)tree->GetEntries();
    ISelectStatement* sel = tupl->selector();
    if ( sel ) {
      string criteria = (sel && (sel->type() & ISelectStatement::STRING))
        ? sel->criteria() : string("");
      if ( !(criteria.length() == 0 || criteria == "*") )  {
        if ( rpA->select == 0 ) {
          log() << MSG::DEBUG << "Selection criteria: " << criteria << "  "  << ipar[1] << endmsg;
          rpA->select = new TTreeFormula(tree->GetName(),criteria.c_str(), tree);
        }
        rpA->select->SetTree(tree);
        for( ; ipar[1] < last; ++ipar[1]) { // loop on all selected entries
          tree->LoadTree(ipar[1]);
          rpA->select->GetNdata();
          if ( fabs(rpA->select->EvalInstance(0)) > std::numeric_limits<float>::epsilon() ) {
            break;
          }
          log() << MSG::DEBUG << par[0] << "/" << par[1] << " SKIP Entry: " << ipar[1] << endmsg;
        }
      }
    }
    if ( ipar[1] < last ) {
      unsigned long entry = ipar[1];
      if ( tree->GetEntry(entry) > 1 )   {
        RootRef *r = 0;
        string  *spar = 0;
        for(k = 0; k < n; ++k)      {
          Cont::value_type j = it[k];
          switch( j->type() )
          {
          case DataTypeInfo::OBJECT_ADDR:
            r = paddr[k];
            pA = (*(GenericAddress**)j->buffer());
            if ( pA ) { // Fill only if item is connected!
              spar = (string*)pA->par();
              ipar = (unsigned long*)pA->ipar();
              log() << MSG::DEBUG;
              pair<const RootRef*,const RootDataConnection::ContainerSection*> ls = con->getMergeSection(tree->GetName(),entry);
              if ( ls.first )  {
                if ( ls.first->dbase >= 0 ) {
                  // Now patch the references and links 'en block' to be efficient
                  // First the leafs from the TES

                  r->dbase     += ls.first->dbase;
                  r->container += ls.first->container;
                  r->link      += ls.first->link;

                  if ( log().isActive() ) {
                    log() << "Refs: LS [" << entry << "] -> "
                      << ls.first->dbase << "," << ls.first->container
                      << "," << ls.first->link
                      << "," << ls.first->entry
                      << " DB:" << con->getDb(r->dbase)
                      << endmsg;
                  }
                }
              }
              spar[0] = con->getDb(r->dbase);
              spar[1] = con->getCont(r->container);
              spar[2] = con->getLink(r->link);
              ipar[0] = 0;
              ipar[1] = r->entry;
              pA->setClID(r->clid);
              pA->setSvcType(r->svc);
              break;
            }
            break;
          default:
            break;
          }
        }
        return StatusCode::SUCCESS;
      }
      log() << MSG::ERROR << "Failed to read data from NTuple tree." << endmsg;
      return StatusCode::FAILURE;
    }
    log() << MSG::INFO << "End of input Ntuple." << endmsg;
    return StatusCode::FAILURE;
  }
  return StatusCode::FAILURE;
}

StatusCode RootNTupleCnv::updateObj ( IOpaqueAddress *  pAddress, DataObject *  pObject  )

virtual

Update the transient object: NTuples end here when reading records.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Converter.

Definition at line 267 of file RootNTupleCnv.cpp.

                                                                            {
  INTuple* tupl = dynamic_cast<INTuple*>(pObj);
  RootAddress* rpA = dynamic_cast<RootAddress*>(pAddr);
  if ( 0 != tupl && 0 != rpA )  {
    RootDataConnection* con = (RootDataConnection*)rpA->ipar()[0];
    if ( con )   {
      TTree* tree = rpA->section;
      if ( tree ) {
        con->resetAge();
        if ( con->tool()->refs() )
          return i__updateObjRoot(rpA,tupl,tree,con);
#ifdef __POOL_COMPATIBILITY
        // POOL compatibility mode:
        return i__updateObjPool(rpA,tupl,tree,con);
#else
        return makeError("Failed to access reference branch for data tree:"+rpA->par()[1]);
#endif
      }
      return makeError("Failed to access data tree:"+pAddr->par()[1]);
    }
    return makeError("updateObj> Failed to access data source!");
  }
  return makeError("updateObj> Invalid Tuple reference.");
}

virtual StatusCode Gaudi::RootNTupleCnv::updateObjRefs ( IOpaqueAddress *  , DataObject *    )

inlinevirtual

Converter overrides: Update the references of an updated transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Converter.

Definition at line 122 of file RootNTupleCnv.h.

      {  return StatusCode::SUCCESS;                                      }

virtual StatusCode Gaudi::RootNTupleCnv::updateRep ( IOpaqueAddress *  , DataObject *    )

inlinevirtual

Converter overrides: Update the converted representation of a transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Converter.

Definition at line 134 of file RootNTupleCnv.h.

      {  return StatusCode::SUCCESS;                                      }

virtual StatusCode Gaudi::RootNTupleCnv::updateRepRefs ( IOpaqueAddress *  , DataObject *    )

inlinevirtual

Converter overrides: Update the converted representation of a transient object.

Parameters

pAddress	[IN] Valid pointer to the object's opaque address
pObject	[IN] Valid pointer to DataObject

Returns

Status code indicating success or failure

Reimplemented from Converter.

Definition at line 146 of file RootNTupleCnv.h.

      {  return StatusCode::SUCCESS;                                      }

---

The documentation for this class was generated from the following files:

• RootCnv/RootCnv/RootNTupleCnv.h
• RootCnv/src/RootNTupleCnv.cpp
