Base class for a component manager. More...

#include <GaudiKernel/ComponentManager.h>

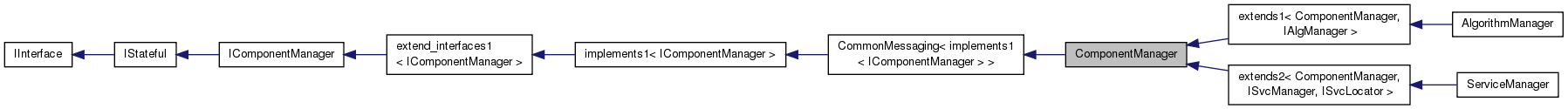

Inheritance diagram for ComponentManager:

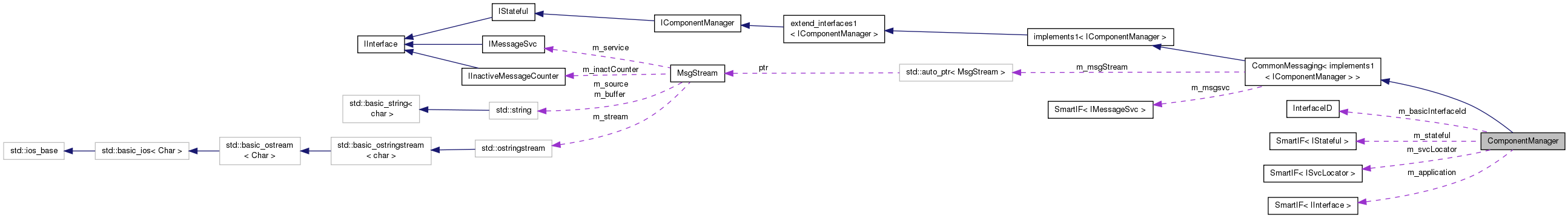

Collaboration diagram for ComponentManager:

Public Member Functions
	ComponentManager (IInterface *application, const InterfaceID &baseIID)
	Constructor. More...

virtual const InterfaceID &	componentBaseInterface () const
	Basic interface id of the managed components. More...

virtual	~ComponentManager ()
	Virtual destructor. More...

StatusCode	queryInterface (const InterfaceID &iid, void **pinterface)
	Specialized queryInterface implementation. More...

virtual SmartIF< ISvcLocator > &	serviceLocator () const
	Needed to locate the message service. More...

virtual StatusCode	configure ()
	Configuration (from OFFLINE to CONFIGURED). More...

virtual StatusCode	initialize ()
	Initialization (from CONFIGURED to INITIALIZED). More...

virtual StatusCode	start ()
	Start (from INITIALIZED to RUNNING). More...

virtual StatusCode	stop ()
	Stop (from RUNNING to INITIALIZED). More...

virtual StatusCode	finalize ()
	Finalize (from INITIALIZED to CONFIGURED). More...

virtual StatusCode	terminate ()
	Initialization (from CONFIGURED to OFFLINE). More...

virtual StatusCode	reinitialize ()
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED). More...

virtual StatusCode	restart ()
	Initialization (from RUNNING to RUNNING, via INITIALIZED). More...

virtual Gaudi::StateMachine::State	FSMState () const
	Get the current state. More...

virtual Gaudi::StateMachine::State	targetFSMState () const
	When we are in the middle of a transition, get the state where the transition is leading us. More...

Public Member Functions inherited from CommonMessaging< implements1< IComponentManager > >
	CommonMessaging (const A1 &a1, const A2 &a2, const A3 &a3)
	Templated constructor with 3 arguments. More...

	CommonMessaging (const A1 &a1, const A2 &a2)
	Templated constructor with 2 arguments. More...

	CommonMessaging (const A1 &a1)
	Templated constructor with 1 argument. More...

	CommonMessaging ()
	Default constructor. More...

virtual	~CommonMessaging ()
	Virtual destructor. More...

virtual const std::string &	name () const =0
	This is needed to avoid ambiguous calls to name() More...

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...

MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...

MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...

MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...

MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...

MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...

MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...

MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...

MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...

MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...

MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream More...

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

Public Member Functions inherited from extend_interfaces1< IComponentManager >
virtual	~extend_interfaces1 ()
	Virtual destructor. More...

Public Member Functions inherited from IComponentManager
	DeclareInterfaceID (IComponentManager, 1, 0)
	InterfaceID. More...

virtual	~IComponentManager ()
	Virtual destructor. More...

Public Member Functions inherited from IStateful
	DeclareInterfaceID (IStateful, 1, 0)
	InterfaceID. More...

virtual	~IStateful ()

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual	~IInterface ()
	Virtual destructor. More...

Protected Attributes
SmartIF< IInterface >	m_application
	Pointer to the owner of the manager. More...

SmartIF< IStateful >	m_stateful
	Pointer to the IStateful interface of the owner. More...

InterfaceID	m_basicInterfaceId
	Basic interface id of the managed components. More...

SmartIF< ISvcLocator >	m_svcLocator
	Service locator (needed to access the MessageSvc) More...

Protected Attributes inherited from CommonMessaging< implements1< IComponentManager > >
SmartIF< IMessageSvc >	m_msgsvc
	Pointer to the message service;. More...

std::auto_ptr< MsgStream >	m_msgStream
	The predefined message stream. More...

bool	m_streamWithService
	Flag to create a new MsgStream if it was created without the message service. More...

Additional Inherited Members
Public Types inherited from CommonMessaging< implements1< IComponentManager > >
typedef CommonMessaging	base_class

Public Types inherited from implements1< IComponentManager >
typedef implements1	base_class
	Typedef to this class. More...

typedef extend_interfaces1 < IComponentManager >	extend_interfaces_base
	Typedef to the base of this class. More...

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces. More...

Public Types inherited from extend_interfaces1< IComponentManager >
typedef IComponentManager::iid::iids::type	ext_iids
	MPL set of interfaces extended by this one. More...

Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Protected Member Functions inherited from CommonMessaging< implements1< IComponentManager > >
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Detailed Description

Base class for a component manager.

Author: Marco Clemencic

Definition at line 14 of file ComponentManager.h.

Constructor & Destructor Documentation

ComponentManager::ComponentManager	(	IInterface *	application,
		const InterfaceID &	baseIID
	)

Constructor.

Parameters

application the manager of managers

Definition at line 12 of file ComponentManager.cpp.

                                                                                      :
   m_application(application), m_stateful(application), m_basicInterfaceId(baseIID)
 {
 }

ComponentManager::~ComponentManager ( )

virtual

Virtual destructor.

Definition at line 25 of file ComponentManager.cpp.

25 {

26 }

Member Function Documentation

const InterfaceID & ComponentManager::componentBaseInterface ( ) const

virtual

Basic interface id of the managed components.

Implements IComponentManager.

Definition at line 19 of file ComponentManager.cpp.

                                                                   {
   return m_basicInterfaceId;
 }

virtual StatusCode ComponentManager::configure ( )

inlinevirtual

Configuration (from OFFLINE to CONFIGURED).

Implements IStateful.

Definition at line 38 of file ComponentManager.h.

38 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

virtual StatusCode ComponentManager::finalize ( )

inlinevirtual

Finalize (from INITIALIZED to CONFIGURED).

Implements IStateful.

Reimplemented in ServiceManager, and AlgorithmManager.

Definition at line 50 of file ComponentManager.h.

50 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

virtual Gaudi::StateMachine::State ComponentManager::FSMState ( ) const

inlinevirtual

Get the current state.

Implements IStateful.

Definition at line 63 of file ComponentManager.h.

63 {return m_stateful->FSMState();}

ComponentManager::m_stateful

SmartIF< IStateful > m_stateful

Pointer to the IStateful interface of the owner.

Definition: ComponentManager.h:75

virtual StatusCode ComponentManager::initialize ( )

inlinevirtual

Initialization (from CONFIGURED to INITIALIZED).

Implements IStateful.

Reimplemented in ServiceManager, and AlgorithmManager.

Definition at line 41 of file ComponentManager.h.

41 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

StatusCode ComponentManager::queryInterface	(	const InterfaceID &	iid,
		void **	pinterface
	)

virtual

Specialized queryInterface implementation.

If an interface is not fount in the implemented ones, we fall back on the owner.

Implements IInterface.

Reimplemented in extends2< ComponentManager, ISvcManager, ISvcLocator >, and extends1< ComponentManager, IAlgManager >.

Definition at line 30 of file ComponentManager.cpp.

 {
   // try local interfaces
   StatusCode sc = base_class::queryInterface(iid,pinterface);
   if (sc.isSuccess()) return sc;
   // fall back on the owner
   return m_application->queryInterface(iid, pinterface);
 }

virtual StatusCode ComponentManager::reinitialize ( )

inlinevirtual

Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

Implements IStateful.

Reimplemented in ServiceManager, and AlgorithmManager.

Definition at line 57 of file ComponentManager.h.

57 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

virtual StatusCode ComponentManager::restart ( )

inlinevirtual

Initialization (from RUNNING to RUNNING, via INITIALIZED).

Implements IStateful.

Reimplemented in ServiceManager, and AlgorithmManager.

Definition at line 60 of file ComponentManager.h.

60 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

virtual SmartIF<ISvcLocator>& ComponentManager::serviceLocator ( ) const

inlinevirtual

Needed to locate the message service.

Implements CommonMessaging< implements1< IComponentManager > >.

Reimplemented in ServiceManager.

Definition at line 32 of file ComponentManager.h.

                                                        {
     if (!m_svcLocator) m_svcLocator = m_application;
     return m_svcLocator;
   }

virtual StatusCode ComponentManager::start ( )

inlinevirtual

Start (from INITIALIZED to RUNNING).

Implements IStateful.

Reimplemented in ServiceManager, and AlgorithmManager.

Definition at line 44 of file ComponentManager.h.

44 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

virtual StatusCode ComponentManager::stop ( )

inlinevirtual

Stop (from RUNNING to INITIALIZED).

Implements IStateful.

Reimplemented in ServiceManager, and AlgorithmManager.

Definition at line 47 of file ComponentManager.h.

47 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

virtual Gaudi::StateMachine::State ComponentManager::targetFSMState ( ) const

inlinevirtual

When we are in the middle of a transition, get the state where the transition is leading us.

Otherwise it returns the same state as state().

Implements IStateful.

Definition at line 67 of file ComponentManager.h.

67 {return m_stateful->targetFSMState();}

ComponentManager::m_stateful

SmartIF< IStateful > m_stateful

Pointer to the IStateful interface of the owner.

Definition: ComponentManager.h:75

virtual StatusCode ComponentManager::terminate ( )

inlinevirtual

Initialization (from CONFIGURED to OFFLINE).

Implements IStateful.

Definition at line 53 of file ComponentManager.h.

53 {return StatusCode::SUCCESS;}

StatusCode::SUCCESS

Definition: StatusCode.h:34

Member Data Documentation

SmartIF<IInterface> ComponentManager::m_application

protected

Pointer to the owner of the manager.

Definition at line 72 of file ComponentManager.h.

InterfaceID ComponentManager::m_basicInterfaceId

protected

Basic interface id of the managed components.

Definition at line 78 of file ComponentManager.h.

SmartIF<IStateful> ComponentManager::m_stateful

protected

Pointer to the IStateful interface of the owner.

Definition at line 75 of file ComponentManager.h.

SmartIF<ISvcLocator> ComponentManager::m_svcLocator

mutableprotected

Service locator (needed to access the MessageSvc)

Definition at line 81 of file ComponentManager.h.

The documentation for this class was generated from the following files:

GaudiKernel/GaudiKernel/ComponentManager.h
GaudiKernel/src/Lib/ComponentManager.cpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
