Definition of the IHistorySvc interface class. More...

#include <GaudiKernel/IHistorySvc.h>

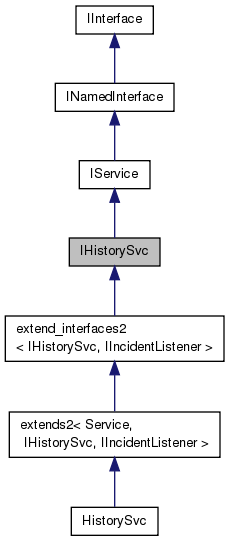

Inheritance diagram for IHistorySvc:

Collaboration diagram for IHistorySvc:

Public Member Functions
	DeclareInterfaceID (IHistorySvc, 2, 0)
	InterfaceID. More...

virtual StatusCode	registerJob ()=0

virtual StatusCode	listProperties () const =0

virtual JobHistory *	getJobHistory () const =0

virtual StatusCode	registerSvc (const IService &)=0

virtual StatusCode	listProperties (const IService &) const =0

virtual ServiceHistory *	getServiceHistory (const IService &) const =0

virtual void	getServiceHistory (std::set< ServiceHistory * > &) const =0

virtual StatusCode	registerAlg (const Algorithm &)=0

virtual StatusCode	listProperties (const Algorithm &) const =0

virtual AlgorithmHistory *	getAlgHistory (const Algorithm &) const =0

virtual void	getAlgHistory (std::set< AlgorithmHistory * > &) const =0

virtual StatusCode	registerAlgTool (const IAlgTool &)=0

virtual StatusCode	listProperties (const IAlgTool &) const =0

virtual AlgToolHistory *	getAlgToolHistory (const IAlgTool &) const =0

virtual void	getAlgToolHistory (std::set< AlgToolHistory * > &) const =0

virtual DataHistory *	createDataHistoryObj (const CLID &id, const std::string &key, const std::string &storeName)=0

virtual DataHistory *	getDataHistory (const CLID &id, const std::string &key, const std::string &storeName) const =0

Public Member Functions inherited from IService
	DeclareInterfaceID (IService, 3, 0)
	InterfaceID. More...

virtual StatusCode	sysInitialize ()=0
	Initialize Service. More...

virtual StatusCode	sysStart ()=0
	Start Service. More...

virtual StatusCode	sysStop ()=0
	Stop Service. More...

virtual StatusCode	sysFinalize ()=0
	Finalize Service. More...

virtual StatusCode	sysReinitialize ()=0
	Re-initialize the Service. More...

virtual StatusCode	sysRestart ()=0
	Re-start the Service. More...

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED). More...

virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED). More...

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING). More...

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED). More...

virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED). More...

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE). More...

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED). More...

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED). More...

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state. More...

virtual Gaudi::StateMachine::State	targetFSMState () const =0
	When we are in the middle of a transition, get the state where the transition is leading us. More...

virtual	~IService ()
	virtual destructor More...

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID. More...

virtual const std::string &	name () const =0
	Retrieve the name of the instance. More...

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes). More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Protected Member Functions inherited from IService
virtual void	setServiceManager (ISvcManager *)=0

Detailed Description

Definition of the IHistorySvc interface class.

Author: Charles Leggett

Definition at line 34 of file IHistorySvc.h.

Member Function Documentation

virtual DataHistory* IHistorySvc::createDataHistoryObj	(	const CLID &	id,
		const std::string &	key,
		const std::string &	storeName
	)

pure virtual

Implemented in HistorySvc.

IHistorySvc::DeclareInterfaceID	(	IHistorySvc	,
		2	,
		0
	)

InterfaceID.

virtual AlgorithmHistory* IHistorySvc::getAlgHistory ( const Algorithm & ) const

pure virtual

Implemented in HistorySvc.

virtual void IHistorySvc::getAlgHistory ( std::set< AlgorithmHistory * > & ) const

pure virtual

Implemented in HistorySvc.

virtual AlgToolHistory* IHistorySvc::getAlgToolHistory ( const IAlgTool & ) const

pure virtual

Implemented in HistorySvc.

virtual void IHistorySvc::getAlgToolHistory ( std::set< AlgToolHistory * > & ) const

pure virtual

Implemented in HistorySvc.

virtual DataHistory* IHistorySvc::getDataHistory	(	const CLID &	id,
		const std::string &	key,
		const std::string &	storeName
	)		const

pure virtual

Implemented in HistorySvc.

virtual JobHistory* IHistorySvc::getJobHistory ( ) const

pure virtual

Implemented in HistorySvc.

virtual ServiceHistory* IHistorySvc::getServiceHistory ( const IService & ) const

pure virtual

Implemented in HistorySvc.

virtual void IHistorySvc::getServiceHistory ( std::set< ServiceHistory * > & ) const

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::listProperties ( ) const

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::listProperties ( const IService & ) const

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::listProperties ( const Algorithm & ) const

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::listProperties ( const IAlgTool & ) const

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::registerAlg ( const Algorithm & )

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::registerAlgTool ( const IAlgTool & )

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::registerJob ( )

pure virtual

Implemented in HistorySvc.

virtual StatusCode IHistorySvc::registerSvc ( const IService & )

pure virtual

Implemented in HistorySvc.

The documentation for this class was generated from the following file:

GaudiKernel/GaudiKernel/IHistorySvc.h
