AIDA implementation for 2 D profiles using ROOT TProfile2D. More...

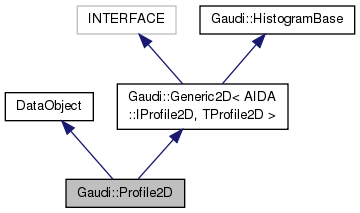

Inheritance diagram for Gaudi::Profile2D:

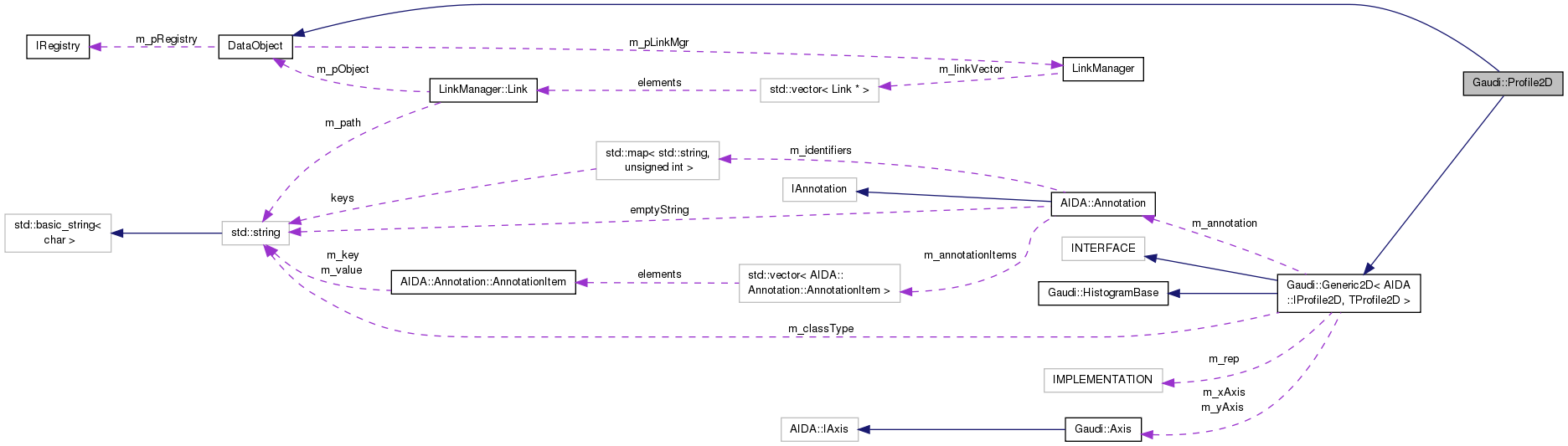

Collaboration diagram for Gaudi::Profile2D:

Public Member Functions
	Profile2D ()
	Default Constructor. More...

	Profile2D (TProfile2D *rep)
	Default Constructor with representation object. More...

virtual	~Profile2D ()
	Destructor. More...

bool	fill (double x, double y, double z, double weight)
	Fill bin content. More...

virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier. More...

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &)
	Copy Constructor. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr () const
	Retrieve Link manager. More...

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Public Member Functions inherited from Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >
	Generic2D ()

virtual	~Generic2D ()
	Destructor. More...

TObject *	representation () const
	ROOT object implementation. More...

virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...

virtual std::string	title () const
	Get the title of the object. More...

virtual bool	setTitle (const std::string &title)
	Set the title of the object. More...

std::string	name () const
	object name More...

bool	setName (const std::string &newName)
	Set the name of the object. More...

virtual AIDA::IAnnotation &	annotation ()
	Access annotation object. More...

virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons) More...

virtual const AIDA::IAxis &	xAxis () const
	Return the X axis. More...

virtual const AIDA::IAxis &	yAxis () const
	Return the Y axis. More...

virtual int	rIndexX (int index) const
	operator methods More...

virtual int	rIndexY (int index) const
	operator methods More...

virtual int	entries () const
	Get the number or all the entries. More...

virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile. More...

virtual int	extraEntries () const
	Get the number of entries in the underflow and overflow bins. More...

virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile. More...

virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin). More...

virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height. More...

virtual double	minBinHeight () const
	Get the minimum height of the in-range bins. More...

virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins. More...

virtual double	binMeanX (int indexX, int indexY) const
	The weighted mean along x of a given bin. More...

virtual double	binMeanY (int indexX, int indexY) const
	The weighted mean along y of a given bin. More...

virtual int	binEntries (int indexX, int indexY) const
	The number of entries (ie the number of times fill was called for this bin). More...

virtual int	binEntriesX (int indexX) const
	Equivalent to `projectionX().binEntries(indexX)`. More...

virtual int	binEntriesY (int indexY) const
	Equivalent to `projectionY().binEntries(indexY)`. More...

virtual double	binHeight (int indexX, int indexY) const
	Total height of the corresponding bin (ie the sum of the weights in this bin). More...

virtual double	binHeightX (int indexX) const
	Equivalent to `projectionX().binHeight(indexX)`. More...

virtual double	binHeightY (int indexY) const
	Equivalent to `projectionY().binHeight(indexY)`. More...

virtual double	binError (int indexX, int indexY) const
	The error on this bin. More...

virtual double	binRms (int indexX, int indexY) const
	The spread (RMS) of this bin. More...

virtual double	meanX () const
	Returns the mean of the profile, as calculated on filling-time projected on the X axis. More...

virtual double	meanY () const
	Returns the mean of the profile, as calculated on filling-time projected on the Y axis. More...

virtual double	rmsX () const
	Returns the rms of the profile as calculated on filling-time projected on the X axis. More...

virtual double	rmsY () const
	Returns the rms of the profile as calculated on filling-time projected on the Y axis. More...

virtual int	coordToIndexX (double coordX) const
	Convenience method, equivalent to `xAxis().coordToIndex(coord)`. More...

virtual int	coordToIndexY (double coordY) const
	Convenience method, equivalent to `yAxis().coordToIndex(coord)`. More...

virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. `SUM[ weight ] ^ 2 / SUM[ weight^2 ]` More...

virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor. More...

virtual bool	add (const INTERFACE &h)
	Modifies this profile by adding the contents of profile to it. More...

bool	reset ()

void *	cast (const std::string &className) const
	Introspection method. More...

const std::string &	userLevelClassType () const
	The AIDA user-level unterface leaf class type. More...

virtual int	dimension () const
	Get the Histogram's dimension. More...

virtual std::ostream &	print (std::ostream &s) const
	Print (ASCII) the histogram into the output stream. More...

virtual std::ostream &	write (std::ostream &s) const
	Write (ASCII) the histogram table into the output stream. More...

virtual int	write (const char *file_name) const
	Write (ASCII) the histogram table into a file. More...

template<>
void *	cast (const std::string &className) const

template<>
int	binEntries (int indexX, int indexY) const

template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...

template<>
void *	cast (const std::string &className) const

template<>
int	binEntries (int idX, int idY) const

template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...

Public Member Functions inherited from Gaudi::HistogramBase
virtual	~HistogramBase ()

Static Public Member Functions
static const CLID &	classID ()

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Additional Inherited Members
Public Types inherited from Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >
typedef Generic2D< INTERFACE, IMPLEMENTATION >	Base

Protected Attributes inherited from Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >
Axis	m_xAxis
	X axis member. More...

Axis	m_yAxis
	Y axis member. More...

AIDA::Annotation	m_annotation
	Object annotations. More...

IMPLEMENTATION *	m_rep
	Reference to underlying implementation. More...

std::string	m_classType
	class type More...

int	m_sumEntries
	cache sumEntries (allEntries) when setting contents since Root can't compute by himself More...

Detailed Description

AIDA implementation for 2 D profiles using ROOT TProfile2D.

Author: M.Frank

Definition at line 27 of file P2D.cpp.

Constructor & Destructor Documentation

Gaudi::Profile2D::Profile2D ( )

inline

Default Constructor.

Definition at line 30 of file P2D.cpp.

                 {
       m_classType = "IProfile2D";
       m_rep = new TProfile2D();
       m_rep->SetErrorOption("s");
       m_rep->SetDirectory(0);
       m_sumEntries = 0;
     }

Gaudi::Profile2D::Profile2D ( TProfile2D * rep )

Default Constructor with representation object.

Definition at line 103 of file P2D.cpp.

                                             {
   m_rep = 0;
   m_classType = "IProfile2D";
   rep->SetDirectory(0);
   adoptRepresentation(rep);
   m_sumEntries = 0;
 }

virtual Gaudi::Profile2D::~Profile2D ( )

inlinevirtual

Destructor.

Definition at line 40 of file P2D.cpp.

40 {}

Member Function Documentation

static const CLID& Gaudi::Profile2D::classID ( )

inlinestatic

Definition at line 48 of file P2D.cpp.

48 { return CLID_ProfileH2; }

virtual const CLID& Gaudi::Profile2D::clID ( ) const

inlinevirtual

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 47 of file P2D.cpp.

47 { return classID(); }

Gaudi::Profile2D::classID

static const CLID & classID()

Definition: P2D.cpp:48

bool Gaudi::Profile2D::fill	(	double	x,
		double	y,
		double	z,
		double	weight
	)

inline

Fill bin content.

Definition at line 42 of file P2D.cpp.

                                                          {
       m_rep->Fill(x,y,z,weight);
       return true;
     }

The documentation for this class was generated from the following file:

GaudiCommonSvc/src/HistogramSvc/P2D.cpp
