Data persistency service interface. More...

#include <GaudiKernel/IPersistencySvc.h>

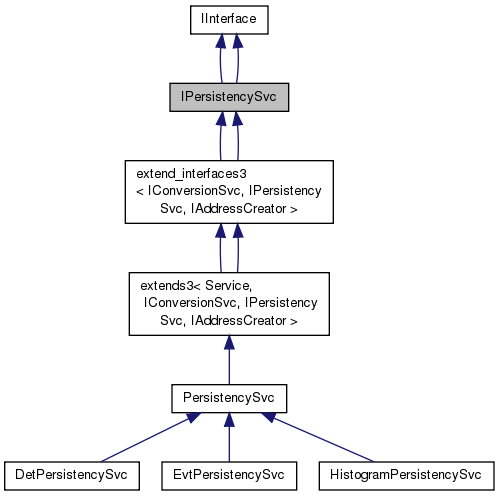

Inheritance diagram for IPersistencySvc:

Collaboration diagram for IPersistencySvc:

Public Member Functions
	DeclareInterfaceID (IPersistencySvc, 2, 0)
	InterfaceID. More...

virtual StatusCode	setDefaultCnvService (long type)=0
	Set default service type. More...

virtual StatusCode	addCnvService (IConversionSvc *service)=0
	Add new Conversion Service. More...

virtual StatusCode	removeCnvService (long type)=0
	Remove Conversion Service. More...

virtual StatusCode	getService (long service_type, IConversionSvc *&refpSvc)=0
	Retrieve conversion service identified by technology. More...

virtual StatusCode	getService (const std::string &service_type, IConversionSvc *&refpSvc)=0
	Retrieve conversion service identified by technology. More...

	DeclareInterfaceID (IPersistencySvc, 2, 0)
	InterfaceID. More...

virtual StatusCode	setDefaultCnvService (long type)=0
	Set default service type. More...

virtual StatusCode	addCnvService (IConversionSvc *service)=0
	Add new Conversion Service. More...

virtual StatusCode	removeCnvService (long type)=0
	Remove Conversion Service. More...

virtual StatusCode	getService (long service_type, IConversionSvc *&refpSvc)=0
	Retrieve conversion service identified by technology. More...

virtual StatusCode	getService (const std::string &service_type, IConversionSvc *&refpSvc)=0
	Retrieve conversion service identified by technology. More...

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...

virtual unsigned long	release ()=0
	Release Interface instance. More...

virtual unsigned long	refCount () const =0
	Current reference count. More...

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...

virtual	~IInterface ()
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR, SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR, SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId< IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

typedef Gaudi::InterfaceId< IInterface, 0, 0 >	iid
	Interface ID. More...

typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

Data persistency service interface.

Author: Markus Frank

Version: 1.0

Definition at line 20 of file IPersistencySvc.h.

Member Function Documentation

virtual StatusCode IPersistencySvc::addCnvService ( IConversionSvc * service )

pure virtual

Add new Conversion Service.

Returns: Status code indicating success or failure.

Parameters

service Pointer to conversion service interface.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::addCnvService ( IConversionSvc * service )

pure virtual

Add new Conversion Service.

Returns: Status code indicating success or failure.

Parameters

service Pointer to conversion service interface.

Implemented in PersistencySvc.

IPersistencySvc::DeclareInterfaceID	(	IPersistencySvc	,
		2	,
		0
	)

InterfaceID.

IPersistencySvc::DeclareInterfaceID	(	IPersistencySvc	,
		2	,
		0
	)

InterfaceID.

virtual StatusCode IPersistencySvc::getService	(	long	service_type,
		IConversionSvc *&	refpSvc
	)

pure virtual

Retrieve conversion service identified by technology.

Returns: Status code indicating success or failure.

Parameters

service_type	Storage technology type.
refpSvc	Reference to pointer to interface of required service.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::getService	(	long	service_type,
		IConversionSvc *&	refpSvc
	)

pure virtual

Retrieve conversion service identified by technology.

Returns: Status code indicating success or failure.

Parameters

service_type	Storage technology type.
refpSvc	Reference to pointer to interface of required service.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::getService	(	const std::string &	service_type,
		IConversionSvc *&	refpSvc
	)

pure virtual

Retrieve conversion service identified by technology.

Returns: Status code indicating success or failure.

Parameters

service_type	Storage technology type (ROOT, MS Access, ....)
refpSvc	Reference to pointer to interface of required service.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::getService	(	const std::string &	service_type,
		IConversionSvc *&	refpSvc
	)

pure virtual

Retrieve conversion service identified by technology.

Returns: Status code indicating success or failure.

Parameters

service_type	Storage technology type (ROOT, MS Access, ....)
refpSvc	Reference to pointer to interface of required service.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::removeCnvService ( long type )

pure virtual

Remove Conversion Service.

Returns: Status code indicating success or failure.

Parameters

type	Storage technology type.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::removeCnvService ( long type )

pure virtual

Remove Conversion Service.

Returns: Status code indicating success or failure.

Parameters

type	Storage technology type.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::setDefaultCnvService ( long type )

pure virtual

Set default service type.

Returns: Status code indicating success or failure.

Parameters

type	Storage technology type.

Implemented in PersistencySvc.

virtual StatusCode IPersistencySvc::setDefaultCnvService ( long type )

pure virtual

Set default service type.

Returns: Status code indicating success or failure.

Parameters

type	Storage technology type.

Implemented in PersistencySvc.

The documentation for this class was generated from the following file:

InstallArea/x86_64-slc6-gcc48-opt/include/GaudiKernel/IPersistencySvc.h
