AlgToolHistory Class Reference

AlgToolHistory class definition. More...

#include </scratch/z5/marcocle/GaudiDocs/lhcb-release/825/GAUDI/GAUDI_v26r3/InstallArea/x86_64-slc6-gcc48-opt/include/GaudiKernel/AlgToolHistory.h>

Inheritance diagram for AlgToolHistory:

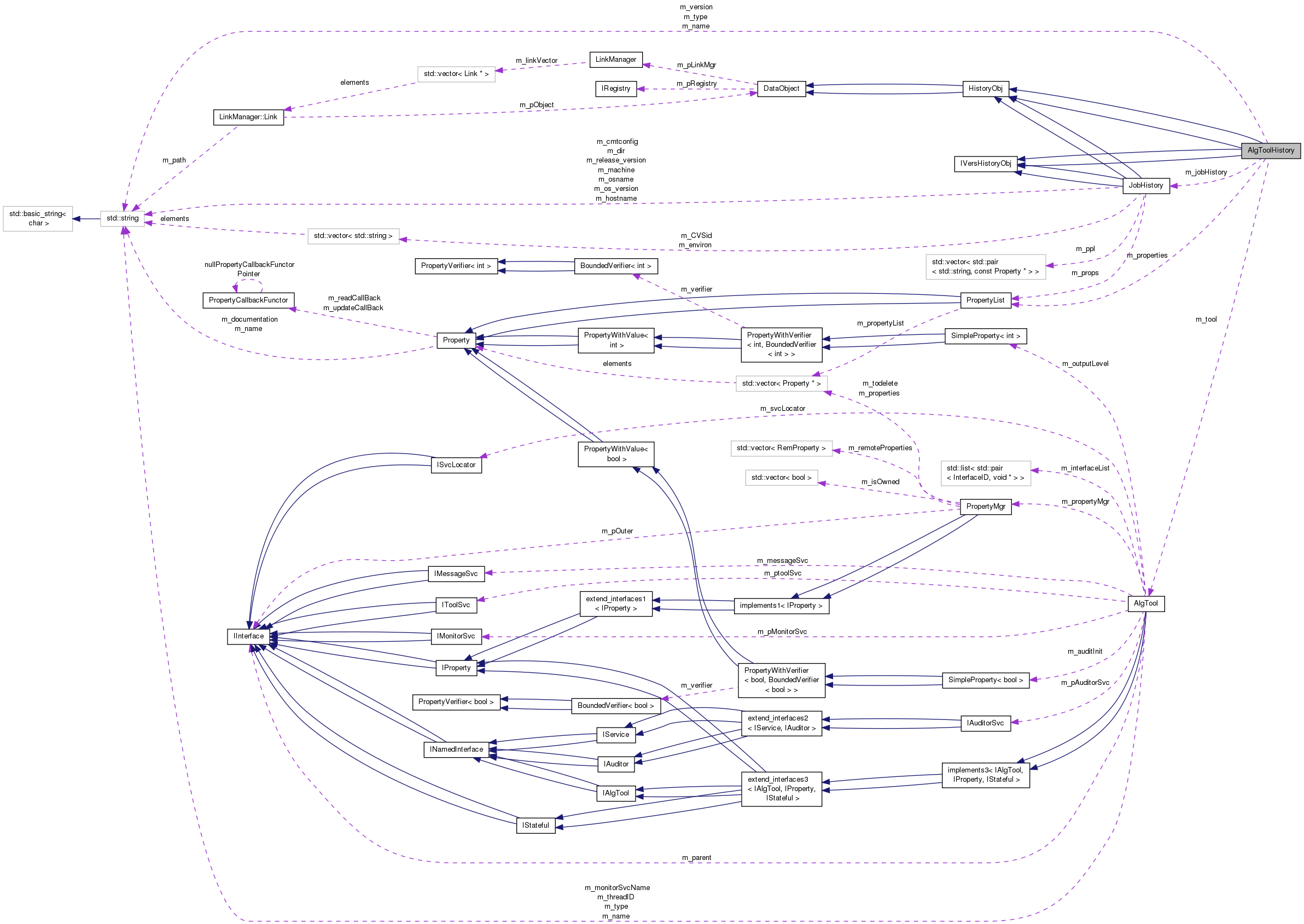

Collaboration diagram for AlgToolHistory:

Public Member Functions
	AlgToolHistory (const AlgTool &alg, const JobHistory *job)
	AlgToolHistory (const std::string &algVersion, const std::string &algName, const std::string &algType, const AlgTool *tool, const PropertyList &props, const JobHistory *job)
virtual	~AlgToolHistory ()
virtual const CLID &	clID () const
	Retrieve reference to class definition structure. More...
const std::string &	algtool_type () const
const std::string &	algtool_version () const
const std::string &	algtool_name () const
const AlgTool *	algtool_instance () const
const PropertyList &	properties () const
const JobHistory *	jobHistory () const
void	dump (std::ostream &, const bool isXML=false, int indent=0) const
const std::string &	name () const
const std::string &	type () const
const std::string &	version () const
	AlgToolHistory (const AlgTool &alg, const JobHistory *job)
	AlgToolHistory (const std::string &algVersion, const std::string &algName, const std::string &algType, const AlgTool *tool, const PropertyList &props, const JobHistory *job)
virtual	~AlgToolHistory ()
virtual const CLID &	clID () const
	Retrieve reference to class definition structure. More...
const std::string &	algtool_type () const
const std::string &	algtool_version () const
const std::string &	algtool_name () const
const AlgTool *	algtool_instance () const
const PropertyList &	properties () const
const JobHistory *	jobHistory () const
void	dump (std::ostream &, const bool isXML=false, int indent=0) const
const std::string &	name () const
const std::string &	type () const
const std::string &	version () const
Public Member Functions inherited from HistoryObj
	HistoryObj ()
virtual	~HistoryObj ()
	HistoryObj ()
virtual	~HistoryObj ()
Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...
	DataObject (const DataObject &)
	Copy Constructor. More...
virtual	~DataObject ()
	Standard Destructor. More...
virtual unsigned long	addRef ()
	Add reference to object. More...
virtual unsigned long	release ()
	release reference to object More...
const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...
virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...
	DataObject ()
	Standard Constructor. More...
	DataObject (const DataObject &)
	Copy Constructor. More...
virtual	~DataObject ()
	Standard Destructor. More...
virtual unsigned long	addRef ()
	Add reference to object. More...
virtual unsigned long	release ()
	release reference to object More...
const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...
virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...
void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...
IRegistry *	registry () const
	Get pointer to Registry. More...
LinkManager *	linkMgr () const
	Retrieve Link manager. More...
unsigned char	version () const
	Retrieve version number of this object representation. More...
void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...
unsigned long	refCount () const
	Return the refcount. More...
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...
void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...
IRegistry *	registry () const
	Get pointer to Registry. More...
LinkManager *	linkMgr () const
	Retrieve Link manager. More...
unsigned char	version () const
	Retrieve version number of this object representation. More...
void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...
unsigned long	refCount () const
	Return the refcount. More...
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...
Public Member Functions inherited from IVersHistoryObj
virtual	~IVersHistoryObj ()
virtual	~IVersHistoryObj ()

Static Public Member Functions
static const CLID &	classID ()
static const CLID &	classID ()
Static Public Member Functions inherited from HistoryObj
static const CLID &	classID ()
static std::string	convert_string (const std::string &)
static const CLID &	classID ()
static std::string	convert_string (const std::string &)
Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Private Attributes
std::string	m_type
std::string	m_version
std::string	m_name
const AlgTool *	m_tool
PropertyList	m_properties
const JobHistory *	m_jobHistory

Additional Inherited Members
Public Types inherited from IVersHistoryObj
typedef std::vector< Property * >	PropertyList
typedef std::vector< Property * >	PropertyList
Protected Member Functions inherited from HistoryObj
virtual void	indent (std::ostream &, int) const
virtual void	indent (std::ostream &, int) const

Detailed Description

AlgToolHistory class definition.

Author

: Charles Leggett

Definition at line 24 of file AlgToolHistory.h.

Constructor & Destructor Documentation

AlgToolHistory::AlgToolHistory	(	const AlgTool &	alg,
		const JobHistory *	job
	)

Definition at line 23 of file AlgToolHistory.cpp.

:
  m_type(alg.type()),
  m_version("UNKNOWN"),
  m_name(alg.name()),
  m_tool( &alg ),
  m_properties(alg.getProperties()),
  m_jobHistory(job)
{
}

AlgToolHistory::AlgToolHistory	(	const std::string &	algVersion,
		const std::string &	algName,
		const std::string &	algType,
		const AlgTool *	tool,
		const PropertyList &	props,
		const JobHistory *	job
	)

Definition at line 36 of file AlgToolHistory.cpp.

                                         :
  m_type(algType),   // FIXME type_info???
  m_version(algVersion),
  m_name(algName),
  m_tool(tool),
  m_properties(props),
  m_jobHistory(job)
{}

virtual AlgToolHistory::~AlgToolHistory ( )

inlinevirtual

Definition at line 58 of file AlgToolHistory.h.

{};

AlgToolHistory::AlgToolHistory	(	const AlgTool &	alg,
		const JobHistory *	job
	)

AlgToolHistory::AlgToolHistory	(	const std::string &	algVersion,
		const std::string &	algName,
		const std::string &	algType,
		const AlgTool *	tool,
		const PropertyList &	props,
		const JobHistory *	job
	)

virtual AlgToolHistory::~AlgToolHistory ( )

inlinevirtual

Definition at line 58 of file AlgToolHistory.h.

{};

Member Function Documentation

const AlgTool* AlgToolHistory::algtool_instance ( ) const

inline

Definition at line 74 of file AlgToolHistory.h.

{ return m_tool; }

const AlgTool* AlgToolHistory::algtool_instance ( ) const

inline

Definition at line 74 of file AlgToolHistory.h.

{ return m_tool; }

const std::string& AlgToolHistory::algtool_name ( ) const

inline

Definition at line 71 of file AlgToolHistory.h.

{ return m_name; }

const std::string& AlgToolHistory::algtool_name ( ) const

inline

Definition at line 71 of file AlgToolHistory.h.

{ return m_name; }

const std::string& AlgToolHistory::algtool_type ( ) const

inline

Definition at line 65 of file AlgToolHistory.h.

{ return m_type; }

const std::string& AlgToolHistory::algtool_type ( ) const

inline

Definition at line 65 of file AlgToolHistory.h.

{ return m_type; }

const std::string& AlgToolHistory::algtool_version ( ) const

inline

Definition at line 68 of file AlgToolHistory.h.

{ return m_version; }

const std::string& AlgToolHistory::algtool_version ( ) const

inline

Definition at line 68 of file AlgToolHistory.h.

{ return m_version; }

const CLID & AlgToolHistory::classID ( )

static

Definition at line 52 of file AlgToolHistory.cpp.

                                    {

  static CLID CLID_AlgToolHistory = 171959758;   // from `clid AlgToolHistory`
  return CLID_AlgToolHistory;

}

static const CLID& AlgToolHistory::classID ( )

static

virtual const CLID& AlgToolHistory::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Retrieve Pointer to class definition structure.

Reimplemented from HistoryObj.

Definition at line 61 of file AlgToolHistory.h.

{ return classID(); }

virtual const CLID& AlgToolHistory::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Retrieve Pointer to class definition structure.

Reimplemented from HistoryObj.

Definition at line 61 of file AlgToolHistory.h.

{ return classID(); }

void AlgToolHistory::dump ( std::ostream &  ost, const bool  isXML = false, int  indent = 0  ) const

virtual

Implements HistoryObj.

Definition at line 62 of file AlgToolHistory.cpp.

                                                                     {

  if (!isXML) {

    ost << "Name: " << algtool_name() << endl;
    ost << "Type: " << algtool_type() << endl;
    ost << "Version: " << algtool_version() << endl;
    ost << "Parent: " << algtool_instance()->name() << endl;

    //Properties
    ost << "Properties: [" << endl;

    for ( AlgToolHistory::PropertyList::const_iterator
        ipprop=properties().begin();
      ipprop!=properties().end(); ++ipprop ) {
      const Property& prop = **ipprop;
      prop.fillStream(ost);
      ost << endl;
    }
    ost << "]" << endl;

  } else {

    ind += 2;
    indent(ost,ind);
    ost << "<COMPONENT name=\"" << algtool_name()
    << "\" class=\"" << convert_string(algtool_type())
    << "\" version=\"" << convert_string(algtool_version())
    << "\" parent=\"" << convert_string(algtool_instance()->name())
    << "\">" << endl;

    for ( AlgToolHistory::PropertyList::const_iterator
        ipprop=properties().begin();
      ipprop!=properties().end(); ++ipprop ) {
      const Property& prop = **ipprop;

      indent(ost,ind+2);
      ost << "<PROPERTY name=\"" << prop.name()
      << "\" value=\"" << convert_string(prop.toString())
      << "\" documentation=\"" << convert_string(prop.documentation())
      << "\">" << endl;
    }

    indent(ost,ind);
    ost << "</COMPONENT>" << endl;

  }

}

void AlgToolHistory::dump ( std::ostream &  , const bool  isXML = false, int  indent = 0  ) const

virtual

Implements HistoryObj.

const JobHistory* AlgToolHistory::jobHistory ( ) const

inline

Definition at line 80 of file AlgToolHistory.h.

{ return m_jobHistory; }

const JobHistory* AlgToolHistory::jobHistory ( ) const

inline

Definition at line 80 of file AlgToolHistory.h.

{ return m_jobHistory; }

const std::string& AlgToolHistory::name ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 84 of file AlgToolHistory.h.

{ return algtool_name(); }

const std::string& AlgToolHistory::name ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 84 of file AlgToolHistory.h.

{ return algtool_name(); }

const PropertyList& AlgToolHistory::properties ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 77 of file AlgToolHistory.h.

{ return m_properties; }

const PropertyList& AlgToolHistory::properties ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 77 of file AlgToolHistory.h.

{ return m_properties; }

const std::string& AlgToolHistory::type ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 85 of file AlgToolHistory.h.

{ return algtool_type(); }

const std::string& AlgToolHistory::type ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 85 of file AlgToolHistory.h.

{ return algtool_type(); }

const std::string& AlgToolHistory::version ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 86 of file AlgToolHistory.h.

{ return algtool_version(); }

const std::string& AlgToolHistory::version ( ) const

inlinevirtual

Implements IVersHistoryObj.

Definition at line 86 of file AlgToolHistory.h.

{ return algtool_version(); }

Member Data Documentation

const JobHistory * AlgToolHistory::m_jobHistory

private

Definition at line 44 of file AlgToolHistory.h.

std::string AlgToolHistory::m_name

private

Definition at line 35 of file AlgToolHistory.h.

PropertyList AlgToolHistory::m_properties

private

Definition at line 41 of file AlgToolHistory.h.

const AlgTool * AlgToolHistory::m_tool

private

Definition at line 38 of file AlgToolHistory.h.

std::string AlgToolHistory::m_type

private

Definition at line 29 of file AlgToolHistory.h.

std::string AlgToolHistory::m_version

private

Definition at line 32 of file AlgToolHistory.h.

---

The documentation for this class was generated from the following files:

• InstallArea/x86_64-slc6-gcc48-opt/include/GaudiKernel/AlgToolHistory.h
• GaudiKernel/src/Lib/AlgToolHistory.cpp
