Google::AuditorBase Class Reference

Base for Google Auditors. More...

#include <GoogleAuditor.cpp>

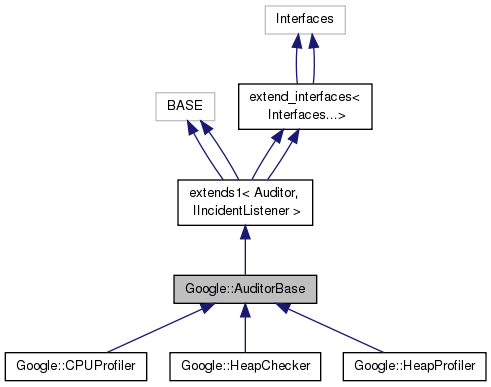

Inheritance diagram for Google::AuditorBase:

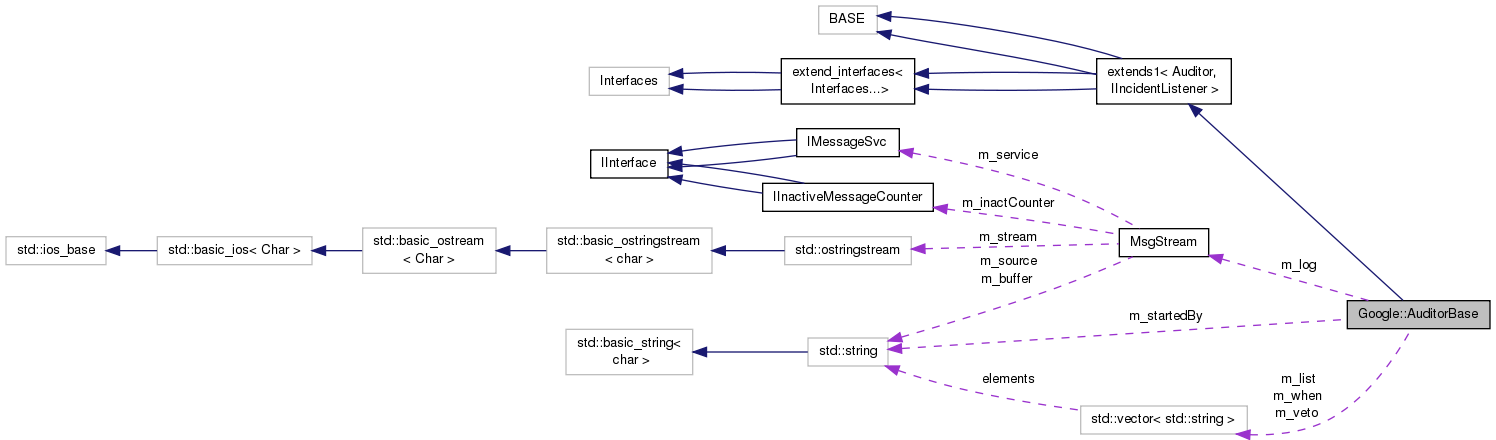

Collaboration diagram for Google::AuditorBase:

Public Member Functions
	AuditorBase (const std::string &name, ISvcLocator *pSvcLocator)
	Constructor. More...
virtual	~AuditorBase ()
	Destructor. More...
StatusCode	initialize ()
	Initialize the auditor base. More...
StatusCode	finalize ()
	Finalize the auditor base. More...
void	handle (const Incident &incident)
	Implement the handle method for the Incident service. More...
void	before (StandardEventType type, INamedInterface *i)
void	before (CustomEventTypeRef type, INamedInterface *i)
void	before (StandardEventType type, const std::string &s)
void	before (CustomEventTypeRef type, const std::string &s)
void	after (StandardEventType type, INamedInterface *i, const StatusCode &sc)
void	after (CustomEventTypeRef type, INamedInterface *i, const StatusCode &sc)
void	after (StandardEventType type, const std::string &s, const StatusCode &sc)
void	after (CustomEventTypeRef type, const std::string &s, const StatusCode &)
void	beforeInitialize (INamedInterface *i)
void	beforeReinitialize (INamedInterface *i)
void	beforeExecute (INamedInterface *i)
void	beforeBeginRun (INamedInterface *i)
void	beforeEndRun (INamedInterface *i)
void	beforeFinalize (INamedInterface *i)
void	afterInitialize (INamedInterface *i)
void	afterReinitialize (INamedInterface *i)
void	afterExecute (INamedInterface *i, const StatusCode &s)
void	afterBeginRun (INamedInterface *i)
void	afterEndRun (INamedInterface *i)
void	afterFinalize (INamedInterface *i)
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Protected Member Functions
virtual void	google_before (const std::string &s)=0
	Start the google tool. More...
virtual void	google_after (const std::string &s)=0
	stop the google tool More...
virtual bool	alreadyRunning ()=0
	check if we are already running the tool More...

Protected Attributes
MsgStream	m_log
	Messaging object. More...

Private Member Functions
void	startAudit ()
	Start a full event audit. More...
void	stopAudit ()
	stop a full event audit More...
bool	isSequencer (INamedInterface *i) const
	Check if the component in question is a GaudiSequencer or a Sequencer. More...
bool	isPhaseEnabled (const CustomEventTypeRef &type) const
	Check if auditing is enabled for the current processing phase. More...
bool	isComponentEnabled (const std::string &name) const
	Check if auditing is enabled for the given component. More...
std::string	getDumpName (const CustomEventTypeRef &type, const std::string &name) const

Private Attributes
std::vector< std::string >	m_when
	When to audit the algorithms. More...
std::vector< std::string >	m_veto
	Veto list. Any component in this list will not be audited. More...
std::vector< std::string >	m_list
	Any component in this list will be audited. If empty, all will be done. More...
unsigned long long	m_eventsToSkip
	Number of events to skip before auditing. More...
bool	m_skipSequencers
	Boolean indicating if sequencers should be skipped or not. More...
int	m_freq
	The frequency to audit events. -1 means all events. More...
bool	m_audit
	Internal flag to say if auditing is enabled or not for the current event. More...
unsigned long long	m_nEvts
	Number of events processed. More...
bool	m_fullEventAudit
	Flag to indicate if full event auditing is enabled or not. More...
unsigned long long	m_nSampleEvents
	Number of events to include in a full event audit. More...
unsigned long long	m_sampleEventCount
	Internal count of the number of events currently processed during an audit. More...
bool	m_inFullAudit
	Internal flag to indicate if we are current in a full event audit. More...
std::string	m_startedBy
	Name of the component we are currently auditing. More...

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
typedef extends	base_class
	Typedef to this class. More...
typedef extend_interfaces< Interfaces...>	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extends	base_class
	Typedef to this class. More...
typedef extend_interfaces< Interfaces...>	extend_interfaces_base
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Base for Google Auditors.

Author

Chris Jones

Date

18/04/2011

Definition at line 40 of file GoogleAuditor.cpp.

Constructor & Destructor Documentation

Google::AuditorBase::AuditorBase	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Constructor.

Definition at line 312 of file GoogleAuditor.cpp.

    : base_class ( name , pSvcLocator )
    , m_log      ( msgSvc() , name )
    , m_audit    ( true )
    , m_nEvts    ( 0 )
    , m_sampleEventCount( 0 )
    , m_inFullAudit ( false )
  {
    {
      // Note: 'tmp' is needed to avoid an issue with list_of and C++11.
      const std::vector<std::string> tmp =
        boost::assign::list_of
          ("Initialize")
          ("ReInitialize")
          ("Execute")
          ("BeginRun")
          ("EndRun")
          ("Finalize");
      m_when = tmp;
    }

    declareProperty("ActivateAt", m_when,
                    "List of phases to activate the Auditoring during" );
    declareProperty("DisableFor", m_veto,
                    "List of component names to disable the auditing for" );
    declareProperty("EnableFor", m_list );
    declareProperty("ProfileFreq", m_freq = -1,
                    "The frequence to audit events. -1 means all events" );
    declareProperty("DoFullEventProfile", m_fullEventAudit = false,
                    "If true, instead of individually auditing components, the full event (or events) will be audited in one go" );
    declareProperty("FullEventNSampleEvents", m_nSampleEvents = 1,
                    "The number of events to include in a full event audit, if enabled" );
    declareProperty("SkipEvents", m_eventsToSkip = 0,
                    "Number of events to skip before activating the auditing" );
    declareProperty("SkipSequencers", m_skipSequencers = true,
                    "If true, auditing will be skipped for Sequencer objects." );
  }

virtual Google::AuditorBase::~AuditorBase ( )

inlinevirtual

Destructor.

Definition at line 49 of file GoogleAuditor.cpp.

{  }

Member Function Documentation

void Google::AuditorBase::after ( StandardEventType  type, INamedInterface *  i, const StatusCode &  sc  )

inline

Definition at line 220 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        std::ostringstream t;
        t << type;
        after( t.str(), i, sc );
      }
    }

void Google::AuditorBase::after ( CustomEventTypeRef  type, INamedInterface *  i, const StatusCode &  sc  )

inline

Definition at line 230 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        after( type, i->name(), sc );
      }
    }

void Google::AuditorBase::after ( StandardEventType  type, const std::string &  s, const StatusCode &  sc  )

inline

Definition at line 238 of file GoogleAuditor.cpp.

    {
      std::ostringstream t;
      t << type;
      after( t.str(), s, sc );
    }

void Google::AuditorBase::after ( CustomEventTypeRef  type, const std::string &  s, const StatusCode &    )

inline

Definition at line 245 of file GoogleAuditor.cpp.

    {
      if ( !m_fullEventAudit && m_audit &&
           isPhaseEnabled(type) && isComponentEnabled(s) )
      {
        if ( s == m_startedBy ) { google_after( getDumpName(type,s) ); }
      }
    }

void Google::AuditorBase::afterBeginRun ( INamedInterface *  i )

inline

Definition at line 265 of file GoogleAuditor.cpp.

{ return after(IAuditor::BeginRun,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterEndRun ( INamedInterface *  i )

inline

Definition at line 266 of file GoogleAuditor.cpp.

{ return after(IAuditor::EndRun,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterExecute ( INamedInterface *  i, const StatusCode &  s  )

inline

Definition at line 264 of file GoogleAuditor.cpp.

{ return after(IAuditor::Execute,i,s); }

void Google::AuditorBase::afterFinalize ( INamedInterface *  i )

inline

Definition at line 267 of file GoogleAuditor.cpp.

{ return after(IAuditor::Finalize,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterInitialize ( INamedInterface *  i )

inline

Definition at line 262 of file GoogleAuditor.cpp.

{ return after(IAuditor::Initialize,i,StatusCode::SUCCESS); }

void Google::AuditorBase::afterReinitialize ( INamedInterface *  i )

inline

Definition at line 263 of file GoogleAuditor.cpp.

{ return after(IAuditor::ReInitialize,i,StatusCode::SUCCESS); }

virtual bool Google::AuditorBase::alreadyRunning ( )

protectedpure virtual

check if we are already running the tool

Implemented in Google::CPUProfiler, Google::HeapChecker, and Google::HeapProfiler.

void Google::AuditorBase::before ( StandardEventType  type, INamedInterface *  i  )

inline

Definition at line 175 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        before( type, i->name() );
      }
    }

void Google::AuditorBase::before ( CustomEventTypeRef  type, INamedInterface *  i  )

inline

Definition at line 183 of file GoogleAuditor.cpp.

    {
      if ( !m_skipSequencers || !isSequencer(i) )
      {
        before( type, i->name() );
      }
    }

void Google::AuditorBase::before ( StandardEventType  type, const std::string &  s  )

inline

Definition at line 191 of file GoogleAuditor.cpp.

    {
      std::ostringstream t;
      t << type;
      before( t.str(), s );
    }

void Google::AuditorBase::before ( CustomEventTypeRef  type, const std::string &  s  )

inline

Definition at line 198 of file GoogleAuditor.cpp.

    {
      if ( !m_fullEventAudit && m_audit &&
           isPhaseEnabled(type) && isComponentEnabled(s) )
      {
        if ( !alreadyRunning() )
        {
          m_log << MSG::INFO
                << "Starting Auditor for " << s << ":" << type
                << endmsg;
          m_startedBy = s;
          google_before( getDumpName(type,s) );
        }
        else
        {
          m_log << MSG::WARNING
                << "Auditor already running. Cannot be started for " << s
                << endmsg;
        }
      }
    }

void Google::AuditorBase::beforeBeginRun ( INamedInterface *  i )

inline

Definition at line 258 of file GoogleAuditor.cpp.

{ return before(IAuditor::BeginRun,i);     }

void Google::AuditorBase::beforeEndRun ( INamedInterface *  i )

inline

Definition at line 259 of file GoogleAuditor.cpp.

{ return before(IAuditor::EndRun,i);       }

void Google::AuditorBase::beforeExecute ( INamedInterface *  i )

inline

Definition at line 257 of file GoogleAuditor.cpp.

{ return before(IAuditor::Execute,i);      }

void Google::AuditorBase::beforeFinalize ( INamedInterface *  i )

inline

Definition at line 260 of file GoogleAuditor.cpp.

{ return before(IAuditor::Finalize,i);     }

void Google::AuditorBase::beforeInitialize ( INamedInterface *  i )

inline

Definition at line 255 of file GoogleAuditor.cpp.

{ return before(IAuditor::Initialize,i);   }

void Google::AuditorBase::beforeReinitialize ( INamedInterface *  i )

inline

Definition at line 256 of file GoogleAuditor.cpp.

{ return before(IAuditor::ReInitialize,i); }

StatusCode Google::AuditorBase::finalize ( )

inline

Finalize the auditor base.

Definition at line 70 of file GoogleAuditor.cpp.

    {
      if ( alreadyRunning() ) stopAudit();
      return StatusCode::SUCCESS;
    }

std::string Google::AuditorBase::getDumpName ( const CustomEventTypeRef &  type, const std::string &  name  ) const

inlineprivate

Definition at line 124 of file GoogleAuditor.cpp.

    {
      std::ostringstream t;
      t << name << "-" << type;
      if ( type == "Execute" ) t << "-Event" << m_nEvts;
      return t.str();
    }

virtual void Google::AuditorBase::google_after ( const std::string &  s )

protectedpure virtual

stop the google tool

Implemented in Google::CPUProfiler, Google::HeapChecker, and Google::HeapProfiler.

virtual void Google::AuditorBase::google_before ( const std::string &  s )

protectedpure virtual

Start the google tool.

Implemented in Google::CPUProfiler, Google::HeapChecker, and Google::HeapProfiler.

void Google::AuditorBase::handle ( const Incident &  incident )

inline

Implement the handle method for the Incident service.

This is used to inform the tool of software incidents.

Parameters

incident

The incident identifier

Definition at line 140 of file GoogleAuditor.cpp.

    {
      if ( IncidentType::BeginEvent == incident.type() )
      {
        ++m_nEvts;
        m_audit = ( m_nEvts > m_eventsToSkip &&
                    ( m_freq < 0            ||
                      m_nEvts == 1          ||
                      m_nEvts % m_freq == 0  ) );
        m_log << MSG::DEBUG << "Event " << m_nEvts
              << " Audit=" << m_audit << endmsg;
        if ( m_fullEventAudit )
        {
          if ( m_inFullAudit )
          {
            if ( m_sampleEventCount >= m_nSampleEvents &&
                 alreadyRunning() )
            {
              stopAudit();
            }
            else
            {
              ++m_sampleEventCount;
            }
          }
          if ( m_audit && !m_inFullAudit && !alreadyRunning() )
          {
            startAudit();
          }
        }
      }
    }

StatusCode Google::AuditorBase::initialize ( )

inline

Initialize the auditor base.

Definition at line 52 of file GoogleAuditor.cpp.

    {
      m_log << MSG::INFO << "Initialised" << endmsg;

      // add a listener for begin event
      auto inSvc = serviceLocator()->service<IIncidentSvc>("IncidentSvc");
      if ( !inSvc ) return StatusCode::FAILURE;
      inSvc->addListener( this, IncidentType::BeginEvent );

      // sort various lists for speed when searching
      std::sort( m_when.begin(), m_when.end() );
      std::sort( m_veto.begin(), m_veto.end() );
      std::sort( m_list.begin(), m_list.end() );

      return StatusCode::SUCCESS;
    }

bool Google::AuditorBase::isComponentEnabled ( const std::string &  name ) const

inlineprivate

Check if auditing is enabled for the given component.

Definition at line 116 of file GoogleAuditor.cpp.

    {
      return ( std::find(m_veto.begin(),m_veto.end(),name) == m_veto.end() &&
               ( m_list.empty() ||
                 std::find(m_list.begin(),m_list.end(),name) != m_list.end() ) );
    }

bool Google::AuditorBase::isPhaseEnabled ( const CustomEventTypeRef &  type ) const

inlineprivate

Check if auditing is enabled for the current processing phase.

Definition at line 110 of file GoogleAuditor.cpp.

    {
      return ( std::find(m_when.begin(),m_when.end(),type) != m_when.end() );
    }

bool Google::AuditorBase::isSequencer ( INamedInterface *  i ) const

inlineprivate

Check if the component in question is a GaudiSequencer or a Sequencer.

Definition at line 103 of file GoogleAuditor.cpp.

    {
      return ( dynamic_cast<GaudiSequencer*>(i) != NULL ||
               dynamic_cast<Sequencer*>(i)      != NULL );
    }

void Google::AuditorBase::startAudit ( )

inlineprivate

Start a full event audit.

Definition at line 79 of file GoogleAuditor.cpp.

    {
      m_log << MSG::INFO << " -> Starting full audit from event " << m_nEvts << " to "
            << m_nEvts+m_nSampleEvents << endmsg;
      m_inFullAudit = true;
      m_sampleEventCount = 1;
      std::ostringstream t;
      t << "FULL-Events" << m_nEvts << "To" << m_nEvts+m_nSampleEvents ;
      google_before(t.str());
    }

void Google::AuditorBase::stopAudit ( )

inlineprivate

stop a full event audit

Definition at line 91 of file GoogleAuditor.cpp.

    {
      m_log << MSG::INFO << " -> Stopping full audit" << endmsg;
      std::ostringstream t;
      t << "FULL-Events" << m_nEvts << "To" << m_nEvts+m_nSampleEvents ;
      google_after(t.str());
      m_inFullAudit = false;
      m_sampleEventCount = 0;
    }

Member Data Documentation

bool Google::AuditorBase::m_audit

private

Internal flag to say if auditing is enabled or not for the current event.

Definition at line 296 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_eventsToSkip

private

Number of events to skip before auditing.

Definition at line 290 of file GoogleAuditor.cpp.

int Google::AuditorBase::m_freq

private

The frequency to audit events. -1 means all events.

Definition at line 294 of file GoogleAuditor.cpp.

bool Google::AuditorBase::m_fullEventAudit

private

Flag to indicate if full event auditing is enabled or not.

Definition at line 300 of file GoogleAuditor.cpp.

bool Google::AuditorBase::m_inFullAudit

private

Internal flag to indicate if we are current in a full event audit.

Definition at line 306 of file GoogleAuditor.cpp.

std::vector<std::string> Google::AuditorBase::m_list

private

Any component in this list will be audited. If empty, all will be done.

Definition at line 288 of file GoogleAuditor.cpp.

MsgStream Google::AuditorBase::m_log

mutableprotected

Messaging object.

Definition at line 282 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_nEvts

private

Number of events processed.

Definition at line 298 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_nSampleEvents

private

Number of events to include in a full event audit.

Definition at line 302 of file GoogleAuditor.cpp.

unsigned long long Google::AuditorBase::m_sampleEventCount

private

Internal count of the number of events currently processed during an audit.

Definition at line 304 of file GoogleAuditor.cpp.

bool Google::AuditorBase::m_skipSequencers

private

Boolean indicating if sequencers should be skipped or not.

Definition at line 292 of file GoogleAuditor.cpp.

std::string Google::AuditorBase::m_startedBy

private

Name of the component we are currently auditing.

Definition at line 308 of file GoogleAuditor.cpp.

std::vector<std::string> Google::AuditorBase::m_veto

private

Veto list. Any component in this list will not be audited.

Definition at line 287 of file GoogleAuditor.cpp.

std::vector<std::string> Google::AuditorBase::m_when

private

When to audit the algorithms.

Definition at line 286 of file GoogleAuditor.cpp.

---

The documentation for this class was generated from the following file:

• GaudiProfiling/src/component/google/GoogleAuditor.cpp
