A LinkManager is the object aggregated into a DataObject, which is responsible for the handling of non-tree like links. More...

#include <GaudiKernel/LinkManager.h>

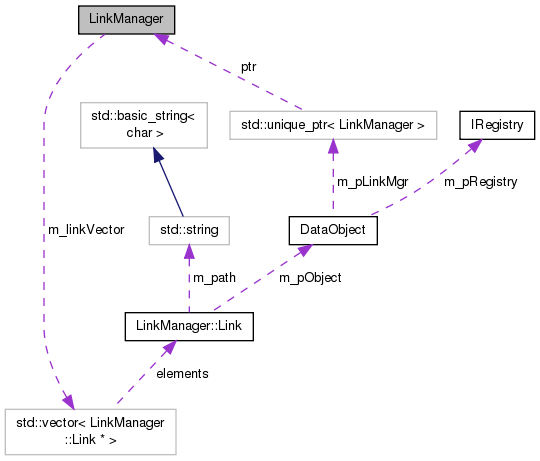

Collaboration diagram for LinkManager:

[legend]

Classes
class	Link
	Embedded class defining a symbolic link Note: No copy constructor; bitwise copy (done by the compiler) is just fine. More...

Public Types
enum	DirLinkType { INVALID, VALID, INVALID, VALID }
	Directory link types. More...

enum	DirLinkType { INVALID, VALID, INVALID, VALID }
	Directory link types. More...

Public Member Functions
	LinkManager ()=default
	Standard Constructor. More...

virtual	~LinkManager ()
	Standard Destructor. More...

long	size () const
	Retrieve number of link present. More...

bool	empty () const

Link *	link (long id)
	Retrieve symbolic link identified by ID. More...

Link *	link (const DataObject *pObject)
	Retrieve symbolic link identified by object. More...

Link *	link (const std::string &path)
	Retrieve symbolic link identified by path. More...

long	addLink (const std::string &path, const DataObject *pObject) const
	Add link by object reference and path. More...

long	removeLink (const DataObject *pObject) const
	Remove link by object reference. More...

long	removeLink (const std::string &fullPath) const
	Remove link by object reference. More...

long	removeLink (long id) const
	Remove link by link ID. More...

void	clearLinks ()
	Remove all possibly existing symbolic links. More...

	LinkManager ()=default
	Standard Constructor. More...

virtual	~LinkManager ()
	Standard Destructor. More...

long	size () const
	Retrieve number of link present. More...

bool	empty () const

Link *	link (long id)
	Retrieve symbolic link identified by ID. More...

Link *	link (const DataObject *pObject)
	Retrieve symbolic link identified by object. More...

Link *	link (const std::string &path)
	Retrieve symbolic link identified by path. More...

long	addLink (const std::string &path, const DataObject *pObject) const
	Add link by object reference and path. More...

long	removeLink (const DataObject *pObject) const
	Remove link by object reference. More...

long	removeLink (const std::string &fullPath) const
	Remove link by object reference. More...

long	removeLink (long id) const
	Remove link by link ID. More...

void	clearLinks ()
	Remove all possibly existing symbolic links. More...

Static Public Member Functions
static LinkManager *	newInstance ()
	Static instantiation. More...

static void	setInstantiator (LinkManager (newInstance)())
	Assign new instantiator. More...

static LinkManager *	newInstance ()
	Static instantiation. More...

static void	setInstantiator (LinkManager (newInstance)())
	Assign new instantiator. More...

Private Attributes
std::vector< Link * >	m_linkVector
	@ TODO: replace by std::vector<std::unique_ptr<Link>> once ROOT does 'automatic' schema conversion from T* to std::unique_ptr<T>... More...

Friends
class	MergeEventAlg
	@ TODO: provide interface to let MergeEvntAlg do its thing More...

Detailed Description

A LinkManager is the object aggregated into a DataObject, which is responsible for the handling of non-tree like links.

Author: M.Frank

Definition at line 21 of file LinkManager.h.

Member Enumeration Documentation

enum LinkManager::DirLinkType

Directory link types.

Enumerator
INVALID
VALID
INVALID
VALID

Definition at line 25 of file LinkManager.h.

25 {INVALID, VALID};

LinkManager::VALID

Definition: LinkManager.h:25

LinkManager::INVALID

Definition: LinkManager.h:25

enum LinkManager::DirLinkType

Directory link types.

Enumerator
INVALID
VALID
INVALID
VALID

Definition at line 25 of file LinkManager.h.

25 {INVALID, VALID};

LinkManager::VALID

Definition: LinkManager.h:25

LinkManager::INVALID

Definition: LinkManager.h:25

Constructor & Destructor Documentation

LinkManager::LinkManager ( )

default

Standard Constructor.

LinkManager::~LinkManager ( )

virtual

Standard Destructor.

destructor

Definition at line 9 of file LinkManager.cpp.

                           {
   for (auto& i : m_linkVector) delete i;
 }

LinkManager::LinkManager ( )

default

Standard Constructor.

virtual LinkManager::~LinkManager ( )

virtual

Standard Destructor.

Member Function Documentation

long LinkManager::addLink	(	const std::string &	path,
		const DataObject *	pObject
	)		const

Add link by object reference and path.

Add link by object reference and path string.

Definition at line 58 of file LinkManager.cpp.

                                                                                     {
   long n = 0;
   for ( auto& lnk : m_linkVector ) {
     const DataObject* pO = lnk->object();
     if ( pO && pO == pObject )  return n;
     if ( lnk->path() == path ) {
       if ( pObject && pObject != pO )  {
         lnk->setObject(const_cast<DataObject*>(pObject));
       }
       return n;
     }
     ++n;
   }
   // Link is completely unknown
   m_linkVector.emplace_back( new Link(m_linkVector.size(), path, const_cast<DataObject*>(pObject)) );
   return m_linkVector.back()->ID();
 }

long LinkManager::addLink	(	const std::string &	path,
		const DataObject *	pObject
	)		const

Add link by object reference and path.

void LinkManager::clearLinks ( )

Remove all possibly existing symbolic links.

Definition at line 113 of file LinkManager.cpp.

                               {
   for (auto& i : m_linkVector) delete i;
   m_linkVector.clear();
 }

void LinkManager::clearLinks ( )

Remove all possibly existing symbolic links.

bool LinkManager::empty ( ) const

inline

Definition at line 113 of file LinkManager.h.

113 { return m_linkVector.empty(); }

LinkManager::m_linkVector

std::vector< Link * > m_linkVector

@ TODO: replace by std::vector> once ROOT does 'automatic' schema conversion fr...

Definition: LinkManager.h:100

bool LinkManager::empty ( ) const

inline

Definition at line 113 of file LinkManager.h.

113 { return m_linkVector.empty(); }

LinkManager::m_linkVector

std::vector< Link * > m_linkVector

@ TODO: replace by std::vector> once ROOT does 'automatic' schema conversion fr...

Definition: LinkManager.h:100

LinkManager::Link * LinkManager::link ( long id )

Retrieve symbolic link identified by ID.

Definition at line 33 of file LinkManager.cpp.

                                              {
   return (0<=id && (unsigned)id < m_linkVector.size()) ? m_linkVector[id] : nullptr;
 }

Link* LinkManager::link ( long id )

Retrieve symbolic link identified by ID.

Link* LinkManager::link ( const DataObject * pObject )

Retrieve symbolic link identified by object.

LinkManager::Link * LinkManager::link ( const DataObject * pObject )

Retrieve symbolic link identified by object.

Retrieve symbolic link identified by Object pointer.

Definition at line 38 of file LinkManager.cpp.

                                                              {
   if ( pObject )   {
     for ( auto& i : m_linkVector ) {
       if ( i->object() == pObject ) return i;
     }
   }
   return nullptr;
 }

Link* LinkManager::link ( const std::string & path )

Retrieve symbolic link identified by path.

LinkManager::Link * LinkManager::link ( const std::string & path )

Retrieve symbolic link identified by path.

Retrieve symbolic link identified by Object path.

Definition at line 48 of file LinkManager.cpp.

                                                          {
   if ( 0 != path.length() )   {
     for ( auto & i : m_linkVector ) {
       if ( i->path() == path )    return i;
     }
   }
   return nullptr;
 }

LinkManager * LinkManager::newInstance ( )

static

Static instantiation.

Definition at line 28 of file LinkManager.cpp.

                                        {
   return s_newInstance ? (*s_newInstance)() : new LinkManager();
 }

static LinkManager* LinkManager::newInstance ( )

static

Static instantiation.

long LinkManager::removeLink ( const DataObject * pObject ) const

Remove link by object reference.

Definition at line 77 of file LinkManager.cpp.

                                                               {
   long n = 0;
   for ( auto i = m_linkVector.begin(); i != m_linkVector.end(); i++ )   {
     if ( (*i)->object() == pObject )    {
       delete *i;
       m_linkVector.erase(i);
       return n;
     }
     ++n;
   }
   return INVALID;
 }

long LinkManager::removeLink ( const DataObject * pObject ) const

Remove link by object reference.

long LinkManager::removeLink ( const std::string & fullPath ) const

Remove link by object reference.

Definition at line 91 of file LinkManager.cpp.

                                                           {
   long n = 0;
   for ( auto i = m_linkVector.begin(); i != m_linkVector.end(); i++ )   {
     if ( (*i)->path() == path )    {
       delete *i;
       m_linkVector.erase(i);
       return n;
     }
     n++;
   }
   return INVALID;
 }

long LinkManager::removeLink ( const std::string & fullPath ) const

Remove link by object reference.

long LinkManager::removeLink ( long id ) const

Remove link by link ID.

Definition at line 105 of file LinkManager.cpp.

                                             {
   auto i = std::next(m_linkVector.begin(), id );
   delete *i;
   m_linkVector.erase(i);
   return id;
 }

long LinkManager::removeLink ( long id ) const

Remove link by link ID.

void LinkManager::setInstantiator ( LinkManager *(*)() newInstance )

static

Assign new instantiator.

Definition at line 23 of file LinkManager.cpp.

                                                                  {
   s_newInstance = newInstance;
 }

static void LinkManager::setInstantiator ( LinkManager *(*)() newInstance )

static

Assign new instantiator.

long LinkManager::size ( ) const

inline

Retrieve number of link present.

Definition at line 112 of file LinkManager.h.

112 { return m_linkVector.size(); }

LinkManager::m_linkVector

std::vector< Link * > m_linkVector

@ TODO: replace by std::vector> once ROOT does 'automatic' schema conversion fr...

Definition: LinkManager.h:100

long LinkManager::size ( ) const

inline

Retrieve number of link present.

Definition at line 112 of file LinkManager.h.

112 { return m_linkVector.size(); }

LinkManager::m_linkVector

std::vector< Link * > m_linkVector

@ TODO: replace by std::vector> once ROOT does 'automatic' schema conversion fr...

Definition: LinkManager.h:100

Friends And Related Function Documentation

MergeEventAlg

friend

@ TODO: provide interface to let MergeEvntAlg do its thing

Definition at line 91 of file LinkManager.h.

Member Data Documentation

std::vector< Link * > LinkManager::m_linkVector

mutableprivate

@ TODO: replace by std::vector<std::unique_ptr<Link>> once ROOT does 'automatic' schema conversion from T* to std::unique_ptr<T>...

Or, even better, just std::vector<Link>, given that Link is barely larger than a pointer (40 vs. 8 bytes) – but that requires more invasive schema evolution.

The vector containing all links which are non-tree like

Definition at line 100 of file LinkManager.h.

The documentation for this class was generated from the following files:

InstallArea/x86_64-slc6-gcc48-opt/include/GaudiKernel/LinkManager.h
GaudiKernel/src/Lib/LinkManager.cpp
