Gaudi::Generic2D< INTERFACE, IMPLEMENTATION > Class Template Reference

Common AIDA implementation stuff for histograms and profiles using ROOT implementations. More...

#include <GaudiPI/Generic2D.h>

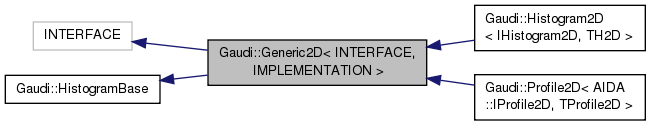

Inheritance diagram for Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >:

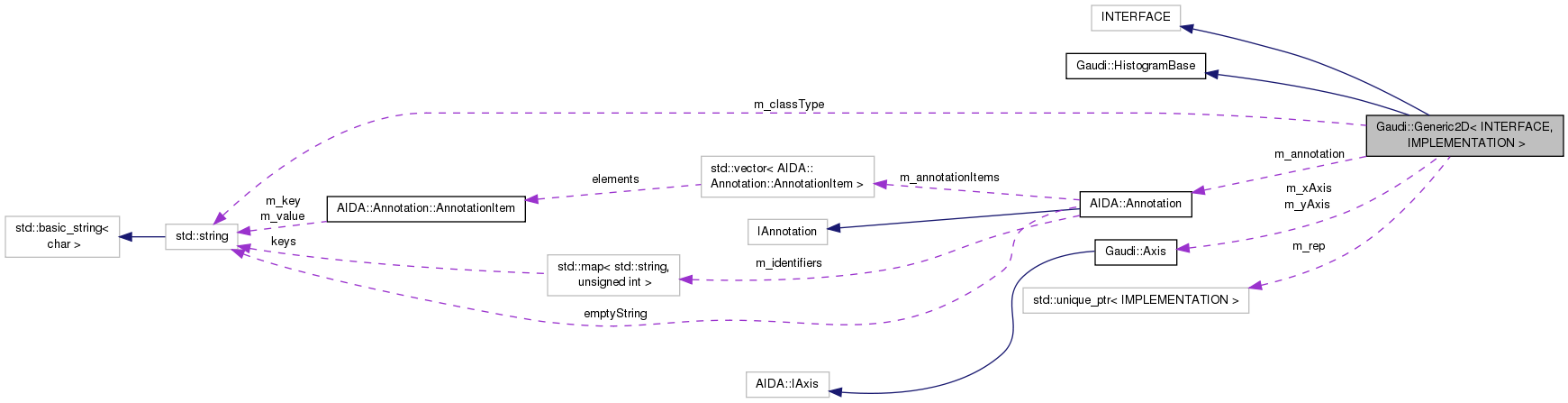

Collaboration diagram for Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >:

Public Types
typedef Generic2D< INTERFACE, IMPLEMENTATION >	Base

Public Member Functions
	Generic2D ()=default
	~Generic2D () override=default
	Destructor. More...
TObject *	representation () const override
	ROOT object implementation. More...
void	adoptRepresentation (TObject *rep) override
	Adopt ROOT histogram representation. More...
virtual std::string	title () const
	Get the title of the object. More...
virtual bool	setTitle (const std::string &title)
	Set the title of the object. More...
std::string	name () const
	object name More...
bool	setName (const std::string &newName)
	Set the name of the object. More...
virtual AIDA::IAnnotation &	annotation ()
	Access annotation object. More...
virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons) More...
virtual const AIDA::IAxis &	xAxis () const
	Return the X axis. More...
virtual const AIDA::IAxis &	yAxis () const
	Return the Y axis. More...
virtual int	rIndexX (int index) const
	operator methods More...
virtual int	rIndexY (int index) const
	operator methods More...
virtual int	entries () const
	Get the number or all the entries. More...
virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile. More...
virtual int	extraEntries () const
	Get the number of entries in the underflow and overflow bins. More...
virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile. More...
virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin). More...
virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height. More...
virtual double	minBinHeight () const
	Get the minimum height of the in-range bins. More...
virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins. More...
virtual double	binMeanX (int indexX, int indexY) const
	The weighted mean along x of a given bin. More...
virtual double	binMeanY (int indexX, int indexY) const
	The weighted mean along y of a given bin. More...
virtual int	binEntries (int indexX, int indexY) const
	The number of entries (ie the number of times fill was called for this bin). More...
virtual int	binEntriesX (int indexX) const
	Equivalent to projectionX().binEntries(indexX). More...
virtual int	binEntriesY (int indexY) const
	Equivalent to projectionY().binEntries(indexY). More...
virtual double	binHeight (int indexX, int indexY) const
	Total height of the corresponding bin (ie the sum of the weights in this bin). More...
virtual double	binHeightX (int indexX) const
	Equivalent to projectionX().binHeight(indexX). More...
virtual double	binHeightY (int indexY) const
	Equivalent to projectionY().binHeight(indexY). More...
virtual double	binError (int indexX, int indexY) const
	The error on this bin. More...
virtual double	binRms (int indexX, int indexY) const
	The spread (RMS) of this bin. More...
virtual double	meanX () const
	Returns the mean of the profile, as calculated on filling-time projected on the X axis. More...
virtual double	meanY () const
	Returns the mean of the profile, as calculated on filling-time projected on the Y axis. More...
virtual double	rmsX () const
	Returns the rms of the profile as calculated on filling-time projected on the X axis. More...
virtual double	rmsY () const
	Returns the rms of the profile as calculated on filling-time projected on the Y axis. More...
virtual int	coordToIndexX (double coordX) const
	Convenience method, equivalent to xAxis().coordToIndex(coord). More...
virtual int	coordToIndexY (double coordY) const
	Convenience method, equivalent to yAxis().coordToIndex(coord). More...
virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ] More...
virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor. More...
virtual bool	add (const INTERFACE &h)
	Modifies this profile by adding the contents of profile to it. More...
bool	reset ()
void *	cast (const std::string &className) const
	Introspection method. More...
const std::string &	userLevelClassType () const
	The AIDA user-level unterface leaf class type. More...
virtual int	dimension () const
	Get the Histogram's dimension. More...
std::ostream &	print (std::ostream &s) const override
	Print (ASCII) the histogram into the output stream. More...
std::ostream &	write (std::ostream &s) const override
	Write (ASCII) the histogram table into the output stream. More...
int	write (const char *file_name) const override
	Write (ASCII) the histogram table into a file. More...
template<>
void *	cast (const std::string &className) const
template<>
int	binEntries (int indexX, int indexY) const
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...
template<>
void *	cast (const std::string &className) const
template<>
int	binEntries (int idX, int idY) const
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...
Public Member Functions inherited from Gaudi::HistogramBase
virtual	~HistogramBase ()=default
virtual	~HistogramBase ()=default

Protected Member Functions
	Generic2D (IMPLEMENTATION *p)
	constructor More...

Protected Attributes
Axis	m_xAxis
	X axis member. More...
Axis	m_yAxis
	Y axis member. More...
AIDA::Annotation	m_annotation
	Object annotations. More...
std::unique_ptr< IMPLEMENTATION >	m_rep
	Reference to underlying implementation. More...
std::string	m_classType
	class type More...
int	m_sumEntries = 0
	cache sumEntries (allEntries) when setting contents since Root can't compute by himself More...

Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author

M.Frank

Definition at line 31 of file Generic2D.h.

Member Typedef Documentation

template<class INTERFACE, class IMPLEMENTATION>

typedef Generic2D<INTERFACE,IMPLEMENTATION> Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 33 of file Generic2D.h.

Constructor & Destructor Documentation

template<class INTERFACE, class IMPLEMENTATION>

Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Generic2D ( )

default

template<class INTERFACE, class IMPLEMENTATION>

Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Generic2D ( IMPLEMENTATION *  p )

inlineprotected

constructor

Definition at line 38 of file Generic2D.h.

: m_rep(p) { }

template<class INTERFACE, class IMPLEMENTATION>

Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::~Generic2D ( )

overridedefault

Destructor.

Member Function Documentation

template<class INTERFACE, class IMPLEMENTATION >

bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE &  h )

virtual

Modifies this profile by adding the contents of profile to it.

Definition at line 289 of file Generic2D.h.

                                                                         {
    const Base* p = dynamic_cast<const Base*>(&hist);
    if ( !p ) throw std::runtime_error("Cannot add profile histograms of different implementations.");
    m_rep->Add(p->m_rep.get());
    return true;
  }

template<class INTERFACE, class IMPLEMENTATION>

void Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject *  rep )

overridevirtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

template<>

void Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >::adoptRepresentation ( TObject *  rep )

virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 70 of file P2D.cpp.

                                                                             {
    TProfile2D* imp = dynamic_cast<TProfile2D*>(rep);
    if ( !imp )  throw std::runtime_error("Cannot adopt native histogram representation.");
    m_rep.reset( imp );
    m_xAxis.initialize(m_rep->GetXaxis(),true);
    m_yAxis.initialize(m_rep->GetYaxis(),true);
    setTitle(m_rep->GetTitle());
  }

template<>

void Gaudi::Generic2D< AIDA::IHistogram2D, TH2D >::adoptRepresentation ( TObject *  rep )

virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 104 of file H2D.cpp.

                                                                          {
    TH2D* imp = dynamic_cast<TH2D*>(rep);
    if ( !imp )  throw std::runtime_error("Cannot adopt native histogram representation.");
    m_rep.reset( imp );
    m_xAxis.initialize(m_rep->GetXaxis(),true);
    m_yAxis.initialize(m_rep->GetYaxis(),true);
    const TArrayD* a = m_rep->GetSumw2();
    if ( !a || (a && a->GetSize()==0) ) m_rep->Sumw2();
    setTitle(m_rep->GetTitle());
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::allEntries ( ) const

virtual

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 176 of file Generic2D.h.

                                                                {
    return m_rep->GetEntries();
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual AIDA::IAnnotation& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation ( )

inlinevirtual

Access annotation object.

Definition at line 55 of file Generic2D.h.

{ return m_annotation;           }

template<class INTERFACE, class IMPLEMENTATION>

virtual const AIDA::IAnnotation& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation ( ) const

inlinevirtual

Access annotation object (cons)

Definition at line 57 of file Generic2D.h.

{ return m_annotation;           }

template<>

int Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >::binEntries	(	int	idX,
		int	idY
	)		const

Definition at line 64 of file P2D.cpp.

                                                                               {
    int rBin = m_rep->GetBin(rIndexX(idX),rIndexY(idY));
    return int(m_rep->GetBinEntries(rBin)+0.5);
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntries ( int  indexX, int  indexY  ) const

virtual

The number of entries (ie the number of times fill was called for this bin).

template<>

int Gaudi::Generic2D< IHistogram2D, TH2D >::binEntries	(	int	indexX,
		int	indexY
	)		const

Definition at line 97 of file H2D.cpp.

                                                                          {
    if (binHeight(indexX, indexY)<=0) return 0;
    double xx =  binHeight(indexX, indexY)/binError(indexX, indexY);
    return int(xx*xx+0.5);
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesX ( int  indexX ) const

virtual

Equivalent to projectionX().binEntries(indexX).

Definition at line 216 of file Generic2D.h.

                                                                        {
    int n = 0;
    for (int iY = -2; iY < yAxis().bins(); ++iY)
      n += binEntries(index,iY);
    return n;
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesY ( int  indexY ) const

virtual

Equivalent to projectionY().binEntries(indexY).

Definition at line 224 of file Generic2D.h.

                                                                         {
    int n = 0;
    for (int iX = -2; iX < xAxis().bins(); ++iX)
      n += binEntries(iX,index);
    return n;
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError ( int  indexX, int  indexY  ) const

virtual

The error on this bin.

Definition at line 254 of file Generic2D.h.

                                                                                   {
    return m_rep->GetBinError ( rIndexX(indexX), rIndexY(indexY ) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight ( int  indexX, int  indexY  ) const

virtual

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 232 of file Generic2D.h.

                                                                                       {
    return m_rep->GetBinContent ( rIndexX(indexX), rIndexY(indexY) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightX ( int  indexX ) const

virtual

Equivalent to projectionX().binHeight(indexX).

Definition at line 237 of file Generic2D.h.

                                                                         {
    double s = 0;
    for (int iY = -2; iY < yAxis().bins(); ++iY) {
      s += binHeight(index,iY);
    }
    return s;
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightY ( int  indexY ) const

virtual

Equivalent to projectionY().binHeight(indexY).

Definition at line 246 of file Generic2D.h.

                                                                         {
    double s = 0;
    for (int iX = -2; iX < xAxis().bins(); ++iX)
      s += binHeight(iX,index);
    return s;
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanX ( int  indexX, int  indexY  ) const

virtual

The weighted mean along x of a given bin.

Definition at line 206 of file Generic2D.h.

                                                                            {
    return m_rep->GetXaxis()->GetBinCenter( rIndexX(indexX) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanY ( int  indexX, int  indexY  ) const

virtual

The weighted mean along y of a given bin.

Definition at line 211 of file Generic2D.h.

                                                                            {
    return m_rep->GetYaxis()->GetBinCenter( rIndexY(indexY) );
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binRms ( int  indexX, int  indexY  ) const

virtual

The spread (RMS) of this bin.

Definition at line 201 of file Generic2D.h.

                                                                                {
    return m_rep->GetBinError ( rIndexX(indexX), rIndexY(indexY) );
  }

template<>

void * Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >::cast

(

const std::string &

className

)

const

Definition at line 53 of file P2D.cpp.

                                                                                    {
    if (className == "AIDA::IProfile2D")
      return const_cast<AIDA::IProfile2D*>((AIDA::IProfile2D*)this);
    else if (className == "AIDA::IProfile")
      return const_cast<AIDA::IProfile*>((AIDA::IProfile*)this);
    else if (className == "AIDA::IBaseHistogram")
      return const_cast<AIDA::IBaseHistogram*>((AIDA::IBaseHistogram*)this);
    return nullptr;
  }

template<>

void * Gaudi::Generic2D< IHistogram2D, TH2D >::cast

(

const std::string &

className

)

const

Definition at line 88 of file H2D.cpp.

                                                                             {
    if (className == "AIDA::IHistogram2D")
      return (IHistogram2D*)this;
    else if (className == "AIDA::IHistogram")
      return (IHistogram*)this;
    return nullptr;
  }

template<class INTERFACE, class IMPLEMENTATION>

void* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::cast

(

const std::string &

className

)

const

Introspection method.

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexX ( double  coordX ) const

virtual

Convenience method, equivalent to xAxis().coordToIndex(coord).

Definition at line 279 of file Generic2D.h.

                                                                              {
    return xAxis().coordToIndex(coord);
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexY ( double  coordY ) const

virtual

Convenience method, equivalent to yAxis().coordToIndex(coord).

Definition at line 284 of file Generic2D.h.

                                                                              {
    return yAxis().coordToIndex(coord);
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::dimension ( ) const

inlinevirtual

Get the Histogram's dimension.

Definition at line 130 of file Generic2D.h.

{ return 2; }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::entries ( ) const

virtual

Get the number or all the entries.

Definition at line 171 of file Generic2D.h.

                                                                               {
    return m_rep->GetEntries();
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries ( ) const

virtual

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ]

Definition at line 306 of file Generic2D.h.

                                                                          {
    if (sumBinHeights() <= 0) return 0;
    Stat_t stats[11];   // cover up to 3D...
    m_rep->GetStats(stats);
    return stats[0]*stats[0]/stats[1];
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::extraEntries ( ) const

virtual

Get the number of entries in the underflow and overflow bins.

Definition at line 297 of file Generic2D.h.

                                                              {
    return
      binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN) +
      binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN)  +
      binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN)  +
      binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN);
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::maxBinHeight ( ) const

virtual

Get the maximum height of the in-range bins.

Definition at line 186 of file Generic2D.h.

                                                                   {
    return m_rep->GetMaximum();
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanX ( ) const

virtual

Returns the mean of the profile, as calculated on filling-time projected on the X axis.

Definition at line 259 of file Generic2D.h.

                                                           {
    return m_rep->GetMean(1);
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanY ( ) const

virtual

Returns the mean of the profile, as calculated on filling-time projected on the Y axis.

Definition at line 264 of file Generic2D.h.

                                                           {
    return m_rep->GetMean(2);
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::minBinHeight ( ) const

virtual

Get the minimum height of the in-range bins.

Definition at line 181 of file Generic2D.h.

                                                                   {
    return m_rep->GetMinimum();
  }

template<class INTERFACE, class IMPLEMENTATION>

std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::name ( ) const

inline

object name

Definition at line 51 of file Generic2D.h.

{ return m_annotation.value("Name"); }

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::print ( std::ostream &  s ) const

overridevirtual

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 327 of file Generic2D.h.

  {
    m_rep->Print("all");
    return s;
  }

template<class INTERFACE, class IMPLEMENTATION>

TObject* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::representation ( ) const

inlineoverridevirtual

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 43 of file Generic2D.h.

{ return m_rep.get();                       }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::reset

(

)

Definition at line 320 of file Generic2D.h.

                                                       {
    m_sumEntries = 0;
    m_rep->Reset ( );
    return true;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX ( int  index ) const

inlinevirtual

operator methods

Definition at line 64 of file Generic2D.h.

{ return m_xAxis.rIndex(index);  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY ( int  index ) const

inlinevirtual

operator methods

Definition at line 66 of file Generic2D.h.

{ return m_yAxis.rIndex(index);  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsX ( ) const

virtual

Returns the rms of the profile as calculated on filling-time projected on the X axis.

Definition at line 269 of file Generic2D.h.

                                                          {
    return m_rep->GetRMS(1);
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsY ( ) const

virtual

Returns the rms of the profile as calculated on filling-time projected on the Y axis.

Definition at line 274 of file Generic2D.h.

                                                          {
    return m_rep->GetRMS(2);
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::scale ( double  scaleFactor )

virtual

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 314 of file Generic2D.h.

                                                                      {
    m_rep->Scale ( scaleFactor );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setName

(

const std::string &

newName

)

Set the name of the object.

Definition at line 164 of file Generic2D.h.

                                                                              {
    m_rep->SetName(newName.c_str());
    m_annotation.setValue( "Name", newName );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string &  title )

virtual

Set the title of the object.

Definition at line 154 of file Generic2D.h.

                                                                             {
    m_rep->SetTitle(title.c_str());
    if ( !annotation().addItem( "Title", title ) )
      m_annotation.setValue( "Title" , title );
    if ( !annotation().addItem( "title", title ) )
      annotation().setValue( "title", title );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights ( ) const

virtual

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 196 of file Generic2D.h.

                                                                       {
    return m_rep->GetSum();
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumBinHeights ( ) const

virtual

Get the sum of in range bin heights in the IProfile.

Definition at line 191 of file Generic2D.h.

                                                                    {
    return m_rep->GetSumOfWeights();
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights ( ) const

inlinevirtual

Get the sum of the underflow and overflow bin height.

Definition at line 79 of file Generic2D.h.

{ return  sumAllBinHeights()-sumBinHeights(); }

template<class INTERFACE, class IMPLEMENTATION>

virtual std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::title ( ) const

inlinevirtual

Get the title of the object.

Definition at line 47 of file Generic2D.h.

{  return m_annotation.value( "Title" );    }

template<class INTERFACE, class IMPLEMENTATION>

const std::string& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::userLevelClassType ( ) const

inline

The AIDA user-level unterface leaf class type.

Definition at line 128 of file Generic2D.h.

{ return m_classType; }

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write ( std::ostream &  s ) const

overridevirtual

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 336 of file Generic2D.h.

  {
    s << std::endl << "2D Histogram Table: " << std::endl;
    s << "BinX, BinY, Height, Error " << std::endl;
    for ( int i = 0; i < xAxis().bins(); ++i )  {
      for ( int j = 0; j < yAxis().bins(); ++j )  {
        s << binMeanX( i, j )    << ", "
            << binMeanY( i, j )    << ", "
            << binHeight( i, j ) << ", "
            << binError ( i, j ) << std::endl;
      }
    }
    s << std::endl;
    return s;
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write ( const char *  file_name ) const

overridevirtual

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 354 of file Generic2D.h.

  {
    TFile *f = TFile::Open(file_name,"RECREATE");
    Int_t nbytes = m_rep->Write();
    f->Close();
    return nbytes;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual const AIDA::IAxis& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis ( ) const

inlinevirtual

Return the X axis.

Definition at line 60 of file Generic2D.h.

{ return m_xAxis;                }

template<class INTERFACE, class IMPLEMENTATION>

virtual const AIDA::IAxis& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis ( ) const

inlinevirtual

Return the Y axis.

Definition at line 62 of file Generic2D.h.

{ return m_yAxis;                }

Member Data Documentation

template<class INTERFACE, class IMPLEMENTATION>

AIDA::Annotation Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_annotation

mutableprotected

Object annotations.

Definition at line 144 of file Generic2D.h.

template<class INTERFACE, class IMPLEMENTATION>

std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_classType

protected

class type

Definition at line 148 of file Generic2D.h.

template<class INTERFACE, class IMPLEMENTATION>

std::unique_ptr<IMPLEMENTATION> Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep

protected

Reference to underlying implementation.

Definition at line 146 of file Generic2D.h.

template<class INTERFACE, class IMPLEMENTATION>

int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_sumEntries = 0

protected

cache sumEntries (allEntries) when setting contents since Root can't compute by himself

Definition at line 150 of file Generic2D.h.

template<class INTERFACE, class IMPLEMENTATION>

Axis Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_xAxis

protected

X axis member.

Definition at line 140 of file Generic2D.h.

template<class INTERFACE, class IMPLEMENTATION>

Axis Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_yAxis

protected

Y axis member.

Definition at line 142 of file Generic2D.h.

---

The documentation for this class was generated from the following file:

• GaudiCommonSvc/src/HistogramSvc/Generic2D.h
