Gaudi::Generic3D< INTERFACE, IMPLEMENTATION > Class Template Reference

Common AIDA implementation stuff for histograms and profiles using ROOT implementations. More...

#include <GaudiPI/Generic3D.h>

Inheritance diagram for Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >:

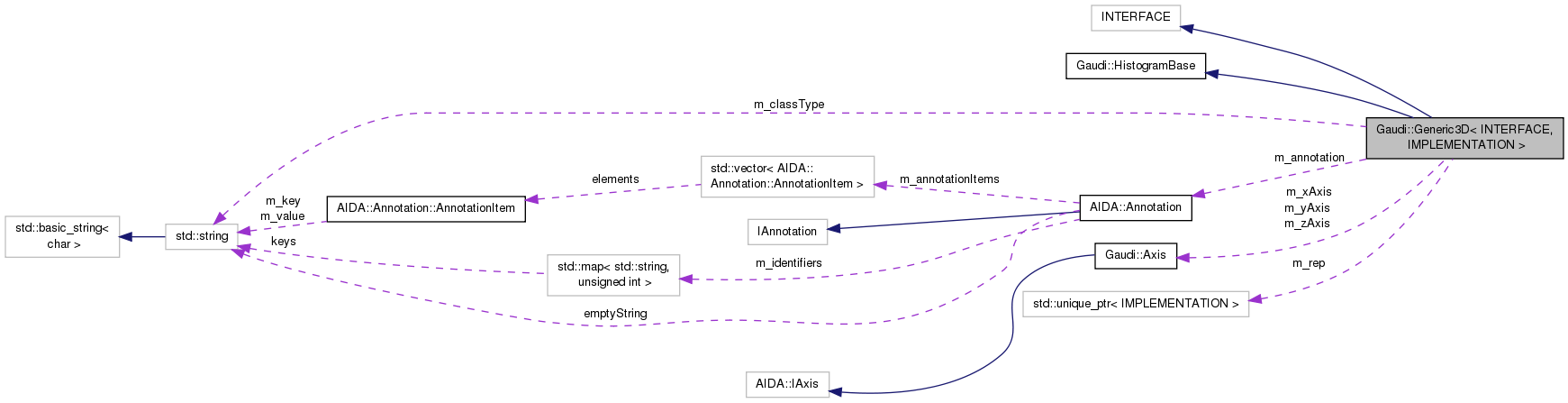

Collaboration diagram for Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >:

Public Types
typedef Generic3D< INTERFACE, IMPLEMENTATION >	Base

Public Member Functions
	Generic3D ()=default
	Default constructor. More...
	~Generic3D () override=default
	Destructor. More...
TObject *	representation () const override
	ROOT object implementation. More...
void	adoptRepresentation (TObject *rep) override
	Adopt ROOT histogram representation. More...
int	dimension () const override
	Get the Histogram's dimension. More...
std::string	title () const override
	Get the title of the object. More...
bool	setTitle (const std::string &title) override
	Set the title of the object. More...
std::string	name () const
	object name More...
bool	setName (const std::string &newName)
	Sets the name of the object. More...
AIDA::IAnnotation &	annotation () override
	Access annotation object. More...
const AIDA::IAnnotation &	annotation () const override
	Access annotation object (cons) More...
int	entries () const override
	Get the number or all the entries. More...
int	allEntries () const override
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile. More...
double	sumBinHeights () const override
	Get the sum of in range bin heights in the IProfile. More...
double	sumAllBinHeights () const override
	Get the sum of all the bins heights (including underflow and overflow bin). More...
double	sumExtraBinHeights () const override
	Get the sum of the underflow and overflow bin height. More...
double	minBinHeight () const override
	Get the minimum height of the in-range bins. More...
double	maxBinHeight () const override
	Get the maximum height of the in-range bins. More...
int	rIndexX (int index) const
int	rIndexY (int index) const
int	rIndexZ (int index) const
double	binMeanX (int indexX, int, int) const
	The weighted mean along the x axis of a given bin. More...
double	binMeanY (int, int indexY, int) const
	The weighted mean along the y axis of a given bin. More...
double	binMeanZ (int, int, int indexZ) const
	The weighted mean along the z axis of a given bin. More...
int	binEntries (int indexX, int indexY, int indexZ) const
	Number of entries in the corresponding bin (ie the number of times fill was calle d for this bin). More...
int	binEntriesX (int index) const override
	Sum of all the entries of the bins along a given x bin. More...
int	binEntriesY (int index) const override
	Sum of all the entries of the bins along a given y bin. More...
int	binEntriesZ (int index) const override
	Sum of all the entries of the bins along a given z bin. More...
double	binHeight (int indexX, int indexY, int indexZ) const
	Total height of the corresponding bin (ie the sum of the weights in this bin). More...
double	binHeightX (int index) const override
	Sum of all the heights of the bins along a given x bin. More...
double	binHeightY (int index) const override
	Sum of all the heights of the bins along a given y bin. More...
double	binHeightZ (int index) const override
	Sum of all the heights of the bins along a given z bin. More...
double	binError (int indexX, int indexY, int indexZ) const override
	The error of a given bin. More...
double	meanX () const override
	The mean of the IHistogram3D along the x axis. More...
double	meanY () const override
	The mean of the IHistogram3D along the y axis. More...
double	meanZ () const override
	The mean of the IHistogram3D along the z axis. More...
double	rmsX () const override
	The RMS of the IHistogram3D along the x axis. More...
double	rmsY () const override
	The RMS of the IHistogram3D along the y axis. More...
double	rmsZ () const override
	The RMS of the IHistogram3D along the z axis. More...
const AIDA::IAxis &	xAxis () const override
	Get the x axis of the IHistogram3D. More...
const AIDA::IAxis &	yAxis () const override
	Get the y axis of the IHistogram3D. More...
const AIDA::IAxis &	zAxis () const override
	Get the z axis of the IHistogram3D. More...
int	coordToIndexX (double coord) const override
	Get the bin number corresponding to a given coordinate along the x axis. More...
int	coordToIndexY (double coord) const override
	Get the bin number corresponding to a given coordinate along the y axis. More...
int	coordToIndexZ (double coord) const override
	Get the bin number corresponding to a given coordinate along the z axis. More...
double	equivalentBinEntries () const override
	Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ] More...
bool	scale (double scaleFactor) override
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor. More...
bool	add (const INTERFACE &hist) override
	Add to this Histogram3D the contents of another IHistogram3D. More...
int	extraEntries () const
std::ostream &	print (std::ostream &s) const override
	Print (ASCII) the histogram into the output stream. More...
std::ostream &	write (std::ostream &s) const override
	Write (ASCII) the histogram table into the output stream. More...
int	write (const char *file_name) const override
	Write (ASCII) the histogram table into a file. More...
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation. More...
Public Member Functions inherited from Gaudi::HistogramBase
virtual	~HistogramBase ()=default
virtual	~HistogramBase ()=default

Protected Member Functions
	Generic3D (IMPLEMENTATION *p)
	constructor More...

Protected Attributes
Gaudi::Axis	m_xAxis
Gaudi::Axis	m_yAxis
Gaudi::Axis	m_zAxis
AIDA::Annotation	m_annotation
	Object annotations. More...
std::unique_ptr< IMPLEMENTATION >	m_rep
	Reference to underlying implementation. More...
std::string	m_classType
int	m_sumEntries = 0

Detailed Description

template<typename INTERFACE, typename IMPLEMENTATION>
class Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author

M.Frank

Definition at line 30 of file Generic3D.h.

Member Typedef Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

typedef Generic3D<INTERFACE,IMPLEMENTATION> Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 32 of file Generic3D.h.

Constructor & Destructor Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::Generic3D ( )

default

Default constructor.

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::Generic3D ( IMPLEMENTATION *  p )

inlineprotected

constructor

Definition at line 37 of file Generic3D.h.

: m_rep(p) { }

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::~Generic3D ( )

overridedefault

Destructor.

Member Function Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE &  hist )

inlineoverride

Add to this Histogram3D the contents of another IHistogram3D.

Definition at line 184 of file Generic3D.h.

                                                  {
      const Base* p = dynamic_cast<const Base*>(&hist);
      if ( !p )  throw std::runtime_error("Cannot add profile histograms of different implementations.");
      m_rep->Add(p->m_rep.get());
      return true;
    }

template<typename INTERFACE, typename IMPLEMENTATION>

void Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject *  rep )

overridevirtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

template<>

void Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >::adoptRepresentation ( TObject *  rep )

virtual

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 61 of file H3D.cpp.

                                                                          {
    TH3D* imp = dynamic_cast<TH3D*>(rep);
    if ( !imp )  throw std::runtime_error("Cannot adopt native histogram representation.");
    m_rep.reset( imp );
    m_xAxis.initialize(m_rep->GetXaxis(),true);
    m_yAxis.initialize(m_rep->GetYaxis(),true);
    m_zAxis.initialize(m_rep->GetZaxis(),true);
    const TArrayD* a = m_rep->GetSumw2();
    if ( !a || (a && a->GetSize()==0) ) m_rep->Sumw2();
    setTitle(m_rep->GetTitle());
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::allEntries ( ) const

override

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 245 of file Generic3D.h.

                                                                {
    return int(m_rep->GetEntries());
  }

template<typename INTERFACE, typename IMPLEMENTATION>

AIDA::IAnnotation& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::annotation ( )

inlineoverride

Access annotation object.

Definition at line 57 of file Generic3D.h.

{ return m_annotation;               }

template<typename INTERFACE, typename IMPLEMENTATION>

const AIDA::IAnnotation& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::annotation ( ) const

inlineoverride

Access annotation object (cons)

Definition at line 59 of file Generic3D.h.

{  return m_annotation;               }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntries ( int  indexX, int  indexY, int  indexZ  ) const

inline

Number of entries in the corresponding bin (ie the number of times fill was calle d for this bin).

Definition at line 90 of file Generic3D.h.

                                                              {
      if (binHeight(indexX, indexY, indexZ)<=0) return 0;
      double xx =  binHeight(indexX, indexY, indexZ)/binError(indexX, indexY, indexZ);
      return int(xx*xx+0.5);
    }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntriesX ( int  index ) const

inlineoverride

Sum of all the entries of the bins along a given x bin.

Definition at line 96 of file Generic3D.h.

                                              {
      int n = 0;
      for (int i = -2; i < yAxis().bins(); ++i)
        for (int j = -2; j < zAxis().bins(); ++j)
          n += binEntries(index,i,j);
      return n;

    }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntriesY ( int  index ) const

inlineoverride

Sum of all the entries of the bins along a given y bin.

Definition at line 105 of file Generic3D.h.

                                              {
      int n = 0;
      for (int i = -2; i < xAxis().bins(); ++i)
        for (int j = -2; j < zAxis().bins(); ++j)
          n += binEntries(i,index,j);
      return n;
    }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binEntriesZ ( int  index ) const

inlineoverride

Sum of all the entries of the bins along a given z bin.

Definition at line 114 of file Generic3D.h.

                                              {
      int n = 0;
      for (int i = -2; i < xAxis().bins(); ++i)
        for (int j = -2; j < yAxis().bins(); ++j)
          n += binEntries(i,j,index);
      return n;
    }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binError ( int  indexX, int  indexY, int  indexZ  ) const

inlineoverride

The error of a given bin.

Definition at line 151 of file Generic3D.h.

    { return m_rep->GetBinError ( rIndexX(indexX), rIndexY(indexY ), rIndexZ(indexZ ) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeight ( int  indexX, int  indexY, int  indexZ  ) const

inline

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 123 of file Generic3D.h.

    { return m_rep->GetBinContent ( rIndexX(indexX), rIndexY(indexY), rIndexZ(indexZ) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeightX ( int  index ) const

inlineoverride

Sum of all the heights of the bins along a given x bin.

Definition at line 127 of file Generic3D.h.

                                                {
      double s = 0;
      for (int i = -2; i < yAxis().bins(); ++i)
        for (int j = -2; j < zAxis().bins(); ++j)
          s += binHeight(index,i,j);
      return s;
    }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeightY ( int  index ) const

inlineoverride

Sum of all the heights of the bins along a given y bin.

Definition at line 135 of file Generic3D.h.

                                                {
      double s = 0;
      for (int i = -2; i < xAxis().bins(); ++i)
        for (int j = -2; j < zAxis().bins(); ++j)
          s += binHeight(i,index,j);
      return s;
    }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binHeightZ ( int  index ) const

inlineoverride

Sum of all the heights of the bins along a given z bin.

Definition at line 143 of file Generic3D.h.

                                                {
      double s = 0;
      for (int i = -2; i < xAxis().bins(); ++i)
        for (int j = -2; j < yAxis().bins(); ++j)
          s += binHeight(i,j,index);
      return s;
    }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binMeanX ( int  indexX, int  , int    ) const

inline

The weighted mean along the x axis of a given bin.

Definition at line 81 of file Generic3D.h.

    { return m_rep->GetXaxis()->GetBinCenter( rIndexX(indexX) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binMeanY ( int  , int  indexY, int    ) const

inline

The weighted mean along the y axis of a given bin.

Definition at line 84 of file Generic3D.h.

    { return m_rep->GetYaxis()->GetBinCenter( rIndexY(indexY) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::binMeanZ ( int  , int  , int  indexZ  ) const

inline

The weighted mean along the z axis of a given bin.

Definition at line 87 of file Generic3D.h.

    { return m_rep->GetYaxis()->GetBinCenter( rIndexY(indexZ) ); }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::coordToIndexX ( double  coord ) const

inlineoverride

Get the bin number corresponding to a given coordinate along the x axis.

Definition at line 173 of file Generic3D.h.

{ return xAxis().coordToIndex(coord);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::coordToIndexY ( double  coord ) const

inlineoverride

Get the bin number corresponding to a given coordinate along the y axis.

Definition at line 175 of file Generic3D.h.

{ return yAxis().coordToIndex(coord);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::coordToIndexZ ( double  coord ) const

inlineoverride

Get the bin number corresponding to a given coordinate along the z axis.

Definition at line 177 of file Generic3D.h.

{ return zAxis().coordToIndex(coord);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::dimension ( ) const

inlineoverride

Get the Histogram's dimension.

Definition at line 47 of file Generic3D.h.

{ return 3; }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::entries ( ) const

override

Get the number or all the entries.

Definition at line 240 of file Generic3D.h.

                                                                               {
    return m_rep->GetEntries();
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries ( ) const

override

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ]

Definition at line 270 of file Generic3D.h.

                                                                          {
    if (sumBinHeights() <= 0) return 0;
    Stat_t stats[11];   // cover up to 3D...
    m_rep->GetStats(stats);
    return stats[0]*stats[0]/stats[1];
  }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::extraEntries ( ) const

inline

Definition at line 192 of file Generic3D.h.

                             {
      return
        binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN) +
        binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN)  +
        binEntries(AIDA::IAxis::UNDERFLOW_BIN, AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN)  +
        binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN) +
        binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN) +
        binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN)  +
        binEntries(AIDA::IAxis::OVERFLOW_BIN, AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN);
    }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::maxBinHeight ( ) const

override

Get the maximum height of the in-range bins.

Definition at line 255 of file Generic3D.h.

                                                                   {
    return m_rep->GetMaximum();
  }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::meanX ( ) const

inlineoverride

The mean of the IHistogram3D along the x axis.

Definition at line 154 of file Generic3D.h.

{ return m_rep->GetMean ( 1); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::meanY ( ) const

inlineoverride

The mean of the IHistogram3D along the y axis.

Definition at line 157 of file Generic3D.h.

{ return m_rep->GetMean ( 2 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::meanZ ( ) const

inlineoverride

The mean of the IHistogram3D along the z axis.

Definition at line 159 of file Generic3D.h.

{ return m_rep->GetMean ( 3 ); }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::minBinHeight ( ) const

override

Get the minimum height of the in-range bins.

Definition at line 250 of file Generic3D.h.

                                                                   {
    return m_rep->GetMinimum();
  }

template<typename INTERFACE, typename IMPLEMENTATION>

std::string Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::name ( ) const

inline

object name

Definition at line 53 of file Generic3D.h.

{ return m_annotation.value("Name"); }

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::print ( std::ostream &  s ) const

overridevirtual

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 284 of file Generic3D.h.

  {
    m_rep->Print("all");
    return s;
  }

template<typename INTERFACE, typename IMPLEMENTATION>

TObject* Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::representation ( ) const

inlineoverridevirtual

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 42 of file Generic3D.h.

{ return m_rep.get();                       }

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rIndexX ( int  index ) const

inline

Definition at line 76 of file Generic3D.h.

{ return m_xAxis.rIndex(index);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rIndexY ( int  index ) const

inline

Definition at line 77 of file Generic3D.h.

{ return m_yAxis.rIndex(index);}

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rIndexZ ( int  index ) const

inline

Definition at line 78 of file Generic3D.h.

{ return m_zAxis.rIndex(index);}

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rmsX ( ) const

inlineoverride

The RMS of the IHistogram3D along the x axis.

Definition at line 161 of file Generic3D.h.

{ return m_rep->GetRMS( 1 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rmsY ( ) const

inlineoverride

The RMS of the IHistogram3D along the y axis.

Definition at line 163 of file Generic3D.h.

{ return m_rep->GetRMS( 2 ); }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::rmsZ ( ) const

inlineoverride

The RMS of the IHistogram3D along the z axis.

Definition at line 165 of file Generic3D.h.

{ return m_rep->GetRMS( 3 ); }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::scale ( double  scaleFactor )

override

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 278 of file Generic3D.h.

                                                                      {
    m_rep->Scale ( scaleFactor );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::setName

(

const std::string &

newName

)

Sets the name of the object.

Definition at line 234 of file Generic3D.h.

                                                                              {
    m_rep->SetName(newName.c_str());
    m_annotation.setValue( "Name", newName );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string &  title )

override

Set the title of the object.

Definition at line 224 of file Generic3D.h.

                                                                             {
    m_rep->SetTitle(title.c_str());
    if ( !annotation().addItem( "Title", title ) )
      m_annotation.setValue( "Title" , title );
    if ( !annotation().addItem( "title", title ) )
      annotation().setValue( "title", title );
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights ( ) const

override

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 265 of file Generic3D.h.

                                                                       {
    return m_rep->GetSum();
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::sumBinHeights ( ) const

override

Get the sum of in range bin heights in the IProfile.

Definition at line 260 of file Generic3D.h.

                                                                    {
    return m_rep->GetSumOfWeights();
  }

template<typename INTERFACE, typename IMPLEMENTATION>

double Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights ( ) const

inlineoverride

Get the sum of the underflow and overflow bin height.

Definition at line 70 of file Generic3D.h.

{ return  sumAllBinHeights()-sumBinHeights(); }

template<typename INTERFACE, typename IMPLEMENTATION>

std::string Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::title ( ) const

inlineoverride

Get the title of the object.

Definition at line 49 of file Generic3D.h.

{ return m_annotation.value("Title");}

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::write ( std::ostream &  s ) const

overridevirtual

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 294 of file Generic3D.h.

  {
    s << "\n3D Histogram Table: " << std::endl;
    s << "BinX, BinY, BinZ, Height, Error " << std::endl;
    for ( int i = 0; i < xAxis().bins(); ++i )
      for ( int j = 0; j < yAxis().bins(); ++j )
        for ( int k = 0; k < zAxis().bins(); ++k )
        s << binMeanX( i, j, k )    << ", "
      << binMeanY( i, j, k )    << ", "
      << binMeanZ( i, j, k )    << ", "
      << binHeight( i, j, k ) << ", "
      << binError ( i, j, k ) << std::endl;
    s << std::endl;
    return s;
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::write ( const char *  file_name ) const

overridevirtual

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 312 of file Generic3D.h.

  {
    TFile *f = TFile::Open(file_name,"RECREATE");
    Int_t nbytes = m_rep->Write();
    f->Close();
    return nbytes;
  }

template<typename INTERFACE, typename IMPLEMENTATION>

const AIDA::IAxis& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::xAxis ( ) const

inlineoverride

Get the x axis of the IHistogram3D.

Definition at line 167 of file Generic3D.h.

{ return m_xAxis; }

template<typename INTERFACE, typename IMPLEMENTATION>

const AIDA::IAxis& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::yAxis ( ) const

inlineoverride

Get the y axis of the IHistogram3D.

Definition at line 169 of file Generic3D.h.

{ return m_yAxis; }

template<typename INTERFACE, typename IMPLEMENTATION>

const AIDA::IAxis& Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::zAxis ( ) const

inlineoverride

Get the z axis of the IHistogram3D.

Definition at line 171 of file Generic3D.h.

{ return m_zAxis; }

Member Data Documentation

template<typename INTERFACE, typename IMPLEMENTATION>

AIDA::Annotation Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_annotation

mutableprotected

Object annotations.

Definition at line 214 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

std::string Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_classType

protected

Definition at line 218 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

std::unique_ptr<IMPLEMENTATION> Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_rep

protected

Reference to underlying implementation.

Definition at line 216 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

int Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_sumEntries = 0

protected

Definition at line 220 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Axis Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_xAxis

protected

Definition at line 210 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Axis Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_yAxis

protected

Definition at line 211 of file Generic3D.h.

template<typename INTERFACE, typename IMPLEMENTATION>

Gaudi::Axis Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >::m_zAxis

protected

Definition at line 212 of file Generic3D.h.

---

The documentation for this class was generated from the following file:

• GaudiCommonSvc/src/HistogramSvc/Generic3D.h
