IoComponentMgr Class Reference

#include <src/component/IoComponentMgr.h>

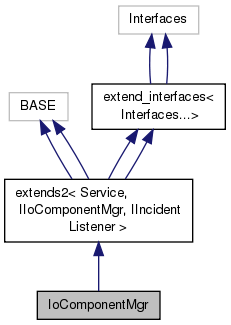

Inheritance diagram for IoComponentMgr:

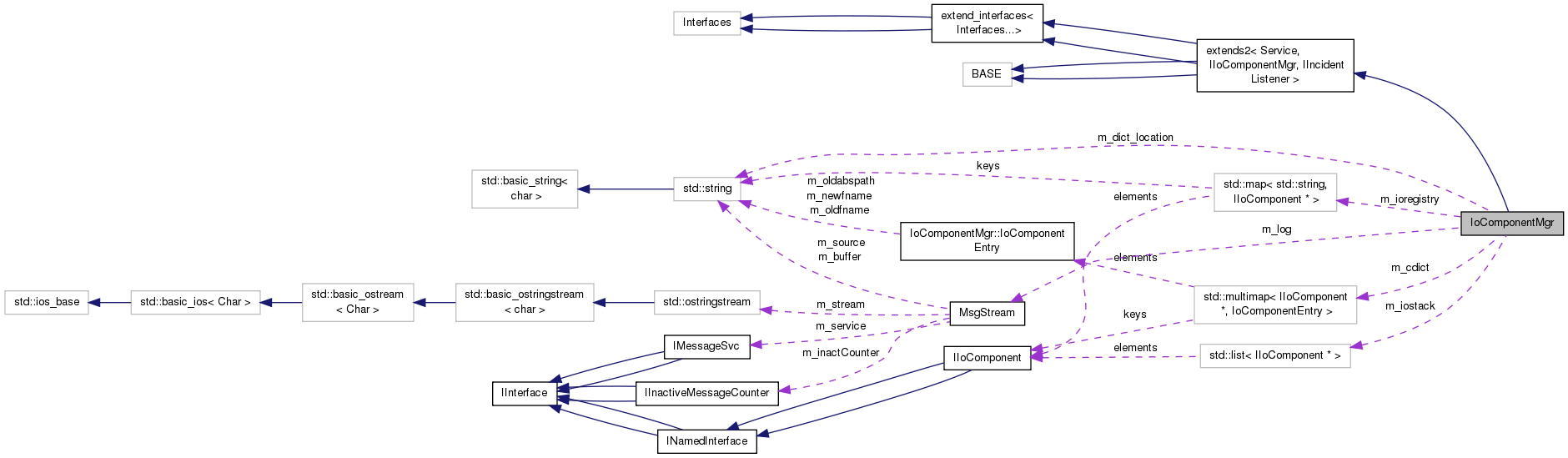

Collaboration diagram for IoComponentMgr:

Classes
struct	IoComponentEntry

Public Member Functions
	IoComponentMgr (const std::string &name, ISvcLocator *pSvcLocator)
	Constructor with parameters: More...
virtual	~IoComponentMgr ()
	Destructor: More...
void	handle (const Incident &)
virtual bool	io_hasitem (IIoComponent *iocomponent) const
	: check if the registry contains a given IIoComponent More...
virtual bool	io_contains (IIoComponent *iocomponent, const std::string &fname) const
	: check if the registry contains a given IIoComponent and that component had More...
virtual StatusCode	io_register (IIoComponent *iocomponent)
	: allow a IIoComponent to register itself with this manager so appropriate actions can be taken when e.g. More...
virtual StatusCode	io_register (IIoComponent *iocomponent, IIoComponentMgr::IoMode::Type iomode, const std::string &fname, const std::string &pfn)
	: allow a IIoComponent to register itself with this manager so appropriate actions can be taken when e.g. More...
virtual StatusCode	io_update (IIoComponent *iocomponent, const std::string &old_fname, const std::string &new_fname)
	: allow a IIoComponent to update the contents of the registry with a new file name More...
virtual StatusCode	io_update (IIoComponent *iocomponent, const std::string &work_dir)
	: allow a IIoComponent to update the contents of the registry with a new work directory More...
virtual StatusCode	io_update_all (const std::string &work_dir)
	: Update all IIoComponents with a new work directory More...
virtual StatusCode	io_retrieve (IIoComponent *iocomponent, std::string &fname)
	: retrieve the new filename for a given IIoComponent and More...
virtual StatusCode	io_reinitialize ()
	: reinitialize the I/O subsystem. More...
virtual StatusCode	io_finalize ()
	: finalize the I/O subsystem. More...
virtual StatusCode	initialize ()
	Gaudi Service Implementation. More...
virtual StatusCode	finalize ()
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Private Types
typedef std::map< std::string, IIoComponent * >	IoRegistry_t
typedef std::list< IIoComponent * >	IoStack_t
typedef std::multimap< IIoComponent *, IoComponentEntry >	IoDict_t
typedef IoDict_t::const_iterator	iodITR

Private Member Functions
	IoComponentMgr ()
	Default constructor: More...
bool	findComp (IIoComponent *, const std::string &, iodITR &) const
bool	findComp (IIoComponent *, std::pair< iodITR, iodITR > &) const
bool	findComp (const std::string &, std::pair< iodITR, iodITR > &) const
std::string	list () const

Private Attributes
MsgStream	m_log
IoRegistry_t	m_ioregistry
	Registry of IIoComponents. More...
IoStack_t	m_iostack
	Stack of IIoComponents to properly handle order of registration. More...
IoDict_t	m_cdict
std::string	m_dict_location
	location of the python dictionary More...

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
typedef extends	base_class
	Typedef to this class. More...
typedef extend_interfaces< Interfaces...>	extend_interfaces_base
	Typedef to the base of this class. More...
typedef extends	base_class
	Typedef to this class. More...
typedef extend_interfaces< Interfaces...>	extend_interfaces_base
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Definition at line 28 of file IoComponentMgr.h.

Member Typedef Documentation

typedef std::multimap<IIoComponent*, IoComponentEntry > IoComponentMgr::IoDict_t

private

Definition at line 194 of file IoComponentMgr.h.

typedef IoDict_t::const_iterator IoComponentMgr::iodITR

private

Definition at line 195 of file IoComponentMgr.h.

typedef std::map<std::string, IIoComponent*> IoComponentMgr::IoRegistry_t

private

Definition at line 184 of file IoComponentMgr.h.

typedef std::list<IIoComponent*> IoComponentMgr::IoStack_t

private

Definition at line 188 of file IoComponentMgr.h.

Constructor & Destructor Documentation

IoComponentMgr::IoComponentMgr	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Constructor with parameters:

Definition at line 49 of file IoComponentMgr.cpp.

: base_class(name,svc), m_log(msgSvc(), name )
{
  //
  // Property declaration
  //
  //declareProperty( "Property", m_nProperty );

//   declareProperty ("Registry",
//         m_dict_location = "GaudiMP.IoRegistry.registry",
//         "Location of the python dictionary holding the "
//         "associations: \n"
//         " {component-name:{ 'old-fname' : ['io','new-fname'] }}\n"
//         "\nSyntax: <python-module>.<python-module>.<fct-name> \n"
//         " where fct-name is a function returning the wanted "
//         " dictionary.");
}

IoComponentMgr::~IoComponentMgr ( )

virtual

Destructor:

Definition at line 70 of file IoComponentMgr.cpp.

{
}

IoComponentMgr::IoComponentMgr ( )

private

Default constructor:

Member Function Documentation

StatusCode IoComponentMgr::finalize ( )

virtual

Definition at line 102 of file IoComponentMgr.cpp.

                         {
  m_log << MSG::DEBUG << "--> finalize()" << endmsg;

  return StatusCode::SUCCESS;
}

bool IoComponentMgr::findComp ( IIoComponent *  c, const std::string &  f, iodITR &  itr  ) const

private

Definition at line 480 of file IoComponentMgr.cpp.

        {

  pair<iodITR,iodITR> pit;
  if (!findComp(c,pit)) {
    itr = pit.first;
    return false;
  }
  return std::any_of( pit.first, pit.second,
                      [&](IoDict_t::const_reference i)
                      { return i.second.m_oldfname == f; } );

}

bool IoComponentMgr::findComp ( IIoComponent *  c, std::pair< iodITR, iodITR > &  pit  ) const

private

Definition at line 497 of file IoComponentMgr.cpp.

                                                                           {

  pit = m_cdict.equal_range(c);
  return pit.first != pit.second;

}

bool IoComponentMgr::findComp ( const std::string &  c, std::pair< iodITR, iodITR > &  pit  ) const

private

Definition at line 507 of file IoComponentMgr.cpp.

                                                {

  pit.first = m_cdict.end();
  pit.second = m_cdict.end();

  auto itr = m_ioregistry.find(c);
  return ( itr != m_ioregistry.end() ) && findComp(itr->second, pit);
}

void IoComponentMgr::handle

(

const Incident &

i

)

Definition at line 535 of file IoComponentMgr.cpp.

                                           {

  pair<iodITR,iodITR> pit;


  if ( i.type() == IncidentType::BeginInputFile ) {

    const FileIncident *fi = dynamic_cast<const FileIncident*> ( &i );
    DEBMSG << "BeginInputFile:   s: " << fi->source() << "  t: " << fi->type()
       << "  n: " << fi->fileName() << "  g: " << fi->fileGuid()
       << endmsg;

    if (findComp(fi->source(),pit)) {
      DEBMSG << "  found component: " << endmsg;
      while (pit.first != pit.second) {
    IIoComponent* c = pit.first->first;
    IoComponentEntry e = pit.first->second;
    DEBMSG << "    c: " << c->name() << "  " << e << endmsg;

    ++pit.first;
      }
    } else {
      DEBMSG << "  could not find component \"" << fi->source()
         << "\"!" << endmsg;
    }



  } else if ( i.type() == IncidentType::BeginOutputFile ) {

    const FileIncident *fi = dynamic_cast<const FileIncident*> ( &i );
    DEBMSG << "BeginOutputFile:   s: " << fi->source() << "  t: " << fi->type()
       << "  n: " << fi->fileName() << "  g: " << fi->fileGuid()
       << endmsg;

    if (findComp(fi->source(),pit)) {
      DEBMSG << "  found component: " << endmsg;
      while (pit.first != pit.second) {
    IIoComponent* c = pit.first->first;
    IoComponentEntry e = pit.first->second;
    DEBMSG << "    c: " << c->name() << "  " << e << endmsg;

    ++pit.first;
      }
    } else {
      DEBMSG << "  could not find component \"" << fi->source()
         << "\"!" << endmsg;
    }

  }

}

StatusCode IoComponentMgr::initialize ( )

virtual

Gaudi Service Implementation.

Definition at line 77 of file IoComponentMgr.cpp.

                           {
  m_log << MSG::DEBUG << "--> initialize()" << endmsg;

  if ( Service::initialize().isFailure() ) {
    m_log << MSG::ERROR << "Unable to initialize Service base class" << endmsg;
    return StatusCode::FAILURE;
  }
  m_log.setLevel( m_outputLevel.value() );

  IIncidentSvc* p_incSvc(0);

  if (service("IncidentSvc", p_incSvc, true).isFailure()) {
    m_log << MSG::ERROR << "unable to get the IncidentSvc" << endmsg;
      return StatusCode::FAILURE;
  } else {
    p_incSvc->addListener( this, IncidentType::BeginOutputFile, 100, true);
    p_incSvc->addListener( this, IncidentType::BeginInputFile, 100, true);
  }

  return StatusCode::SUCCESS;
}

bool IoComponentMgr::io_contains ( IIoComponent *  iocomponent, const std::string &  fname  ) const

virtual

: check if the registry contains a given IIoComponent and that component had

Parameters

<tt>fname</tt>

as a filename

Definition at line 129 of file IoComponentMgr.cpp.

{
  m_log << MSG::DEBUG << "--> io_contains()" << endmsg;
  if ( 0 == iocomponent ) {
    return false;
  }
  const std::string& ioname = iocomponent->name();

  DEBMSG << "io_contains:  c: " << ioname << " f: " << fname << endmsg;

  pair<iodITR,iodITR> fit = m_cdict.equal_range(iocomponent);
  if (fit.first == fit.second) {
    return false;
  } else {
    iodITR it;
    for (it=fit.first; it != fit.second; ++it) {
      IoComponentEntry ioe = it->second;
      DEBMSG << "   " << ioe << endmsg;
      if (ioe.m_oldfname == "") {
    m_log << MSG::ERROR << "IIoComponent " << ioname
          << "  has empty old filename" << endmsg;
    return false;
      } else if (ioe.m_oldfname == fname) {
    return true;
      }
    }
  }

  return false;
}

StatusCode IoComponentMgr::io_finalize ( )

virtual

: finalize the I/O subsystem.

Hook to allow to e.g. give a chance to I/O subsystems to merge output files. Not sure how to do this correctly though...

Definition at line 448 of file IoComponentMgr.cpp.

{

  m_log << MSG::DEBUG << "--> io_finalize()" << endmsg;
  m_log << MSG::DEBUG << "finalizing I/O subsystem..." << endmsg;

  if (m_log.level() <= MSG::DEBUG) {
    m_log << MSG::DEBUG << "Listing all monitored entries: " << std::endl;
    DEBMSG << list() << endmsg;
  }

  bool allgood = true;
  for ( IoStack_t::iterator io = m_iostack.begin(), ioEnd = m_iostack.end();
        io != ioEnd;
        ++io ) {
    m_log << MSG::DEBUG << " [" << (*io)->name() << "]->io_finalize()..."
          << endmsg;
    if ( !(*io)->io_finalize().isSuccess() ) {
      allgood = false;
      m_log << MSG::ERROR << "problem in [" << (*io)->name()
            << "]->io_finalize() !" << endmsg;
    }
  }

  return allgood
    ? StatusCode::SUCCESS
    : StatusCode::FAILURE;
}

bool IoComponentMgr::io_hasitem ( IIoComponent *  iocomponent ) const

virtual

: check if the registry contains a given IIoComponent

Definition at line 113 of file IoComponentMgr.cpp.

                                                           {
  DEBMSG << "--> io_hasitem()" << endmsg;
  if ( 0 == iocomponent ) {
    return false;
  }
  const std::string& ioname = iocomponent->name();
  IoRegistry_t::const_iterator io = m_ioregistry.find (ioname);
  return io != m_ioregistry.end();
}

StatusCode IoComponentMgr::io_register ( IIoComponent *  iocomponent )

virtual

: allow a IIoComponent to register itself with this manager so appropriate actions can be taken when e.g.

a fork(2) has been issued (this is usually handled by calling IIoComponent::io_reinit on every registered component)

Definition at line 170 of file IoComponentMgr.cpp.

{
  if ( !iocomponent ) {
    m_log << MSG::ERROR
      << "io_register (component) received a NULL pointer !" << endmsg;
    return StatusCode::FAILURE;
  }
  const std::string& ioname = iocomponent->name();
  DEBMSG << "--> io_register(" << ioname << ")" << endmsg;
  auto itr = m_ioregistry.find (ioname);
  if ( itr == m_ioregistry.end() ) {
    DEBMSG << "    registering IoComponent \"" << ioname << "\"" << endmsg;
    iocomponent->addRef(); // ownership...
    m_ioregistry[ioname] = iocomponent;
    m_iostack.push_back (iocomponent);
  } else {
    m_log << MSG::INFO << "IoComponent[" << iocomponent->name()
      <<"] already registered @" << (void*)itr->second << endmsg;
  }
  return StatusCode::SUCCESS;
}

StatusCode IoComponentMgr::io_register ( IIoComponent *  iocomponent, IIoComponentMgr::IoMode::Type  iomode, const std::string &  fname, const std::string &  pfn  )

virtual

: allow a IIoComponent to register itself with this manager so appropriate actions can be taken when e.g.

a fork(2) has been issued (this is usually handled by calling IIoComponent::io_reinit on every registered component)

Definition at line 201 of file IoComponentMgr.cpp.

{
  if ( 0 == iocomponent ) {
    return StatusCode::FAILURE;
  }
  const std::string& ioname = iocomponent->name();

  DEBMSG << "--> io_register(" << ioname << ","
     << ( (iomode== IIoComponentMgr::IoMode::READ) ? "R" : "W" )
     << "," << fname << ")" << endmsg;

  if ( !io_hasitem (iocomponent) ) {
    if ( !io_register (iocomponent).isSuccess() ) {
      m_log << MSG::ERROR
        << "could not register component [" << iocomponent->name() << "] "
        << "with the I/O component manager !"
        << endmsg;
      return StatusCode::FAILURE;
    }
  }

  pair<iodITR,iodITR> fit = m_cdict.equal_range(iocomponent);
  if (fit.first != fit.second) {
    for (iodITR it=fit.first; it != fit.second; ++it) {
      IoComponentEntry ioe = it->second;
      if (ioe.m_oldfname == fname) {
    if (ioe.m_iomode == iomode) {
      m_log << MSG::INFO << "IoComponent " << ioname
        << " has already had file " << fname
        << " registered with i/o mode " << iomode << endmsg;
      return StatusCode::SUCCESS;
  } else {
      m_log << MSG::WARNING << "IoComponent " << ioname
        << " has already had file " << fname
        << " registered with a different i/o mode " << ioe.m_iomode
        << " - now trying " << iomode << endmsg;
  }
  }
  }
  }

  // We need to take into account that boost::filesystem::absolute() does not
  // work for files read from eos, i.e. starting with "root:"
  std::string tmp_name = pfn.empty()?fname:pfn;
  bool from_eos = tmp_name.find("root:")==0;
  IoComponentEntry ioc(fname,(from_eos?tmp_name:boost::filesystem::absolute(tmp_name).string()),iomode);
  m_cdict.insert( pair<IIoComponent*, IoComponentEntry>(iocomponent, ioc) );

  return StatusCode::SUCCESS;
}

StatusCode IoComponentMgr::io_reinitialize ( )

virtual

: reinitialize the I/O subsystem.

This effectively calls IIoComponent::io_reinit on all the registered IIoComponent.

Definition at line 306 of file IoComponentMgr.cpp.

{
  m_log << MSG::DEBUG << "--> io_reinitialize()" << endmsg;
  m_log << MSG::DEBUG << "reinitializing I/O subsystem..." << endmsg;

  if (m_log.level() <= MSG::DEBUG) {
    m_log << MSG::DEBUG << "Listing all monitored entries: " << std::endl;
    DEBMSG << list() << endmsg;
  }

  bool allgood = true;
  for ( auto& io : m_iostack ) {
    m_log << MSG::DEBUG << " [" << io->name() << "]->io_reinit()..." << endmsg;
    if ( !io->io_reinit().isSuccess() ) {
      allgood = false;
      m_log << MSG::ERROR << "problem in [" << io->name()
        << "]->io_reinit() !" << endmsg;
    }
    // we are done with this guy... release it
    io->release();
  }

  // we are done.
  // FIXME: shall we allow for multiple io_reinitialize ?
  // m_iostack.clear();
  // m_ioregistry.clear();
  // m_cdict.clear();

  return allgood
    ? StatusCode::SUCCESS
    : StatusCode::FAILURE;
}

StatusCode IoComponentMgr::io_retrieve ( IIoComponent *  iocomponent, std::string &  fname  )

virtual

: retrieve the new filename for a given IIoComponent and

Parameters

<tt>fname</tt>	filename
<tt>oldfname</tt>	filename

Definition at line 261 of file IoComponentMgr.cpp.

{
  if ( 0 == iocomponent ) {
    return StatusCode::FAILURE;
  }

  std::string ofname = fname;
  const std::string& ioname = iocomponent->name();

  m_log << MSG::DEBUG << "--> io_retrieve(" << ioname << "," << fname << ")"
    << endmsg;

  iodITR it;
  if (!findComp(iocomponent,ofname,it)) {
    DEBMSG << "could not find c: " << ioname << "  old_f: " << ofname << endmsg;
    return StatusCode::FAILURE;
  } else {

    IoDict_t::iterator it;
    for (it = m_cdict.equal_range(iocomponent).first;
     it != m_cdict.equal_range(iocomponent).second;
     ++it) {

      if (it->second.m_oldfname == ofname) {
    DEBMSG << "retrieving new name for the component " << iocomponent->name()
           << " old name: " << ofname
           << ", new name: " << it->second.m_newfname << endmsg;
    fname = it->second.m_newfname;
    return StatusCode::SUCCESS;
      }
  }
  }

  DEBMSG << "Unexpected error! Unable to find entry in the dictionary corresponding to old filename: " << ofname << endmsg;
  return StatusCode::FAILURE;
}

StatusCode IoComponentMgr::io_update ( IIoComponent *  iocomponent, const std::string &  old_fname, const std::string &  new_fname  )

virtual

: allow a IIoComponent to update the contents of the registry with a new file name

Definition at line 342 of file IoComponentMgr.cpp.

                                          {

  DEBMSG << "--> io_update(" << ioc->name() << ","
     << old_fname << "," << new_fname << ")" << endmsg;

  IoDict_t::iterator it;
  for (it = m_cdict.equal_range(ioc).first;
       it != m_cdict.equal_range(ioc).second;
       ++it) {

    if (it->second.m_oldfname == old_fname) {
      DEBMSG << "updating " << ioc->name() << " f: " << old_fname << " -> "
         << new_fname << endmsg;
      it->second.m_newfname = new_fname;
      return StatusCode::SUCCESS;
    }
  }

  return StatusCode::FAILURE;

}

StatusCode IoComponentMgr::io_update ( IIoComponent *  iocomponent, const std::string &  work_dir  )

virtual

: allow a IIoComponent to update the contents of the registry with a new work directory

Definition at line 368 of file IoComponentMgr.cpp.

                                                                      {

  DEBMSG << "--> io_update(" << ioc->name() << ","
     << work_dir << ")" << endmsg;

  IoDict_t::iterator it;
  for (it = m_cdict.equal_range(ioc).first;
       it != m_cdict.equal_range(ioc).second;
       ++it) {

    switch(it->second.m_iomode) {
    case IIoComponentMgr::IoMode::READ:
      {
    it->second.m_newfname = it->second.m_oldabspath;
    break;
      }
    case IIoComponentMgr::IoMode::WRITE:
      {
    boost::filesystem::path oldPath(it->second.m_oldfname);
    if(oldPath.is_relative() &&
       oldPath.filename()==oldPath.relative_path()) {

      // Only file name was provided for writing. This is the usual mode of operation
      // ***
      // NB. In such cases it would make sense to set newfname=oldfname, however this will break
      //     existing client codes, which assume that newfname contains "/"
      //     Thus we set newfname=workdir/oldfname
      // ***

      boost::filesystem::path newfname(work_dir);
      newfname /= oldPath;
      it->second.m_newfname = newfname.string();
    }
    else {
      // New name should be the old absolute path
      it->second.m_newfname = it->second.m_oldabspath;
    }

    break;
      }
    default:
      {
    // Don't know how to deal with either RW or INVALID
    m_log << MSG::ERROR << "Unable to update IoComponent for the mode " << it->second.m_iomode << endmsg;
    return StatusCode::FAILURE;
      }
    }

  } // for

  return StatusCode::SUCCESS;

}

StatusCode IoComponentMgr::io_update_all ( const std::string &  work_dir )

virtual

: Update all IIoComponents with a new work directory

Definition at line 425 of file IoComponentMgr.cpp.

{
  DEBMSG << "-->io_update_all for the directory " << work_dir << endmsg;
  bool allgood = true;
  for ( IoStack_t::iterator io = m_iostack.begin(), ioEnd = m_iostack.end();
        io != ioEnd;
        ++io ) {
    if ( !io_update(*io,work_dir).isSuccess() ) {
      allgood = false;
      m_log << MSG::ERROR << "problem in [" << (*io)->name()
            << "]->io_update() !" << endmsg;
    }
  }
  return allgood ? StatusCode::SUCCESS : StatusCode::FAILURE;
}

std::string IoComponentMgr::list ( ) const

private

Definition at line 520 of file IoComponentMgr.cpp.

                           {

  ostringstream ost;

  ost << "Listing all IoComponents (" << m_cdict.size() << "): " << endl;
  for (const auto&  i : m_cdict ) {
    ost << "  " << i.first->name() << "  " << i.second << endl;
  }

  return ost.str();
}

Member Data Documentation

IoDict_t IoComponentMgr::m_cdict

private

Definition at line 197 of file IoComponentMgr.h.

std::string IoComponentMgr::m_dict_location

private

location of the python dictionary

Definition at line 200 of file IoComponentMgr.h.

IoRegistry_t IoComponentMgr::m_ioregistry

private

Registry of IIoComponents.

Definition at line 186 of file IoComponentMgr.h.

IoStack_t IoComponentMgr::m_iostack

private

Stack of IIoComponents to properly handle order of registration.

Definition at line 190 of file IoComponentMgr.h.

MsgStream IoComponentMgr::m_log

mutableprivate

Definition at line 182 of file IoComponentMgr.h.

---

The documentation for this class was generated from the following files:

• GaudiMP/src/component/IoComponentMgr.h
• GaudiMP/src/component/IoComponentMgr.cpp
