MyVertex Class Reference

Simple class that represents a vertex for testing purposes. More...

#include <src/Test/MyVertex.h>

Inheritance diagram for MyVertex:

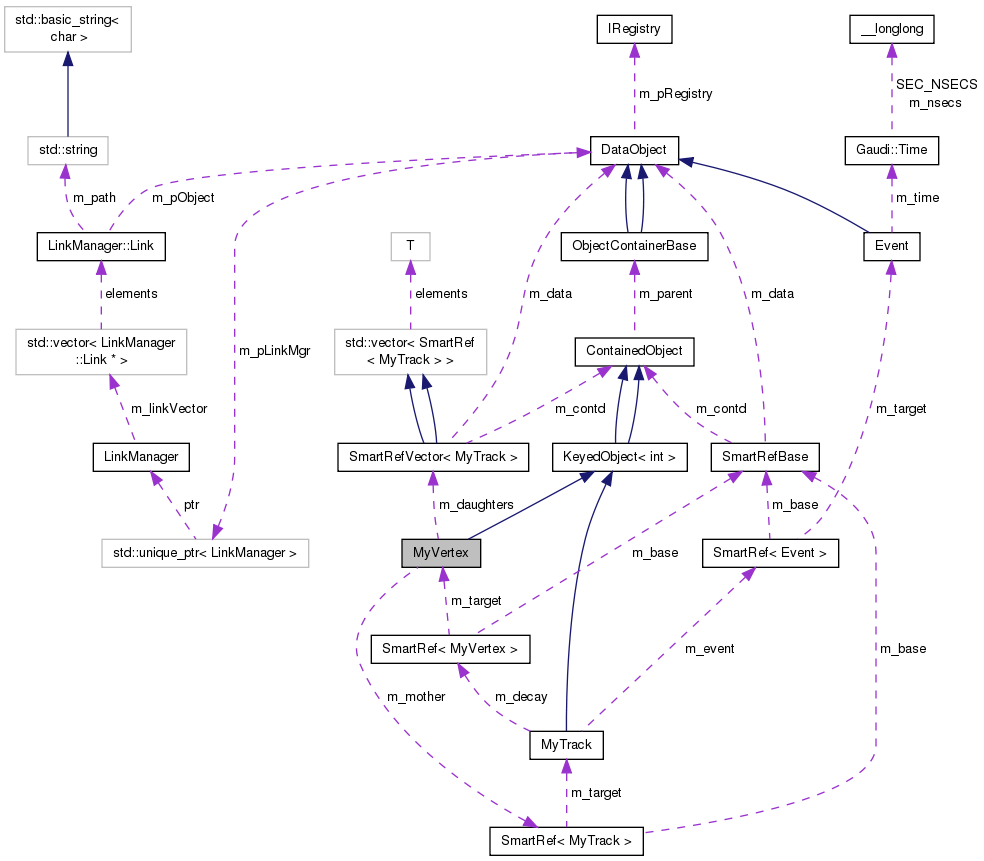

Collaboration diagram for MyVertex:

Public Member Functions
	MyVertex ()
	Standard constructor. More...
	MyVertex (double x, double y, double z)
	Standard constructor. More...
virtual	~MyVertex ()
	Standard Destructor. More...
virtual const CLID &	clID () const
	Retrieve pointer to class definition structure. More...
double	x () const
	Accessors: Retrieve x-position. More...
double	y () const
	Accessors: Retrieve y-position. More...
double	z () const
	Accessors: Retrieve z-position. More...
void	setX (double x)
	Accessors: Update x-position. More...
void	setY (double y)
	Accessors: Update y-position. More...
void	setZ (double z)
	Accessors: Update z-position. More...
const MyTrack *	motherTrack () const
	Retrieve pointer to mother particle (const or non-const) More...
MyTrack *	motherTrack ()
void	setMotherTrack (MyTrack *value)
	Update pointer to mother particle (by a C++ pointer or a smart reference) More...
void	addDaughterTrack (MyTrack *value)
	Retrieve pointer to vector of daughter particles (const or non-const) More...
virtual StreamBuffer &	serialize (StreamBuffer &s)
	Input streamer. More...
virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Output streamer. More...
Public Member Functions inherited from KeyedObject< int >
	KeyedObject ()=default
	Standard Constructor. The object key is preset to the invalid value. More...
	KeyedObject (const key_type &kval)
	Standard Constructor accepting the object's key. More...
	KeyedObject ()=default
	Standard Constructor. The object key is preset to the invalid value. More...
	KeyedObject (const key_type &kval)
	Standard Constructor accepting the object's key. More...
	~KeyedObject () override
	Standard destructor. More...
	~KeyedObject () override
	Standard destructor. More...
const key_type &	key () const
	Retrieve Key of the object. More...
const key_type &	key () const
	Retrieve Key of the object. More...
bool	hasKey () const
	Check if the object has a key assigned or not. More...
bool	hasKey () const
	Check if the object has a key assigned or not. More...
long	index () const override
	Distance in the parent container. More...
long	index () const override
	Distance in the parent container. More...
StreamBuffer &	serialize (StreamBuffer &s) const override
	Serialize the object for writing. More...
StreamBuffer &	serialize (StreamBuffer &s) override
	Serialize the object for reading. More...
StreamBuffer &	serialize (StreamBuffer &s) const override
	Serialize the object for writing. More...
StreamBuffer &	serialize (StreamBuffer &s) override
	Serialize the object for reading. More...
Public Member Functions inherited from ContainedObject
const ObjectContainerBase *	parent () const
	Access to parent object. More...
void	setParent (ObjectContainerBase *value)
	Update parent member. More...
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...
const ObjectContainerBase *	parent () const
	Access to parent object. More...
void	setParent (ObjectContainerBase *value)
	Update parent member. More...
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Static Public Member Functions
static const CLID &	classID ()
Static Public Member Functions inherited from ContainedObject
static const CLID &	classID ()
static const CLID &	classID ()

Private Attributes
double	m_x
	The track momentum. More...
double	m_y
double	m_z
SmartRef< MyTrack >	m_mother
	Link to Top level event. More...
SmartRefVector< MyTrack >	m_daughters

Additional Inherited Members
Public Types inherited from KeyedObject< int >
typedef int	key_type
	Definition of the key-type to access object. More...
typedef int	key_type
	Definition of the key-type to access object. More...
Protected Types inherited from KeyedObject< int >
typedef Containers::key_traits< key_type >	traits
	definition of the container key traits to be made friend More...
typedef Containers::key_traits< key_type >	traits
	definition of the container key traits to be made friend More...
Protected Member Functions inherited from KeyedObject< int >
unsigned long	addRef ()
	Add reference to object (Increase reference counter). More...
unsigned long	addRef ()
	Add reference to object (Increase reference counter). More...
unsigned long	release ()
	Release reference. If the reference count is ZERO, delete the object. More...
unsigned long	release ()
	Release reference. If the reference count is ZERO, delete the object. More...
void	setKey (const key_type &key)
	Set object key. More...
void	setKey (const key_type &key)
	Set object key. More...
Protected Member Functions inherited from ContainedObject
	ContainedObject ()=default
	Constructors. More...
	ContainedObject (const ContainedObject &)
	Copy constructor – do NOT copy the parent reference... More...
virtual	~ContainedObject ()
	Destructor. More...
	ContainedObject ()=default
	Constructors. More...
	ContainedObject (const ContainedObject &)
	Copy constructor – do NOT copy the parent reference... More...
virtual	~ContainedObject ()
	Destructor. More...
Protected Attributes inherited from KeyedObject< int >
key_type	m_key
	Object Key; It's initial value is not determined. More...
long	m_refCount
	Reference counter. More...
bool	m_hasKey
	Boolean to indicate wether a key was already assigned. More...

Detailed Description

Simple class that represents a vertex for testing purposes.

Author

Pere Mato

Definition at line 23 of file MyVertex.h.

Constructor & Destructor Documentation

MyVertex::MyVertex ( )

inline

Standard constructor.

Definition at line 32 of file MyVertex.h.

               : m_x(0.0), m_y(0.0), m_z(0.0)  {
  }

MyVertex::MyVertex ( double  x, double  y, double  z  )

inline

Standard constructor.

Definition at line 35 of file MyVertex.h.

                                           : m_x(x), m_y(y), m_z(z)  {
  }

virtual MyVertex::~MyVertex ( )

inlinevirtual

Standard Destructor.

Definition at line 38 of file MyVertex.h.

                       {
  }

Member Function Documentation

void MyVertex::addDaughterTrack ( MyTrack *  value )

inline

Retrieve pointer to vector of daughter particles (const or non-const)

Update all daughter particles Remove all daughter particles Add single daughter particle to vector of daughter particles (by a C++ pointer or a smart reference)

Definition at line 72 of file MyVertex.h.

{ m_daughters.push_back(value); }

static const CLID& MyVertex::classID ( )

inlinestatic

Definition at line 42 of file MyVertex.h.

{ return CLID_MyVertex; }

virtual const CLID& MyVertex::clID ( ) const

inlinevirtual

Retrieve pointer to class definition structure.

Reimplemented from ContainedObject.

Definition at line 41 of file MyVertex.h.

{ return classID(); }

const MyTrack* MyVertex::motherTrack ( ) const

inline

Retrieve pointer to mother particle (const or non-const)

Definition at line 57 of file MyVertex.h.

{ return m_mother; }

MyTrack* MyVertex::motherTrack ( )

inline

Definition at line 58 of file MyVertex.h.

{ return m_mother; }

StreamBuffer & MyVertex::serialize ( StreamBuffer &  s )

inlinevirtual

Input streamer.

Reimplemented from ContainedObject.

Definition at line 85 of file MyVertex.h.

                                                           {
  return s >> m_x >> m_y >> m_z >> m_mother(this) >> m_daughters(this);
}

StreamBuffer & MyVertex::serialize ( StreamBuffer &  s ) const

inlinevirtual

Output streamer.

Reimplemented from ContainedObject.

Definition at line 89 of file MyVertex.h.

                                                                 {
  return s << m_x << m_y << m_z << m_mother(this) << m_daughters(this);
}

void MyVertex::setMotherTrack ( MyTrack *  value )

inline

Update pointer to mother particle (by a C++ pointer or a smart reference)

Definition at line 60 of file MyVertex.h.

{ m_mother = value; }

void MyVertex::setX ( double  x )

inline

Accessors: Update x-position.

Definition at line 50 of file MyVertex.h.

{ m_x = x;    }

void MyVertex::setY ( double  y )

inline

Accessors: Update y-position.

Definition at line 52 of file MyVertex.h.

{ m_y = y;    }

void MyVertex::setZ ( double  z )

inline

Accessors: Update z-position.

Definition at line 54 of file MyVertex.h.

{ m_z = z;    }

double MyVertex::x ( ) const

inline

Accessors: Retrieve x-position.

Definition at line 44 of file MyVertex.h.

{ return m_x;  }

double MyVertex::y ( ) const

inline

Accessors: Retrieve y-position.

Definition at line 46 of file MyVertex.h.

{ return m_y;  }

double MyVertex::z ( ) const

inline

Accessors: Retrieve z-position.

Definition at line 48 of file MyVertex.h.

{ return m_z;  }

Member Data Documentation

SmartRefVector<MyTrack> MyVertex::m_daughters

private

Definition at line 29 of file MyVertex.h.

SmartRef<MyTrack> MyVertex::m_mother

private

Link to Top level event.

Definition at line 28 of file MyVertex.h.

double MyVertex::m_x

private

The track momentum.

Definition at line 26 of file MyVertex.h.

double MyVertex::m_y

private

Definition at line 26 of file MyVertex.h.

double MyVertex::m_z

private

Definition at line 26 of file MyVertex.h.

---

The documentation for this class was generated from the following file:

• GaudiPython/src/Test/MyVertex.h
