Gaudi tag collection service definition. More...

#include <src/NTupleSvc/TagCollectionSvc.h>

Inheritance diagram for TagCollectionSvc:

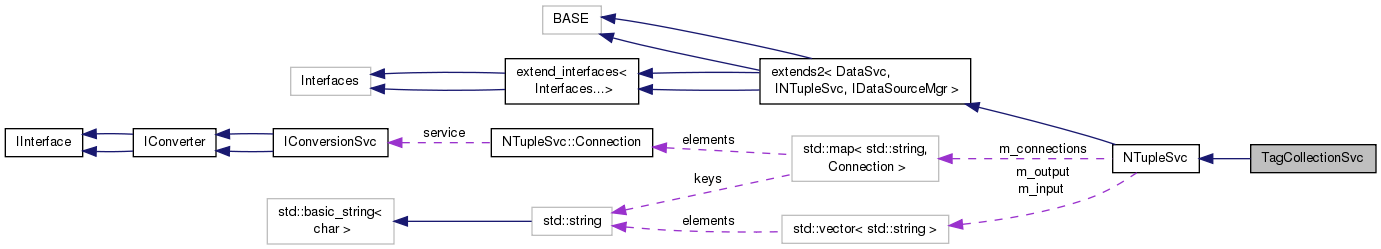

Collaboration diagram for TagCollectionSvc:

Public Member Functions
	TagCollectionSvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor. More...

	~TagCollectionSvc () override=default
	Standard Destructor. More...

Public Member Functions inherited from NTupleSvc
virtual StatusCode	initialize ()
	DataSvc overrides: Initialize the service. More...

virtual StatusCode	reinitialize ()
	DataSvc overrides: reinitialize service. More...

virtual StatusCode	finalize ()
	DataSvc overrides: stop the service. More...

virtual IConversionSvc *	getDataLoader (IRegistry *pReg)
	DataSvc overrides: Retrieve data loader. More...

virtual NTuple::Directory *	createDirectory (DataObject *pParent, const std::string &title)
	Create Ntuple directory and register it with the data store. More...

virtual NTuple::Directory *	createDirectory (DataObject *pParent, long id)
	Create Ntuple directory and register it with the data store. More...

virtual NTuple::Directory *	createDirectory (const std::string &dirPath, long id)
	Create Ntuple directory and register it with the data store. More...

virtual NTuple::Directory *	createDirectory (const std::string &dirPath, const std::string &title)
	Create Ntuple directory and register it with the data store. More...

virtual NTuple::Directory *	createDirectory (const std::string &fullPath)
	Create Ntuple directory and register it with the data store. More...

virtual StatusCode	create (const CLID &typ, const std::string &title, NTuple::Tuple *&refpTuple)
	Create requested N tuple (Hide constructor) More...

virtual NTuple::Tuple *	book (const std::string &fullPath, const CLID &type, const std::string &title)
	Book Ntuple and register it with the data store. More...

virtual NTuple::Tuple *	book (const std::string &dirPath, const std::string &relPath, const CLID &type, const std::string &title)
	Book Ntuple and register it with the data store. More...

virtual NTuple::Tuple *	book (const std::string &dirPath, long id, const CLID &type, const std::string &title)
	Book Ntuple and register it with the data store. More...

virtual NTuple::Tuple *	book (DataObject *pParent, const std::string &relPath, const CLID &type, const std::string &title)
	Book Ntuple and register it with the data store. More...

virtual NTuple::Tuple *	book (DataObject *pParent, long id, const CLID &type, const std::string &title)
	Book Ntuple and register it with the data store. More...

virtual NTuple::Tuple *	access (const std::string &fullPath, const std::string &filename)
	Access N tuple on disk. More...

virtual StatusCode	save (const std::string &fullPath)
	Save N tuple to disk. Must be called in order to close the ntuple file properly. More...

virtual StatusCode	save (NTuple::Tuple *tuple)
	Save N tuple to disk. Must be called in order to close the ntuple file properly. More...

virtual StatusCode	save (DataObject *pParent, const std::string &relPath)
	Save N tuple to disk. Must be called in order to close the ntuple file properly. More...

virtual StatusCode	writeRecord (NTuple::Tuple *tuple)
	Write single record to N tuple. More...

virtual StatusCode	writeRecord (const std::string &fullPath)
	Write single record to N tuple. More...

virtual StatusCode	writeRecord (DataObject *pParent, const std::string &relPath)
	Write single record to N tuple. More...

virtual StatusCode	readRecord (NTuple::Tuple *tuple)
	Read single record from N tuple. More...

virtual StatusCode	readRecord (const std::string &fullPath)
	Read single record from N tuple. More...

virtual StatusCode	readRecord (DataObject *pParent, const std::string &relPath)
	Read single record from N tuple. More...

virtual bool	isConnected (const std::string &identifier) const
	Check if a datasource is connected. More...

virtual StatusCode	connect (const std::string &ident)
	Add file to list I/O list. More...

virtual StatusCode	disconnect (const std::string &nam)
	Close open connection. More...

virtual StatusCode	disconnectAll ()
	Close all open connections. More...

	NTupleSvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor. More...

virtual	~NTupleSvc ()
	Standard Destructor. More...

Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...

StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...

std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

	~extends () override=default
	Virtual destructor. More...

void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...

StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...

std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...

	~extends () override=default
	Virtual destructor. More...

Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...

	~extend_interfaces () override=default
	Virtual destructor. More...

Protected Member Functions
StatusCode	connect (const std::string &ident, std::string &logname) override
	Add file to list I/O list. More...

virtual StatusCode	createService (const std::string &nam, const std::string &typ, const std::vector< Prop > &props, IConversionSvc *&pSvc)
	Create conversion service. More...

Protected Member Functions inherited from NTupleSvc
StatusCode	createService (const std::string &nam, const std::string &typ, const std::vector< Prop > &props, IConversionSvc *&pSvc)
	Create conversion service. More...

void	releaseConnection (Connection &c)
	Finalize single service. More...

StatusCode	attachTuple (const std::string &filename, const std::string &logname, const char typ, const long t)
	Attach output/input file. More...

StatusCode	updateDirectories ()
	Update directory data. More...

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
using	base_class = extends
	Typedef to this class. More...

using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...

using	base_class = extends
	Typedef to this class. More...

using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...

Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Protected Types inherited from NTupleSvc
typedef std::vector< std::string >	DBaseEntries

typedef std::map< std::string, Connection >	Connections

typedef std::pair< std::string, std::string >	Prop

Protected Attributes inherited from NTupleSvc
DBaseEntries	m_output
	Output streams. More...

DBaseEntries	m_input
	Input streams. More...

Connections	m_connections
	Container of connection points. More...

Detailed Description

Gaudi tag collection service definition.

Description: See the base class definition files for more detailed documentation of the implementing class. The basic functionality of the implementation is enhanced to allow for more general N-tuples, which can be used also as event tag collections.

M.Frank 1.0

Definition at line 26 of file TagCollectionSvc.h.

Constructor & Destructor Documentation

TagCollectionSvc::TagCollectionSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard Constructor.

Definition at line 46 of file TagCollectionSvc.cpp.

  : NTupleSvc(name, svc)
 {
 }

TagCollectionSvc::~TagCollectionSvc ( )

overridedefault

Standard Destructor.

Member Function Documentation

StatusCode TagCollectionSvc::connect	(	const std::string &	ident,
		std::string &	logname
	)

overrideprotectedvirtual

Add file to list I/O list.

Reimplemented from NTupleSvc.

Definition at line 53 of file TagCollectionSvc.cpp.

                                                                                   {
   MsgStream log ( msgSvc(), name() );
   DataObject* pO = nullptr;
   StatusCode status = findObject(m_rootName, pO);
   if ( status.isSuccess() )   {
     status = INVALID_ROOT;
     if ( pO->registry() )   {
       char typ=0;
       std::vector<Prop> props;
       long loc = ident.find(" ");
       std::string filename,  svc = "DbCnvSvc";
       logname = ident.substr(0,loc);
       using Parser = Gaudi::Utils::AttribStringParser;
       // we assume that there is always a " "
       // (but if it is not there, we probably will not match the pattern)
       for (auto attrib: Parser(ident.substr(loc + 1))) {
         switch( ::toupper(attrib.tag[0]) )   {
         case 'A':
           props.emplace_back( "Server", attrib.value);
           break;
         case 'F': /* FILE='<file name>' */
         case 'D': /* DATAFILE='<file name>' */
           filename = std::move(attrib.value);
           break;
         case 'O': /* OPT='<NEW<CREATE,WRITE>, UPDATE, READ>' */
           switch( ::toupper(attrib.value[0]) )   {
           case 'C':
           case 'N':
           case 'W':                   typ = 'N';            break;
           case 'U':                   typ = 'U';            break;
           case 'O':
           case 'R':
             switch( ::toupper(attrib.value[2]) )   {
             case 'C': /* RECREATE */  typ = 'R';            break;
             case 'A': /* READ     */
             default:                  typ = 'O';            break;
             }
             break;
           default:                    typ = 0;              break;
           }
           break;
         case 'S':   // SVC='<service type>'
           switch( ::toupper(attrib.tag[1]) )   {
           case 'V':                   svc = std::move(attrib.value);   break;
           case 'H':
             switch(::toupper(attrib.value[0]))  {
               case 'Y':
                props.emplace_back( "ShareFiles", attrib.value);
                break ;
             }
             break;
           }
           break;
         case 'T':   // TYP='<HBOOK,ROOT,OBJY,...>'
           switch(::toupper(attrib.value[0]))  {
           case 'H':
             svc = "HbookCnv::ConvSvc";
             break;
           case 'P':
             props.emplace_back( "DbType", attrib.value);
             svc = "PoolDbCnvSvc";
             break;
           default:
             props.emplace_back( "DbType", attrib.value);
             svc = "DbCnvSvc";
             break;
           }
           break;
         default:
           props.emplace_back( attrib.tag, attrib.value);
           break;
         }
       }
       if ( 0 != typ )    {
         IConversionSvc* pSvc = nullptr;
         status = createService(name()+'.'+logname, svc, props, pSvc);
         if ( status.isSuccess() ) {
           status = attachTuple(filename,logname,typ,pSvc->repSvcType());
           if ( status.isSuccess() )    {
             m_connections.emplace(m_rootName+'/'+logname,Connection(pSvc));
             return StatusCode::SUCCESS;
           }
         }
       }
     }
   }
   log << MSG::ERROR << "Cannot add " << ident << " invalid filename!" << endmsg;
   return StatusCode::FAILURE;
 }

StatusCode TagCollectionSvc::createService	(	const std::string &	nam,
		const std::string &	typ,
		const std::vector< Prop > &	props,
		IConversionSvc *&	pSvc
	)

protectedvirtual

Create conversion service.

Parameters

nam	Name of the service to be created
svc	Service type if sepecified in the options
props

Definition at line 144 of file TagCollectionSvc.cpp.

                                                                       {
   pSvc = nullptr;
   using Gaudi::Utils::TypeNameString;
   auto mgr = serviceLocator()->as<ISvcManager>();

   // TagCollectionSvc has to directly create a ConversionSvc to manage it directly.
   StatusCode status = NO_INTERFACE;
   if ( mgr ) {
     SmartIF<IService> isvc = mgr->createService(TypeNameString(nam, typ));
     if (isvc) {
       auto icsvc = isvc.as<IConversionSvc>();
       if ( icsvc ) {
         auto iprop = isvc.as<IProperty>();
         if ( iprop ) {
           for ( const auto& p : props ) {
             iprop->setProperty(p.first, p.second).ignore();
           }
           // NTupleSvc has to directly create a ConversionSvc to manage it directly.
           status = isvc->sysInitialize();
           if ( status.isSuccess() ) {
             status = icsvc->setDataProvider(this);
             if ( status.isSuccess() ) {
                 pSvc = icsvc.get();
                 pSvc->addRef();
             }
           }
         }
       }
     }
   }
   return status;
 }

The documentation for this class was generated from the following files:

GaudiSvc/src/NTupleSvc/TagCollectionSvc.h
GaudiSvc/src/NTupleSvc/TagCollectionSvc.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
