The useful base class for data processing algorithms. More...

#include <GaudiAlg/GaudiAlgorithm.h>

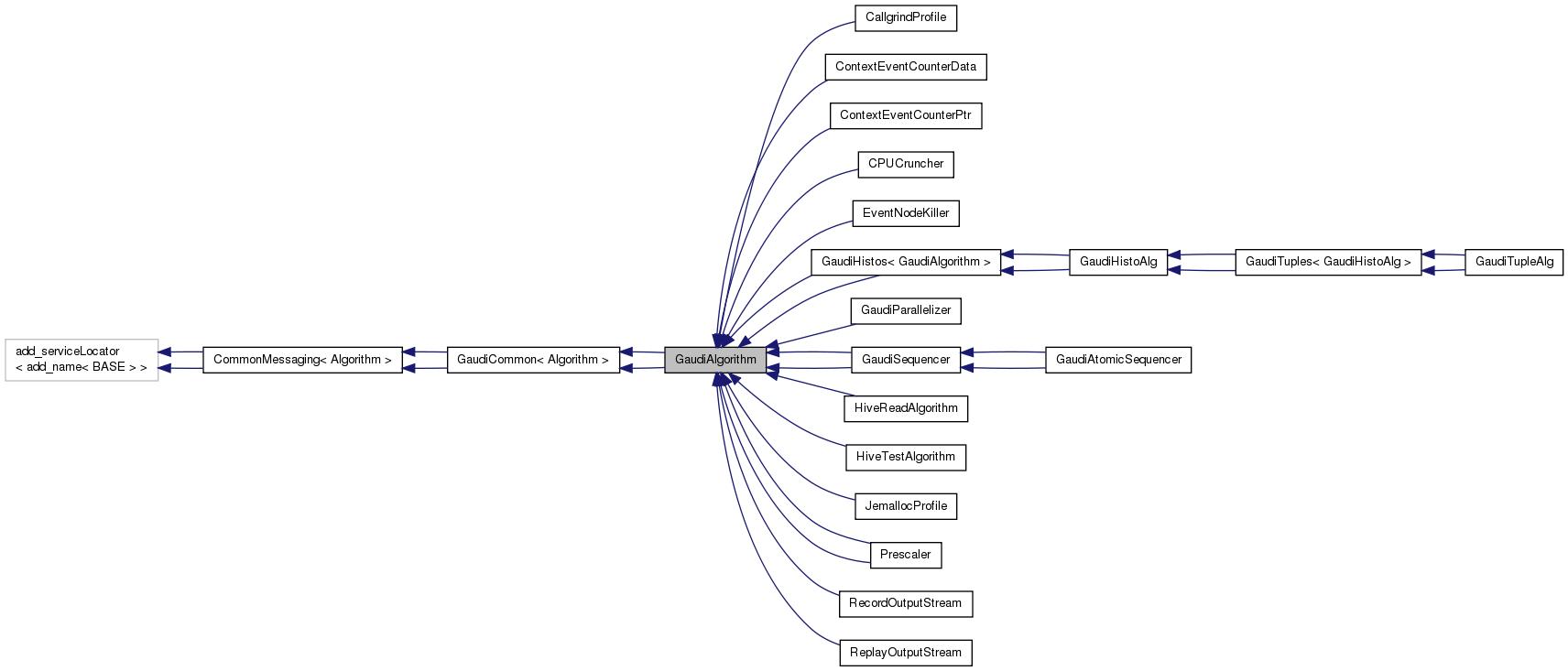

Inheritance diagram for GaudiAlgorithm:

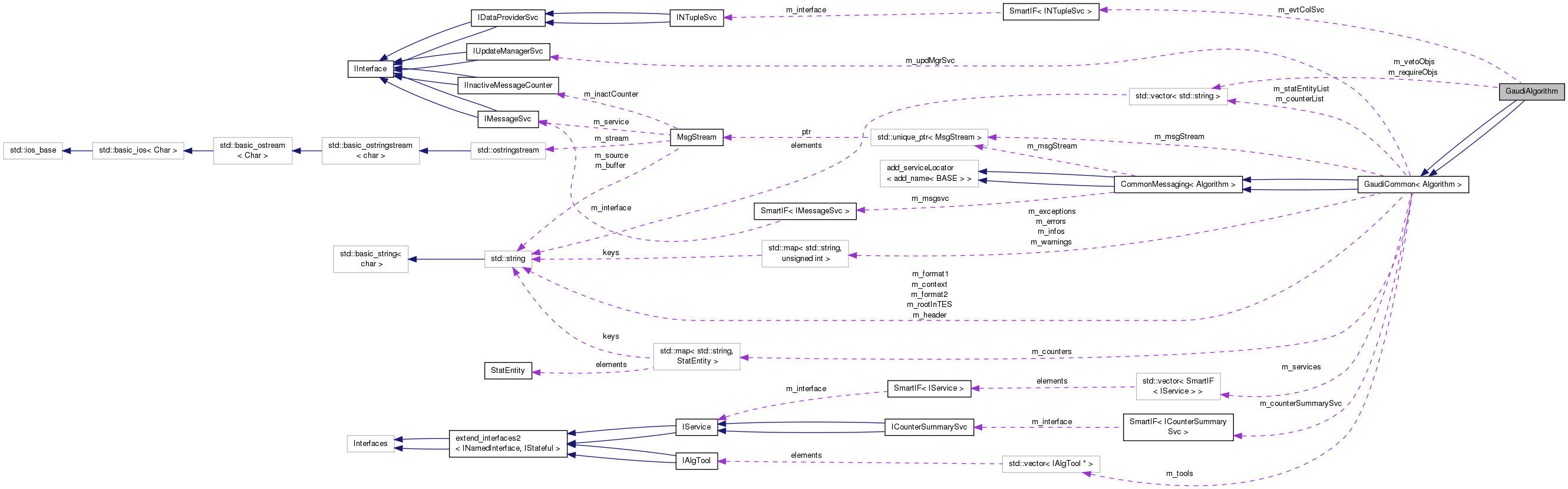

Collaboration diagram for GaudiAlgorithm:

Public Member Functions
StatusCode	initialize () override
	standard initialization method More...

StatusCode	execute () override
	standard execution method More...

StatusCode	finalize () override
	standard finalization method More...

StatusCode	sysExecute () override
	the generic actions for the execution. More...

void	put (IDataProviderSvc svc, DataObject object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

void	put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	get (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data from Gaudi Event Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

template<class TYPE >
TYPE *	getDet (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getDetIfExists (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
TYPE *	getDet (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getDetIfExists (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

template<class TYPE >
bool	exist (const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

template<class TYPE >
bool	existDet (IDataProviderSvc *svc, const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...

template<class TYPE >
bool	existDet (const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...

template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

	GaudiAlgorithm (const std::string &name, ISvcLocator *pSvcLocator)
	Standard constructor (protected) More...

	~GaudiAlgorithm () override=default
	destructor, virtual and protected More...

SmartIF< INTupleSvc > &	evtColSvc () const
	Access the standard event collection service. More...

	GaudiAlgorithm (const GaudiAlgorithm &)=delete

GaudiAlgorithm &	operator= (const GaudiAlgorithm &)=delete

StatusCode	initialize () override
	standard initialization method More...

StatusCode	execute () override
	standard execution method More...

StatusCode	finalize () override
	standard finalization method More...

StatusCode	sysExecute () override
	the generic actions for the execution. More...

void	put (IDataProviderSvc svc, DataObject object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

void	put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	get (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data from Gaudi Event Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

template<class TYPE >
TYPE *	getDet (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getDetIfExists (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
TYPE *	getDet (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
Gaudi::Utils::GetData< TYPE >::return_type	getDetIfExists (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store. More...

template<class TYPE >
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

template<class TYPE >
bool	exist (const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

template<class TYPE >
bool	existDet (IDataProviderSvc *svc, const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...

template<class TYPE >
bool	existDet (const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store. More...

template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

	GaudiAlgorithm (const std::string &name, ISvcLocator *pSvcLocator)
	Standard constructor (protected) More...

	~GaudiAlgorithm () override=default
	destructor, virtual and protected More...

SmartIF< INTupleSvc > &	evtColSvc () const
	Access the standard event collection service. More...

	GaudiAlgorithm (const GaudiAlgorithm &)=delete

GaudiAlgorithm &	operator= (const GaudiAlgorithm &)=delete

Public Member Functions inherited from GaudiCommon< Algorithm >
Gaudi::Utils::GetData< TYPE >::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

Gaudi::Utils::GetData< TYPE >::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store. More...

Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Quicker version of the get function which bypasses the check on the retrieved data. More...

Gaudi::Utils::GetData< TYPE >::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Quicker version of the get function which bypasses the check on the retrieved data. More...

bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store. More...

Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

Gaudi::Utils::GetData< TYPE >::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store. More...

DataObject *	put (IDataProviderSvc svc, DataObject object, const std::string &location, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

DataObject *	put (IDataProviderSvc svc, DataObject object, const std::string &location, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store. More...

TOOL *	tool (const std::string &type, const std::string &name, const IInterface *parent=0, bool create=true) const
	Useful method for the easy location of tools. More...

TOOL *	tool (const std::string &type, const IInterface *parent=0, bool create=true) const
	A useful method for the easy location of tools. More...

TOOL *	tool (const std::string &type, const std::string &name, const IInterface *parent=0, bool create=true) const
	Useful method for the easy location of tools. More...

TOOL *	tool (const std::string &type, const IInterface *parent=0, bool create=true) const
	A useful method for the easy location of tools. More...

SmartIF< SERVICE >	svc (const std::string &name, const bool create=true) const
	A useful method for the easy location of services. More...

SmartIF< SERVICE >	svc (const std::string &name, const bool create=true) const
	A useful method for the easy location of services. More...

IUpdateManagerSvc *	updMgrSvc () const
	Short-cut to locate the Update Manager Service. More...

IUpdateManagerSvc *	updMgrSvc () const
	Short-cut to locate the Update Manager Service. More...

StatusCode	Error (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the error message and return with the given StatusCode. More...

StatusCode	Error (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the error message and return with the given StatusCode. More...

StatusCode	Warning (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the warning message and return with the given StatusCode. More...

StatusCode	Warning (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the warning message and return with the given StatusCode. More...

StatusCode	Info (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const size_t mx=10) const
	Print the info message and return with the given StatusCode. More...

StatusCode	Info (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const size_t mx=10) const
	Print the info message and return with the given StatusCode. More...

StatusCode	Print (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const MSG::Level lev=MSG::INFO) const
	Print the message and return with the given StatusCode. More...

StatusCode	Print (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const MSG::Level lev=MSG::INFO) const
	Print the message and return with the given StatusCode. More...

void	Assert (const bool ok, const std::string &message="", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...

void	Assert (const bool ok, const char *message, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...

void	Assert (const bool ok, const std::string &message="", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...

void	Assert (const bool ok, const char *message, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled. More...

void	Exception (const std::string &msg, const GaudiException &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given GaudiException. More...

void	Exception (const std::string &msg, const std::exception &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given exception. More...

void	Exception (const std::string &msg="no message", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and throw an exception with the given message. More...

void	Exception (const std::string &msg, const GaudiException &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given GaudiException. More...

void	Exception (const std::string &msg, const std::exception &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given exception. More...

void	Exception (const std::string &msg="no message", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and throw an exception with the given message. More...

const Statistics &	counters () const
	accessor to all counters More...

const Statistics &	counters () const
	accessor to all counters More...

StatEntity &	counter (const std::string &tag) const
	accessor to certain counter by name More...

StatEntity &	counter (const std::string &tag) const
	accessor to certain counter by name More...

void	resetMsgStream () const

void	resetMsgStream () const

bool	typePrint () const
	Insert the actual C++ type of the algorithm/tool in the messages ? More...

bool	typePrint () const
	Insert the actual C++ type of the algorithm/tool in the messages ? More...

bool	propsPrint () const
	Print properties at initialization ? More...

bool	propsPrint () const
	Print properties at initialization ? More...

bool	statPrint () const
	Print statistical counters at finalization ? More...

bool	statPrint () const
	Print statistical counters at finalization ? More...

bool	errorsPrint () const
	Print error counters at finalization ? More...

bool	errorsPrint () const
	Print error counters at finalization ? More...

long	printStat (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of statistical counters More...

long	printStat (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of statistical counters More...

long	printErrors (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of error counters More...

long	printErrors (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of error counters More...

long	printProps (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of properties More...

long	printProps (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of properties More...

void	registerCondition (const std::string &condition, StatusCode(CallerClass::*mf)()=nullptr)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (const std::string &condition, CondType &condPtrDest, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (char condition, StatusCode(CallerClass::mf)()=NULL)
	just to avoid conflicts with the version using a pointer to a template class. More...

void	registerCondition (TargetClass condition, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (const std::string &condition, StatusCode(CallerClass::*mf)()=nullptr)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (const std::string &condition, CondType &condPtrDest, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

void	registerCondition (char condition, StatusCode(CallerClass::mf)()=NULL)
	just to avoid conflicts with the version using a pointer to a template class. More...

void	registerCondition (TargetClass condition, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition. More...

StatusCode	runUpdate ()
	asks the UpdateManagerSvc to perform an update of the instance (if needed) without waiting the next BeginEvent incident. More...

StatusCode	runUpdate ()
	asks the UpdateManagerSvc to perform an update of the instance (if needed) without waiting the next BeginEvent incident. More...

	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor. More...

	GaudiCommon (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor. More...

	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor. More...

	GaudiCommon (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor. More...

StatusCode	initialize () override
	standard initialization method More...

StatusCode	initialize () override
	standard initialization method More...

StatusCode	finalize () override
	standard finalization method More...

StatusCode	finalize () override
	standard finalization method More...

StatusCode	release (const IInterface *interface) const
	Manual forced (and 'safe') release of the active tool or service. More...

StatusCode	release (const IInterface *interface) const
	Manual forced (and 'safe') release of the active tool or service. More...

const Services &	services () const
	get the list of aquired services More...

const Services &	services () const
	get the list of aquired services More...

const std::string &	context () const
	Returns the "context" string. Used to identify different processing states. More...

const std::string &	context () const
	Returns the "context" string. Used to identify different processing states. More...

const std::string &	rootInTES () const
	Returns the "rootInTES" string. More...

const std::string &	rootInTES () const
	Returns the "rootInTES" string. More...

double	globalTimeOffset () const
	Returns the "globalTimeOffset" double. More...

double	globalTimeOffset () const
	Returns the "globalTimeOffset" double. More...

const std::string	fullTESLocation (const std::string &location, const bool useRootInTES) const
	Returns the full correct event location given the rootInTes settings. More...

const std::string	fullTESLocation (const std::string &location, const bool useRootInTES) const
	Returns the full correct event location given the rootInTes settings. More...

Public Member Functions inherited from CommonMessaging< BASE >
	~CommonMessaging () override=default
	Virtual destructor. More...

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...

MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...

MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...

MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...

MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...

MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...

MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...

MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...

MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...

MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...

MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream More...

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

	~CommonMessaging () override=default
	Virtual destructor. More...

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...

MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...

MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...

MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...

MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...

MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...

MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...

MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...

MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...

MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...

MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...

MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream More...

bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

Private Member Functions
	GaudiAlgorithm ()

	GaudiAlgorithm ()

Private Attributes
SmartIF< INTupleSvc >	m_evtColSvc
	Event Tag Collection Service. More...

std::vector< std::string >	m_vetoObjs
	skip the event if any of these objects are present in TES More...

std::vector< std::string >	m_requireObjs
	process the event only if one or more of these objects are present in TES More...

Additional Inherited Members
Public Types inherited from CommonMessaging< BASE >
using	base_class = CommonMessaging

using	base_class = CommonMessaging

Protected Types inherited from GaudiCommon< Algorithm >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters More...

typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters More...

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter More...

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter More...

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools More...

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools More...

typedef std::vector< SmartIF< IService > >	Services
	storage for active services More...

typedef std::vector< SmartIF< IService > >	Services
	storage for active services More...

Protected Member Functions inherited from GaudiCommon< Algorithm >
	~GaudiCommon () override=default
	Destructor. More...

	~GaudiCommon () override=default
	Destructor. More...

StatusCode	releaseTool (const IAlgTool *tool) const
	manual forced (and 'safe') release of the tool More...

StatusCode	releaseTool (const IAlgTool *tool) const
	manual forced (and 'safe') release of the tool More...

StatusCode	releaseSvc (const IInterface *svc) const
	manual forced (and 'safe') release of the service More...

StatusCode	releaseSvc (const IInterface *svc) const
	manual forced (and 'safe') release of the service More...

Protected Member Functions inherited from CommonMessaging< BASE >
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Protected Attributes inherited from GaudiCommon< Algorithm >
SmartIF< ICounterSummarySvc >	m_counterSummarySvc
	a pointer to the CounterSummarySvc More...

std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression. More...

std::vector< std::string >	m_statEntityList

Protected Attributes inherited from CommonMessaging< BASE >
SmartIF< IMessageSvc >	m_msgsvc
	Pointer to the message service;. More...

std::unique_ptr< MsgStream >	m_msgStream
	The predefined message stream. More...

bool	m_streamWithService = false
	Flag to create a new MsgStream if it was created without the message service. More...

Static Protected Attributes inherited from GaudiCommon< Algorithm >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...

static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods. More...

Detailed Description

The useful base class for data processing algorithms.

Small extension of ordinary the Algorithm base class.

This base class allows "easy"(=="1 line") access to tools and services. This access is safe in the sense that there is no need to worry about the reference counts for tools and services.

The base class allows "easy" (=="1 line") access to data in Gaudi Transient Stores. The functionality includes the checking of the presence of the data at the given location, checking the validity of the data, retrieval of valid data and "forced" retrieve of valid data (create if there is no data).

The base class allows to perform an easy error, warning and exception treatments, including the accumulated statistics of exceptions, errors and warnings.

The base class also includes utilities for general statistical counters.

It has been reported that usage of this base class results in significant shrinkage of existing code lines.

Attention: See also the class GaudiCommon, which implements some of the common functionality between GaudiTool and GaudiAlgorithm.

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru; Chris Jones Chris.nosp@m.toph.nosp@m.er.Ro.nosp@m.b.Jo.nosp@m.nes@c.nosp@m.ern..nosp@m.ch

Date: 30/06/2001

Definition at line 92 of file GaudiAlgorithm.h.

Constructor & Destructor Documentation

GaudiAlgorithm::GaudiAlgorithm	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard constructor (protected)

See also: Algorithm

Parameters

name	name of the algorithm
pSvcLocator	pointer to Service Locator

Definition at line 34 of file GaudiAlgorithm.cpp.

   : GaudiCommon<Algorithm> ( name , pSvcLocator )
 {
   setProperty ( "RegisterForContextService" , true ).ignore() ;

   declareProperty( "VetoObjects", m_vetoObjs,
                    "Skip execute if one or more of these TES objects exists" );
   declareProperty( "RequireObjects", m_requireObjs,
                    "Execute only if one or more of these TES objects exists" );
 }

GaudiAlgorithm::~GaudiAlgorithm ( )

overridedefault

destructor, virtual and protected

GaudiAlgorithm::GaudiAlgorithm ( const GaudiAlgorithm & )

delete

GaudiAlgorithm::GaudiAlgorithm ( )

private

GaudiAlgorithm::GaudiAlgorithm	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard constructor (protected)

See also: Algorithm

Parameters

name	name of the algorithm
pSvcLocator	pointer to Service Locator

GaudiAlgorithm::~GaudiAlgorithm ( )

overridedefault

destructor, virtual and protected

GaudiAlgorithm::GaudiAlgorithm ( const GaudiAlgorithm & )

delete

GaudiAlgorithm::GaudiAlgorithm ( )

private

Member Function Documentation

SmartIF< INTupleSvc > & GaudiAlgorithm::evtColSvc ( ) const

Access the standard event collection service.

Returns: pointer to the event collection service

Definition at line 83 of file GaudiAlgorithm.cpp.

 {
   if ( !m_evtColSvc )
   { m_evtColSvc = svc< INTupleSvc > ( "EvtTupleSvc" , true ) ; }
   //
   return m_evtColSvc ;
 }

SmartIF<INTupleSvc>& GaudiAlgorithm::evtColSvc ( ) const

Access the standard event collection service.

Returns: pointer to the event collection service

StatusCode GaudiAlgorithm::execute ( )

override

standard execution method

See also: Algorithm; IAlgorithm

Returns: status code

Definition at line 76 of file GaudiAlgorithm.cpp.

 {
   return Error ( "Default GaudiAlgorithm execute method called !!" ) ;
 }

StatusCode GaudiAlgorithm::execute ( )

override

standard execution method

See also: Algorithm; IAlgorithm

Returns: status code

template<class TYPE >

bool GaudiAlgorithm::exist	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Check the existence of a data object or container in the Gaudi Transient Event Store.

bool a1 = exist<DataObject>( evtSvc(), "/Event/MyObject" ) ;

bool a2 = exist<MyHits> ( evtSvc(), "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Boolean indicating status of the request

Return values

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 500 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( svc , location , useRootInTES ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::exist	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Check the existence of a data object or container in the Gaudi Transient Event Store.

bool a1 = exist<DataObject>( evtSvc(), "/Event/MyObject" ) ;

bool a2 = exist<MyHits> ( evtSvc(), "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Boolean indicating status of the request

Return values

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 500 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( svc , location , useRootInTES ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::exist	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Check the existence of a data object or container in the Gaudi Transient Event Store.

bool a1 = exist<DataObject>( "/Event/MyObject" ) ;

bool a2 = exist<MyHits> ( "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

location	Address in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Boolean indicating status of the request

Return values

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 533 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::exist	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Check the existence of a data object or container in the Gaudi Transient Event Store.

bool a1 = exist<DataObject>( "/Event/MyObject" ) ;

bool a2 = exist<MyHits> ( "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

location	Address in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Boolean indicating status of the request

Return values

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 533 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::existDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Check the existence of detector objects in the Gaudi Transient Detector Store.

bool a1 = existDet<DataObject> ( detSvc(), "/dd/Structure/MyObject" ) ;

bool a2 = existDet<Material> ( detSvc(), "/dd/Structure/Material/Air" ) ;

Parameters

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Detector Store

Returns: Boolean indicating status of the request

Return values

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 556 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( svc , location , false ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::existDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Check the existence of detector objects in the Gaudi Transient Detector Store.

bool a1 = existDet<DataObject> ( detSvc(), "/dd/Structure/MyObject" ) ;

bool a2 = existDet<Material> ( detSvc(), "/dd/Structure/Material/Air" ) ;

Parameters

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Detector Store

Returns: Boolean indicating status of the request

Return values

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 556 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( svc , location , false ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::existDet ( const std::string & location ) const

inline

Check the existence of detector objects in the Gaudi Transient Detector Store.

bool a1 = existDet<DataObject> ( "/dd/Structure/MyObject" ) ;

bool a2 = existDet<Material> ( "/dd/Structure/Material/Air" ) ;

Parameters

location Address in Gaudi Transient Detector Store

Returns: Boolean indicating status of the request

Return values

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 578 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( detSvc() , location , false ) ;
   }

template<class TYPE >

bool GaudiAlgorithm::existDet ( const std::string & location ) const

inline

Check the existence of detector objects in the Gaudi Transient Detector Store.

bool a1 = existDet<DataObject> ( "/dd/Structure/MyObject" ) ;

bool a2 = existDet<Material> ( "/dd/Structure/Material/Air" ) ;

Parameters

location Address in Gaudi Transient Detector Store

Returns: Boolean indicating status of the request

Return values

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 578 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::exist<TYPE> ( detSvc() , location , false ) ;
   }

StatusCode GaudiAlgorithm::finalize ( )

override

standard finalization method

See also: Algorithm; IAlgorithm

Returns: status code

StatusCode GaudiAlgorithm::finalize ( )

override

standard finalization method

See also: Algorithm; IAlgorithm

Returns: status code

Definition at line 62 of file GaudiAlgorithm.cpp.

 {
   if ( msgLevel(MSG::DEBUG) )
     debug() << "Finalize base class GaudiAlgorithm" << endmsg;

   // reset pointers
   m_evtColSvc.reset() ;

   // finalize the base class and return
   return GaudiCommon<Algorithm>::finalize() ;
 }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::get	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data

MCHits* hits = get<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc; SmartDataPtr

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object

Definition at line 244 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( svc , location , useRootInTES ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::get	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data

MCHits* hits = get<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc; SmartDataPtr

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object

Definition at line 244 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( svc , location , useRootInTES ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::get	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data from Gaudi Event Transient Store.

Quick and safe access to the data in Gaudi transient store.

The method located the data at the given address and perform the debug printout about located data.

MCParticles* mcps = get<MCParticles>( MCParticleLocation::Default );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

location	Data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Pointer to the data object

Definition at line 321 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::get	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data from Gaudi Event Transient Store.

Quick and safe access to the data in Gaudi transient store.

The method located the data at the given address and perform the debug printout about located data.

MCParticles* mcps = get<MCParticles>( MCParticleLocation::Default );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

location	Data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Pointer to the data object

Definition at line 321 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE >

TYPE* GaudiAlgorithm::getDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

MyDet* mdet = getDet<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Definition at line 386 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( svc , location , false ) ;
   }

template<class TYPE >

TYPE* GaudiAlgorithm::getDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

MyDet* mdet = getDet<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Definition at line 386 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( svc , location , false ) ;
   }

template<class TYPE >

TYPE* GaudiAlgorithm::getDet ( const std::string & location ) const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

MyDet* mdet = getDet<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters

location Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Definition at line 440 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( detSvc() , location , false ) ;
   }

template<class TYPE >

TYPE* GaudiAlgorithm::getDet ( const std::string & location ) const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

MyDet* mdet = getDet<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters

location Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Definition at line 440 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::get<TYPE> ( detSvc() , location , false ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getDetIfExists	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MyDet* mdet = getDetIfExists<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Return values

NULL	If the detector object does not exist.

Definition at line 416 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( svc , location , false ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getDetIfExists	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MyDet* mdet = getDetIfExists<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Return values

NULL	If the detector object does not exist.

Definition at line 416 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( svc , location , false ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getDetIfExists ( const std::string & location ) const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MyDet* mdet = getDetIfExists<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters

location Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Return values

NULL	If the detector object does not exist.

Definition at line 468 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( detSvc() , location , false ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getDetIfExists ( const std::string & location ) const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MyDet* mdet = getDetIfExists<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters

location Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Return values

NULL	If the detector object does not exist.

Definition at line 468 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( detSvc() , location , false ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getIfExists	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MCHits* hits = getIfExists<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc; SmartDataPtr

Parameters

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object.

Return values

NULL	If data does not exist.

Definition at line 286 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( svc , location , useRootInTES ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getIfExists	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MCHits* hits = getIfExists<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc; SmartDataPtr

Parameters

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object.

Return values

NULL	If data does not exist.

Definition at line 286 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( svc , location , useRootInTES ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getIfExists	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MCHits* hits = getIfExists<MCHits>( "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc; SmartDataPtr

Parameters

location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object.

Return values

NULL	If data does not exist.

Definition at line 361 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getIfExists	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MCHits* hits = getIfExists<MCHits>( "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc; SmartDataPtr

Parameters

location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object.

Return values

NULL	If data does not exist.

Definition at line 361 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getIfExists<TYPE> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getOrCreate	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

MyHits* hits = getOrCreate<MyHits,MyHits>( evtSvc() , "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

svc	Pointer to data service (data provider)
location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: A valid pointer to the object

Definition at line 612 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getOrCreate<TYPE,TYPE2> ( svc , location , useRootInTES ) ;
   }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getOrCreate	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

MyHits* hits = getOrCreate<MyHits,MyHits>( evtSvc() , "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

svc	Pointer to data service (data provider)
location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: A valid pointer to the object

Definition at line 612 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getOrCreate<TYPE,TYPE2> ( svc , location , useRootInTES ) ;
   }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getOrCreate	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

MyHits* hits = getOrCreate<MyHits,MyHits>( "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: A valid pointer to the object

Definition at line 647 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getOrCreate<TYPE,TYPE2> ( evtSvc() , location , useRootInTES ) ;
   }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getOrCreate	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

MyHits* hits = getOrCreate<MyHits,MyHits>( "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: A valid pointer to the object

Definition at line 647 of file GaudiAlgorithm.h.

   {
     return GaudiCommon<Algorithm>::getOrCreate<TYPE,TYPE2> ( evtSvc() , location , useRootInTES ) ;
   }

StatusCode GaudiAlgorithm::initialize ( )

override

standard initialization method

See also: Algorithm; IAlgorithm

Returns: status code

StatusCode GaudiAlgorithm::initialize ( )

override

standard initialization method

See also: Algorithm; IAlgorithm

Returns: status code

Definition at line 48 of file GaudiAlgorithm.cpp.

 {
   // initialize the base class
   const StatusCode sc = GaudiCommon<Algorithm>::initialize() ;
   if ( sc.isFailure() ) { return sc; }

   // Add any customisations here, that cannot go in GaudiCommon

   // return
   return sc;
 }

GaudiAlgorithm& GaudiAlgorithm::operator= ( const GaudiAlgorithm & )

delete

GaudiAlgorithm& GaudiAlgorithm::operator= ( const GaudiAlgorithm & )

delete

void GaudiAlgorithm::put	(	IDataProviderSvc *	svc,
		DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const

inline

Register a data object or container into Gaudi Event Transient Store.

MCHits * hits = new MCHits();

put( evtSvc(), hits, "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc

Parameters

svc	Pointer to data provider service
object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns: StatusCode

Return values

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 164 of file GaudiAlgorithm.h.

   {
     GaudiCommon<Algorithm>::put ( svc , object , address , useRootInTES ) ;
   }

void GaudiAlgorithm::put	(	IDataProviderSvc *	svc,
		DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const

inline

Register a data object or container into Gaudi Event Transient Store.

MCHits * hits = new MCHits();

put( evtSvc(), hits, "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See also: IDataProviderSvc

Parameters

svc	Pointer to data provider service
object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns: StatusCode

Return values

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 164 of file GaudiAlgorithm.h.

   {
     GaudiCommon<Algorithm>::put ( svc , object , address , useRootInTES ) ;
   }

void GaudiAlgorithm::put	(	DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const

inline

Register a data object or container into Gaudi Event Transient Store.

See also: IDataProviderSvc

MCHits * hits = new MCHits();

put( hits, "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns: StatusCode

Return values

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 203 of file GaudiAlgorithm.h.

   {
     GaudiCommon<Algorithm>::put ( evtSvc() , object , address , useRootInTES ) ;
   }

void GaudiAlgorithm::put	(	DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const

inline

Register a data object or container into Gaudi Event Transient Store.

See also: IDataProviderSvc

MCHits * hits = new MCHits();

put( hits, "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns: StatusCode

Return values

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 203 of file GaudiAlgorithm.h.

   {
     GaudiCommon<Algorithm>::put ( evtSvc() , object , address , useRootInTES ) ;
   }

StatusCode GaudiAlgorithm::sysExecute ( )

override

the generic actions for the execution.

See also: Algorithm; IAlgorithm; Algorithm::sysExecute

Returns: status code

< guard/sentry

Definition at line 98 of file GaudiAlgorithm.cpp.

 {
   IAlgContextSvc* ctx = nullptr ;
   if ( registerContext() ) { ctx = contextSvc() ; }
   // Lock the context
   Gaudi::Utils::AlgContext cnt ( ctx , this ) ;

   // Do not execute if one or more of the m_vetoObjs exist in TES
   auto it = std::find_if( std::begin(m_vetoObjs), std::end(m_vetoObjs),
                           [&](const std::string& loc) { return this->exist<DataObject>(loc); } );
   if ( it != std::end(m_vetoObjs) ) {
       debug() << *it << " found, skipping event " << endmsg;
       return StatusCode::SUCCESS;
   }

   // Execute if m_requireObjs is empty
   // or if one or more of the m_requireObjs exist in TES
   bool doIt = m_requireObjs.empty() ||
               std::any_of( std::begin(m_requireObjs), std::end(m_requireObjs),
                            [&](const std::string& loc) { return this->exist<DataObject>(loc); } );

   // execute the generic method:
   if( doIt ) return Algorithm::sysExecute() ;
   return StatusCode::SUCCESS;
 }

StatusCode GaudiAlgorithm::sysExecute ( )

override

the generic actions for the execution.

See also: Algorithm; IAlgorithm; Algorithm::sysExecute

Returns: status code

Member Data Documentation

SmartIF< INTupleSvc > GaudiAlgorithm::m_evtColSvc

mutableprivate

Event Tag Collection Service.

Definition at line 683 of file GaudiAlgorithm.h.

std::vector< std::string > GaudiAlgorithm::m_requireObjs

private

process the event only if one or more of these objects are present in TES

Definition at line 687 of file GaudiAlgorithm.h.

std::vector< std::string > GaudiAlgorithm::m_vetoObjs

private

skip the event if any of these objects are present in TES

Definition at line 685 of file GaudiAlgorithm.h.

The documentation for this class was generated from the following files:

InstallArea/x86_64-slc6-gcc49-opt/include/GaudiAlg/GaudiAlgorithm.h
GaudiAlg/src/lib/GaudiAlgorithm.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
