EvtPersistencySvc Class Reference

EvtPersistencySvc class implementation definition. More...

#include <src/PersistencySvc/EvtPersistencySvc.h>

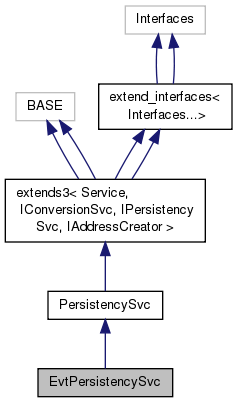

Inheritance diagram for EvtPersistencySvc:

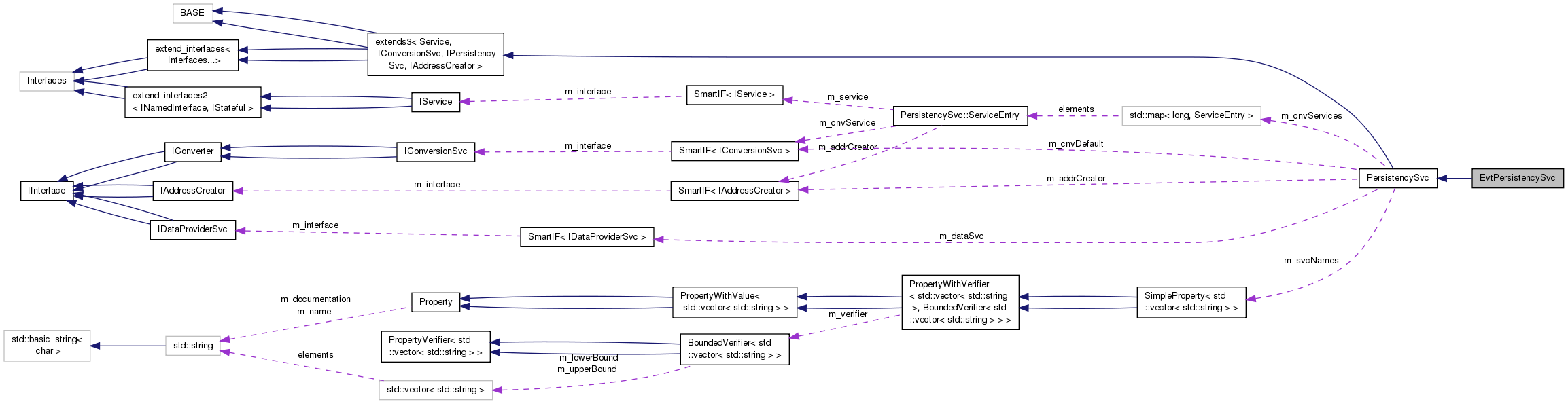

Collaboration diagram for EvtPersistencySvc:

Public Member Functions
: Object implementation
	EvtPersistencySvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor. More...
	~EvtPersistencySvc () override=default
	Standard Destructor. More...
Public Member Functions inherited from PersistencySvc
long	repSvcType () const override
	Return default service type. More...
const CLID &	objType () const override
	Retrieve the class type of objects the converter produces. (DUMMY) More...
StatusCode	createObj (IOpaqueAddress *pAddress, DataObject *&refpObject) override
	Implementation of IConverter: Create the transient representation of an object. More...
StatusCode	fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Implementation of IConverter: Resolve the references of the created transient object. More...
StatusCode	updateObj (IOpaqueAddress *pAddress, DataObject *refpObject) override
	Implementation of IConverter: Update the transient object from the other representation. More...
StatusCode	updateObjRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Implementation of IConverter: Update the references of an updated transient object. More...
StatusCode	createRep (DataObject *pObject, IOpaqueAddress *&refpAddress) override
	Implementation of IConverter: Convert the transient object to the requested representation. More...
StatusCode	fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Implementation of IConverter: Resolve the references of the converted object. More...
StatusCode	updateRep (IOpaqueAddress *pAddress, DataObject *pObject) override
	Implementation of IConverter: Update the converted representation of a transient object. More...
StatusCode	updateRepRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Implementation of IConverter: Update the references of an already converted object. More...
StatusCode	setDataProvider (IDataProviderSvc *pStore) override
	Define transient datastore. More...
SmartIF< IDataProviderSvc > &	dataProvider () const override
	Access reference to transient datastore. More...
StatusCode	setConversionSvc (IConversionSvc *svc) override
	Set conversion service the converter is connected to. More...
SmartIF< IConversionSvc > &	conversionSvc () const override
	Get conversion service the converter is connected to. More...
StatusCode	setAddressCreator (IAddressCreator *creator) override
	Set address creator facility. More...
SmartIF< IAddressCreator > &	addressCreator () const override
	Retrieve address creator facility. More...
StatusCode	addConverter (IConverter *pConverter) override
	Add converter object to conversion service. More...
StatusCode	addConverter (const CLID &clid) override
	Add converter object to conversion service. More...
IConverter *	converter (const CLID &clid) override
	Retrieve converter from list. More...
StatusCode	removeConverter (const CLID &clid) override
	Remove converter object from conversion service (if present). More...
StatusCode	connectOutput (const std::string &outputFile, const std::string &openMode) override
	Connect the output file to the service with open mode. More...
StatusCode	connectOutput (const std::string &outputFile) override
	Connect the output file to the service. More...
StatusCode	commitOutput (const std::string &output, bool do_commit) override
	Commit pending output. More...
StatusCode	createAddress (long svc_type, const CLID &clid, const std::string *pars, const unsigned long *ipars, IOpaqueAddress *&refpAddress) override
	Create a Generic address using explicit arguments to identify a single object. More...
StatusCode	convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress) override
	Convert an address to string form. More...
StatusCode	createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress) override
	Convert an address in string form to object form. More...
StatusCode	addCnvService (IConversionSvc *service) override
	Add a new Service. More...
StatusCode	removeCnvService (long type) override
	Remove a Service. More...
StatusCode	setDefaultCnvService (long type) override
	Set default service type. More...
StatusCode	getService (long service_type, IConversionSvc *&refpSvc) override
	Retrieve conversion service identified by technology. More...
StatusCode	getService (const std::string &service_type, IConversionSvc *&refpSvc) override
	Retrieve conversion service identified by technology. More...
StatusCode	initialize () override
	Initialize the service. More...
StatusCode	finalize () override
	stop the service. More...
	PersistencySvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor. More...
	~PersistencySvc () override=default
	Standard Destructor. More...
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
Protected Types inherited from PersistencySvc
typedef std::map< long, ServiceEntry >	Services
Protected Member Functions inherited from PersistencySvc
void	svcNamesHandler (Property &theProp)
	Handlers for Service Names Property. More...
SmartIF< IConversionSvc > &	service (const std::string &nam)
	Retrieve conversion service by name. More...
SmartIF< IConversionSvc > &	service (long service_type)
	Retrieve conversion service from list. More...
SmartIF< IAddressCreator > &	addressCreator (long service_type)
	Retrieve address creator from list. More...
void	encodeAddrHdr (long service_type, const CLID &clid, std::string &address) const
	Retrieve string from storage type and clid. More...
void	decodeAddrHdr (const std::string &address, long &service_type, CLID &clid, std::string &address_trailer) const
	Retrieve storage type and clid from address header of string. More...
StatusCode	makeCall (int typ, IOpaqueAddress *&pAddress, DataObject *&pObject)
	Implementation helper. More...
bool	enable (bool value)
	Set enabled flag. More...
Protected Attributes inherited from PersistencySvc
long	m_cnvDefType = TEST_StorageType
	Default service type. More...
SmartIF< IDataProviderSvc >	m_dataSvc
	Pointer to datma provider service. More...
Services	m_cnvServices
	List of convermsion workers. More...
SmartIF< IConversionSvc >	m_cnvDefault
	Default output service. More...
StringArrayProperty	m_svcNames
	Names of services to be requested from the service locator and added by default. More...
bool	m_enable = true
	Flag to indicate that the service is enabled. More...
SmartIF< IAddressCreator >	m_addrCreator
	Pointer to the IAddressCreator interface of this, for addressCreator(). More...

Detailed Description

EvtPersistencySvc class implementation definition.

System: The LHCb Offline System

Package: EvtPersistencySvc

Dependencies:

• PersistencySvc definition: "Kernel/Interfaces/PersistencySvc.h"

History:

 +---------+----------------------------------------------+---------+
 |    Date |                 Comment                      | Who     |
 +---------+----------------------------------------------+---------+
 | 3/11/98 | Initial version                              | M.Frank |
 +---------+----------------------------------------------+---------+


Author

Markus Frank

Version

1.0

Definition at line 37 of file EvtPersistencySvc.h.

Constructor & Destructor Documentation

EvtPersistencySvc::EvtPersistencySvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard Constructor.

Definition at line 32 of file EvtPersistencySvc.cpp.

 :  PersistencySvc(name, svc)
{
}

EvtPersistencySvc::~EvtPersistencySvc ( )

overridedefault

Standard Destructor.

---

The documentation for this class was generated from the following files:

• GaudiCommonSvc/src/PersistencySvc/EvtPersistencySvc.h
• GaudiCommonSvc/src/PersistencySvc/EvtPersistencySvc.cpp
