EqSolver Class Reference

The simplest concrete implementation of IEqSolver interface. More...

#include <src/Components/EqSolver.h>

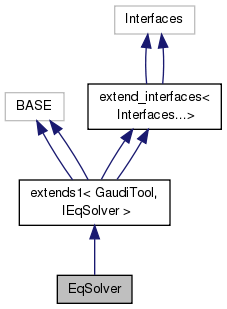

Inheritance diagram for EqSolver:

Collaboration diagram for EqSolver:

Classes
class	EqSolverMisc

Public Types
typedef std::vector< Equations >	Jacobi
Public Types inherited from extends< BASE, Interfaces >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Public Member Functions
StatusCode	solver (const Equations &funcs, Arg &arg) const override
	Solving nonlinear system with N equations in N unknowns of the function "GenFunc". More...
StatusCode	initialize () override
	Overriding initialize. More...
StatusCode	finalize () override
	~EqSolver () override
	Destructor. More...
	EqSolver (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor. More...
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Private Member Functions
	EqSolver ()
	default constructor is private More...
	EqSolver (const EqSolver &)
	copy constructor is private More...
EqSolver &	operator= (const EqSolver &)
	assignment operator is More...

Private Attributes
std::string	m_algType
double	m_max_iter
double	m_norm_residual
const gsl_multiroot_fdfsolver_type *	m_type

Detailed Description

The simplest concrete implementation of IEqSolver interface.

See also

GaudiGSL/IEqSolver.h

Author

Kirill Miklyaev kiril.nosp@m.lm@i.nosp@m.ris1..nosp@m.itep.nosp@m..ru

Date

2003-07-07

Definition at line 23 of file EqSolver.h.

Member Typedef Documentation

typedef std::vector<Equations> EqSolver::Jacobi

Definition at line 25 of file EqSolver.h.

Constructor & Destructor Documentation

EqSolver::~EqSolver ( )

override

Destructor.

Definition at line 338 of file EqSolver.cpp.

{}

EqSolver::EqSolver	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

See also

GaudiTool

Parameters

type	tool type
name	tool name
parent	parent of the tool

declare type of the algorithm for root finding

declare maximum of iteration

declare the absolute error bound for the residual value

Definition at line 72 of file EqSolver.cpp.

  : base_class      ( type, name , parent )
  , m_algType       ( "fdfsolver_hybridsj" )
  , m_max_iter      ( 1000                 )
  , m_norm_residual ( 1.0e-7               )
  , m_type          ( nullptr                    )

{
  declareProperty ( "Algorithm", m_algType       );
  declareProperty ( "Iteration", m_max_iter      );
  declareProperty ( "Residual" , m_norm_residual );
}

EqSolver::EqSolver ( )

private

default constructor is private

EqSolver::EqSolver ( const EqSolver &  )

private

copy constructor is private

Member Function Documentation

StatusCode EqSolver::finalize ( )

override

Definition at line 325 of file EqSolver.cpp.

{
  StatusCode sc = GaudiTool::finalize() ;

  MsgStream log( msgSvc() , name() ) ;

  if ( sc.isFailure() )
    {
      return Error("Could not finaliaze base class GaudiTool", sc);
    }
  return StatusCode::SUCCESS;
}

StatusCode EqSolver::initialize ( )

override

Overriding initialize.

Definition at line 270 of file EqSolver.cpp.

{
  StatusCode sc = GaudiTool::initialize() ;

  MsgStream log( msgSvc() , name() ) ;

  if( sc.isFailure() )
    {
      return Error ("Could not initiliaze base class GaudiTool", sc);
    }
  /* The algorithm for multiional root-finding
     (solving nonlinear systems with n equations in n unknowns)*/

  if(       "fdfsolver_hybridsj" == m_algType )
    {
      m_type = gsl_multiroot_fdfsolver_hybridsj  ;
      log << MSG::DEBUG
          << "Root findind algoritms to be used: "
          << "'gsl_multiroot_fdfsolver_hybridsj'"
          << endmsg;
    }
  else if ( "fdfsolver_hybridj" == m_algType )
    {
      m_type = gsl_multiroot_fdfsolver_hybridj   ;
      log << MSG::DEBUG
          << "Root findind algoritms to be used: "
          << "'gsl_multiroot_fdfsolver_hybridj'"
          << endmsg;
    }
  else if ( "fdfsolver_newton" == m_algType )
    {
      m_type = gsl_multiroot_fdfsolver_newton    ;
      log << MSG::DEBUG
          << "Root findind algoritms to be used: "
          << "'gsl_multiroot_fdfsolver_newton'"
          << endmsg;
    }
  else if ( "fdfsolver_gnewton" == m_algType )
    {
      m_type = gsl_multiroot_fdfsolver_gnewton   ;
      log << MSG::DEBUG
          << "Root findind algoritms to be used: "
          << "'gsl_multiroot_fdfsolver_gnewton'"
          << endmsg;
    }
  else
    {
      return Error(" Unknown algorith type '"
                   + std::string(m_algType) + "'");
     }

  return StatusCode::SUCCESS;
}

EqSolver& EqSolver::operator= ( const EqSolver &  )

private

assignment operator is

StatusCode EqSolver::solver ( const Equations &  funcs, Arg &  arg  ) const

override

Solving nonlinear system with N equations in N unknowns of the function "GenFunc".

Solving nonlinear system of the function "GenFunc".

See also

IEqSolver.h

Returns

StatusCode

Definition at line 188 of file EqSolver.cpp.

{
  using namespace Genfun;

  gsl_vector_view vect = gsl_vector_view_array ( &arg[0] ,
                                                 arg.dimension() );
  MsgStream log( msgSvc(), name() );

  EqSolverMisc local (funcs, arg);

  const gsl_multiroot_fdfsolver_type *T = m_type;
  gsl_multiroot_fdfsolver *s;
  int    status = 0 ;
  size_t iter   = 0 ;

  gsl_multiroot_function_fdf function;

  function.f = &fun_gsl;
  function.df = &dfun_gsl;
  function.fdf = &fdfun_gsl;
  function.n = vect.vector.size;
  function.params = (void*) &local;

  s = gsl_multiroot_fdfsolver_alloc(T, vect.vector.size);
  gsl_multiroot_fdfsolver_set (s, &function, &vect.vector);

  for (iter = 0; iter < m_max_iter; ++iter)
    {
      status = gsl_multiroot_fdfsolver_iterate (s);
      if (status)
        {
          return Error
            ("Error from gsl_gsl_multiroot_fdfsolver_iterate '"
             + std::string(gsl_strerror(status)) + "'") ;
        }

      status = gsl_multiroot_test_residual (s->f,
                                            m_norm_residual);

      if ( status != GSL_CONTINUE ) { break; }
    }

  for (unsigned int i = 0; i < vect.vector.size; ++i)
    {
      gsl_vector_set (&vect.vector, i, gsl_vector_get (s->x, i));
    }

  if (status == GSL_SUCCESS)
    {
      log << MSG::DEBUG
          << "We stopped in the method on the " << iter
          << " iteration (we have maximum "     << m_max_iter
          << " iterations)"                     << endmsg;
    }
  else if (status == GSL_CONTINUE && iter <= m_max_iter )
    {
      return Error ( "Method finished with '"
                     + std::string(gsl_strerror(status))
                     +  "' error" );
    }
  else
    {
      return Error ( "Method finished with '" +
                     std::string(gsl_strerror(status))
                     +  "' error" );
    }

  gsl_multiroot_fdfsolver_free (s);

  if (status)
    {
      return Error ( "Method finished with '"
                     + std::string(gsl_strerror(status))
                     +  "' error" );
    }

  return GSL_SUCCESS;
}

Member Data Documentation

std::string EqSolver::m_algType

private

Definition at line 92 of file EqSolver.h.

double EqSolver::m_max_iter

private

Definition at line 93 of file EqSolver.h.

double EqSolver::m_norm_residual

private

Definition at line 94 of file EqSolver.h.

const gsl_multiroot_fdfsolver_type* EqSolver::m_type

private

Definition at line 95 of file EqSolver.h.

---

The documentation for this class was generated from the following files:

• GaudiGSL/src/Components/EqSolver.h
• GaudiGSL/src/Components/EqSolver.cpp
