GaudiHandle< T > Class Template Reference

Handle to be used in lieu of naked pointers to gaudis. More...

#include <GaudiKernel/GaudiHandle.h>

Inheritance diagram for GaudiHandle< T >:

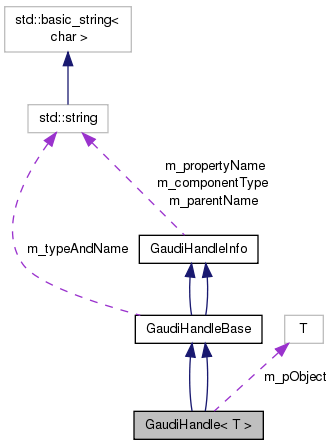

Collaboration diagram for GaudiHandle< T >:

Public Member Functions
	GaudiHandle (const GaudiHandle &other)
	Copy constructor needed for correct ref-counting. More...
GaudiHandle &	operator= (const GaudiHandle &other)
	Assignment operator for correct ref-counting. More...
	~GaudiHandle ()
StatusCode	retrieve () const
	Retrieve the component. More...
StatusCode	release () const
	Release the component. More...
bool	isValid () const
	Check if the handle is valid (try to retrive the object is not done yet). More...
	operator bool () const
	For testing if handle has component. More...
T *	get () const
	Return the wrapped pointer, not calling retrieve() if null. More...
bool	isSet () const
	True if the wrapped pointer is not null. More...
T &	operator* ()
T *	operator-> ()
T &	operator* () const
T *	operator-> () const
std::string	getDefaultType ()
	Helper function to get default type string from the class type. More...
std::string	getDefaultName ()
	GaudiHandle (const GaudiHandle &other)
	Copy constructor needed for correct ref-counting. More...
GaudiHandle &	operator= (const GaudiHandle &other)
	Assignment operator for correct ref-counting. More...
	~GaudiHandle ()
StatusCode	retrieve () const
	Retrieve the component. More...
StatusCode	release () const
	Release the component. More...
bool	isValid () const
	Check if the handle is valid (try to retrive the object is not done yet). More...
	operator bool () const
	For testing if handle has component. More...
T *	get () const
	Return the wrapped pointer, not calling retrieve() if null. More...
bool	isSet () const
	True if the wrapped pointer is not null. More...
T &	operator* ()
T *	operator-> ()
T &	operator* () const
T *	operator-> () const
std::string	getDefaultType ()
	Helper function to get default type string from the class type. More...
std::string	getDefaultName ()
Public Member Functions inherited from GaudiHandleBase
std::string	typeAndName () const
	The full type and name: "type/name". More...
std::string	type () const
	The concrete component class name: the part before the '/'. More...
std::string	name () const
	The instance name: the part after the '/'. More...
bool	empty () const
	Check if the handle has been set to empty string (i.e. More...
void	setTypeAndName (std::string myTypeAndName)
	The component "type/name" string. More...
void	setName (const std::string &myName)
	Set the instance name (part after the '/') without changing the class type. More...
std::string	pythonPropertyClassName () const
	Name of the componentType with "Handle" appended. More...
std::string	messageName () const
	name used for printing messages More...
virtual std::string	pythonRepr () const
	Python representation of handle, i.e. More...
std::string	typeAndName () const
	The full type and name: "type/name". More...
std::string	type () const
	The concrete component class name: the part before the '/'. More...
std::string	name () const
	The instance name: the part after the '/'. More...
bool	empty () const
	Check if the handle has been set to empty string (i.e. More...
void	setTypeAndName (std::string myTypeAndName)
	The component "type/name" string. More...
void	setName (const std::string &myName)
	Set the instance name (part after the '/') without changing the class type. More...
std::string	pythonPropertyClassName () const
	Name of the componentType with "Handle" appended. More...
std::string	messageName () const
	name used for printing messages More...
virtual std::string	pythonRepr () const
	Python representation of handle, i.e. More...
Public Member Functions inherited from GaudiHandleInfo
virtual	~GaudiHandleInfo ()=default
	virtual destructor so that derived class destructor is called. More...
const std::string &	componentType () const
const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle) More...
void	setPropertyName (std::string propName)
	set name as used in declareProperty(name,gaudiHandle). More...
const std::string &	parentName () const
	The name of the parent. More...
virtual	~GaudiHandleInfo ()=default
	virtual destructor so that derived class destructor is called. More...
const std::string &	componentType () const
const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle) More...
void	setPropertyName (std::string propName)
	set name as used in declareProperty(name,gaudiHandle). More...
const std::string &	parentName () const
	The name of the parent. More...

Protected Member Functions
	GaudiHandle (std::string myTypeAndName, std::string myComponentType, std::string myParentName)
virtual StatusCode	retrieve (T *&) const =0
	Retrieve the component. More...
virtual StatusCode	release (T *comp) const
	Release the component. More...
	GaudiHandle (std::string myTypeAndName, std::string myComponentType, std::string myParentName)
virtual StatusCode	retrieve (T *&) const =0
	Retrieve the component. More...
virtual StatusCode	release (T *comp) const
	Release the component. More...
Protected Member Functions inherited from GaudiHandleBase
	GaudiHandleBase (std::string myTypeAndName, std::string myComponentType, std::string myParentName)
	Create a handle ('smart pointer') to a gaudi component. More...
	GaudiHandleBase (std::string myTypeAndName, std::string myComponentType, std::string myParentName)
	Create a handle ('smart pointer') to a gaudi component. More...
Protected Member Functions inherited from GaudiHandleInfo
	GaudiHandleInfo (std::string myComponentType, std::string myParentName)
	Some basic information and helper functions shared between various handles/arrays. More...
void	setComponentType (const std::string &componentType)
	The component type. More...
void	setParentName (const std::string &parent)
	The name of the parent. More...
	GaudiHandleInfo (std::string myComponentType, std::string myParentName)
	Some basic information and helper functions shared between various handles/arrays. More...
void	setComponentType (const std::string &componentType)
	The component type. More...
void	setParentName (const std::string &parent)
	The name of the parent. More...

Private Member Functions
void	setDefaultTypeAndName ()
	Helper function to set default name and type. More...
void	setDefaultType ()
	Helper function to set default type from the class type T. More...
void	assertObject () const
	Load the pointer to the component. More...
void	setDefaultTypeAndName ()
	Helper function to set default name and type. More...
void	setDefaultType ()
	Helper function to set default type from the class type T. More...
void	assertObject () const
	Load the pointer to the component. More...

Private Attributes
T *	m_pObject = nullptr

Detailed Description

template<class T>
class GaudiHandle< T >

Handle to be used in lieu of naked pointers to gaudis.

This allows better control through the framework of gaudi loading and usage. T is the type of the component interface (or concrete class).

Author

Marti.nosp@m.n.Wo.nosp@m.udstr.nosp@m.a@ce.nosp@m.rn.ch

Definition at line 171 of file GaudiHandle.h.

Constructor & Destructor Documentation

template<class T>

GaudiHandle< T >::GaudiHandle ( std::string  myTypeAndName, std::string  myComponentType, std::string  myParentName  )

inlineprotected

Definition at line 176 of file GaudiHandle.h.

    : GaudiHandleBase(std::move(myTypeAndName), std::move(myComponentType), std::move(myParentName))
  {}

template<class T>

GaudiHandle< T >::GaudiHandle ( const GaudiHandle< T > &  other )

inline

Copy constructor needed for correct ref-counting.

Definition at line 183 of file GaudiHandle.h.

    : GaudiHandleBase( other ) {
    m_pObject = other.m_pObject;
    if ( m_pObject ) m_pObject->addRef();
  }

template<class T>

GaudiHandle< T >::~GaudiHandle ( )

inline

Definition at line 200 of file GaudiHandle.h.

                {
      //release();
  }

template<class T>

GaudiHandle< T >::GaudiHandle ( std::string  myTypeAndName, std::string  myComponentType, std::string  myParentName  )

inlineprotected

Definition at line 176 of file GaudiHandle.h.

    : GaudiHandleBase(std::move(myTypeAndName), std::move(myComponentType), std::move(myParentName))
  {}

template<class T>

GaudiHandle< T >::GaudiHandle ( const GaudiHandle< T > &  other )

inline

Copy constructor needed for correct ref-counting.

Definition at line 183 of file GaudiHandle.h.

    : GaudiHandleBase( other ) {
    m_pObject = other.m_pObject;
    if ( m_pObject ) m_pObject->addRef();
  }

template<class T>

GaudiHandle< T >::~GaudiHandle ( )

inline

Definition at line 200 of file GaudiHandle.h.

                {
      //release();
  }

Member Function Documentation

template<class T>

void GaudiHandle< T >::assertObject ( ) const

inlineprivate

Load the pointer to the component.

Do a retrieve if needed. Throw an exception if retrieval fails.

Definition at line 301 of file GaudiHandle.h.

                            { // not really const, because it may update m_pObject
    if ( !isValid() ) {
      throw GaudiException("Failed to retrieve " + componentType() + ": " + typeAndName(),
               componentType() + " retrieve", StatusCode::FAILURE);
    }
  }

template<class T>

void GaudiHandle< T >::assertObject ( ) const

inlineprivate

Load the pointer to the component.

Do a retrieve if needed. Throw an exception if retrieval fails.

Definition at line 301 of file GaudiHandle.h.

                            { // not really const, because it may update m_pObject
    if ( !isValid() ) {
      throw GaudiException("Failed to retrieve " + componentType() + ": " + typeAndName(),
               componentType() + " retrieve", StatusCode::FAILURE);
    }
  }

template<class T>

T* GaudiHandle< T >::get ( ) const

inline

Return the wrapped pointer, not calling retrieve() if null.

Definition at line 236 of file GaudiHandle.h.

                 {
    return m_pObject;
  }

template<class T>

T* GaudiHandle< T >::get ( ) const

inline

Return the wrapped pointer, not calling retrieve() if null.

Definition at line 236 of file GaudiHandle.h.

                 {
    return m_pObject;
  }

template<class T>

std::string GaudiHandle< T >::getDefaultName ( )

inline

Definition at line 270 of file GaudiHandle.h.

                             {
    std::string defName = GaudiHandleBase::type();
    if ( defName.empty() ) defName = getDefaultType();
    return defName;
  }

template<class T>

std::string GaudiHandle< T >::getDefaultName ( )

inline

Definition at line 270 of file GaudiHandle.h.

                             {
    std::string defName = GaudiHandleBase::type();
    if ( defName.empty() ) defName = getDefaultType();
    return defName;
  }

template<class T>

std::string GaudiHandle< T >::getDefaultType ( )

inline

Helper function to get default type string from the class type.

Definition at line 266 of file GaudiHandle.h.

                             {
    return System::typeinfoName( typeid(T) );
  }

template<class T>

std::string GaudiHandle< T >::getDefaultType ( )

inline

Helper function to get default type string from the class type.

Definition at line 266 of file GaudiHandle.h.

                             {
    return System::typeinfoName( typeid(T) );
  }

template<class T>

bool GaudiHandle< T >::isSet ( ) const

inline

True if the wrapped pointer is not null.

Definition at line 241 of file GaudiHandle.h.

                     {
    return get();
  }

template<class T>

bool GaudiHandle< T >::isSet ( ) const

inline

True if the wrapped pointer is not null.

Definition at line 241 of file GaudiHandle.h.

                     {
    return get();
  }

template<class T>

bool GaudiHandle< T >::isValid ( ) const

inline

Check if the handle is valid (try to retrive the object is not done yet).

Definition at line 225 of file GaudiHandle.h.

                       { // not really const, because it may update m_pObject
    return m_pObject || retrieve().isSuccess();
  }

template<class T>

bool GaudiHandle< T >::isValid ( ) const

inline

Check if the handle is valid (try to retrive the object is not done yet).

Definition at line 225 of file GaudiHandle.h.

                       { // not really const, because it may update m_pObject
    return m_pObject || retrieve().isSuccess();
  }

template<class T>

GaudiHandle< T >::operator bool ( ) const

inline

For testing if handle has component.

Does retrieve() if needed. If this returns false, the component could not be retrieved.

Definition at line 231 of file GaudiHandle.h.

                        { // not really const, because it may update m_pObject
    return isValid();
  }

template<class T>

GaudiHandle< T >::operator bool ( ) const

inline

For testing if handle has component.

Does retrieve() if needed. If this returns false, the component could not be retrieved.

Definition at line 231 of file GaudiHandle.h.

                        { // not really const, because it may update m_pObject
    return isValid();
  }

template<class T>

T& GaudiHandle< T >::operator* ( )

inline

Definition at line 245 of file GaudiHandle.h.

                 {
    assertObject();
    return *m_pObject;
  }

template<class T>

T& GaudiHandle< T >::operator* ( )

inline

Definition at line 245 of file GaudiHandle.h.

                 {
    assertObject();
    return *m_pObject;
  }

template<class T>

T& GaudiHandle< T >::operator* ( ) const

inline

Definition at line 255 of file GaudiHandle.h.

                       { // not really const, because it may update m_pObject
    assertObject();
    return *m_pObject;
  }

template<class T>

T& GaudiHandle< T >::operator* ( ) const

inline

Definition at line 255 of file GaudiHandle.h.

                       { // not really const, because it may update m_pObject
    assertObject();
    return *m_pObject;
  }

template<class T>

T* GaudiHandle< T >::operator-> ( )

inline

Definition at line 250 of file GaudiHandle.h.

                  {
    assertObject();
    return m_pObject;
  }

template<class T>

T* GaudiHandle< T >::operator-> ( )

inline

Definition at line 250 of file GaudiHandle.h.

                  {
    assertObject();
    return m_pObject;
  }

template<class T>

T* GaudiHandle< T >::operator-> ( ) const

inline

Definition at line 260 of file GaudiHandle.h.

                        { // not really const, because it may update m_pObject
    assertObject();
    return m_pObject;
  }

template<class T>

T* GaudiHandle< T >::operator-> ( ) const

inline

Definition at line 260 of file GaudiHandle.h.

                        { // not really const, because it may update m_pObject
    assertObject();
    return m_pObject;
  }

template<class T>

GaudiHandle& GaudiHandle< T >::operator= ( const GaudiHandle< T > &  other )

inline

Assignment operator for correct ref-counting.

Definition at line 190 of file GaudiHandle.h.

                                                     {
    GaudiHandleBase::operator=( other );
    // release any current tool
    release().ignore();
    m_pObject = other.m_pObject;
    // update ref-counting
    if ( m_pObject ) m_pObject->addRef();
    return *this;
  }

template<class T>

GaudiHandle& GaudiHandle< T >::operator= ( const GaudiHandle< T > &  other )

inline

Assignment operator for correct ref-counting.

Definition at line 190 of file GaudiHandle.h.

                                                     {
    GaudiHandleBase::operator=( other );
    // release any current tool
    release().ignore();
    m_pObject = other.m_pObject;
    // update ref-counting
    if ( m_pObject ) m_pObject->addRef();
    return *this;
  }

template<class T>

StatusCode GaudiHandle< T >::release ( ) const

inline

Release the component.

Definition at line 215 of file GaudiHandle.h.

                             { // not really const, because it updates m_pObject
    if ( m_pObject ) {
      StatusCode sc = release( m_pObject );
      m_pObject = nullptr;
      return sc;
    }
    return StatusCode::SUCCESS;
  }

template<class T>

StatusCode GaudiHandle< T >::release ( ) const

inline

Release the component.

Definition at line 215 of file GaudiHandle.h.

                             { // not really const, because it updates m_pObject
    if ( m_pObject ) {
      StatusCode sc = release( m_pObject );
      m_pObject = nullptr;
      return sc;
    }
    return StatusCode::SUCCESS;
  }

template<class T>

virtual StatusCode GaudiHandle< T >::release ( T *  comp ) const

inlineprotectedvirtual

Release the component.

Default implementation calls release() on the component. Can be overridden by the derived class if something else if needed.

Reimplemented in ToolHandle< T >, and ToolHandle< T >.

Definition at line 282 of file GaudiHandle.h.

                                              { // not really const, because it updates m_pObject
    comp->release();
    return StatusCode::SUCCESS;
  }

template<class T>

virtual StatusCode GaudiHandle< T >::release ( T *  comp ) const

inlineprotectedvirtual

Release the component.

Default implementation calls release() on the component. Can be overridden by the derived class if something else if needed.

Reimplemented in ToolHandle< T >, and ToolHandle< T >.

Definition at line 282 of file GaudiHandle.h.

                                              { // not really const, because it updates m_pObject
    comp->release();
    return StatusCode::SUCCESS;
  }

template<class T>

StatusCode GaudiHandle< T >::retrieve ( ) const

inline

Retrieve the component.

Release existing component if needed.

Definition at line 205 of file GaudiHandle.h.

                              { // not really const, because it updates m_pObject
    if ( m_pObject && release().isFailure() ) return StatusCode::FAILURE;
    if ( retrieve( m_pObject ).isFailure() ) {
      m_pObject = nullptr;
      return StatusCode::FAILURE;
    }
    return StatusCode::SUCCESS;
  }

template<class T>

StatusCode GaudiHandle< T >::retrieve ( ) const

inline

Retrieve the component.

Release existing component if needed.

Definition at line 205 of file GaudiHandle.h.

                              { // not really const, because it updates m_pObject
    if ( m_pObject && release().isFailure() ) return StatusCode::FAILURE;
    if ( retrieve( m_pObject ).isFailure() ) {
      m_pObject = nullptr;
      return StatusCode::FAILURE;
    }
    return StatusCode::SUCCESS;
  }

template<class T>

virtual StatusCode GaudiHandle< T >::retrieve ( T *&  ) const

protectedpure virtual

Retrieve the component.

To be implemented by the derived class. It will pass the pointer

Implemented in ToolHandle< T >, ToolHandle< T >, ServiceHandle< T >, ServiceHandle< T >, ServiceHandle< IToolSvc >, and ServiceHandle< IToolSvc >.

template<class T>

virtual StatusCode GaudiHandle< T >::retrieve ( T *&  ) const

protectedpure virtual

Retrieve the component.

To be implemented by the derived class. It will pass the pointer

Implemented in ToolHandle< T >, ToolHandle< T >, ServiceHandle< T >, ServiceHandle< T >, ServiceHandle< IToolSvc >, and ServiceHandle< IToolSvc >.

template<class T>

void GaudiHandle< T >::setDefaultType ( )

inlineprivate

Helper function to set default type from the class type T.

Definition at line 295 of file GaudiHandle.h.

                        {
    GaudiHandleBase::setTypeAndName( getDefaultType() );
  }

template<class T>

void GaudiHandle< T >::setDefaultType ( )

inlineprivate

Helper function to set default type from the class type T.

Definition at line 295 of file GaudiHandle.h.

                        {
    GaudiHandleBase::setTypeAndName( getDefaultType() );
  }

template<class T>

void GaudiHandle< T >::setDefaultTypeAndName ( )

inlineprivate

Helper function to set default name and type.

Definition at line 289 of file GaudiHandle.h.

                               {
    const std::string& myType = getDefaultType();
    GaudiHandleBase::setTypeAndName(myType+'/'+myType);
  }

template<class T>

void GaudiHandle< T >::setDefaultTypeAndName ( )

inlineprivate

Helper function to set default name and type.

Definition at line 289 of file GaudiHandle.h.

                               {
    const std::string& myType = getDefaultType();
    GaudiHandleBase::setTypeAndName(myType+'/'+myType);
  }

Member Data Documentation

template<class T>

T * GaudiHandle< T >::m_pObject = nullptr

mutableprivate

Definition at line 310 of file GaudiHandle.h.

---

The documentation for this class was generated from the following file:

• InstallArea/x86_64-slc6-gcc49-opt/include/GaudiKernel/GaudiHandle.h
