Classes | Macros | Typedefs | Functions
perfmon.h File Reference
#include <sys/types.h>
#include <stdint.h>
#include "perfmon_v2.h"

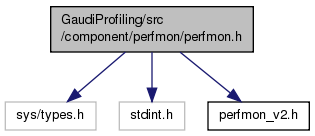

Include dependency graph for perfmon.h:

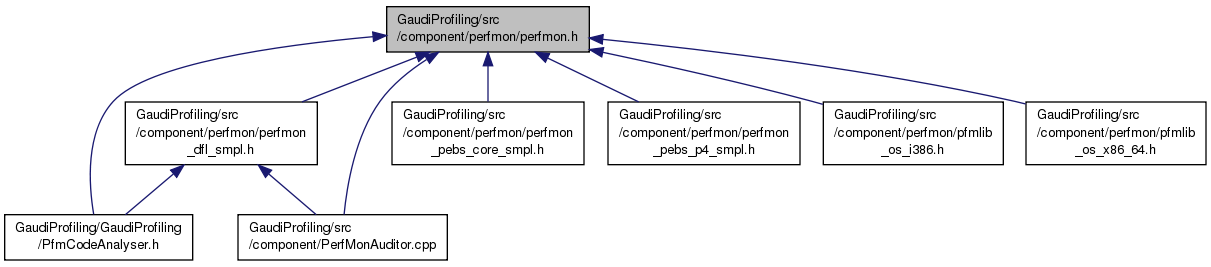

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  pfarg_sinfo_t

struct  pfarg_pmr_t

struct  pfarg_pmd_attr_t

struct  pfarg_set_desc_t

struct  pfarg_set_info_t

struct  pfarg_ovfl_msg_t

union  pfarg_msg_t


Macros

#define PFM_MAX_PMCS   PFM_ARCH_MAX_PMCS

#define PFM_MAX_PMDS   PFM_ARCH_MAX_PMDS

#define PFM_BPL   (sizeof(uint64_t)<<3)

#define PFM_BVSIZE(x)   (((x)+PFM_BPL-1) / PFM_BPL)

#define PFM_PMD_BV   PFM_BVSIZE(PFM_MAX_PMDS)

#define PFM_PMC_BV   PFM_BVSIZE(PFM_MAX_PMCS)

#define PFM_FL_NOTIFY_BLOCK   0x01 /* block task on user notifications */

#define PFM_FL_SYSTEM_WIDE   0x02 /* create a system wide context */

#define PFM_FL_SMPL_FMT   0x04 /* session uses sampling format */

#define PFM_FL_OVFL_NO_MSG   0x80 /* no overflow msgs */

#define PFM_REGFL_OVFL_NOTIFY   0x1 /* PMD: send notification on event */

#define PFM_REGFL_RANDOM   0x2 /* PMD: randomize value after event */

#define PFM_REGFL_NO_EMUL64   0x4 /* PMC: no 64-bit emulation */

#define PFM_RW_PMD   1 /* simplified PMD (pfarg_pmr_t) */

#define PFM_RW_PMC   2 /* PMC registers (pfarg_pmr_t) */

#define PFM_RW_PMD_ATTR   3 /* extended PMD (pfarg_pmd_attr) */

#define PFM_NO_TARGET   -1 /* no target, detach */

#define PFM_ST_START   0x1 /* start monitoring */

#define PFM_ST_STOP   0x2 /* stop monitoring */

#define PFM_ST_RESTART   0x3 /* resume after notify */

#define PFM_SETFL_OVFL_SWITCH   0x01 /* enable switch on overflow (subject to individual switch_cnt */

#define PFM_SETFL_TIME_SWITCH   0x02 /* switch set on timeout */

#define PFM_MSG_OVFL   1 /* an overflow happened */

#define PFM_MSG_END   2 /* thread to which context was attached ended */

#define PFM_VERSION_MAJOR(x)   (((x)>>16) & 0xffff)

#define PFM_VERSION_MINOR(x)   ((x) & 0xffff)


Typedefs

typedef int os_err_t


Functions

os_err_t pfm_create (int flags, pfarg_sinfo_t *sif,...)

os_err_t pfm_write (int fd, int flags, int type, void *reg, size_t n)

os_err_t pfm_read (int fd, int flags, int type, void *reg, size_t n)

os_err_t pfm_set_state (int fd, int flags, int state)

os_err_t pfm_create_sets (int fd, int flags, pfarg_set_desc_t *s, size_t sz)

os_err_t pfm_getinfo_sets (int fd, int flags, pfarg_set_info_t *s, size_t sz)

os_err_t pfm_attach (int fd, int flags, int target)


Macro Definition Documentation

#define PFM_BPL   (sizeof(uint64_t)<<3)

Definition at line 55 of file perfmon.h.

#define PFM_BVSIZE (   x)    (((x)+PFM_BPL-1) / PFM_BPL)

Definition at line 56 of file perfmon.h.

#define PFM_FL_NOTIFY_BLOCK   0x01 /* block task on user notifications */

Definition at line 91 of file perfmon.h.

#define PFM_FL_OVFL_NO_MSG   0x80 /* no overflow msgs */

Definition at line 94 of file perfmon.h.

#define PFM_FL_SMPL_FMT   0x04 /* session uses sampling format */

Definition at line 93 of file perfmon.h.

#define PFM_FL_SYSTEM_WIDE   0x02 /* create a system wide context */

Definition at line 92 of file perfmon.h.

#define PFM_MAX_PMCS   PFM_ARCH_MAX_PMCS

Definition at line 48 of file perfmon.h.

#define PFM_MAX_PMDS   PFM_ARCH_MAX_PMDS

Definition at line 49 of file perfmon.h.

#define PFM_MSG_END   2 /* thread to which context was attached ended */

Definition at line 214 of file perfmon.h.

#define PFM_MSG_OVFL   1 /* an overflow happened */

Definition at line 213 of file perfmon.h.

#define PFM_NO_TARGET   -1 /* no target, detach */

Definition at line 149 of file perfmon.h.

#define PFM_PMC_BV   PFM_BVSIZE(PFM_MAX_PMCS)

Definition at line 58 of file perfmon.h.

#define PFM_PMD_BV   PFM_BVSIZE(PFM_MAX_PMDS)

Definition at line 57 of file perfmon.h.

#define PFM_REGFL_NO_EMUL64   0x4 /* PMC: no 64-bit emulation */

Definition at line 115 of file perfmon.h.

#define PFM_REGFL_OVFL_NOTIFY   0x1 /* PMD: send notification on event */

Definition at line 113 of file perfmon.h.

#define PFM_REGFL_RANDOM   0x2 /* PMD: randomize value after event */

Definition at line 114 of file perfmon.h.

#define PFM_RW_PMC   2 /* PMC registers (pfarg_pmr_t) */

Definition at line 143 of file perfmon.h.

#define PFM_RW_PMD   1 /* simplified PMD (pfarg_pmr_t) */

Definition at line 142 of file perfmon.h.

#define PFM_RW_PMD_ATTR   3 /* extended PMD (pfarg_pmd_attr) */

Definition at line 144 of file perfmon.h.

#define PFM_SETFL_OVFL_SWITCH   0x01 /* enable switch on overflow (subject to individual switch_cnt */

Definition at line 183 of file perfmon.h.

#define PFM_SETFL_TIME_SWITCH   0x02 /* switch set on timeout */

Definition at line 184 of file perfmon.h.

#define PFM_ST_RESTART   0x3 /* resume after notify */

Definition at line 157 of file perfmon.h.

#define PFM_ST_START   0x1 /* start monitoring */

Definition at line 155 of file perfmon.h.

#define PFM_ST_STOP   0x2 /* stop monitoring */

Definition at line 156 of file perfmon.h.

#define PFM_VERSION_MAJOR (   x)    (((x)>>16) & 0xffff)

Definition at line 216 of file perfmon.h.

#define PFM_VERSION_MINOR (   x)    ((x) & 0xffff)

Definition at line 217 of file perfmon.h.

Typedef Documentation

typedef int os_err_t

Definition at line 69 of file perfmon.h.

Function Documentation

os_err_t pfm_attach ( int  fd,
int  flags,
int  target
)
os_err_t pfm_create ( int  flags,
pfarg_sinfo_t *  sif,
  ...
)
os_err_t pfm_create_sets ( int  fd,
int  flags,
pfarg_set_desc_t *  s,
size_t  sz
)
os_err_t pfm_getinfo_sets ( int  fd,
int  flags,
pfarg_set_info_t *  s,
size_t  sz
)
os_err_t pfm_read ( int  fd,
int  flags,
int  type,
void *  reg,
size_t  n
)
os_err_t pfm_set_state ( int  fd,
int  flags,
int  state
)
os_err_t pfm_write ( int  fd,
int  flags,
int  type,
void *  reg,
size_t  n
)
