ForwardSchedulerSvc Class Reference

The SchedulerSvc implements the IScheduler interface. More...

#include <GaudiKernel/ForwardSchedulerSvc.h>

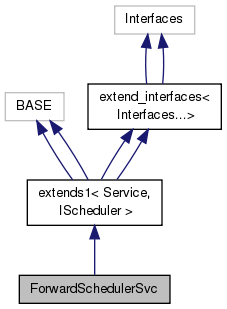

Inheritance diagram for ForwardSchedulerSvc:

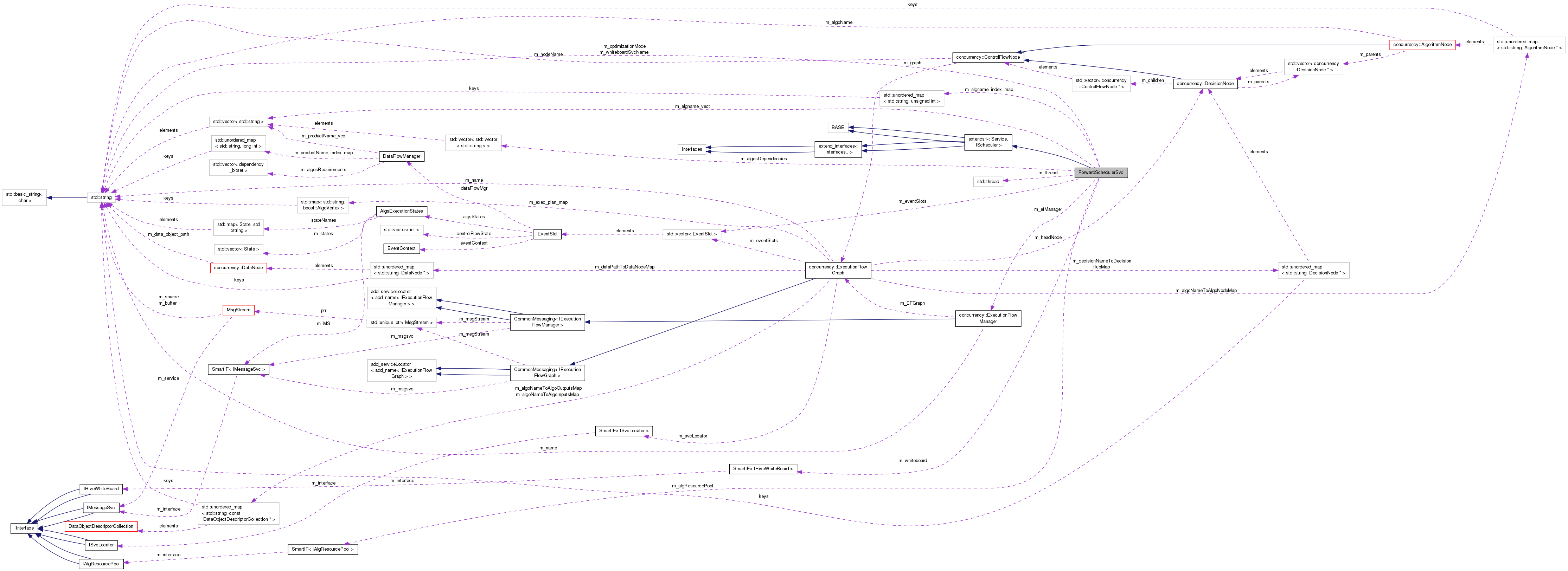

Collaboration diagram for ForwardSchedulerSvc:

Public Member Functions
	ForwardSchedulerSvc (const std::string &name, ISvcLocator *svc)
	Constructor. More...
	~ForwardSchedulerSvc ()
	Destructor. More...
virtual StatusCode	initialize ()
	Initialise. More...
virtual StatusCode	finalize ()
	Finalise. More...
virtual StatusCode	pushNewEvent (EventContext *eventContext)
	Make an event available to the scheduler. More...
virtual StatusCode	pushNewEvents (std::vector< EventContext * > &eventContexts)
virtual StatusCode	popFinishedEvent (EventContext *&eventContext)
	Blocks until an event is availble. More...
virtual StatusCode	tryPopFinishedEvent (EventContext *&eventContext)
	Try to fetch an event from the scheduler. More...
virtual unsigned int	freeSlots ()
	Get free slots number. More...
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Private Types
typedef std::function< StatusCode()>	action

Private Member Functions
void	activate ()
	Activate scheduler. More...
StatusCode	deactivate ()
	Deactivate scheduler. More...
unsigned int	algname2index (const std::string &algoname)
	Convert a name to an integer. More...
const std::string &	index2algname (unsigned int index)
	Convert an integer to a name. More...
StatusCode	eventFailed (EventContext *eventContext)
	Method to check if an event failed and take appropriate actions. More...
StatusCode	updateStates (int si=-1, const std::string &algo_name=std::string())
	Loop on algorithm in the slots and promote them to successive states (-1 means all slots, while empty string means skipping an update of the Control Flow state) More...
StatusCode	promoteToControlReady (unsigned int iAlgo, int si)
	Algorithm promotion: Accepted by the control flow. More...
StatusCode	promoteToDataReady (unsigned int iAlgo, int si)
StatusCode	promoteToScheduled (unsigned int iAlgo, int si)
StatusCode	promoteToExecuted (unsigned int iAlgo, int si, IAlgorithm *algo)
	The call to this method is triggered only from within the AlgoExecutionTask. More...
StatusCode	promoteToFinished (unsigned int iAlgo, int si)
StatusCode	isStalled (int si)
	Check if the scheduling is in a stall. More...
void	dumpSchedulerState (int iSlot)
	Dump the state of the scheduler. More...
StatusCode	m_drain ()
	Drain the actions present in the queue. More...

Private Attributes
bool	m_isActive
	Flag to track if the scheduler is active or not. More...
std::thread	m_thread
	The thread in which the activate function runs. More...
std::unordered_map< std::string, unsigned int >	m_algname_index_map
	Map to bookkeep the information necessary to the name2index conversion. More...
std::vector< std::string >	m_algname_vect
	Vector to bookkeep the information necessary to the index2name conversion. More...
SmartIF< IHiveWhiteBoard >	m_whiteboard
	A shortcut to the whiteboard. More...
std::string	m_whiteboardSvcName
	The whiteboard name. More...
std::vector< EventSlot >	m_eventSlots
	Vector of events slots. More...
int	m_maxEventsInFlight
	Maximum number of event processed simultaneously. More...
std::atomic_int	m_freeSlots
	Atomic to account for asyncronous updates by the scheduler wrt the rest. More...
tbb::concurrent_bounded_queue< EventContext * >	m_finishedEvents
	Queue of finished events. More...
unsigned int	m_maxAlgosInFlight
	Maximum number of simultaneous algorithms. More...
unsigned int	m_algosInFlight
	Number of algoritms presently in flight. More...
bool	m_updateNeeded
	Keep track of update actions scheduled. More...
SmartIF< IAlgResourcePool >	m_algResourcePool
	Cache for the algorithm resource pool. More...
std::vector< std::vector< std::string > >	m_algosDependencies
	Ugly, will disappear when the deps are declared only within the C++ code of the algos. More...
int	m_threadPoolSize
	Size of the threadpool initialised by TBB; a value of -1 gives TBB the freedom to choose. More...
tbb::concurrent_bounded_queue< action >	m_actionsQueue
	Queue where closures are stored and picked for execution. More...
concurrency::ExecutionFlowManager	m_efManager
	Member to take care of the control flow. More...
bool	m_CFNext
bool	m_DFNext
bool	m_simulateExecution
std::string	m_optimizationMode
bool	m_dumpIntraEventDynamics

Friends
class	AlgoExecutionTask

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

The SchedulerSvc implements the IScheduler interface.

It manages all the execution states of the algorithms and interacts with the TBB runtime for the algorithm tasks submission. A state machine takes care of the tracking of the execution state of the algorithms. This is a forward scheduler: algorithms are scheduled for execution as soon as their data dependencies are available in the whiteboard.

Algorithms management

The activate() method runs in a separate thread. It checks a TBB concurrent bounded queue of closures in a loop via the Pop method. This allows not to use a cpu entirely to check the presence of new actions to be taken. In other words, the asynchronous actions are serialised via the actions queue. Once a task terminates, a call to the promoteToExecuted method will be pushed into the actions queue. The promoteToExecuted method also triggers a call to the updateStates method, which brushes all algorithms, checking if their state can be changed. It's indeed possible that upon termination of an algorithm, the control flow and/or the data flow allow the submission of more algorithms.

Algorithms dependencies

There are two ways of declaring algorithms dependencies. One which is only temporarly available to ease developments consists in declaring them through AlgosDependencies property as a list of list. The order of these sublist must be the same one of the algorithms in the TopAlg list. The second one consists in declaring the data dependencies directly within the algorithms via data object handles.

Events management

The scheduler accepts events to be processed (in the form of eventContexts) and releases processed events. This flow is implemented through three methods:

• pushNewEvent: to make an event available to the scheduler.
• tryPopFinishedEvent: to retrieve an event from the scheduler
• popFinishedEvent: to retrieve an event from the scheduler (blocking)

Please refer to the full documentation of the methods for more details.

Author

Danilo Piparo

Benedikt Hegner

Version

1.1

Definition at line 72 of file ForwardSchedulerSvc.h.

Member Typedef Documentation

typedef std::function<StatusCode ()> ForwardSchedulerSvc::action

private

Definition at line 195 of file ForwardSchedulerSvc.h.

Constructor & Destructor Documentation

ForwardSchedulerSvc::ForwardSchedulerSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Constructor.

Definition at line 32 of file ForwardSchedulerSvc.cpp.

                                                                                    :
 base_class(name,svcLoc),
 m_isActive(false),
 m_algosInFlight(0),
 m_updateNeeded(true)
{
  declareProperty("MaxEventsInFlight", m_maxEventsInFlight = 0 );
  declareProperty("ThreadPoolSize", m_threadPoolSize = -1 );
  declareProperty("WhiteboardSvc", m_whiteboardSvcName = "EventDataSvc" );
  // Will disappear when dependencies are properly propagated into the C++ code of the algos
  declareProperty("AlgosDependencies", m_algosDependencies);
  declareProperty("MaxAlgosInFlight", m_maxAlgosInFlight = 0, "Taken from the whiteboard. Deprecated" );
  // XXX: CF tests. Temporary property to switch between ControlFlow implementations
  declareProperty("useGraphFlowManagement", m_CFNext = false );
  declareProperty("DataFlowManagerNext", m_DFNext = false );
  declareProperty("SimulateExecution", m_simulateExecution = false );
  declareProperty("Optimizer", m_optimizationMode = "", "The following modes are currently available: PCE, COD, DRE, E" );
  declareProperty("DumpIntraEventDynamics", m_dumpIntraEventDynamics = false, "Dump intra-event concurrency dynamics to csv file" );
}

ForwardSchedulerSvc::~ForwardSchedulerSvc

(

)

Destructor.

Definition at line 53 of file ForwardSchedulerSvc.cpp.

{}

Member Function Documentation

void ForwardSchedulerSvc::activate ( )

private

Activate scheduler.

Activate the scheduler.

From this moment on the queue of actions is checked. The checking will stop when the m_isActive flag is false and the queue is not empty. This will guarantee that all actions are executed and a stall is not created. The TBB pool must be initialised in the thread from where the tasks are launched (http://threadingbuildingblocks.org/docs/doxygen/a00342.html) The scheduler is initialised here since this method runs in a separate thread and spawns the tasks (through the execution of the lambdas)

Activate a pool

Definition at line 238 of file ForwardSchedulerSvc.cpp.

                                  {

  // Now it's running
  m_isActive=true;

  tbb::task_scheduler_init* TBBSchedInit = nullptr;

  // -100 prevents the creation of the pool and the scheduler directly executes
  // the tasks.
  if (-100 != m_threadPoolSize) {
    debug() << "Initialising a TBB thread pool of requested size " << m_threadPoolSize << endmsg;
    // Leave -1 in case selected, increment otherwise
    int thePoolSize = m_threadPoolSize;
    if (thePoolSize == -1)
      debug() << "...default TBB thread pool size amounts to " << tbb::task_scheduler_init::default_num_threads()<< endmsg;
    if (thePoolSize != -1)
      thePoolSize += 1;
    TBBSchedInit = new tbb::task_scheduler_init (thePoolSize);
  } else {
    debug() << "Thread pool size is one. Pool not initialised." << endmsg;
  }
  // Wait for actions pushed into the queue by finishing tasks.
  action thisAction;
  StatusCode sc(StatusCode::SUCCESS);

  // Continue to wait if the scheduler is running or there is something to do
  info() << "Start checking the actionsQueue" << endmsg;
  while(m_isActive or m_actionsQueue.size()!=0){
    m_actionsQueue.pop(thisAction);
    sc = thisAction();
    if (sc!=StatusCode::SUCCESS)
      verbose() << "Action did not succeed (which is not bad per se)." << endmsg;
    else
      verbose() << "Action succeeded." << endmsg;
  }

  if (TBBSchedInit)
    delete TBBSchedInit;
}

unsigned int ForwardSchedulerSvc::algname2index ( const std::string &  algoname )

inlineprivate

Convert a name to an integer.

Definition at line 311 of file ForwardSchedulerSvc.cpp.

                                                                                {
  unsigned int index = m_algname_index_map[algoname];
  return index;
}

StatusCode ForwardSchedulerSvc::deactivate ( )

private

Deactivate scheduler.

Deactivates the scheduler.

Two actions are pushed into the queue: 1) Drain the scheduler until all events are finished. 2) Flip the status flag m_isActive to false This second action is the last one to be executed by the scheduler.

Definition at line 287 of file ForwardSchedulerSvc.cpp.

                                          {

  if (m_isActive){
    // Drain the scheduler
    m_actionsQueue.push(std::bind(&ForwardSchedulerSvc::m_drain,
                                  this));
    // This would be the last action
    m_actionsQueue.push([this]() -> StatusCode {m_isActive=false;return StatusCode::SUCCESS;});
  }

  return StatusCode::SUCCESS;
}

void ForwardSchedulerSvc::dumpSchedulerState ( int  iSlot )

private

Dump the state of the scheduler.

Used for debugging purposes, the state of the scheduler is dumped on screen in order to be inspected.

The dependencies of each algo are printed and the missing ones specified.

Definition at line 695 of file ForwardSchedulerSvc.cpp.

                                                      {

  // To have just one big message
  std::stringstream outputMessageStream;

  int slotCount = -1;
  for (auto thisSlot : m_eventSlots){
    slotCount++;
    outputMessageStream.str(std::string());
    if ( thisSlot.complete )
      continue;

    outputMessageStream << "Dump of Scheduler State for slot " << thisSlot.eventContext->evt() << std::endl;

    if ( 0 > iSlot or iSlot == slotCount) {
        outputMessageStream << "Algorithms states for event " << thisSlot.eventContext->evt() << std::endl;

      const std::vector<std::string>& wbSlotContent ( thisSlot.dataFlowMgr.content() );
      for (unsigned int algoIdx=0; algoIdx < thisSlot.algsStates.size(); ++algoIdx ) {
        outputMessageStream << " o " << index2algname(algoIdx)
                            << " was in state " << AlgsExecutionStates::stateNames[thisSlot.algsStates[algoIdx]]
                            << ". Its data dependencies are ";
        std::vector<std::string> deps (thisSlot.dataFlowMgr.dataDependencies(algoIdx));
        const int depsSize=deps.size();
        if (depsSize==0)
          outputMessageStream << " none.";

        for (int i=0;i<depsSize;++i)
          outputMessageStream << deps[i] << (i==(depsSize-1) ? "" :", ");

        // Now list what dependencies were available
        // With std::algorithms, move the ones which are missing at the beginning of the vector
        std::vector<std::string>::iterator missinngDepsEndIt =
                        std::remove_if(deps.begin(), // from the beginning of the deps
                                       deps.end(),   // to their end
                                       [&wbSlotContent] (std::string dep) { // remove if this lambda returns true
          return std::count(wbSlotContent.begin(),wbSlotContent.end(),dep)!=0; //look for dep in wb content
        });

        if (deps.begin() != missinngDepsEndIt) {
          outputMessageStream << ". The following are missing: ";
          for (std::vector<std::string>::iterator missingDep=deps.begin();missingDep!=missinngDepsEndIt;++missingDep)
            outputMessageStream << *missingDep << (missingDep==(missinngDepsEndIt-1)?"":", ");
        }

        outputMessageStream << std::endl;
      }

      fatal() << outputMessageStream.str() << endmsg;
      outputMessageStream.str(std::string());

      // Snapshot of the WhiteBoard
      outputMessageStream << "The content of the whiteboard for this event was:\n";
      for (auto& product : wbSlotContent )
        outputMessageStream << " o " << product << std::endl;

      fatal() << outputMessageStream.str()<< endmsg;
      outputMessageStream.str(std::string());

      // Snapshot of the ControlFlow
      outputMessageStream << "The status of the control flow for this event was:\n";
      std::stringstream cFlowStateStringStream;
      m_efManager.printEventState(cFlowStateStringStream, thisSlot.algsStates, thisSlot.controlFlowState,0);

      outputMessageStream << cFlowStateStringStream.str();

      fatal() <<  outputMessageStream.str() << endmsg;
    }
  }

}

StatusCode ForwardSchedulerSvc::eventFailed ( EventContext *  eventContext )

private

Method to check if an event failed and take appropriate actions.

It can be possible that an event fails.

In this case this method is called. It dumps the state of the scheduler, drains the actions (without executing them) and events in the queues and returns a failure.

Definition at line 436 of file ForwardSchedulerSvc.cpp.

                                                                     {

  // Set the number of slots available to an error code
  m_freeSlots.store(0);

  fatal() << "*** Event " << eventContext->evt() << " on slot "
          << eventContext->slot() << " failed! ***" << endmsg;

  //dumpSchedulerState(-1);

  // Empty queue and deactivate the service
  action thisAction;
  while(m_actionsQueue.try_pop(thisAction)){};
  deactivate();

  // Push into the finished events queue the failed context
  EventContext* thisEvtContext;
  while(m_finishedEvents.try_pop(thisEvtContext)) { m_finishedEvents.push(thisEvtContext); };
  m_finishedEvents.push(eventContext);

  return StatusCode::FAILURE;

}

StatusCode ForwardSchedulerSvc::finalize ( )

virtual

Finalise.

Here the scheduler is deactivated and the thread joined.

Definition at line 209 of file ForwardSchedulerSvc.cpp.

                                        {

  StatusCode sc(Service::finalize());
  if (!sc.isSuccess())
    warning () << "Base class could not be finalized" << endmsg;

  sc = deactivate();
  if (!sc.isSuccess())
    warning () << "Scheduler could not be deactivated" << endmsg;

  info() << "Joining Scheduler thread" << endmsg;
  m_thread.join();

  //m_efManager.getExecutionFlowGraph()->dumpExecutionPlan();

  return sc;

  }

unsigned int ForwardSchedulerSvc::freeSlots ( )

virtual

Get free slots number.

Definition at line 378 of file ForwardSchedulerSvc.cpp.

                                           {
  return std::max(m_freeSlots.load(),0);
}

const std::string & ForwardSchedulerSvc::index2algname ( unsigned int  index )

inlineprivate

Convert an integer to a name.

Definition at line 305 of file ForwardSchedulerSvc.cpp.

                                                                              {
  return m_algname_vect[index];
}

StatusCode ForwardSchedulerSvc::initialize ( )

virtual

Initialise.

Here, among some "bureaucracy" operations, the scheduler is activated, executing the activate() function in a new thread.

In addition the algorithms list is acquired from the algResourcePool.

Definition at line 61 of file ForwardSchedulerSvc.cpp.

                                          {

  // Initialise mother class (read properties, ...)
  StatusCode sc(Service::initialize());
  if (!sc.isSuccess())
    warning () << "Base class could not be initialized" << endmsg;

  // Get the algo resource pool
  m_algResourcePool = serviceLocator()->service("AlgResourcePool");
  if (!m_algResourcePool.isValid())
    error() << "Error retrieving AlgoResourcePool" << endmsg;

  // Get Whiteboard
  m_whiteboard = serviceLocator()->service(m_whiteboardSvcName);
  if (!m_whiteboard.isValid())
    fatal() << "Error retrieving EventDataSvc interface IHiveWhiteBoard." << endmsg;

  // Check the MaxEventsInFlight parameters and react
  // Deprecated for the moment
  size_t numberOfWBSlots = m_whiteboard->getNumberOfStores();
  if (m_maxEventsInFlight!=0){
    warning() << "Property MaxEventsInFlight was set. This works but it's deprecated. "
              << "Please migrate your code options files." << endmsg;

    if (m_maxEventsInFlight != (int)numberOfWBSlots){
      warning() << "In addition, the number of events in flight ("
                << m_maxEventsInFlight << ") differs from the slots in the whiteboard ("
                << numberOfWBSlots << "). Setting the number of events in flight to "
                << numberOfWBSlots << endmsg;
    }
  }

  // Align the two quantities
  m_maxEventsInFlight = numberOfWBSlots;

  // Set the number of free slots
  m_freeSlots=m_maxEventsInFlight;

  // Get the list of algorithms
  const std::list<IAlgorithm*>& algos = m_algResourcePool->getFlatAlgList();
  const unsigned int algsNumber = algos.size();
  info() << "Found " <<  algsNumber << " algorithms" << endmsg;

  const unsigned int algosDependenciesSize=m_algosDependencies.size();
  info() << "Algodependecies size is " << algosDependenciesSize << endmsg;

  /* Dependencies
   0) Read deps from config file
   1) Look for handles in algo, if none
   2) Assume none are required
  */
  if (algosDependenciesSize == 0) {
    for (IAlgorithm* ialgoPtr : algos) {
      Algorithm* algoPtr = dynamic_cast<Algorithm*>(ialgoPtr);
      if (nullptr == algoPtr)
        fatal() << "Could not convert IAlgorithm into Algorithm: this will result in a crash." << endmsg;

#pragma GCC diagnostic push
#pragma GCC diagnostic ignored "-Wdeprecated-declarations"
      const std::vector<MinimalDataObjectHandle*>& algoHandles(algoPtr->handles());
#pragma GCC diagnostic pop
      std::vector<std::string> algoDependencies;
      if (!algoHandles.empty()) {
        info() << "Algorithm " << algoPtr->name() << " data dependencies:" << endmsg;
        for (MinimalDataObjectHandle* handlePtr : algoHandles) {
          if (handlePtr->isValid()) {
            if (handlePtr->accessType() == MinimalDataObjectHandle::AccessType::READ) {
              const std::string& productName = handlePtr->dataProductName();
              info() << "  o READ Handle found for product " << productName << endmsg;
              algoDependencies.emplace_back(productName);

              //just for info output alternative locations
              if (handlePtr->alternativeDataProductNames().size() != 0) {
                info() << "\t\t alternative locations";
                for (auto s : handlePtr->alternativeDataProductNames())
                  info() << " " << s;
                info() << endmsg;
              }
            } else {
              //output WRITE handles just for info
              info() << "  o WRITE Handle found for product " << handlePtr->dataProductName() << endmsg;
            }
          }
        }
      } else {
        info() << "Algorithm " << algoPtr->name() << " has no data dependencies." << endmsg;
      }
      m_algosDependencies.emplace_back(algoDependencies);
    }
  } else {
    if (algsNumber != algosDependenciesSize){
      error() << "number of Algorithms is different from size of Data Dependency list!" << endmsg;
      return StatusCode::FAILURE;
    }
  }

  // Fill the containers to convert algo names to index
  m_algname_vect.reserve(algsNumber);
  unsigned int index=0;
  for (IAlgorithm* algo : algos){
    const std::string& name = algo->name();
    m_algname_index_map[name]=index;
    m_algname_vect.emplace_back(name);
    index++;
  }

  // prepare the control flow part
  if (m_CFNext) m_DFNext = true; //force usage of new data flow machinery when new control flow is used
  if (!m_CFNext && !m_optimizationMode.empty()) {
    fatal() << "Execution optimization is only available with the graph-based execution flow management" << endmsg;
    return StatusCode::FAILURE;
  }
  const AlgResourcePool* algPool = dynamic_cast<const AlgResourcePool*>(m_algResourcePool.get());
  sc = m_efManager.initialize(algPool->getExecutionFlowGraph(), m_algname_index_map, m_eventSlots, m_optimizationMode);
  unsigned int controlFlowNodeNumber = m_efManager.getExecutionFlowGraph()->getControlFlowNodeCounter();
  // Shortcut for the message service
  SmartIF<IMessageSvc> messageSvc (serviceLocator());
  if (!messageSvc.isValid())
    error() << "Error retrieving MessageSvc interface IMessageSvc." << endmsg;

  m_eventSlots.assign(m_maxEventsInFlight,EventSlot(m_algosDependencies,algsNumber,controlFlowNodeNumber,messageSvc));
  std::for_each(m_eventSlots.begin(),m_eventSlots.end(),[](EventSlot& slot){slot.complete=true;});

  // Clearly inform about the level of concurrency
  info() << "Concurrency level information:" << endmsg;
  info() << " o Number of events in flight: " << m_maxEventsInFlight << endmsg;
  info() << " o Number of algorithms in flight: " << m_maxAlgosInFlight << endmsg;
  info() << " o TBB thread pool size: " << m_threadPoolSize << endmsg;

  // Simulating execution flow by only analyzing the graph topology and logic
  if (m_simulateExecution) {
    auto vis = concurrency::RunSimulator(0);
    m_efManager.simulateExecutionFlow(vis);
  }

  // Activate the scheduler in another thread.
  info() << "Activating scheduler in a separate thread" << endmsg;
  m_thread = std::thread (std::bind(&ForwardSchedulerSvc::activate,
                                    this));

  return sc;

}

StatusCode ForwardSchedulerSvc::isStalled ( int  iSlot )

private

Check if the scheduling is in a stall.

Check if we are in present of a stall condition for a particular slot.

This is the case when no actions are present in the actionsQueue, no algorithm is in flight and no algorithm has all of its dependencies satisfied.

Definition at line 670 of file ForwardSchedulerSvc.cpp.

                                                   {
  // Get the slot
  EventSlot& thisSlot = m_eventSlots[iSlot];

  if (m_actionsQueue.empty() &&
      m_algosInFlight == 0 &&
      (!thisSlot.algsStates.algsPresent(AlgsExecutionStates::DATAREADY))) {

    info() << "About to declare a stall" << endmsg;
    fatal() << "*** Stall detected! ***\n" << endmsg;
    dumpSchedulerState(iSlot);
    //throw GaudiException ("Stall detected",name(),StatusCode::FAILURE);

    return StatusCode::FAILURE;
  }
  return StatusCode::SUCCESS;
}

StatusCode ForwardSchedulerSvc::m_drain ( )

private

Drain the actions present in the queue.

Update the states for all slots until nothing is left to do.

Definition at line 386 of file ForwardSchedulerSvc.cpp.

                                       {

  unsigned int slotNum=0;
  for (auto& thisSlot : m_eventSlots){
    if (not thisSlot.algsStates.allAlgsExecuted() and not thisSlot.complete){
      updateStates(slotNum);
    }
    slotNum++;
  }
  return StatusCode::SUCCESS;
}

StatusCode ForwardSchedulerSvc::popFinishedEvent ( EventContext *&  eventContext )

virtual

Blocks until an event is availble.

Get a finished event or block until one becomes available.

Definition at line 402 of file ForwardSchedulerSvc.cpp.

                                                                           {
  if (m_freeSlots.load() == m_maxEventsInFlight or
      !m_isActive) {
    return StatusCode::FAILURE;
  } else {
    m_finishedEvents.pop(eventContext);
    m_freeSlots++;
    debug() << "Popped slot " << eventContext->slot() << "(event "
            << eventContext->evt() << ")" << endmsg;
    return StatusCode::SUCCESS;
  }
}

StatusCode ForwardSchedulerSvc::promoteToControlReady ( unsigned int  iAlgo, int  si  )

private

Algorithm promotion: Accepted by the control flow.

Definition at line 769 of file ForwardSchedulerSvc.cpp.

                                                                                {

  // Do the control flow
  StatusCode sc = m_eventSlots[si].algsStates.updateState(iAlgo,AlgsExecutionStates::CONTROLREADY);
  if (sc.isSuccess())
    if (msgLevel(MSG::DEBUG))
      debug() << "Promoting " << index2algname(iAlgo) << " to CONTROLREADY" << endmsg;

  return sc;

}

StatusCode ForwardSchedulerSvc::promoteToDataReady ( unsigned int  iAlgo, int  si  )

private

Definition at line 783 of file ForwardSchedulerSvc.cpp.

                                                                             {

  StatusCode sc;
  if (!m_DFNext) {
    sc = m_eventSlots[si].dataFlowMgr.canAlgorithmRun(iAlgo);
  } else {
    sc = m_efManager.algoDataDependenciesSatisfied(index2algname(iAlgo),si);
  }

  StatusCode updateSc(StatusCode::FAILURE);
  if (sc == StatusCode::SUCCESS)
    updateSc = m_eventSlots[si].algsStates.updateState(iAlgo,AlgsExecutionStates::DATAREADY);

  if (updateSc.isSuccess())
    if (msgLevel(MSG::DEBUG))
      debug() << "Promoting " << index2algname(iAlgo) << " to DATAREADY" << endmsg;

  return updateSc;

}

StatusCode ForwardSchedulerSvc::promoteToExecuted ( unsigned int  iAlgo, int  si, IAlgorithm *  algo  )

private

The call to this method is triggered only from within the AlgoExecutionTask.

Definition at line 855 of file ForwardSchedulerSvc.cpp.

                                                                                              {

  // Put back the instance
  Algorithm* castedAlgo = dynamic_cast<Algorithm*>(algo); // DP: expose context getter in IAlgo?
  if (!castedAlgo)
    fatal() << "The casting did not succeed!" << endmsg;
  EventContext* eventContext = castedAlgo->getContext();

  // Check if the execution failed
  if (eventContext->evtFail())
    eventFailed(eventContext);

  StatusCode sc = m_algResourcePool->releaseAlgorithm(algo->name(),algo);

  if (!sc.isSuccess()) {
    error() << "[Event " << eventContext->evt() << ", Slot " << eventContext->slot()  << "] "
            << "Instance of algorithm " << algo->name() << " could not be properly put back." << endmsg;
    return StatusCode::FAILURE;
    }

  m_algosInFlight--;

  EventSlot& thisSlot = m_eventSlots[si];
  // XXX: CF tests
  if (!m_DFNext) {
    // Update the catalog: some new products may be there
    m_whiteboard->selectStore(eventContext->slot()).ignore();

    // update prods in the dataflow
    // DP: Handles could be used. Just update what the algo wrote
    std::vector<std::string> new_products;
    m_whiteboard->getNewDataObjects(new_products).ignore();
    for (const auto& new_product : new_products)
      if (msgLevel(MSG::DEBUG))
        debug() << "Found in WB: " << new_product << endmsg;
    thisSlot.dataFlowMgr.updateDataObjectsCatalog(new_products);
  }

  if (msgLevel(MSG::DEBUG))
    debug() << "Algorithm " << algo->name() << " executed. Algorithms scheduled are " << m_algosInFlight << endmsg;

  // Limit number of updates
  if (m_CFNext) m_updateNeeded = true; // XXX: CF tests: with the new CF traversal the if clause below has to be removed
  if (m_updateNeeded) {
    // Schedule an update of the status of the algorithms
    auto updateAction = std::bind(&ForwardSchedulerSvc::updateStates, this, -1, algo->name());
    m_actionsQueue.push(updateAction);
    m_updateNeeded = false;
  }

  if (msgLevel(MSG::DEBUG))
    debug() << "Trying to handle execution result of " << index2algname(iAlgo) << "." << endmsg;
  State state;
  if (algo->filterPassed()) {
    state = State::EVTACCEPTED;
  } else {
    state = State::EVTREJECTED;
  }

  sc = thisSlot.algsStates.updateState(iAlgo,state);

  if (sc.isSuccess())
    if (msgLevel(MSG::DEBUG))
      debug() << "Promoting " << index2algname(iAlgo) << " on slot " << si << " to "
              << AlgsExecutionStates::stateNames[state] << endmsg;

  return sc;
}

StatusCode ForwardSchedulerSvc::promoteToFinished ( unsigned int  iAlgo, int  si  )

private

StatusCode ForwardSchedulerSvc::promoteToScheduled ( unsigned int  iAlgo, int  si  )

private

Definition at line 806 of file ForwardSchedulerSvc.cpp.

                                                                             {

  if (m_algosInFlight == m_maxAlgosInFlight)
    return StatusCode::FAILURE;

  const std::string& algName(index2algname(iAlgo));

  IAlgorithm* ialgoPtr=nullptr;
  StatusCode sc ( m_algResourcePool->acquireAlgorithm(algName,ialgoPtr) );

  if (sc.isSuccess()) {
    Algorithm* algoPtr = dynamic_cast<Algorithm*> (ialgoPtr); // DP: expose the setter of the context?
    EventContext* eventContext ( m_eventSlots[si].eventContext );
    if (!eventContext)
      fatal() << "Event context for algorithm " << algName << " is a nullptr (slot " << si<< ")" << endmsg;

    algoPtr->setContext(m_eventSlots[si].eventContext);
    ++m_algosInFlight;
    // Avoid to use tbb if the pool size is 1 and run in this thread
    if (-100 != m_threadPoolSize) {
      tbb::task* t = new( tbb::task::allocate_root() ) AlgoExecutionTask(ialgoPtr, iAlgo, serviceLocator(), this);
      tbb::task::enqueue( *t);
    } else {
      AlgoExecutionTask theTask(ialgoPtr, iAlgo, serviceLocator(), this);
      theTask.execute();
    }

    if (msgLevel(MSG::DEBUG))
      debug() << "Algorithm " << algName << " was submitted on event " << eventContext->evt()
              << ". Algorithms scheduled are " << m_algosInFlight << endmsg;

    StatusCode updateSc ( m_eventSlots[si].algsStates.updateState(iAlgo,AlgsExecutionStates::SCHEDULED) );

    if (updateSc.isSuccess())
      if (msgLevel(MSG::DEBUG))
        debug() << "Promoting " << index2algname(iAlgo) << " to SCHEDULED" << endmsg;
    return updateSc;
  } else {
    if (msgLevel(MSG::DEBUG))
      debug() << "Could not acquire instance for algorithm " << index2algname(iAlgo) << " on slot " << si << endmsg;
    return sc;
  }

}

StatusCode ForwardSchedulerSvc::pushNewEvent ( EventContext *  eventContext )

virtual

Make an event available to the scheduler.

Add event to the scheduler.

There are two cases possible: 1) No slot is free. A StatusCode::FAILURE is returned. 2) At least one slot is free. An action which resets the slot and kicks off its update is queued.

Definition at line 324 of file ForwardSchedulerSvc.cpp.

                                                                      {

  if (!eventContext){
    fatal() << "Event context is nullptr" << endmsg;
    return StatusCode::FAILURE;
  }

  if (m_freeSlots.load() == 0) {
    if (msgLevel(MSG::DEBUG))
      debug() << "A free processing slot could not be found." << endmsg;
    return StatusCode::FAILURE;
  }

  //no problem as push new event is only called from one thread (event loop manager)
  m_freeSlots--;

  auto action = [this,eventContext] () -> StatusCode {
    // Event processing slot forced to be the same as the wb slot
    const unsigned int thisSlotNum = eventContext->slot();
    EventSlot& thisSlot = m_eventSlots[thisSlotNum];
    if (!thisSlot.complete)
      fatal() << "The slot " << thisSlotNum << " is supposed to be a finished event but it's not" << endmsg;
    info() << "A free processing slot was found." << endmsg;
    thisSlot.reset(eventContext);
    // XXX: CF tests
    if (m_CFNext) {
      auto vis = concurrency::Trigger(thisSlotNum);
      m_efManager.touchReadyAlgorithms(vis);
    }

    return this->updateStates(thisSlotNum);
  }; // end of lambda

  // Kick off the scheduling!
  if (msgLevel(MSG::VERBOSE)) {
    verbose() << "Pushing the action to update the scheduler for slot " <<  eventContext->slot() << endmsg;
    verbose() << "Free slots available " <<  m_freeSlots.load() << endmsg;
  }
  m_actionsQueue.push(action);

  return StatusCode::SUCCESS;
}

StatusCode ForwardSchedulerSvc::pushNewEvents ( std::vector< EventContext * > &  eventContexts )

virtual

Definition at line 368 of file ForwardSchedulerSvc.cpp.

                                                                                    {
  StatusCode sc;
  for (auto context : eventContexts){
    sc = pushNewEvent(context);
    if (sc != StatusCode::SUCCESS) return sc;
  }
  return sc;
}

StatusCode ForwardSchedulerSvc::tryPopFinishedEvent ( EventContext *&  eventContext )

virtual

Try to fetch an event from the scheduler.

Try to get a finished event, if not available just return a failure.

Definition at line 419 of file ForwardSchedulerSvc.cpp.

                                                                              {
  if (m_finishedEvents.try_pop(eventContext)) {
    if (msgLevel(MSG::DEBUG))
      debug() << "Try Pop successful slot " << eventContext->slot()
              << "(event " << eventContext->evt() << ")" << endmsg;
    m_freeSlots++;
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode ForwardSchedulerSvc::updateStates ( int  si = -1, const std::string &  algo_name = std::string()  )

private

Loop on algorithm in the slots and promote them to successive states (-1 means all slots, while empty string means skipping an update of the Control Flow state)

Update the state of the algorithms.

The oldest events are checked before the newest, in order to reduce the event backlog. To check if the event is finished the algorithm checks if:

• No algorithms have been signed off by the control flow
• No algorithms have been signed off by the data flow
• No algorithms have been scheduled

Definition at line 474 of file ForwardSchedulerSvc.cpp.

                                                                              {

  m_updateNeeded=true;

  // Fill a map of initial state / action using closures.
  // done to update the states w/o several if/elses
  // Posterchild for constexpr with gcc4.7 onwards!
  /*const std::map<AlgsExecutionStates::State, std::function<StatusCode(unsigned int iAlgo, int si)>>
   statesTransitions = {
  {AlgsExecutionStates::CONTROLREADY, std::bind(&ForwardSchedulerSvc::promoteToDataReady,
                                      this,
                                      std::placeholders::_1,
                                      std::placeholders::_2)},
  {AlgsExecutionStates::DATAREADY, std::bind(&ForwardSchedulerSvc::promoteToScheduled,
                                   this,
                                   std::placeholders::_1,
                                   std::placeholders::_2)}
  };*/

  StatusCode global_sc(StatusCode::FAILURE);
  StatusCode partial_sc;

   // Sort from the oldest to the newest event
   // Prepare a vector of pointers to the slots to avoid copies
   std::vector<EventSlot*> eventSlotsPtrs;

   // Consider all slots if si <0 or just one otherwise
   if (si<0) {
     const int eventsSlotsSize(m_eventSlots.size());
     eventSlotsPtrs.reserve(eventsSlotsSize);
     for (auto slotIt=m_eventSlots.begin();slotIt!=m_eventSlots.end();slotIt++) {
       if (!slotIt->complete)
         eventSlotsPtrs.push_back(&(*slotIt));
     }
     std::sort(eventSlotsPtrs.begin(),
               eventSlotsPtrs.end(),
               [](EventSlot* a, EventSlot* b) {return a->eventContext->evt() < b->eventContext->evt();});
   } else {
     eventSlotsPtrs.push_back(&m_eventSlots[si]);
   }

  for (EventSlot* thisSlotPtr : eventSlotsPtrs) {
    int iSlot = thisSlotPtr->eventContext->slot();

    // Cache the states of the algos to improve readability and performance
    auto& thisSlot = m_eventSlots[iSlot];
    AlgsExecutionStates& thisAlgsStates = thisSlot.algsStates;

    // Take care of the control ready update
    // XXX: CF tests
    if (!m_CFNext) {
      m_efManager.updateEventState(thisAlgsStates,thisSlot.controlFlowState);
    } else {
      if (!algo_name.empty())
        m_efManager.updateDecision(algo_name,iSlot,thisAlgsStates,thisSlot.controlFlowState);
    }


    //DF note: all this this is a loop over all algs and applies CR->DR and DR->SCHD transistions
    /*for (unsigned int iAlgo=0;iAlgo<m_algname_vect.size();++iAlgo){
        const AlgsExecutionStates::State& algState = thisAlgsStates[iAlgo];
        if (algState==AlgsExecutionStates::ERROR)
            error() << " Algo " << index2algname(iAlgo) << " is in ERROR state." << endmsg;
        // Loop on state transitions from the one suited to algo state up to the one for SCHEDULED.
        partial_sc=StatusCode::SUCCESS;
        for (auto state_transition = statesTransitions.find(algState);
                state_transition!=statesTransitions.end() && partial_sc.isSuccess();
                state_transition++){
            partial_sc = state_transition->second(iAlgo,iSlot);
            if (partial_sc.isFailure()){
                debug() << "Could not apply transition from "
                        << AlgsExecutionStates::stateNames[thisAlgsStates[iAlgo]]
                                                           << " for algorithm " << index2algname(iAlgo)
                                                           << " on processing slot " << iSlot << endmsg;
            }
            else{global_sc=partial_sc;}
        } // end loop on transitions
    }*/ // end loop on algos


    StatusCode partial_sc;
    //first update CONTROLREADY to DATAREADY
    if (!m_CFNext) {
      for(auto it = thisAlgsStates.begin(AlgsExecutionStates::State::CONTROLREADY);
          it != thisAlgsStates.end(AlgsExecutionStates::State::CONTROLREADY); ++it) {

        uint algIndex = *it;
        partial_sc = promoteToDataReady(algIndex, iSlot);
        if (partial_sc.isFailure())
          if (msgLevel(MSG::DEBUG))
            debug() << "Could not apply transition from "
                    << AlgsExecutionStates::stateNames[AlgsExecutionStates::State::CONTROLREADY]
                    << " for algorithm " << index2algname(algIndex) << " on processing slot " << iSlot << endmsg;
      }
    }

    //now update DATAREADY to SCHEDULED
    if (!m_optimizationMode.empty()) {
      auto comp_nodes = [this] (const uint& i,const uint& j) {
          return (m_efManager.getExecutionFlowGraph()->getAlgorithmNode(index2algname(i))->getRank() <
          m_efManager.getExecutionFlowGraph()->getAlgorithmNode(index2algname(j))->getRank());
      };
      std::priority_queue<uint,std::vector<uint>,std::function<bool(const uint&,const uint&)>> buffer(comp_nodes,std::vector<uint>());
      for(auto it = thisAlgsStates.begin(AlgsExecutionStates::State::DATAREADY);
          it != thisAlgsStates.end(AlgsExecutionStates::State::DATAREADY); ++it)
        buffer.push(*it);
      /*std::stringstream s;
      auto buffer2 = buffer;
      while (!buffer2.empty()) {
        s << m_efManager.getExecutionFlowGraph()->getAlgorithmNode(index2algname(buffer2.top()))->getRank() << ", ";
        buffer2.pop();
      }
      info() << "DRBuffer is: [ " << s.str() << " ]  <--" << algo_name << " executed" << endmsg;*/

      while (!buffer.empty()) {
        partial_sc = promoteToScheduled(buffer.top(), iSlot);
        if (partial_sc.isFailure())
          if (msgLevel(MSG::DEBUG))
            debug() << "Could not apply transition from "
                    << AlgsExecutionStates::stateNames[AlgsExecutionStates::State::DATAREADY]
                    << " for algorithm " << index2algname(buffer.top()) << " on processing slot " << iSlot << endmsg;
        buffer.pop();
      }

    } else {
      for(auto it = thisAlgsStates.begin(AlgsExecutionStates::State::DATAREADY);
          it != thisAlgsStates.end(AlgsExecutionStates::State::DATAREADY); ++it) {
        uint algIndex = *it;
        partial_sc = promoteToScheduled(algIndex, iSlot);
        if (partial_sc.isFailure())
          if (msgLevel(MSG::DEBUG))
            debug() << "Could not apply transition from "
                    << AlgsExecutionStates::stateNames[AlgsExecutionStates::State::DATAREADY]
                    << " for algorithm " << index2algname(algIndex) << " on processing slot " << iSlot << endmsg;

      }
    }

    if (m_dumpIntraEventDynamics) {
      std::stringstream s;
      s << algo_name << ", " << thisAlgsStates.sizeOfSubset(State::CONTROLREADY)
                     << ", " << thisAlgsStates.sizeOfSubset(State::DATAREADY)
                     << ", " << thisAlgsStates.sizeOfSubset(State::SCHEDULED) << "\n";
      auto threads = (m_threadPoolSize != -1) ? std::to_string(m_threadPoolSize)
                                              : std::to_string(tbb::task_scheduler_init::default_num_threads());
      std::ofstream myfile;
      myfile.open("IntraEventConcurrencyDynamics_" + threads + "T.csv", std::ios::app);
      myfile << s.str();
      myfile.close();
    }


    // Not complete because this would mean that the slot is already free!
    if (!thisSlot.complete &&
        m_efManager.rootDecisionResolved(thisSlot.controlFlowState) &&
        !thisSlot.algsStates.algsPresent(AlgsExecutionStates::CONTROLREADY) &&
        !thisSlot.algsStates.algsPresent(AlgsExecutionStates::DATAREADY) &&
        !thisSlot.algsStates.algsPresent(AlgsExecutionStates::SCHEDULED)) {

      thisSlot.complete=true;
      // if the event did not fail, add it to the finished events
      // otherwise it is taken care of in the error handling already
      if (!thisSlot.eventContext->evtFail()) {
        m_finishedEvents.push(thisSlot.eventContext);
        if (msgLevel(MSG::DEBUG))
          debug() << "Event " << thisSlot.eventContext->evt() << " finished (slot "
                  << thisSlot.eventContext->slot() << ")." << endmsg;
      }
      // now let's return the fully evaluated result of the control flow
      if (msgLevel(MSG::DEBUG)) {
        std::stringstream ss;
        m_efManager.printEventState(ss, thisSlot.algsStates, thisSlot.controlFlowState,0);
        debug() << ss.str() << endmsg;
      }

      thisSlot.eventContext= nullptr;
    } else {
      StatusCode eventStalledSC = isStalled(iSlot);
      if (! eventStalledSC.isSuccess())
        eventFailed(thisSlot.eventContext);
    }
  } // end loop on slots

  verbose() << "States Updated." << endmsg;

  return global_sc;
}

Friends And Related Function Documentation

friend class AlgoExecutionTask

friend

Definition at line 214 of file ForwardSchedulerSvc.h.

Member Data Documentation

tbb::concurrent_bounded_queue<action> ForwardSchedulerSvc::m_actionsQueue

private

Queue where closures are stored and picked for execution.

Definition at line 198 of file ForwardSchedulerSvc.h.

std::unordered_map<std::string,unsigned int> ForwardSchedulerSvc::m_algname_index_map

private

Map to bookkeep the information necessary to the name2index conversion.

Definition at line 122 of file ForwardSchedulerSvc.h.

std::vector<std::string> ForwardSchedulerSvc::m_algname_vect

private

Vector to bookkeep the information necessary to the index2name conversion.

Definition at line 128 of file ForwardSchedulerSvc.h.

std::vector<std::vector<std::string> > ForwardSchedulerSvc::m_algosDependencies

private

Ugly, will disappear when the deps are declared only within the C++ code of the algos.

Definition at line 185 of file ForwardSchedulerSvc.h.

unsigned int ForwardSchedulerSvc::m_algosInFlight

private

Number of algoritms presently in flight.

Definition at line 158 of file ForwardSchedulerSvc.h.

SmartIF<IAlgResourcePool> ForwardSchedulerSvc::m_algResourcePool

private

Cache for the algorithm resource pool.

Definition at line 182 of file ForwardSchedulerSvc.h.

bool ForwardSchedulerSvc::m_CFNext

private

Definition at line 203 of file ForwardSchedulerSvc.h.

bool ForwardSchedulerSvc::m_DFNext

private

Definition at line 205 of file ForwardSchedulerSvc.h.

bool ForwardSchedulerSvc::m_dumpIntraEventDynamics

private

Definition at line 211 of file ForwardSchedulerSvc.h.

concurrency::ExecutionFlowManager ForwardSchedulerSvc::m_efManager

private

Member to take care of the control flow.

Definition at line 201 of file ForwardSchedulerSvc.h.

std::vector<EventSlot> ForwardSchedulerSvc::m_eventSlots

private

Vector of events slots.

Definition at line 137 of file ForwardSchedulerSvc.h.

tbb::concurrent_bounded_queue<EventContext*> ForwardSchedulerSvc::m_finishedEvents

private

Queue of finished events.

Definition at line 146 of file ForwardSchedulerSvc.h.

std::atomic_int ForwardSchedulerSvc::m_freeSlots

private

Atomic to account for asyncronous updates by the scheduler wrt the rest.

Definition at line 143 of file ForwardSchedulerSvc.h.

bool ForwardSchedulerSvc::m_isActive

private

Flag to track if the scheduler is active or not.

Definition at line 113 of file ForwardSchedulerSvc.h.

unsigned int ForwardSchedulerSvc::m_maxAlgosInFlight

private

Maximum number of simultaneous algorithms.

Definition at line 155 of file ForwardSchedulerSvc.h.

int ForwardSchedulerSvc::m_maxEventsInFlight

private

Maximum number of event processed simultaneously.

Definition at line 140 of file ForwardSchedulerSvc.h.

std::string ForwardSchedulerSvc::m_optimizationMode

private

Definition at line 209 of file ForwardSchedulerSvc.h.

bool ForwardSchedulerSvc::m_simulateExecution

private

Definition at line 207 of file ForwardSchedulerSvc.h.

std::thread ForwardSchedulerSvc::m_thread

private

The thread in which the activate function runs.

Definition at line 116 of file ForwardSchedulerSvc.h.

int ForwardSchedulerSvc::m_threadPoolSize

private

Size of the threadpool initialised by TBB; a value of -1 gives TBB the freedom to choose.

Definition at line 191 of file ForwardSchedulerSvc.h.

bool ForwardSchedulerSvc::m_updateNeeded

private

Keep track of update actions scheduled.

Definition at line 178 of file ForwardSchedulerSvc.h.

SmartIF<IHiveWhiteBoard> ForwardSchedulerSvc::m_whiteboard

private

A shortcut to the whiteboard.

Definition at line 131 of file ForwardSchedulerSvc.h.

std::string ForwardSchedulerSvc::m_whiteboardSvcName

private

The whiteboard name.

Definition at line 134 of file ForwardSchedulerSvc.h.

---

The documentation for this class was generated from the following files:

• GaudiHive/src/ForwardSchedulerSvc.h
• GaudiHive/src/ForwardSchedulerSvc.cpp
