Gaudi::ParticlePropertySvc Class Reference

This service provides access to particle properties. More...

#include <src/ParticlePropertySvc.h>

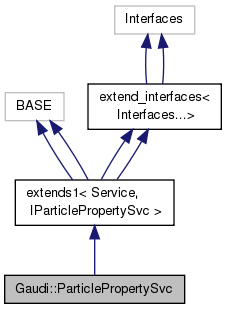

Inheritance diagram for Gaudi::ParticlePropertySvc:

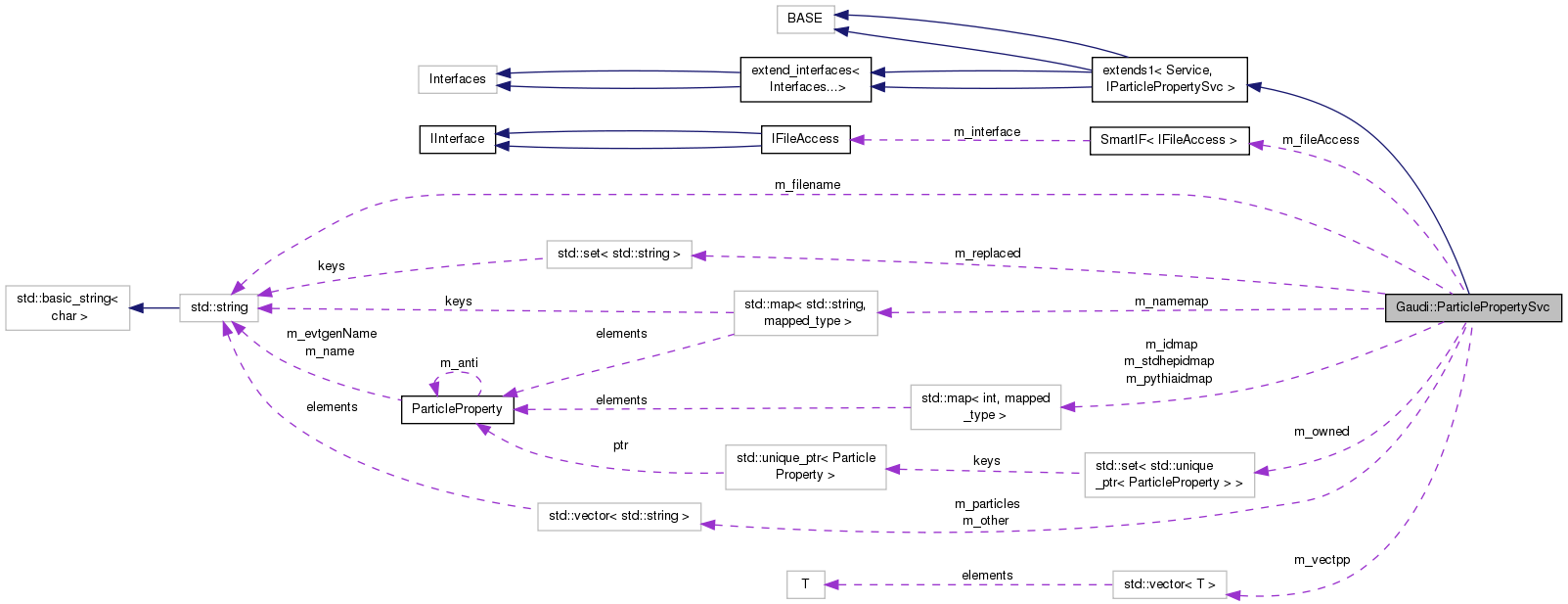

Collaboration diagram for Gaudi::ParticlePropertySvc:

Public Types
typedef ParticleProperty *	mapped_type
typedef std::map< int, mapped_type >	MapID
typedef std::map< std::string, mapped_type >	MapName
typedef std::map< int, mapped_type >	MapStdHepID
typedef std::map< int, mapped_type >	MapPythiaID
typedef std::vector< ParticleProperty * >	VectPP
typedef std::vector< ParticleProperty * >	VectPP
typedef VectPP::const_iterator	const_iterator
typedef VectPP::const_iterator	const_iterator
typedef VectPP::iterator	iterator
typedef VectPP::iterator	iterator
Public Types inherited from extends< BASE, Interfaces >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Public Member Functions
StatusCode	initialize () override
	Initialise the service. More...
StatusCode	finalize () override
	Finalise the service. More...
StatusCode	push_back (const std::string &particle, int geantId, int jetsetId, double charge, double mass, double tlife, const std::string &evtName, int pythiaId, double maxWidth) override
	Create a new particle property. More...
StatusCode	push_back (ParticleProperty *pp) override
	Add a new particle property. More...
const_iterator	begin () const override
	Get a const reference to the beginning of the container. More...
const_iterator	end () const override
	Get a const reference to the end of the container. More...
int	size () const override
	Get the container size. More...
ParticleProperty *	find (int geantId) override
	Retrieve a property by geant3 id. More...
ParticleProperty *	find (const std::string &name) override
	Retrieve a property by particle name. More...
ParticleProperty *	findByStdHepID (int stdHepId) override
	Retrieve a property by StdHep id. More...
ParticleProperty *	findByPythiaID (int pythiaID) override
	Retrieve a property by Pythia id. More...
StatusCode	erase (int geantId) override
	Erase a property by geant3 id. More...
StatusCode	erase (const std::string &name) override
	Erase a property by particle name. More...
StatusCode	eraseByStdHepID (int stdHepId) override
	Erase a property by StdHep id ??? More...
	ParticlePropertySvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor. More...
	~ParticlePropertySvc () override=default
	Destructor. More...
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Protected Member Functions
const ParticleProperty *	anti (const ParticleProperty *pp) const
	helper (protected) function to find an antiparticle for the given particle ID (StdHepID) More...
StatusCode	setAntiParticles ()
	helper (protected) function to set the valid particle<–>antiparticle relations More...
StatusCode	rebuild ()
	rebuild "the linear container" from the map More...
StatusCode	erase (const ParticleProperty *pp)
	remove particle property from all maps More...
StatusCode	parse (const std::string &file)
	parse the file More...
StatusCode	parse ()
	Parses the file and fill all the maps. More...
StatusCode	addParticles ()
bool	diff (const ParticleProperty *o, const ParticleProperty *n, const MSG::Level l=MSG::DEBUG) const

Private Types
typedef std::vector< std::string >	Files
typedef std::vector< std::string >	Particles

Private Attributes
std::string	m_filename = "ParticleTable.txt"
	Filename of the particle properties file. More...
Files	m_other
	additional file names More...
Particles	m_particles
VectPP	m_vectpp
	Vector of all particle properties. More...
MapID	m_idmap
	Map for geant IDs. More...
MapName	m_namemap
	Map for particle names. More...
MapStdHepID	m_stdhepidmap
	Map for StdHep Ids. More...
MapPythiaID	m_pythiaidmap
	Map for Pythia Ids. More...
std::set< std::unique_ptr< ParticleProperty > >	m_owned
std::set< std::string >	m_replaced
SmartIF< IFileAccess >	m_fileAccess

Detailed Description

This service provides access to particle properties.

The settable property of this service is the ParticlePropertiesFile, an ASCII file containing the list of properties for the particles. The default file is: "$PARAMFILESROOT/data/ParticleTable.txt" or if $PARAMFILESROOT is not defined "ParticleTable.txt"

Author

Iain Last

Gloria Corti 8/11/1999 change default file from $CDF/particle.cdf to $LHCBDBASE/cdf/particle.cdf on Unix and use environment variable also on WinNT Also introduce finding of particle by StdHepID

Vanya BELYAEV

Date

2006-09-22 1) Modified to add possibility to redefine properties of existing particles and to read additional files. New property "OtherFiles" (default is empty vector) is introduces. Service parsed additional files after the main one.

// read additional properties
ParticlePropertySvc.OtherFiles = {
   "$SOMELOCATION1/file1.txt" ,
   "$SOMELOCATION2/file2.txt"
} ;

2) Add possibility to modify only certain particles through the new property "Particles" (default is empty list), Each line is interpreted as a line in particle data table, e.g.

// redefine the properties of H_20 and H_30 particles:
ParticlePropertySvc.Particles = {
    "H_20 88 35 0.0 120.0 9.4e-26 Higgs'0 35 0.0e+00" ,
    "H_30 89 36 0.0  40.0 1.0e-12      A0 36 0.0e+00"
  } ;

The replaces/modified particles are reported.

Definition at line 71 of file ParticlePropertySvc.h.

Member Typedef Documentation

typedef VectPP::const_iterator IParticlePropertySvc::const_iterator

Definition at line 26 of file IParticlePropertySvc.h.

typedef VectPP::const_iterator IParticlePropertySvc::const_iterator

Definition at line 26 of file IParticlePropertySvc.h.

typedef std::vector<std::string> Gaudi::ParticlePropertySvc::Files

private

Definition at line 180 of file ParticlePropertySvc.h.

typedef VectPP::iterator IParticlePropertySvc::iterator

Definition at line 27 of file IParticlePropertySvc.h.

typedef VectPP::iterator IParticlePropertySvc::iterator

Definition at line 27 of file IParticlePropertySvc.h.

typedef std::map< int, mapped_type > Gaudi::ParticlePropertySvc::MapID

Definition at line 76 of file ParticlePropertySvc.h.

typedef std::map< std::string, mapped_type > Gaudi::ParticlePropertySvc::MapName

Definition at line 77 of file ParticlePropertySvc.h.

typedef ParticleProperty* Gaudi::ParticlePropertySvc::mapped_type

Definition at line 75 of file ParticlePropertySvc.h.

typedef std::map< int, mapped_type > Gaudi::ParticlePropertySvc::MapPythiaID

Definition at line 79 of file ParticlePropertySvc.h.

typedef std::map< int, mapped_type > Gaudi::ParticlePropertySvc::MapStdHepID

Definition at line 78 of file ParticlePropertySvc.h.

typedef std::vector<std::string> Gaudi::ParticlePropertySvc::Particles

private

Definition at line 181 of file ParticlePropertySvc.h.

typedef std::vector<ParticleProperty*> IParticlePropertySvc::VectPP

Definition at line 25 of file IParticlePropertySvc.h.

typedef std::vector<ParticleProperty*> IParticlePropertySvc::VectPP

Definition at line 25 of file IParticlePropertySvc.h.

Constructor & Destructor Documentation

Gaudi::ParticlePropertySvc::ParticlePropertySvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard Constructor.

Parameters

name	String with service name
svc	Pointer to service locator interface

Todo:

: remove reference to LHCb-specific environment variable

Definition at line 54 of file ParticlePropertySvc.cpp.

  : base_class( name, svc )
{
  // Redefine the default name:
  if( System::getEnv("PARAMFILESROOT", m_filename) )
  {
    m_filename += "/data/ParticleTable.txt";
  }
  //
  declareProperty ( "ParticlePropertiesFile" , m_filename  ) ;
  declareProperty ( "OtherFiles"             , m_other     ) ;
  declareProperty ( "Particles"              , m_particles ) ;
}

Gaudi::ParticlePropertySvc::~ParticlePropertySvc ( )

overridedefault

Destructor.

Member Function Documentation

StatusCode Gaudi::ParticlePropertySvc::addParticles ( )

protected

Definition at line 431 of file ParticlePropertySvc.cpp.

{

  MsgStream log ( msgSvc() , name() ) ;
  // loop over all "explicit" particles
  for ( const auto& item : m_particles )
  {
    std::istringstream input( item ) ;
    // get the name
    std::string p_name   ;
    int         p_geant  ;
    int         p_jetset ;
    double      p_charge ;
    double      p_mass   ;
    double      p_ltime  ;
    std::string p_evtgen ;
    int         p_pythia ;
    double      p_maxwid ;
    if ( input
         >> p_name
         >> p_geant
         >> p_jetset
         >> p_charge
         >> p_mass
         >> p_ltime
         >> p_evtgen
         >> p_pythia
         >> p_maxwid )
    {
      log << MSG::ALWAYS
          << " Add/Modify the particle: "
          << " name='"   << p_name   << "'"
          << " geant="   << p_geant
          << " jetset="  << p_jetset
          << " charge="  << p_charge
          << " mass="    << p_mass
          << " ltime="   << p_ltime
          << " evtgen='" << p_evtgen << "'"
          << " pythia="  << p_pythia
          << " maxwid="  << p_maxwid << endmsg ;
      //
      StatusCode sc = push_back
        ( p_name                        ,
          p_geant                       ,
          p_jetset                      ,
          p_charge                      ,
          p_mass    * Gaudi::Units::GeV ,
          p_ltime   * Gaudi::Units::s   ,
          p_evtgen                      ,
          p_pythia                      ,
          p_maxwid  * Gaudi::Units::GeV ) ;
      if ( sc.isFailure() ) { return sc ; }                        // RETURN
    }
    else
    {
      log << MSG::ERROR
          << " could not parse '" << item << "'" << endmsg ;
      return StatusCode::FAILURE ;                                 // RETURN
    }
  }
  //
  return StatusCode::SUCCESS ;
}

const ParticleProperty * Gaudi::ParticlePropertySvc::anti ( const ParticleProperty *  pp ) const

protected

helper (protected) function to find an antiparticle for the given particle ID (StdHepID)

Helper (protected) function to find an antiparticle for the given particle ID (StdHepID)

Parameters

pp	pointer to particle property

Returns

pointer to antiparticle

Definition at line 371 of file ParticlePropertySvc.cpp.

{
  if ( !pp ) { return nullptr ; }
  const int     ID = pp->pdgID() ;
  const int antiID = -1 * ID     ;
  for ( const auto& ap : m_vectpp )
  {
    if ( ap && antiID == ap->pdgID() ) { return ap ; }          // RETURN
  };
  //
  return pp ;                                                   // RETURN
}

const_iterator Gaudi::ParticlePropertySvc::begin ( ) const

inlineoverride

Get a const reference to the beginning of the container.

Definition at line 118 of file ParticlePropertySvc.h.

{ return m_vectpp.begin() ; }

bool Gaudi::ParticlePropertySvc::diff ( const ParticleProperty *  o, const ParticleProperty *  n, const MSG::Level  l = MSG::DEBUG  ) const

protected

Definition at line 502 of file ParticlePropertySvc.cpp.

{
  //
  if ( o == n ) { return false ; }
  //
  MsgStream log ( msgSvc() , name() ) ;
  log << l ;
  if ( !o || !n  )
  {
    log << MSG::WARNING << " ParticleProperty* point to NULL" << endmsg ;
    return true ;                                                    // RETURN
  }
  //
  bool result = false ;
  if ( o -> particle () != n -> particle () )
  {
    result = true ;
    log << " Name:'"  << o -> particle () << "'/'" << n -> particle () << "'" ;
  }
  if ( o -> geantID  () != n -> geantID  () )
  {
    result = true ;
    log << " G3ID:"   << o -> geantID  () << "/"   << n -> geantID  () << "'" ;
  }
  if ( o -> pdgID    () != n -> pdgID    () )
  {
    result = true ;
    log << " PDGID:"  << o -> pdgID    () << "/"   << n -> pdgID    () << "'" ;
  }
  if ( o -> pythiaID () != n -> pythiaID () )
  {
    result = true ;
    log << " PYID:"   << o -> pythiaID () << "/"   << n -> pythiaID () << "'" ;
  }
  if ( o -> charge   () != n -> charge   () )
  {
    result = true ;
    log << " Q:"      << o -> charge   () << "/"   << n -> charge   () << "'" ;
  }
  if ( o -> mass     () != n -> mass     () )
  {
    result = true ;
    log << " M:"      << o -> mass     () << "/"   << n -> mass     () << "'" ;
  }
  if ( o -> lifetime () != n -> lifetime () )
  {
    result = true ;
    log << " T:"      << o -> lifetime () << "/"   << n -> lifetime () << "'" ;
  }
  if ( o -> evtGenName () != n -> evtGenName () )
  {
    result = true ;
    log << " EvtGen:" << o -> evtGenName () << "/"   << n -> evtGenName () << "'" ;
  }
  if ( o -> maxWidth () != n -> maxWidth () )
  {
    result = true ;
    log << " WMAX:"   << o -> maxWidth () << "/"   << n -> maxWidth () << "'" ;
  }
  if ( result ) { log << endmsg ; }
  //
  return result ;
}

const_iterator Gaudi::ParticlePropertySvc::end ( ) const

inlineoverride

Get a const reference to the end of the container.

Definition at line 120 of file ParticlePropertySvc.h.

{ return m_vectpp.end() ; }

StatusCode Gaudi::ParticlePropertySvc::erase ( int  geantId )

inlineoverride

Erase a property by geant3 id.

Definition at line 136 of file ParticlePropertySvc.h.

  { return erase ( find ( geantId ) ) ; }

StatusCode Gaudi::ParticlePropertySvc::erase ( const std::string &  name )

inlineoverride

Erase a property by particle name.

Definition at line 139 of file ParticlePropertySvc.h.

  { return erase ( find ( name ) ) ; }

StatusCode Gaudi::ParticlePropertySvc::erase ( const ParticleProperty *  pp )

protected

remove particle property from all maps

Definition at line 269 of file ParticlePropertySvc.cpp.

{
  if ( !pp ) { return StatusCode::FAILURE ; }

  _remove_ ( m_idmap       , pp ) ;
  _remove_ ( m_namemap     , pp ) ;
  _remove_ ( m_stdhepidmap , pp ) ;
  _remove_ ( m_pythiaidmap , pp ) ;
  //
  return rebuild() ;
}

StatusCode Gaudi::ParticlePropertySvc::eraseByStdHepID ( int  stdHepId )

inlineoverride

Erase a property by StdHep id ???

Definition at line 142 of file ParticlePropertySvc.h.

  { return erase( findByStdHepID ( stdHepId ) ) ; }

StatusCode Gaudi::ParticlePropertySvc::finalize ( )

override

Finalise the service.

finalize

finalize the base class

Definition at line 137 of file ParticlePropertySvc.cpp.

{
  if ( !m_other.empty() )
  {
    MsgStream log( msgSvc() , name() ) ;
    log << MSG::INFO
        << "Additional Properties have been read from files: "
        << Gaudi::Utils::toString ( m_other )
        << endmsg ;
  }

  if ( !m_replaced.empty() )
  {
    MsgStream log( msgSvc() , name() ) ;
    log << MSG::ALWAYS
        << "Properties have been redefined for "
        << m_replaced.size() << " particles : "
        << Gaudi::Utils::toString( m_replaced )
        << endmsg ;
  }

  m_fileAccess.reset();

  return Service::finalize () ;
}

ParticleProperty* Gaudi::ParticlePropertySvc::find ( int  geantId )

inlineoverride

Retrieve a property by geant3 id.

Definition at line 124 of file ParticlePropertySvc.h.

  { return m_idmap[ geantId ] ; }

ParticleProperty* Gaudi::ParticlePropertySvc::find ( const std::string &  name )

inlineoverride

Retrieve a property by particle name.

Definition at line 127 of file ParticlePropertySvc.h.

  { return m_namemap[ name ] ; }

ParticleProperty* Gaudi::ParticlePropertySvc::findByPythiaID ( int  pythiaID )

inlineoverride

Retrieve a property by Pythia id.

Definition at line 133 of file ParticlePropertySvc.h.

  { return m_pythiaidmap[ pythiaID ]; }

ParticleProperty* Gaudi::ParticlePropertySvc::findByStdHepID ( int  stdHepId )

inlineoverride

Retrieve a property by StdHep id.

Definition at line 130 of file ParticlePropertySvc.h.

  { return m_stdhepidmap[ stdHepId ] ; }

StatusCode Gaudi::ParticlePropertySvc::initialize ( )

override

Initialise the service.

initialize the service and setProperties

Definition at line 72 of file ParticlePropertySvc.cpp.

{
  StatusCode sc = Service::initialize();
  if ( sc.isFailure() ) { return sc ; }

  MsgStream log( msgSvc() , name() ) ;

  sc = setProperties();
  if ( sc.isFailure() )
  {
    log << MSG::ERROR << " Could not set the properties " << endmsg ;
    return sc ;
  }

  m_fileAccess = service("VFSSvc");
  if ( !m_fileAccess )
  {
    log << MSG::ERROR << " Cannot retrieve the VFS service " << endmsg ;
    return StatusCode::FAILURE ;
  }

  sc = parse();
  if ( sc.isFailure() )
  {
    log << MSG::ERROR << " Could not parse the file " << endmsg ;
    return sc ;
  }
  if ( !m_particles.empty() )
  {
    sc = addParticles () ;
    if ( sc.isFailure() )
    {
      log << MSG::ERROR << " Could not treat particles! " << endmsg ;
      return sc ;
    }
  }
  log << MSG::DEBUG << "ParticleProperties parsed successfully" << endmsg;

  log << MSG::DEBUG << "Access properties" << endmsg;
  // For debugging purposes print out the size of the internal maps
  // particle name as key: all particles in database are present here
  log << MSG::DEBUG << "NameMap size =" << m_namemap.size() << endmsg;
  // Geant3 ID as key: all particles in database are present here
  log << MSG::DEBUG << "GeantID Map size =" << m_idmap.size() << endmsg;
  // StdHep ID as key: some particles have no valid StdHep ID
  log << MSG::DEBUG << "StdHepID Map size =" << m_stdhepidmap.size()
      << endmsg;
  // Pythia ID as key: some particles are not defined in Pythia
  log << MSG::DEBUG << "PythiaID Map size =" << m_pythiaidmap.size()
      << endmsg;

  if ( !m_replaced.empty() )
  {
    log << MSG::INFO
        << "Properties have been redefined for "
        << m_replaced.size() << " particles : "
        << Gaudi::Utils::toString( m_replaced )
        << endmsg ;
  }

  return StatusCode::SUCCESS ;
}

StatusCode Gaudi::ParticlePropertySvc::parse ( const std::string &  file )

protected

parse the file

Definition at line 311 of file ParticlePropertySvc.cpp.

{
  MsgStream log( msgSvc(), name() );

  auto infile = ( m_fileAccess ? m_fileAccess->open(file) : nullptr );
  if ( !infile )
  {
    log << MSG::ERROR << "Unable to open properties file : " << file
        << endmsg;
    return StatusCode::FAILURE ;
  }

  StatusCode sc = StatusCode::SUCCESS;
  log << MSG::INFO
      << "Opened particle properties file : " << file << endmsg;

  std::vector<std::string> tokens; tokens.reserve(9);
  std::string line;
  while( std::getline( *infile, line ) )
  {
    // parse each line of the file (comment lines begin with # in the cdf
    // file,
    if ( line.front() == '#' ) continue;

    tokens.clear();
    ba::trim_left_if( line, ba::is_space() );
    ba::split( tokens, line, ba::is_space() , boost::token_compress_on );
    if (tokens.size()!=9) continue;

    auto gid = std::stoi( tokens[1] );
    auto jid = std::stoi( tokens[2] );
    // Change the particles that do not correspond to a pdg number
    if ( jid == 0 ) jid = 10000000*gid;

    // add a particle property
    sc = push_back( tokens[0], gid, jid,
                    std::stod( tokens[3] ),
                    std::stod( tokens[4] ) * Gaudi::Units::GeV,
                    std::stod( tokens[5] ) * Gaudi::Units::s,
                    tokens[6],
                    std::stoi( tokens[7] ),
                    std::stod( tokens[8] ) * Gaudi::Units::GeV ) ;

    if ( sc.isFailure() )
    {
      log << MSG::ERROR
          << "Error from ParticlePropertySvc::push_back for particle='"
          << tokens[0] << "'" << endmsg ;
    }
  }
  return StatusCode::SUCCESS ;
}

StatusCode Gaudi::ParticlePropertySvc::parse ( )

protected

Parses the file and fill all the maps.

Definition at line 283 of file ParticlePropertySvc.cpp.

{

  // parse "the main" file
  StatusCode sc = parse ( m_filename ) ;
  if ( sc.isFailure() ) { return sc ; }

  // parse "other" files
  for ( auto& file : m_other )
  {
    sc = parse ( file ) ;
    if ( sc.isFailure() ) { return sc ; }
  }

  // Now check that the file format was consistent with what parser
  // expected
  if ( m_namemap.empty() )
  {
    MsgStream log( msgSvc(), name() );
    log << MSG::ERROR
        << "Format of input file inconsistent with what expected"
        << " - Check you are using ParticleData.txt" << endmsg;
    return StatusCode::FAILURE;
  }

  return sc;
}

StatusCode Gaudi::ParticlePropertySvc::push_back ( const std::string &  particle, int  geantId, int  jetsetId, double  charge, double  mass, double  tlife, const std::string &  evtName, int  pythiaId, double  maxWidth  )

override

Create a new particle property.

Create a particle property and insert it in the maps.

Attention

ParticlePropertySvc IS the owner if this property! String name of the particle.

Parameters

geantId	Geant3 ID of the particle.
jetsetId	Jetset ID of the particle.
charge	Particle charge (/e).
mass	Particle mass (GeV).
tlife	Particle lifetime (s).
evtName	String name of the particle in EvtGen.
pythiaId	Pythia ID of the particle.

Returns

StatusCode - SUCCESS if the particle property was added.

Definition at line 167 of file ParticlePropertySvc.cpp.

{
  //
  auto i = m_owned.insert(
    make_unique_<ParticleProperty>( particle , geantId  , jetsetId ,
                                    charge   , mass     , tlife    ,
                                    evtName  , pythiaId , maxWidth )
  ) ;
  //
  return i.second ? push_back( i.first->get() ) : StatusCode::FAILURE;
}

StatusCode Gaudi::ParticlePropertySvc::push_back ( ParticleProperty *  pp )

override

Add a new particle property.

Add a particle property.

Attention

ParticlePropertySvc is not the owner of this property!

Parameters

pp,a	particle property class.

Returns

StatusCode - SUCCESS if the particle property was added.

Definition at line 189 of file ParticlePropertySvc.cpp.

{
  if ( !pp ) { return StatusCode::FAILURE ; }
  //
  { // try to add into Geant(3)ID map
    const int ID = pp->geantID() ;
    // is this already in the map?
    auto ifind = m_idmap.find( ID ) ;
    if ( m_idmap.end() != ifind && 0 != m_idmap[ ID ])
    {
      diff ( ifind->second , pp ) ;
      m_replaced.insert( m_idmap[ ID ]->particle() ) ;
    }
    // put it into the map
    m_idmap[ ID ] = pp ;
  }
  //
  { // try to add into Name map
    const std::string& particle = pp->particle() ;
    // is this already in the map?
    auto ifind = m_namemap.find( particle ) ;
    if ( ifind != m_namemap.end() && ifind->second )
    {
      diff ( ifind->second , pp ) ;
      m_replaced.insert( ifind->second->particle() ) ;
    }
    // put it into the map
    m_namemap[ particle ] = pp ;
  }
  //
  // add to StdHep map only if StdHep ID different from zero and if
  // not Cerenkov (StdHep ID = gamma)
  if ( 0 != pp->jetsetID() && "Tcherenkov" != pp->particle() )
  { // try to add into StdHepID map
    const int ID = pp->jetsetID() ;
    // is this already in the map?
    auto ifind = m_stdhepidmap.find( ID ) ;
    if ( m_stdhepidmap.end() != ifind && ifind->second )
    {
      diff ( ifind->second , pp ) ;
      m_replaced.insert( ifind->second->particle() ) ;
    }
    // put it into the map
    m_stdhepidmap[ ID ] = pp ;
  }
  //
  // add to Pythia map only if Pythia ID is different from
  // zero ( StdHep id is always different from zero in this case )
  if ( 0 != pp->pythiaID() &&
       0 != pp->jetsetID() &&
       "Tcherenkov" != pp->particle() )
  { // try to add into PythiaID map
    const int ID = pp->pythiaID() ;
    // is this already in the map?
    auto ifind = m_pythiaidmap.find( ID ) ;
    if ( m_pythiaidmap.end() != ifind && ifind->second )
    {
      diff ( ifind->second , pp ) ;
      m_replaced.insert( ifind->second ->particle() ) ;
    }
    // put it into the map
    m_pythiaidmap[ ID ] = pp ;
  }
  //
  return rebuild() ;
}

StatusCode Gaudi::ParticlePropertySvc::rebuild ( )

protected

rebuild "the linear container" from the map

Definition at line 414 of file ParticlePropertySvc.cpp.

{
  std::set<mapped_type> local ;
  m_vectpp.clear() ;
  m_vectpp.reserve ( m_idmap.size() + 100 ) ;
  // load information from maps into the set
  _load_ ( m_idmap       , local ) ;
  _load_ ( m_namemap     , local ) ;
  _load_ ( m_stdhepidmap , local ) ;
  _load_ ( m_pythiaidmap , local ) ;
  // load information from set to the linear container vector
  std::copy( std::begin(local), std::end(local), std::back_inserter(m_vectpp) );
  return setAntiParticles() ;
}

StatusCode Gaudi::ParticlePropertySvc::setAntiParticles ( )

protected

helper (protected) function to set the valid particle<–>antiparticle relations

Returns

status code

Definition at line 389 of file ParticlePropertySvc.cpp.

{
  // initialize particle<-->antiParticle relations
  for ( auto& pp : m_vectpp )
  {
    if ( !pp                    ) { continue ; }   // CONTINUE
    const ParticleProperty* ap = anti ( pp ) ;
    if ( ap                    ) { pp->setAntiParticle( ap ) ; }
  }
  return StatusCode::SUCCESS ;
}

int Gaudi::ParticlePropertySvc::size ( ) const

inlineoverride

Get the container size.

Definition at line 122 of file ParticlePropertySvc.h.

{ return m_vectpp.size() ; };

Member Data Documentation

SmartIF<IFileAccess> Gaudi::ParticlePropertySvc::m_fileAccess

private

Definition at line 198 of file ParticlePropertySvc.h.

std::string Gaudi::ParticlePropertySvc::m_filename = "ParticleTable.txt"

private

Filename of the particle properties file.

Definition at line 183 of file ParticlePropertySvc.h.

MapID Gaudi::ParticlePropertySvc::m_idmap

private

Map for geant IDs.

Definition at line 189 of file ParticlePropertySvc.h.

MapName Gaudi::ParticlePropertySvc::m_namemap

private

Map for particle names.

Definition at line 190 of file ParticlePropertySvc.h.

Files Gaudi::ParticlePropertySvc::m_other

private

additional file names

Definition at line 184 of file ParticlePropertySvc.h.

std::set<std::unique_ptr<ParticleProperty> > Gaudi::ParticlePropertySvc::m_owned

private

Definition at line 195 of file ParticlePropertySvc.h.

Particles Gaudi::ParticlePropertySvc::m_particles

private

Definition at line 186 of file ParticlePropertySvc.h.

MapPythiaID Gaudi::ParticlePropertySvc::m_pythiaidmap

private

Map for Pythia Ids.

Definition at line 192 of file ParticlePropertySvc.h.

std::set<std::string> Gaudi::ParticlePropertySvc::m_replaced

private

Definition at line 196 of file ParticlePropertySvc.h.

MapStdHepID Gaudi::ParticlePropertySvc::m_stdhepidmap

private

Map for StdHep Ids.

Definition at line 191 of file ParticlePropertySvc.h.

VectPP Gaudi::ParticlePropertySvc::m_vectpp

private

Vector of all particle properties.

Definition at line 188 of file ParticlePropertySvc.h.

---

The documentation for this class was generated from the following files:

• GaudiPartProp/src/ParticlePropertySvc.h
• GaudiPartProp/src/ParticlePropertySvc.cpp
