Base class for History Objects. More...

#include <GaudiKernel/HistoryObj.h>

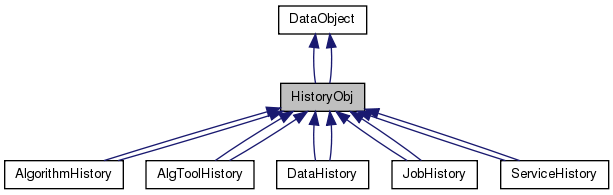

Inheritance diagram for HistoryObj:

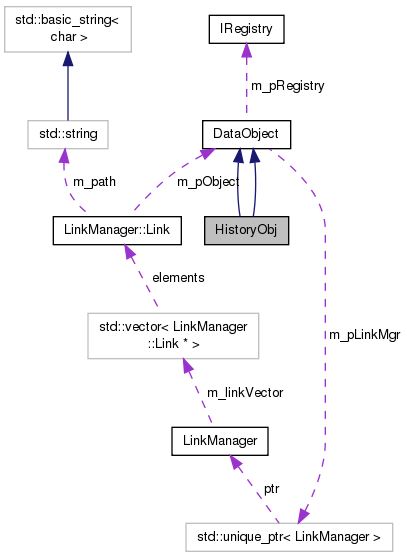

Collaboration diagram for HistoryObj:

Public Member Functions
	HistoryObj ()=default

virtual	~HistoryObj ()=default

virtual const CLID &	clID () const
	Retrieve reference to class definition structure. More...

virtual void	dump (std::ostream &, const bool isXML=false, int indent=0) const =0

	HistoryObj ()=default

virtual	~HistoryObj ()=default

virtual const CLID &	clID () const
	Retrieve reference to class definition structure. More...

virtual void	dump (std::ostream &, const bool isXML=false, int indent=0) const =0

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &rhs)
	Copy Constructor. More...

DataObject &	operator= (const DataObject &rhs)
	Assignment Operator. More...

	DataObject (DataObject &&rhs)
	Move Constructor. More...

DataObject &	operator= (DataObject &&rhs)
	Move Assignment Operator. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &rhs)
	Copy Constructor. More...

DataObject &	operator= (const DataObject &rhs)
	Assignment Operator. More...

	DataObject (DataObject &&rhs)
	Move Constructor. More...

DataObject &	operator= (DataObject &&rhs)
	Move Assignment Operator. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr () const
	Retrieve Link manager. More...

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr () const
	Retrieve Link manager. More...

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Static Public Member Functions
static const CLID &	classID ()

static std::string	convert_string (const std::string &)

static const CLID &	classID ()

static std::string	convert_string (const std::string &)

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Protected Member Functions
virtual void	indent (std::ostream &, int) const

virtual void	indent (std::ostream &, int) const

Detailed Description

Base class for History Objects.

Author: Charles Leggett

Date: Jul 13 2004

Definition at line 22 of file HistoryObj.h.

Constructor & Destructor Documentation

HistoryObj::HistoryObj ( )

default

virtual HistoryObj::~HistoryObj ( )

virtualdefault

HistoryObj::HistoryObj ( )

default

virtual HistoryObj::~HistoryObj ( )

virtualdefault

Member Function Documentation

const CLID & HistoryObj::classID ( )

static

Definition at line 50 of file HistoryObj.cpp.

                     {

   static const CLID CLID_HistoryObj = 86452397;
   return CLID_HistoryObj;

 }

static const CLID& HistoryObj::classID ( )

static

virtual const CLID& HistoryObj::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Reimplemented in AlgorithmHistory, AlgorithmHistory, JobHistory, JobHistory, AlgToolHistory, AlgToolHistory, DataHistory, DataHistory, ServiceHistory, and ServiceHistory.

Definition at line 27 of file HistoryObj.h.

27 { return classID(); }

HistoryObj::classID

static const CLID & classID()

Definition: HistoryObj.cpp:50

virtual const CLID& HistoryObj::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Reimplemented in AlgorithmHistory, AlgorithmHistory, JobHistory, JobHistory, AlgToolHistory, AlgToolHistory, DataHistory, DataHistory, ServiceHistory, and ServiceHistory.

Definition at line 27 of file HistoryObj.h.

27 { return classID(); }

HistoryObj::classID

static const CLID & classID()

Definition: HistoryObj.cpp:50

static std::string HistoryObj::convert_string ( const std::string & )

static

std::string HistoryObj::convert_string ( const std::string & input_string )

static

Definition at line 21 of file HistoryObj.cpp.

                                                        {

   //Conversion of special characteres into xml language

   std::string modified_string;

   for(const auto& itr : input_string ) {
     if      (itr== '&')  modified_string.append("&amp;");
     else if (itr== '<')  modified_string.append("&lt;");
     else if (itr== '>')  modified_string.append("&gt;");
     else if (itr== '"')  modified_string.append("&quot;");
     else if (itr== '\'') modified_string.append("&apos;");
     else if (itr== '\"') modified_string.append("&quot;");
     else modified_string+=itr;
   }

   return modified_string;
 }

virtual void HistoryObj::dump	(	std::ostream &	,
		const bool	isXML = `false`,
		int	indent = `0`
	)		const

pure virtual

Implemented in AlgorithmHistory, AlgorithmHistory, JobHistory, JobHistory, AlgToolHistory, AlgToolHistory, DataHistory, DataHistory, ServiceHistory, and ServiceHistory.

virtual void HistoryObj::dump	(	std::ostream &	,
		const bool	isXML = `false`,
		int	indent = `0`
	)		const

pure virtual

Implemented in AlgorithmHistory, AlgorithmHistory, JobHistory, JobHistory, AlgToolHistory, AlgToolHistory, DataHistory, DataHistory, ServiceHistory, and ServiceHistory.

virtual void HistoryObj::indent	(	std::ostream &	,
		int
	)		const

protectedvirtual

void HistoryObj::indent	(	std::ostream &	ost,
		int	i
	)		const

protectedvirtual

Definition at line 43 of file HistoryObj.cpp.

                                                {
   while (i > 0) { ost << " "; --i; }
 }

The documentation for this class was generated from the following files:

InstallArea/x86_64-slc6-gcc49-opt/include/GaudiKernel/HistoryObj.h
GaudiKernel/src/Lib/HistoryObj.cpp
