concurrency::ExecutionFlowManager Class Reference

Manage the execution flow using an execution flow graph Once initialized, the graph is const and can be shared across events. More...

#include <GaudiHive/src/ExecutionFlowManager.h>

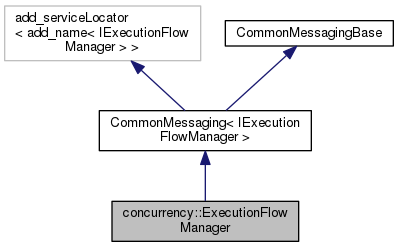

Inheritance diagram for concurrency::ExecutionFlowManager:

Collaboration diagram for concurrency::ExecutionFlowManager:

Public Member Functions
	ExecutionFlowManager ()
	Constructor. More...
	~ExecutionFlowManager () override=default
	Destructor. More...
StatusCode	initialize (ExecutionFlowGraph *CFGraph, const std::unordered_map< std::string, unsigned int > &algname_index_map)
	Initialize the control flow manager It greps the topalg list and the index map for the algo names. More...
StatusCode	initialize (ExecutionFlowGraph *CFGraph, const std::unordered_map< std::string, unsigned int > &algname_index_map, std::vector< EventSlot > &eventSlots, const std::string &mode)
void	simulateExecutionFlow (IGraphVisitor &visitor) const
ExecutionFlowGraph *	getExecutionFlowGraph () const
	Get the flow graph instance. More...
bool	needsAlgorithmToRun (const unsigned int iAlgo) const
	A little bit silly, but who cares. ;-) More...
void	updateEventState (AlgsExecutionStates &algo_states, std::vector< int > &node_decisions) const
	Update the state of algorithms to controlready, where possible. More...
void	updateDecision (const std::string &algo_name, const int &slotNum, AlgsExecutionStates &states, std::vector< int > &node_decisions) const
void	updateEventState (AlgsExecutionStates &algo_states) const
	XXX: CF tests. More...
void	promoteToControlReadyState (AlgsExecutionStates &algo_states, std::vector< int > &node_decisions, const int &slotNum=-1) const
	XXX: CF tests. More...
bool	algoDataDependenciesSatisfied (const std::string &algo_name, const int &slotNum) const
	Check all data dependencies of an algorithm are satisfied. More...
bool	rootDecisionResolved (const std::vector< int > &node_decisions) const
	Check whether root decision was resolved. More...
void	printEventState (std::stringstream &ss, AlgsExecutionStates &states, const std::vector< int > &node_decisions, const unsigned int &recursionLevel) const
	Print the state of the control flow for a given event. More...
void	touchReadyAlgorithms (IGraphVisitor &visitor) const
	Promote all algorithms, ready to be executed, to DataReady state. More...
const std::string &	name () const override
	Retrieve name of the service. More...
SmartIF< ISvcLocator > &	serviceLocator () const override
	Retrieve pointer to service locator. More...
Public Member Functions inherited from CommonMessagingBase
virtual	~CommonMessagingBase ()=default
	Virtual destructor. More...
SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...
MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...
MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...
MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...
MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...
MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...
MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...
MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream More...
MSG::Level	outputLevel () const __attribute__((deprecated))
	Backward compatibility function for getting the output level. More...
bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...

Private Attributes
std::string	m_name
ExecutionFlowGraph *	m_EFGraph
	the control flow graph More...

Additional Inherited Members
Public Types inherited from CommonMessaging< IExecutionFlowManager >
using	base_class = CommonMessaging
Protected Member Functions inherited from CommonMessaging< IExecutionFlowManager >
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Detailed Description

Manage the execution flow using an execution flow graph Once initialized, the graph is const and can be shared across events.

Author

Benedikt Hegner

Illya Shapoval

Definition at line 21 of file ExecutionFlowManager.h.

Constructor & Destructor Documentation

concurrency::ExecutionFlowManager::ExecutionFlowManager ( )

inline

Constructor.

Definition at line 24 of file ExecutionFlowManager.h.

: m_name("ExecutionFlowManager"), m_EFGraph(0) {};

concurrency::ExecutionFlowManager::~ExecutionFlowManager ( )

overridedefault

Destructor.

Member Function Documentation

bool concurrency::ExecutionFlowManager::algoDataDependenciesSatisfied	(	const std::string &	algo_name,
		const int &	slotNum
	)		const

Check all data dependencies of an algorithm are satisfied.

Definition at line 116 of file ExecutionFlowManager.cpp.

                                                                                                               {
    return m_EFGraph->getAlgorithmNode(algo_name)->dataDependenciesSatisfied(slotNum);
  }

ExecutionFlowGraph* concurrency::ExecutionFlowManager::getExecutionFlowGraph ( ) const

inline

Get the flow graph instance.

Definition at line 38 of file ExecutionFlowManager.h.

{return m_EFGraph;}

StatusCode concurrency::ExecutionFlowManager::initialize	(	ExecutionFlowGraph *	CFGraph,
		const std::unordered_map< std::string, unsigned int > &	algname_index_map
	)

Initialize the control flow manager It greps the topalg list and the index map for the algo names.

Definition at line 6 of file ExecutionFlowManager.cpp.

                                                                                                              {
    m_EFGraph = ef_graph;
    StatusCode sc = ef_graph->initialize(algname_index_map);
    if (!sc.isSuccess())
      error() << "Could not initialize the flow graph." << endmsg;

    return sc;
  }

StatusCode concurrency::ExecutionFlowManager::initialize	(	ExecutionFlowGraph *	CFGraph,
		const std::unordered_map< std::string, unsigned int > &	algname_index_map,
		std::vector< EventSlot > &	eventSlots,
		const std::string &	mode
	)

Definition at line 17 of file ExecutionFlowManager.cpp.

                                                                  {
    m_EFGraph = ef_graph;
    StatusCode sc = ef_graph->initialize(algname_index_map, eventSlots);
    if (!sc.isSuccess()) {
      error() << "Could not initialize the execution flow graph." << endmsg;
      return sc;
    }

    // Rank algorithms if any known optimization mode is supplied
    if (mode == "PCE") {
      auto ranker = concurrency::RankerByProductConsumption();
      m_EFGraph->rankAlgorithms(ranker);
    } else if (mode == "COD") {
      auto ranker = concurrency::RankerByCummulativeOutDegree();
      m_EFGraph->rankAlgorithms(ranker);
    } else if (mode == "E") {
      auto ranker = concurrency::RankerByEccentricity();
      m_EFGraph->rankAlgorithms(ranker);
    } else if (mode == "T") {
      auto ranker = concurrency::RankerByTiming();
      m_EFGraph->rankAlgorithms(ranker);
    } else if (mode == "DRE") {
      auto ranker = concurrency::RankerByDataRealmEccentricity();
      m_EFGraph->rankAlgorithms(ranker);
    } else if (!mode.empty()){
      error() << "Requested optimization mode '" << mode << "' is not known." << endmsg;
      sc = StatusCode::FAILURE;
    }

    return sc;
  }

const std::string& concurrency::ExecutionFlowManager::name ( ) const

inlineoverride

Retrieve name of the service.

Definition at line 67 of file ExecutionFlowManager.h.

{return m_name;}

bool concurrency::ExecutionFlowManager::needsAlgorithmToRun

(

const unsigned int

iAlgo

)

const

A little bit silly, but who cares. ;-)

void concurrency::ExecutionFlowManager::printEventState ( std::stringstream &  ss, AlgsExecutionStates &  states, const std::vector< int > &  node_decisions, const unsigned int &  recursionLevel  ) const

inline

Print the state of the control flow for a given event.

Definition at line 60 of file ExecutionFlowManager.h.

                                                                   {m_EFGraph->printState(ss,states,node_decisions,recursionLevel);}

void concurrency::ExecutionFlowManager::promoteToControlReadyState	(	AlgsExecutionStates &	algo_states,
		std::vector< int > &	node_decisions,
		const int &	slotNum = -1
	)		const

XXX: CF tests.

Definition at line 109 of file ExecutionFlowManager.cpp.

                                                                                {
    m_EFGraph->m_headNode->promoteToControlReadyState(slotNum, algo_states, node_decisions);
  }

bool concurrency::ExecutionFlowManager::rootDecisionResolved

(

const std::vector< int > &

node_decisions

)

const

Check whether root decision was resolved.

Definition at line 121 of file ExecutionFlowManager.cpp.

                                                                                            {

    return (-1 != node_decisions[m_EFGraph->m_headNode->getNodeIndex()]) ? true : false;
  }

SmartIF<ISvcLocator>& concurrency::ExecutionFlowManager::serviceLocator ( ) const

inlineoverride

Retrieve pointer to service locator.

Definition at line 69 of file ExecutionFlowManager.h.

{return m_EFGraph->serviceLocator();}

void concurrency::ExecutionFlowManager::simulateExecutionFlow

(

IGraphVisitor &

visitor

)

const

Definition at line 53 of file ExecutionFlowManager.cpp.

                                                                               {

    std::vector<int>& nodeDecisions = m_EFGraph->getNodeDecisions(0);

    std::vector<int> fixedNodeDecisions;
    int cntr = 0;
    std::vector<int> counters;
    while (!rootDecisionResolved(nodeDecisions)) {
      cntr += 1;
      int prevAlgosNum = visitor.m_nodesSucceeded;
      debug() << "  Proceeding with iteration #" << cntr << endmsg;
      fixedNodeDecisions = m_EFGraph->getNodeDecisions(0);
      m_EFGraph->m_headNode->accept(visitor);
      if ( fixedNodeDecisions == nodeDecisions) {
        error() << "  No progress on iteration " << cntr << " detected" << endmsg;
        debug() << nodeDecisions << endmsg;
        break;
      }
      info() << "   Iteration #" << cntr << " finished, total algorithms executed: " << visitor.m_nodesSucceeded << endmsg;

      std::stringstream s;
      s << cntr << ", " << (visitor.m_nodesSucceeded-prevAlgosNum) << "\n";

      std::ofstream myfile;
      myfile.open("RunSimulation.csv", std::ios::app);
      myfile << s.str();
      myfile.close();


      if (visitor.m_nodesSucceeded != prevAlgosNum)
        counters.push_back(visitor.m_nodesSucceeded);
    }

    info() << "Asymptotical concurrency speedup depth: " << (float) visitor.m_nodesSucceeded / (float) counters.size() << endmsg;

    // Reset algorithm states and node decisions
    m_EFGraph->getAlgoStates(0).reset();
    nodeDecisions.assign(nodeDecisions.size(),-1);

  }

void concurrency::ExecutionFlowManager::touchReadyAlgorithms

(

IGraphVisitor &

visitor

)

const

Promote all algorithms, ready to be executed, to DataReady state.

Definition at line 127 of file ExecutionFlowManager.cpp.

                                                                              {

    //auto& states = m_EFGraph->getAlgoStates(visitor.m_slotNum);
    //auto& decisions = m_EFGraph->getNodeDecisions(visitor.m_slotNum);

    //m_EFGraph->m_headNode->promoteToControlReadyState(slotNum,states,decisions);

    m_EFGraph->m_headNode->accept(visitor);

  }

void concurrency::ExecutionFlowManager::updateDecision	(	const std::string &	algo_name,
		const int &	slotNum,
		AlgsExecutionStates &	states,
		std::vector< int > &	node_decisions
	)		const

Definition at line 101 of file ExecutionFlowManager.cpp.

                                                                                {
    m_EFGraph->updateDecision(algo_name, slotNum, algo_states, node_decisions);
  }

void concurrency::ExecutionFlowManager::updateEventState	(	AlgsExecutionStates &	algo_states,
		std::vector< int > &	node_decisions
	)		const

Update the state of algorithms to controlready, where possible.

Definition at line 95 of file ExecutionFlowManager.cpp.

                                                                                  {
    m_EFGraph->updateEventState(algo_states, node_decisions);
  }

void concurrency::ExecutionFlowManager::updateEventState

(

AlgsExecutionStates &

algo_states

)

const

XXX: CF tests.

Member Data Documentation

ExecutionFlowGraph* concurrency::ExecutionFlowManager::m_EFGraph

private

the control flow graph

Definition at line 73 of file ExecutionFlowManager.h.

std::string concurrency::ExecutionFlowManager::m_name

private

Definition at line 71 of file ExecutionFlowManager.h.

---

The documentation for this class was generated from the following files:

• GaudiHive/src/ExecutionFlowManager.h
• GaudiHive/src/ExecutionFlowManager.cpp
