Public Types | Public Member Functions | Static Public Member Functions | List of all members
IInterface Class Referenceabstract

Definition of the basic interface. More...

#include <GaudiKernel/IInterface.h>

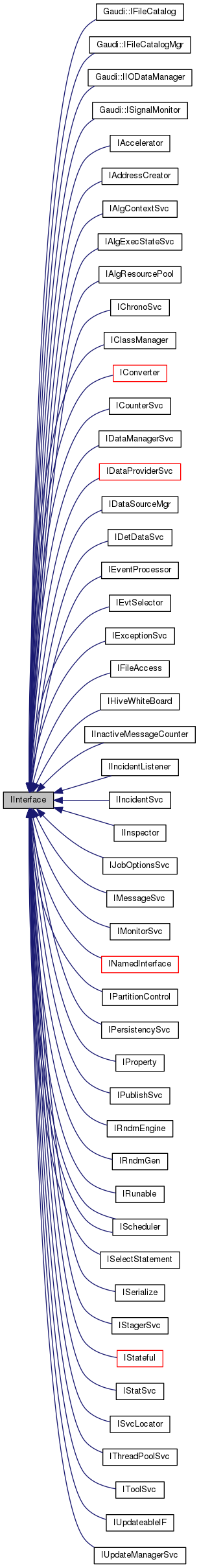

Inheritance diagram for IInterface:
Inheritance graph
[legend]

Public Types

enum  Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
 Return status. More...

using iid = Gaudi::InterfaceId< IInterface, 0, 0 >
 Interface ID. More...

using ext_iids = Gaudi::interface_list< iid >
 Extra interfaces. More...


Public Member Functions

virtual void * i_cast (const InterfaceID &) const =0
 main cast function More...

virtual std::vector< std::string > getInterfaceNames () const =0
 Returns a vector of strings containing the names of all the implemented interfaces. More...

virtual unsigned long addRef ()=0
 Increment the reference count of Interface instance. More...

virtual unsigned long release ()=0
 Release Interface instance. More...

virtual unsigned long refCount () const =0
 Current reference count. More...

virtual StatusCode queryInterface (const InterfaceID &ti, void **pp)=0
 Set the void** to the pointer to the requested interface of the instance. More...

virtual ~IInterface ()=default
 Virtual destructor. More...


Static Public Member Functions

static const InterfaceID & interfaceID ()
 Return an instance of InterfaceID identifying the interface. More...


Detailed Description

Definition of the basic interface.

Author
Pere Mato
Markus Frank
Marco Clemencic

Definition at line 234 of file IInterface.h.

Member Typedef Documentation

using IInterface::ext_iids = Gaudi::interface_list<iid>

Extra interfaces.

Definition at line 240 of file IInterface.h.

using IInterface::iid = Gaudi::InterfaceId<IInterface,0,0>

Interface ID.

Definition at line 237 of file IInterface.h.

Member Enumeration Documentation

enum IInterface::Status

Return status.

Enumerator
SUCCESS

Normal successful completion.

NO_INTERFACE

Requested interface is not available.

VERSMISMATCH

Requested interface version is incompatible.

LAST_ERROR

Last error.

Definition at line 283 of file IInterface.h.

283  {
285  SUCCESS = 1,
287  NO_INTERFACE,
289  VERSMISMATCH,
291  LAST_ERROR
292  };
IInterface::NO_INTERFACE
Requested interface is not available.
Definition: IInterface.h:287
IInterface::SUCCESS
Normal successful completion.
Definition: IInterface.h:285
IInterface::VERSMISMATCH
Requested interface version is incompatible.
Definition: IInterface.h:289

Constructor & Destructor Documentation

virtual IInterface::~IInterface ( )
virtualdefault

Virtual destructor.

Member Function Documentation

virtual unsigned long IInterface::addRef ( )
pure virtual

Increment the reference count of Interface instance.

virtual std::vector<std::string> IInterface::getInterfaceNames ( ) const
pure virtual

Returns a vector of strings containing the names of all the implemented interfaces.

virtual void* IInterface::i_cast ( const InterfaceID &  ) const
pure virtual

main cast function

static const InterfaceID& IInterface::interfaceID ( )
inlinestatic

Return an instance of InterfaceID identifying the interface.

Definition at line 243 of file IInterface.h.

243  {
244  return iid::interfaceID();
245  }
virtual StatusCode IInterface::queryInterface ( const InterfaceID &  ti,
void **  pp
)
pure virtual

Set the void** to the pointer to the requested interface of the instance.

virtual unsigned long IInterface::refCount ( ) const
pure virtual

Current reference count.

virtual unsigned long IInterface::release ( )
pure virtual

Release Interface instance.

The documentation for this class was generated from the following file:
