#include <GaudiKernel/RefTable.h>

Inheritance diagram for RefTable1to1< FROM, TO >:

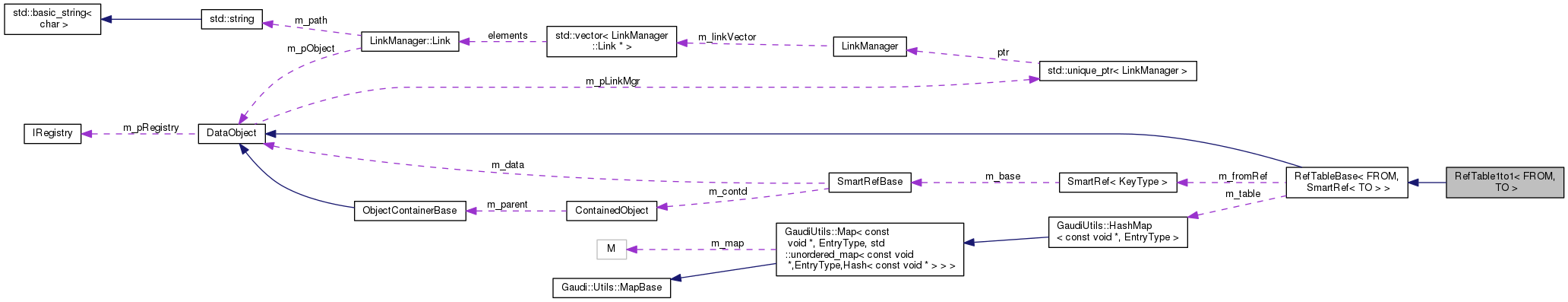

Collaboration diagram for RefTable1to1< FROM, TO >:

[legend]

Public Member Functions
	RefTable1to1 (const CLID &clid, int len=16)
	Standard Constructor. More...

	~RefTable1to1 () override=default
	Standard Destructor. More...

virtual const CLID &	clID () const
	Retrieve reference to class definition structure. More...

bool	insert (const FROM from, TO to)
	Insert new Entry into Reference container. More...

bool	insert (const FROM *from, const EntryType &to)
	Insert new Entry into Reference container. More...

TO *	reference (const FROM *from)
	Find Reference from it's source entry. More...

const TO *	reference (const FROM *from) const
	Find Reference from it's source entry (CONST) More...

bool	isReferenced (const FROM from, const TO to) const
	Check if two entries are associated to each other. More...

bool	isReferenced (const FROM *from, const EntryType &to)
	Check if two entries are Referenced to each other. More...

Public Member Functions inherited from RefTableBase< FROM, SmartRef< TO > >
	RefTableBase (const CLID &clid, int len)
	Constructors. More...

virtual	~RefTableBase ()=default
	Destructor. More...

virtual void	clear ()
	Clear Reference map. More...

iterator	begin ()
	Start of direct access iterator. More...

const_iterator	begin () const
	Start of direct access iterator (CONST) More...

iterator	end ()
	End of direct access iterator. More...

const_iterator	end () const
	End of direct access iterator (CONST) More...

long	size () const
	Size of References. More...

void	reserve (int len)
	Size of References. More...

virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing. More...

virtual StreamBuffer &	serialize (StreamBuffer &s)
	Serialize the object for reading. More...

Public Member Functions inherited from DataObject
	DataObject ()
	Standard Constructor. More...

	DataObject (const DataObject &rhs)
	Copy Constructor. More...

DataObject &	operator= (const DataObject &rhs)
	Assignment Operator. More...

	DataObject (DataObject &&rhs)
	Move Constructor. More...

DataObject &	operator= (DataObject &&rhs)
	Move Assignment Operator. More...

virtual	~DataObject ()
	Standard Destructor. More...

virtual unsigned long	addRef ()
	Add reference to object. More...

virtual unsigned long	release ()
	release reference to object More...

const std::string &	name () const
	Retreive DataObject name. It is the name when registered in the store. More...

virtual StatusCode	update ()
	Provide empty placeholder for internal object reconfiguration callback. More...

void	setRegistry (IRegistry *pRegistry)
	Set pointer to Registry. More...

IRegistry *	registry () const
	Get pointer to Registry. More...

LinkManager *	linkMgr () const
	Retrieve Link manager. More...

unsigned char	version () const
	Retrieve version number of this object representation. More...

void	setVersion (unsigned char vsn)
	Set version number of this object representation. More...

unsigned long	refCount () const
	Return the refcount. More...

virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the output stream (ASCII) More...

Additional Inherited Members
Public Types inherited from RefTableBase< FROM, SmartRef< TO > >
typedef FROM	KeyType

typedef SmartRef< TO >	EntryType

typedef RefTableBase< FROM, EntryType >	BaseType

typedef GaudiUtils::HashMap< const void *, EntryType >	TableType
	Define Reference map. More...

typedef TableType::iterator	iterator
	Definition of map iterator. More...

typedef TableType::const_iterator	const_iterator
	Definition of map iterator (CONST) More...

Static Public Member Functions inherited from DataObject
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access) More...

Public Attributes inherited from RefTableBase< FROM, SmartRef< TO > >
CLID	m_clid
	Class id of the reference table. More...

Protected Member Functions inherited from RefTableBase< FROM, SmartRef< TO > >
bool	insertMapElement (const KeyType *from, EntryType &to)
	Insert new Entry into Reference container. More...

EntryType *	i_reference (const KeyType *from)
	Find Reference from it's source entry. More...

const EntryType *	i_reference (const KeyType *from) const
	Find Reference from it's source entry (CONST) More...

Detailed Description

template<class FROM, class TO>
class RefTable1to1< FROM, TO >

Definition at line 149 of file RefTable.h.

Constructor & Destructor Documentation

template<class FROM , class TO >

RefTable1to1< FROM, TO >::RefTable1to1	(	const CLID &	clid,
		int	len = `16`
	)

inline

Standard Constructor.

Definition at line 153 of file RefTable.h.

   : RefTableBase< FROM , SmartRef<TO> >(clid, len)
   {
   }

template<class FROM , class TO >

RefTable1to1< FROM, TO >::~RefTable1to1 ( )

overridedefault

Standard Destructor.

Member Function Documentation

template<class FROM , class TO >

virtual const CLID& RefTable1to1< FROM, TO >::clID ( ) const

inlinevirtual

Retrieve reference to class definition structure.

Reimplemented from DataObject.

Definition at line 161 of file RefTable.h.

                                     {
     return m_clid;
   }

template<class FROM , class TO >

bool RefTable1to1< FROM, TO >::insert	(	const FROM *	from,
		TO *	to
	)

inline

Insert new Entry into Reference container.

Definition at line 165 of file RefTable.h.

                                               {
     return insertMapElement(from, EntryType(to));
   }

template<class FROM , class TO >

bool RefTable1to1< FROM, TO >::insert	(	const FROM *	from,
		const EntryType &	to
	)

inline

Insert new Entry into Reference container.

Definition at line 169 of file RefTable.h.

                                                           {
     // We MUST check the environment of the smart pointer!
     if ( 0 != to.data() || StreamBuffer::INVALID != to.hintID() )    {
       return insertMapElement(from, EntryType(to));
     }
     return false;
   }

template<class FROM , class TO >

bool RefTable1to1< FROM, TO >::isReferenced	(	const FROM *	from,
		const TO *	to
	)		const

inline

Check if two entries are associated to each other.

Definition at line 189 of file RefTable.h.

                                                            {
     auto e = i_reference(from);
     return e && ( *e == to );
   }

template<class FROM , class TO >

bool RefTable1to1< FROM, TO >::isReferenced	(	const FROM *	from,
		const EntryType &	to
	)

inline

Check if two entries are Referenced to each other.

Definition at line 194 of file RefTable.h.

                                                               {
     const EntryType* e = i_reference(from);
     return assoc && (*e!=to) && (e->target()==to.target());
   }

template<class FROM , class TO >

TO* RefTable1to1< FROM, TO >::reference ( const FROM * from )

inline

Find Reference from it's source entry.

Definition at line 177 of file RefTable.h.

                                    {
     EntryType* e = i_reference(from);
     return (0 == e) ? 0 : (*e);
   }

template<class FROM , class TO >

const TO* RefTable1to1< FROM, TO >::reference ( const FROM * from ) const

inline

Find Reference from it's source entry (CONST)

Definition at line 183 of file RefTable.h.

                                               {
     auto e = i_reference(from);
     return e ? *e : nullptr;
   }

The documentation for this class was generated from the following file:

GaudiKernel/GaudiKernel/RefTable.h
