Stat Class Reference

Small wrapper class for easy manipulation with generic counters and IStatSvc&ICounterSvc interface. More...

#include <GaudiKernel/Stat.h>

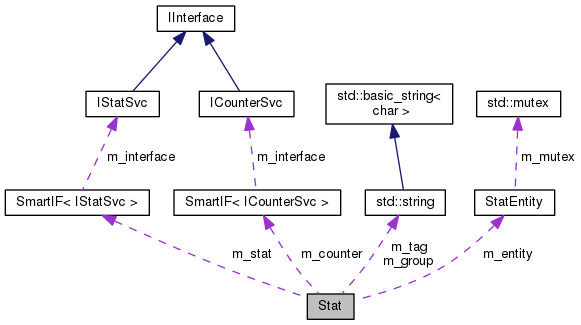

Collaboration diagram for Stat:

Public Member Functions
	Stat (StatEntity *entity=0, const std::string &name="", const std::string &group="")
	constructor from StatEntity, name and group : More...
	Stat (StatEntity &entity, const std::string &name="", const std::string &group="")
	constructor from StatEntity, name and group : More...
	Stat (IStatSvc *svc, const std::string &tag)
	constructor from IStatSvc, tag and value More...
	Stat (IStatSvc *svc, const std::string &tag, const double flag)
	constructor from IStatSvc, tag and value More...
	Stat (ICounterSvc *svc, const std::string &group, const std::string &name)
	constructor from ICounterSvc, group and name More...
	Stat (const Stat &)=default
	copy constructor More...
Stat &	operator= (const Stat &)=default
	Assignement operator. More...
	~Stat ()=default
	destructor More...
const StatEntity *	entity () const
	get the entity More...
const StatEntity *	operator-> () const
	dereference operaqtor More...
	operator const StatEntity & () const
	cast to StatEntity More...
bool	operator! () const
	check validity More...
Stat &	operator+= (const double f)
	General increment for the counter. More...
Stat &	operator++ ()
	Pre-increment operator for the counter. More...
Stat &	operator++ (int)
	Post-increment operator for the counter. More...
Stat &	operator-= (const double f)
	General decrement operator for the counter. More...
Stat &	operator-- ()
	Pre-decrement operator for the flag. More...
Stat &	operator-- (int)
	Post-decrement operator for the flag. More...
Stat &	operator+= (const StatEntity &right)
	increment with StatEntity object More...
Stat &	operator+= (const Stat &right)
	increment with other stat objects More...
std::string	toString () const
	representation as string More...
std::ostream &	print (std::ostream &o=std::cout) const
	printout to std::ostream More...
std::ostream &	fillStream (std::ostream &o) const
	printout to std::ostream More...
StatEntity *	counter () const
	alternative access to underlying counter (for ICounterSvc::CounterObj) More...
const std::string &	name () const
	counter name More...
const std::string &	group () const
	counter group (for ICounterSvc) More...

Private Attributes
StatEntity *	m_entity = nullptr
	underlying counter More...
std::string	m_tag
	unique stat tag(name) More...
std::string	m_group
SmartIF< IStatSvc >	m_stat
	Stat service. More...
SmartIF< ICounterSvc >	m_counter
	Counter Service. More...

Detailed Description

Small wrapper class for easy manipulation with generic counters and IStatSvc&ICounterSvc interface.

It acts as "smart pointer" fro StatEntity objects, and allows manipulation with StatEntity objects, owned by GaudiCommon<TYPE> base class and/or IStatSvc/ICounterSvc

long nTracks = ... ;
Stat stat( chronoSvc() , "#tracks" , nTracks ) ;

Alternatively one can use operator methods:

long nTracks = ... ;
Stat stat( chronoSvc() , "#tracks" ) ;
stat += nTracks ;

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2007-08-02

Definition at line 46 of file Stat.h.

Constructor & Destructor Documentation

Stat::Stat ( StatEntity *  entity = 0, const std::string &  name = "", const std::string &  group = ""  )

inline

constructor from StatEntity, name and group :

StatEntity* entity = ... ;

// make helper object:
Stat stat ( entity ) ;

See also

StatEntity

Parameters

entity	pointer to entity object
name	(optional) name of the object, for printout
group	(optional) group of the object, for printout

Definition at line 65 of file Stat.h.

    : m_entity  ( entity )
    , m_tag     ( name   )
    , m_group   ( group  )
    , m_counter ( 0      )
  {}

Stat::Stat ( StatEntity &  entity, const std::string &  name = "", const std::string &  group = ""  )

inline

constructor from StatEntity, name and group :

// make helper object:
Stat stat = Stat( countter("Name") , "Name" ) ;

See also

StatEntity

GaudiCommon::counter

Parameters

entity	reference to entity object
name	(optional) name of the object, for printout
group	(optional) group of the object, for printout

Definition at line 87 of file Stat.h.

    : m_entity  ( &entity )
    , m_tag     ( name    )
    , m_group   ( group   )
    , m_counter ( 0       )
  {}

Stat::Stat	(	IStatSvc *	svc,
		const std::string &	tag
	)

constructor from IStatSvc, tag and value

IStatSvc* svc = ... ;
double eTotal = .... ;

// get/create the counter from Stat Service
Stat eTot ( svc , "total energy" ) ;

eTot += eTotal ;

See also

IStatSvc

Parameters

svc	pointer to Chrono&Stat Service tag unique tag for the entry

Definition at line 43 of file Stat.cpp.

  : m_tag     ( tag  )
  , m_group   (      )
  , m_stat    ( svc  )
{
  if ( m_stat )
  {
    // get from the service
    const StatEntity* tmp = m_stat->stat ( tag ) ;
    if ( !tmp )
    {
      // create if needed
      m_stat->stat ( tag , 0 ) ;
      tmp = m_stat->stat ( tag ) ;
      StatEntity* aux = const_cast<StatEntity*>( tmp );
      aux->reset () ;
    }
    m_entity = const_cast<StatEntity*> ( tmp ) ;
  }
}

Stat::Stat	(	IStatSvc *	svc,
		const std::string &	tag,
		const double	flag
	)

constructor from IStatSvc, tag and value

IStatSvc* svc = ... ;
double eTotal = .... ;

// get/create the counter from Stat Service
Stat stat( svc , "total energy" , eTotal ) ;

See also

IStatSvc

Parameters

svc	pointer to Chrono&Stat Service tag unique tag for the entry
flag	"flag"(additive quantity) to be used

Definition at line 82 of file Stat.cpp.

  : m_tag     ( tag  )
  , m_group   (      )
  , m_stat    ( svc  )
{
  if ( m_stat )
  {
    m_stat -> stat( tag , flag ) ;
    // get from the service
    m_entity = const_cast<StatEntity*>( m_stat -> stat ( tag ) ) ;
  }
}

Stat::Stat	(	ICounterSvc *	svc,
		const std::string &	group,
		const std::string &	name
	)

constructor from ICounterSvc, group and name

ICounterSvc* svc = ... ;

// get/create the counter from Counter Service
Stat stat( svc , "ECAL" , "TotalEnergy" ) ;

See also

ICounterSvc::get

ICounterSvc::create

Parameters

svc	pointer to Counter Service
group	group name
name	counter name

Definition at line 105 of file Stat.cpp.

  : m_tag     ( name  )
  , m_group   ( group )
  , m_counter ( svc   )
{
  if ( m_counter )
  {
    // get from the service
    m_entity = m_counter -> get ( group , name ) ;
    // create if needed:
    if ( ! m_entity ) { m_counter -> create( group , name , 0 , m_entity ) ; }
  }
}

Stat::Stat ( const Stat &  )

default

copy constructor

Stat::~Stat ( )

default

destructor

Member Function Documentation

StatEntity* Stat::counter ( ) const

inline

alternative access to underlying counter (for ICounterSvc::CounterObj)

Definition at line 276 of file Stat.h.

{ return  m_entity   ; }

const StatEntity* Stat::entity ( ) const

inline

get the entity

Definition at line 163 of file Stat.h.

{ return  m_entity     ; }

std::ostream& Stat::fillStream ( std::ostream &  o ) const

inline

printout to std::ostream

Parameters

s	the reference to the output stream

Returns

the reference to the output stream

Definition at line 273 of file Stat.h.

{ return print ( o ) ; }

const std::string& Stat::group ( ) const

inline

counter group (for ICounterSvc)

Definition at line 280 of file Stat.h.

{ return  m_group    ; }

const std::string& Stat::name ( ) const

inline

counter name

Definition at line 278 of file Stat.h.

{ return  m_tag      ; }

Stat::operator const StatEntity & ( ) const

inline

cast to StatEntity

Definition at line 167 of file Stat.h.

{ return   *entity()   ; }

bool Stat::operator! ( ) const

inline

check validity

Definition at line 169 of file Stat.h.

{ return 0 == m_entity ; }

Stat& Stat::operator++ ( )

inline

Pre-increment operator for the counter.

Stat stat = ... ;

++stat ;

See also

StatEntity

Returns

selfreference

Definition at line 205 of file Stat.h.

  {
    if ( m_entity ) { ++(*m_entity) ; }
    return *this ;
  }

Stat& Stat::operator++ ( int  )

inline

Post-increment operator for the counter.

Stat stat = ... ;

stat++ ;

See also

StatEntity

Returns

self-reference

Definition at line 222 of file Stat.h.

  {
    if ( m_entity ) { (*m_entity)++ ; }
    return *this ;
  }

Stat& Stat::operator+= ( const double  f )

inline

General increment for the counter.

Stat stat = ... ;

const long nTracks = ... ;

stat += nTracks ;

See also

StatEntity

Parameters

f	value to be added to the counter

Returns

selfreference

Definition at line 187 of file Stat.h.

  {
    if ( m_entity ) { (*m_entity) += f ; }
    return *this ;
  }

Stat& Stat::operator+= ( const StatEntity &  right )

inline

increment with StatEntity object

Definition at line 250 of file Stat.h.

  {
    if ( m_entity ) { (*m_entity) += right ; }
    return *this ;
  }

Stat& Stat::operator+= ( const Stat &  right )

inline

increment with other stat objects

Definition at line 256 of file Stat.h.

  {
    if ( 0 != right.entity() ) { (*this) += *right.entity() ; }
    return *this ;
  }

Stat& Stat::operator-- ( )

inline

Pre-decrement operator for the flag.

Definition at line 238 of file Stat.h.

  {
    if ( m_entity ) { --(*m_entity)   ; }
    return *this ;
  }

Stat& Stat::operator-- ( int  )

inline

Post-decrement operator for the flag.

Definition at line 244 of file Stat.h.

  {
    if ( m_entity ) {   (*m_entity)-- ; }
    return *this ;
  }

Stat& Stat::operator-= ( const double  f )

inline

General decrement operator for the counter.

See also

StatEntity

Returns

self-reference

Parameters

f	counter decrement

Definition at line 232 of file Stat.h.

  {
    if ( m_entity ) { (*m_entity) -= f ; }
    return *this ;
  }

const StatEntity* Stat::operator-> ( ) const

inline

dereference operaqtor

Definition at line 165 of file Stat.h.

{ return    entity()   ; }

Stat& Stat::operator= ( const Stat &  )

default

Assignement operator.

std::ostream & Stat::print

(

std::ostream &

o = std::cout

)

const

printout to std::ostream

Parameters

s	the reference to the output stream

Returns

the reference to the output stream

Definition at line 135 of file Stat.cpp.

{
  if ( m_group.empty() && m_tag.empty() )
  { return  !m_entity ? ( o << "NULL" ) : ( o << m_entity ) ; }
  if ( !m_group.empty() )
  {
    if ( m_entity )
    {
      return o << boost::format(" %|1$15s|::%|2$-15s| %|32t|%3%")
        % ( "\"" + m_group ) % ( m_tag + "\"") % (*m_entity) ;
    }
    else
    {
      return o << boost::format(" %|1$15s|::%|2$-15s| %|32t|%NULL%")
        % ( "\"" + m_group ) % ( m_tag + "\"") ;
    }
  }
  if ( m_entity )
  {
    return o << boost::format(" %|1$=30s| %|32t|%2%")
      % ("\"" + m_tag + "\"" ) % (*m_entity) ;
  }
  return o << boost::format(" %|1$=30s| %|32t|%NULL%")
    % ( "\"" + m_tag + "\"" ) ;
}

std::string Stat::toString

(

)

const

representation as string

Definition at line 124 of file Stat.cpp.

{
  std::ostringstream ost ;
  print ( ost )  ;
  return ost.str () ;
}

Member Data Documentation

SmartIF<ICounterSvc> Stat::m_counter

private

Counter Service.

Definition at line 292 of file Stat.h.

StatEntity* Stat::m_entity = nullptr

private

underlying counter

Definition at line 284 of file Stat.h.

std::string Stat::m_group

private

Definition at line 288 of file Stat.h.

SmartIF<IStatSvc> Stat::m_stat

private

Stat service.

Definition at line 290 of file Stat.h.

std::string Stat::m_tag

private

unique stat tag(name)

Definition at line 286 of file Stat.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/Stat.h
• GaudiKernel/src/Lib/Stat.cpp
