Algorithm Class Reference

Base class from which all concrete algorithm classes should be derived. More...

#include <GaudiKernel/Algorithm.h>

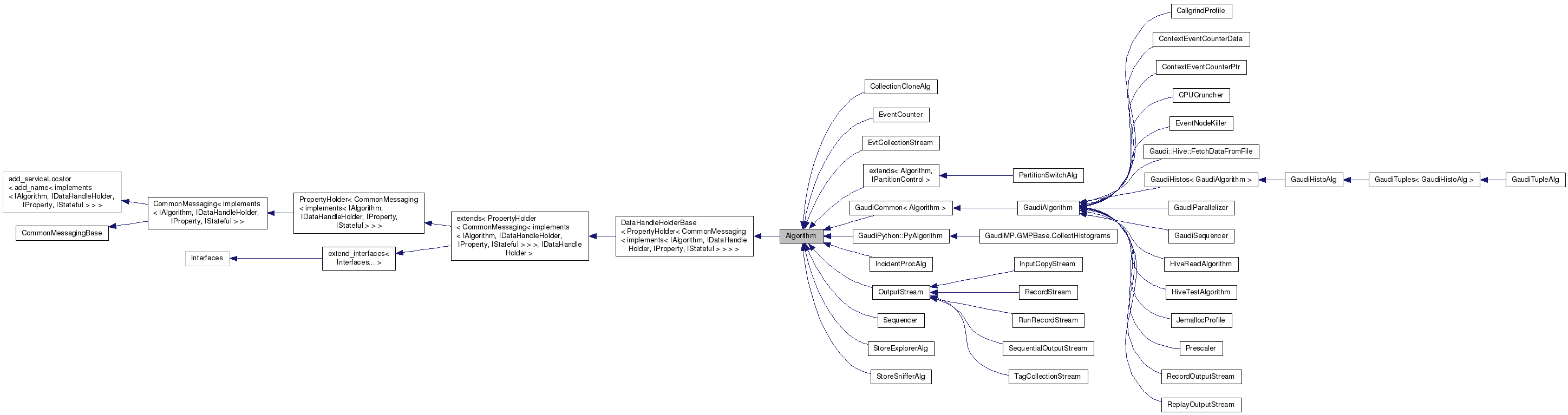

Inheritance diagram for Algorithm:

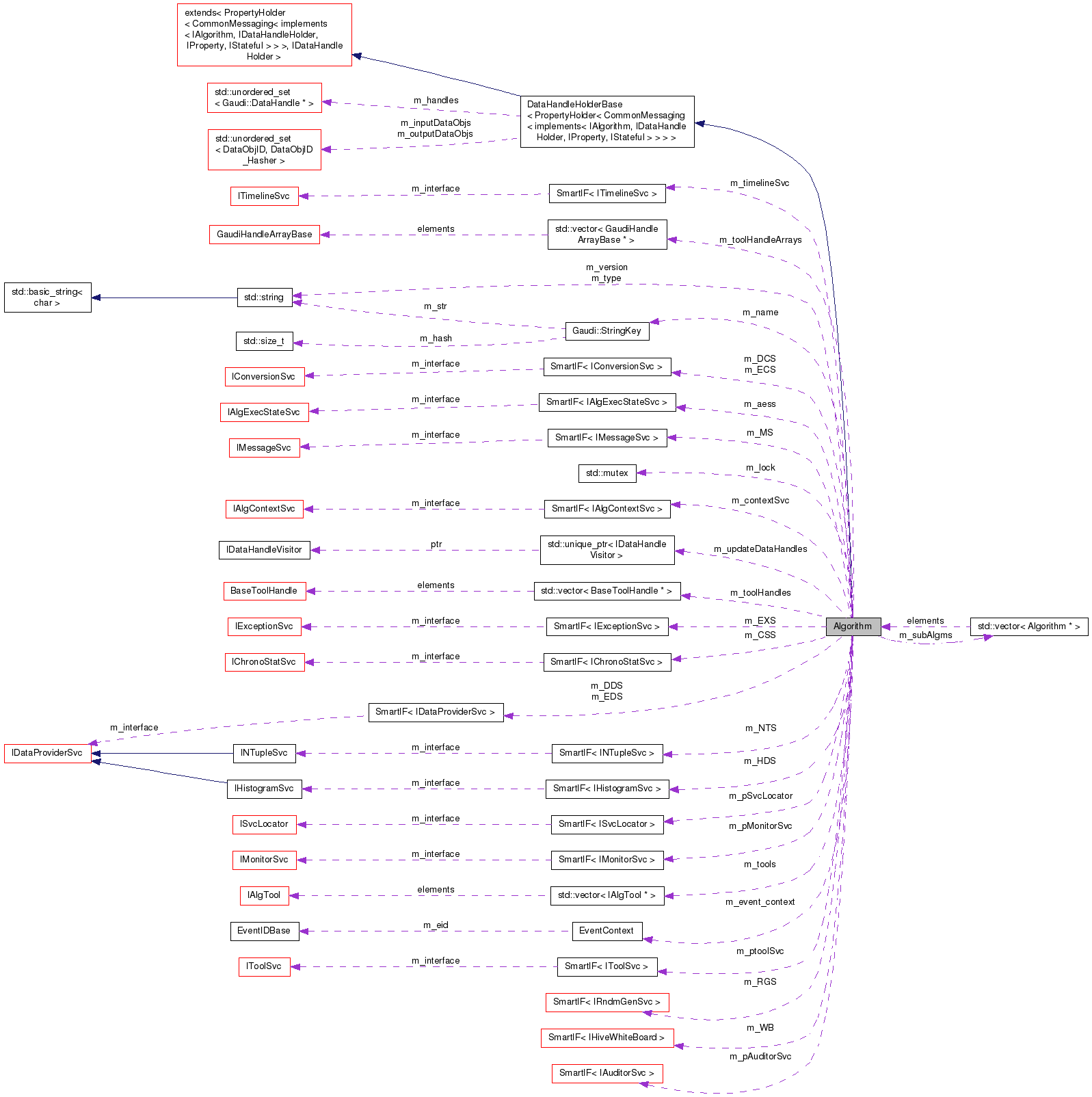

Collaboration diagram for Algorithm:

Public Types
typedef Gaudi::PluginService::Factory< IAlgorithm *, const std::string &, ISvcLocator * >	Factory
Public Types inherited from extends< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >, IDataHandleHolder >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...
Public Types inherited from PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
	Typedef used to refer to this class from derived classes, as in. More...
Public Types inherited from CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > >
using	base_class = CommonMessaging
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Public Member Functions
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor. More...
StatusCode	sysStart () override
	Reinitialization method invoked by the framework. More...
StatusCode	sysInitialize () override
	Initialization method invoked by the framework. More...
StatusCode	sysReinitialize () override
	Reinitialization method invoked by the framework. More...
StatusCode	sysRestart () override
	Restart method invoked by the framework. More...
StatusCode	sysExecute (const EventContext &ctx) override
	The actions to be performed by the algorithm on an event. More...
StatusCode	sysStop () override
	System stop. More...
StatusCode	sysFinalize () override
	System finalization. More...
StatusCode	sysBeginRun () override
	beginRun method invoked by the framework. More...
StatusCode	sysEndRun () override
	endRun method invoked by the framework. More...
const std::string &	name () const override
	The identifying name of the algorithm object. More...
const Gaudi::StringKey &	nameKey () const override
const std::string &	type () const override
	The type of the algorithm object. More...
void	setType (const std::string &type) override
const std::string &	version () const override
unsigned int	index () const override
StatusCode	configure () override
	Dummy implementation of IStateful::configure() method. More...
StatusCode	terminate () override
	Dummy implementation of IStateful::terminate() method. More...
StatusCode	initialize () override
	the default (empty) implementation of IStateful::initialize() method More...
StatusCode	start () override
	the default (empty) implementation of IStateful::start() method More...
StatusCode	stop () override
	the default (empty) implementation of IStateful::stop() method More...
StatusCode	finalize () override
	the default (empty) implementation of IStateful::finalize() method More...
StatusCode	reinitialize () override
	the default (empty) implementation of IStateful::reinitialize() method More...
StatusCode	restart () override
	the default (empty) implementation of IStateful::restart() method More...
Gaudi::StateMachine::State	FSMState () const override
	returns the current state of the algorithm More...
Gaudi::StateMachine::State	targetFSMState () const override
	returns the state the algorithm will be in after the ongoing transition More...
bool	isExecuted () const override
	Has this algorithm been executed since the last reset? More...
void	setExecuted (bool state) override
	Set the executed flag to the specified state. More...
void	resetExecuted () override
	Reset the executed state of the Algorithm for the duration of the current event. More...
StatusCode	beginRun () override
	Algorithm begin run. More...
StatusCode	endRun () override
	Algorithm end run. This method is called at the end of the event loop. More...
bool	isEnabled () const override
	Is this algorithm enabled or disabled? More...
bool	filterPassed () const override
	Did this algorithm pass or fail its filter criterion for the last event? More...
void	setFilterPassed (bool state) override
	Set the filter passed flag to the specified state. More...
unsigned int	errorCount () const
	Get the number of failures of the algorithm. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist. More...
SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name") More...
template<class T >
SmartIF< T >	service (const std::string &name, bool createIf=true, bool quiet=false) const
SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...
SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present. More...
SmartIF< IChronoStatSvc > &	chronoStatService () const
SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service. More...
SmartIF< IDataProviderSvc > &	detDataService () const
SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service. More...
SmartIF< IConversionSvc > &	detDataCnvService () const
SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service. More...
SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc More...
SmartIF< IDataProviderSvc > &	eventDataService () const
SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service. More...
SmartIF< IConversionSvc > &	eventDataCnvService () const
SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service. More...
SmartIF< IHistogramSvc > &	histogramDataService () const
SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service. More...
SmartIF< INTupleSvc > &	ntupleService () const
SmartIF< IRndmGenSvc > &	randSvc () const
	The standard RandomGen service, Return a pointer to the service if present. More...
SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present. More...
SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service. More...
SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service More...
SmartIF< ITimelineSvc > &	timelineSvc () const
SmartIF< ISvcLocator > &	serviceLocator () const override
	The standard service locator. More...
SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator More...
SmartIF< IHiveWhiteBoard > &	whiteboard () const
SmartIF< IAlgExecStateSvc > &	algExecStateSvc () const
bool	registerContext () const
	register for Algorithm Context Service? More...
StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm. More...
const std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...
std::vector< Algorithm * > *	subAlgorithms ()
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...
StatusCode	setProperties ()
	Set the algorithm's properties. More...
template<class T >
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, ToolHandle< T > &hndl, const std::string &doc="none")
template<class T >
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, ToolHandleArray< T > &hndlArr, const std::string &doc="none")
SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service. More...
template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information. More...
void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case) More...
const EventContext &	getContext () const override
	get the context More...
virtual void	acceptDHVisitor (IDataHandleVisitor *) const override
void	commitHandles () override
void	registerTool (IAlgTool *tool) const
void	deregisterTool (IAlgTool *tool) const
template<class T >
StatusCode	declareTool (ToolHandle< T > &handle, std::string toolTypeAndName="", bool createIf=true)
const std::vector< IAlgTool * > &	tools () const
bool	isIOBound () const
void	setIOBound (bool value)
bool	isClonable () const override
	Specifies the clonability of the algorithm. More...
unsigned int	cardinality () const override
	Return the cardinality. More...
const std::vector< std::string > &	neededResources () const override
std::ostream &	toControlFlowExpression (std::ostream &os) const override
	Produce string represention of the control flow expression. More...
Public Member Functions inherited from DataHandleHolderBase< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > > >
std::vector< Gaudi::DataHandle * >	inputHandles () const override
std::vector< Gaudi::DataHandle * >	outputHandles () const override
virtual const DataObjIDColl &	extraInputDeps () const override
virtual const DataObjIDColl &	extraOutputDeps () const override
void	declare (Gaudi::DataHandle &handle) override
void	renounce (Gaudi::DataHandle &handle) override
const DataObjIDColl &	inputDataObjs () const override
const DataObjIDColl &	outputDataObjs () const override
void	addDependency (const DataObjID &id, const Gaudi::DataHandle::Mode &mode) override
Public Member Functions inherited from extends< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >, IDataHandleHolder >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
	PropertyHolder ()=default
	~PropertyHolder () override=default
Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
	Helper to wrap a regular data member and use it as a regular property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none") const
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...
Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...
StatusCode	setProperty (const Gaudi::Details::PropertyBase &p) override
	set the property form another property More...
StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...
StatusCode	setProperty (const std::string &n, const std::string &v) override
	set the property from name and the value More...
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...
const Gaudi::Details::PropertyBase &	getProperty (const std::string &name) const override
	get the property by name More...
StatusCode	getProperty (const std::string &n, std::string &v) const override
	convert the property to the string More...
const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...
bool	hasProperty (const std::string &name) const override
	Return true if we have a property with the given name. More...
	PropertyHolder (const PropertyHolder &)=delete
PropertyHolder &	operator= (const PropertyHolder &)=delete
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, GaudiHandleBase &ref, const std::string &doc="none")
	Specializations for various GaudiHandles. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, GaudiHandleArrayBase &ref, const std::string &doc="none")
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, DataObjectHandleBase &ref, const std::string &doc="none")
Public Member Functions inherited from CommonMessagingBase
virtual	~CommonMessagingBase ()=default
	Virtual destructor. More...
SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...
MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...
MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...
MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...
MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...
MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...
MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...
MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream More...
MSG::Level	outputLevel () const __attribute__((deprecated))
	Backward compatibility function for getting the output level. More...
bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...
Public Member Functions inherited from extend_interfaces< Interfaces... >
	~extend_interfaces () override=default
	Virtual destructor. More...

Protected Member Functions
std::vector< IAlgTool * > &	tools ()
bool	isInitialized () const override
	Has the Algorithm already been initialized? More...
bool	isFinalized () const override
	Has the Algorithm already been finalized? More...
void	setIndex (const unsigned int &idx) override
	set instantiation index of Alg More...
Protected Member Functions inherited from DataHandleHolderBase< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > > >
void	initDataHandleHolder ()
	initializes all handles - called by the sysInitialize method of any descendant of this More...
Protected Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
Gaudi::Details::PropertyBase *	property (const std::string &name) const
Protected Member Functions inherited from CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > >
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Protected Attributes
std::unique_ptr< IDataHandleVisitor >	m_updateDataHandles
	Hook for for derived classes to provide a custom visitor for data handles. More...
Protected Attributes inherited from DataHandleHolderBase< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > > >
DataObjIDColl	m_inputDataObjs
DataObjIDColl	m_outputDataObjs

Private Member Functions
void	initToolHandles () const
unsigned int	maxErrors () const
template<typename IFace >
SmartIF< IFace > &	get_svc_ (SmartIF< IFace > &p, const char *service_name) const
StatusCode	service_i (const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
	implementation of service method More...
StatusCode	service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppSvc) const
	Algorithm (const Algorithm &a)
	Private Copy constructor: NO COPY ALLOWED. More...
Algorithm &	operator= (const Algorithm &rhs)
	Private assignment operator: NO ASSIGNMENT ALLOWED. More...

Private Attributes
Gaudi::StringKey	m_name
	Algorithm's name for identification. More...
std::string	m_type
	Algorithm's type. More...
std::string	m_version
	Algorithm's version. More...
unsigned int	m_index
	Algorithm's index. More...
EventContext	m_event_context
std::vector< Algorithm * >	m_subAlgms
	Sub algorithms. More...
std::vector< IAlgTool * >	m_tools
std::vector< BaseToolHandle * >	m_toolHandles
std::vector< GaudiHandleArrayBase * >	m_toolHandleArrays
SmartIF< IMessageSvc >	m_MS
	Message service. More...
SmartIF< IDataProviderSvc >	m_EDS
	Event data service. More...
SmartIF< IHiveWhiteBoard >	m_WB
	Event data service (whiteboard) More...
SmartIF< IConversionSvc >	m_ECS
	Event conversion service. More...
SmartIF< IDataProviderSvc >	m_DDS
	Detector data service. More...
SmartIF< IConversionSvc >	m_DCS
	Detector conversion service. More...
SmartIF< IHistogramSvc >	m_HDS
	Histogram data service. More...
SmartIF< INTupleSvc >	m_NTS
	N tuple service. More...
SmartIF< IChronoStatSvc >	m_CSS
	Chrono & Stat Service. More...
SmartIF< IRndmGenSvc >	m_RGS
	Random Number Generator Service. More...
SmartIF< IExceptionSvc >	m_EXS
	Exception Handler Service. More...
SmartIF< IAuditorSvc >	m_pAuditorSvc
	Auditor Service. More...
SmartIF< IToolSvc >	m_ptoolSvc
	ToolSvc Service. More...
SmartIF< IMonitorSvc >	m_pMonitorSvc
	Online Monitoring Service. More...
SmartIF< IAlgContextSvc >	m_contextSvc
	Algorithm Context Service. More...
SmartIF< ITimelineSvc >	m_timelineSvc
	Timeline Service. More...
SmartIF< IAlgExecStateSvc >	m_aess
	Alg execution state mgr. More...
SmartIF< ISvcLocator >	m_pSvcLocator
	Pointer to service locator service. More...
Gaudi::Property< int >	m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}
Gaudi::Property< bool >	m_isEnabled {this, "Enable", true, "should the algorithm be executed or not"}
Gaudi::Property< unsigned int >	m_errorMax {this, "ErrorMax", 1, "[[deprecated]] max number of errors"}
Gaudi::Property< bool >	m_auditInit {this, "AuditAlgorithms", false, "[[deprecated]] unused"}
Gaudi::Property< bool >	m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}
Gaudi::Property< bool >	m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}
Gaudi::Property< bool >	m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}
Gaudi::Property< bool >	m_auditorExecute {this, "AuditExecute", false, "trigger auditor on execute()"}
Gaudi::Property< bool >	m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}
Gaudi::Property< bool >	m_auditorBeginRun {this, "AuditBeginRun", false, "trigger auditor on beginRun()"}
Gaudi::Property< bool >	m_auditorEndRun {this, "AuditEndRun", false, "trigger auditor on endRun()"}
Gaudi::Property< bool >	m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}
Gaudi::Property< bool >	m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}
Gaudi::Property< bool >	m_doTimeline {this, "Timeline", true, "send events to TimelineSvc"}
Gaudi::Property< std::string >	m_monitorSvcName
Gaudi::Property< bool >	m_registerContext
Gaudi::Property< bool >	m_isClonable {this, "IsClonable", false, "thread-safe enough for cloning?"}
Gaudi::Property< int >	m_cardinality {this, "Cardinality", 1, "how many clones to create - 0 means algo is reentrant"}
Gaudi::Property< std::vector< std::string > >	m_neededResources
Gaudi::Property< bool >	m_isIOBound
std::mutex	m_lock
	for re-entrant Algs More...
bool	m_filterPassed = true
	Filter passed flag. More...
bool	m_isExecuted = false
	Algorithm is executed flag. More...
bool	m_toolHandlesInit = false
Gaudi::StateMachine::State	m_state = Gaudi::StateMachine::CONFIGURED
	flag indicating whether ToolHandle tools have been added to m_tools More...
Gaudi::StateMachine::State	m_targetState = Gaudi::StateMachine::CONFIGURED
	Algorithm has been initialized flag. More...
bool	m_isFinalized
	Algorithm has been finalized flag. More...

Detailed Description

Base class from which all concrete algorithm classes should be derived.

In order for a concrete algorithm class to do anything useful the methods initialize(), execute() and finalize() should be overridden.

The base class provides utility methods for accessing standard services (event data service etc.); for declaring properties which may be configured by the job options service; and for creating sub algorithms. The only base class functionality which may be used in the constructor of a concrete algorithm is the declaration of member variables as properties. All other functionality, i.e. the use of services and the creation of sub-algorithms, may be used only in initialize() and afterwards (see the Gaudi user guide).

Author

Paul Maley

Pere Mato

David Quarrie

Date

1998

Definition at line 78 of file Algorithm.h.

Member Typedef Documentation

typedef Gaudi::PluginService::Factory<IAlgorithm*, const std::string&, ISvcLocator*> Algorithm::Factory

Definition at line 83 of file Algorithm.h.

Constructor & Destructor Documentation

Algorithm::Algorithm	(	const std::string &	name,
		ISvcLocator *	svcloc,
		const std::string &	version = PACKAGE_VERSION
	)

Constructor.

Parameters

name	The algorithm object's name
svcloc	A pointer to a service location service

Definition at line 51 of file Algorithm.cpp.

  : Algorithm ( name , Gaudi::svcLocator() )
  , m_self ( self )
{
  // The owner of the Algorithm is Python (as creator) therefore
  // it should not be deleted by Gaudi (added an extra addRef()).
  addRef() ;

Algorithm::Algorithm ( const Algorithm &  a )

private

Private Copy constructor: NO COPY ALLOWED.

Member Function Documentation

void Algorithm::acceptDHVisitor ( IDataHandleVisitor *  vis ) const

overridevirtual

Definition at line 205 of file Algorithm.cpp.

SmartIF< IAlgExecStateSvc > & Algorithm::algExecStateSvc

(

)

const

Definition at line 771 of file Algorithm.cpp.

SmartIF< IAuditorSvc > & Algorithm::auditorSvc

(

)

const

The standard auditor service.May not be invoked before sysInitialize() has been invoked.

Definition at line 772 of file Algorithm.cpp.

StatusCode Algorithm::beginRun ( )

override

Algorithm begin run.

This method is called at the beginning of the event loop.

Definition at line 434 of file Algorithm.cpp.

unsigned int Algorithm::cardinality ( ) const

inlineoverride

Return the cardinality.

Definition at line 484 of file Algorithm.h.

{ return m_cardinality; }

SmartIF<IChronoStatSvc>& Algorithm::chronoStatService ( ) const

inline

Definition at line 257 of file Algorithm.h.

{ return chronoSvc(); }

SmartIF< IChronoStatSvc > & Algorithm::chronoSvc

(

)

const

The standard Chrono & Stat service, Return a pointer to the service if present.

Definition at line 773 of file Algorithm.cpp.

void Algorithm::commitHandles ( )

override

Definition at line 937 of file Algorithm.cpp.

StatusCode Algorithm::configure ( )

inlineoverride

Dummy implementation of IStateful::configure() method.

Definition at line 173 of file Algorithm.h.

{ return StatusCode::SUCCESS; }

SmartIF< IAlgContextSvc > & Algorithm::contextSvc

(

)

const

get Algorithm Context Service

Definition at line 783 of file Algorithm.cpp.

StatusCode Algorithm::createSubAlgorithm	(	const std::string &	type,
		const std::string &	name,
		Algorithm *&	pSubAlg
	)

Create a sub algorithm.

A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the sub-algorithm's properties. Using this mechanism instead of creating daughter algorithms directly via the new operator is prefered since then the framework may take care of all of the necessary book-keeping.

Parameters

type	The concrete algorithm class of the sub algorithm
name	The name to be given to the sub algorithm
pSubAlg	Set to point to the newly created algorithm object

Definition at line 815 of file Algorithm.cpp.

template<class T >

void Algorithm::declareInfo ( const std::string &  name, const T &  var, const std::string &  desc  ) const

inline

Declare monitoring information.

Parameters

name	Monitoring information name known to the external system
var	Monitoring Listener address (the item to monitor...)
desc	Textual description of the information being monitored

Definition at line 409 of file Algorithm.h.

  {
    IMonitorSvc* mS = monitorSvc().get();
    if ( mS ) mS->declareInfo( name, var, desc, this );
  }

void Algorithm::declareInfo ( const std::string &  name, const std::string &  format, const void *  var, int  size, const std::string &  desc  ) const

inline

Declare monitoring information (special case)

Parameters

name	Monitoring information name known to the external system
format	Format information
var	Monitoring Listener address
size	Monitoring Listener address size
desc	Textual description of the information being monitored

Definition at line 422 of file Algorithm.h.

  {
    IMonitorSvc* mS = monitorSvc().get();
    if ( mS ) mS->declareInfo( name, format, var, size, desc, this );
  }

template<class T >

Gaudi::Details::PropertyBase* Algorithm::declareProperty ( const std::string &  name, ToolHandle< T > &  hndl, const std::string &  doc = "none"  )

inline

Definition at line 366 of file Algorithm.h.

  {
    this->declareTool( hndl ).ignore();
    return PropertyHolderImpl::declareProperty( name, hndl, doc );
  }

template<class T >

Gaudi::Details::PropertyBase* Algorithm::declareProperty ( const std::string &  name, ToolHandleArray< T > &  hndlArr, const std::string &  doc = "none"  )

inline

Definition at line 377 of file Algorithm.h.

  {
    m_toolHandleArrays.push_back( &hndlArr );
    return PropertyHolderImpl::declareProperty( name, hndlArr, doc );
  }

template<class T >

StatusCode Algorithm::declareTool ( ToolHandle< T > &  handle, std::string  toolTypeAndName = "", bool  createIf = true  )

inline

Definition at line 445 of file Algorithm.h.

  {

    if ( toolTypeAndName == "" ) toolTypeAndName = handle.typeAndName();

    StatusCode sc = handle.initialize( toolTypeAndName, handle.isPublic() ? nullptr : this, createIf );
    if ( UNLIKELY( !sc ) ) {
      throw GaudiException{std::string{"Cannot create handle for "} + ( handle.isPublic() ? "public" : "private" ) +
                               " tool " + toolTypeAndName,
                           name(), sc};
    }

    m_toolHandles.push_back( &handle );

    return sc;
  }

void Algorithm::deregisterTool

(

IAlgTool *

tool

)

const

Definition at line 963 of file Algorithm.cpp.

SmartIF< IConversionSvc > & Algorithm::detCnvSvc

(

)

const

The standard detector data persistency conversion service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 775 of file Algorithm.cpp.

SmartIF<IConversionSvc>& Algorithm::detDataCnvService ( ) const

inline

Definition at line 269 of file Algorithm.h.

{ return detCnvSvc(); }

SmartIF<IDataProviderSvc>& Algorithm::detDataService ( ) const

inline

Definition at line 263 of file Algorithm.h.

{ return detSvc(); }

SmartIF< IDataProviderSvc > & Algorithm::detSvc

(

)

const

The standard detector data service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 774 of file Algorithm.cpp.

StatusCode Algorithm::endRun ( )

override

Algorithm end run. This method is called at the end of the event loop.

Definition at line 482 of file Algorithm.cpp.

unsigned int Algorithm::errorCount

(

)

const

Get the number of failures of the algorithm.

Definition at line 980 of file Algorithm.cpp.

SmartIF< IConversionSvc > & Algorithm::eventCnvSvc

(

)

const

The standard event data persistency conversion service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 777 of file Algorithm.cpp.

SmartIF<IConversionSvc>& Algorithm::eventDataCnvService ( ) const

inline

Definition at line 283 of file Algorithm.h.

  {
    return eventCnvSvc();
  }

SmartIF<IDataProviderSvc>& Algorithm::eventDataService ( ) const

inline

Definition at line 277 of file Algorithm.h.

{ return eventSvc(); }

SmartIF< IDataProviderSvc > & Algorithm::eventSvc

(

)

const

The standard event data service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 776 of file Algorithm.cpp.

SmartIF<IDataProviderSvc>& Algorithm::evtSvc ( ) const

inline

shortcut for method eventSvc

Definition at line 276 of file Algorithm.h.

{ return eventSvc(); }

SmartIF< IExceptionSvc > & Algorithm::exceptionSvc

(

)

const

Get the exception Service.

Definition at line 782 of file Algorithm.cpp.

bool Algorithm::filterPassed ( ) const

override

Did this algorithm pass or fail its filter criterion for the last event?

Definition at line 744 of file Algorithm.cpp.

StatusCode Algorithm::finalize ( )

inlineoverride

the default (empty) implementation of IStateful::finalize() method

Definition at line 184 of file Algorithm.h.

{ return StatusCode::SUCCESS; }

Gaudi::StateMachine::State Algorithm::FSMState ( ) const

inlineoverride

returns the current state of the algorithm

Definition at line 190 of file Algorithm.h.

{ return m_state; }

template<typename IFace >

SmartIF< IFace > & Algorithm::get_svc_ ( SmartIF< IFace > &  p, const char *  service_name  ) const

private

Definition at line 759 of file Algorithm.cpp.

const EventContext& Algorithm::getContext ( ) const

inlineoverride

get the context

Definition at line 432 of file Algorithm.h.

{ return m_event_context; }

SmartIF<IHistogramSvc>& Algorithm::histogramDataService ( ) const

inline

Definition at line 292 of file Algorithm.h.

{ return histoSvc(); }

SmartIF< IHistogramSvc > & Algorithm::histoSvc

(

)

const

The standard histogram service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 778 of file Algorithm.cpp.

unsigned int Algorithm::index ( ) const

override

Definition at line 721 of file Algorithm.cpp.

StatusCode Algorithm::initialize ( )

inlineoverride

the default (empty) implementation of IStateful::initialize() method

Definition at line 178 of file Algorithm.h.

{ return StatusCode::SUCCESS; }

void Algorithm::initToolHandles ( ) const

private

Definition at line 836 of file Algorithm.cpp.

bool Algorithm::isClonable ( ) const

inlineoverride

Specifies the clonability of the algorithm.

Definition at line 481 of file Algorithm.h.

{ return m_isClonable; }

bool Algorithm::isEnabled ( ) const

override

Is this algorithm enabled or disabled?

Definition at line 740 of file Algorithm.cpp.

bool Algorithm::isExecuted ( ) const

override

Has this algorithm been executed since the last reset?

Definition at line 725 of file Algorithm.cpp.

bool Algorithm::isFinalized ( ) const

inlineoverrideprotected

Has the Algorithm already been finalized?

Definition at line 493 of file Algorithm.h.

{ return Gaudi::StateMachine::CONFIGURED == m_state; }

bool Algorithm::isInitialized ( ) const

inlineoverrideprotected

Has the Algorithm already been initialized?

Definition at line 490 of file Algorithm.h.

{ return Gaudi::StateMachine::INITIALIZED == m_state; }

bool Algorithm::isIOBound ( ) const

inline

Definition at line 465 of file Algorithm.h.

{ return m_isIOBound; }

unsigned int Algorithm::maxErrors ( ) const

inlineprivate

Definition at line 504 of file Algorithm.h.

{ return m_errorMax; }

SmartIF<IMonitorSvc>& Algorithm::monitorSvc ( ) const

inline

Access the monitor service.

Attention

Note that this method will return a NULL pointer if no monitor service is configured to be present. You must take this possibility into account when using the pointer

Returns

Pointer to the Monitor service

Return values

NULL	No monitor service is present
non-NULL	A monitor service is present and available to be used

Definition at line 394 of file Algorithm.h.

  {
    // If not already located try to locate it without forcing a creation
    if ( !m_pMonitorSvc ) {
      m_pMonitorSvc = service( m_monitorSvcName, false, true ); // do not create and be quiet
    }
    return m_pMonitorSvc;
  }

const std::string & Algorithm::name ( ) const

override

The identifying name of the algorithm object.

This is the name of a particular instantiation of an algorithm object as opposed to the name of the algorithm itself, e.g. "LinearTrackFit" may be the name of a concrete algorithm class, whereas "ApproxTrackFit" and "BestTrackFit" may be two instantiations of the class configured to find tracks with different fit criteria.

Definition at line 715 of file Algorithm.cpp.

const Gaudi::StringKey & Algorithm::nameKey ( ) const

override

Definition at line 717 of file Algorithm.cpp.

const std::vector<std::string>& Algorithm::neededResources ( ) const

inlineoverride

Definition at line 486 of file Algorithm.h.

{ return m_neededResources; }

SmartIF<INTupleSvc>& Algorithm::ntupleService ( ) const

inline

Definition at line 298 of file Algorithm.h.

{ return ntupleSvc(); }

SmartIF< INTupleSvc > & Algorithm::ntupleSvc

(

)

const

The standard N tuple service.

Returns a pointer to the N tuple service if present.

Definition at line 779 of file Algorithm.cpp.

Algorithm& Algorithm::operator= ( const Algorithm &  rhs )

private

Private assignment operator: NO ASSIGNMENT ALLOWED.

SmartIF< IRndmGenSvc > & Algorithm::randSvc

(

)

const

The standard RandomGen service, Return a pointer to the service if present.

Definition at line 780 of file Algorithm.cpp.

bool Algorithm::registerContext ( ) const

inline

register for Algorithm Context Service?

Definition at line 330 of file Algorithm.h.

{ return m_registerContext; }

void Algorithm::registerTool

(

IAlgTool *

tool

)

const

Definition at line 955 of file Algorithm.cpp.

StatusCode Algorithm::reinitialize ( )

override

the default (empty) implementation of IStateful::reinitialize() method

Definition at line 678 of file Algorithm.cpp.

void Algorithm::resetExecuted ( )

override

Reset the executed state of the Algorithm for the duration of the current event.

Definition at line 735 of file Algorithm.cpp.

StatusCode Algorithm::restart ( )

override

the default (empty) implementation of IStateful::restart() method

Definition at line 699 of file Algorithm.cpp.

template<class T >

StatusCode Algorithm::service ( const std::string &  name, T *&  psvc, bool  createIf = true  ) const

inline

Access a service by name, creating it if it doesn't already exist.

Definition at line 227 of file Algorithm.h.

  {
    return service_i( name, createIf, T::interfaceID(), (void**)&psvc );
  }

template<class T >

StatusCode Algorithm::service ( const std::string &  svcType, const std::string &  svcName, T *&  psvc  ) const

inline

Access a service by name and type, creating it if it doesn't already exist.

Definition at line 234 of file Algorithm.h.

  {
    return service_i( svcType, svcName, T::interfaceID(), (void**)&psvc );
  }

SmartIF< IService > Algorithm::service	(	const std::string &	name,
		const bool	createIf = true,
		const bool	quiet = false
	)		const

Return a pointer to the service identified by name (or "type/name")

Definition at line 930 of file Algorithm.cpp.

template<class T >

SmartIF<T> Algorithm::service ( const std::string &  name, bool  createIf = true, bool  quiet = false  ) const

inline

Definition at line 243 of file Algorithm.h.

  {
    return service( name, createIf, quiet ).as<T>();
  }

StatusCode Algorithm::service_i ( const std::string &  svcName, bool  createIf, const InterfaceID &  iid, void **  ppSvc  ) const

private

implementation of service method

Protected Member Functions.

Definition at line 917 of file Algorithm.cpp.

StatusCode Algorithm::service_i ( const std::string &  svcType, const std::string &  svcName, const InterfaceID &  iid, void **  ppSvc  ) const

private

Definition at line 923 of file Algorithm.cpp.

SmartIF< ISvcLocator > & Algorithm::serviceLocator ( ) const

override

The standard service locator.

Returns a pointer to the service locator service. This service may be used by an algorithm to request any services it requires in addition to those provided by default.

Definition at line 787 of file Algorithm.cpp.

void Algorithm::setExecuted ( bool  state )

override

Set the executed flag to the specified state.

Definition at line 730 of file Algorithm.cpp.

void Algorithm::setFilterPassed ( bool  state )

override

Set the filter passed flag to the specified state.

Definition at line 749 of file Algorithm.cpp.

void Algorithm::setIndex ( const unsigned int &  idx )

overrideprotected

set instantiation index of Alg

Definition at line 723 of file Algorithm.cpp.

void Algorithm::setIOBound ( bool  value )

inline

Definition at line 467 of file Algorithm.h.

{ m_isIOBound = value; }

StatusCode Algorithm::setProperties

(

)

Set the algorithm's properties.

This method requests the job options service to set the values of any declared properties. The method is invoked from within sysInitialize() by the framework and does not need to be explicitly called by a concrete algorithm.

Definition at line 790 of file Algorithm.cpp.

void Algorithm::setType ( const std::string &  type )

inlineoverride

Definition at line 166 of file Algorithm.h.

{ m_type = type; } // BH, TODO: move to proper place

StatusCode Algorithm::start ( )

inlineoverride

the default (empty) implementation of IStateful::start() method

Definition at line 180 of file Algorithm.h.

{ return StatusCode::SUCCESS; }

StatusCode Algorithm::stop ( )

inlineoverride

the default (empty) implementation of IStateful::stop() method

Definition at line 182 of file Algorithm.h.

{ return StatusCode::SUCCESS; }

const std::vector< Algorithm * > * Algorithm::subAlgorithms

(

)

const

List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

Definition at line 754 of file Algorithm.cpp.

std::vector< Algorithm * > * Algorithm::subAlgorithms

(

)

List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

Definition at line 756 of file Algorithm.cpp.

SmartIF<ISvcLocator>& Algorithm::svcLoc ( ) const

inline

shortcut for method serviceLocator

Definition at line 323 of file Algorithm.h.

{ return serviceLocator(); }

StatusCode Algorithm::sysBeginRun ( )

override

beginRun method invoked by the framework.

This method is responsible for any beginRun actions required by the framework itself. It will in turn invoke the beginRun() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 381 of file Algorithm.cpp.

StatusCode Algorithm::sysEndRun ( )

override

endRun method invoked by the framework.

This method is responsible for any endRun actions required by the framework itself. It will in turn invoke the endRun() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 437 of file Algorithm.cpp.

StatusCode Algorithm::sysExecute ( const EventContext &  ctx )

override

The actions to be performed by the algorithm on an event.

This method is invoked once per event for top level algorithms by the application manager. This method invokes execute() method. For sub-algorithms either the sysExecute() method or execute() method must be EXPLICITLY invoked by the parent algorithm.

Definition at line 484 of file Algorithm.cpp.

StatusCode Algorithm::sysFinalize ( )

override

System finalization.

This method invokes the finalize() method of a concrete algorithm and the finalize() methods of all of that algorithm's sub algorithms.

Definition at line 627 of file Algorithm.cpp.

StatusCode Algorithm::sysInitialize ( )

override

Initialization method invoked by the framework.

This method is responsible for any bookkeeping of initialization required by the framework itself. It will in turn invoke the initialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 82 of file Algorithm.cpp.

{ return GaudiPython::call_python_method ( m_self , "initialize" ) ; }
// ============================================================================
StatusCode GaudiPython::PyAlgorithm::start ()
{ return GaudiPython::call_python_method ( m_self , "start" ) ; }
// ============================================================================
StatusCode GaudiPython::PyAlgorithm::execute    ()
{ return GaudiPython::call_python_method ( m_self , "execute" ) ; }
// ============================================================================
StatusCode GaudiPython::PyAlgorithm::stop ()
{ return GaudiPython::call_python_method ( m_self , "stop" ) ; }
// ============================================================================
StatusCode GaudiPython::PyAlgorithm::finalize   ()
{ return GaudiPython::call_python_method ( m_self , "finalize" ) ; }

StatusCode GaudiPython::PyAlgorithm::beginRun() {
  return GaudiPython::call_python_method ( m_self , "beginRun" ) ; }
StatusCode GaudiPython::PyAlgorithm::endRun() {
  return GaudiPython::call_python_method ( m_self , "endRun" ) ; }

StatusCode Algorithm::sysReinitialize ( )

override

Reinitialization method invoked by the framework.

This method is responsible for any reinitialization required by the framework itself. It will in turn invoke the reinitialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 270 of file Algorithm.cpp.

StatusCode Algorithm::sysRestart ( )

override

Restart method invoked by the framework.

It will in turn invoke the restart() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 328 of file Algorithm.cpp.

StatusCode Algorithm::sysStart ( )

override

Reinitialization method invoked by the framework.

This method is responsible for any reinitialization required by the framework itself. It will in turn invoke the reinitialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 218 of file Algorithm.cpp.

StatusCode Algorithm::sysStop ( )

override

System stop.

This method invokes the stop() method of a concrete algorithm and the stop() methods of all of that algorithm's sub algorithms.

Definition at line 580 of file Algorithm.cpp.

Gaudi::StateMachine::State Algorithm::targetFSMState ( ) const

inlineoverride

returns the state the algorithm will be in after the ongoing transition

Definition at line 192 of file Algorithm.h.

{ return m_targetState; }

StatusCode Algorithm::terminate ( )

inlineoverride

Dummy implementation of IStateful::terminate() method.

Definition at line 175 of file Algorithm.h.

{ return StatusCode::SUCCESS; }

SmartIF< ITimelineSvc > & Algorithm::timelineSvc

(

)

const

Definition at line 784 of file Algorithm.cpp.

std::ostream & Algorithm::toControlFlowExpression ( std::ostream &  os ) const

override

Produce string represention of the control flow expression.

Definition at line 974 of file Algorithm.cpp.

const std::vector< IAlgTool * > & Algorithm::tools

(

)

const

Definition at line 901 of file Algorithm.cpp.

std::vector< IAlgTool * > & Algorithm::tools ( )

protected

Definition at line 907 of file Algorithm.cpp.

SmartIF< IToolSvc > & Algorithm::toolSvc

(

)

const

The standard ToolSvc service, Return a pointer to the service if present.

Definition at line 781 of file Algorithm.cpp.

const std::string& Algorithm::type ( ) const

inlineoverride

The type of the algorithm object.

Definition at line 165 of file Algorithm.h.

{ return m_type; }

const std::string & Algorithm::version ( ) const

override

Definition at line 719 of file Algorithm.cpp.

SmartIF< IHiveWhiteBoard > & Algorithm::whiteboard

(

)

const

Definition at line 785 of file Algorithm.cpp.

Member Data Documentation

SmartIF<IAlgExecStateSvc> Algorithm::m_aess

mutableprivate

Alg execution state mgr.

Definition at line 540 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditInit {this, "AuditAlgorithms", false, "[[deprecated]] unused"}

private

Definition at line 555 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorBeginRun {this, "AuditBeginRun", false, "trigger auditor on beginRun()"}

private

Definition at line 561 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorEndRun {this, "AuditEndRun", false, "trigger auditor on endRun()"}

private

Definition at line 562 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorExecute {this, "AuditExecute", false, "trigger auditor on execute()"}

private

Definition at line 559 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}

private

Definition at line 560 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}

private

Definition at line 556 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}

private

Definition at line 557 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}

private

Definition at line 558 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}

private

Definition at line 563 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}

private

Definition at line 564 of file Algorithm.h.

Gaudi::Property<int> Algorithm::m_cardinality {this, "Cardinality", 1, "how many clones to create - 0 means algo is reentrant"}

private

Definition at line 575 of file Algorithm.h.

SmartIF<IAlgContextSvc> Algorithm::m_contextSvc

mutableprivate

Algorithm Context Service.

Definition at line 537 of file Algorithm.h.

SmartIF<IChronoStatSvc> Algorithm::m_CSS

mutableprivate

Chrono & Stat Service.

Definition at line 531 of file Algorithm.h.

SmartIF<IConversionSvc> Algorithm::m_DCS

mutableprivate

Detector conversion service.

Definition at line 528 of file Algorithm.h.

SmartIF<IDataProviderSvc> Algorithm::m_DDS

mutableprivate

Detector data service.

Definition at line 527 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_doTimeline {this, "Timeline", true, "send events to TimelineSvc"}

private

Definition at line 566 of file Algorithm.h.

SmartIF<IConversionSvc> Algorithm::m_ECS

mutableprivate

Event conversion service.

Definition at line 526 of file Algorithm.h.

SmartIF<IDataProviderSvc> Algorithm::m_EDS

mutableprivate

Event data service.

Definition at line 524 of file Algorithm.h.

Gaudi::Property<unsigned int> Algorithm::m_errorMax {this, "ErrorMax", 1, "[[deprecated]] max number of errors"}

private

Definition at line 553 of file Algorithm.h.

EventContext Algorithm::m_event_context

private

Definition at line 511 of file Algorithm.h.

SmartIF<IExceptionSvc> Algorithm::m_EXS

mutableprivate

Exception Handler Service.

Definition at line 533 of file Algorithm.h.

bool Algorithm::m_filterPassed = true

private

Filter passed flag.

Definition at line 584 of file Algorithm.h.

SmartIF<IHistogramSvc> Algorithm::m_HDS

mutableprivate

Histogram data service.

Definition at line 529 of file Algorithm.h.

unsigned int Algorithm::m_index

private

Algorithm's index.

Definition at line 510 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_isClonable {this, "IsClonable", false, "thread-safe enough for cloning?"}

private

Definition at line 574 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_isEnabled {this, "Enable", true, "should the algorithm be executed or not"}

private

Definition at line 551 of file Algorithm.h.

bool Algorithm::m_isExecuted = false

private

Algorithm is executed flag.

Definition at line 585 of file Algorithm.h.

bool Algorithm::m_isFinalized

private

Algorithm has been finalized flag.

Definition at line 591 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_isIOBound

private

Initial value:

{this, "IsIOBound", false,
                                    "if the algorithm is I/O-bound (in the broad sense of Von Neumann bottleneck)"}

Definition at line 579 of file Algorithm.h.

std::mutex Algorithm::m_lock

private

for re-entrant Algs

Definition at line 582 of file Algorithm.h.

Gaudi::Property<std::string> Algorithm::m_monitorSvcName

private

Initial value:

{this, "MonitorService", "MonitorSvc",
                                                "name to use for Monitor Service"}

Definition at line 568 of file Algorithm.h.

SmartIF<IMessageSvc> Algorithm::m_MS

mutableprivate

Message service.

Definition at line 523 of file Algorithm.h.

Gaudi::StringKey Algorithm::m_name

private

Algorithm's name for identification.

Definition at line 507 of file Algorithm.h.

Gaudi::Property<std::vector<std::string> > Algorithm::m_neededResources

private

Initial value:

{
      this, "NeededResources", {}, "named resources needed during event looping"}

Definition at line 576 of file Algorithm.h.

SmartIF<INTupleSvc> Algorithm::m_NTS

mutableprivate

N tuple service.

Definition at line 530 of file Algorithm.h.

Gaudi::Property<int> Algorithm::m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}

private

Definition at line 550 of file Algorithm.h.

SmartIF<IAuditorSvc> Algorithm::m_pAuditorSvc

mutableprivate

Auditor Service.

Definition at line 534 of file Algorithm.h.

SmartIF<IMonitorSvc> Algorithm::m_pMonitorSvc

mutableprivate

Online Monitoring Service.

Definition at line 536 of file Algorithm.h.

SmartIF<ISvcLocator> Algorithm::m_pSvcLocator

private

Pointer to service locator service.

Definition at line 542 of file Algorithm.h.

SmartIF<IToolSvc> Algorithm::m_ptoolSvc

mutableprivate

ToolSvc Service.

Definition at line 535 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_registerContext

private

Initial value:

{this, "RegisterForContextService", false,
                                          "flag to enforce the registration for Algorithm Context Service"}

Definition at line 571 of file Algorithm.h.

SmartIF<IRndmGenSvc> Algorithm::m_RGS

mutableprivate

Random Number Generator Service.

Definition at line 532 of file Algorithm.h.

Gaudi::StateMachine::State Algorithm::m_state = Gaudi::StateMachine::CONFIGURED

private

flag indicating whether ToolHandle tools have been added to m_tools

Algorithm has been initialized flag

Definition at line 589 of file Algorithm.h.

std::vector<Algorithm*> Algorithm::m_subAlgms

private

Sub algorithms.

Definition at line 512 of file Algorithm.h.

Gaudi::StateMachine::State Algorithm::m_targetState = Gaudi::StateMachine::CONFIGURED

private

Algorithm has been initialized flag.

Definition at line 590 of file Algorithm.h.

SmartIF<ITimelineSvc> Algorithm::m_timelineSvc

mutableprivate

Timeline Service.

Definition at line 539 of file Algorithm.h.

std::vector<GaudiHandleArrayBase*> Algorithm::m_toolHandleArrays

mutableprivate

Definition at line 517 of file Algorithm.h.

std::vector<BaseToolHandle*> Algorithm::m_toolHandles

mutableprivate

Definition at line 516 of file Algorithm.h.

bool Algorithm::m_toolHandlesInit = false

mutableprivate

Definition at line 587 of file Algorithm.h.

std::vector<IAlgTool*> Algorithm::m_tools

mutableprivate

Definition at line 515 of file Algorithm.h.

std::string Algorithm::m_type

private

Algorithm's type.

Definition at line 508 of file Algorithm.h.

std::unique_ptr<IDataHandleVisitor> Algorithm::m_updateDataHandles

protected

Hook for for derived classes to provide a custom visitor for data handles.

Definition at line 546 of file Algorithm.h.

std::string Algorithm::m_version

private

Algorithm's version.

Definition at line 509 of file Algorithm.h.

SmartIF<IHiveWhiteBoard> Algorithm::m_WB

mutableprivate

Event data service (whiteboard)

Definition at line 525 of file Algorithm.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/Algorithm.h
• GaudiPython/src/Lib/Algorithm.cpp
