DataSvc Class Reference

Data service base class. More...

#include <GaudiKernel/DataSvc.h>

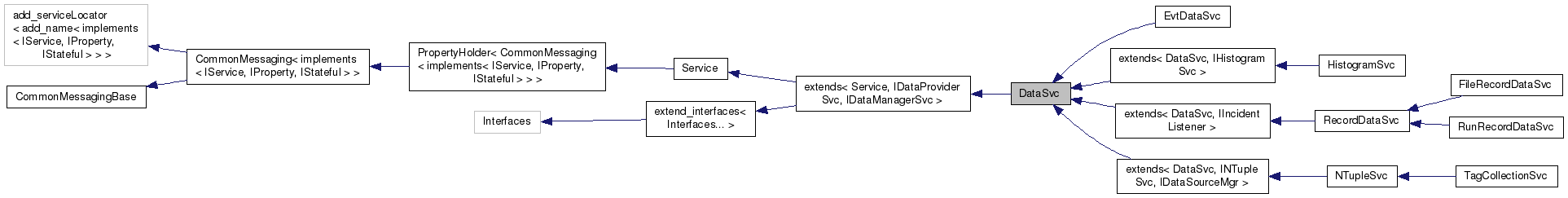

Inheritance diagram for DataSvc:

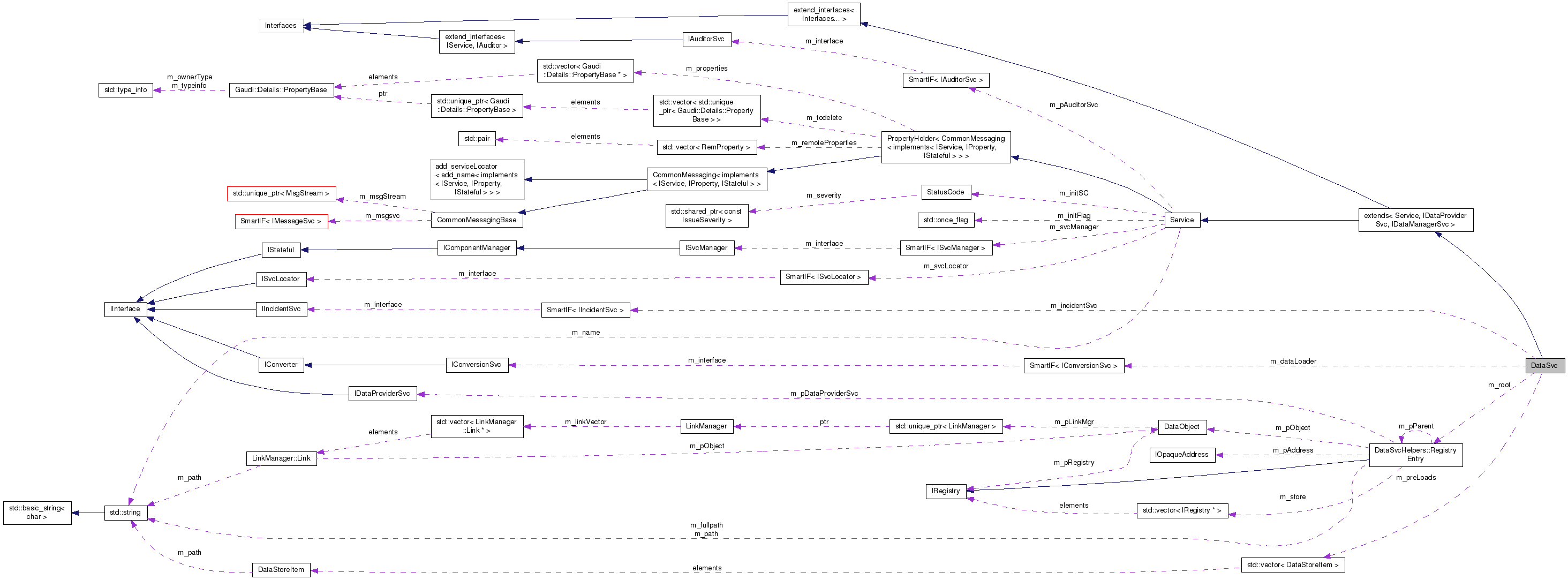

Collaboration diagram for DataSvc:

Public Types
typedef std::vector< DataStoreItem >	LoadItems
	Define set of load items. More...
Public Types inherited from extends< Service, IDataProviderSvc, IDataManagerSvc >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...
Public Types inherited from Service
typedef Gaudi::PluginService::Factory< IService *, const std::string &, ISvcLocator * >	Factory
Public Types inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
using	PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	Typedef used to refer to this class from derived classes, as in. More...
Public Types inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
using	base_class = CommonMessaging
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...

Public Member Functions
CLID	rootCLID () const override
	IDataManagerSvc: Accessor for root event CLID. More...
const std::string &	rootName () const override
	IDataManagerSvc: Accessor for root event name. More...
StatusCode	registerAddress (const std::string &fullPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	registerAddress (DataObject *parentObj, const std::string &objectPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	registerAddress (IRegistry *parentObj, const std::string &objectPath, IOpaqueAddress *pAddress) override
	IDataManagerSvc: Register object address with the data store. More...
StatusCode	unregisterAddress (const std::string &fullPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	unregisterAddress (DataObject *pParent, const std::string &objPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	unregisterAddress (IRegistry *pParent, const std::string &objPath) override
	IDataManagerSvc: Unregister object address from the data store. More...
StatusCode	objectLeaves (const DataObject *pObject, std::vector< IRegistry * > &refLeaves) override
	IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object. More...
StatusCode	objectLeaves (const IRegistry *pRegistry, std::vector< IRegistry * > &refLeaves) override
	IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object. More...
StatusCode	objectParent (const DataObject *pObject, IRegistry *&refpParent) override
	IDataManagerSvc: Explore the object store: retrieve the object's parent. More...
StatusCode	objectParent (const IRegistry *pRegistry, IRegistry *&refpParent) override
	IDataManagerSvc: Explore the object store: retrieve the object's parent. More...
StatusCode	clearSubTree (const std::string &sub_tree_path) override
	IDataManagerSvc: Remove all data objects below the sub tree identified by its full path name. More...
StatusCode	clearSubTree (DataObject *pObject) override
	IDataManagerSvc: Remove all data objects below the sub tree identified by the object. More...
StatusCode	clearStore () override
	IDataManagerSvc: Remove all data objects in the data store. More...
StatusCode	traverseSubTree (const std::string &sub_tree_path, IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects below the sub tree identified by its full path name. More...
StatusCode	traverseSubTree (DataObject *pObject, IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects below the sub tree. More...
StatusCode	traverseTree (IDataStoreAgent *pAgent) override
	IDataManagerSvc: Analyze by traversing all data objects in the data store. More...
StatusCode	setRoot (std::string root_name, DataObject *pRootObj) override
	Initialize data store for new event by giving new event path and root object. More...
virtual StatusCode	i_setRoot (std::string root_name, DataObject *pRootObj)
	Initialize data store for new event by giving new event path and root object. More...
StatusCode	setRoot (std::string root_path, IOpaqueAddress *pRootAddr) override
	Initialize data store for new event by giving new event path and address of root object. More...
virtual StatusCode	i_setRoot (std::string root_path, IOpaqueAddress *pRootAddr)
	Initialize data store for new event by giving new event path and address of root object. More...
StatusCode	setDataLoader (IConversionSvc *svc, IDataProviderSvc *dpsvc=nullptr) override
	IDataManagerSvc: IDataManagerSvc: Pass a default data loader to the service and optionally a data provider. More...
StatusCode	addPreLoadItem (const DataStoreItem &item) override
	Add an item to the preload list. More...
StatusCode	addPreLoadItem (const std::string &itemPath) override
	Add an item to the preload list. More...
StatusCode	removePreLoadItem (const DataStoreItem &item) override
	Remove an item from the preload list. More...
StatusCode	removePreLoadItem (const std::string &itemPath) override
	Add an item to the preload list. More...
StatusCode	resetPreLoad () override
	Clear the preload list. More...
virtual StatusCode	preLoad (int depth, int load_depth, DataObject *pObject)
	Execute one level of preloading and recursively load until the final level is reached. More...
StatusCode	preLoad () override
	load all preload items of the list More...
StatusCode	registerObject (const std::string &fullPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	registerObject (const std::string &parentPath, const std::string &objPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	registerObject (const std::string &parentPath, int item, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	registerObject (DataObject *parentObj, const std::string &objPath, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	registerObject (DataObject *parentObj, int item, DataObject *pObject) override
	Register object with the data store. More...
StatusCode	unregisterObject (const std::string &fullPath) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (const std::string &parentPath, const std::string &objectPath) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (const std::string &parentPath, int item) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject, const std::string &objectPath) override
	Unregister object from the data store. More...
StatusCode	unregisterObject (DataObject *pObject, int item) override
	Unregister object from the data store. More...
StatusCode	retrieveObject (IRegistry *pDirectory, const std::string &path, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	retrieveObject (const std::string &fullPath, DataObject *&pObject) override
	Retrieve object identified by its full path from the data store. More...
StatusCode	retrieveObject (const std::string &parentPath, const std::string &objPath, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	retrieveObject (const std::string &parentPath, int item, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	retrieveObject (DataObject *parentObj, const std::string &objPath, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	retrieveObject (DataObject *parentObj, int item, DataObject *&pObject) override
	Retrieve object from data store. More...
StatusCode	findObject (const std::string &fullPath, DataObject *&pObject) override
	Find object identified by its full path in the data store. More...
StatusCode	findObject (IRegistry *pDirectory, const std::string &path, DataObject *&pObject) override
	Find object identified by its full path in the data store. More...
StatusCode	findObject (const std::string &parentPath, const std::string &objPath, DataObject *&pObject) override
	Find object in the data store. More...
StatusCode	findObject (const std::string &parentPath, int item, DataObject *&pObject) override
	Find object in the data store. More...
StatusCode	findObject (DataObject *parentObj, const std::string &objPath, DataObject *&pObject) override
	Find object in the data store. More...
StatusCode	findObject (DataObject *parentObj, int item, DataObject *&pObject) override
	Find object in the data store. More...
StatusCode	linkObject (IRegistry *from, const std::string &objPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	linkObject (const std::string &fromPath, const std::string &objPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	linkObject (DataObject *from, const std::string &objPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	linkObject (const std::string &fullPath, DataObject *to) override
	Add a link to another object. More...
StatusCode	unlinkObject (IRegistry *from, const std::string &objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (const std::string &fromPath, const std::string &objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (DataObject *fromObj, const std::string &objPath) override
	Remove a link to another object. More...
StatusCode	unlinkObject (const std::string &fullPath) override
	Remove a link to another object. More...
StatusCode	updateObject (IRegistry *pDirectory) override
	Update object identified by its directory entry. More...
StatusCode	updateObject (const std::string &updatePath) override
	Update object. More...
StatusCode	updateObject (DataObject *toUpdate) override
	Update object. More...
StatusCode	updateObject (const std::string &parentPath, const std::string &updatePath) override
	Update object. More...
StatusCode	updateObject (DataObject *pParent, const std::string &updatePath) override
	Update object. More...
StatusCode	initialize () override
	Service initialization. More...
StatusCode	reinitialize () override
	Service initialization. More...
StatusCode	finalize () override
	Service initialization. More...
	~DataSvc () override
	Standard Destructor. More...
Public Member Functions inherited from extends< Service, IDataProviderSvc, IDataManagerSvc >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from Service
const std::string &	name () const override
	Retrieve name of the service. More...
StatusCode	configure () override
StatusCode	initialize () override
StatusCode	start () override
StatusCode	stop () override
StatusCode	finalize () override
StatusCode	terminate () override
Gaudi::StateMachine::State	FSMState () const override
Gaudi::StateMachine::State	targetFSMState () const override
StatusCode	reinitialize () override
StatusCode	restart () override
StatusCode	sysInitialize () override
	Initialize Service. More...
StatusCode	sysStart () override
	Initialize Service. More...
StatusCode	sysStop () override
	Initialize Service. More...
StatusCode	sysFinalize () override
	Finalize Service. More...
StatusCode	sysReinitialize () override
	Re-initialize the Service. More...
StatusCode	sysRestart () override
	Re-initialize the Service. More...
	Service (std::string name, ISvcLocator *svcloc)
	Standard Constructor. More...
SmartIF< ISvcLocator > &	serviceLocator () const override
	Retrieve pointer to service locator. More...
StatusCode	setProperties ()
	Method for setting declared properties to the values specified for the job. More...
template<class T >
StatusCode	service (const std::string &name, const T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
template<typename IFace = IService>
SmartIF< IFace >	service (const std::string &name, bool createIf=true) const
template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist. More...
template<class T >
StatusCode	declarePrivateTool (ToolHandle< T > &handle, std::string toolTypeAndName="", bool createIf=true)
	Declare used Private tool. More...
template<class T >
StatusCode	declarePublicTool (ToolHandle< T > &handle, std::string toolTypeAndName="", bool createIf=true)
	Declare used Public tool. More...
SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...
Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
	PropertyHolder ()=default
	~PropertyHolder () override=default
Gaudi::Details::PropertyBase &	declareProperty (Gaudi::Details::PropertyBase &prop)
	Declare a property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
	Helper to wrap a regular data member and use it as a regular property. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, TYPE &value, const std::string &doc="none") const
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
	Declare a PropertyBase instance setting name and documentation. More...
Gaudi::Details::PropertyBase *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
	Declare a remote property. More...
StatusCode	setProperty (const Gaudi::Details::PropertyBase &p) override
	set the property form another property More...
StatusCode	setProperty (const std::string &s) override
	set the property from the formatted string More...
StatusCode	setProperty (const std::string &n, const std::string &v) override
	set the property from name and the value More...
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value More...
StatusCode	getProperty (Gaudi::Details::PropertyBase *p) const override
	get the property More...
const Gaudi::Details::PropertyBase &	getProperty (const std::string &name) const override
	get the property by name More...
StatusCode	getProperty (const std::string &n, std::string &v) const override
	convert the property to the string More...
const std::vector< Gaudi::Details::PropertyBase * > &	getProperties () const override
	get all properties More...
bool	hasProperty (const std::string &name) const override
	Return true if we have a property with the given name. More...
	PropertyHolder (const PropertyHolder &)=delete
PropertyHolder &	operator= (const PropertyHolder &)=delete
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, GaudiHandleBase &ref, const std::string &doc="none")
	Specializations for various GaudiHandles. More...
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, GaudiHandleArrayBase &ref, const std::string &doc="none")
Gaudi::Details::PropertyBase *	declareProperty (const std::string &name, DataObjectHandleBase &ref, const std::string &doc="none")
Public Member Functions inherited from CommonMessagingBase
virtual	~CommonMessagingBase ()=default
	Virtual destructor. More...
SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service. More...
MsgStream &	msgStream () const
	Return an uninitialized MsgStream. More...
MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts. More...
MsgStream &	always () const
	shortcut for the method msgStream(MSG::ALWAYS) More...
MsgStream &	fatal () const
	shortcut for the method msgStream(MSG::FATAL) More...
MsgStream &	err () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	error () const
	shortcut for the method msgStream(MSG::ERROR) More...
MsgStream &	warning () const
	shortcut for the method msgStream(MSG::WARNING) More...
MsgStream &	info () const
	shortcut for the method msgStream(MSG::INFO) More...
MsgStream &	debug () const
	shortcut for the method msgStream(MSG::DEBUG) More...
MsgStream &	verbose () const
	shortcut for the method msgStream(MSG::VERBOSE) More...
MsgStream &	msg () const
	shortcut for the method msgStream(MSG::INFO) More...
MSG::Level	msgLevel () const
	get the output level from the embedded MsgStream More...
MSG::Level	outputLevel () const __attribute__((deprecated))
	Backward compatibility function for getting the output level. More...
bool	msgLevel (MSG::Level lvl) const
	get the output level from the embedded MsgStream More...
Public Member Functions inherited from extend_interfaces< Interfaces... >
	~extend_interfaces () override=default
	Virtual destructor. More...

Protected Member Functions
bool	checkRoot ()
	Check if root path is valid. More...
virtual IConversionSvc *	getDataLoader (IRegistry *pReg)
	Retrieve customizable data loader according to registry entry to be retrieved. More...
virtual DataObject *	createDefaultObject () const
	Create default objects in case forced creation of leaves is requested. More...
virtual StatusCode	loadObject (IRegistry *pNode)
	Invoke Persistency service to create transient object from its persistent representation. More...
virtual StatusCode	loadObject (IConversionSvc *pLoader, IRegistry *pNode)
	Invoke Persistency service to create transient object from its persistent representation. More...
StatusCode	retrieveEntry (DataSvcHelpers::RegistryEntry *pNode, const std::string &path, DataSvcHelpers::RegistryEntry *&pEntry)
	Retrieve registry entry from store. More...
DataObject *	handleDataFault (IRegistry *pReg, const std::string &path="")
	Invoke data fault handling if enabled. More...
Protected Member Functions inherited from Service
	~Service () override
	Standard Destructor. More...
int	outputLevel () const
	get the Service's output level More...
Protected Member Functions inherited from PropertyHolder< CommonMessaging< implements< IService, IProperty, IStateful > > >
Gaudi::Details::PropertyBase *	property (const std::string &name) const
Protected Member Functions inherited from CommonMessaging< implements< IService, IProperty, IStateful > >
void	updateMsgStreamOutputLevel (int level)
	Update the output level of the cached MsgStream. More...

Protected Attributes
SmartIF< IConversionSvc >	m_dataLoader = nullptr
	Pointer to data loader service. More...
SmartIF< IIncidentSvc >	m_incidentSvc = nullptr
	Pointer to incident service. More...
Gaudi::Property< CLID >	m_rootCLID {this, "RootCLID", 110 , "CLID of root entry"}
Gaudi::Property< std::string >	m_rootName {this, "RootName", "/Event", "name of root entry"}
Gaudi::Property< bool >	m_forceLeaves {this, "ForceLeaves", false, "force creation of default leaves on registerObject"}
Gaudi::Property< std::vector< std::string > >	m_inhibitPathes {this, "InhibitPathes", {}, "inhibited leaves"}
Gaudi::Property< bool >	m_enableFaultHdlr
Gaudi::Property< std::string >	m_faultName {this, "DataFaultName", "DataFault", "Name of the data fault incident"}
Gaudi::Property< bool >	m_enableAccessHdlr
Gaudi::Property< std::string >	m_accessName {this, "DataAccessName", "DataAccess", "Name of the data access incident"}
LoadItems	m_preLoads
	Items to be pre-loaded. More...
DataSvcHelpers::RegistryEntry *	m_root = nullptr
	Pointer to root entry. More...
DataSvcHelpers::InhibitMap *	m_inhibitMap = nullptr
	Map with object paths to be inhibited from loading. More...
Protected Attributes inherited from Service
Gaudi::StateMachine::State	m_state = Gaudi::StateMachine::OFFLINE
	Service state. More...
Gaudi::StateMachine::State	m_targetState = Gaudi::StateMachine::OFFLINE
	Service state. More...
Gaudi::Property< int >	m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}
Gaudi::Property< bool >	m_auditInit {this, "AuditServices", false, "[[deprecated]] unused"}
Gaudi::Property< bool >	m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}
Gaudi::Property< bool >	m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}
Gaudi::Property< bool >	m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}
Gaudi::Property< bool >	m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}
Gaudi::Property< bool >	m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}
Gaudi::Property< bool >	m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}
SmartIF< IAuditorSvc >	m_pAuditorSvc
	Auditor Service. More...

Private Member Functions
	DataSvc (const DataSvc &)=delete
	Fake copy constructor (never implemented). More...
DataSvc &	operator= (const DataSvc &)=delete
	Fake assignment operator (never implemented). More...
StatusCode	i_retrieveEntry (DataSvcHelpers::RegistryEntry *parentObj, boost::string_ref path, DataSvcHelpers::RegistryEntry *&pEntry)
DataObject *	i_handleDataFault (IRegistry *pReg, boost::string_ref path=boost::string_ref{})

Detailed Description

Data service base class.

A data service manages the transient data stores and implements the IDataProviderSvc and IDataManagerSvc interfaces.

Author

Markus Frank

Sebastien Ponce

Version

1.0

Definition at line 44 of file DataSvc.h.

Member Typedef Documentation

typedef std::vector<DataStoreItem> DataSvc::LoadItems

Define set of load items.

Definition at line 48 of file DataSvc.h.

Constructor & Destructor Documentation

DataSvc::~DataSvc ( )

override

Standard Destructor.

Definition at line 1220 of file DataSvc.cpp.

                   {
  setDataLoader(nullptr).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
}

DataSvc::DataSvc ( const DataSvc &  )

privatedelete

Fake copy constructor (never implemented).

Member Function Documentation

StatusCode DataSvc::addPreLoadItem ( const DataStoreItem &  item )

override

Add an item to the preload list.

Definition at line 1090 of file DataSvc.cpp.

                                                               {
  auto i = std::find(std::begin(m_preLoads), std::end(m_preLoads), item);
  if ( i == std::end(m_preLoads) )    {
    m_preLoads.push_back(item);
  }
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::addPreLoadItem ( const std::string &  itemPath )

override

Add an item to the preload list.

Definition at line 1099 of file DataSvc.cpp.

                                                               {
  return addPreLoadItem( DataStoreItem(itemPath,1) );
}

bool DataSvc::checkRoot ( )

inlineprotected

Check if root path is valid.

Definition at line 321 of file DataSvc.h.

{ return 0 != m_root; }

StatusCode DataSvc::clearStore ( )

override

IDataManagerSvc: Remove all data objects in the data store.

Definition at line 114 of file DataSvc.cpp.

                                 {
  if ( checkRoot() )    {
    m_root->release();
    m_root = nullptr;
    return SUCCESS;
  }
  return INVALID_ROOT;
}

StatusCode DataSvc::clearSubTree ( const std::string &  sub_tree_path )

override

IDataManagerSvc: Remove all data objects below the sub tree identified by its full path name.

Definition at line 76 of file DataSvc.cpp.

                                                                  {
  DataObject* pObject = nullptr;
  StatusCode status = findObject(sub_tree_path, pObject);
  if ( status.isSuccess() )   {
    RegEntry* node_entry = CAST_REGENTRY(RegEntry*,pObject->registry());
    if ( node_entry )   {
      RegEntry* parent = node_entry->parentEntry();
      if ( parent )  {
        parent->remove(node_entry);
        return StatusCode::SUCCESS;
      }
      return INVALID_PARENT;
    }
    return INVALID_OBJECT;
  }
  return status;
}

StatusCode DataSvc::clearSubTree ( DataObject *  pObject )

override

IDataManagerSvc: Remove all data objects below the sub tree identified by the object.

Definition at line 97 of file DataSvc.cpp.

                                                       {
  if ( checkRoot() )  {
    RegEntry* entry = CAST_REGENTRY(RegEntry*,pObject->registry());
    if ( entry )   {
      RegEntry* parent = entry->parentEntry();
      if ( parent )  {
        parent->remove(entry);
        return SUCCESS;
      }
      return INVALID_PARENT;
    }
    return INVALID_OBJECT;
  }
  return INVALID_ROOT;
}

DataObject * DataSvc::createDefaultObject ( ) const

protectedvirtual

Create default objects in case forced creation of leaves is requested.

Definition at line 1208 of file DataSvc.cpp.

                                                    {
  return new DataObject();
}

StatusCode DataSvc::finalize ( )

override

Service initialization.

Service initialisation.

Definition at line 1188 of file DataSvc.cpp.

                                {
  // Nothing to do: just call base class initialisation
  setDataLoader(nullptr).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
  m_incidentSvc.reset();
  return Service::finalize();
}

StatusCode DataSvc::findObject ( const std::string &  fullPath, DataObject *&  pObject  )

override

Find object identified by its full path in the data store.

Definition at line 828 of file DataSvc.cpp.

                                                       {
  pObject = nullptr;
  if ( checkRoot() )  {
    if ( path.empty() || path == m_rootName )   {
      pObject = m_root->object();
      return !pObject ? OBJ_NOT_LOADED : IDataProviderSvc_NO_ERROR;
    }
    else if ( path.front() != SEPARATOR )    {
      return findObject(m_rootName, path, pObject);
    }
    return findObject((IRegistry*)nullptr, path, pObject);
  }
  return INVALID_ROOT;
}

StatusCode DataSvc::findObject ( IRegistry *  pDirectory, const std::string &  path, DataObject *&  pObject  )

override

Find object identified by its full path in the data store.

Retrieve object identified by its directory from the data store.

Definition at line 813 of file DataSvc.cpp.

                                                       {
  pObject = nullptr;
  IRegistry* pReg = ( pRegistry ? pRegistry : m_root );
  RegEntry* root_entry = CAST_REGENTRY(RegEntry*, pReg);
  if ( root_entry )    {
    if ( !path.empty() ) pReg = root_entry->find(path);
    if ( !pReg ) return INVALID_OBJ_PATH;
    pObject = pReg->object();
  }
  return (!pObject) ? OBJ_NOT_LOADED : IDataProviderSvc_NO_ERROR;
}

StatusCode DataSvc::findObject ( const std::string &  parentPath, const std::string &  objPath, DataObject *&  pObject  )

override

Find object in the data store.

Retrieve object identified by its full path from the data store.

Definition at line 845 of file DataSvc.cpp.

                                                       {
  DataObject* parent = nullptr;
  StatusCode status = findObject(parentPath, parent);
  return status.isSuccess() ? findObject (parent, objectPath, pObject)
                            : status;
}

StatusCode DataSvc::findObject ( const std::string &  parentPath, int  item, DataObject *&  pObject  )

override

Find object in the data store.

Retrieve object identified by its full path from the data store.

Definition at line 855 of file DataSvc.cpp.

                                                                 {
  return findObject(parentPath, itemToPath(item), pObject);
}

StatusCode DataSvc::findObject ( DataObject *  parentObj, const std::string &  objPath, DataObject *&  pObject  )

override

Find object in the data store.

Find object identified by its full path in the data store.

Definition at line 868 of file DataSvc.cpp.

                                                        {
  IRegistry* pDir = ( parentObj ? parentObj->registry() : nullptr );
  return findObject(pDir, path, pObject);
}

StatusCode DataSvc::findObject ( DataObject *  parentObj, int  item, DataObject *&  pObject  )

override

Find object in the data store.

Find object identified by its full path in the data store.

Definition at line 861 of file DataSvc.cpp.

                                                        {
  return findObject(parentObj, itemToPath(item), pObject);
}

IConversionSvc * DataSvc::getDataLoader ( IRegistry *  pReg )

protectedvirtual

Retrieve customizable data loader according to registry entry to be retrieved.

Reimplemented in NTupleSvc.

Definition at line 1215 of file DataSvc.cpp.

                                                     {
  return m_dataLoader.get();
}

DataObject * DataSvc::handleDataFault ( IRegistry *  pReg, const std::string &  path = ""  )

protected

Invoke data fault handling if enabled.

Parameters

pReg	[IN] Pointer to missing registry entry
path	[IN] Sub-path of requested object from pReg

Returns

Object corresponding to the specified leaf

Definition at line 546 of file DataSvc.cpp.

                                                                           {
    return i_handleDataFault(pReg,path);
}

DataObject * DataSvc::i_handleDataFault ( IRegistry *  pReg, boost::string_ref  path = boost::string_ref{}  )

private

Definition at line 550 of file DataSvc.cpp.

{
  if ( m_enableFaultHdlr )  {
    IRegistry* pLeaf = nullptr;
    if ( pReg && path.empty() )   {
      DataIncident incident(name(), m_faultName, pReg->identifier());
      m_incidentSvc->fireIncident(incident);
      return pReg->object();
    }
    if ( pReg )  {
      std::string p = pReg->identifier();
      if (path.front() != SEPARATOR ) p += SEPARATOR;
      p.append(path.data(),path.size());
      DataIncident incident(name(), m_faultName, p);
      m_incidentSvc->fireIncident(incident);
      pLeaf = m_root->findLeaf(p);
    } else  {
      std::string p = m_root->identifier();
      if (path.front() != SEPARATOR ) p += SEPARATOR;
      p.append(path.data(),path.size());
      DataIncident incident(name(), m_faultName, p);
      m_incidentSvc->fireIncident(incident);
      pLeaf = m_root->findLeaf(p);
    }
    if ( pLeaf )  {
      return pLeaf->object();
    }
  }
  return nullptr;
}

StatusCode DataSvc::i_retrieveEntry ( DataSvcHelpers::RegistryEntry *  parentObj, boost::string_ref  path, DataSvcHelpers::RegistryEntry *&  pEntry  )

private

Definition at line 673 of file DataSvc.cpp.

                                                      {
  // A.Valassi 16.08.2001 avoid core dump if store is empty
  if ( !checkRoot() )  return StatusCode(INVALID_ROOT,true);

  static const auto empty = boost::string_ref{};
  auto sep    = find(path,SEPARATOR,1);
  pEntry = nullptr;

  if ( !parentObj )    {
    if ( path.empty() || path == m_rootName )   {
      parentObj = m_root;
      path = empty;
    } else if ( path.front() != SEPARATOR )  {
      parentObj = m_root;
    } else if ( sep != boost::string_ref::npos )    {
      if ( !m_root->object() )  {
        RegEntry* r = nullptr;
        auto status = i_retrieveEntry(m_root, empty, r);
        if ( !status.isSuccess() )  return status;
      }
      parentObj = m_root;
      path = path.substr(sep);
    } else {
      return INVALID_OBJ_PATH;
    }
    sep = find(path,SEPARATOR,1);
  }

  StatusCode status = StatusCode(INVALID_ROOT,true);
  if ( sep != boost::string_ref::npos )  { // the string contains a separator (after pos 0)
    if (!parentObj->object()) { // if the parent object has not been loaded yet, load it now
      status = loadObject(parentObj);
      if ( !status.isSuccess() )  return status;
    }
    auto p_path = path.substr(0,sep);
    RegEntry* root_entry = parentObj->findLeaf(p_path);
    if ( !root_entry && m_enableFaultHdlr )    {
      // If not even the parent is there, an incident
      // to load the parent must be fired...
      i_handleDataFault(parentObj, p_path);
      root_entry = parentObj->findLeaf(p_path);
    }
    if ( root_entry )    {
      DataObject* pO = root_entry->object();
      if ( !pO )  {
        // Object is not loaded: load the object if at all possible
        status = loadObject(root_entry);
        if ( !status.isSuccess() )  return status;
      }
      if ( root_entry->isSoft() ) {
        root_entry = CAST_REGENTRY(RegEntry*,pO->registry());
      }
      return i_retrieveEntry(root_entry, path.substr(sep), pEntry);
    }
    return status;
  } else if ( path.empty() )    {
    pEntry = parentObj;
  } else {
    if (!parentObj->object()) { // if the parent object has not been loaded yet, load it now
      status = loadObject(parentObj);
      if ( !status.isSuccess() )  return status;
    }
    // last leave in search: find leaf and load
    pEntry = parentObj->findLeaf(path);
    // If no registry entry was found, trigger incident for action-on-demand
    if ( !pEntry && m_enableFaultHdlr )  {
      i_handleDataFault(parentObj, path);
      pEntry = (path.empty() ? parentObj : parentObj->findLeaf(path) );
    }
  }

  // Check results and return
  if ( !pEntry )            return INVALID_OBJ_PATH;
  if ( !pEntry->object() )  return loadObject(pEntry);

  if ( m_enableAccessHdlr )  {
    // Fire data access incident
    // I do not know if this is a good idea....
    // This fires too often!
    //
    //DataIncident incident(name(), m_accessName, pEntry->identifier());
    //m_incidentSvc->fireIncident(incident);
    return SUCCESS;
  }
  return SUCCESS;
}

StatusCode DataSvc::i_setRoot ( std::string  root_path, DataObject *  pRootObj  )

virtual

Initialize data store for new event by giving new event path and root object.

Does not clear the store before reinitializing it. This could lead to errors and should be handle with care. Use setRoot if unsure

Definition at line 164 of file DataSvc.cpp.

                                                       {
  if ( pRootObj )  {
    m_root = new RegEntry(std::move(root_path));
    m_root->makeHard(pRootObj);
    m_root->setDataSvc(this);
    // No done with GaudiHive. preLoad().ignore();
  }
  return SUCCESS;
}

StatusCode DataSvc::i_setRoot ( std::string  root_path, IOpaqueAddress *  pRootAddr  )

virtual

Initialize data store for new event by giving new event path and address of root object.

Does not clear the store before reinitializing it. This could lead to errors and should be handle with care. Use setRoot if unsure

Definition at line 190 of file DataSvc.cpp.

                                                         {
  if ( pRootAddr )  {
    m_root = new RegEntry(std::move(root_path));
    m_root->makeHard(pRootAddr);
    m_root->setDataSvc(this);
    // Not done with GaudiHive. preLoad().ignore();
  }
  return SUCCESS;
}

StatusCode DataSvc::initialize ( )

override

Service initialization.

Definition at line 1153 of file DataSvc.cpp.

                                  {
  // Nothing to do: just call base class initialisation
  StatusCode sc = Service::initialize();
  if ( UNLIKELY(!sc.isSuccess()) )  return sc;
  m_incidentSvc = service("IncidentSvc", true);
  if ( UNLIKELY(!m_incidentSvc) )  {
    error() << "Failed to access incident service." << endmsg;
  }
  return sc;
}

StatusCode DataSvc::linkObject ( IRegistry *  from, const std::string &  objPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 966 of file DataSvc.cpp.

                                                                         {
  if ( checkRoot() )  {
    try   {
      RegEntry* from_entry = CAST_REGENTRY(RegEntry*,from);
      if ( from_entry )    {
        // First check if both objects are already registered to the store
        RegEntry* to_entry   = m_root->findLeaf(to);
        if ( !to_entry )   {
          return INVALID_OBJECT;
        }
        std::string::size_type sep = objPath.rfind(SEPARATOR);
        if ( sep > 0 && sep != std::string::npos )    {   // in case the objPath is a sub-directory itself
          DataObject* pO = nullptr;
          StatusCode sc = retrieveObject(from, objPath.substr(0,sep), pO);
          if ( sc.isSuccess() )    {
            sc = linkObject(pO->registry(), objPath.substr(sep), to);
          }
          return sc;
        }
        // Now register the soft link
        StatusCode status = from_entry->add( objPath, to, true);
        return status.isSuccess() ? IDataProviderSvc_NO_ERROR : DOUBL_OBJ_PATH;
      }
    }
    catch (...) {
    }
    return INVALID_PARENT;
  }
  return INVALID_ROOT;
}

StatusCode DataSvc::linkObject ( const std::string &  fromPath, const std::string &  objPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 1012 of file DataSvc.cpp.

                                                  {
  DataObject* pO = nullptr;
  StatusCode status = retrieveObject(from, pO);
  return status.isSuccess() ? linkObject(pO->registry(), objPath, to)
                            : status;
}

StatusCode DataSvc::linkObject ( DataObject *  from, const std::string &  objPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 1022 of file DataSvc.cpp.

                                                  {
  if ( from )    {
    IRegistry* from_entry = from->registry();
    if ( from_entry )   {
      return linkObject( from_entry, objPath, to);
    }
  }
  return INVALID_PARENT;
}

StatusCode DataSvc::linkObject ( const std::string &  fullPath, DataObject *  to  )

override

Add a link to another object.

Definition at line 999 of file DataSvc.cpp.

                                                  {
  if ( !fullPath.empty() )    {
    if ( fullPath.front() != SEPARATOR )   {
      return linkObject(m_rootName, fullPath, to);
    }
    auto sep = fullPath.rfind(SEPARATOR);
    return linkObject( fullPath.substr( 0, sep), fullPath.substr(sep), to);
  }
  return INVALID_OBJ_PATH;
}

StatusCode DataSvc::loadObject ( IRegistry *  pNode )

protectedvirtual

Invoke Persistency service to create transient object from its persistent representation.

Definition at line 584 of file DataSvc.cpp.

                                                     {
  IConversionSvc* pLoader = getDataLoader(pRegistry);
  return loadObject(pLoader, pRegistry);
}

StatusCode DataSvc::loadObject ( IConversionSvc *  pLoader, IRegistry *  pNode  )

protectedvirtual

Invoke Persistency service to create transient object from its persistent representation.

Definition at line 592 of file DataSvc.cpp.

                                                                            {
  StatusCode status = INVALID_OBJ_ADDR;
  DataObject* pObject = nullptr;
  if ( !pLoader )   {         // Precondition: Data loader must be present
    return  handleDataFault(pRegistry) ? StatusCode{SUCCESS} : NO_DATA_LOADER;
  }
  if ( !pRegistry )    {      // Precondition: Directory must be valid
    return handleDataFault(pRegistry) ? StatusCode{SUCCESS} : INVALID_OBJ_ADDR;
  }

  VERMSG << "Requested object " << pRegistry->identifier() << endmsg;

  if ( m_enableAccessHdlr )  {
    // Fire data access incident
    DataIncident incident(name(), m_accessName, pRegistry->identifier());
    m_incidentSvc->fireIncident(incident);
  }
  if ( !m_inhibitPathes.empty() )   {
    auto inhibit = std::find(m_inhibitPathes.begin(), m_inhibitPathes.end(),
                             pRegistry->identifier());
    if ( inhibit != m_inhibitPathes.end() )   {
      return NO_ACCESS;
    }
  }
  IOpaqueAddress* pAddress = pRegistry->address();
  if ( !pAddress )  {         // Precondition:
    return INVALID_OBJ_ADDR;      // Address must be valid
  }
  try   {
    status = pLoader->createObj(pAddress, pObject);  // Call data loader
    if ( status.isSuccess() )    {

      VERMSG << "Object " << pRegistry->identifier() << " created" << endmsg;

      RegEntry *pEntry = CAST_REGENTRY(RegEntry*,pRegistry);
      pEntry->setObject(pObject);

      VERMSG << "Filling object " << pRegistry->identifier() << endmsg;
      status = pLoader->fillObjRefs(pAddress, pObject);
    }
  }
  catch( const GaudiException& exc ) {
    if ( handleDataFault(pRegistry) )  {
      return SUCCESS;
    }
    throw GaudiException("GaudiException in loadObject() " + pRegistry->identifier(),
        name(), StatusCode::FAILURE, exc);
  }
  catch( const std::exception& x) {
    if ( handleDataFault(pRegistry) )  {
      return SUCCESS;
    }
    throw GaudiException("std::exception in loadObject() " + pRegistry->identifier() +
        ": " + System::typeinfoName(typeid(x)) + ", " + x.what(),
      name(), StatusCode::FAILURE);
  }
  catch(...) {
    if ( handleDataFault(pRegistry) )  {
      return SUCCESS;
    }
    throw GaudiException("UNKN exception in loadObject() " + pRegistry->identifier(),
      name(), StatusCode::FAILURE);
  }
  if ( !status.isSuccess() )  {
    if ( handleDataFault(pRegistry) )  {
      return StatusCode::SUCCESS;
    }
  }
  ON_VERBOSE if ( status.isSuccess() ) {
    verbose() << "Object " << pRegistry->identifier() << " successfully loaded" << endmsg;
  }
  return status;
}

StatusCode DataSvc::objectLeaves ( const DataObject *  pObject, std::vector< IRegistry * > &  refLeaves  )

override

IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object.

IDataManagerSvc: Explore an object identified by its pointer.

Definition at line 225 of file DataSvc.cpp.

                                                                  {
  if ( !pObject )     return INVALID_OBJECT;
  return objectLeaves(pObject->registry(), leaves);
}

StatusCode DataSvc::objectLeaves ( const IRegistry *  pRegistry, std::vector< IRegistry * > &  refLeaves  )

override

IDataManagerSvc: Explore the object store: retrieve all leaves attached to the object.

IDataManagerSvc: Explore an object identified by the pointer to the registry entry.

Definition at line 234 of file DataSvc.cpp.

                                                                  {
  if ( !checkRoot() )    return INVALID_ROOT;
  const RegEntry* node_entry = CAST_REGENTRY(const RegEntry*,pRegistry);
  if ( !node_entry )     return INVALID_OBJECT;
  leaves = node_entry->leaves();
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::objectParent ( const DataObject *  pObject, IRegistry *&  refpParent  )

override

IDataManagerSvc: Explore the object store: retrieve the object's parent.

Definition at line 209 of file DataSvc.cpp.

                                                           {
  if ( !pObject )     return INVALID_OBJECT;
  return objectParent(pObject->registry(), refpParent);
}

StatusCode DataSvc::objectParent ( const IRegistry *  pRegistry, IRegistry *&  refpParent  )

override

IDataManagerSvc: Explore the object store: retrieve the object's parent.

Definition at line 215 of file DataSvc.cpp.

                                                          {
  if ( !checkRoot() )    return INVALID_ROOT;
  const RegEntry* node_entry = CAST_REGENTRY(const RegEntry*,pRegistry);
  if ( !node_entry )     return INVALID_OBJECT;
  refpParent = node_entry->parent();
  return StatusCode::SUCCESS;
}

DataSvc& DataSvc::operator= ( const DataSvc &  )

privatedelete

Fake assignment operator (never implemented).

StatusCode DataSvc::preLoad ( int  depth, int  load_depth, DataObject *  pObject  )

virtual

Execute one level of preloading and recursively load until the final level is reached.

Preload one level deep, then recursively call the next level.

Parameters

depth	current level of loading from requested parent
load_depth	maximum level of object loading
pObject	pointer to next level root object

Returns

Status code indicating success or failure.

Definition at line 1122 of file DataSvc.cpp.

                                                                             {
  //unused:  StatusCode sc = StatusCode::FAILURE;
  if ( pObject && depth++ < load_depth )    {
    RegEntry* dir = CAST_REGENTRY(RegEntry*,pObject->registry());
    if ( dir )   {
      for (const auto& i : *dir) {
        DataObject *pObj = nullptr;
        StatusCode status = retrieveObject(pObject, i->name(), pObj);
        if ( status.isSuccess() && depth < load_depth )   {
          preLoad(depth, load_depth, pObj).ignore();
        }
      }
    }
  }
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::preLoad ( )

override

load all preload items of the list

Definition at line 1140 of file DataSvc.cpp.

                              {
  DataObject* pObj = nullptr;
  for (const auto& i : m_preLoads ) {
    StatusCode sc = retrieveObject( i.path(), pObj);
    int load_depth = i.depth();
    if ( sc.isSuccess() && load_depth > 1 )   {
      preLoad(1, load_depth, pObj).ignore();
    }
  }
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::registerAddress ( const std::string &  fullPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 244 of file DataSvc.cpp.

                                                                {
  if ( fullPath.empty() )     return INVALID_OBJ_PATH;
  return registerAddress( fullPath.front() != SEPARATOR ? m_root : nullptr,
                          fullPath, pAddress);
}

StatusCode DataSvc::registerAddress ( DataObject *  parentObj, const std::string &  objectPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 252 of file DataSvc.cpp.

                                                                {
  IRegistry* pRegistry = ( parentObj ?  parentObj->registry() : nullptr );
  return registerAddress(pRegistry, objectPath, pAddress);
}

StatusCode DataSvc::registerAddress ( IRegistry *  parentObj, const std::string &  objectPath, IOpaqueAddress *  pAddress  )

override

IDataManagerSvc: Register object address with the data store.

Definition at line 260 of file DataSvc.cpp.

                                                                {
  if ( !checkRoot() )  return INVALID_ROOT;
  if ( objPath.empty() )  return INVALID_OBJ_PATH;

  if ( !parentObj )   {
    if ( objPath.front() != SEPARATOR )    {
      return registerAddress(m_root, objPath, pAddress);
    }
    std::string::size_type sep = objPath.find(SEPARATOR,1);
    if ( sep == std::string::npos )  {
      return INVALID_PARENT;
    }
    if ( objPath.compare(0,sep,m_rootName) == 0 )   {
      return registerAddress(m_root, objPath.substr(sep), pAddress);
    }
  }
  if ( objPath.front() != SEPARATOR )    {
    return registerAddress(parentObj, char(SEPARATOR)+objPath, pAddress);
  }
  RegEntry* par_entry = CAST_REGENTRY(RegEntry*,parentObj);
  if ( !par_entry ) return INVALID_PARENT;

  std::string::size_type sep = objPath.rfind(SEPARATOR);
  if ( sep > 0 && sep != std::string::npos )    {
    auto p_path = objPath.substr( 0, sep);
    auto o_path = objPath.substr( sep );
    RegEntry* p_entry = par_entry->findLeaf(p_path);
    // Create default object leafs if the
    // intermediate nodes are not present
    if ( !p_entry && m_forceLeaves )    {
      DataObject *pLeaf = createDefaultObject();
      StatusCode sc = registerObject(par_entry->identifier(),
                                     p_path,
                                     pLeaf);
      if ( sc.isFailure() )  delete pLeaf;
      p_entry = par_entry->findLeaf(p_path);
    }
    if ( !p_entry )  return INVALID_PARENT;
    return registerAddress(p_entry, o_path, pAddress);
  }
  StatusCode status = par_entry->add(objPath, pAddress);
  return  status.isSuccess() ? status : DOUBL_OBJ_PATH;
}

StatusCode DataSvc::registerObject ( const std::string &  fullPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 356 of file DataSvc.cpp.

                                                           {
  return registerObject(nullptr, fullPath, pObject);
}

StatusCode DataSvc::registerObject ( const std::string &  parentPath, const std::string &  objPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 363 of file DataSvc.cpp.

                                                           {
  DataObject* pO = nullptr;
  StatusCode status = retrieveObject(parentPath, pO);
  if ( !status.isSuccess() && m_forceLeaves )   {
    pO = createDefaultObject();
    status = registerObject(parentPath, pO);
    if ( !status.isSuccess() )   pO->release();
  }
  if ( status.isFailure() )  return status;
  return registerObject(pO, objPath, pObject);
}

StatusCode DataSvc::registerObject ( const std::string &  parentPath, int  item, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 378 of file DataSvc.cpp.

                                                          {
  return registerObject(parentPath, itemToPath(item), pObject);
}

StatusCode DataSvc::registerObject ( DataObject *  parentObj, const std::string &  objPath, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 392 of file DataSvc.cpp.

                                                          {
  if ( !checkRoot() )  return INVALID_ROOT;

  if ( !parentObj )   {
    if ( !objPath.empty() )   {
      if ( objPath.front() == SEPARATOR ) {
        auto sep = objPath.find(SEPARATOR,1);
        if ( sep != std::string::npos ) {
          return registerObject(objPath.substr( 0, sep), objPath.substr( sep ), pObject);
        }
      } else  {
        return registerObject(m_rootName, objPath, pObject);
      }
    }
    return INVALID_OBJ_PATH;
  }
  RegEntry* node_entry = CAST_REGENTRY(RegEntry*,parentObj->registry());
  if ( node_entry )   {
    StatusCode status = INVALID_PARENT;
    auto sep = objPath.find(SEPARATOR,1);
    if ( sep != std::string::npos )    {
      auto p_path = objPath.substr( 0, sep );
      auto o_path = objPath.substr( sep );
      RegEntry* par_entry = node_entry->findLeaf(p_path);
      // Create default object leafs if the
      // intermediate nodes are not present
      if ( !par_entry && m_forceLeaves )    {
        DataObject *pLeaf = createDefaultObject();
        StatusCode sc = registerObject(parentObj, p_path, pLeaf);
        if ( ! sc.isSuccess() )   delete pLeaf;
        par_entry = node_entry->findLeaf(p_path);
      }
      else if ( par_entry && !par_entry->object() )  {
        status = i_retrieveEntry( node_entry, p_path, par_entry);
        if ( !status.isSuccess() && !par_entry->address() && m_forceLeaves )  {
          DataObject *pLeaf = createDefaultObject();
          StatusCode sc = registerObject(parentObj, p_path, pLeaf);
          if ( ! sc.isSuccess() )   delete pLeaf;
          par_entry = node_entry->findLeaf(p_path);
        }
      }
      node_entry = par_entry;
      if ( node_entry )    {
        DataObject* obj = node_entry->object();
        if ( obj )   {
          status = registerObject( obj, o_path, pObject );
        }
      }
    }
    else   {
      RegEntry* leaf = node_entry->findLeaf(objPath);
      if ( !leaf )    {
        status = node_entry->add( objPath, pObject );
      }
      else    {
        DataObject* obj = leaf->object();
        if ( !obj )    {
          if ( !pObject ) {
            error() << "registerObject: trying to register null DataObject" << endmsg;
            return StatusCode::FAILURE;
          }
          pObject->setRegistry(leaf);
          leaf->setAddress(nullptr);
          leaf->setObject(pObject);
          status = StatusCode::SUCCESS;
        }
        else  {
          status = DOUBL_OBJ_PATH;
        }
      }
    }
    return status;
  }
  return INVALID_PARENT;
}

StatusCode DataSvc::registerObject ( DataObject *  parentObj, int  item, DataObject *  pObject  )

override

Register object with the data store.

Definition at line 385 of file DataSvc.cpp.

                                                          {
  return registerObject(parentObj, itemToPath(item), pObject);
}

StatusCode DataSvc::reinitialize ( )

override

Service initialization.

Service reinitialization.

Definition at line 1165 of file DataSvc.cpp.

                                    {
  // the finalize part is copied here
  setDataLoader(nullptr).ignore();
  resetPreLoad().ignore();
  clearStore().ignore();
  m_incidentSvc.reset();
  // re-initialize the base class
  StatusCode sc = Service::reinitialize();
  if ( UNLIKELY(!sc.isSuccess()) ) {
    error() << "Unable to reinitialize base class" << endmsg;
    return sc;
  }
  // the initialize part is copied here
  m_incidentSvc = service("IncidentSvc", true);
  if ( UNLIKELY(!m_incidentSvc) )  {
    error() << "Failed to access incident service." << endmsg;
    return StatusCode::FAILURE;
  }
  // return
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::removePreLoadItem ( const DataStoreItem &  item )

override

Remove an item from the preload list.

Definition at line 1104 of file DataSvc.cpp.

                                                                 {
  m_preLoads.erase(std::remove(std::begin(m_preLoads), std::end(m_preLoads), item),
                   std::end(m_preLoads));
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::removePreLoadItem ( const std::string &  itemPath )

override

Add an item to the preload list.

Definition at line 1111 of file DataSvc.cpp.

                                                                  {
  return removePreLoadItem( DataStoreItem(itemPath,1) );
}

StatusCode DataSvc::resetPreLoad ( )

override

Clear the preload list.

Definition at line 1116 of file DataSvc.cpp.

                                    {
  m_preLoads.erase(std::begin(m_preLoads), std::end(m_preLoads));
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::retrieveEntry ( DataSvcHelpers::RegistryEntry *  pNode, const std::string &  path, DataSvcHelpers::RegistryEntry *&  pEntry  )

protected

Retrieve registry entry from store.

Definition at line 667 of file DataSvc.cpp.

                                                      {
    return i_retrieveEntry(parentObj,path,pEntry);
}

StatusCode DataSvc::retrieveObject ( IRegistry *  pDirectory, const std::string &  path, DataObject *&  pObject  )

override

Retrieve object from data store.

Retrieve object identified by its directory from the data store.

Definition at line 763 of file DataSvc.cpp.

                                                           {
  pObject = nullptr;
  RegEntry *result = nullptr, *parent = CAST_REGENTRY(RegEntry*,pRegistry);
  StatusCode status = i_retrieveEntry(parent, path, result);
  if ( status.isSuccess() )   pObject = result->object();
  return status;
}

StatusCode DataSvc::retrieveObject ( const std::string &  fullPath, DataObject *&  pObject  )

override

Retrieve object identified by its full path from the data store.

Definition at line 774 of file DataSvc.cpp.

                                                           {
  IRegistry* nullDir = nullptr;
  return retrieveObject(nullDir, fullPath, pObject);
}

StatusCode DataSvc::retrieveObject ( const std::string &  parentPath, const std::string &  objPath, DataObject *&  pObject  )

override

Retrieve object from data store.

Retrieve object identified by its full path from the data store.

Definition at line 781 of file DataSvc.cpp.

                                                           {
  DataObject* parent = nullptr;
  StatusCode status = retrieveObject(parentPath, parent);
  return  status.isSuccess() ? retrieveObject (parent, objectPath, pObject)
                             : status;
}

StatusCode DataSvc::retrieveObject ( const std::string &  parentPath, int  item, DataObject *&  pObject  )

override

Retrieve object from data store.

Retrieve object identified by its full path from the data store.

Definition at line 791 of file DataSvc.cpp.

                                                           {
  return retrieveObject(parentPath, itemToPath(item), pObject);
}

StatusCode DataSvc::retrieveObject ( DataObject *  parentObj, const std::string &  objPath, DataObject *&  pObject  )

override

Retrieve object from data store.

Definition at line 798 of file DataSvc.cpp.

                                                          {
  IRegistry* pRegistry = (parentObj ?  parentObj->registry() : nullptr);
  return retrieveObject(pRegistry, path, pObject);
}

StatusCode DataSvc::retrieveObject ( DataObject *  parentObj, int  item, DataObject *&  pObject  )

override

Retrieve object from data store.

Retrieve registry entry from store.

Definition at line 806 of file DataSvc.cpp.

                                                          {
  return retrieveObject(parentObj, itemToPath(item), pObject);
}

CLID DataSvc::rootCLID ( ) const

override

IDataManagerSvc: Accessor for root event CLID.

CLID for root Event.

Definition at line 1198 of file DataSvc.cpp.

                             {
  return( (CLID)m_rootCLID );
}

const std::string & DataSvc::rootName ( ) const

override

IDataManagerSvc: Accessor for root event name.

Name for root Event.

Definition at line 1203 of file DataSvc.cpp.

                                         {
  return m_rootName;
}

StatusCode DataSvc::setDataLoader ( IConversionSvc *  svc, IDataProviderSvc *  dpsvc = nullptr  )

override

IDataManagerSvc: IDataManagerSvc: Pass a default data loader to the service and optionally a data provider.

IDataManagerSvc: Pass a default data loader to the service.

Definition at line 202 of file DataSvc.cpp.

                                                                                      {
  m_dataLoader = pDataLoader;
  if ( m_dataLoader ) m_dataLoader->setDataProvider(dpsvc ? dpsvc :this).ignore();
  return SUCCESS;
}

StatusCode DataSvc::setRoot ( std::string  root_path, DataObject *  pRootObj  )

override

Initialize data store for new event by giving new event path and root object.

Takes care to clear the store before reinitializing it

Definition at line 153 of file DataSvc.cpp.

                                                     {
  clearStore().ignore();
  return i_setRoot (std::move(root_path), pRootObj);
}

StatusCode DataSvc::setRoot ( std::string  root_path, IOpaqueAddress *  pRootAddr  )

override

Initialize data store for new event by giving new event path and address of root object.

Takes care to clear the store before reinitializing it

Definition at line 179 of file DataSvc.cpp.

                                                       {
  clearStore().ignore();
  return i_setRoot (std::move(root_path), pRootAddr);
}

StatusCode DataSvc::traverseSubTree ( const std::string &  sub_tree_path, IDataStoreAgent *  pAgent  )

override

IDataManagerSvc: Analyze by traversing all data objects below the sub tree identified by its full path name.

IDataManagerSvc: Analyse by traversing all data objects below the sub tree identified by its full path name.

Definition at line 126 of file DataSvc.cpp.

                                                               {
  DataObject* pO = nullptr;
  StatusCode status = findObject(sub_tree_path, pO);
  if ( status.isFailure() )   return status;
  return  traverseSubTree(pO, pAgent);
}

StatusCode DataSvc::traverseSubTree ( DataObject *  pObject, IDataStoreAgent *  pAgent  )

override

IDataManagerSvc: Analyze by traversing all data objects below the sub tree.

IDataManagerSvc: Analyse by traversing all data objects below the sub tree.

Definition at line 135 of file DataSvc.cpp.

                                                                 {
  if ( !checkRoot() )   return INVALID_ROOT;
  RegEntry* entry = CAST_REGENTRY(RegEntry*,pObject->registry());
  if ( !entry )         return INVALID_OBJECT;
  return entry->traverseTree(pAgent);
}

StatusCode DataSvc::traverseTree ( IDataStoreAgent *  pAgent )

override

IDataManagerSvc: Analyze by traversing all data objects in the data store.

IDataManagerSvc: Analyse by traversing all data objects in the data store.

Definition at line 144 of file DataSvc.cpp.

                                                          {
  if ( !checkRoot() )    return INVALID_ROOT;
  return m_root->traverseTree(pAgent);
}

StatusCode DataSvc::unlinkObject ( IRegistry *  from, const std::string &  objPath  )

override

Remove a link to another object.

Definition at line 1035 of file DataSvc.cpp.

                                                              {
  if ( checkRoot() )  {
    try   {
      RegEntry* from_entry = CAST_REGENTRY(RegEntry*,from);
      if ( from_entry )    {
        std::string::size_type sep = objPath.rfind(SEPARATOR);
        if ( sep > 0 && sep != std::string::npos )    {  // in case the objPath is a sub-directory itself
          DataObject* pO = nullptr;
          StatusCode sc = findObject(from, objPath.substr(0,sep), pO);
          if ( sc.isSuccess() )    {
            sc = unlinkObject(pO->registry(), objPath.substr(sep));
          }
          return sc;
        }
        StatusCode status = from_entry->remove( objPath );
        if ( status.isSuccess() )  return status;
        return INVALID_OBJ_PATH;
      }
    }
    catch (...)   {
    }
    return INVALID_PARENT;
  }
  return INVALID_ROOT;
}

StatusCode DataSvc::unlinkObject ( const std::string &  fromPath, const std::string &  objPath  )

override

Remove a link to another object.

Definition at line 1073 of file DataSvc.cpp.

                                                              {
  DataObject* pObject = nullptr;
  StatusCode status = findObject(from, pObject);
  return status.isSuccess() ? unlinkObject(pObject->registry(), objPath)
                            : status;
}

StatusCode DataSvc::unlinkObject ( DataObject *  fromObj, const std::string &  objPath  )

override

Remove a link to another object.

Definition at line 1082 of file DataSvc.cpp.

                                                              {
  if ( !checkRoot() )  return INVALID_ROOT;
  IRegistry* from_entry = m_root->findLeaf(from);
  return unlinkObject(from_entry, objPath);
}

StatusCode DataSvc::unlinkObject ( const std::string &  fullPath )

override

Remove a link to another object.

Definition at line 1063 of file DataSvc.cpp.

                                                             {
  if ( fullPath.empty() )    return INVALID_OBJ_PATH;
  if ( fullPath.front() != SEPARATOR )   {
    return unlinkObject(m_rootName, fullPath);
  }
  auto sep = fullPath.rfind(SEPARATOR);
  return unlinkObject(fullPath.substr(0,sep), fullPath.substr(sep));
}

StatusCode DataSvc::unregisterAddress ( const std::string &  fullPath )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 307 of file DataSvc.cpp.

                                                                  {
  if ( fullPath.empty() )  return INVALID_OBJ_PATH;
  return unregisterAddress( fullPath.front() != SEPARATOR ? m_root  :  nullptr,
                            fullPath );
}

StatusCode DataSvc::unregisterAddress ( DataObject *  pParent, const std::string &  objPath  )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 314 of file DataSvc.cpp.

                                                                  {
  return unregisterAddress( pParent ? pParent->registry() : nullptr,
                            objPath);
}

StatusCode DataSvc::unregisterAddress ( IRegistry *  pParent, const std::string &  objPath  )

override

IDataManagerSvc: Unregister object address from the data store.

Definition at line 321 of file DataSvc.cpp.

                                                                  {
  if ( !checkRoot() )  return INVALID_ROOT;
  if ( objPath.empty() )   return INVALID_OBJ_PATH;

  if ( !pParent )   {
    if ( objPath.front() != SEPARATOR )    {
      return unregisterAddress(m_root, objPath);
    }
    std::string::size_type sep = objPath.find(SEPARATOR,1);
    if ( sep != std::string::npos &&
         objPath.compare( 0, sep, m_rootName) == 0 )   {
        return unregisterAddress(m_root, objPath.substr(sep));
    }
    return INVALID_PARENT;
  }
  if ( objPath.front() != SEPARATOR )    {
    return unregisterAddress(pParent, char(SEPARATOR)+objPath);
  }
  RegEntry* node_entry = CAST_REGENTRY(RegEntry*,pParent);
  if ( node_entry )   {
    RegEntry* leaf_entry = node_entry->findLeaf(objPath);
    if ( leaf_entry )    {
      std::string::size_type sep = objPath.rfind(SEPARATOR);
      if ( sep > 0 && sep != std::string::npos )    {
        return unregisterAddress(leaf_entry->parent(), objPath.substr(sep));
      }
      StatusCode status = node_entry->remove(objPath);
      if ( status.isSuccess() )   return status;
    }
  }
  return INVALID_PARENT;
}

StatusCode DataSvc::unregisterObject ( const std::string &  fullPath )

override

Unregister object from the data store.

Definition at line 471 of file DataSvc.cpp.

                                                                {
  DataObject* pObject = nullptr;
  StatusCode status = findObject(fullPath, pObject);
  if ( status.isFailure() )    return status;
  RegEntry* pEntry = CAST_REGENTRY(RegEntry*,pObject->registry());
  if ( !pEntry )    return INVALID_ROOT;
  if ( !pEntry->isEmpty() )    return DIR_NOT_EMPTY;
  RegEntry* pParent = pEntry->parentEntry();
  if ( !pParent )   return INVALID_PARENT;
  if ( pObject )    pObject->addRef();
  pParent->remove(pEntry);
  return StatusCode::SUCCESS;
}

StatusCode DataSvc::unregisterObject ( const std::string &  parentPath, const std::string &  objectPath  )

override

Unregister object from the data store.

Definition at line 486 of file DataSvc.cpp.

                                                                 {
  DataObject* pO = nullptr;
  StatusCode status = findObject(parentPath, pO);
  return status.isSuccess() ?  unregisterObject(pO, objPath) : status;
}

StatusCode DataSvc::unregisterObject ( const std::string &  parentPath, int  item  )

override

Unregister object from the data store.

Definition at line 494 of file DataSvc.cpp.

                                                                          {
  return unregisterObject(parentPath, itemToPath(item));
}

StatusCode DataSvc::unregisterObject ( DataObject *  pObject )

override

Unregister object from the data store.

Definition at line 499 of file DataSvc.cpp.

                                                           {
  if ( !checkRoot() )  return INVALID_ROOT;
  RegEntry* entry = m_root->findLeaf(pObject);
  if ( !entry )   return INVALID_OBJECT;
  RegEntry* parent = entry->parentEntry();
  if ( !parent )     return INVALID_PARENT;
  if ( !entry->isEmpty() )   return DIR_NOT_EMPTY;
  if ( entry->object() ) entry->object()->addRef();
  if ( parent )  parent->remove(entry);
  return SUCCESS;
}

StatusCode DataSvc::unregisterObject ( DataObject *  pObject, const std::string &  objectPath  )

override

Unregister object from the data store.

Definition at line 512 of file DataSvc.cpp.

                                                                   {
  if ( checkRoot() )  {
    try   {
      RegEntry* parent = CAST_REGENTRY(RegEntry*,pParentObj->registry());
      if ( parent )   {
        RegEntry* entry = parent->findLeaf(objectPath);
        if ( entry )   {
          if ( entry->isEmpty() )    {
            if ( entry->object() )    {
              entry->object()->addRef();
            }
            parent->remove(entry);
            return SUCCESS;
          }
          return DIR_NOT_EMPTY;
        }
        return INVALID_OBJECT;
      }
    }
    catch(...) {
    }
    return INVALID_PARENT;
  }
  return INVALID_ROOT;
}

StatusCode DataSvc::unregisterObject ( DataObject *  pObject, int  item  )

override

Unregister object from the data store.

Definition at line 540 of file DataSvc.cpp.

                                                                        {
  return unregisterObject(pParentObj, itemToPath(item));
}

StatusCode DataSvc::updateObject ( IRegistry *  pDirectory )

override

Update object identified by its directory entry.

Update object.

Definition at line 884 of file DataSvc.cpp.

                                                        {
  if ( !pRegistry )  {                     // Precondition:
    return INVALID_OBJ_ADDR;               // Addres must be valid
  }
  DataObject* toUpdate = pRegistry->object();
  if ( !toUpdate )  {                      // Try first to load
    return loadObject(pRegistry);
  }
  return updateObject(toUpdate);
}

StatusCode DataSvc::updateObject ( const std::string &  updatePath )

override

Update object.

Definition at line 876 of file DataSvc.cpp.

                                                              {
  DataObject* pO = nullptr;
  StatusCode status = findObject(updatePath, pO);
  return  status.isSuccess() ? updateObject(pO)
                             : retrieveObject(updatePath, pO);
}

StatusCode DataSvc::updateObject ( DataObject *  toUpdate )

override

Update object.

Definition at line 896 of file DataSvc.cpp.

                                                        {
  StatusCode status = INVALID_OBJ_ADDR;
  if ( !toUpdate )  {                          // Precondition:
    return INVALID_OBJECT;                     // Address must be valid
  }
  IRegistry* pRegistry = toUpdate->registry(); // Precondition:
  if ( !pRegistry )    {                       // Need valid registry
    return INVALID_OBJECT;
  }
  IOpaqueAddress* pAddress = pRegistry->address(); // Precondition:
  if ( !pAddress )    {                            // Need valid address
    return INVALID_OBJ_ADDR;
  }
  IConversionSvc* pLoader = getDataLoader(pRegistry);
  if ( !pLoader )   {                          // Precondition:
    return NO_DATA_LOADER;                     // Data loader must be present
  }
  if ( !m_inhibitPathes.empty() )   {
    auto inhibit = std::find( m_inhibitPathes.begin(), m_inhibitPathes.end(),
                              pRegistry->identifier());
    if ( inhibit != m_inhibitPathes.end() )   {
      return NO_ACCESS;
    }
  }
  try   {
    status = pLoader->updateObj(pAddress, toUpdate);  // Call data loader
    if ( status.isSuccess() )   {
      status = pLoader->updateObjRefs(pAddress, toUpdate);
    }
  }
  catch( const GaudiException& exc ) {
    throw GaudiException("GaudiException in updateObject() " +
                         pRegistry->name(),
                         name(),
                         StatusCode::FAILURE, exc);
  }
  catch( const std::exception& x) {
    throw GaudiException("std::exception in updateObject() " +
                         pRegistry->name() + ": " +
                         System::typeinfoName(typeid(x)) + ", " +
                         x.what(),
                         name(), StatusCode::FAILURE);
  }
  catch(...) {
    throw GaudiException("UNKN exception in updateObject() " +
                         pRegistry->name(),
      name(), StatusCode::FAILURE);
  }
  return status;
}

StatusCode DataSvc::updateObject ( const std::string &  parentPath, const std::string &  updatePath  )

override

Update object.

Definition at line 948 of file DataSvc.cpp.

                                                                 {
  DataObject* pParent = nullptr;
  StatusCode status = findObject(parentPath, pParent);
  return status.isSuccess() ? updateObject( pParent, updatePath)
                            : status;
}

StatusCode DataSvc::updateObject ( DataObject *  pParent, const std::string &  updatePath  )

override

Update object.

Definition at line 957 of file DataSvc.cpp.

                                                                {
  DataObject* pObject = nullptr;
  StatusCode status = findObject(parent, updatePath, pObject);
  return status.isSuccess() ? updateObject(pObject)
                            : status;
}

Member Data Documentation

Gaudi::Property<std::string> DataSvc::m_accessName {this, "DataAccessName", "DataAccess", "Name of the data access incident"}

protected

Definition at line 67 of file DataSvc.h.

SmartIF<IConversionSvc> DataSvc::m_dataLoader = nullptr

protected

Pointer to data loader service.

Definition at line 52 of file DataSvc.h.

Gaudi::Property<bool> DataSvc::m_enableAccessHdlr

protected

Initial value:

{this, "EnableAccessHandler", false,
                                           "enable incidents on data access requests"}

Definition at line 65 of file DataSvc.h.

Gaudi::Property<bool> DataSvc::m_enableFaultHdlr

protected

Initial value:

{this, "EnableFaultHandler", false,
                                          "enable incidents on data creation requests"}

Definition at line 61 of file DataSvc.h.

Gaudi::Property<std::string> DataSvc::m_faultName {this, "DataFaultName", "DataFault", "Name of the data fault incident"}

protected

Definition at line 63 of file DataSvc.h.

Gaudi::Property<bool> DataSvc::m_forceLeaves {this, "ForceLeaves", false, "force creation of default leaves on registerObject"}

protected

Definition at line 58 of file DataSvc.h.

SmartIF<IIncidentSvc> DataSvc::m_incidentSvc = nullptr

protected

Pointer to incident service.

Definition at line 54 of file DataSvc.h.

DataSvcHelpers::InhibitMap* DataSvc::m_inhibitMap = nullptr

protected

Map with object paths to be inhibited from loading.

Definition at line 74 of file DataSvc.h.

Gaudi::Property<std::vector<std::string> > DataSvc::m_inhibitPathes {this, "InhibitPathes", {}, "inhibited leaves"}

protected

Definition at line 59 of file DataSvc.h.

LoadItems DataSvc::m_preLoads

protected

Items to be pre-loaded.

Definition at line 70 of file DataSvc.h.

DataSvcHelpers::RegistryEntry* DataSvc::m_root = nullptr

protected

Pointer to root entry.

Definition at line 72 of file DataSvc.h.

Gaudi::Property<CLID> DataSvc::m_rootCLID {this, "RootCLID", 110 , "CLID of root entry"}

protected

Definition at line 56 of file DataSvc.h.

Gaudi::Property<std::string> DataSvc::m_rootName {this, "RootName", "/Event", "name of root entry"}

protected

Definition at line 57 of file DataSvc.h.

---

The documentation for this class was generated from the following files:

• GaudiKernel/GaudiKernel/DataSvc.h
• GaudiKernel/src/Lib/DataSvc.cpp
