The Gaudi Framework  v29r3 (fa547fc2)
Public Member Functions | Public Attributes | List of all members
precedence::AlgoProps Struct Reference

#include <src/PrecedenceRulesGraph.h>

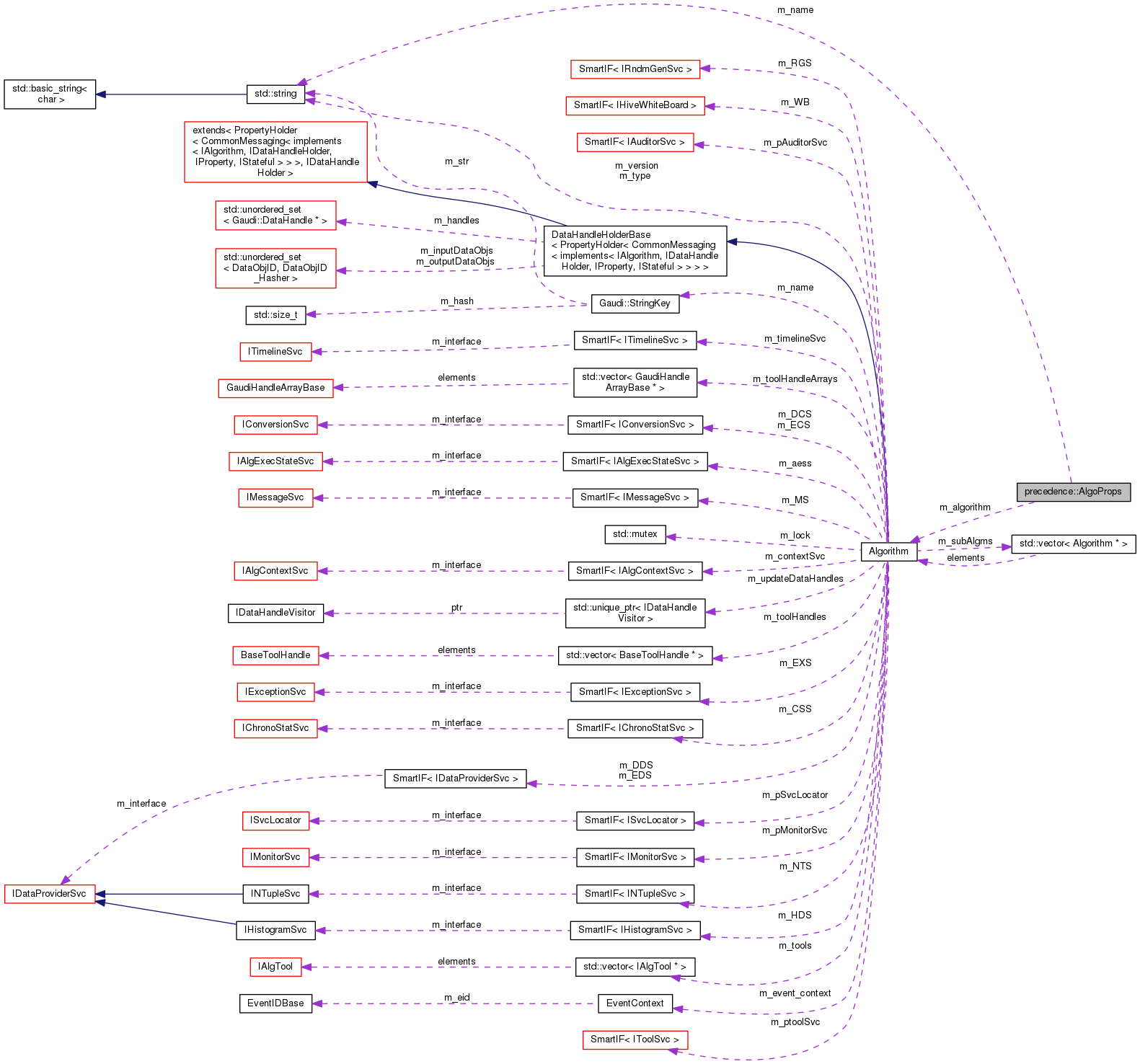

Collaboration diagram for precedence::AlgoProps:
Collaboration graph
[legend]

Public Member Functions

 AlgoProps ()

 AlgoProps (Algorithm *algo, uint nodeIndex, uint algoIndex, bool inverted, bool allPass)


Public Attributes

std::string m_name {""}

int m_nodeIndex {-1}

int m_algoIndex {-1}

int m_rank {-1}

Algorithm * m_algorithm {nullptr}
 Algorithm representative behind the AlgorithmNode. More...

bool m_inverted {false}
 Whether the selection result is negated or not. More...

bool m_allPass {false}
 Whether the selection result is relevant or always "pass". More...

bool m_isIOBound {false}
 If an algorithm is blocking. More...


Detailed Description

Definition at line 47 of file PrecedenceRulesGraph.h.

Constructor & Destructor Documentation

precedence::AlgoProps::AlgoProps ( )
inline

Definition at line 48 of file PrecedenceRulesGraph.h.

48 {}
precedence::AlgoProps::AlgoProps ( Algorithm *  algo,
uint  nodeIndex,
uint  algoIndex,
bool  inverted,
bool  allPass
)
inline

Definition at line 49 of file PrecedenceRulesGraph.h.

50  : m_name( algo->name() )
51  , m_nodeIndex( nodeIndex )
52  , m_algoIndex( algoIndex )
53  , m_algorithm( algo )
54  , m_inverted( inverted )
55  , m_allPass( allPass )
56  , m_isIOBound( algo->isIOBound() )
57  {
58  }
Algorithm::name
const std::string & name() const override
The identifying name of the algorithm object.
Definition: Algorithm.cpp:731
precedence::AlgoProps::m_isIOBound
bool m_isIOBound
If an algorithm is blocking.
Definition: PrecedenceRulesGraph.h:72
precedence::AlgoProps::m_algorithm
Algorithm * m_algorithm
Algorithm representative behind the AlgorithmNode.
Definition: PrecedenceRulesGraph.h:65
precedence::AlgoProps::m_allPass
bool m_allPass
Whether the selection result is relevant or always "pass".
Definition: PrecedenceRulesGraph.h:70
precedence::AlgoProps::m_inverted
bool m_inverted
Whether the selection result is negated or not.
Definition: PrecedenceRulesGraph.h:68
Algorithm::isIOBound
bool isIOBound() const
Definition: Algorithm.h:474

Member Data Documentation

int precedence::AlgoProps::m_algoIndex {-1}

Definition at line 62 of file PrecedenceRulesGraph.h.

Algorithm* precedence::AlgoProps::m_algorithm {nullptr}

Algorithm representative behind the AlgorithmNode.

Definition at line 65 of file PrecedenceRulesGraph.h.

bool precedence::AlgoProps::m_allPass {false}

Whether the selection result is relevant or always "pass".

Definition at line 70 of file PrecedenceRulesGraph.h.

bool precedence::AlgoProps::m_inverted {false}

Whether the selection result is negated or not.

Definition at line 68 of file PrecedenceRulesGraph.h.

bool precedence::AlgoProps::m_isIOBound {false}

If an algorithm is blocking.

Definition at line 72 of file PrecedenceRulesGraph.h.

std::string precedence::AlgoProps::m_name {""}

Definition at line 60 of file PrecedenceRulesGraph.h.

int precedence::AlgoProps::m_nodeIndex {-1}

Definition at line 61 of file PrecedenceRulesGraph.h.

int precedence::AlgoProps::m_rank {-1}

Definition at line 63 of file PrecedenceRulesGraph.h.

The documentation for this struct was generated from the following file:
