Algorithm Class Reference

Base class from which all concrete algorithm classes should be derived. More...

#include <GaudiKernel/Algorithm.h>

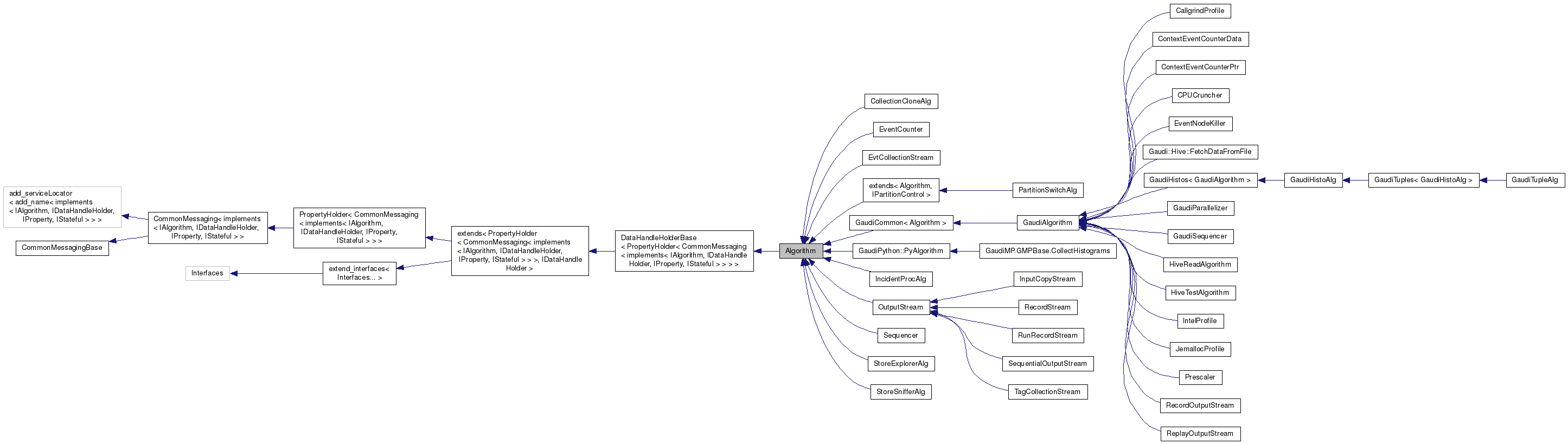

Inheritance diagram for Algorithm:

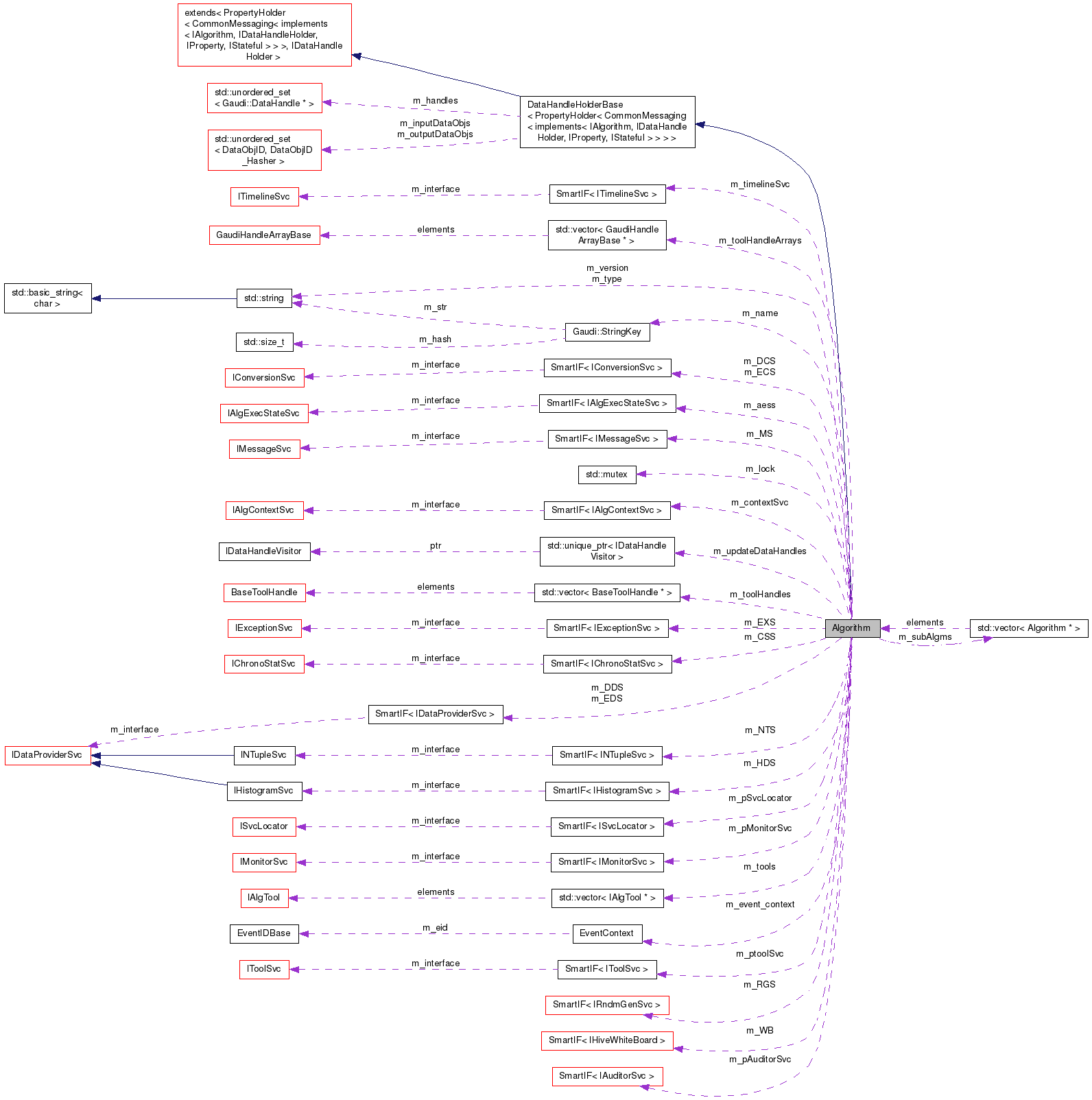

Collaboration diagram for Algorithm:

Public Types

typedef Gaudi::PluginService::Factory< IAlgorithm *, const std::string &, ISvcLocator * > Factory

- Public Types inherited from extends< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >, IDataHandleHolder >
using base_class = extends
 Typedef to this class. More...

using extend_interfaces_base = extend_interfaces< Interfaces... >
 Typedef to the base of this class. More...

- Public Types inherited from PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
using PropertyHolderImpl = PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
 Typedef used to refer to this class from derived classes, as in. More...

- Public Types inherited from CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > >
using base_class = CommonMessaging

- Public Types inherited from extend_interfaces< Interfaces... >
using ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
 take union of the ext_iids of all Interfaces... More...


Public Member Functions

 Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
 Constructor. More...

StatusCode sysStart () override
 Reinitialization method invoked by the framework. More...

StatusCode sysInitialize () override
 Initialization method invoked by the framework. More...

StatusCode sysReinitialize () override
 Reinitialization method invoked by the framework. More...

StatusCode sysRestart () override
 Restart method invoked by the framework. More...

StatusCode sysExecute (const EventContext &ctx) override
 The actions to be performed by the algorithm on an event. More...

StatusCode sysStop () override
 System stop. More...

StatusCode sysFinalize () override
 System finalization. More...

StatusCode sysBeginRun () override
 beginRun method invoked by the framework. More...

StatusCode sysEndRun () override
 endRun method invoked by the framework. More...

const std::stringname () const override
 The identifying name of the algorithm object. More...

const Gaudi::StringKeynameKey () const override

const std::stringtype () const override
 The type of the algorithm object. More...

void setType (const std::string &type) override

const std::stringversion () const override

unsigned int index () const override

StatusCode configure () override
 Dummy implementation of IStateful::configure() method. More...

StatusCode terminate () override
 Dummy implementation of IStateful::terminate() method. More...

StatusCode initialize () override
 the default (empty) implementation of IStateful::initialize() method More...

StatusCode start () override
 the default (empty) implementation of IStateful::start() method More...

StatusCode stop () override
 the default (empty) implementation of IStateful::stop() method More...

StatusCode finalize () override
 the default (empty) implementation of IStateful::finalize() method More...

StatusCode reinitialize () override
 the default (empty) implementation of IStateful::reinitialize() method More...

StatusCode restart () override
 the default (empty) implementation of IStateful::restart() method More...

Gaudi::StateMachine::State FSMState () const override
 returns the current state of the algorithm More...

Gaudi::StateMachine::State targetFSMState () const override
 returns the state the algorithm will be in after the ongoing transition More...

bool isExecuted () const override
 Has this algorithm been executed since the last reset? More...

void setExecuted (bool state) const override
 Set the executed flag to the specified state. More...

void resetExecuted () override
 Reset the executed state of the Algorithm for the duration of the current event. More...

StatusCode beginRun () override
 Algorithm begin run. More...

StatusCode endRun () override
 Algorithm end run. This method is called at the end of the event loop. More...

bool isEnabled () const override
 Is this algorithm enabled or disabled? More...

bool isSequence () const override
 Are we a Sequence? More...

bool filterPassed () const override
 Did this algorithm pass or fail its filter criterion for the last event? More...

void setFilterPassed (bool state) const override
 Set the filter passed flag to the specified state. More...

unsigned int errorCount () const
 Get the number of failures of the algorithm. More...

template<class T >
StatusCode service (const std::string &name, T *&psvc, bool createIf=true) const
 Access a service by name, creating it if it doesn't already exist. More...

template<class T >
StatusCode service (const std::string &svcType, const std::string &svcName, T *&psvc) const
 Access a service by name and type, creating it if it doesn't already exist. More...

SmartIF< IServiceservice (const std::string &name, const bool createIf=true, const bool quiet=false) const
 Return a pointer to the service identified by name (or "type/name") More...

template<class T >
SmartIF< T > service (const std::string &name, bool createIf=true, bool quiet=false) const

SmartIF< IAuditorSvc > & auditorSvc () const
 The standard auditor service.May not be invoked before sysInitialize() has been invoked. More...

SmartIF< IChronoStatSvc > & chronoSvc () const
 The standard Chrono & Stat service, Return a pointer to the service if present. More...

SmartIF< IChronoStatSvc > & chronoStatService () const

SmartIF< IDataProviderSvc > & detSvc () const
 The standard detector data service. More...

SmartIF< IDataProviderSvc > & detDataService () const

SmartIF< IConversionSvc > & detCnvSvc () const
 The standard detector data persistency conversion service. More...

SmartIF< IConversionSvc > & detDataCnvService () const

SmartIF< IDataProviderSvc > & eventSvc () const
 The standard event data service. More...

SmartIF< IDataProviderSvc > & evtSvc () const
 shortcut for method eventSvc More...

SmartIF< IDataProviderSvc > & eventDataService () const

SmartIF< IConversionSvc > & eventCnvSvc () const
 The standard event data persistency conversion service. More...

SmartIF< IConversionSvc > & eventDataCnvService () const

SmartIF< IHistogramSvc > & histoSvc () const
 The standard histogram service. More...

SmartIF< IHistogramSvc > & histogramDataService () const

SmartIF< INTupleSvc > & ntupleSvc () const
 The standard N tuple service. More...

SmartIF< INTupleSvc > & ntupleService () const

SmartIF< IRndmGenSvc > & randSvc () const
 The standard RandomGen service, Return a pointer to the service if present. More...

SmartIF< IToolSvc > & toolSvc () const
 The standard ToolSvc service, Return a pointer to the service if present. More...

SmartIF< IExceptionSvc > & exceptionSvc () const
 Get the exception Service. More...

SmartIF< IAlgContextSvc > & contextSvc () const
 get Algorithm Context Service More...

SmartIF< ITimelineSvc > & timelineSvc () const

SmartIF< ISvcLocator > & serviceLocator () const override
 The standard service locator. More...

SmartIF< ISvcLocator > & svcLoc () const
 shortcut for method serviceLocator More...

SmartIF< IHiveWhiteBoard > & whiteboard () const

SmartIF< IAlgExecStateSvc > & algExecStateSvc () const

bool registerContext () const
 register for Algorithm Context Service? More...

StatusCode createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
 Create a sub algorithm. More...

const std::vector< Algorithm * > * subAlgorithms () const
 List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...

std::vector< Algorithm * > * subAlgorithms ()
 List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...

StatusCode setProperties ()
 Set the algorithm's properties. More...

template<class T >
Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, ToolHandle< T > &hndl, const std::string &doc="none")

template<class T >
Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, ToolHandleArray< T > &hndlArr, const std::string &doc="none")

SmartIF< IMonitorSvc > & monitorSvc () const
 Access the monitor service. More...

template<class T >
void declareInfo (const std::string &name, const T &var, const std::string &desc) const
 Declare monitoring information. More...

void declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
 Declare monitoring information (special case) More...

const EventContextgetContext () const override
 get the context More...

virtual void acceptDHVisitor (IDataHandleVisitor *) const override

void commitHandles () override

void registerTool (IAlgTool *tool) const

void deregisterTool (IAlgTool *tool) const

template<class T >
StatusCode declareTool (ToolHandle< T > &handle, std::string toolTypeAndName, bool createIf=true)

template<class T >
void addToolsArray (ToolHandleArray< T > &hndlArr)

const std::vector< IAlgTool * > & tools () const

bool isIOBound () const

void setIOBound (bool value)

unsigned int cardinality () const override
 Return the cardinality. More...

const std::vector< std::string > & neededResources () const override

std::ostreamtoControlFlowExpression (std::ostream &os) const override
 Produce string represention of the control flow expression. More...

- Public Member Functions inherited from DataHandleHolderBase< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > > >
std::vector< Gaudi::DataHandle * > inputHandles () const override

std::vector< Gaudi::DataHandle * > outputHandles () const override

virtual const DataObjIDCollextraInputDeps () const override

virtual const DataObjIDCollextraOutputDeps () const override

void declare (Gaudi::DataHandle &handle) override

void renounce (Gaudi::DataHandle &handle) override

const DataObjIDCollinputDataObjs () const override

const DataObjIDColloutputDataObjs () const override

void addDependency (const DataObjID &id, const Gaudi::DataHandle::Mode &mode) override

- Public Member Functions inherited from extends< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >, IDataHandleHolder >
void * i_cast (const InterfaceID &tid) const override
 Implementation of IInterface::i_cast. More...

StatusCode queryInterface (const InterfaceID &ti, void **pp) override
 Implementation of IInterface::queryInterface. More...

std::vector< std::stringgetInterfaceNames () const override
 Implementation of IInterface::getInterfaceNames. More...

 ~extends () override=default
 Virtual destructor. More...

- Public Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
 PropertyHolder ()=default

 ~PropertyHolder () override=default

Gaudi::Details::PropertyBasedeclareProperty (Gaudi::Details::PropertyBase &prop)
 Declare a property. More...

Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, TYPE &value, const std::string &doc="none")
 Helper to wrap a regular data member and use it as a regular property. More...

Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, TYPE &value, const std::string &doc="none") const

Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, Gaudi::Property< TYPE, VERIFIER, HANDLERS > &prop, const std::string &doc="none")
 Declare a PropertyBase instance setting name and documentation. More...

Gaudi::Details::PropertyBasedeclareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="")
 Declare a remote property. More...

StatusCode setProperty (const Gaudi::Details::PropertyBase &p) override
 set the property form another property More...

StatusCode setProperty (const std::string &s) override
 set the property from the formatted string More...

StatusCode setProperty (const std::string &n, const std::string &v) override
 set the property from name and the value More...

StatusCode setProperty (const std::string &name, const TYPE &value)
 set the property form the value More...

StatusCode getProperty (Gaudi::Details::PropertyBase *p) const override
 get the property More...

const Gaudi::Details::PropertyBasegetProperty (const std::string &name) const override
 get the property by name More...

StatusCode getProperty (const std::string &n, std::string &v) const override
 convert the property to the string More...

const std::vector< Gaudi::Details::PropertyBase * > & getProperties () const override
 get all properties More...

bool hasProperty (const std::string &name) const override
 Return true if we have a property with the given name. More...

 PropertyHolder (const PropertyHolder &)=delete

PropertyHolderoperator= (const PropertyHolder &)=delete

Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, GaudiHandleBase &ref, const std::string &doc="none")
 Specializations for various GaudiHandles. More...

Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, GaudiHandleArrayBase &ref, const std::string &doc="none")

Gaudi::Details::PropertyBasedeclareProperty (const std::string &name, DataObjectHandleBase &ref, const std::string &doc="none")

- Public Member Functions inherited from CommonMessagingBase
virtual ~CommonMessagingBase ()=default
 Virtual destructor. More...

const SmartIF< IMessageSvc > & msgSvc () const
 The standard message service. More...

MsgStreammsgStream () const
 Return an uninitialized MsgStream. More...

MsgStreammsgStream (const MSG::Level level) const
 Predefined configurable message stream for the efficient printouts. More...

MsgStreamalways () const
 shortcut for the method msgStream(MSG::ALWAYS) More...

MsgStreamfatal () const
 shortcut for the method msgStream(MSG::FATAL) More...

MsgStreamerr () const
 shortcut for the method msgStream(MSG::ERROR) More...

MsgStreamerror () const
 shortcut for the method msgStream(MSG::ERROR) More...

MsgStreamwarning () const
 shortcut for the method msgStream(MSG::WARNING) More...

MsgStreaminfo () const
 shortcut for the method msgStream(MSG::INFO) More...

MsgStreamdebug () const
 shortcut for the method msgStream(MSG::DEBUG) More...

MsgStreamverbose () const
 shortcut for the method msgStream(MSG::VERBOSE) More...

MsgStreammsg () const
 shortcut for the method msgStream(MSG::INFO) More...

MSG::Level msgLevel () const
 get the cached level (originally extracted from the embedded MsgStream) More...

MSG::Level outputLevel () const __attribute__((deprecated))
 Backward compatibility function for getting the output level. More...

bool msgLevel (MSG::Level lvl) const
 get the output level from the embedded MsgStream More...

- Public Member Functions inherited from extend_interfaces< Interfaces... >
 ~extend_interfaces () override=default
 Virtual destructor. More...


Public Attributes

friend AlgorithmManager


Protected Member Functions

std::vector< IAlgTool * > & tools ()

bool isInitialized () const override
 Has the Algorithm already been initialized? More...

bool isFinalized () const override
 Has the Algorithm already been finalized? More...

void setIndex (const unsigned int &idx) override
 set instantiation index of Alg More...

- Protected Member Functions inherited from DataHandleHolderBase< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > > >
void initDataHandleHolder ()
 initializes all handles - called by the sysInitialize method of any descendant of this More...

- Protected Member Functions inherited from PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > >
Gaudi::Details::PropertyBaseproperty (const std::string &name) const

- Protected Member Functions inherited from CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > >
MSG::Level setUpMessaging ()
 Set up local caches. More...

MSG::Level resetMessaging ()
 Reinitialize internal states. More...

void updateMsgStreamOutputLevel (int level)
 Update the output level of the cached MsgStream. More...


Protected Attributes

std::unique_ptr< IDataHandleVisitorm_updateDataHandles
 Hook for for derived classes to provide a custom visitor for data handles. More...

- Protected Attributes inherited from DataHandleHolderBase< PropertyHolder< CommonMessaging< implements< IAlgorithm, IDataHandleHolder, IProperty, IStateful > > > >
DataObjIDColl m_inputDataObjs

DataObjIDColl m_outputDataObjs


Private Member Functions

void initToolHandles () const

unsigned int maxErrors () const

template<typename IFace >
SmartIF< IFace > & get_svc_ (SmartIF< IFace > &p, const char *service_name) const

StatusCode service_i (const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
 implementation of service method More...

StatusCode service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppSvc) const

 Algorithm (const Algorithm &a)
 Private Copy constructor: NO COPY ALLOWED. More...

Algorithmoperator= (const Algorithm &rhs)
 Private assignment operator: NO ASSIGNMENT ALLOWED. More...


Private Attributes

Gaudi::StringKey m_name
 Algorithm's name for identification. More...

std::string m_type
 Algorithm's type. More...

std::string m_version
 Algorithm's version. More...

unsigned int m_index
 Algorithm's index. More...

EventContext m_event_context

std::vector< Algorithm * > m_subAlgms
 Sub algorithms. More...

std::vector< IAlgTool * > m_tools

std::vector< BaseToolHandle * > m_toolHandles

std::vector< GaudiHandleArrayBase * > m_toolHandleArrays

SmartIF< IMessageSvcm_MS
 Message service. More...

SmartIF< IDataProviderSvcm_EDS
 Event data service. More...

SmartIF< IHiveWhiteBoardm_WB
 Event data service (whiteboard) More...

SmartIF< IConversionSvcm_ECS
 Event conversion service. More...

SmartIF< IDataProviderSvcm_DDS
 Detector data service. More...

SmartIF< IConversionSvcm_DCS
 Detector conversion service. More...

SmartIF< IHistogramSvcm_HDS
 Histogram data service. More...

SmartIF< INTupleSvcm_NTS
 N tuple service. More...

SmartIF< IChronoStatSvcm_CSS
 Chrono & Stat Service. More...

SmartIF< IRndmGenSvcm_RGS
 Random Number Generator Service. More...

SmartIF< IExceptionSvcm_EXS
 Exception Handler Service. More...

SmartIF< IAuditorSvcm_pAuditorSvc
 Auditor Service. More...

SmartIF< IToolSvcm_ptoolSvc
 ToolSvc Service. More...

SmartIF< IMonitorSvcm_pMonitorSvc
 Online Monitoring Service. More...

SmartIF< IAlgContextSvcm_contextSvc
 Algorithm Context Service. More...

SmartIF< ITimelineSvcm_timelineSvc
 Timeline Service. More...

SmartIF< IAlgExecStateSvcm_aess
 Alg execution state mgr. More...

SmartIF< ISvcLocatorm_pSvcLocator
 Pointer to service locator service. More...

Gaudi::Property< int > m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}

Gaudi::Property< bool > m_isEnabled {this, "Enable", true, "should the algorithm be executed or not"}

Gaudi::Property< unsigned int > m_errorMax {this, "ErrorMax", 1, "[[deprecated]] max number of errors"}

Gaudi::Property< bool > m_auditInit {this, "AuditAlgorithms", false, "[[deprecated]] unused"}

Gaudi::Property< bool > m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}

Gaudi::Property< bool > m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}

Gaudi::Property< bool > m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}

Gaudi::Property< bool > m_auditorExecute {this, "AuditExecute", false, "trigger auditor on execute()"}

Gaudi::Property< bool > m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}

Gaudi::Property< bool > m_auditorBeginRun {this, "AuditBeginRun", false, "trigger auditor on beginRun()"}

Gaudi::Property< bool > m_auditorEndRun {this, "AuditEndRun", false, "trigger auditor on endRun()"}

Gaudi::Property< bool > m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}

Gaudi::Property< bool > m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}

Gaudi::Property< bool > m_doTimeline {this, "Timeline", true, "send events to TimelineSvc"}

Gaudi::Property< std::stringm_monitorSvcName

Gaudi::Property< bool > m_registerContext

Gaudi::Property< int > m_cardinality {this, "Cardinality", 1, "how many clones to create - 0 means algo is reentrant"}

Gaudi::Property< std::vector< std::string > > m_neededResources

Gaudi::Property< bool > m_isIOBound

Gaudi::Property< bool > m_filterCircDeps

std::mutex m_lock
 for re-entrant Algs More...

bool m_filterPassed = true
 Filter passed flag. More...

bool m_isExecuted = false
 Algorithm is executed flag. More...

bool m_toolHandlesInit = false

Gaudi::StateMachine::State m_state = Gaudi::StateMachine::CONFIGURED
 flag indicating whether ToolHandle tools have been added to m_tools More...

Gaudi::StateMachine::State m_targetState = Gaudi::StateMachine::CONFIGURED
 Algorithm has been initialized flag. More...

bool m_isFinalized
 Algorithm has been finalized flag. More...


Detailed Description

Base class from which all concrete algorithm classes should be derived.

In order for a concrete algorithm class to do anything useful the methods initialize(), execute() and finalize() should be overridden.

The base class provides utility methods for accessing standard services (event data service etc.); for declaring properties which may be configured by the job options service; and for creating sub algorithms. The only base class functionality which may be used in the constructor of a concrete algorithm is the declaration of member variables as properties. All other functionality, i.e. the use of services and the creation of sub-algorithms, may be used only in initialize() and afterwards (see the Gaudi user guide).

Author
Paul Maley
Pere Mato
David Quarrie
Date
1998

Definition at line 79 of file Algorithm.h.

Member Typedef Documentation

Constructor & Destructor Documentation

Algorithm::Algorithm ( const std::string name,
ISvcLocator svcloc,
const std::string version = PACKAGE_VERSION
)

Constructor.

Parameters
nameThe algorithm object's name
svclocA pointer to a service location service

Definition at line 47 of file Algorithm.cpp.

55  {
56  PyErr_Print();
57  } else if ( PyLong_Check( c ) ) {
58  sc = PyLong_AsLong( c );
59  } else {
60  std::string msg( " call_python_method unexpected type from '" );
61  msg += method;
62  msg += "().getCode()' ";
63  PyErr_SetString( PyExc_TypeError, msg.c_str() );
64  PyErr_Print();
65  }
66  // release used objects
67  Py_XDECREF( c );
68  Py_XDECREF( r );
69  //
70  return sc;
71 }
72 // ============================================================================
73
74 // ============================================================================
MsgStream & msg() const
shortcut for the method msgStream(MSG::INFO)
STL class.
Algorithm::Algorithm ( const Algorithm a)
private

Private Copy constructor: NO COPY ALLOWED.

Member Function Documentation

void Algorithm::acceptDHVisitor ( IDataHandleVisitor vis) const
overridevirtual

Definition at line 237 of file Algorithm.cpp.

template<class T >
void Algorithm::addToolsArray ( ToolHandleArray< T > &  hndlArr)
inline

Definition at line 466 of file Algorithm.h.

467  {
468  m_toolHandleArrays.push_back( &hndlArr );
469  }
std::vector< GaudiHandleArrayBase * > m_toolHandleArrays
Definition: Algorithm.h:525
T push_back(T...args)
SmartIF< IAlgExecStateSvc > & Algorithm::algExecStateSvc ( ) const

Definition at line 799 of file Algorithm.cpp.

SmartIF< IAuditorSvc > & Algorithm::auditorSvc ( ) const

The standard auditor service.May not be invoked before sysInitialize() has been invoked.

Definition at line 800 of file Algorithm.cpp.

StatusCode Algorithm::beginRun ( )
override

Algorithm begin run.

This method is called at the beginning of the event loop.

Definition at line 458 of file Algorithm.cpp.

unsigned int Algorithm::cardinality ( ) const
inlineoverride

Return the cardinality.

Definition at line 493 of file Algorithm.h.

493 { return m_cardinality; }
Gaudi::Property< int > m_cardinality
Definition: Algorithm.h:582
SmartIF<IChronoStatSvc>& Algorithm::chronoStatService ( ) const
inline

Definition at line 263 of file Algorithm.h.

263 { return chronoSvc(); }
SmartIF< IChronoStatSvc > & chronoSvc() const
The standard Chrono & Stat service, Return a pointer to the service if present.
Definition: Algorithm.cpp:801
SmartIF< IChronoStatSvc > & Algorithm::chronoSvc ( ) const

The standard Chrono & Stat service, Return a pointer to the service if present.

Definition at line 801 of file Algorithm.cpp.

void Algorithm::commitHandles ( )
override

Definition at line 971 of file Algorithm.cpp.

StatusCode Algorithm::configure ( )
inlineoverride

Dummy implementation of IStateful::configure() method.

Definition at line 176 of file Algorithm.h.

SmartIF< IAlgContextSvc > & Algorithm::contextSvc ( ) const

get Algorithm Context Service

Definition at line 811 of file Algorithm.cpp.

StatusCode Algorithm::createSubAlgorithm ( const std::string type,
const std::string name,
Algorithm *&  pSubAlg
)

Create a sub algorithm.

A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the sub-algorithm's properties. Using this mechanism instead of creating daughter algorithms directly via the new operator is prefered since then the framework may take care of all of the necessary book-keeping.

Parameters
typeThe concrete algorithm class of the sub algorithm
nameThe name to be given to the sub algorithm
pSubAlgSet to point to the newly created algorithm object

Definition at line 842 of file Algorithm.cpp.

template<class T >
void Algorithm::declareInfo ( const std::string name,
const T &  var,
const std::string desc
) const
inline

Declare monitoring information.

Parameters
nameMonitoring information name known to the external system
varMonitoring Listener address (the item to monitor...)
descTextual description of the information being monitored

Definition at line 415 of file Algorithm.h.

416  {
417  IMonitorSvc* mS = monitorSvc().get();
418  if ( mS ) mS->declareInfo( name, var, desc, this );
419  }
TYPE * get() const
Get interface pointer.
Definition: SmartIF.h:82
Definition of the IMonitorSvc interface, which publishes Gaudi variables to outside monitoring proces...
Definition: IMonitorSvc.h:24
SmartIF< IMonitorSvc > & monitorSvc() const
Access the monitor service.
Definition: Algorithm.h:400
virtual void declareInfo(const std::string &name, const bool &var, const std::string &desc, const IInterface *owner)=0
Declare monitoring information.
void Algorithm::declareInfo ( const std::string name,
const std::string format,
const void *  var,
int  size,
const std::string desc
) const
inline

Declare monitoring information (special case)

Parameters
nameMonitoring information name known to the external system
formatFormat information
varMonitoring Listener address
sizeMonitoring Listener address size
descTextual description of the information being monitored

Definition at line 428 of file Algorithm.h.

430  {
431  IMonitorSvc* mS = monitorSvc().get();
432  if ( mS ) mS->declareInfo( name, format, var, size, desc, this );
433  }
TYPE * get() const
Get interface pointer.
Definition: SmartIF.h:82
Definition of the IMonitorSvc interface, which publishes Gaudi variables to outside monitoring proces...
Definition: IMonitorSvc.h:24
SmartIF< IMonitorSvc > & monitorSvc() const
Access the monitor service.
Definition: Algorithm.h:400
virtual void declareInfo(const std::string &name, const bool &var, const std::string &desc, const IInterface *owner)=0
Declare monitoring information.
template<class T >
Gaudi::Details::PropertyBase* Algorithm::declareProperty ( const std::string name,
ToolHandle< T > &  hndl,
const std::string doc = "none"
)
inline

Definition at line 372 of file Algorithm.h.

374  {
375  this->declareTool( hndl, hndl.typeAndName() ).ignore();
376  return PropertyHolderImpl::declareProperty( name, hndl, doc );
377  }
Gaudi::Details::PropertyBase & declareProperty(Gaudi::Details::PropertyBase &prop)
Declare a property.
std::string typeAndName() const override
Definition: ToolHandle.h:246
StatusCode declareTool(ToolHandle< T > &handle, std::string toolTypeAndName, bool createIf=true)
Definition: Algorithm.h:450
template<class T >
Gaudi::Details::PropertyBase* Algorithm::declareProperty ( const std::string name,
ToolHandleArray< T > &  hndlArr,
const std::string doc = "none"
)
inline

Definition at line 383 of file Algorithm.h.

385  {
386  addToolsArray( hndlArr );
387  return PropertyHolderImpl::declareProperty( name, hndlArr, doc );
388  }
void addToolsArray(ToolHandleArray< T > &hndlArr)
Definition: Algorithm.h:466
Gaudi::Details::PropertyBase & declareProperty(Gaudi::Details::PropertyBase &prop)
Declare a property.
template<class T >
StatusCode Algorithm::declareTool ( ToolHandle< T > &  handle,
std::string  toolTypeAndName,
bool  createIf = true
)
inline

Definition at line 450 of file Algorithm.h.

451  {
452
453  StatusCode sc = handle.initialize( toolTypeAndName, handle.isPublic() ? nullptr : this, createIf );
454  if ( UNLIKELY( !sc ) ) {
455  throw GaudiException{std::string{"Cannot create handle for "} + ( handle.isPublic() ? "public" : "private" ) +
456  " tool " + toolTypeAndName,
457  name(), sc};
458  }
459
460  m_toolHandles.push_back( &handle );
461
462  return sc;
463  }
#define UNLIKELY(x)
Definition: Kernel.h:128
Define general base for Gaudi exception.
const std::string & name() const override
The identifying name of the algorithm object.
Definition: Algorithm.cpp:737
bool isPublic() const noexcept
Definition: ToolHandle.h:37
std::vector< BaseToolHandle * > m_toolHandles
Definition: Algorithm.h:524
STL class.
T push_back(T...args)
This class is used for returning status codes from appropriate routines.
Definition: StatusCode.h:26
StatusCode initialize(const std::string &toolTypeAndName, const IInterface *parent=nullptr, bool createIf=true)
Definition: ToolHandle.h:208
void Algorithm::deregisterTool ( IAlgTool tool) const

Definition at line 1000 of file Algorithm.cpp.

SmartIF< IConversionSvc > & Algorithm::detCnvSvc ( ) const

The standard detector data persistency conversion service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 803 of file Algorithm.cpp.

SmartIF<IConversionSvc>& Algorithm::detDataCnvService ( ) const
inline

Definition at line 275 of file Algorithm.h.

275 { return detCnvSvc(); }
SmartIF< IConversionSvc > & detCnvSvc() const
The standard detector data persistency conversion service.
Definition: Algorithm.cpp:803
SmartIF<IDataProviderSvc>& Algorithm::detDataService ( ) const
inline

Definition at line 269 of file Algorithm.h.

269 { return detSvc(); }
SmartIF< IDataProviderSvc > & detSvc() const
The standard detector data service.
Definition: Algorithm.cpp:802
SmartIF< IDataProviderSvc > & Algorithm::detSvc ( ) const

The standard detector data service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 802 of file Algorithm.cpp.

StatusCode Algorithm::endRun ( )
override

Algorithm end run. This method is called at the end of the event loop.

Definition at line 506 of file Algorithm.cpp.

unsigned int Algorithm::errorCount ( ) const

Get the number of failures of the algorithm.

Definition at line 1016 of file Algorithm.cpp.

SmartIF< IConversionSvc > & Algorithm::eventCnvSvc ( ) const

The standard event data persistency conversion service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 805 of file Algorithm.cpp.

SmartIF<IConversionSvc>& Algorithm::eventDataCnvService ( ) const
inline

Definition at line 289 of file Algorithm.h.

290  {
291  return eventCnvSvc();
292  }
SmartIF< IConversionSvc > & eventCnvSvc() const
The standard event data persistency conversion service.
Definition: Algorithm.cpp:805
SmartIF<IDataProviderSvc>& Algorithm::eventDataService ( ) const
inline

Definition at line 283 of file Algorithm.h.

283 { return eventSvc(); }
SmartIF< IDataProviderSvc > & eventSvc() const
The standard event data service.
Definition: Algorithm.cpp:804
SmartIF< IDataProviderSvc > & Algorithm::eventSvc ( ) const

The standard event data service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 804 of file Algorithm.cpp.

SmartIF<IDataProviderSvc>& Algorithm::evtSvc ( ) const
inline

shortcut for method eventSvc

Definition at line 282 of file Algorithm.h.

282 { return eventSvc(); }
SmartIF< IDataProviderSvc > & eventSvc() const
The standard event data service.
Definition: Algorithm.cpp:804
SmartIF< IExceptionSvc > & Algorithm::exceptionSvc ( ) const

Get the exception Service.

Definition at line 810 of file Algorithm.cpp.

bool Algorithm::filterPassed ( ) const
override

Did this algorithm pass or fail its filter criterion for the last event?

Definition at line 768 of file Algorithm.cpp.

StatusCode Algorithm::finalize ( )
inlineoverride

the default (empty) implementation of IStateful::finalize() method

Definition at line 187 of file Algorithm.h.

Gaudi::StateMachine::State Algorithm::FSMState ( ) const
inlineoverride

returns the current state of the algorithm

Definition at line 193 of file Algorithm.h.

193 { return m_state; }
Gaudi::StateMachine::State m_state
flag indicating whether ToolHandle tools have been added to m_tools
Definition: Algorithm.h:600
template<typename IFace >
SmartIF< IFace > & Algorithm::get_svc_ ( SmartIF< IFace > &  p,
const char *  service_name
) const
private

Definition at line 787 of file Algorithm.cpp.

const EventContext& Algorithm::getContext ( ) const
inlineoverride

get the context

Definition at line 438 of file Algorithm.h.

438 { return m_event_context; }
EventContext m_event_context
Definition: Algorithm.h:519
SmartIF<IHistogramSvc>& Algorithm::histogramDataService ( ) const
inline

Definition at line 298 of file Algorithm.h.

298 { return histoSvc(); }
SmartIF< IHistogramSvc > & histoSvc() const
The standard histogram service.
Definition: Algorithm.cpp:806
SmartIF< IHistogramSvc > & Algorithm::histoSvc ( ) const

The standard histogram service.

May not be invoked before sysInitialize() has been invoked.

Definition at line 806 of file Algorithm.cpp.

unsigned int Algorithm::index ( ) const
override

Definition at line 743 of file Algorithm.cpp.

StatusCode Algorithm::initialize ( )
inlineoverride

the default (empty) implementation of IStateful::initialize() method

Definition at line 181 of file Algorithm.h.

void Algorithm::initToolHandles ( ) const
private

Definition at line 863 of file Algorithm.cpp.

bool Algorithm::isEnabled ( ) const
override

Is this algorithm enabled or disabled?

Definition at line 766 of file Algorithm.cpp.

bool Algorithm::isExecuted ( ) const
override

Has this algorithm been executed since the last reset?

Definition at line 747 of file Algorithm.cpp.

bool Algorithm::isFinalized ( ) const
inlineoverrideprotected

Has the Algorithm already been finalized?

Definition at line 502 of file Algorithm.h.

Gaudi::StateMachine::State m_state
flag indicating whether ToolHandle tools have been added to m_tools
Definition: Algorithm.h:600
bool Algorithm::isInitialized ( ) const
inlineoverrideprotected

Has the Algorithm already been initialized?

Definition at line 499 of file Algorithm.h.

Gaudi::StateMachine::State m_state
flag indicating whether ToolHandle tools have been added to m_tools
Definition: Algorithm.h:600
bool Algorithm::isIOBound ( ) const
inline

Definition at line 474 of file Algorithm.h.

474 { return m_isIOBound; }
Gaudi::Property< bool > m_isIOBound
Definition: Algorithm.h:586
bool Algorithm::isSequence ( ) const
inlineoverride

Are we a Sequence?

Definition at line 220 of file Algorithm.h.

220 { return false; }
unsigned int Algorithm::maxErrors ( ) const
inlineprivate

Definition at line 512 of file Algorithm.h.

512 { return m_errorMax; }
Gaudi::Property< unsigned int > m_errorMax
Definition: Algorithm.h:561
SmartIF<IMonitorSvc>& Algorithm::monitorSvc ( ) const
inline

Access the monitor service.

Attention
Note that this method will return a NULL pointer if no monitor service is configured to be present. You must take this possibility into account when using the pointer
Returns
Pointer to the Monitor service
Return values
NULLNo monitor service is present
non-NULLA monitor service is present and available to be used

Definition at line 400 of file Algorithm.h.

401  {
402  // If not already located try to locate it without forcing a creation
403  if ( !m_pMonitorSvc ) {
404  m_pMonitorSvc = service( m_monitorSvcName, false, true ); // do not create and be quiet
405  }
406  return m_pMonitorSvc;
407  }
SmartIF< IMonitorSvc > m_pMonitorSvc
Online Monitoring Service.
Definition: Algorithm.h:544
Gaudi::Property< std::string > m_monitorSvcName
Definition: Algorithm.h:576
StatusCode service(const std::string &name, T *&psvc, bool createIf=true) const
Access a service by name, creating it if it doesn&#39;t already exist.
Definition: Algorithm.h:233
const std::string & Algorithm::name ( ) const
override

The identifying name of the algorithm object.

This is the name of a particular instantiation of an algorithm object as opposed to the name of the algorithm itself, e.g. "LinearTrackFit" may be the name of a concrete algorithm class, whereas "ApproxTrackFit" and "BestTrackFit" may be two instantiations of the class configured to find tracks with different fit criteria.

Definition at line 737 of file Algorithm.cpp.

const Gaudi::StringKey & Algorithm::nameKey ( ) const
override

Definition at line 739 of file Algorithm.cpp.

const std::vector<std::string>& Algorithm::neededResources ( ) const
inlineoverride

Definition at line 495 of file Algorithm.h.

495 { return m_neededResources; }
Gaudi::Property< std::vector< std::string > > m_neededResources
Definition: Algorithm.h:583
SmartIF<INTupleSvc>& Algorithm::ntupleService ( ) const
inline

Definition at line 304 of file Algorithm.h.

304 { return ntupleSvc(); }
SmartIF< INTupleSvc > & ntupleSvc() const
The standard N tuple service.
Definition: Algorithm.cpp:807
SmartIF< INTupleSvc > & Algorithm::ntupleSvc ( ) const

The standard N tuple service.

Returns a pointer to the N tuple service if present.

Definition at line 807 of file Algorithm.cpp.

Algorithm& Algorithm::operator= ( const Algorithm rhs)
private

Private assignment operator: NO ASSIGNMENT ALLOWED.

SmartIF< IRndmGenSvc > & Algorithm::randSvc ( ) const

The standard RandomGen service, Return a pointer to the service if present.

Definition at line 808 of file Algorithm.cpp.

bool Algorithm::registerContext ( ) const
inline

register for Algorithm Context Service?

Definition at line 336 of file Algorithm.h.

336 { return m_registerContext; }
Gaudi::Property< bool > m_registerContext
Definition: Algorithm.h:579
void Algorithm::registerTool ( IAlgTool tool) const

Definition at line 992 of file Algorithm.cpp.

StatusCode Algorithm::reinitialize ( )
override

the default (empty) implementation of IStateful::reinitialize() method

Definition at line 700 of file Algorithm.cpp.

void Algorithm::resetExecuted ( )
override

Reset the executed state of the Algorithm for the duration of the current event.

Definition at line 760 of file Algorithm.cpp.

StatusCode Algorithm::restart ( )
override

the default (empty) implementation of IStateful::restart() method

Definition at line 721 of file Algorithm.cpp.

template<class T >
StatusCode Algorithm::service ( const std::string name,
T *&  psvc,
bool  createIf = true
) const
inline

Access a service by name, creating it if it doesn't already exist.

Definition at line 233 of file Algorithm.h.

234  {
235  return service_i( name, createIf, T::interfaceID(), (void**)&psvc );
236  }
StatusCode service_i(const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
implementation of service method
Definition: Algorithm.cpp:951
template<class T >
StatusCode Algorithm::service ( const std::string svcType,
const std::string svcName,
T *&  psvc
) const
inline

Access a service by name and type, creating it if it doesn't already exist.

Definition at line 240 of file Algorithm.h.

241  {
242  return service_i( svcType, svcName, T::interfaceID(), (void**)&psvc );
243  }
StatusCode service_i(const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
implementation of service method
Definition: Algorithm.cpp:951
SmartIF< IService > Algorithm::service ( const std::string name,
const bool  createIf = true,
const bool  quiet = false
) const

Return a pointer to the service identified by name (or "type/name")

Definition at line 964 of file Algorithm.cpp.

template<class T >
SmartIF<T> Algorithm::service ( const std::string name,
bool  createIf = true,
bool  quiet = false
) const
inline

Definition at line 249 of file Algorithm.h.

250  {
251  return service( name, createIf, quiet ).as<T>();
252  }
StatusCode service(const std::string &name, T *&psvc, bool createIf=true) const
Access a service by name, creating it if it doesn&#39;t already exist.
Definition: Algorithm.h:233
StatusCode Algorithm::service_i ( const std::string svcName,
bool  createIf,
const InterfaceID iid,
void **  ppSvc
) const
private

implementation of service method

Protected Member Functions.

Definition at line 951 of file Algorithm.cpp.

StatusCode Algorithm::service_i ( const std::string svcType,
const std::string svcName,
const InterfaceID iid,
void **  ppSvc
) const
private

Definition at line 957 of file Algorithm.cpp.

SmartIF< ISvcLocator > & Algorithm::serviceLocator ( ) const
override

The standard service locator.

Returns a pointer to the service locator service. This service may be used by an algorithm to request any services it requires in addition to those provided by default.

Definition at line 815 of file Algorithm.cpp.

void Algorithm::setExecuted ( bool  state) const
override

Set the executed flag to the specified state.

Definition at line 753 of file Algorithm.cpp.

void Algorithm::setFilterPassed ( bool  state) const
override

Set the filter passed flag to the specified state.

Definition at line 774 of file Algorithm.cpp.

void Algorithm::setIndex ( const unsigned int &  idx)
overrideprotected

set instantiation index of Alg

Definition at line 745 of file Algorithm.cpp.

void Algorithm::setIOBound ( bool  value)
inline

Definition at line 476 of file Algorithm.h.

476 { m_isIOBound = value; }
Gaudi::Property< bool > m_isIOBound
Definition: Algorithm.h:586
StatusCode Algorithm::setProperties ( )

Set the algorithm's properties.

This method requests the job options service to set the values of any declared properties. The method is invoked from within sysInitialize() by the framework and does not need to be explicitly called by a concrete algorithm.

Definition at line 818 of file Algorithm.cpp.

void Algorithm::setType ( const std::string type)
inlineoverride

Definition at line 169 of file Algorithm.h.

169 { m_type = type; } // BH, TODO: move to proper place
std::string m_type
Algorithm&#39;s type.
Definition: Algorithm.h:516
const std::string & type() const override
The type of the algorithm object.
Definition: Algorithm.h:168
StatusCode Algorithm::start ( )
inlineoverride

the default (empty) implementation of IStateful::start() method

Definition at line 183 of file Algorithm.h.

StatusCode Algorithm::stop ( )
inlineoverride

the default (empty) implementation of IStateful::stop() method

Definition at line 185 of file Algorithm.h.

const std::vector< Algorithm * > * Algorithm::subAlgorithms ( ) const

List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

Definition at line 782 of file Algorithm.cpp.

std::vector< Algorithm * > * Algorithm::subAlgorithms ( )

List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

Definition at line 784 of file Algorithm.cpp.

SmartIF<ISvcLocator>& Algorithm::svcLoc ( ) const
inline

shortcut for method serviceLocator

Definition at line 329 of file Algorithm.h.

329 { return serviceLocator(); }
SmartIF< ISvcLocator > & serviceLocator() const override
The standard service locator.
Definition: Algorithm.cpp:815
StatusCode Algorithm::sysBeginRun ( )
override

beginRun method invoked by the framework.

This method is responsible for any beginRun actions required by the framework itself. It will in turn invoke the beginRun() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 413 of file Algorithm.cpp.

StatusCode Algorithm::sysEndRun ( )
override

endRun method invoked by the framework.

This method is responsible for any endRun actions required by the framework itself. It will in turn invoke the endRun() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 461 of file Algorithm.cpp.

StatusCode Algorithm::sysExecute ( const EventContext ctx)
override

The actions to be performed by the algorithm on an event.

This method is invoked once per event for top level algorithms by the application manager. This method invokes execute() method. For sub-algorithms either the sysExecute() method or execute() method must be EXPLICITLY invoked by the parent algorithm.

Definition at line 508 of file Algorithm.cpp.

StatusCode Algorithm::sysFinalize ( )
override

System finalization.

This method invokes the finalize() method of a concrete algorithm and the finalize() methods of all of that algorithm's sub algorithms.

Definition at line 649 of file Algorithm.cpp.

StatusCode Algorithm::sysInitialize ( )
override

Initialization method invoked by the framework.

This method is responsible for any bookkeeping of initialization required by the framework itself. It will in turn invoke the initialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 78 of file Algorithm.cpp.

81  : Algorithm( name, Gaudi::svcLocator() ), m_self( self )
82 {
83  // The owner of the Algorithm is Python (as creator) therefore
84  // it should not be deleted by Gaudi (added an extra addRef()).
85  addRef();
86  addRef();
87 }
88 // ============================================================================
89
90 // ============================================================================
92 // ============================================================================
94 // ============================================================================
96 // ============================================================================
98 // ============================================================================
100
103
StatusCode finalize() override
Definition: Algorithm.cpp:99
StatusCode execute() override
Definition: Algorithm.cpp:95
const std::string & name() const override
The identifying name of the algorithm object.
Definition: Algorithm.cpp:737
StatusCode endRun() override
Definition: Algorithm.cpp:102
StatusCode initialize() override
Definition: Algorithm.cpp:91
GAUDI_API ISvcLocator * svcLocator()
This class is used for returning status codes from appropriate routines.
Definition: StatusCode.h:26
StatusCode stop() override
Definition: Algorithm.cpp:97
Algorithm(const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
Constructor.
Definition: Algorithm.cpp:47
StatusCode beginRun() override
Definition: Algorithm.cpp:101
StatusCode start() override
Definition: Algorithm.cpp:93
GAUDI_API StatusCode call_python_method(PyObject *self, const char *method)
call the python method
Definition: Algorithm.cpp:29
StatusCode Algorithm::sysReinitialize ( )
override

Reinitialization method invoked by the framework.

This method is responsible for any reinitialization required by the framework itself. It will in turn invoke the reinitialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 302 of file Algorithm.cpp.

StatusCode Algorithm::sysRestart ( )
override

Restart method invoked by the framework.

It will in turn invoke the restart() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 360 of file Algorithm.cpp.

StatusCode Algorithm::sysStart ( )
override

Reinitialization method invoked by the framework.

This method is responsible for any reinitialization required by the framework itself. It will in turn invoke the reinitialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 250 of file Algorithm.cpp.

StatusCode Algorithm::sysStop ( )
override

System stop.

This method invokes the stop() method of a concrete algorithm and the stop() methods of all of that algorithm's sub algorithms.

Definition at line 602 of file Algorithm.cpp.

Gaudi::StateMachine::State Algorithm::targetFSMState ( ) const
inlineoverride

returns the state the algorithm will be in after the ongoing transition

Definition at line 195 of file Algorithm.h.

195 { return m_targetState; }
Gaudi::StateMachine::State m_targetState
Algorithm has been initialized flag.
Definition: Algorithm.h:601
StatusCode Algorithm::terminate ( )
inlineoverride

Dummy implementation of IStateful::terminate() method.

Definition at line 178 of file Algorithm.h.

SmartIF< ITimelineSvc > & Algorithm::timelineSvc ( ) const

Definition at line 812 of file Algorithm.cpp.

std::ostream & Algorithm::toControlFlowExpression ( std::ostream os) const
override

Produce string represention of the control flow expression.

Definition at line 1011 of file Algorithm.cpp.

const std::vector< IAlgTool * > & Algorithm::tools ( ) const

Definition at line 935 of file Algorithm.cpp.

std::vector< IAlgTool * > & Algorithm::tools ( )
protected

Definition at line 941 of file Algorithm.cpp.

SmartIF< IToolSvc > & Algorithm::toolSvc ( ) const

The standard ToolSvc service, Return a pointer to the service if present.

Definition at line 809 of file Algorithm.cpp.

const std::string& Algorithm::type ( ) const
inlineoverride

The type of the algorithm object.

Definition at line 168 of file Algorithm.h.

168 { return m_type; }
std::string m_type
Algorithm&#39;s type.
Definition: Algorithm.h:516
const std::string & Algorithm::version ( ) const
override

Definition at line 741 of file Algorithm.cpp.

SmartIF< IHiveWhiteBoard > & Algorithm::whiteboard ( ) const

Definition at line 813 of file Algorithm.cpp.

Member Data Documentation

friend Algorithm::AlgorithmManager

Definition at line 87 of file Algorithm.h.

SmartIF<IAlgExecStateSvc> Algorithm::m_aess
mutableprivate

Alg execution state mgr.

Definition at line 548 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditInit {this, "AuditAlgorithms", false, "[[deprecated]] unused"}
private

Definition at line 563 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorBeginRun {this, "AuditBeginRun", false, "trigger auditor on beginRun()"}
private

Definition at line 569 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorEndRun {this, "AuditEndRun", false, "trigger auditor on endRun()"}
private

Definition at line 570 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorExecute {this, "AuditExecute", false, "trigger auditor on execute()"}
private

Definition at line 567 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorFinalize {this, "AuditFinalize", false, "trigger auditor on finalize()"}
private

Definition at line 568 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorInitialize {this, "AuditInitialize", false, "trigger auditor on initialize()"}
private

Definition at line 564 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorReinitialize {this, "AuditReinitialize", false, "trigger auditor on reinitialize()"}
private

Definition at line 565 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorRestart {this, "AuditRestart", false, "trigger auditor on restart()"}
private

Definition at line 566 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorStart {this, "AuditStart", false, "trigger auditor on start()"}
private

Definition at line 571 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_auditorStop {this, "AuditStop", false, "trigger auditor on stop()"}
private

Definition at line 572 of file Algorithm.h.

Gaudi::Property<int> Algorithm::m_cardinality {this, "Cardinality", 1, "how many clones to create - 0 means algo is reentrant"}
private

Definition at line 582 of file Algorithm.h.

SmartIF<IAlgContextSvc> Algorithm::m_contextSvc
mutableprivate

Algorithm Context Service.

Definition at line 545 of file Algorithm.h.

SmartIF<IChronoStatSvc> Algorithm::m_CSS
mutableprivate

Chrono & Stat Service.

Definition at line 539 of file Algorithm.h.

SmartIF<IConversionSvc> Algorithm::m_DCS
mutableprivate

Detector conversion service.

Definition at line 536 of file Algorithm.h.

SmartIF<IDataProviderSvc> Algorithm::m_DDS
mutableprivate

Detector data service.

Definition at line 535 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_doTimeline {this, "Timeline", true, "send events to TimelineSvc"}
private

Definition at line 574 of file Algorithm.h.

SmartIF<IConversionSvc> Algorithm::m_ECS
mutableprivate

Event conversion service.

Definition at line 534 of file Algorithm.h.

SmartIF<IDataProviderSvc> Algorithm::m_EDS
mutableprivate

Event data service.

Definition at line 532 of file Algorithm.h.

Gaudi::Property<unsigned int> Algorithm::m_errorMax {this, "ErrorMax", 1, "[[deprecated]] max number of errors"}
private

Definition at line 561 of file Algorithm.h.

EventContext Algorithm::m_event_context
private

Definition at line 519 of file Algorithm.h.

SmartIF<IExceptionSvc> Algorithm::m_EXS
mutableprivate

Exception Handler Service.

Definition at line 541 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_filterCircDeps
private
Initial value:
{this, "FilterCircularDependencies", true,
"filter out circular data dependencies"}

Definition at line 590 of file Algorithm.h.

bool Algorithm::m_filterPassed = true
private

Filter passed flag.

Definition at line 595 of file Algorithm.h.

SmartIF<IHistogramSvc> Algorithm::m_HDS
mutableprivate

Histogram data service.

Definition at line 537 of file Algorithm.h.

unsigned int Algorithm::m_index
private

Algorithm's index.

Definition at line 518 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_isEnabled {this, "Enable", true, "should the algorithm be executed or not"}
private

Definition at line 559 of file Algorithm.h.

bool Algorithm::m_isExecuted = false
private

Algorithm is executed flag.

Definition at line 596 of file Algorithm.h.

bool Algorithm::m_isFinalized
private

Algorithm has been finalized flag.

Definition at line 602 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_isIOBound
private
Initial value:
{this, "IsIOBound", false,
"if the algorithm is I/O-bound (in the broad sense of Von Neumann bottleneck)"}

Definition at line 586 of file Algorithm.h.

std::mutex Algorithm::m_lock
private

for re-entrant Algs

Definition at line 593 of file Algorithm.h.

Gaudi::Property<std::string> Algorithm::m_monitorSvcName
private
Initial value:
{this, "MonitorService", "MonitorSvc",
"name to use for Monitor Service"}

Definition at line 576 of file Algorithm.h.

SmartIF<IMessageSvc> Algorithm::m_MS
mutableprivate

Message service.

Definition at line 531 of file Algorithm.h.

Gaudi::StringKey Algorithm::m_name
private

Algorithm's name for identification.

Definition at line 515 of file Algorithm.h.

Gaudi::Property<std::vector<std::string> > Algorithm::m_neededResources
private
Initial value:
{
this, "NeededResources", {}, "named resources needed during event looping"}

Definition at line 583 of file Algorithm.h.

SmartIF<INTupleSvc> Algorithm::m_NTS
mutableprivate

N tuple service.

Definition at line 538 of file Algorithm.h.

Gaudi::Property<int> Algorithm::m_outputLevel {this, "OutputLevel", MSG::NIL, "output level"}
private

Definition at line 558 of file Algorithm.h.

SmartIF<IAuditorSvc> Algorithm::m_pAuditorSvc
mutableprivate

Auditor Service.

Definition at line 542 of file Algorithm.h.

SmartIF<IMonitorSvc> Algorithm::m_pMonitorSvc
mutableprivate

Online Monitoring Service.

Definition at line 544 of file Algorithm.h.

SmartIF<ISvcLocator> Algorithm::m_pSvcLocator
private

Pointer to service locator service.

Definition at line 550 of file Algorithm.h.

SmartIF<IToolSvc> Algorithm::m_ptoolSvc
mutableprivate

ToolSvc Service.

Definition at line 543 of file Algorithm.h.

Gaudi::Property<bool> Algorithm::m_registerContext
private
Initial value:
{this, "RegisterForContextService", false,
"flag to enforce the registration for Algorithm Context Service"}

Definition at line 579 of file Algorithm.h.

SmartIF<IRndmGenSvc> Algorithm::m_RGS
mutableprivate

Random Number Generator Service.

Definition at line 540 of file Algorithm.h.

flag indicating whether ToolHandle tools have been added to m_tools

Algorithm has been initialized flag

Definition at line 600 of file Algorithm.h.

std::vector<Algorithm*> Algorithm::m_subAlgms
private

Sub algorithms.

Definition at line 520 of file Algorithm.h.

Gaudi::StateMachine::State Algorithm::m_targetState = Gaudi::StateMachine::CONFIGURED
private

Algorithm has been initialized flag.

Definition at line 601 of file Algorithm.h.

SmartIF<ITimelineSvc> Algorithm::m_timelineSvc
mutableprivate

Timeline Service.

Definition at line 547 of file Algorithm.h.

std::vector<GaudiHandleArrayBase*> Algorithm::m_toolHandleArrays
mutableprivate

Definition at line 525 of file Algorithm.h.

std::vector<BaseToolHandle*> Algorithm::m_toolHandles
mutableprivate

Definition at line 524 of file Algorithm.h.

bool Algorithm::m_toolHandlesInit = false
mutableprivate

Definition at line 598 of file Algorithm.h.

std::vector<IAlgTool*> Algorithm::m_tools
mutableprivate

Definition at line 523 of file Algorithm.h.

std::string Algorithm::m_type
private

Algorithm's type.

Definition at line 516 of file Algorithm.h.

std::unique_ptr<IDataHandleVisitor> Algorithm::m_updateDataHandles
protected

Hook for for derived classes to provide a custom visitor for data handles.

Definition at line 554 of file Algorithm.h.

std::string Algorithm::m_version
private

Algorithm's version.

Definition at line 517 of file Algorithm.h.

SmartIF<IHiveWhiteBoard> Algorithm::m_WB
mutableprivate

Event data service (whiteboard)

Definition at line 533 of file Algorithm.h.


The documentation for this class was generated from the following files:
